Simracing VoCore 6.8" DDU with extended mount
Print Profile(1)
Description

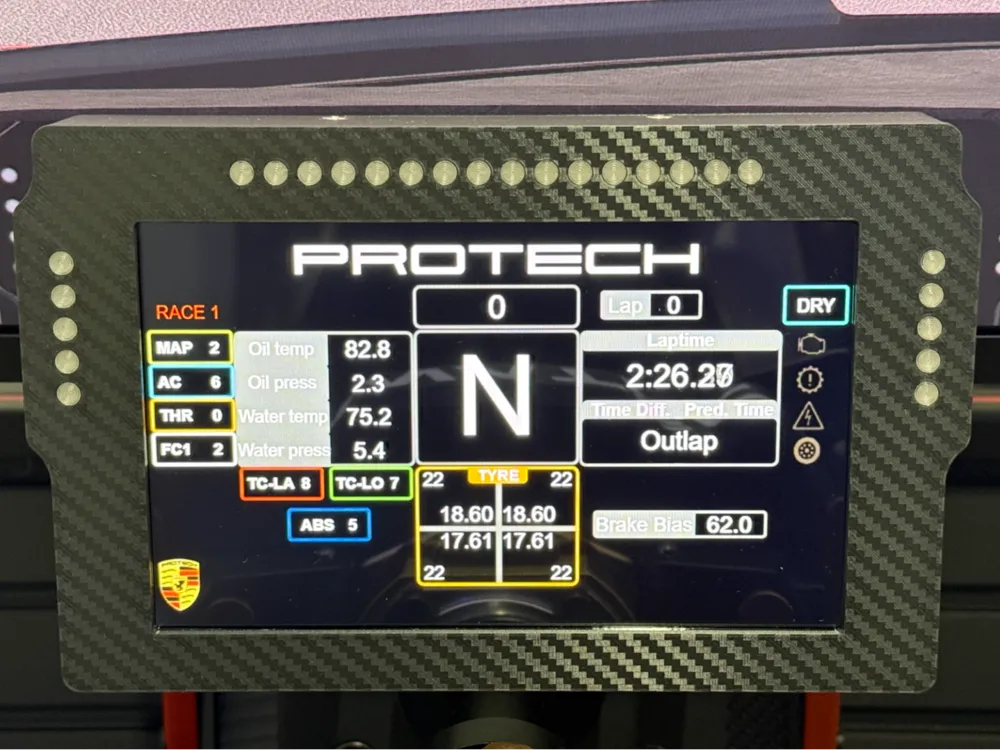

Thanks to the great original design I was able to optimise it slightly and create an extended magnetic mount to suit my needs. For detailed instructions please see the original design.
Key changes:
- Reduced the overall thickness of the DDU by 2 mm
- Thickened the backing plate by 1 mm
- Removed the center cable holder, as it was getting in the way of my cable management
- Use this square USB-C female connector and mounted it on the back for a cleaner look
- Made the LED support solid and removed the upper heat grille, as I found it unnecessary and difficult to print cleanly
- Updated the TPU screen gasket size and thickness

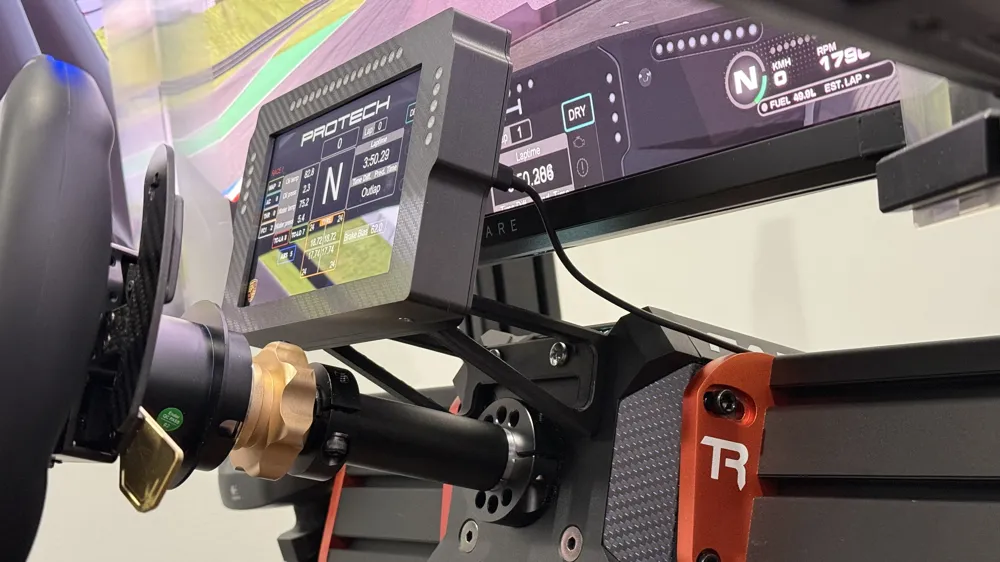

- Added an extended magnetic mounting bracket for my Fanatec DD1 and triple 27" monitor setup (uses six 15×3 mm magnets)
- Added four M3 thumb screws for bracket mounting on the back
This remix is based on
License
You may create derivative works based on this object, provided that all such derivative works are published exclusively on the MakerWorld platform and include proper attribution to the original creator. You may not share, upload, host, distribute, or publish this object—or any derivative work of this object—on any other digital platform, marketplace, or distribution channel. Commercial use of this object and any derivative works is strictly prohibited. This includes, but is not limited to, selling, renting, sublicensing, or using the object in any context in which you receive monetary compensation or other financial benefits.
