🌿 Pin Up — Pluggable Emotion Photo Frame
A storytelling instant photo frame
Model Details
Some moments cannot be captured by just one photo
Was the sky clear or rainy that day? Where were you? How did you feel

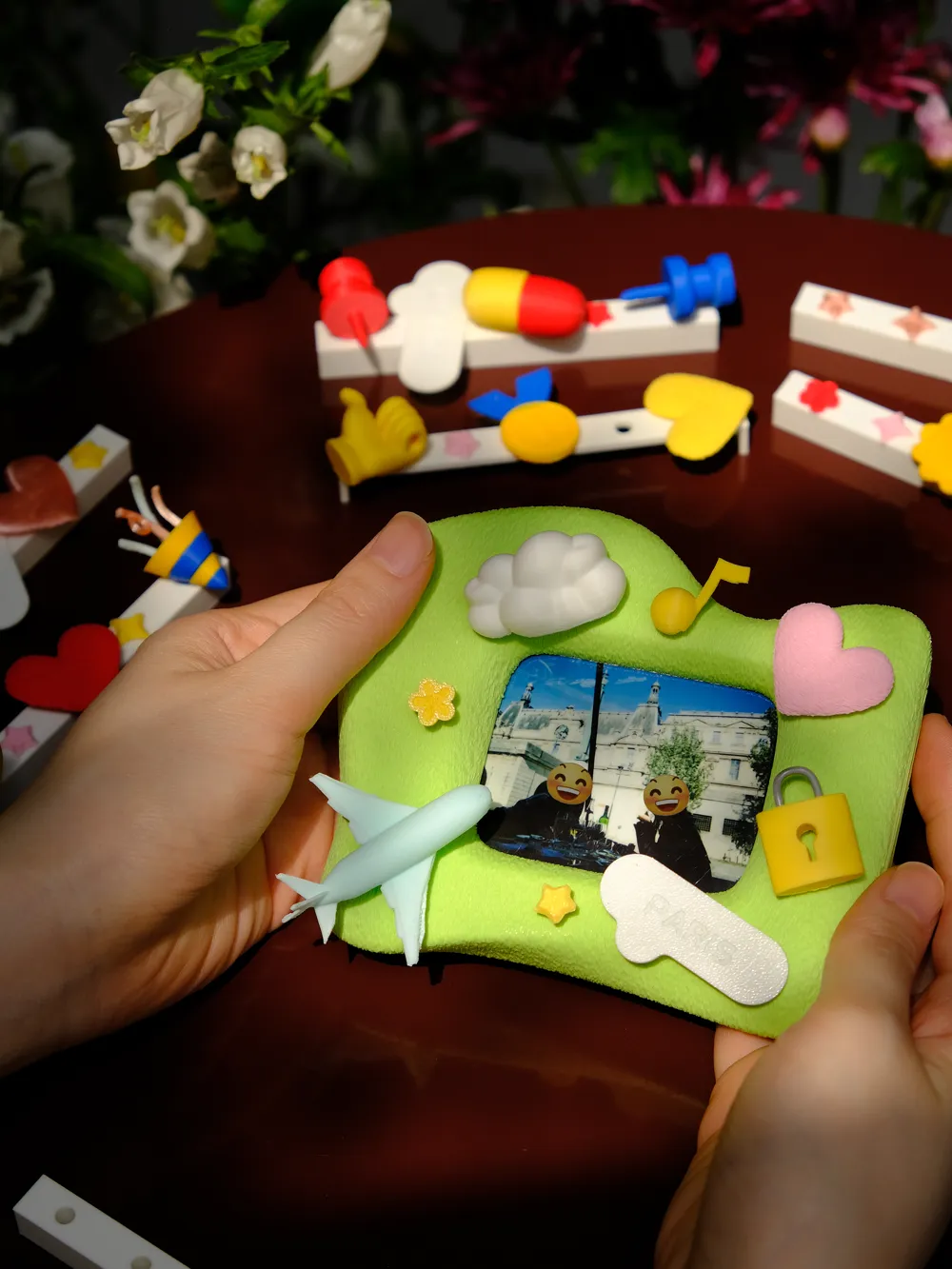

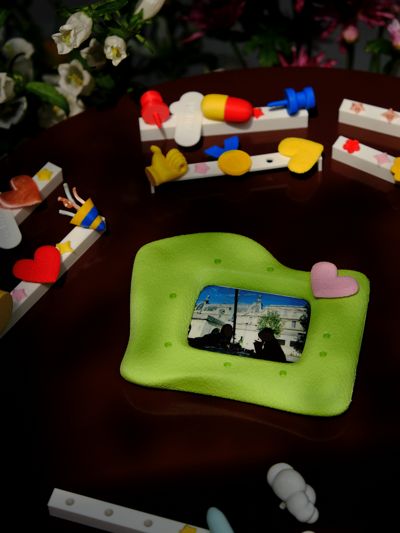

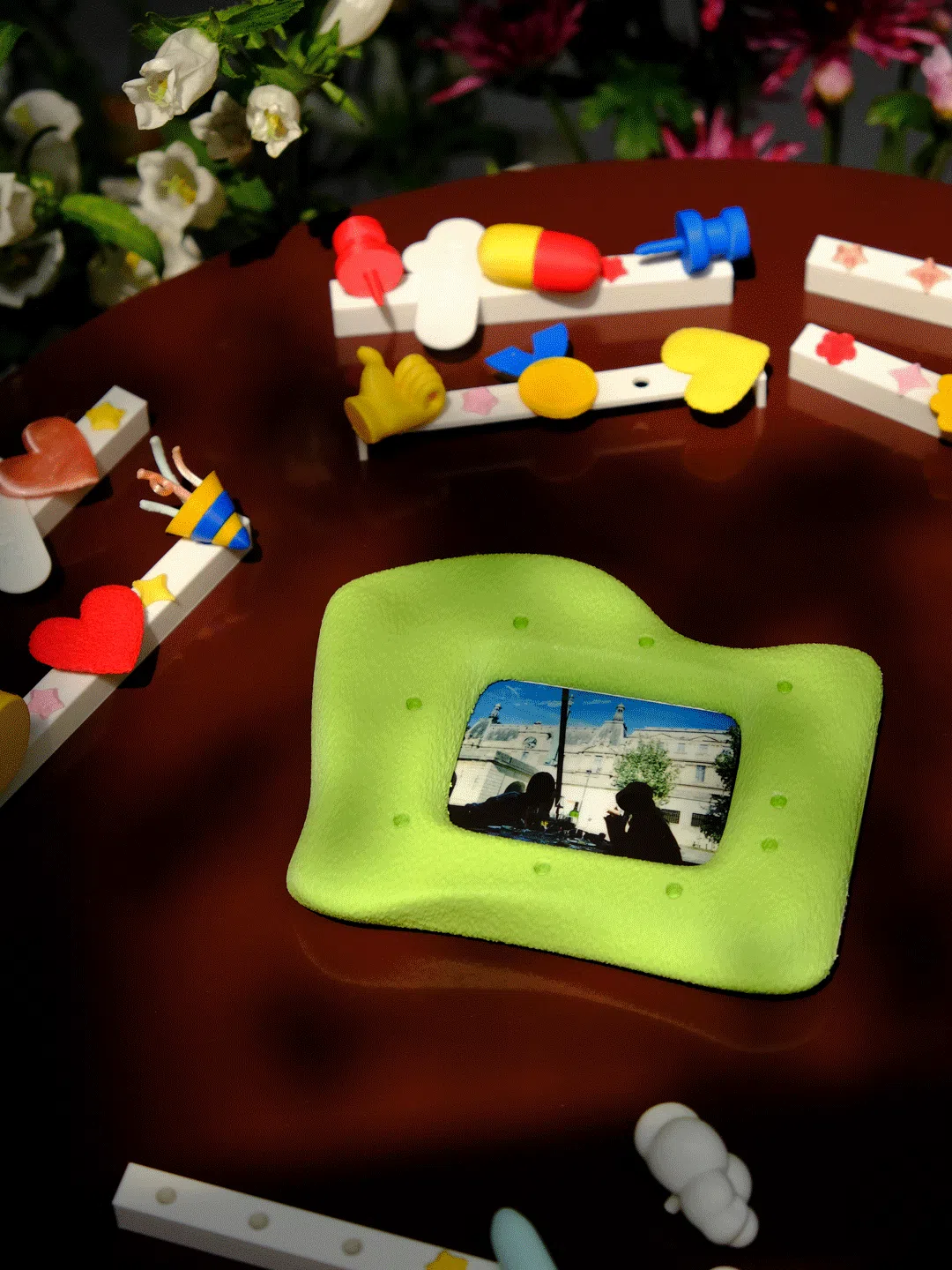

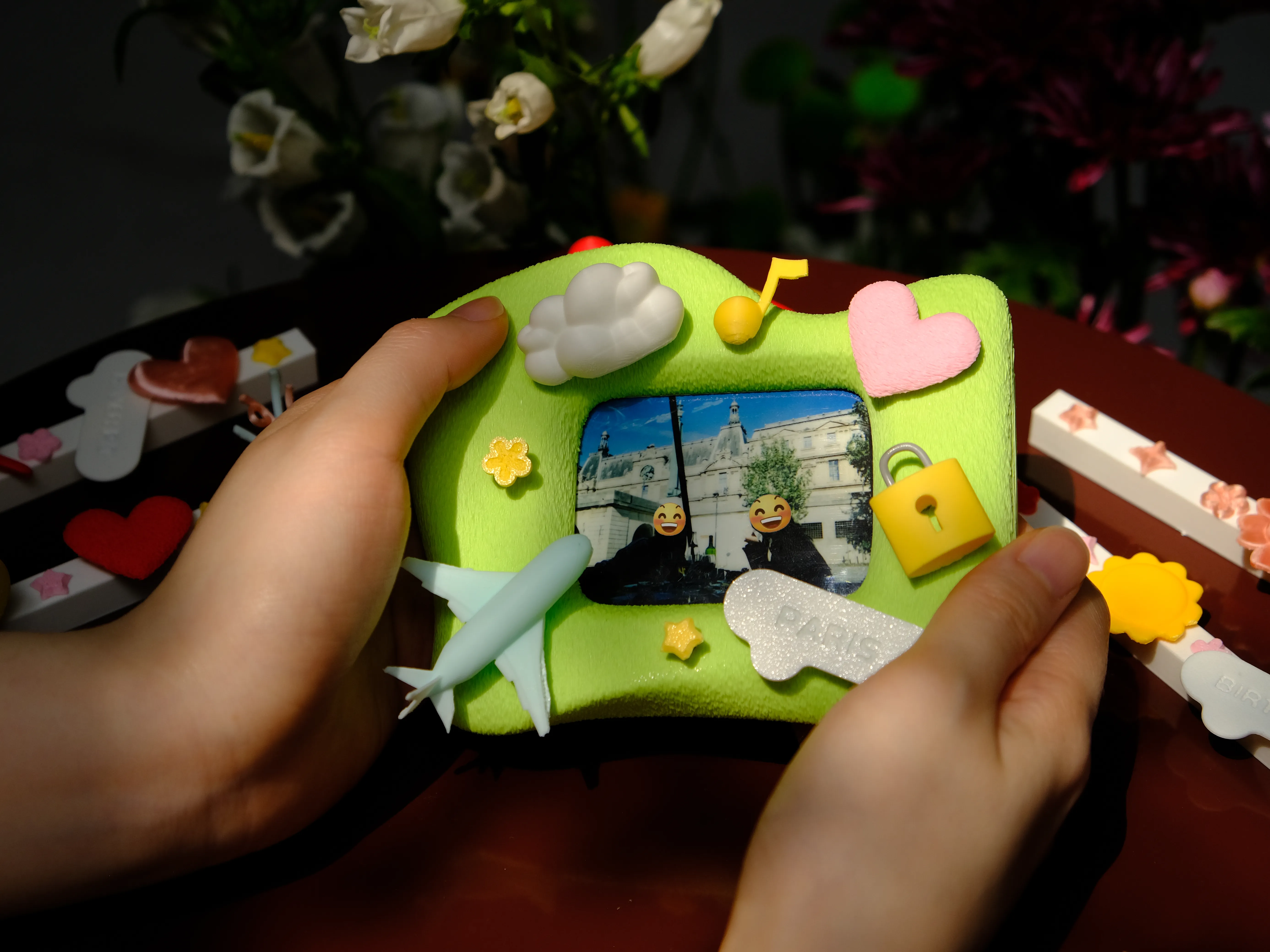

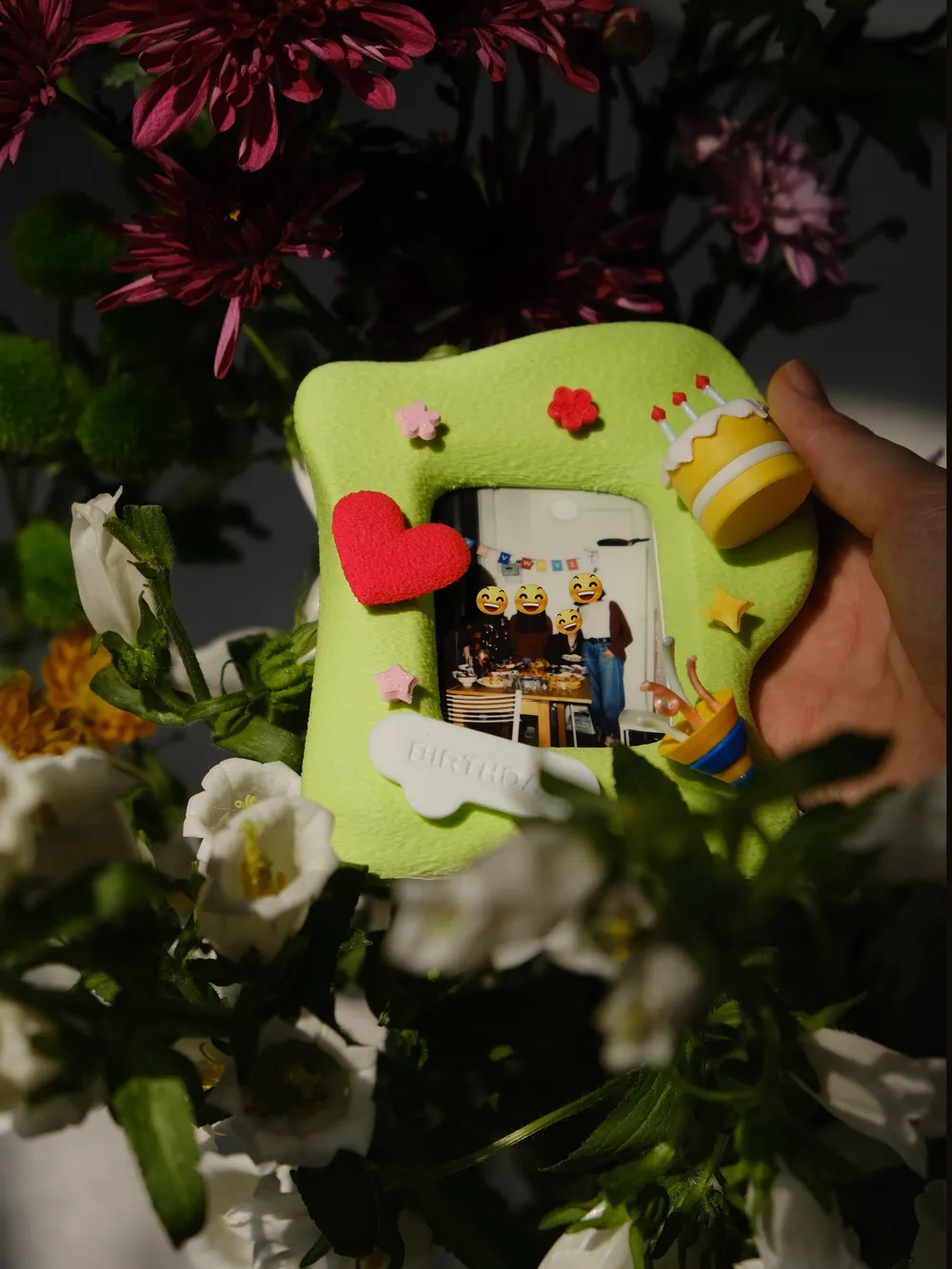

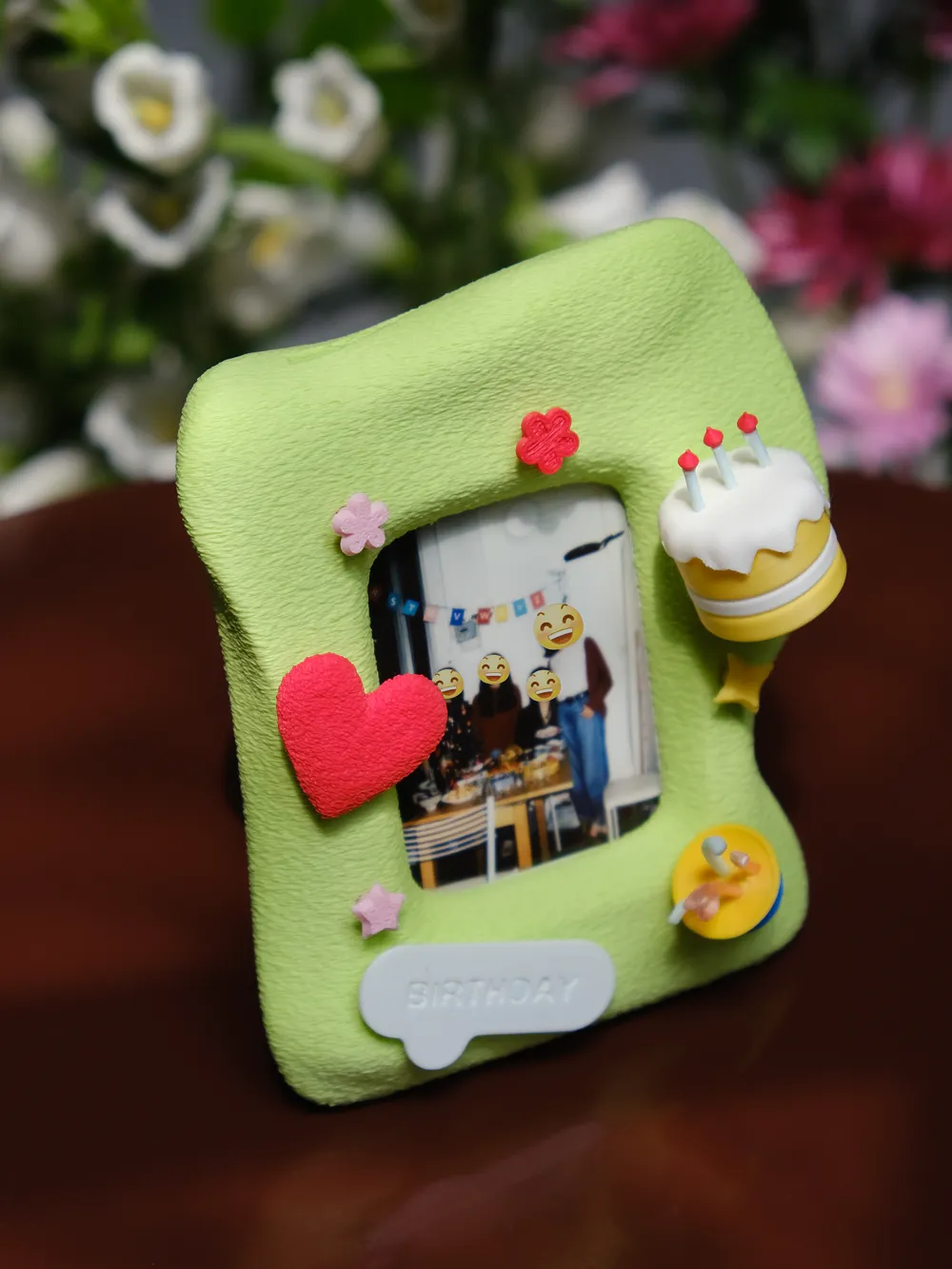

Pin Up is a storytelling Fujifilm Instax Mini photo frame. It features a ring of small holes around the edge where physical emoji accessories can be screwed in—sun, cloudy, rain, heart, cake, fireworks, small flower, star, location sign, location pin, wine glass, lock, etc. Mix and match freely to transform the weather, location, and mood of that day into small physical objects standing next to the photo
It's not just a photo frame, it's the complete representation of that day
Design

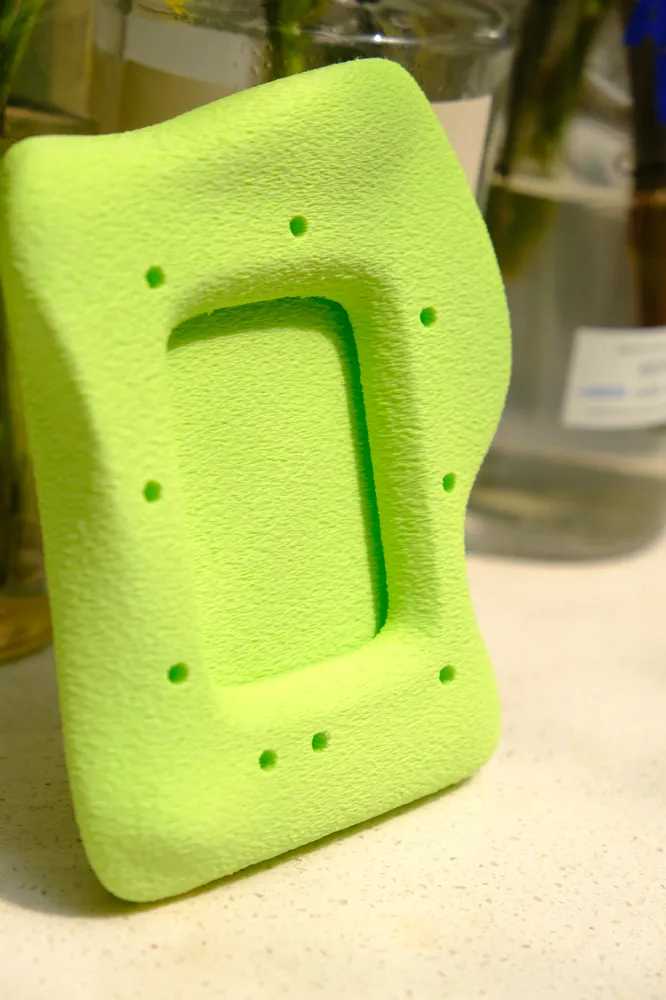

- Plush Grass Texture: The photo frame's shape uses vibrant bionic curves and rock cavern imagery. We used Bambu PLA Matte 11502 Fruit Green, with specially tuned printing parameters, to achieve a delicate, velvety grass-like texture

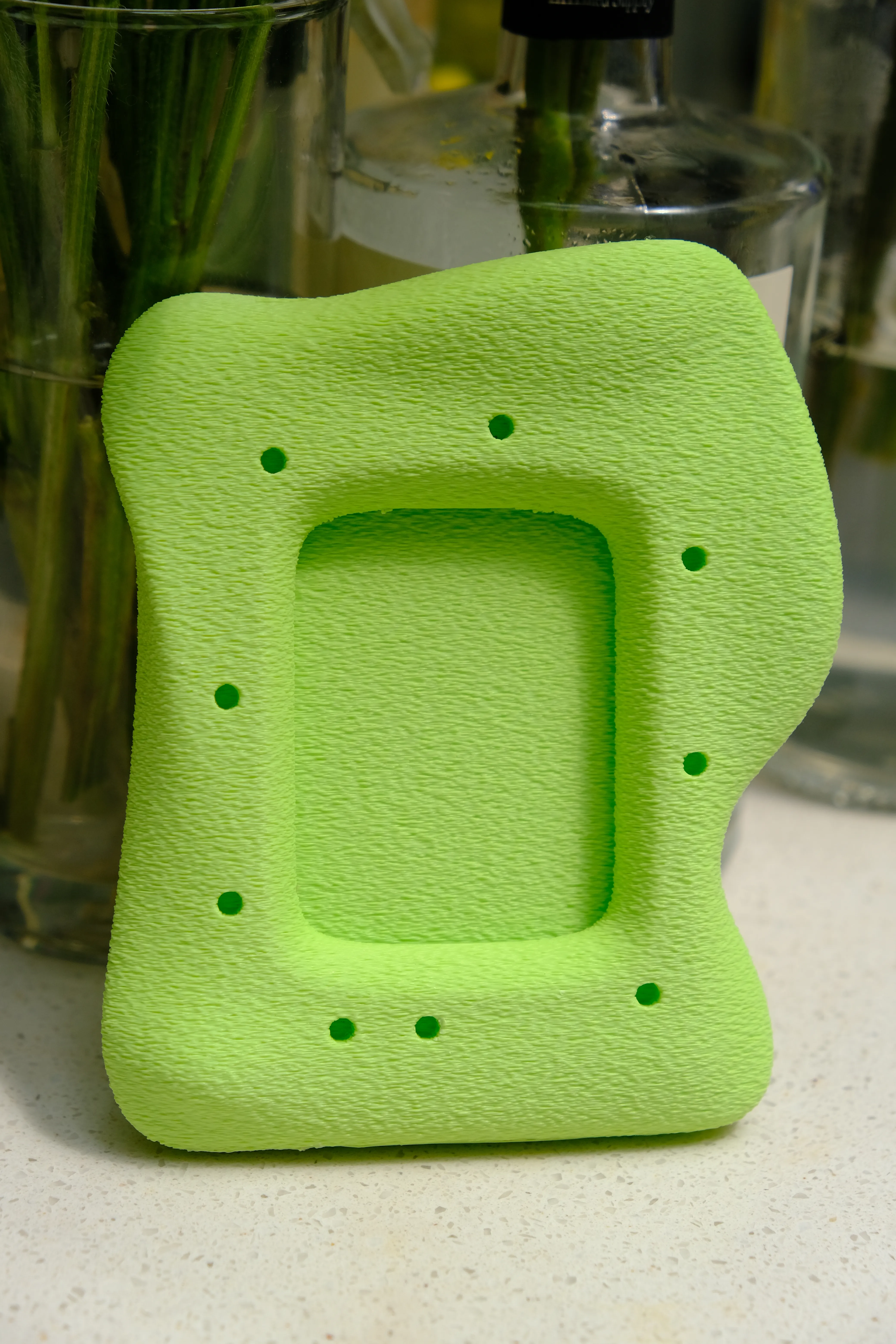

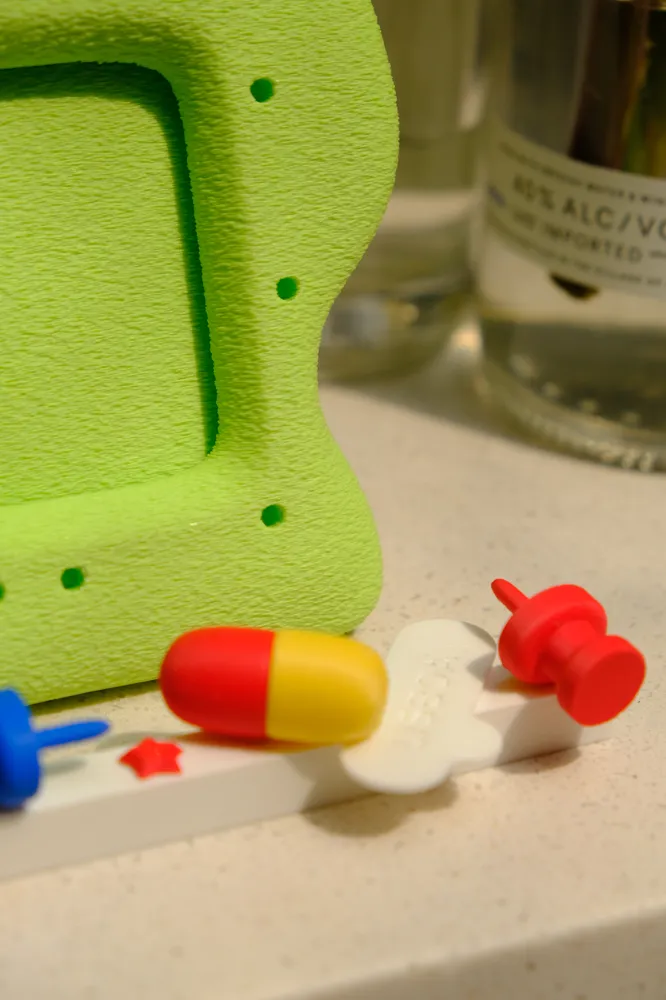

- Pluggable Emotions: The photo frame has a ring of small holes around it where accessories can be clockwise screwed in and secured, allowing for free combination and replacement. Existing accessories include: ☀️ sun, ☁️ cloudy, 🌧️ rainy, ❤️ heart, 🎂 cake, 🎉 fireworks, 🌸 small flower, ⭐ star, 📍 location pin, 🪧 text location sign (customizable), 🔒 lock, ✈️ plane, etc

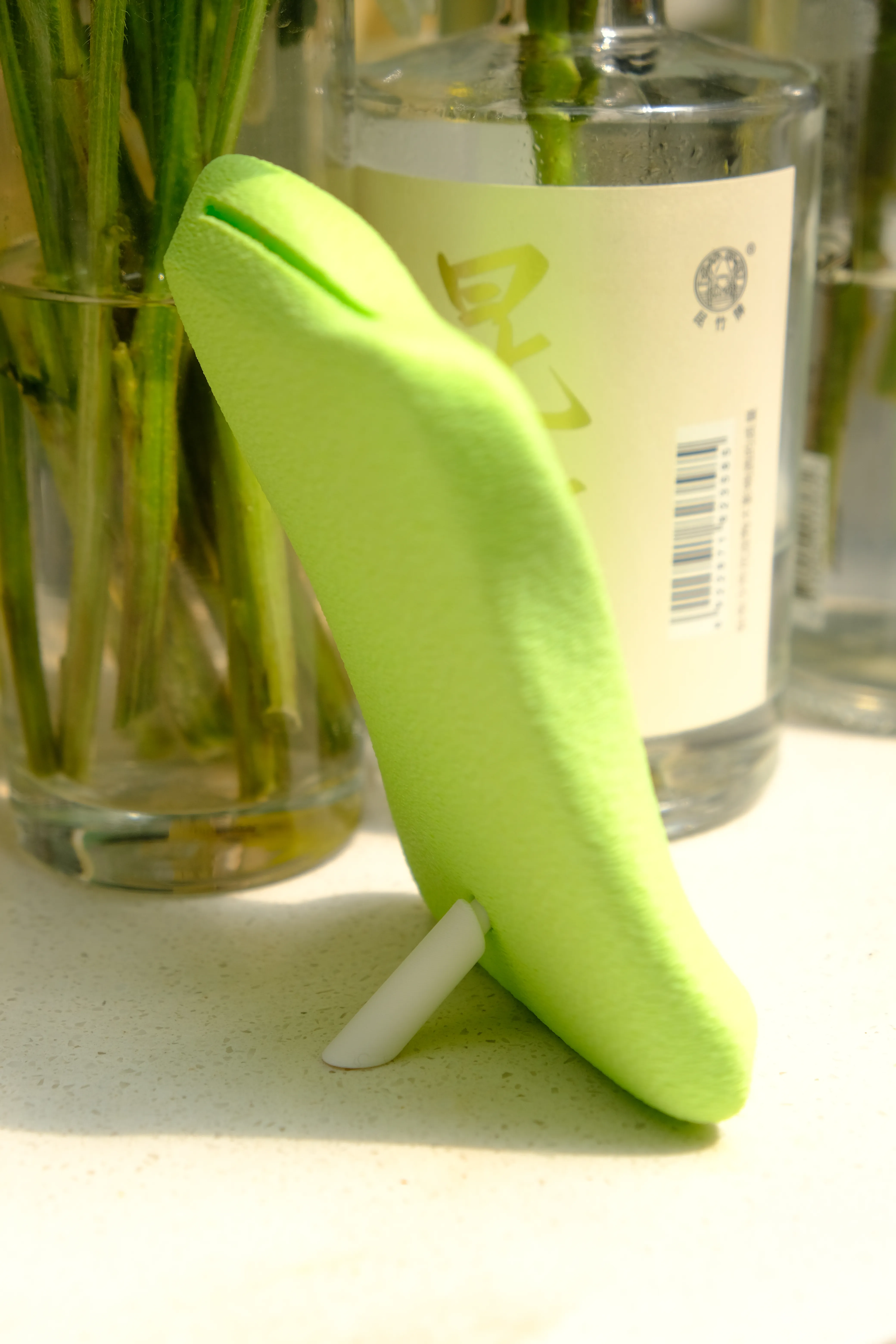

- Freestanding: A support rod can be inserted into the back for stable upright display, perfect for desktop presentation
- Fits Fujifilm Instax Mini Photo Paper: Sized specifically for instant photos, it makes an excellent souvenir and a heartfelt gift—for birthdays, anniversaries, or after a trip, to give to someone you care about

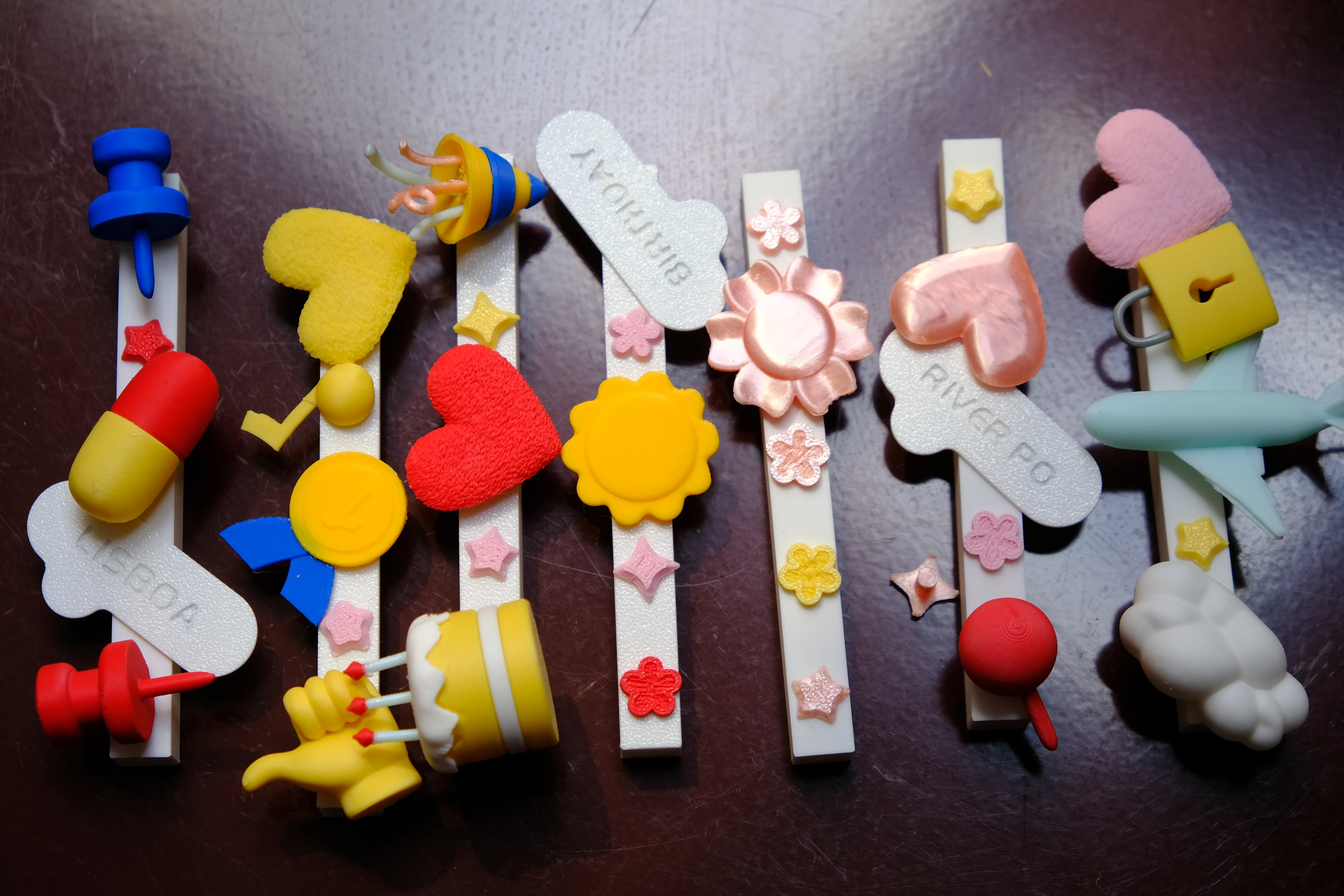

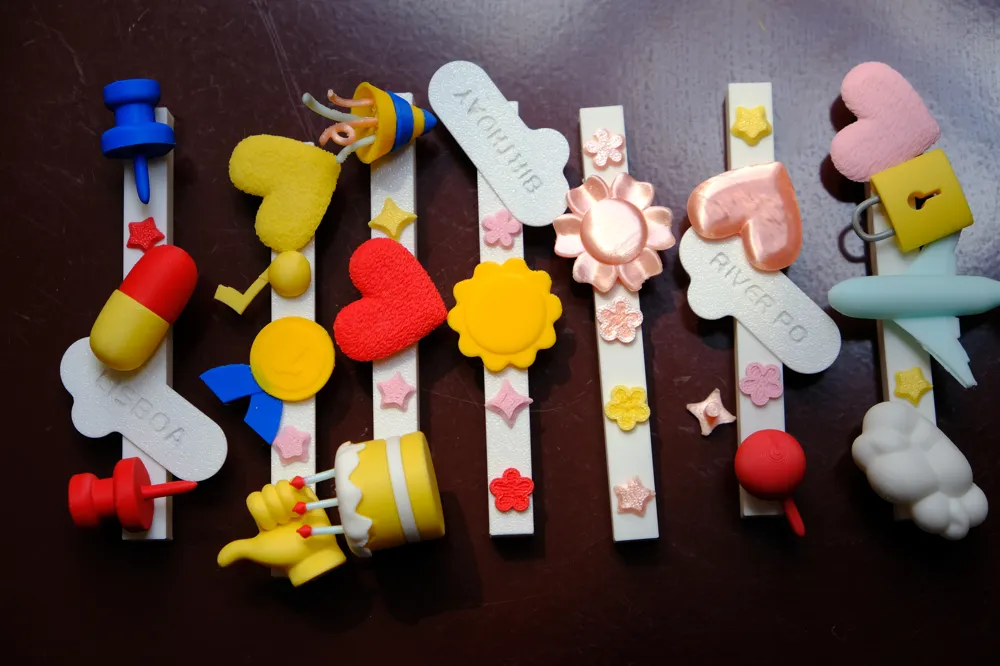

- Decorative Pieces are Stowable: We designed storage strips for the small accessories, allowing them to be arranged on the strips before being placed in the photo frame, reusable
Printing Recommendations
- The main body is Print in Place, prints smoothly, and supports can be removed normally
- The plush grass texture requires special printing parameter calibration; please use the slicing profile provided in the file. It is not recommended to modify layer height and speed yourself
- Accessories are small; please note the following when printing:
- Supports must be carefully removed. It is recommended to use flush cutters to avoid damaging the accessory itself
- After printing, use flush cutters to trim burrs, then gently shape with a lighter or heat gun, and let cool to set

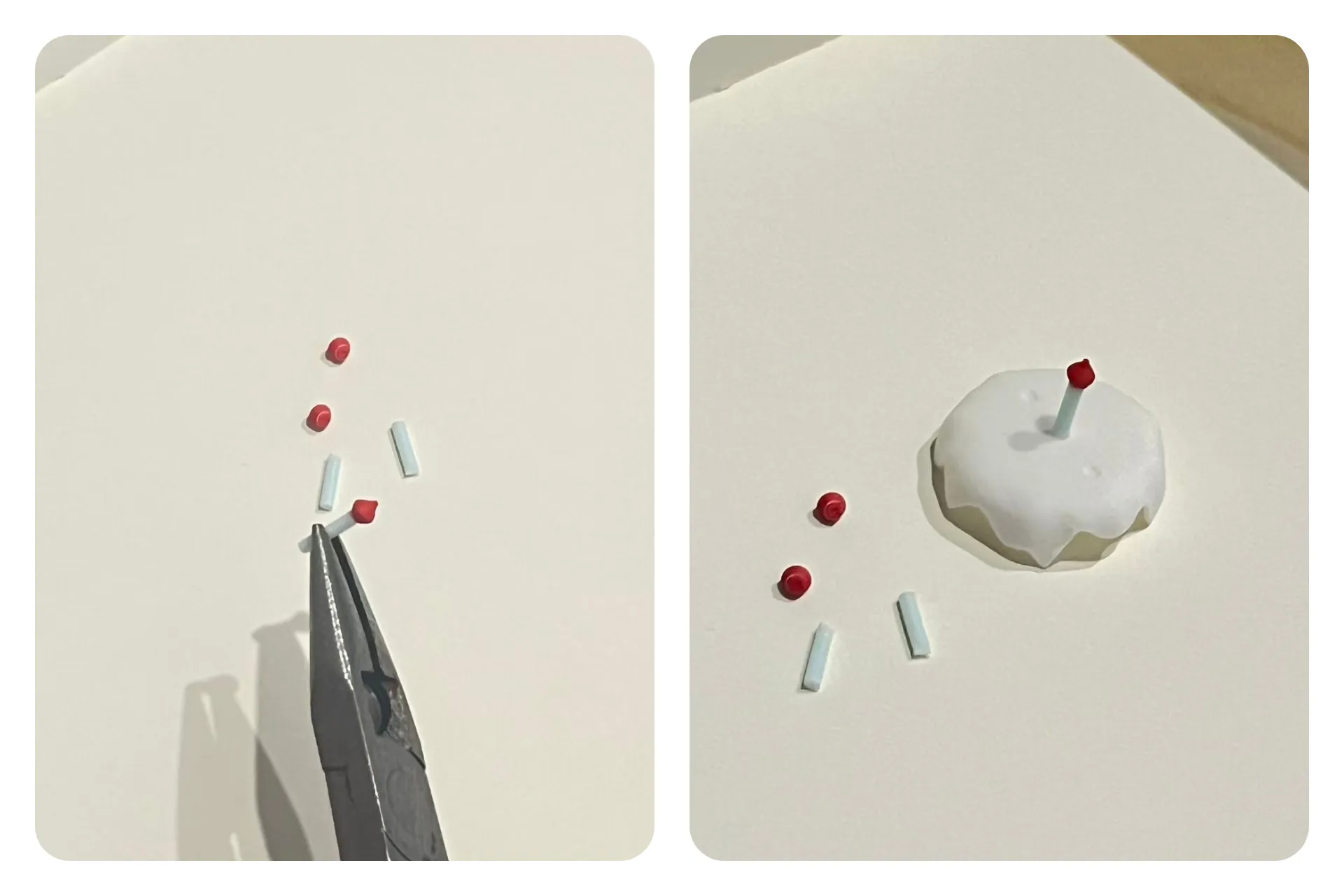

Special Note—Long, Thin Parts for Lock, Fireworks, Rain, Cake: Directly take a piece of filament, heat it with a lighter, manually bend it while hot, and install after it cools and sets
(tips: If the filament is difficult to attach after cutting, heat it with a lighter to flatten and shape it)

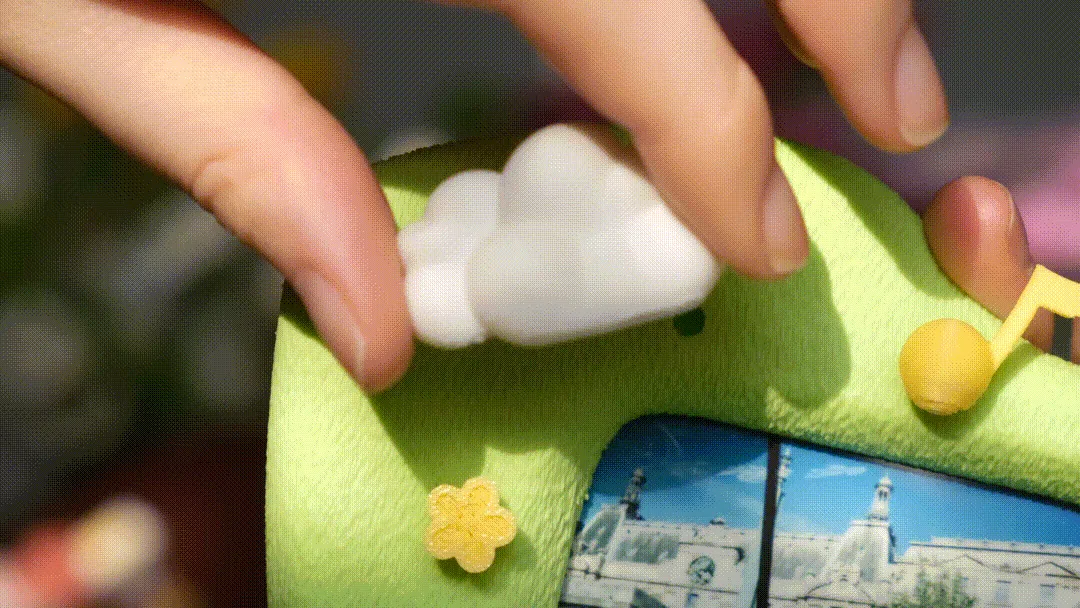

Accessory Installation Method: All accessories are secured by screwing them in. When installing, slowly screw clockwise, and unscrew to remove. Do not forcefully insert or pull out directly; the accessories are small, and forceful operation can easily cause breakage
- Text Bubble Tags are Customizable: Please go to Bambu Studio (desktop version) to set your exclusive text; both font and content are customizable
- Accessory Colors: Fully customizable; feel free to match your preferred exclusive color scheme
Assembly Tools
Flush cutters / Lighter or heat gun (optional, for accessory shaping)
Material Instructions
- Main body recommended: Bambu PLA Matte Fruit Green
- Accessories: Various colors of Bambu PLA, free to mix and match
- No magnets, screws, or other hardware required
Assembly Guide
Print the main body of the photo frame, remove supports, and check if the surrounding holes are smooth
Print various emoji accessories in different colors (AMS not required, batch printing by color is recommended)
After trimming and shaping the accessories, screw them clockwise into the holes around the photo frame. Do not forcefully insert or pull out directly to avoid breakage
Insert the support rod into the back hole of the photo frame for upright display
Insert your instant photo, done
Upcoming: We have expansion plans for accessories including four seasons series, travel series, party series, and friends series. Please stay tuned for future updates.
Creating this was not easy; your support is welcome. If you encounter any problems during printing or assembly, please leave a comment, and I will reply promptly!
