Raspberry Pi GPIO Overlay – Pinout Cheat Sheet
Print Profile(3)
Description
Boost Me (for free)
1 boost = ~ 3g of filament :D

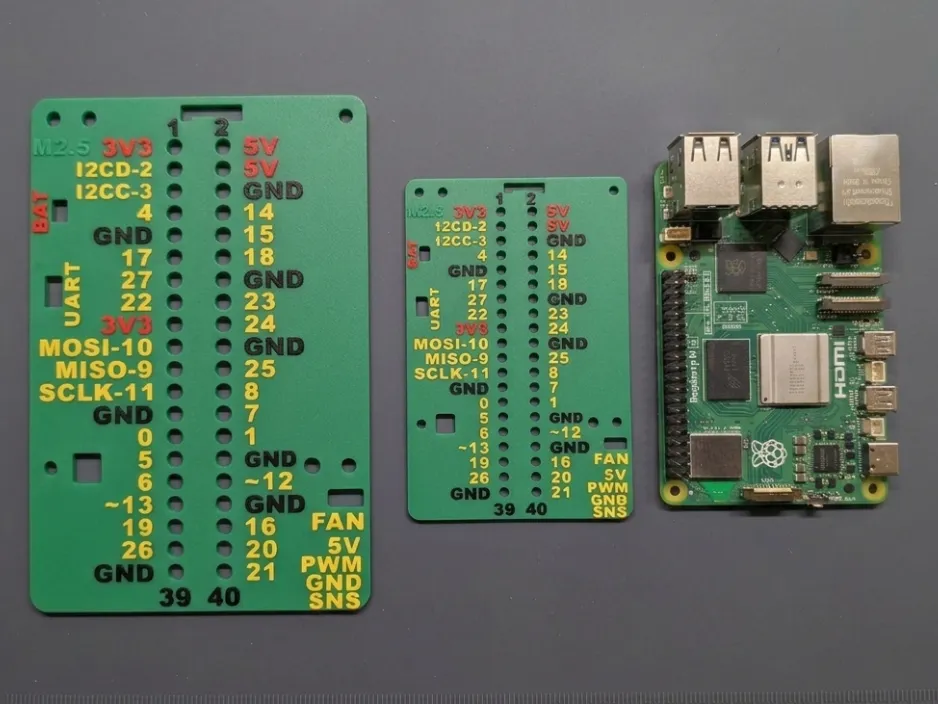

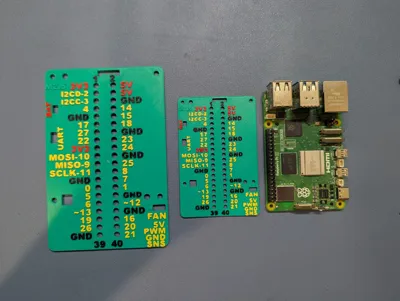

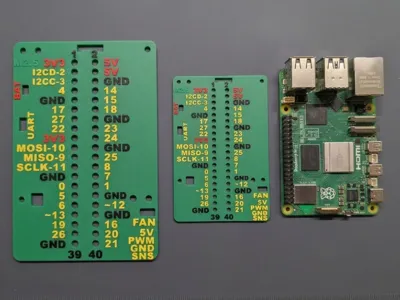

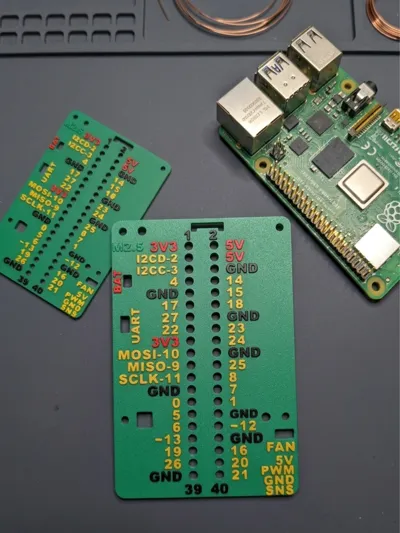

A clean, no-nonsense GPIO reference plate for Raspberry Pi users.
This is a desk-friendly cheat sheet for the full 40-pin header — designed to be readable at a glance without opening yet another browser tab.
The layout uses 3 mm pin holes instead of true-to-scale 1 mm, giving enough space to properly label each pin and keep everything clear in real-world use.
For best results, I’d recommend scaling it up slightly — small text is still a bit of a nightmare to print cleanly. A 120% version is included in the 3MF if you want something that just works.
