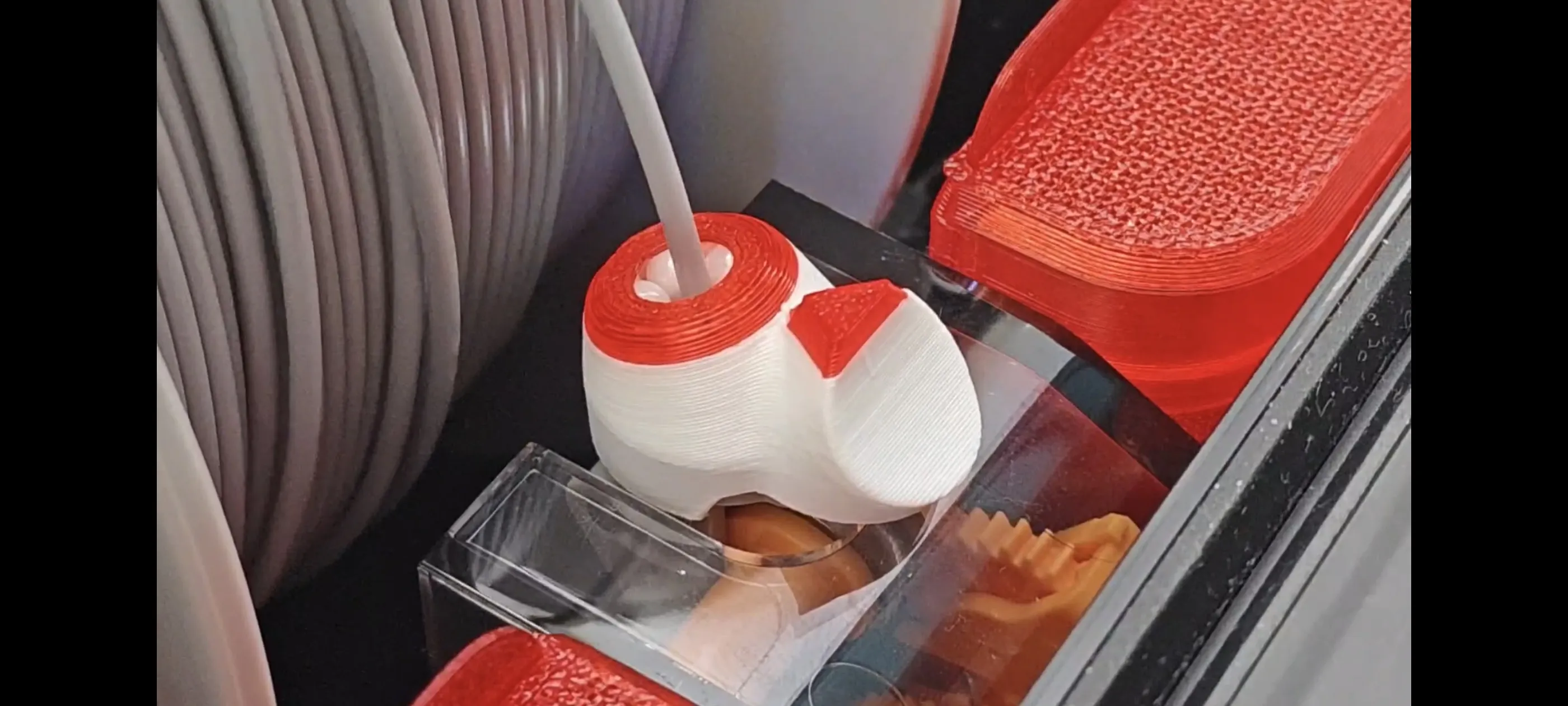

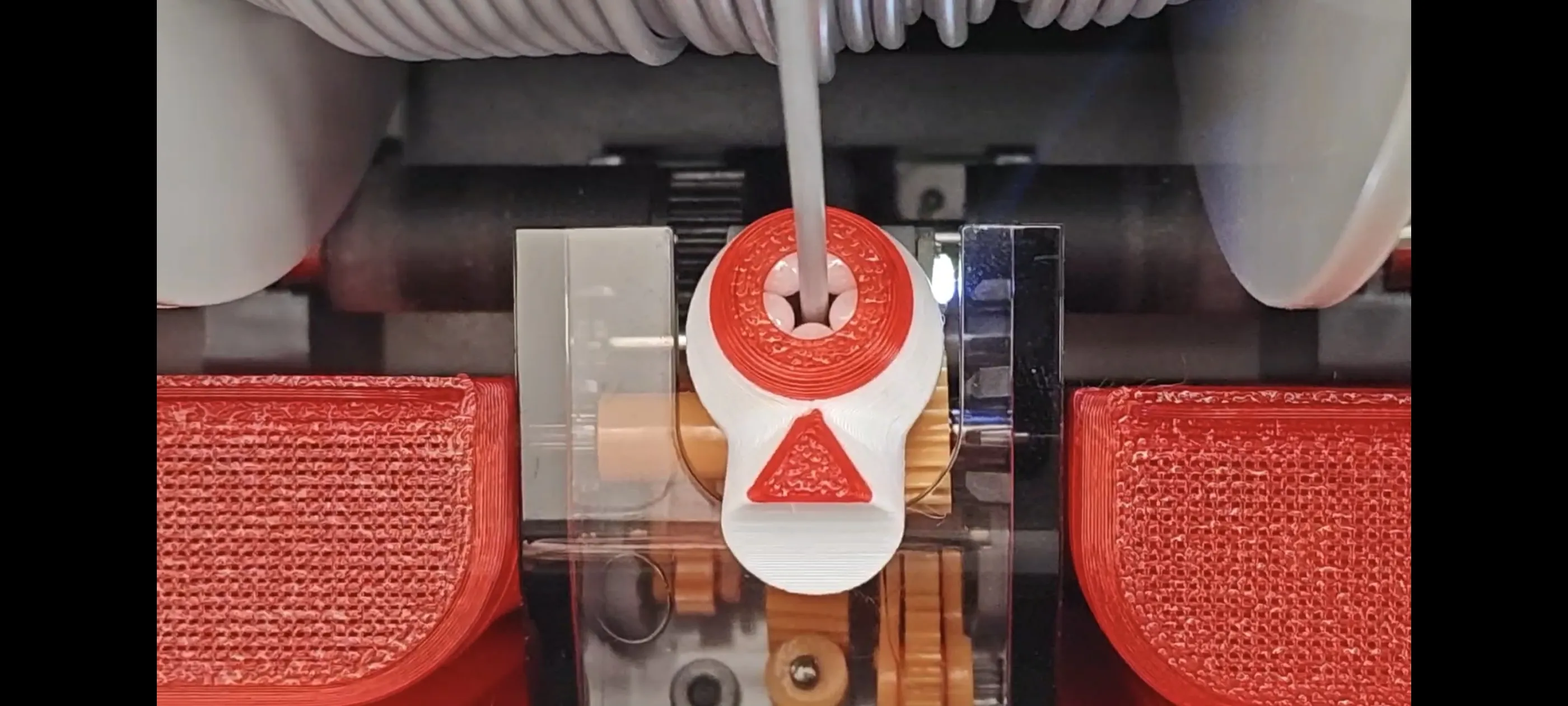

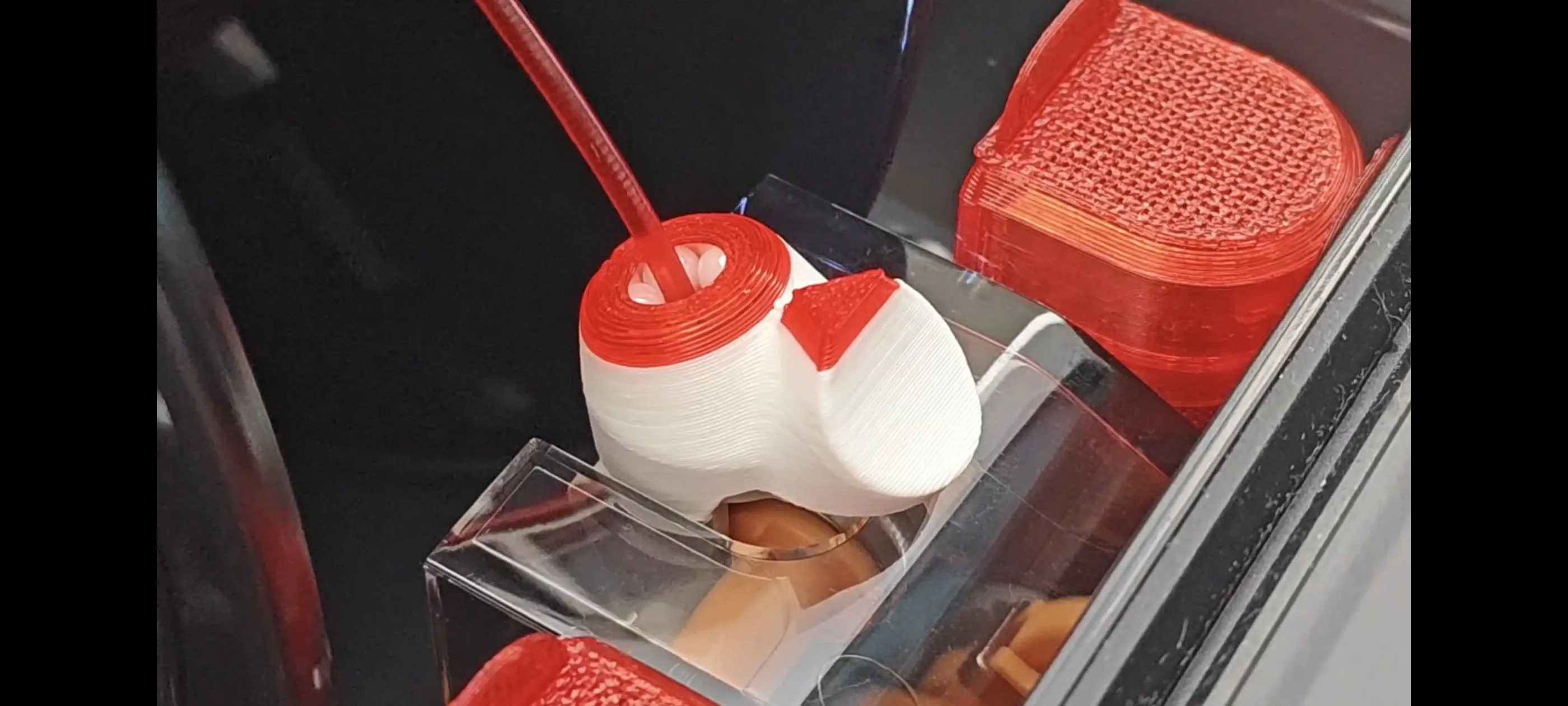

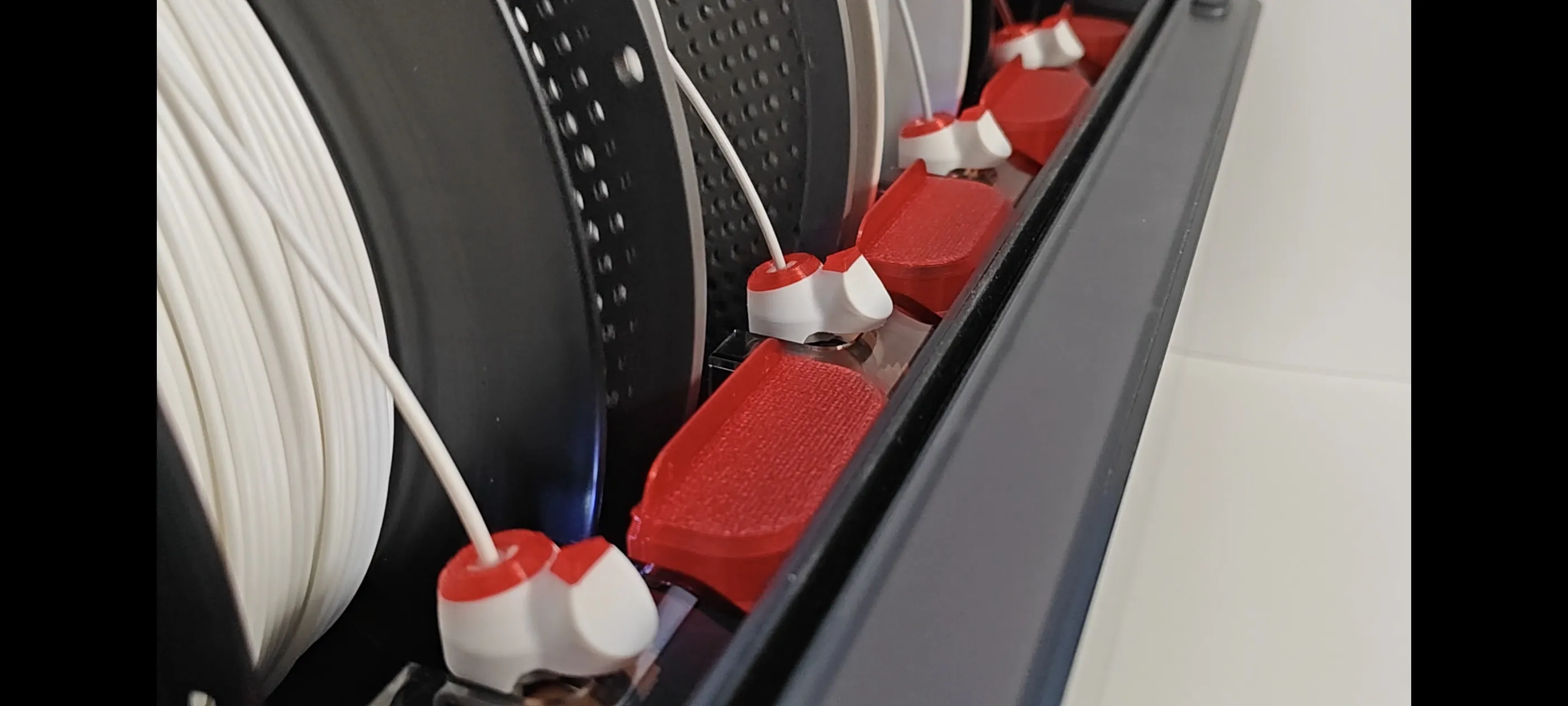

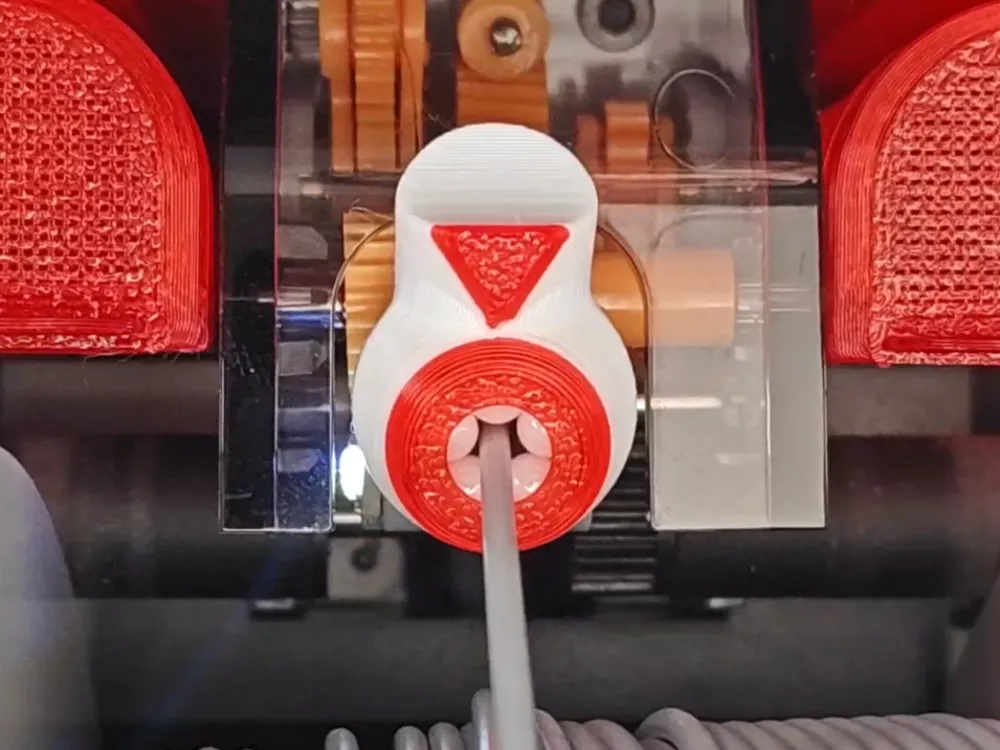

AMS feed port protector ceramic ball version no supports version brand new original
Print Profile(9)
Description
Boost Me (for free)
Go! Go! Go!
Original model! No splicing! No derivative creations! No plagiarism!
Note: The AMS2pro comes with a ceramic nozzle, so this model is not suitable for the AMS2pro
Click the link to jump to the supported polished version
Why redesign the feeder? Because the plastic feeder of the AMS first generation wears out severely when the filament is low
Why not use a ceramic nozzle? Because ceramic nozzles vary widely in specifications, lack a unified standard, have contact surfaces with the filament that are large on one side and small on the other, resulting in a large overall contact area, and unfriendly shipping costs

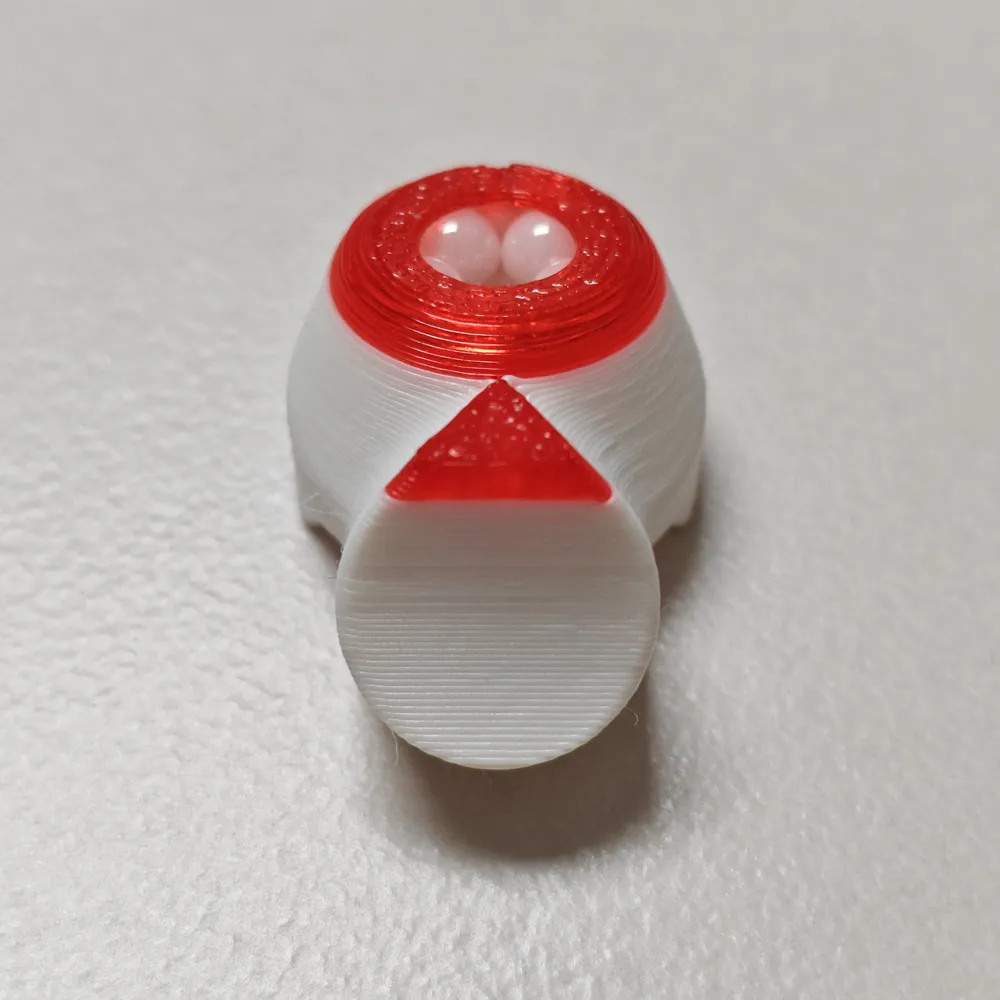

Why choose ceramic balls? Because ceramic balls have uniform specifications, high precision, small contact area with the filament, and are cheaper

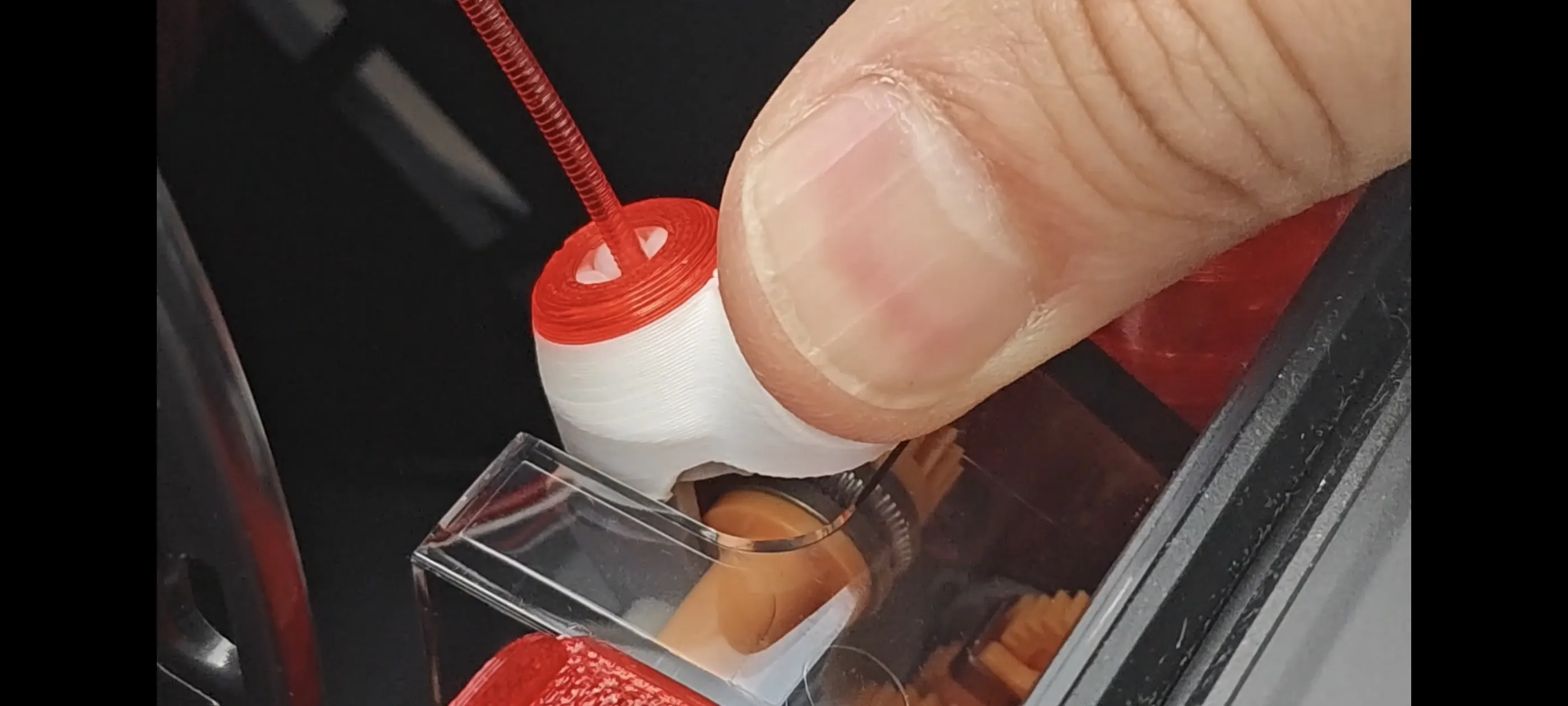

What changes were made? The feeder angle was changed to better match the filament contact angle when full or low (still vertical to the original feeder). The feeder button angle was changed to make loading easier. The appearance was simplified to give it a cleaner overall style
Preparation before printing
| Dynamic flow calibration | May affect seam quality, outer wall breakages, and corner accuracy |
| flow rate calibration | Basis for successful model printing When fine-tuning, select a value one step higher than the ideal flow rate from the coarse calibration!!! |
| Material shrinkage calibration | Corrects the impact of material on model accuracy |
| Elephant's foot calibration | Corrects the protruding deformation of the first layer on the build plate First print profile |
Installation video:
Accessories:
 |  |

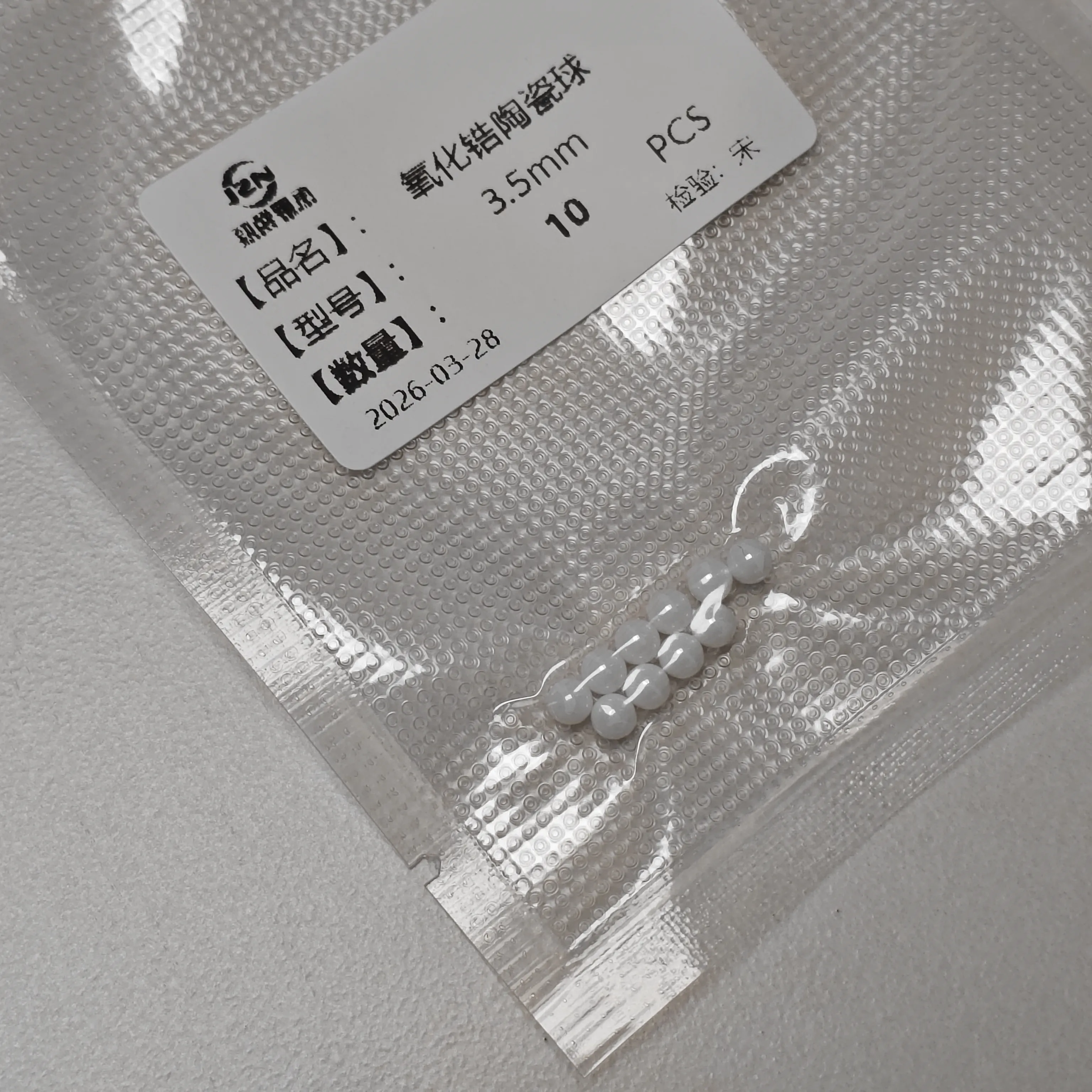

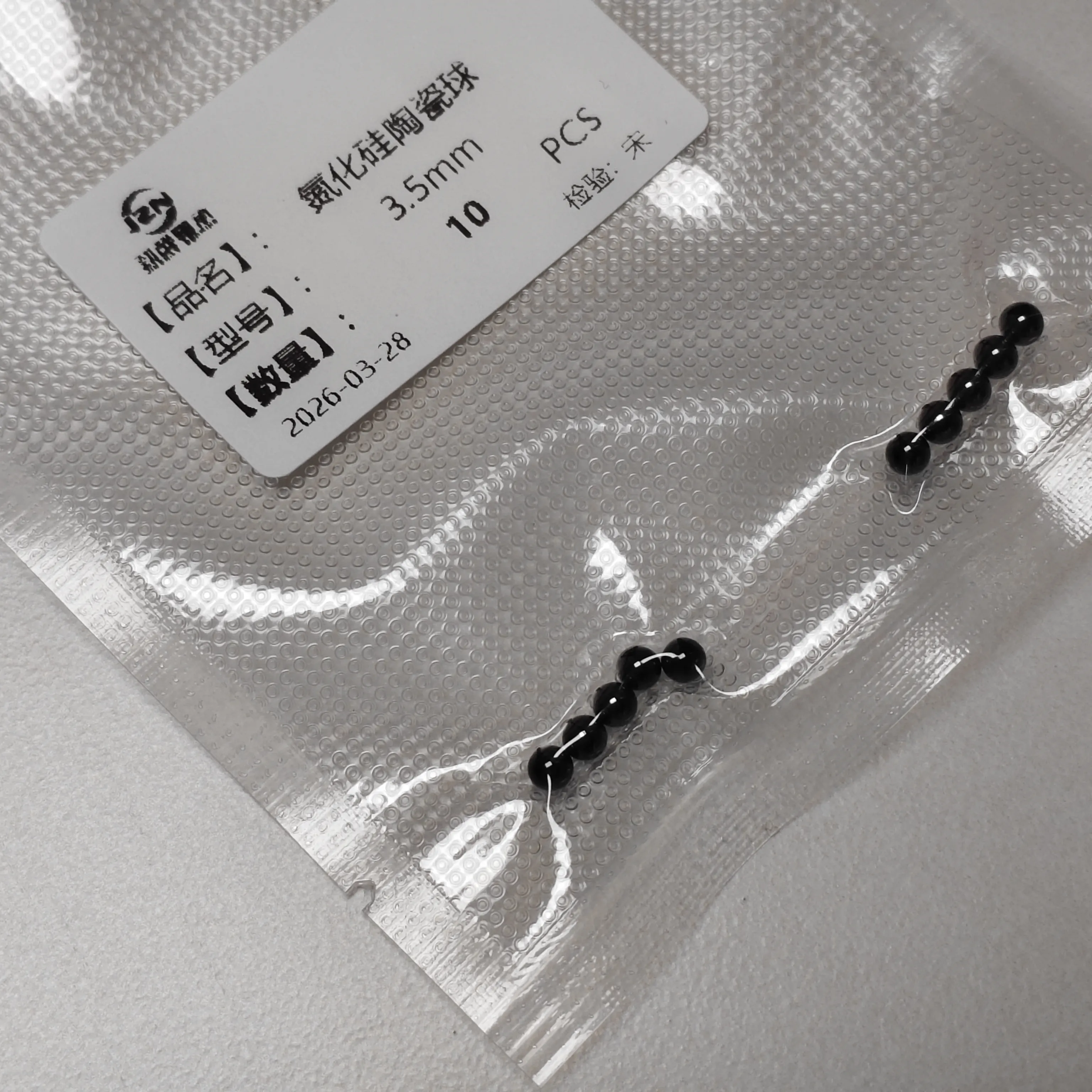

20 3.5mm ceramic balls
Happy printing~
