M12 Battery mount for MPMSMS
Print Profile(1)
Description
This bracket is compatible with both M6 and 1/4"-20 bolts.

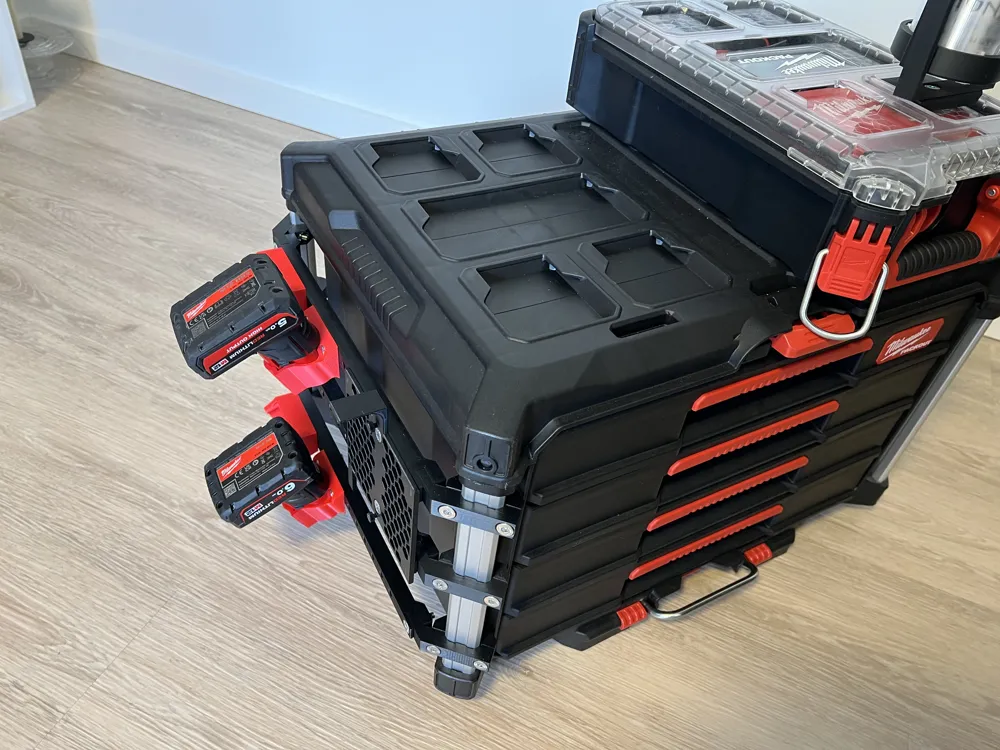

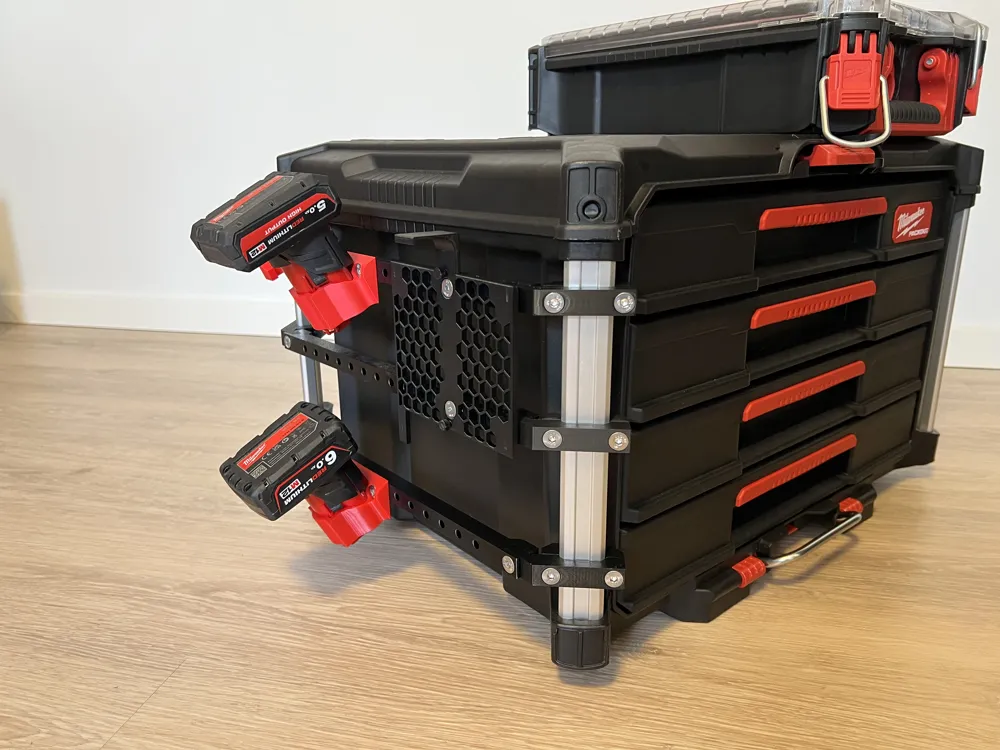

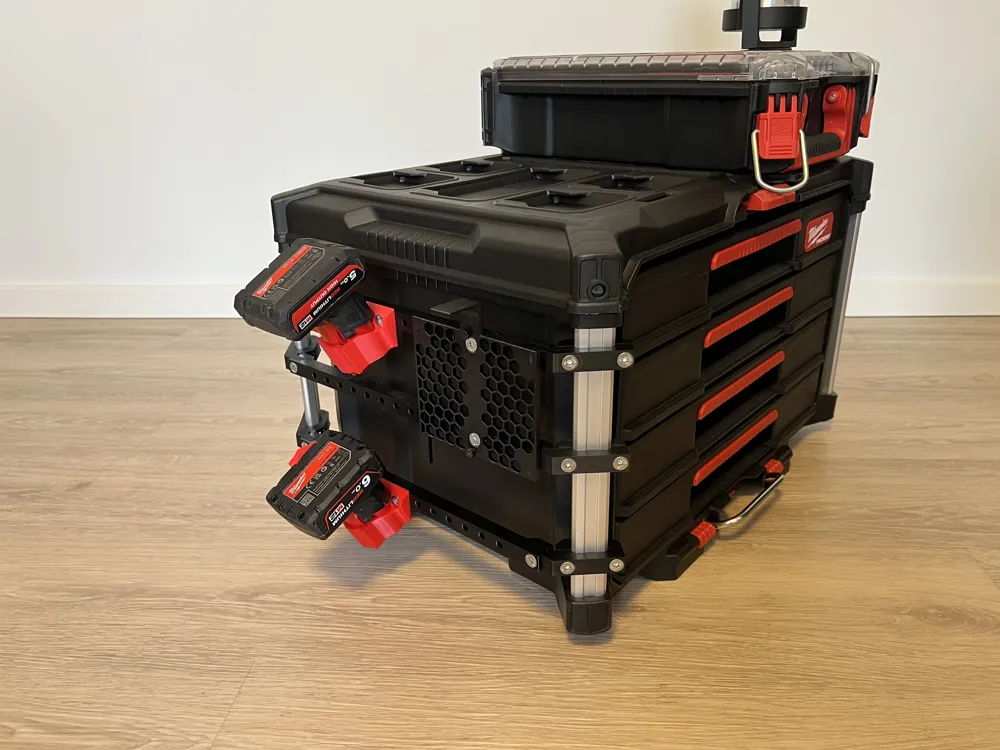

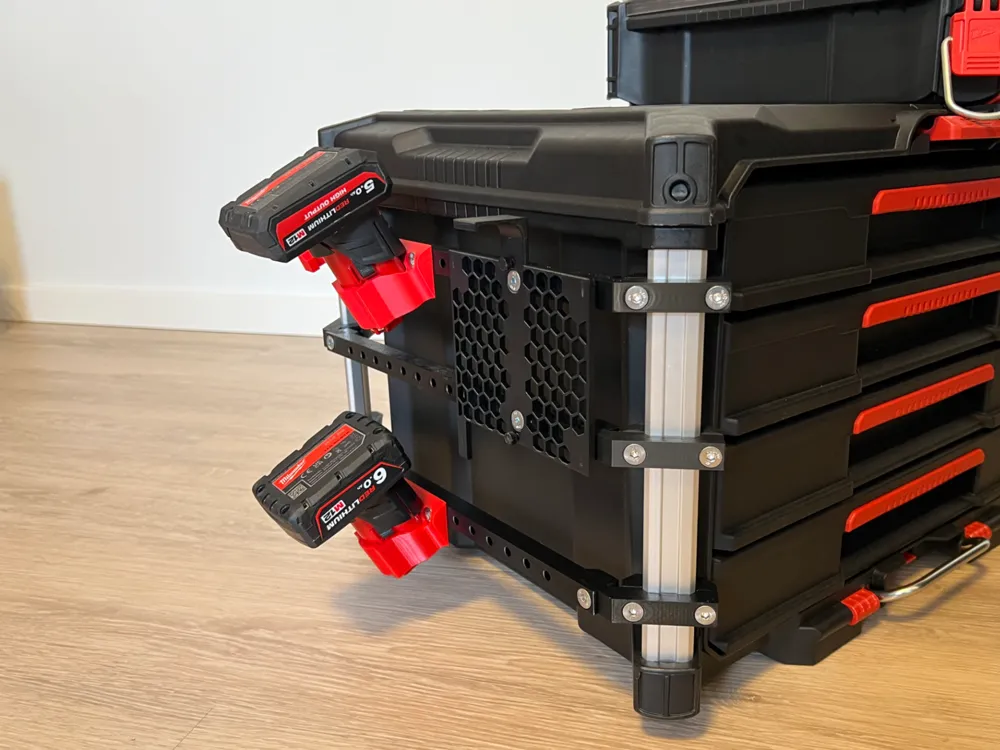

I designed this mount for M12 batteries, allowing them to be attached to the Milwaukee Packout Modular Side Mount System (MPMSMS).
The holder is designed for a single M12 battery and keeps it at an angle to minimize the space it occupies.
This version does not include a locking mechanism, as it is not necessary for M12 batteries, and the built-in battery lock is not well-suited for this type of mount.
The mount is attached to the MPMSMS using:
- 2x M6x25 countersunk bolts
- 2x M6 lock nuts

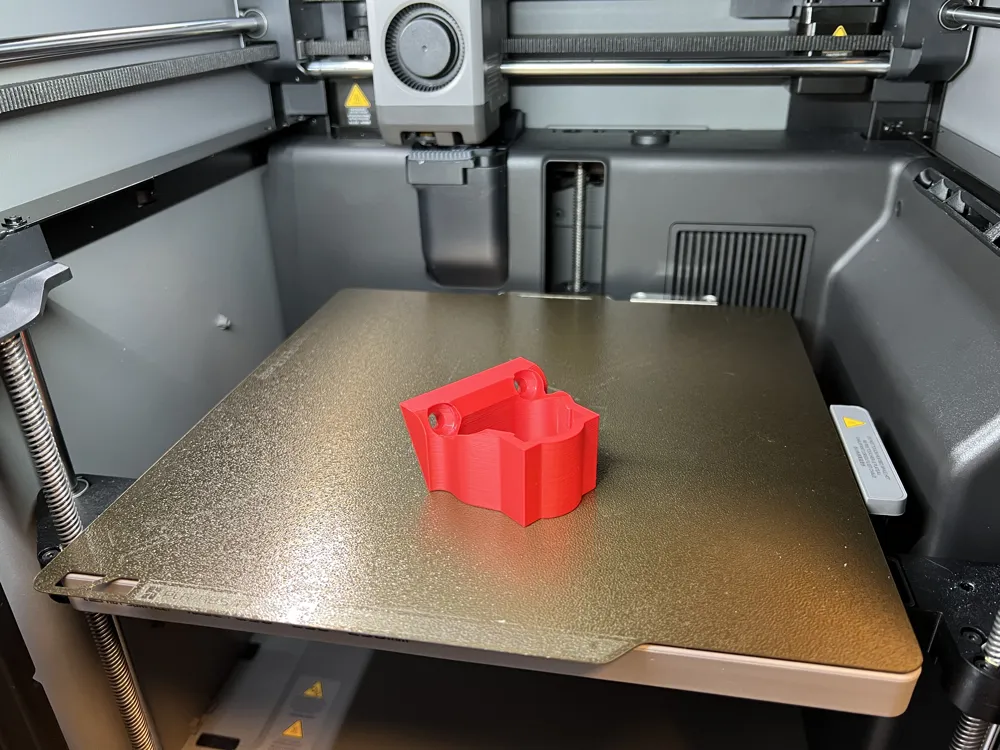

Printing:
This part can be printed in PLA, but it is recommended to use around 5 wall layers to achieve sufficient strength.
Safety:
Use only for its intended purpose. All use is at your own risk.
Feedback:
Feedback is very welcome so I can continue improving the design and expanding the range of mounts for the MPMSMS.
