Make the ordinary extraordinary

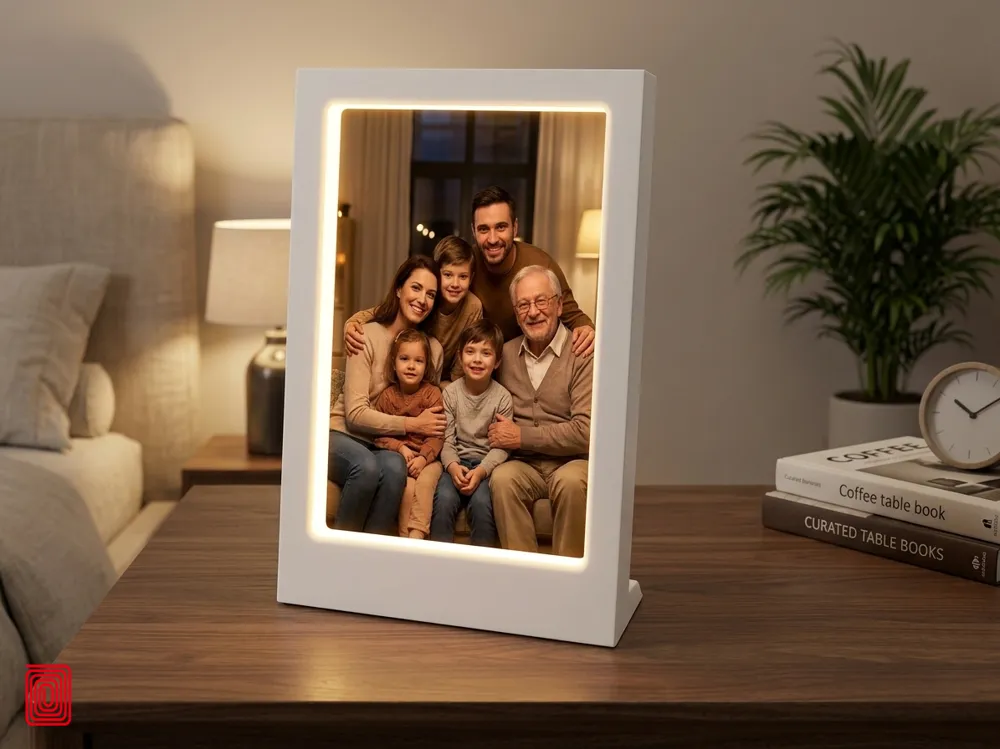

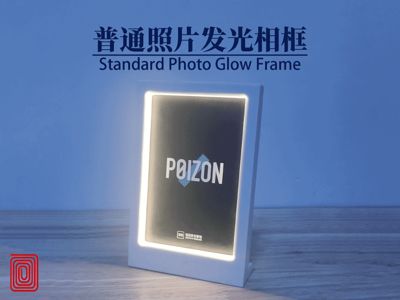

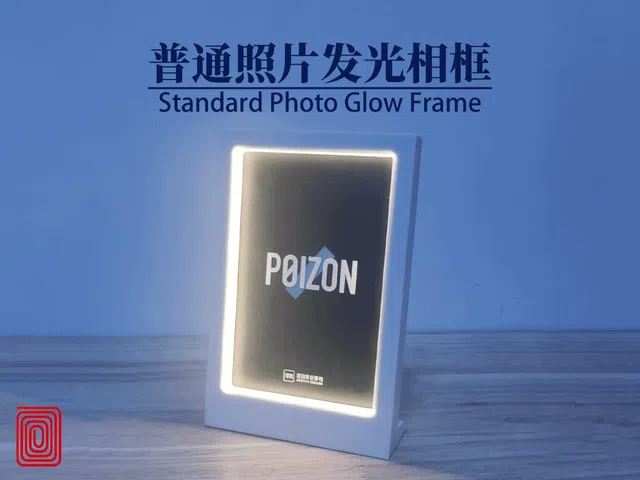

Most light-up photo frames on the market require special light-transmitting sheets or lithophane boards, but this design is specifically for "regular paper photos". No customization is needed; just a standard 6-inch photo, and through its precise embedded ambient light path, it instantly gives your photos a gallery-level industrial aesthetic atmosphere
📸 Core Design Logic

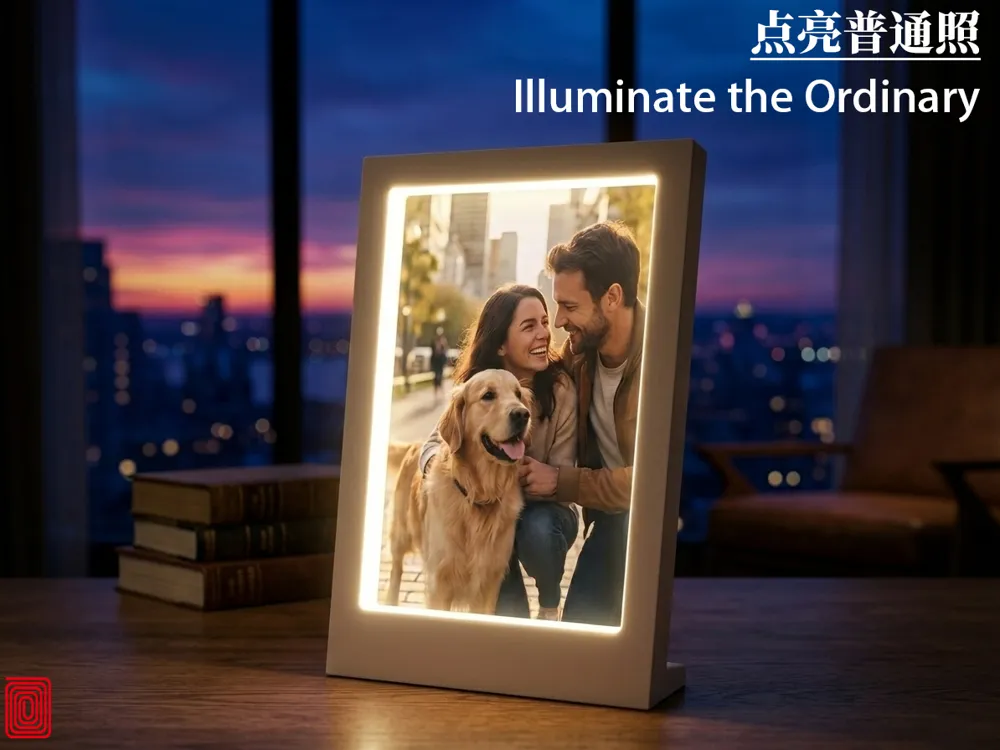

- Illuminate the Ordinary: Utilizing side-emitting light, the light evenly falls on the photo edges instead of transmitting from the back, perfectly suiting ordinary photo paper and giving everyday memories a profound depth
- Ultimate Purity: Adhering to minimalism, the front features a fully flat design with no visible openings or buttons, maintaining a stark, industrial visual appeal

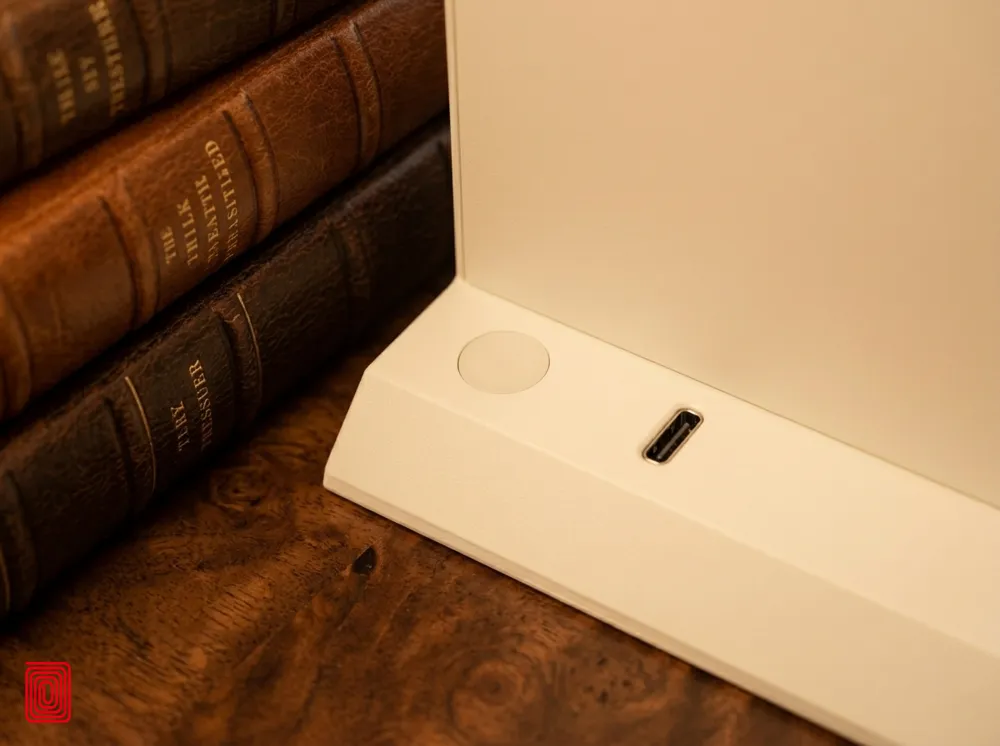

- Invisible Controls: The Type-C charging port and touch-sensitive area are completely hidden on the back. A light tap switches between three color temperatures (cool white/natural/warm yellow), and a long press supports stepless brightness adjustment

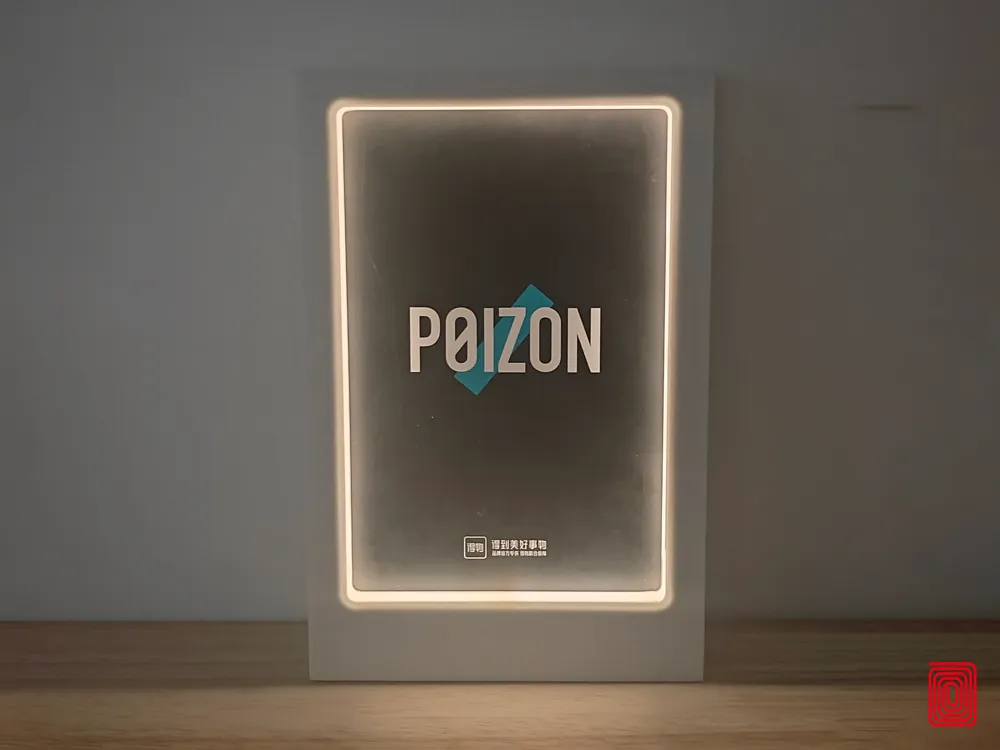

- Zero Light Leakage Structure: The light-blocking component has undergone multiple optimizations, ensuring light only spills from the inner four edges, with the back and sides fitting perfectly, free from any stray light interference
Hardware List (BOM)
- Light Source: 0.5-meter COB three-color LED strip (width ≤ 8mm, with adhesive backing)
- Controller: Touch dimming and color adjustment module (with Type-C interface)
- Battery: Lithium battery (dimensions ≤ 55×25×6mm, 1000-2000mAh recommended)
⚠️ For non-Chinese users: There is no complete electronics kit link available. You will need to find the required components by yourself
The light-blocking parts must be black The main body has only been successfully verified in white; other colors are currently being tested for printing
