MFT多功能收纳托盘带5个F夹收纳 1 tray and 5 clamp holders
Print Profile(1)
Description

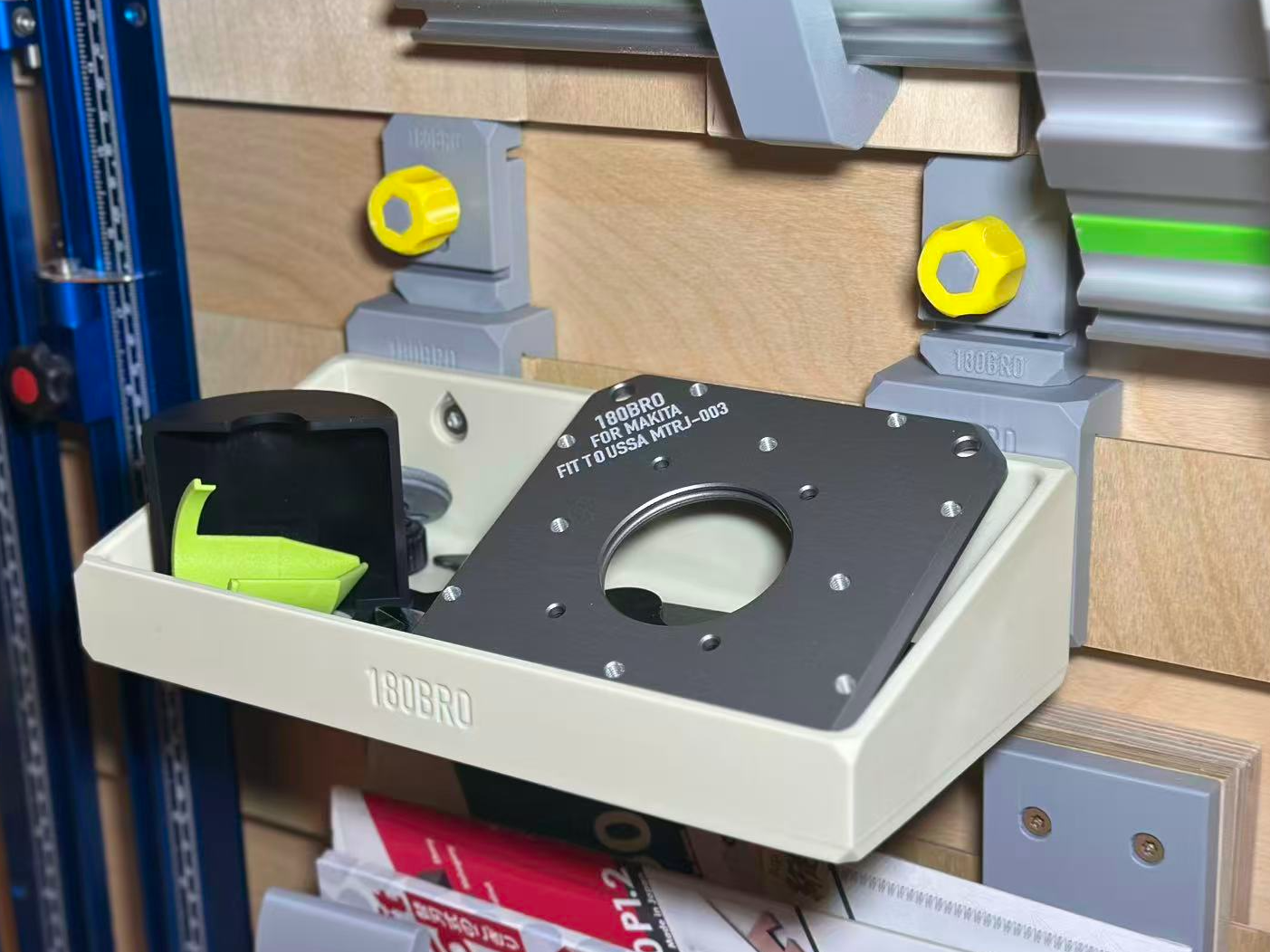

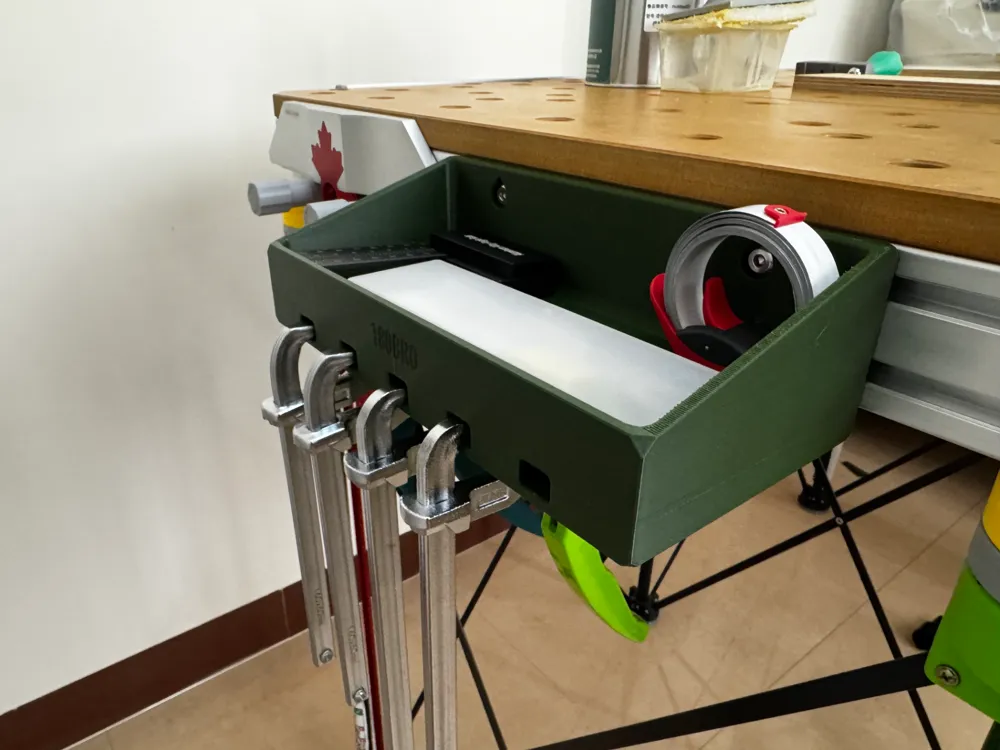

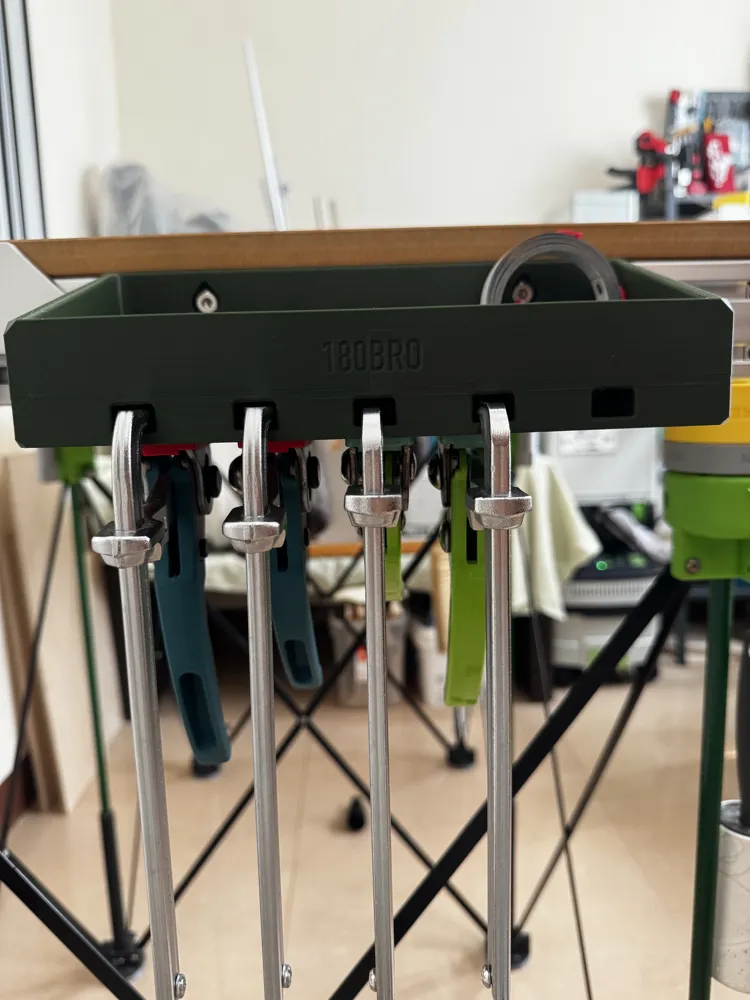

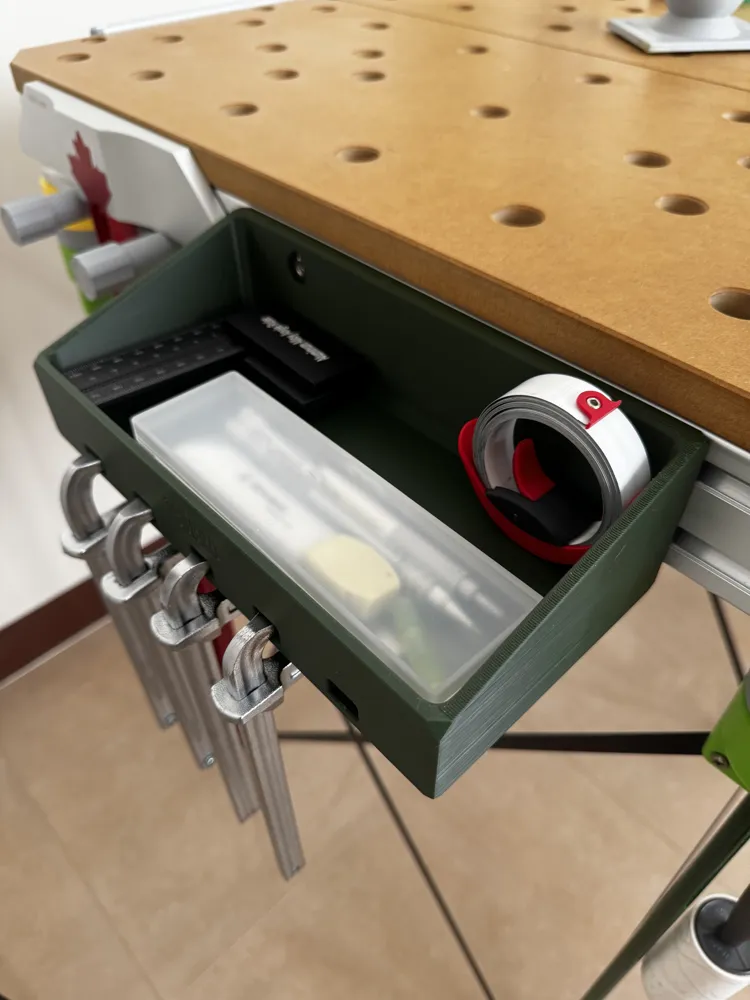

Based on 180bro's multi-functional storage tray, 5 F-clamp storage slots are added, truly achieving multi-functionality
Compatible with 3060 aluminum profiles on the side of beetle MFT, or other 30 profiles
Screws: Flat head M6*12 screws (with chamfer)
Nuts: 30 profile M6 slider nuts
Product size: 120*240mm

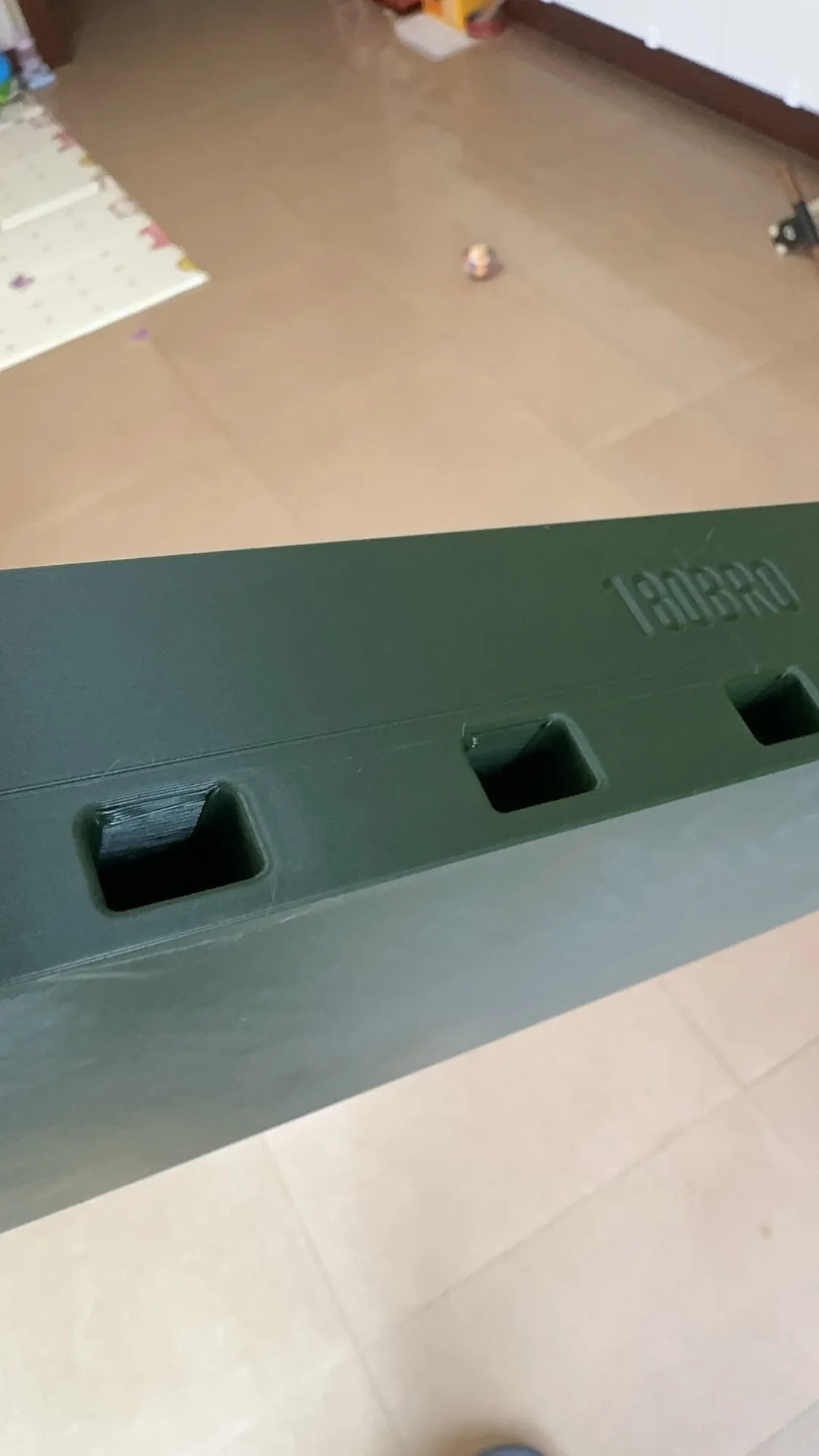

Model printing settings are no supports, long span overhang, sacrificing a bit of quality at the front end of the F-clamp slot, but maximizing print speed and overall finish quality

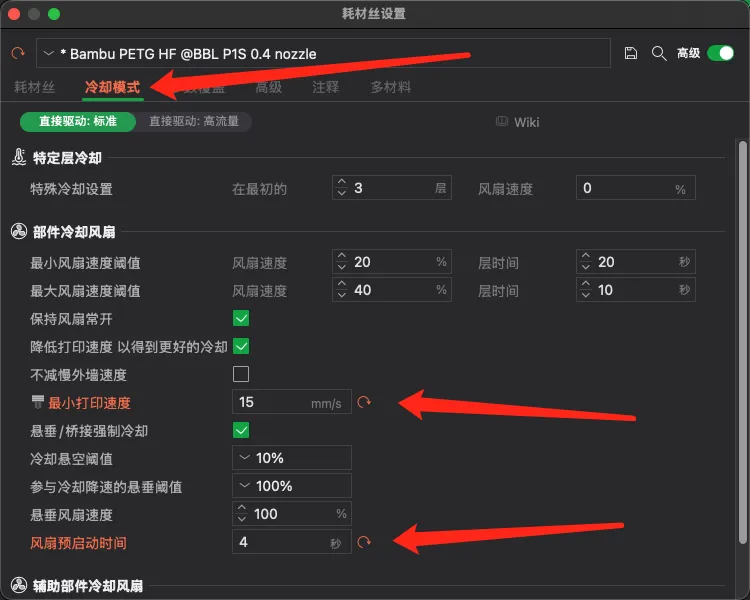

During the printing process, you need to set up the filament data in the project filament list: operate as shown below
Wish you successful printing!
