2S 3S-21700 Removable Battery Box Solder-Free Power Pack Simple Series
Print Profile(1)
Description
2S 3S 21700 Removable Solder-Free Battery Box XT60 Output, with Balance Port | RC Model Field Power Pack / Outdoor Power Supply / Electronic DIY / Your Creative Ideas!
Simple Series 2.0 Version

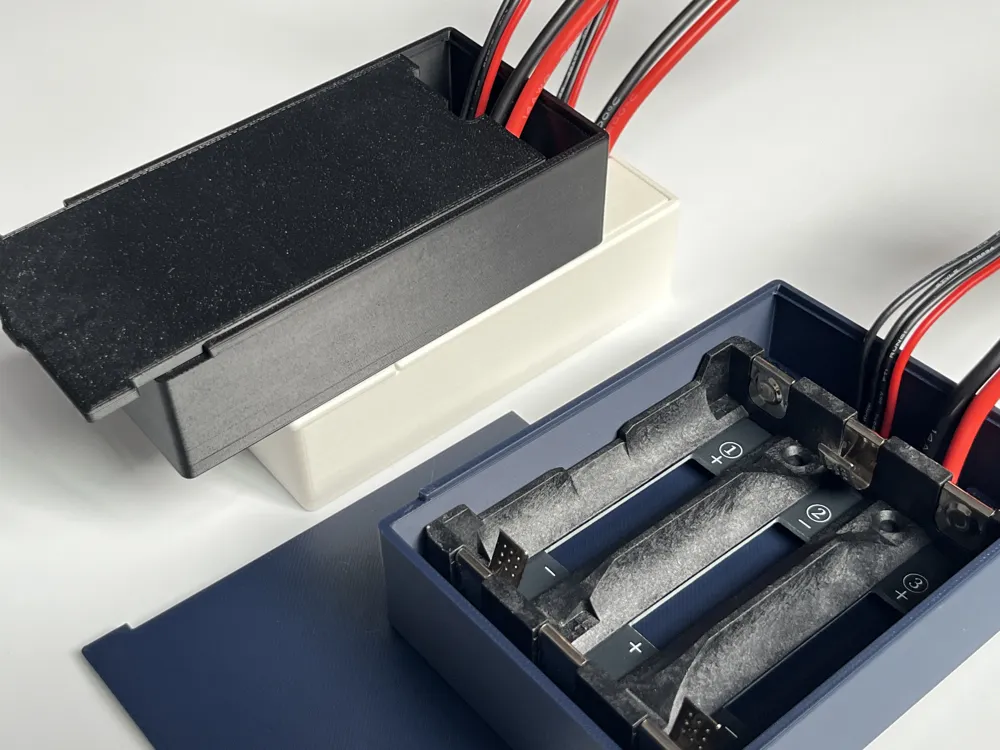

Modified to external leads, no need to install then solder; Casing thickened from 1.5mm to 2mm;
Sliding cover structure reinforced; Cover plate designed with a small protrusion, allows opening without needing long fingernails; Added a PCB baffle for more aesthetics and safety;
Boost Me (for free)
Your support is my motivation for open source~
Bilibili Video Link:[Open Source] 21700 Removable Battery Box | Solder-Free Power Pack - with XT60 and Balance Wires_Bilibili_bilibili Thanks for your support~
PCB Open Source Link:21700 Removable Battery Box 2S 3S 4S 6S Power Pack - Lichee Open Source Hardware Platform Thanks for your support~
Commercial use and sale in any form are prohibited, for DIY use by enthusiasts only
4S 6S versions are also available on the homepage

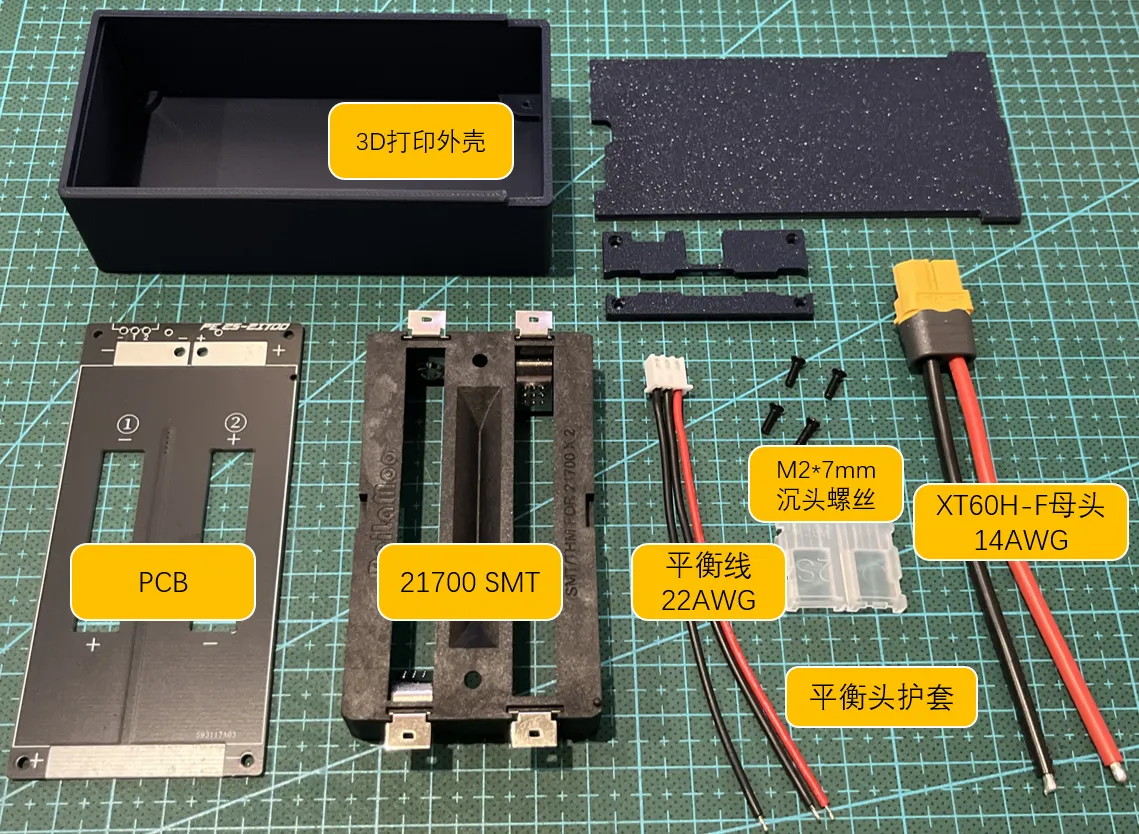

★Solder-free battery replacement: Box cover self-locking structure, hollowed bottom plate, spring contact design, easy installation/replacement of batteries, say goodbye to soldering troubles!

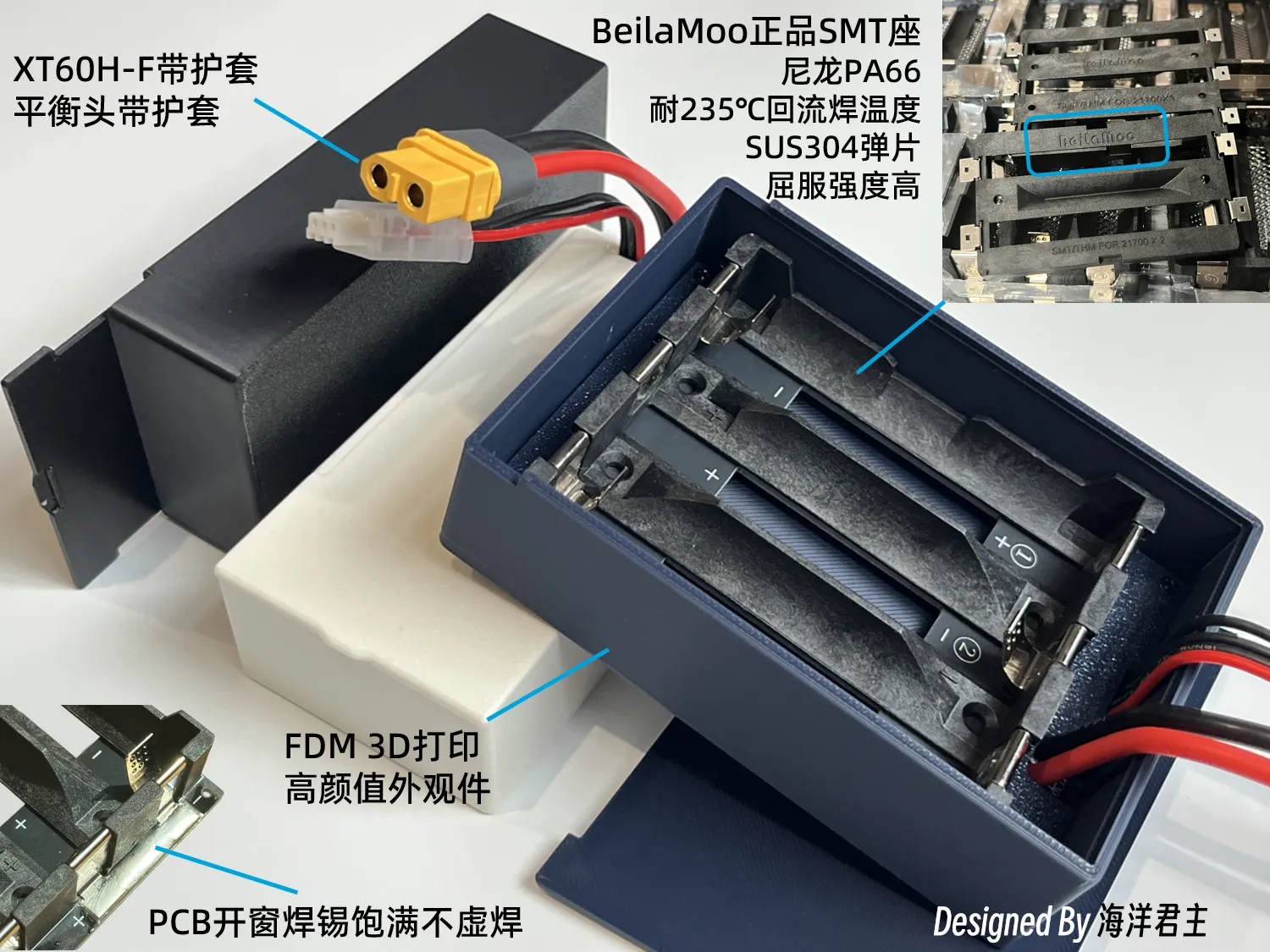

★High current output: PCB window tinned for strong overcurrent, genuine Amass XT60 gold-plated connector, 14AWG ultra-thick high-temperature silicone wire!
★Worry-free safety: With 2.54XH balance head, supports balance charging function!
◯Battery configuration: 2S: 2x 21700 in series, 3S: 3x 21700 in series
◯Output voltage: Fully charged 8.4V/12.6V, single cell 4.2V
◯Output connector: XT60 female
◯Balance connector: 2.54XH connector, compatible with mainstream balance chargers

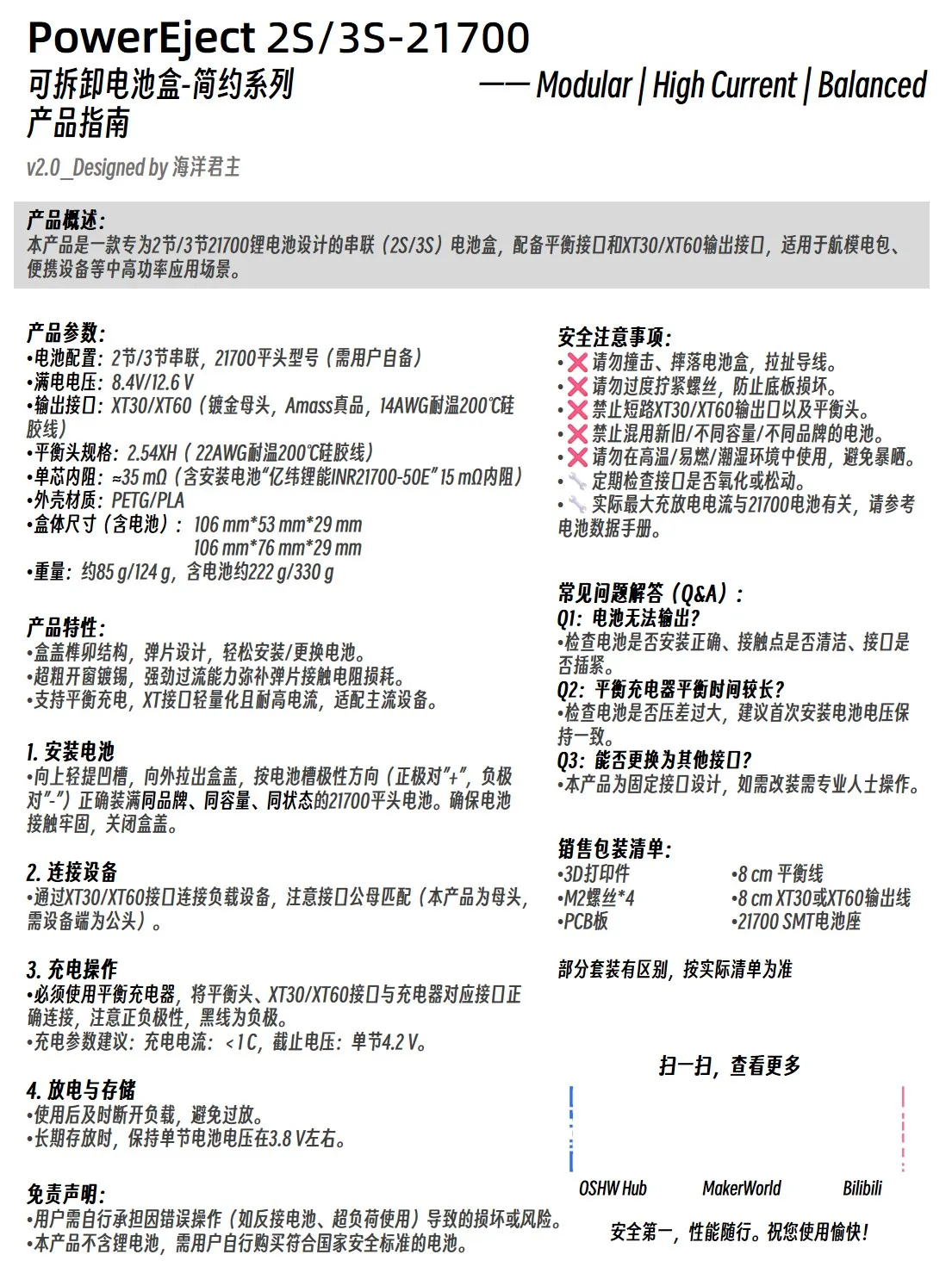

⚠ Requires flat-top 21700 cells, pointed-top cannot be used! See manual for details

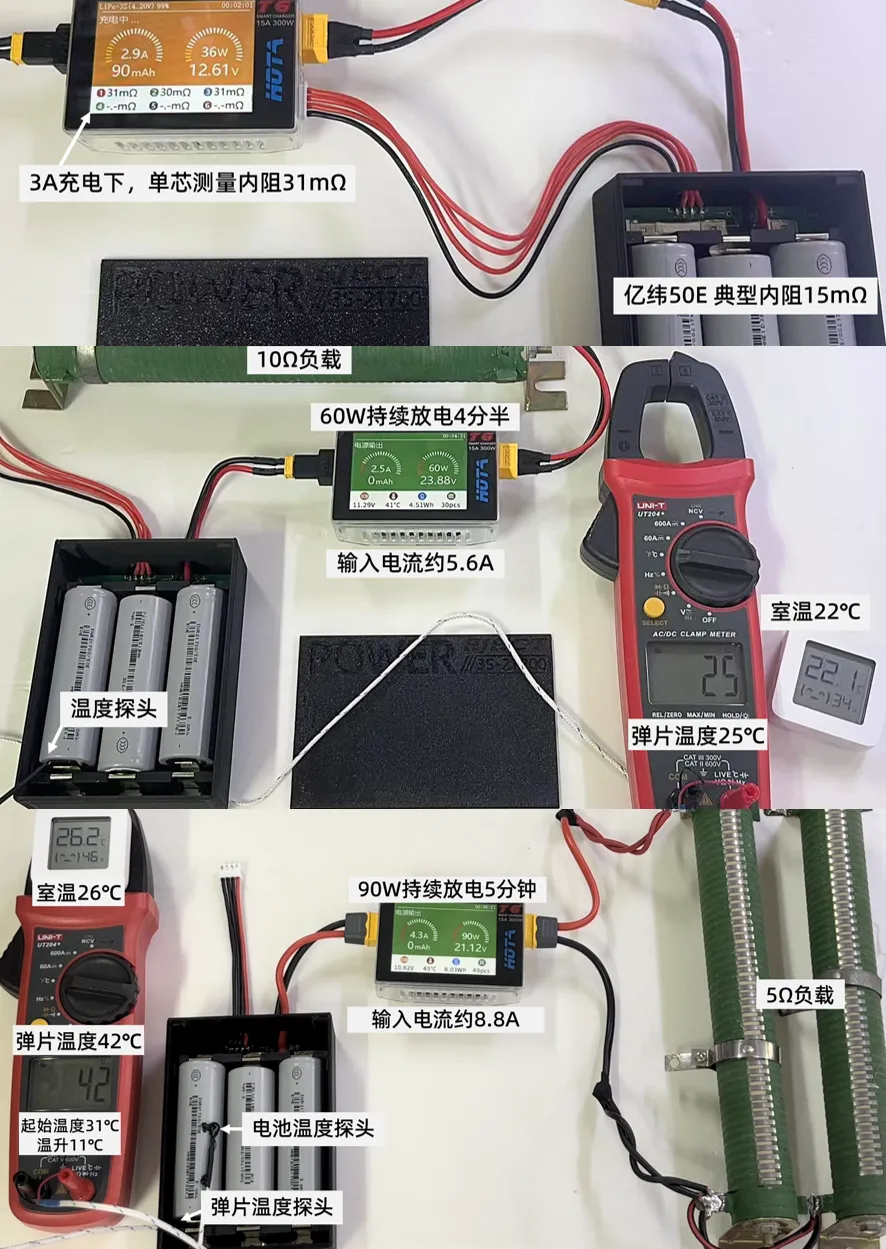

Internal resistance and discharge temperature rise test (the pain of not having thermal imaging...)
