🛡️ HELiX "MAG-MOD System" Magnetic Modular MOLLE BOARD

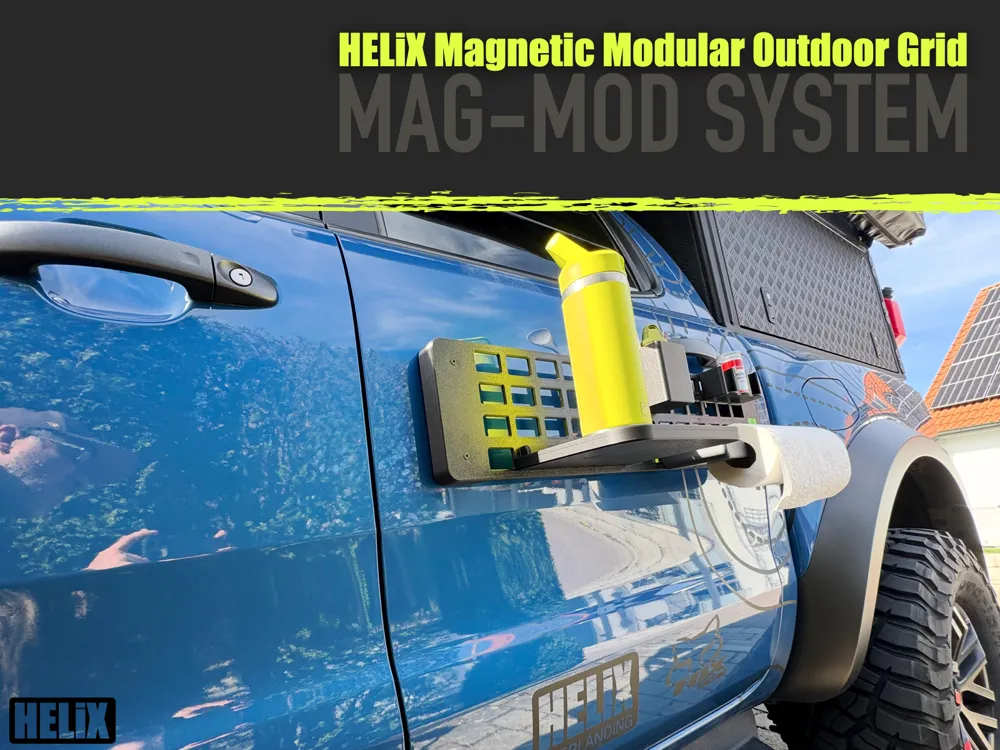

Expand. Adapt. Mount. The HELiX MAG-MOD System is the ultimate modular solution for your gear – whether on the rear door of your van, in the workshop, or at your base camp. Thanks to the Hybrid-Molle Standard (38 x 25 mm), it combines extreme stability for 3D-printed modules with the flexibility of classic tactical gear. 🎖️🧲
🧩 Modular Freedom: The Infinite-Grid-Principle
The system grows with your requirements. Connect the segments using the integrated tongue-and-groove system and secure them for a twist-resistant, rugged unit.

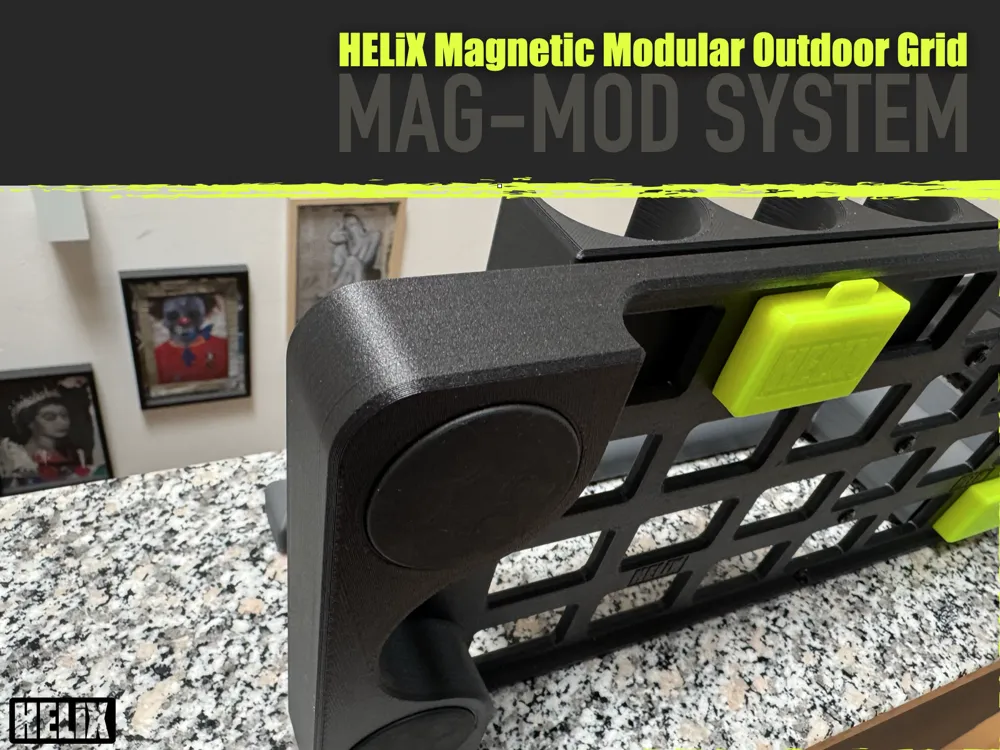

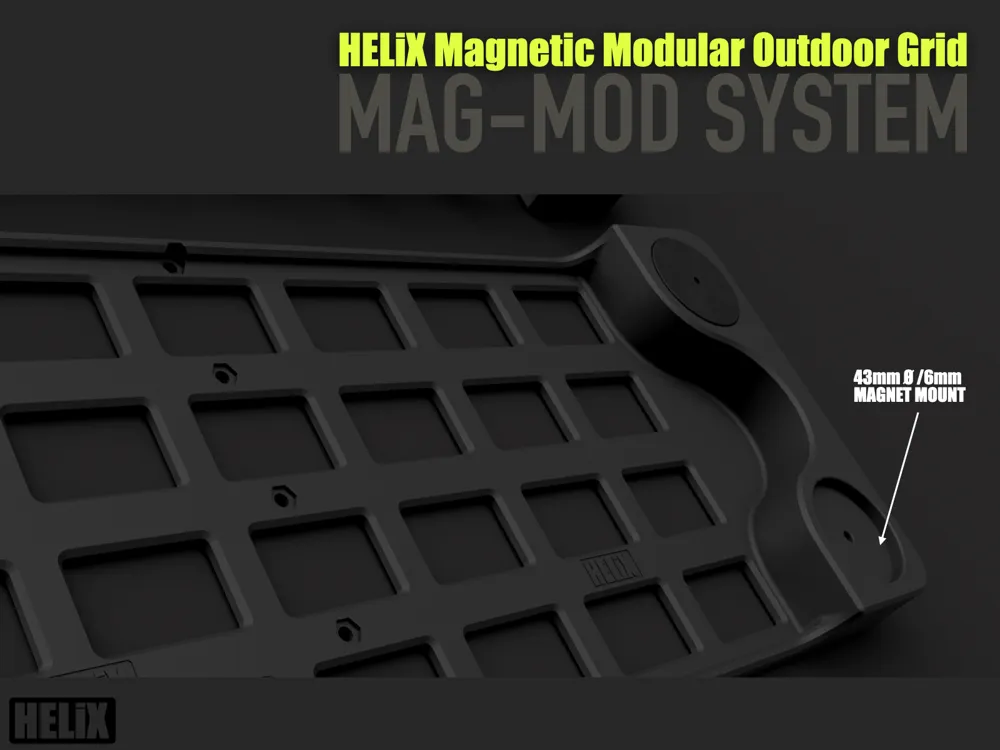

- Left & Right End-Caps: Heavy-duty mounts for rubberized 43 mm (1.69in x 0.23in) Neodymium magnets.
- Expansion Center-Piece: Add as many centerpieces as you need.
- Recommendation: Use 1–2 centerpieces for maximum magnetic performance (4 magnets = approx. 30 kg theoretical / 15 kg real vertical holding force).

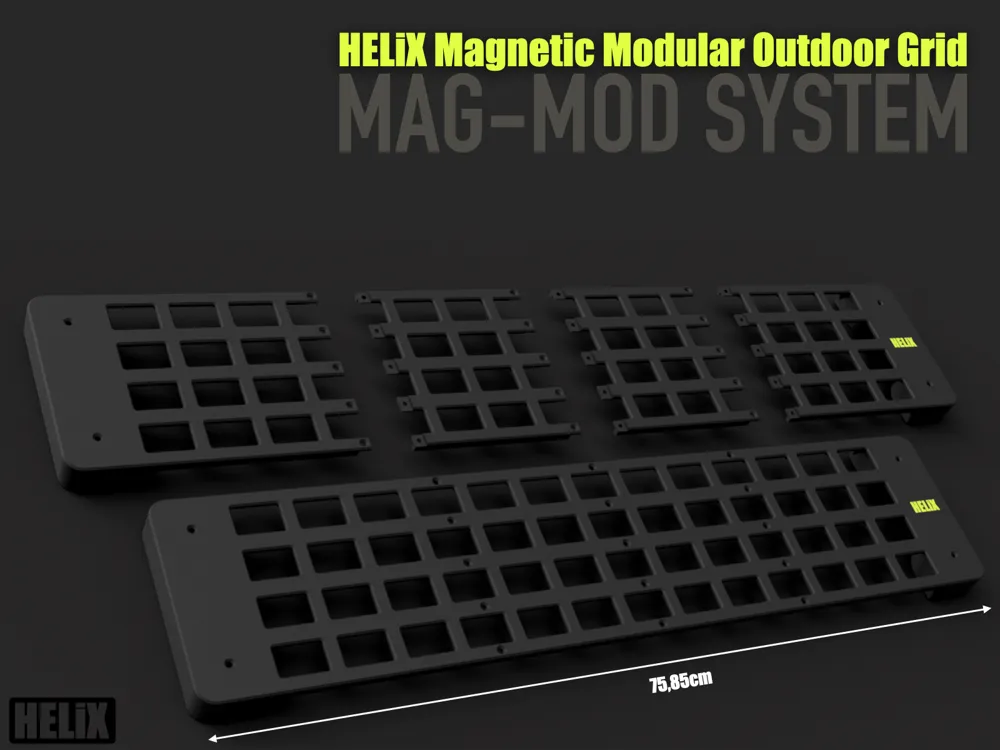

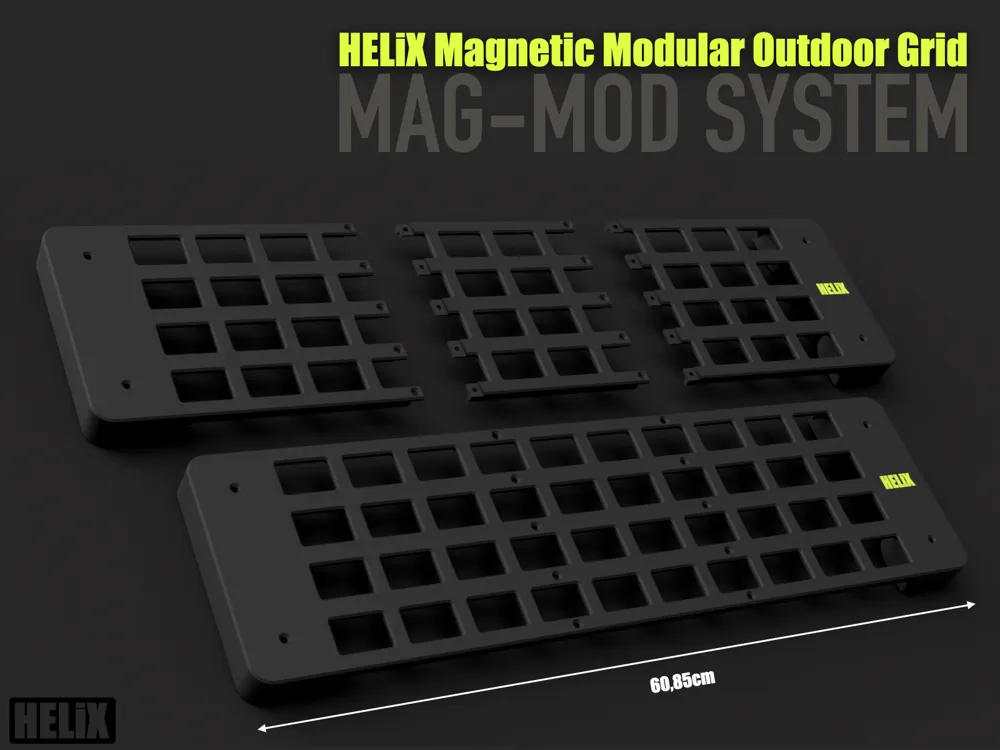

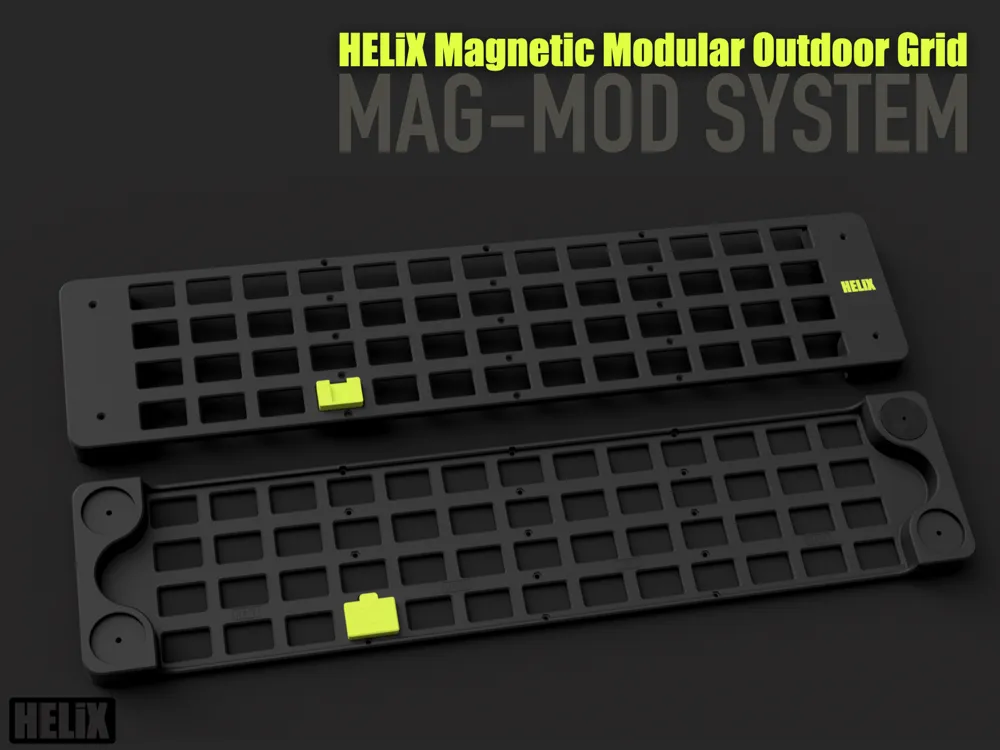

📏 Configurations & Dimensions

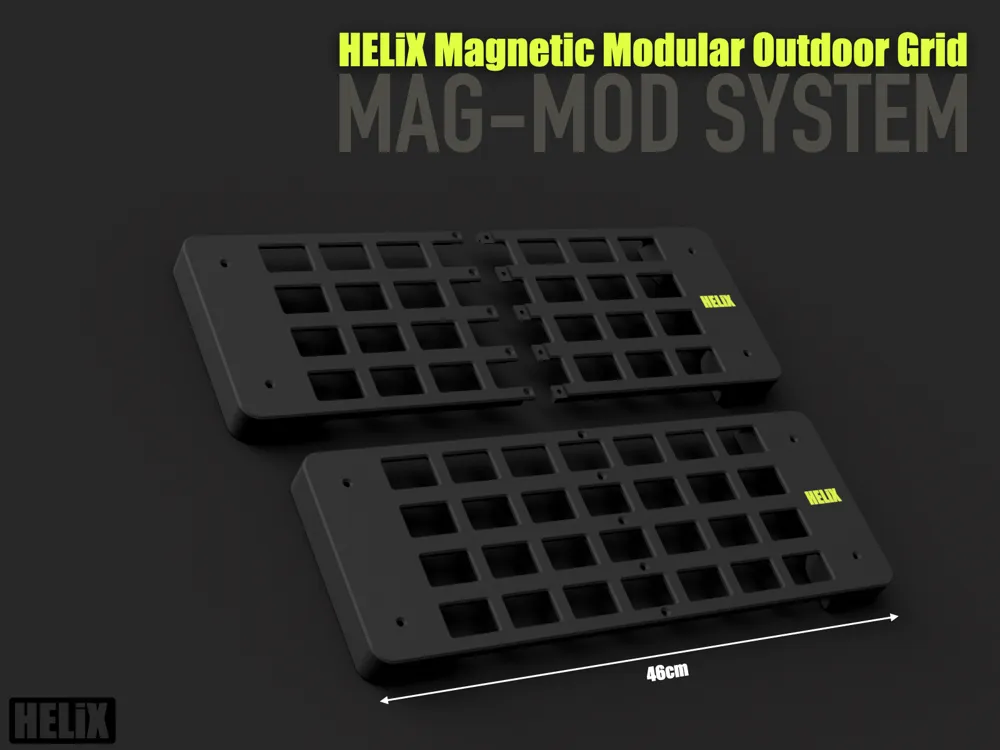

- Compact (Left + Right): 460 x 169 mm
- Operator (1 Center): 608.5 x 169 mm
- Commander (2 Center): 758.5 x 169 mm

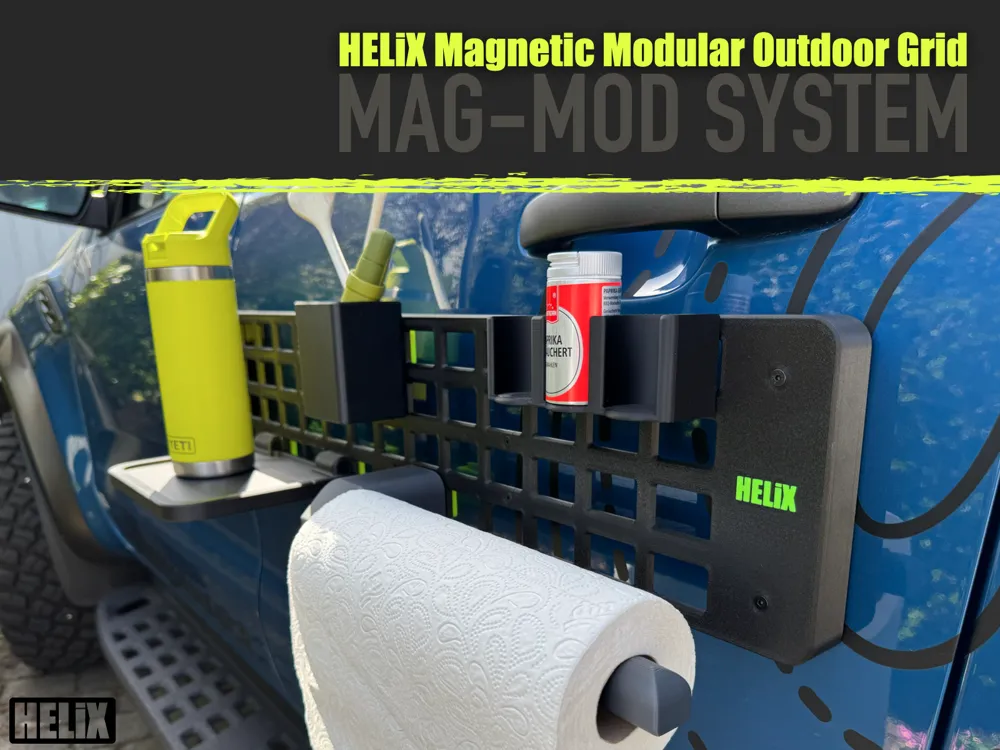

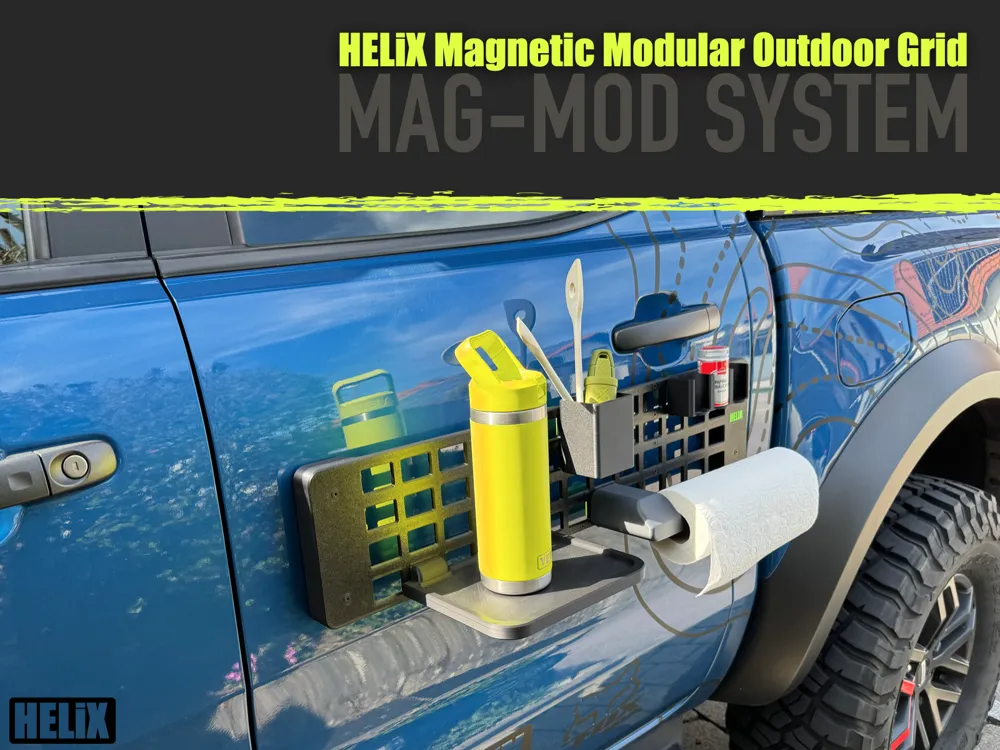

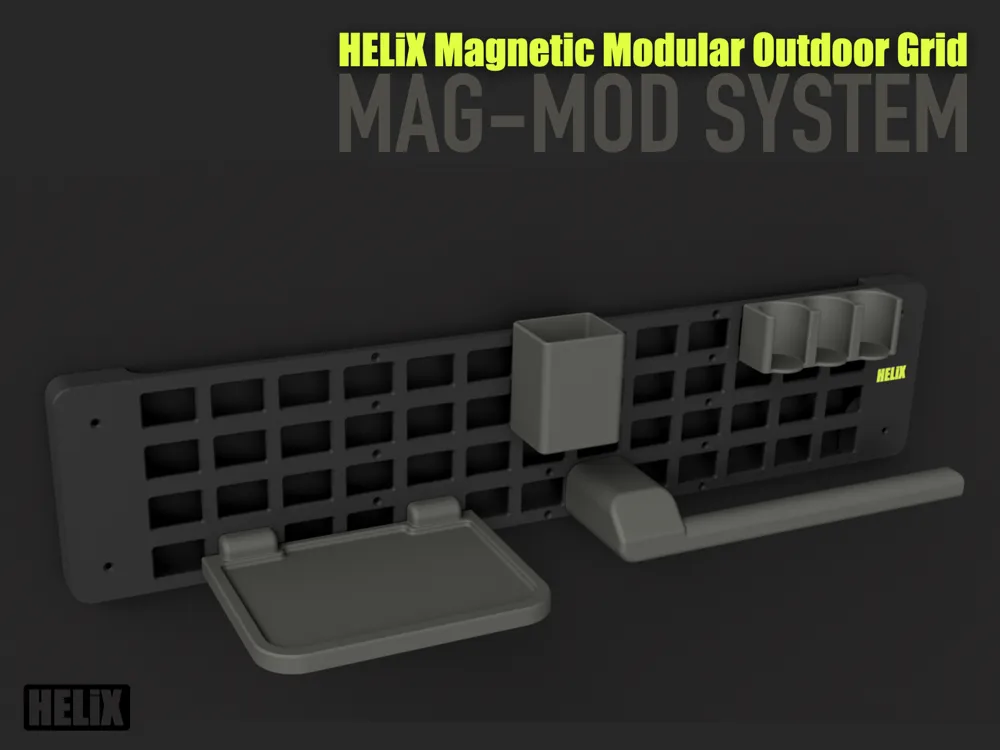

📦 Mission Ready: Launch Modules
Following modules are available at launch:
- Utility Shelf: Rugged tabletop for tools or smartphones. 📱
- The Spice-Rack: 3-compartment holder (40 mm Ø) for IKEA Örtfylld or standard spices. 🌶️
- Supply Container: Heavy-duty all-purpose container for small parts.
- Roll-Master: Massive holder for paper towels (Zewa/Bounty). 🧻
✨ Key Features
- 🧲 Magnetic Force: Designed for rubberized 43x5.8 mm (1.69IN x 0.23IN) Neodymium magnets.

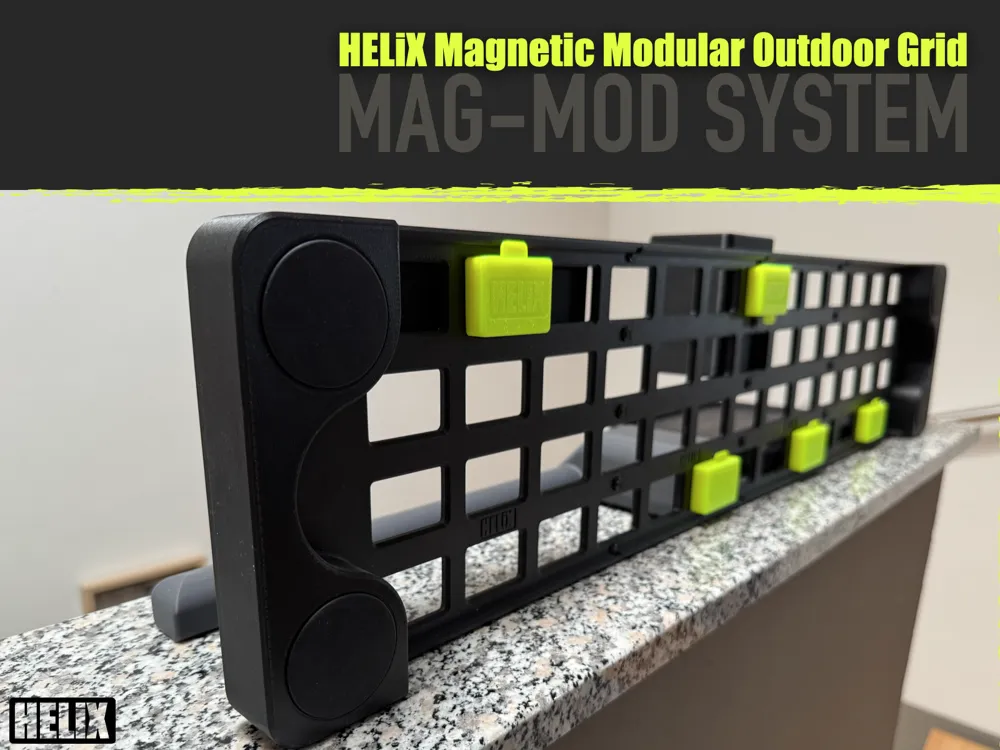

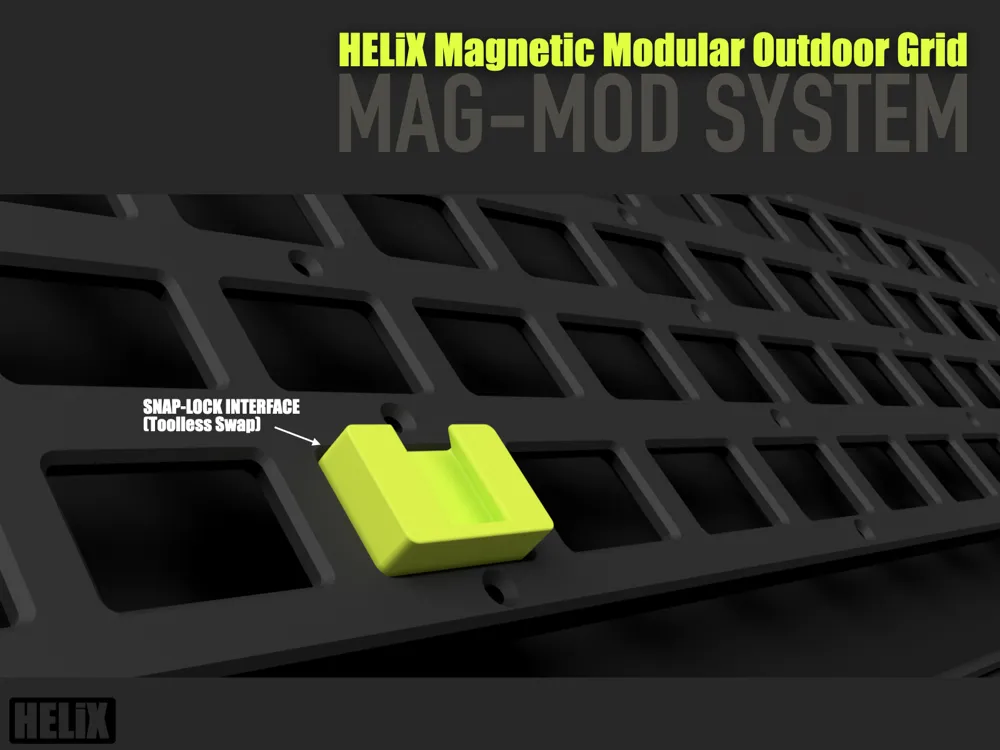

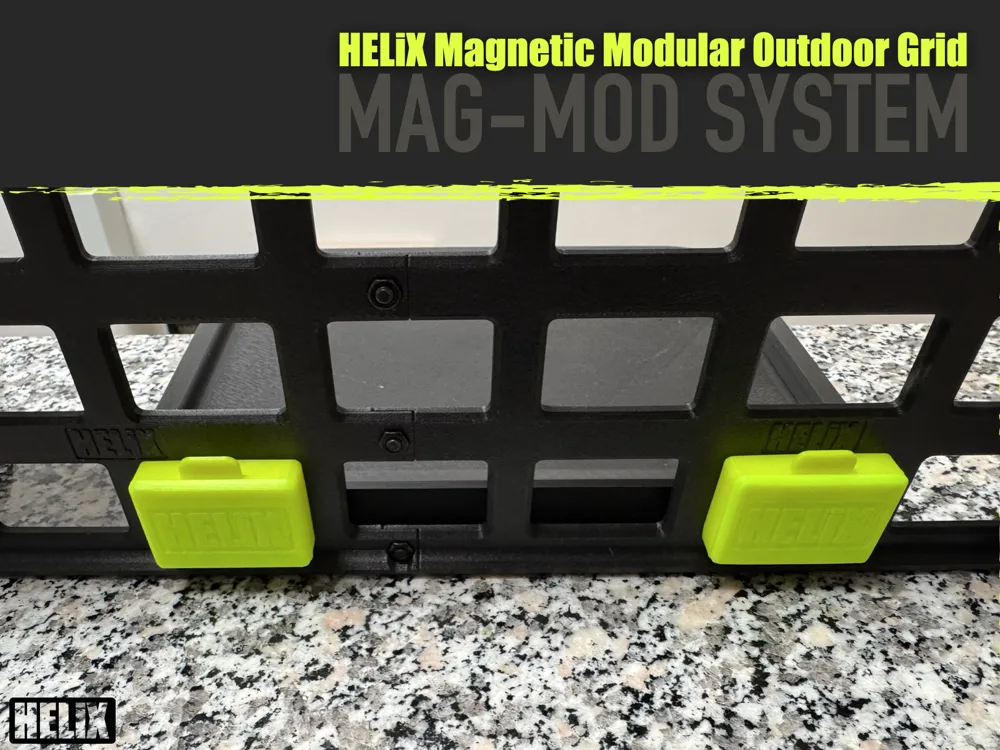

- 🔄 Snap-Lock Interface: Toolless fastening! Modules are slid into place and secured on the back by a TPU Locking Frame. Fast, secure, and silent. 🏗️✅
- 🛠️ Hybrid-Molle Standard: Optimized 38 x 25 mm grid for maximum stability in 3D-printing while maintaining compatibility with many standard Molle clips.
- 🏗️ Heavy-Duty Construction: A massive board design for uncompromising durability in harsh outdoor environments.
⚙️ Print Settings & Materials
- Board & Modules: PETG-CF (recommended for maximum rigidity & top-tier look) or PETG Matt.

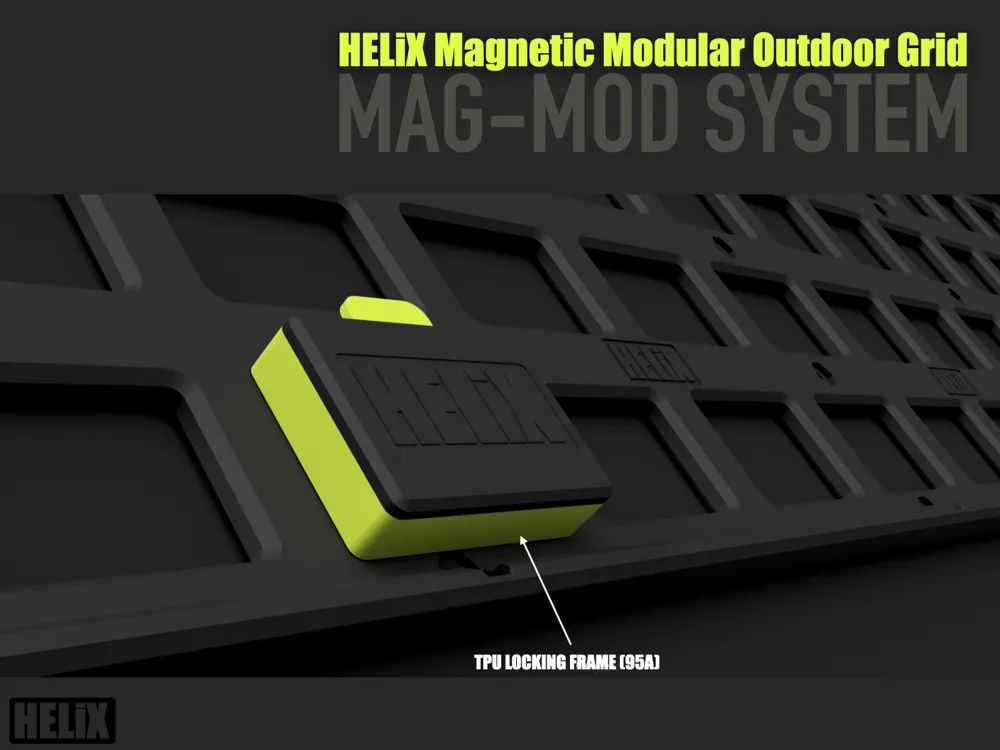

- Fixing Frames: TPU (95A). The flexibility is required to clamp the holder securely under tension.
- Walls: 4–6 Wall Loops (Essential for the durability of the M4 connections).
- Layer Height: 0.2 mm.
⚠️ Important Material Note: PLA is not suitable due to thermal load in outdoor use and mechanical forces. ASA-Users: The system is engineered with high precision. Be aware of the material shrinkage factor, as tolerances might otherwise be too tight!

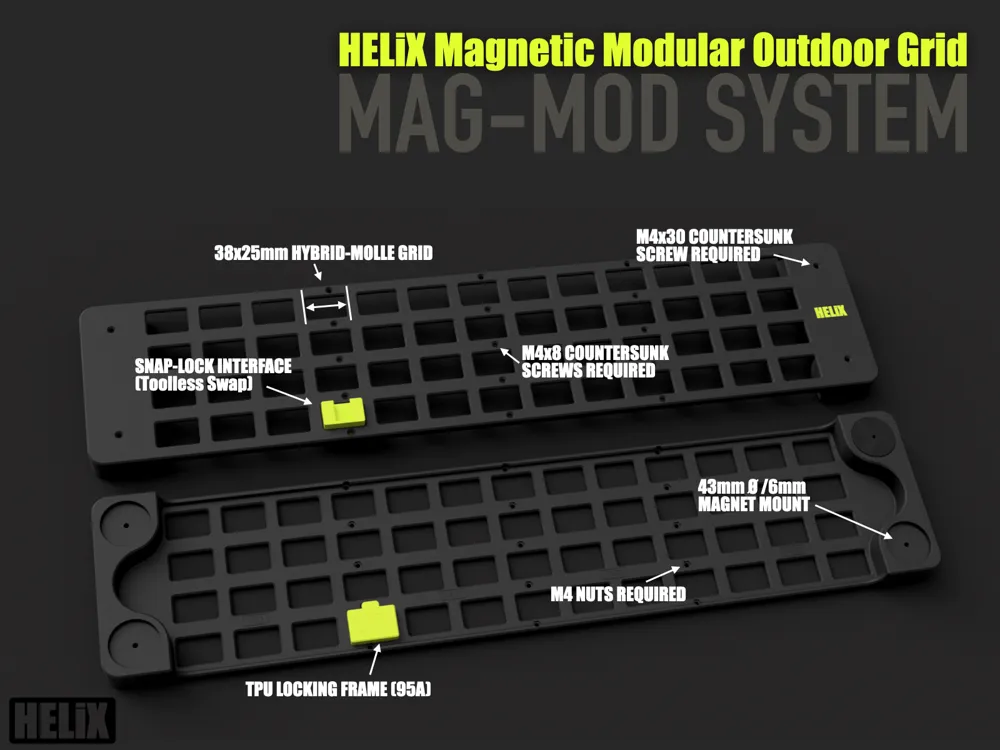

🛠️ Assembly & Hardware
- Board Connection: M4 x 8 mm Countersunk Screws + M4 Nuts.
- Magnet Fixation: M4 x 30 mm Countersunk Screws.
- Tolerance: The nut pockets are very precise. Allow the parts to cool down completely after printing before pressing the nuts in. A well-calibrated extrusion multiplier is the key to success here! 🧈✨
Hardware you will need:
Amazon Link to 4 Pack Anti-Scratch Mounting Rubber Coated Magnets
Amazon Link to M4x8 Countersunk Screws
Amazon Link to M4x30 Countersunk Screws
Support my work: If these MAG-MOD System help you stay organized, a Boost 🚀 or a high-quality photo of your setup means the world to me. It keeps the HELiX project evolving!
Fuel the creative process: ☕ buymeacoffee.com
Happy printing! 👊
