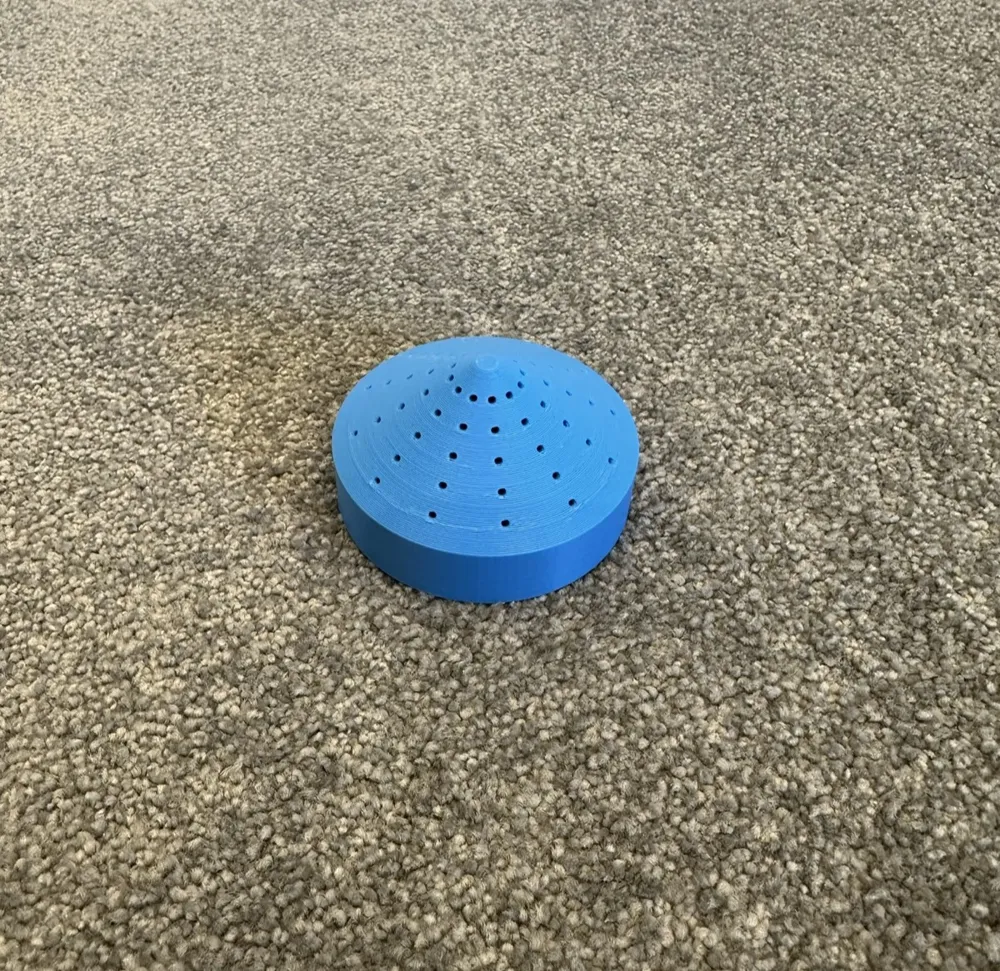

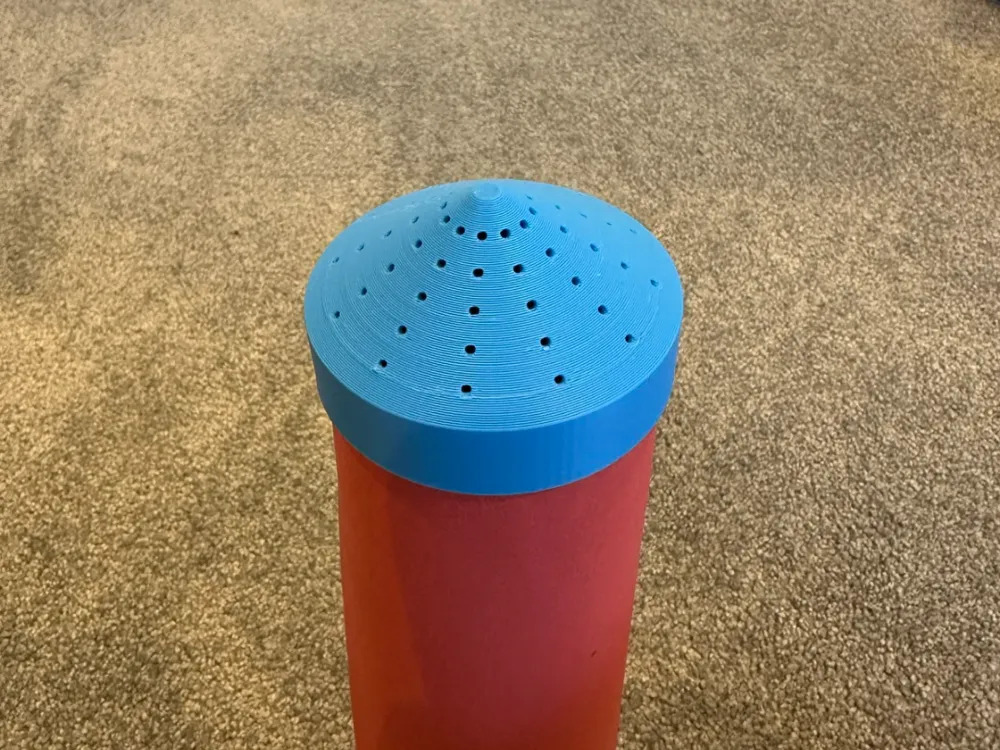

Parametric Vent Pipe Cap
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 30% infill
Designer
50 min
1 plate
Open in Bambu Studio
Boost
2
6
0
0
5
0
Released
Description
Parametric Funnel
Adjustable parameters:
Pipe dimensions
pipe id - internal diameter of cap (Red)
socket depth - height of vertical wall (Green)
wall thickness - thickness of part (White)
Cap design - sloped sides
Cone height - height of sloped section (Blue)
top flat diameter - diameter of conical top (Orange)
hole diameter - size of vent holes (<1.5mm >1.2mm)
side holes - vertical number of holes
hole rows - number of rows wrapping around sloped surface
