8"x10" LED Lightbox Frame - UV Prints or Hueforge

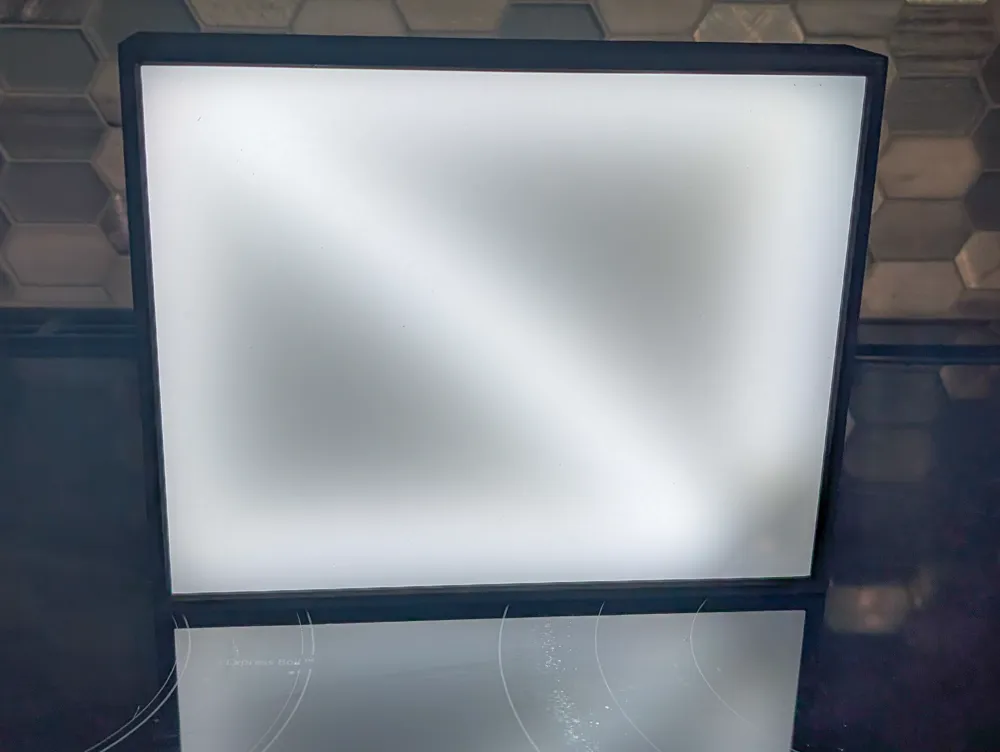

This lightbox frame when combined with an LED strip provides an illuminated frame for your artwork or photos.  Whether you want to display you latest hueforge design, laser etched acrylic, or lithophane graphic, this 8"x10" lightbox is perfect to display your art, landscape or portrait.  Example images used UV printed images on milky white laser cut acrylic.  For eufyMake E1, I used 1 layer of white with 2 layers of CMYK.  You will need a 3 foot LED light strip to place inside the box, and cut to size.

Design features:

• A minimal Frame that serves as border for illuminated artwork. Print in any color you want.

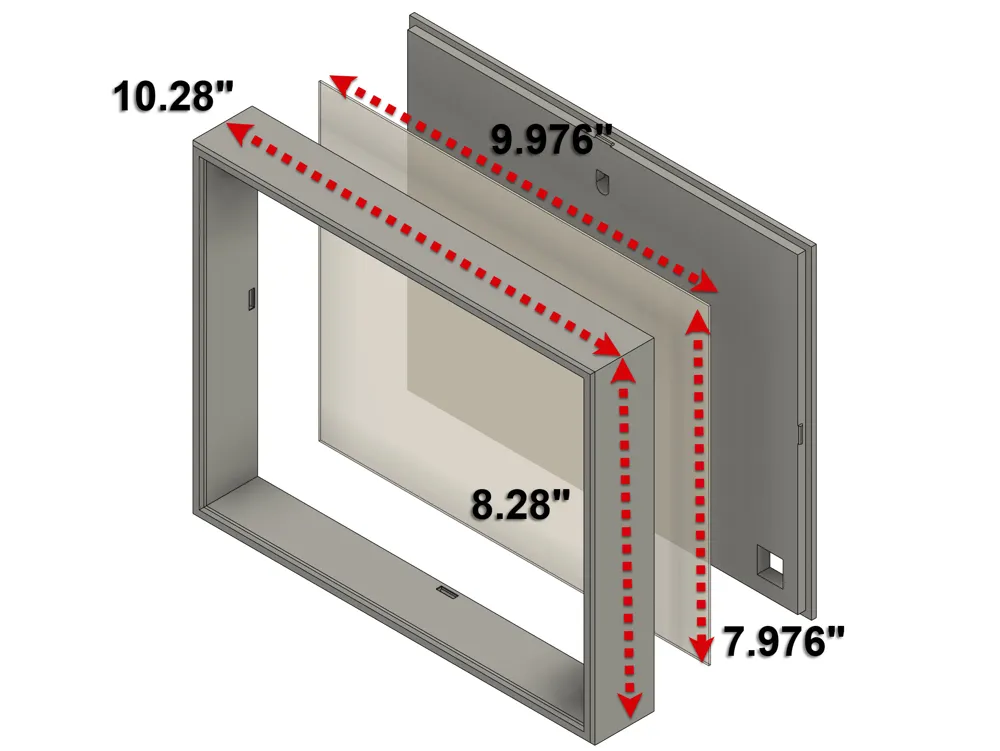

  • Dimensions:
    • 10.28" x 8.28" External
    • 10" x 8" Internal
    • .28" Frame Border on front face
    • 9.976" x 7.976" Internal for diffusion layer

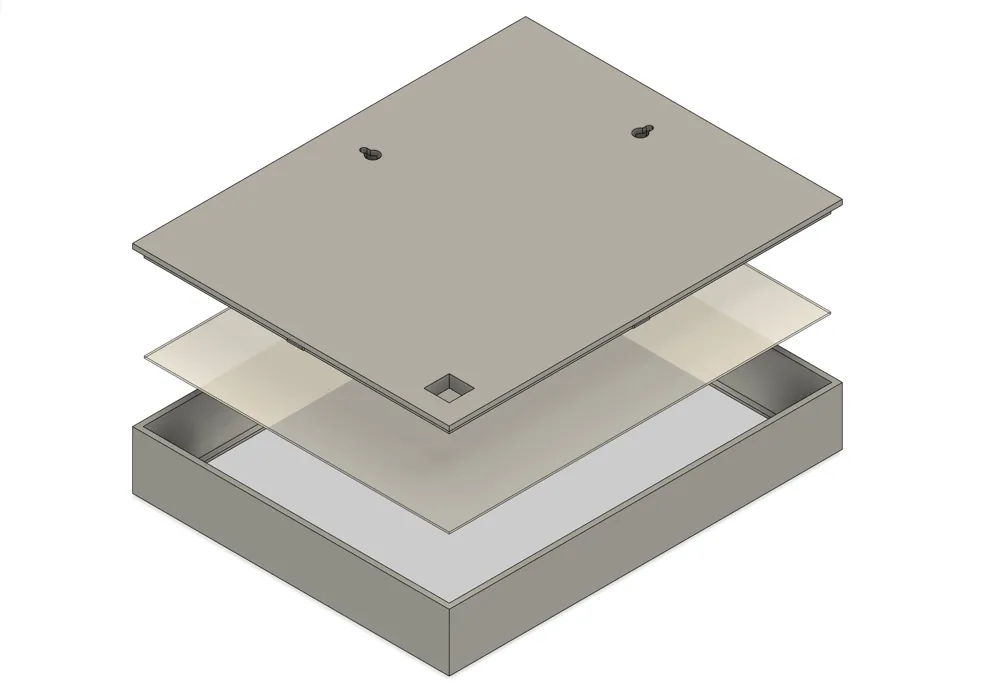

• The diffusion plate goes behind your art and can be 3d printed in white or translucent filament.  I have also included an SVG file if you prefer to laser cut acrylic.  This layer would be optional if you instead 3d printed your lithograph or hueforge design to fit in the lightbox.  Glue or tape may be necessary to secure to frame.

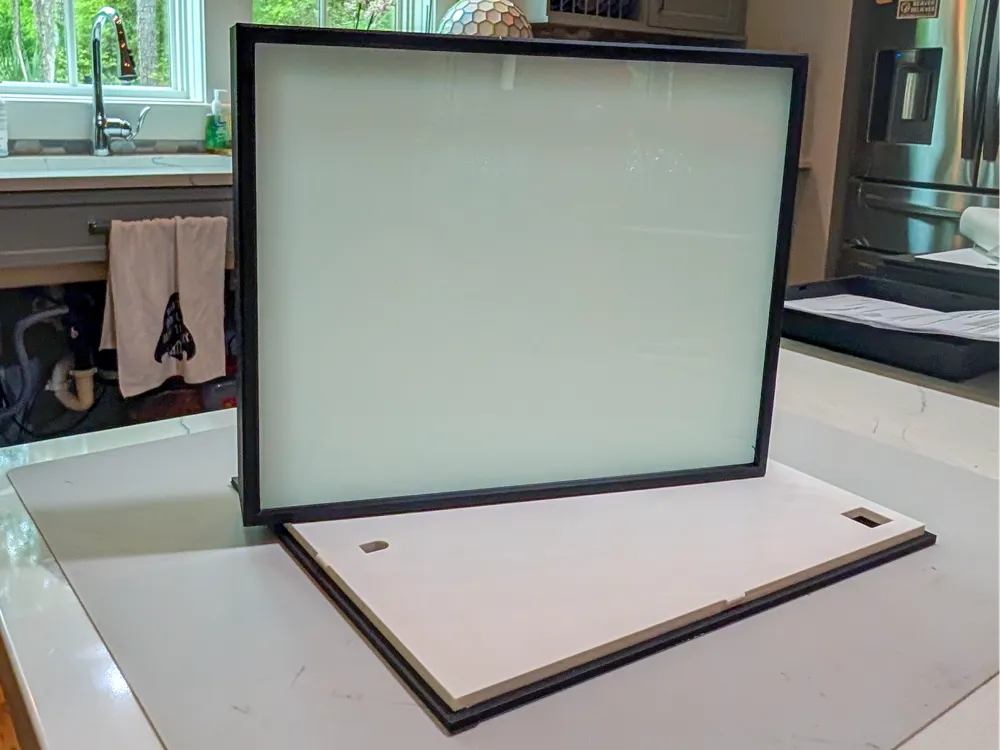

• The Backplate, which serves as the lid for the lightbox.  Adhere your LED strip to the inside face.  Print inside face white for additional lightbox reflectivity.  2 keyholes for wall hanging included.  Small opening for LED cable.

• Tabs on backplate snap into frame.





  Assembly instructions:

  (I used a 3 foot LED strip with USB cable for power.)

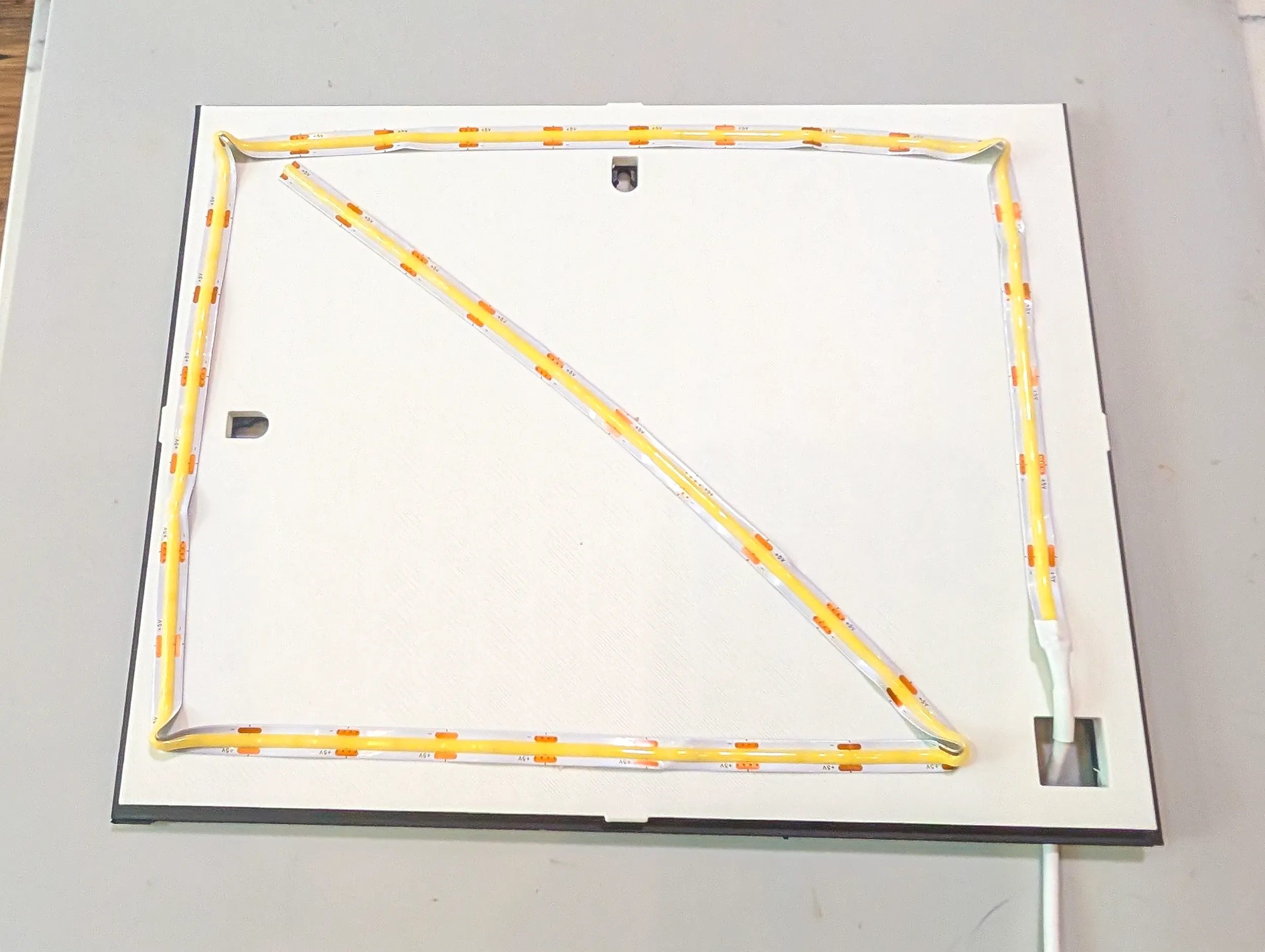

• Peel 3M tape off back of the LED strip and adhere to inside of the backplate around the perimeter with the cable exiting through the hole.

•

• Place frame face down on flat surface.  Secure artwork inside frame.
• Snap back plate into place
