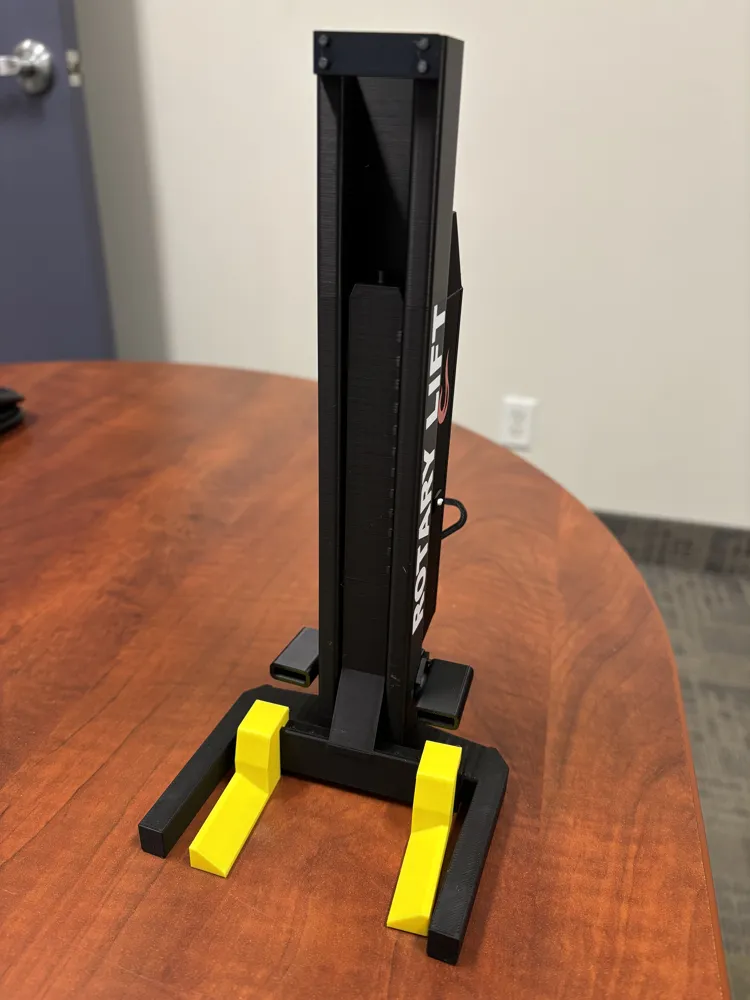

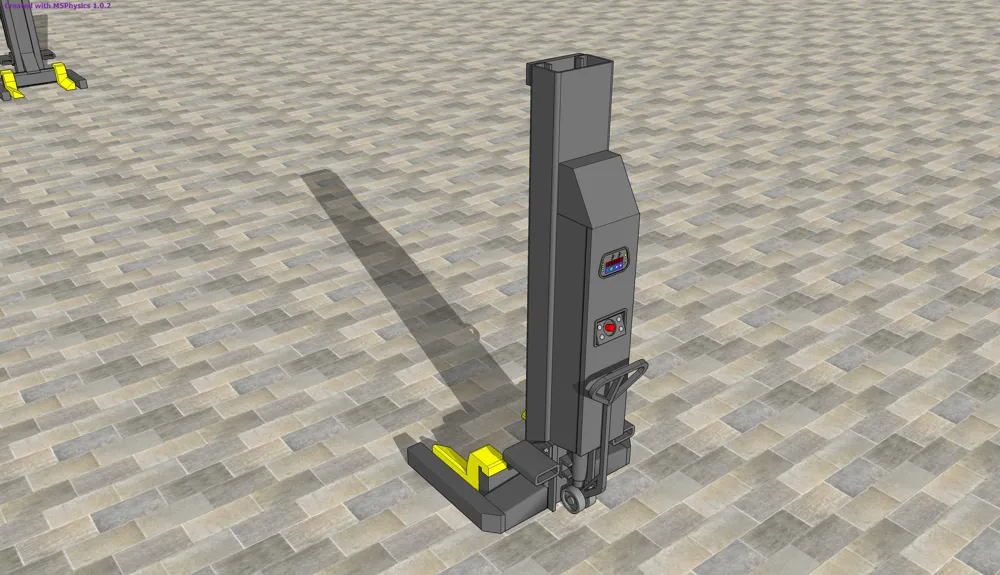

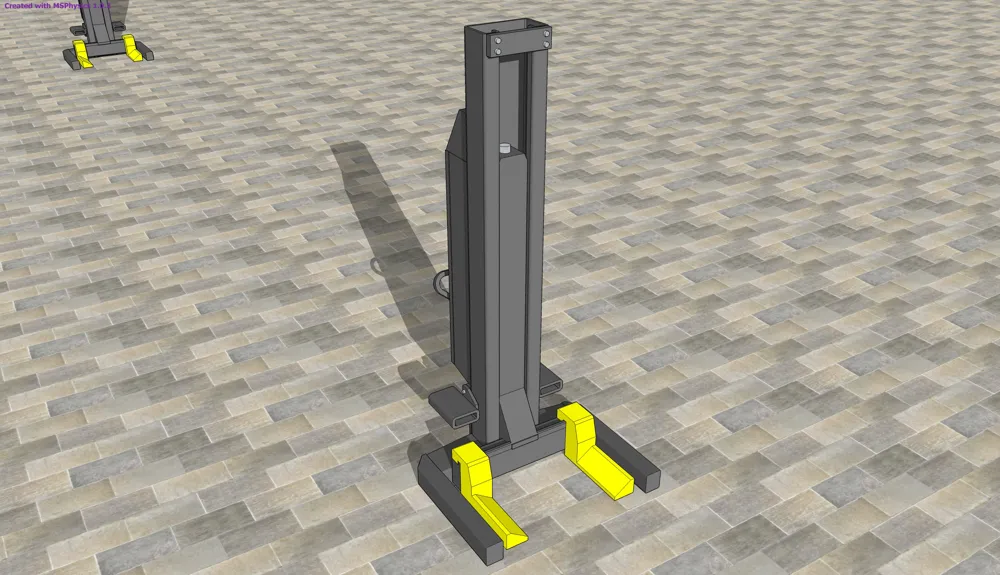

Mobile Lift Column Hoist
Print Profile(1)
Description
Welcome to the mobile column lift model! I recommend gel glue in several spots for construction.
MAIN FRAME:
- Glue the CONTROL CABINET to the FRAME - the guide slots should be used to align the cabinet vertically
- Glue the FORKLIFT POCKET the POCKET BRACKET - make sure the alignment wedge shape fits in
- Glue the completed forklift pocket and pocket bracket to the alignment tabs on the Control Cabinet
CARRIAGE FRAME:
- Glue the 4 GUIDE ROLLERS into the four holes in the CARRIAGE
- Insert the completed CARRIAGE assembly into the COLUMN FRAME - The Carriage should have the horizontal foot toward the bottom
- Glue the UPPER STOP BAR at the top of the completed column frame - This will lock in the movable carriage in the frame
PALLET MECHANISM:
- Glue the HANDLE to the PALLET ARM
- Glue the handle bar to the PALLET LIFT CYLINDER
- Glue one PALLET WHEEL to either side of the pallet cylinder
- Glue the PALLET MOUNT BRACKET to the pallet lift cylinder
- Glue the completed pallet handle mechanism to the column frame using the horizontal alignment marks
BEACON LIGHT:
- Glue the BEACON LIGHT to the top of the control cabinet

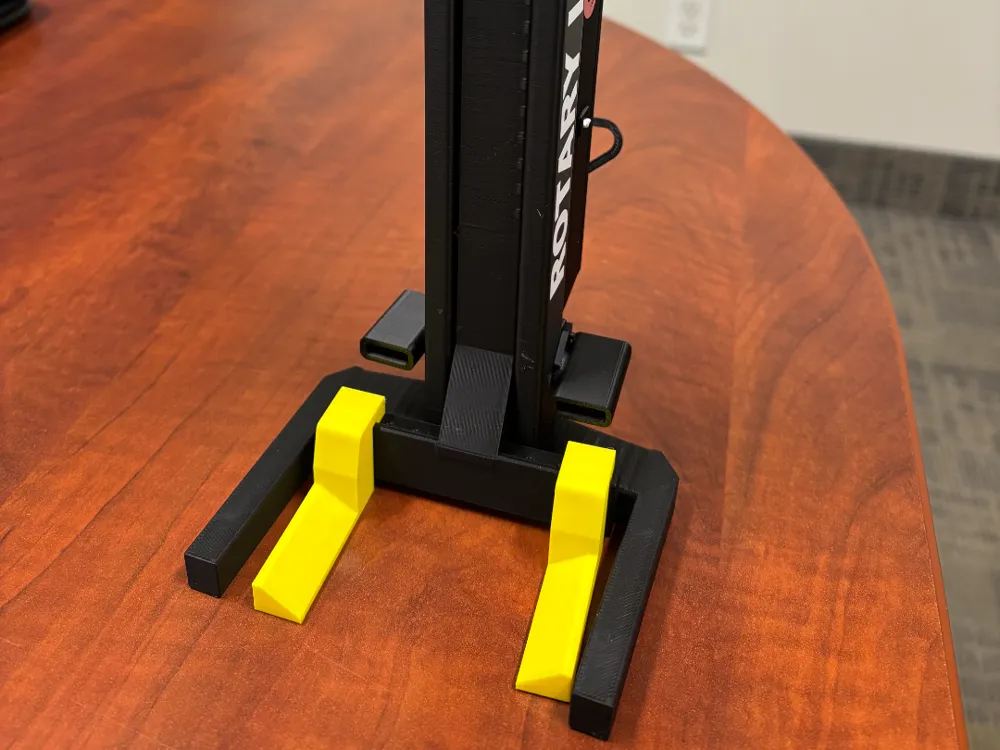

LIFT FORKS:
- Drop the yellow LIFT FORKS on to the travel slots on the lift carriage. make sure the forks are opened to the center to accept the vehicle wheel
