HBM Dust Collector Filter Protection
Having to work with wood, I bought an HBM dust collector.
Unfortunately, with fine sawdust, I found the filter clogged with dust, and every two days I had to wash the filter even though the bin was almost empty.

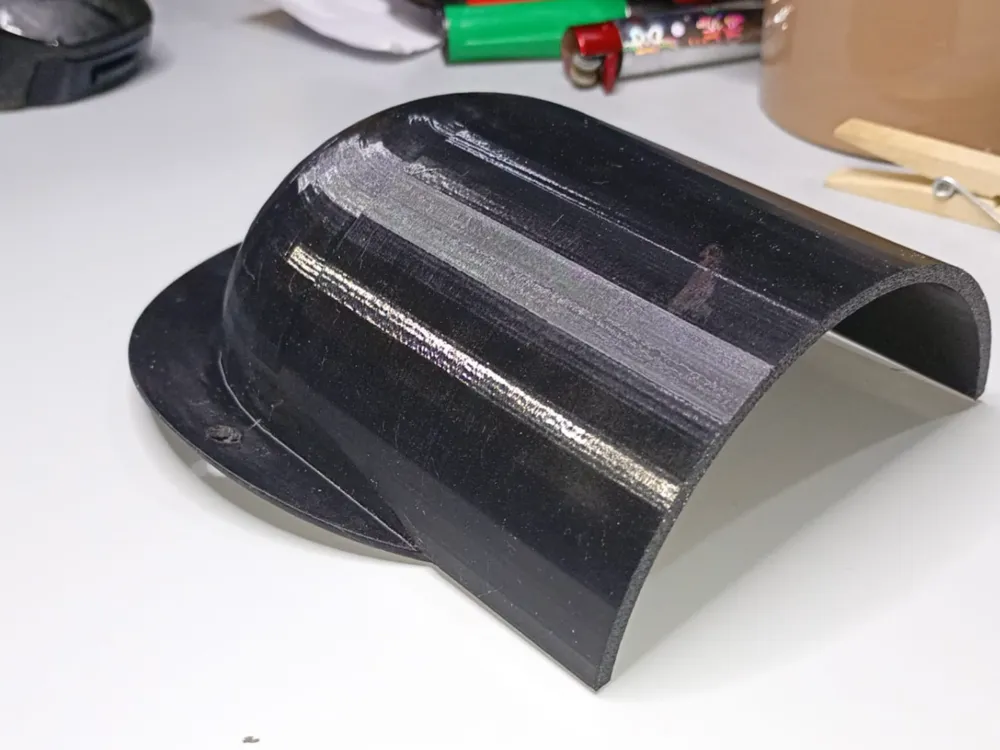

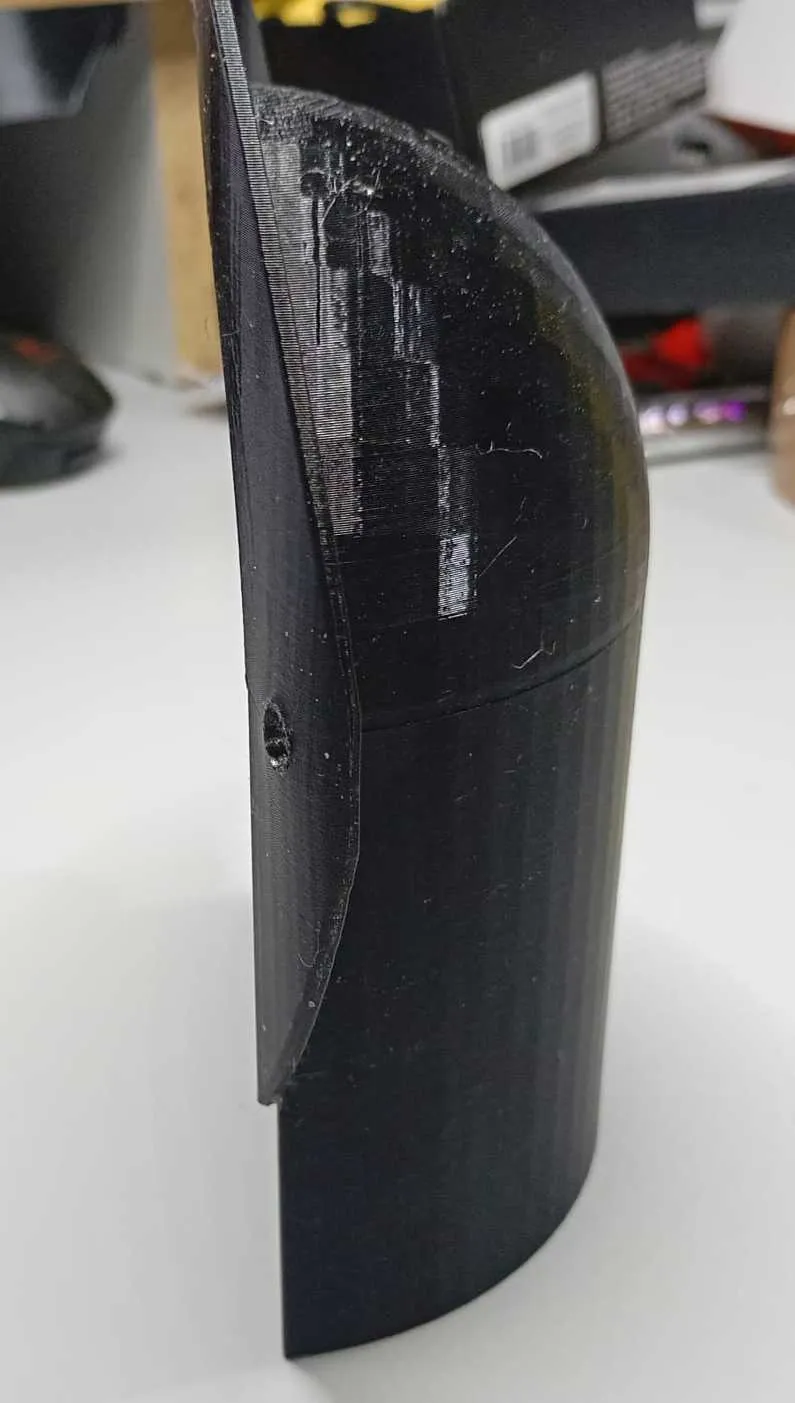

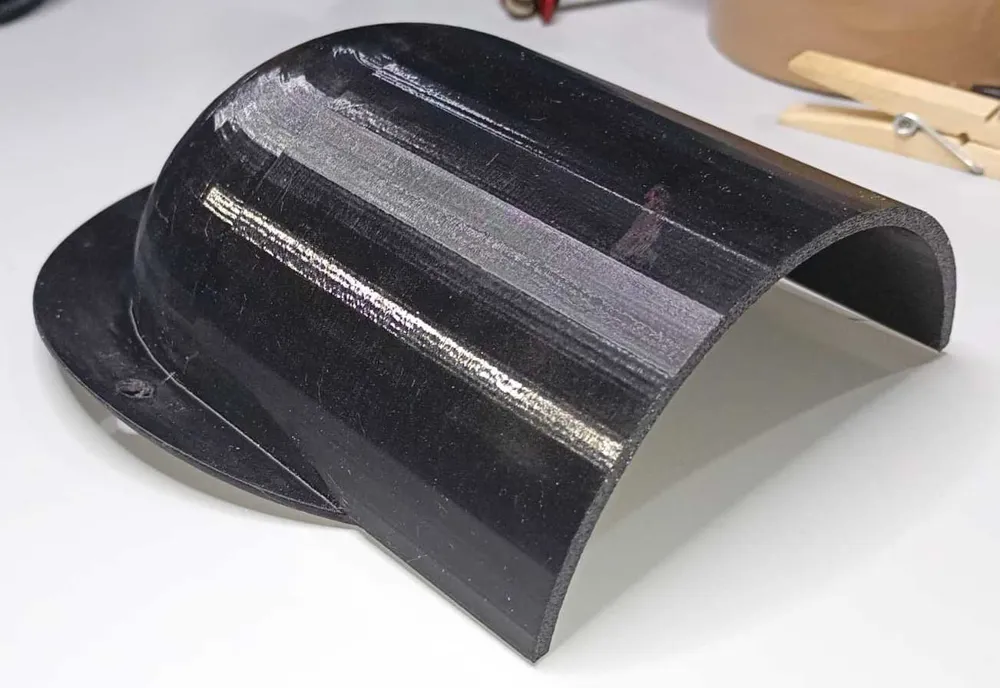

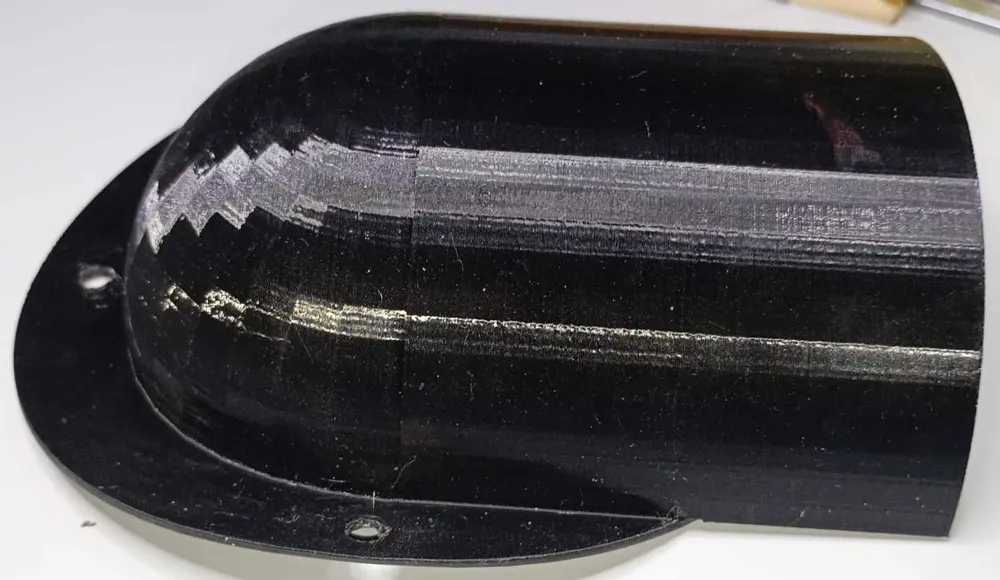

As a solution, I designed a small baffle with a flange so that the suction is not affected, but the dust no longer goes directly onto the filter.

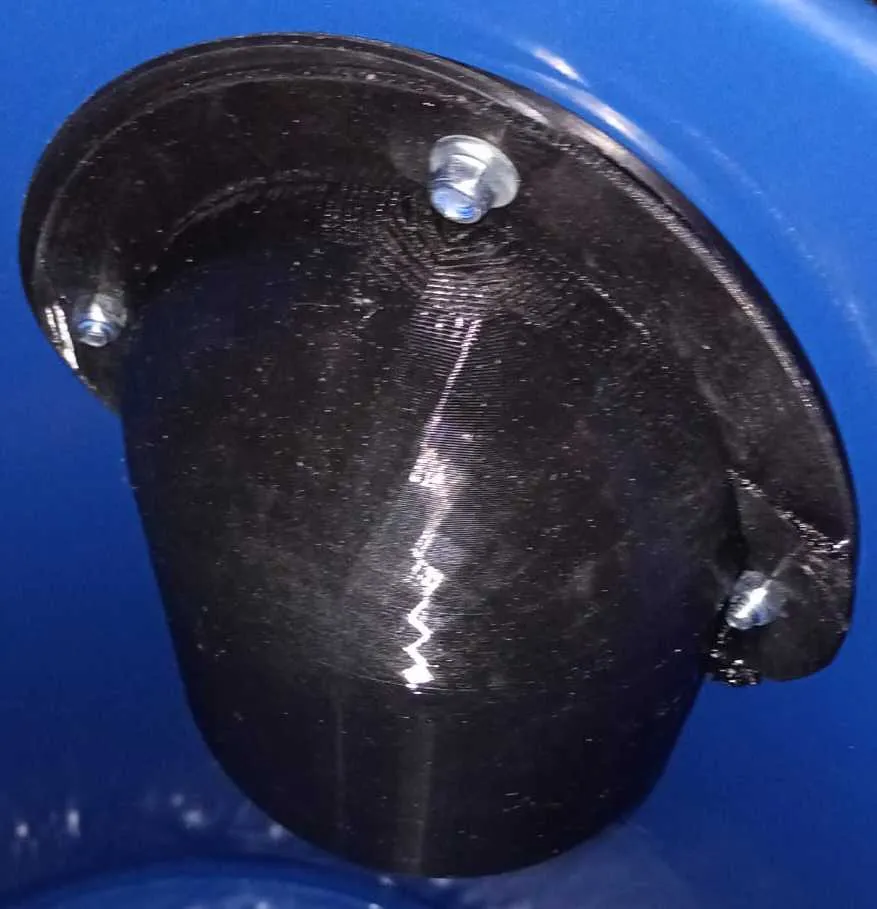

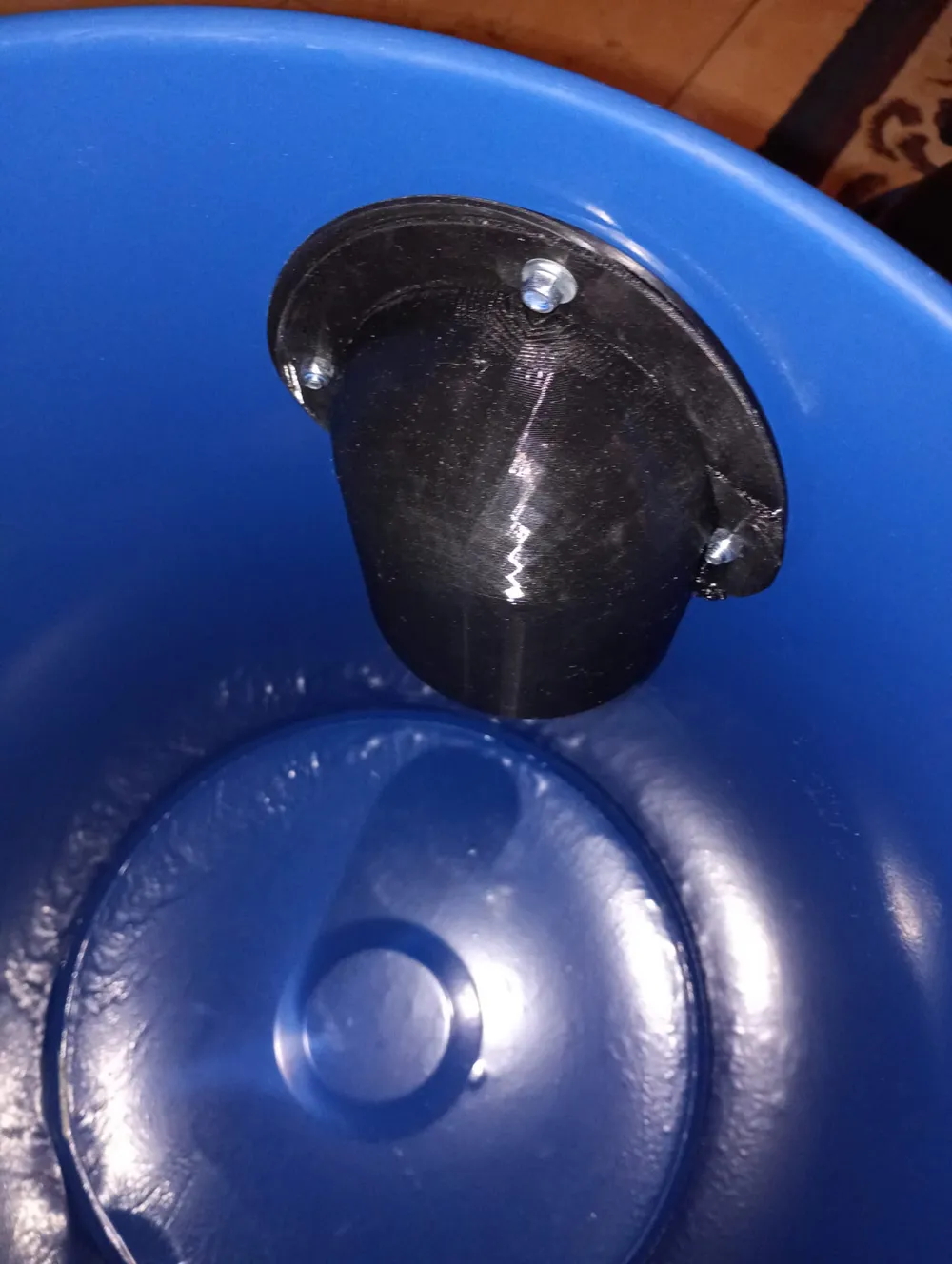

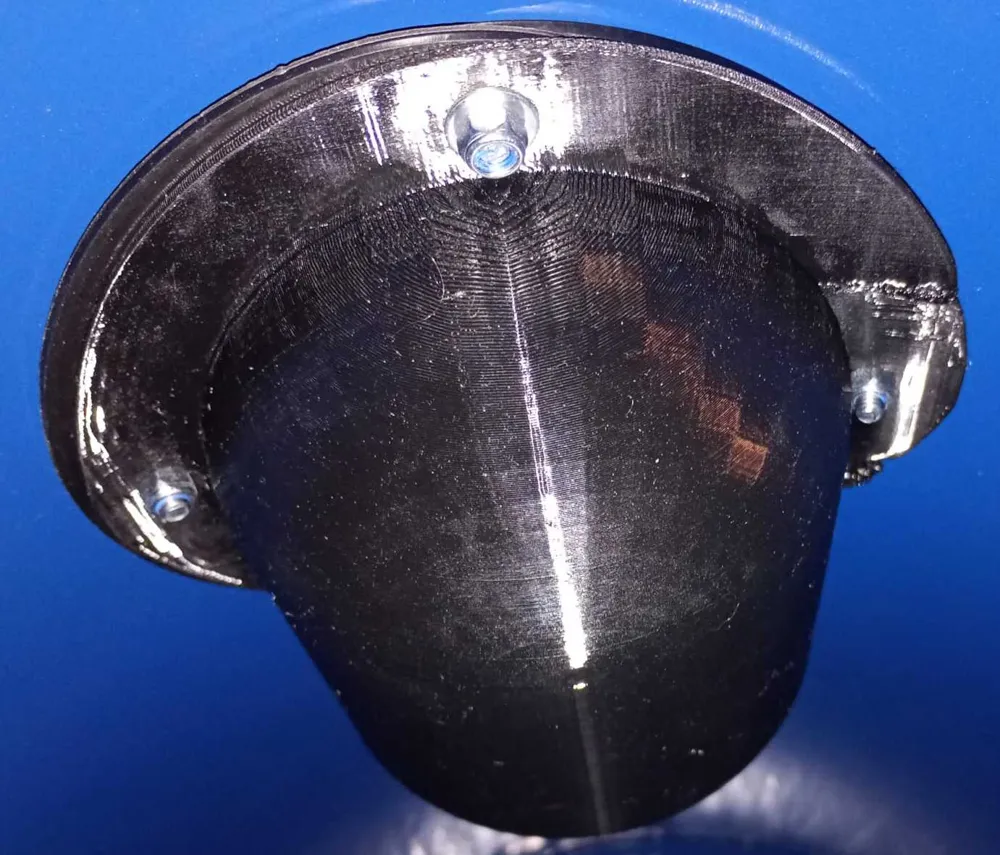

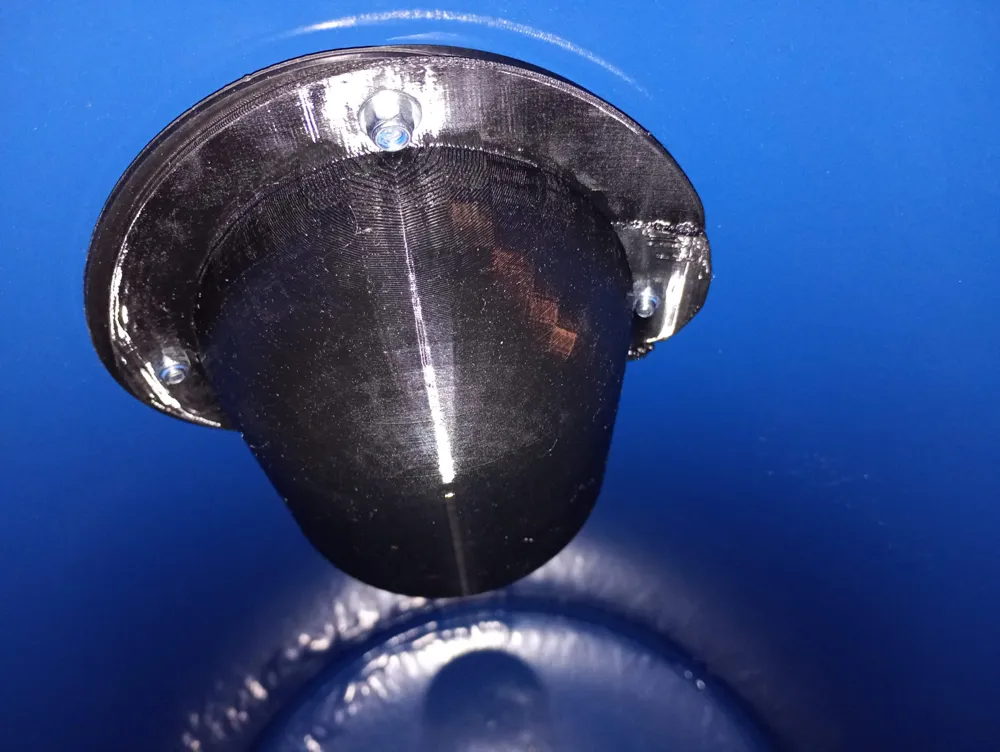

I designed it with holes for the HBM, but I also provide a version without holes so that depending on the extractor, you can mark the screw holes and adapt it.
I printed it in black PETG both for aesthetic reasons and for the intrinsic robustness of the material, but I think PLA would also work well.
However, I recommend PETG if the extractor is also used outdoors.
