Exhaust for H2 Flipper - no supports, 9 directions
Print Profile(2)
Bill of Materials
Description

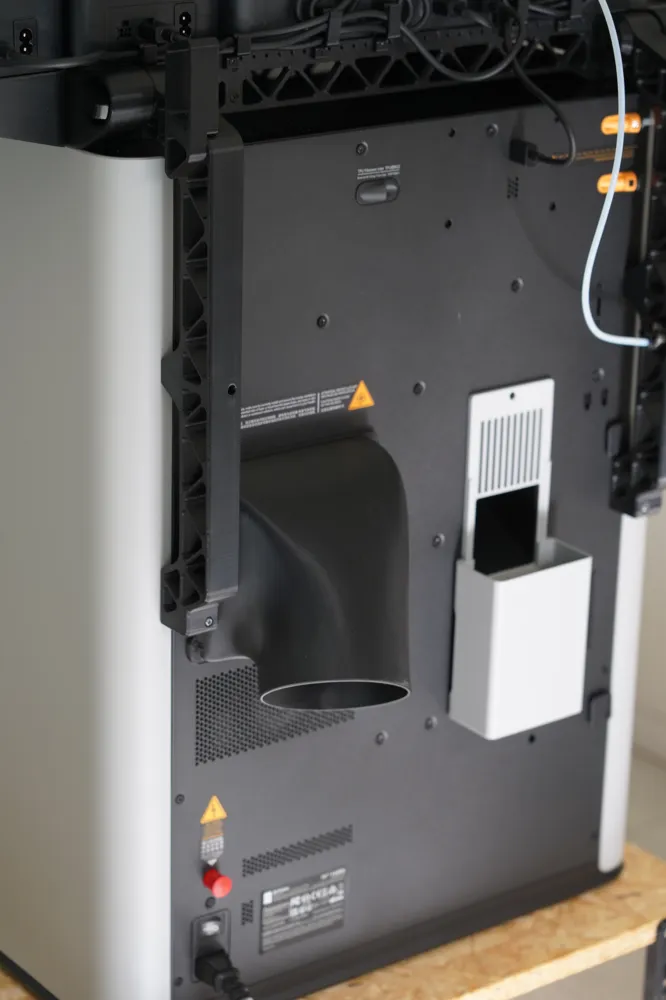

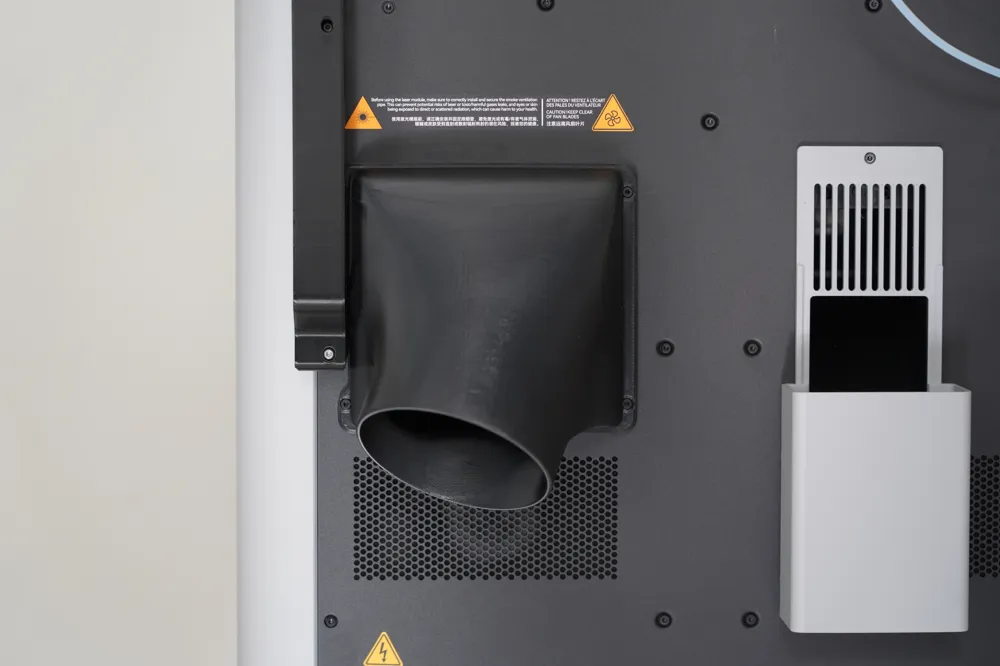

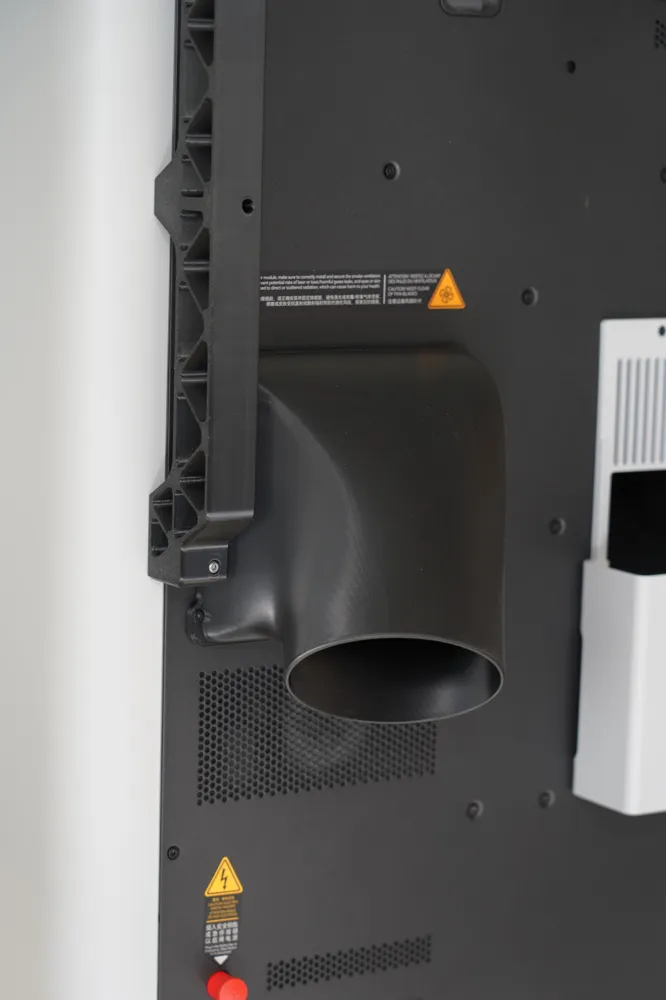

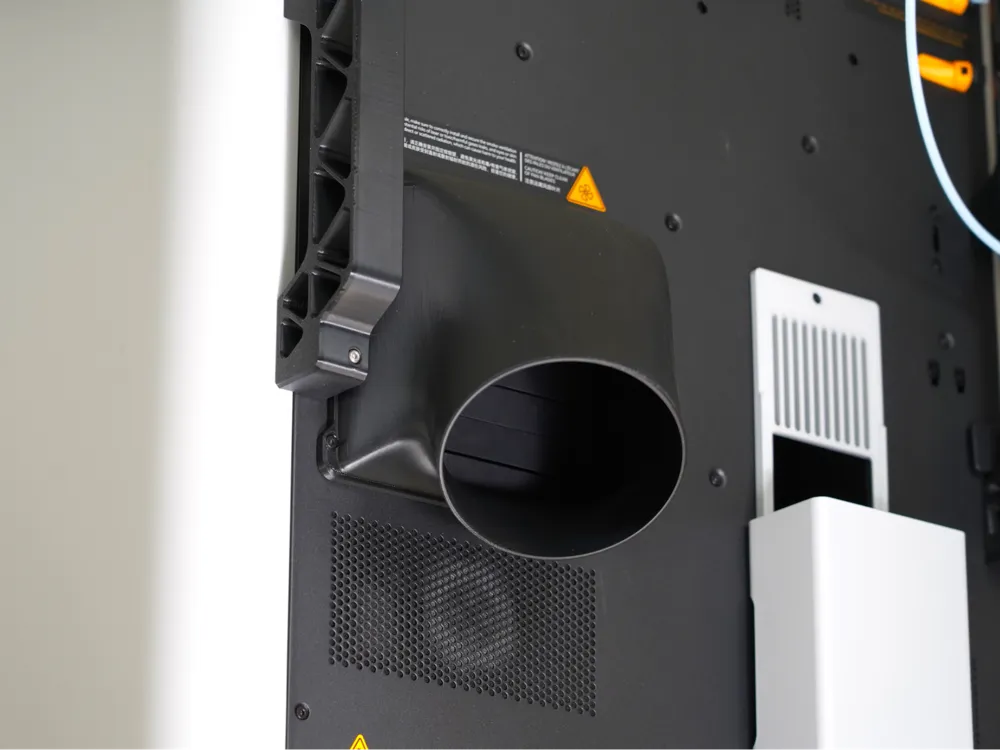

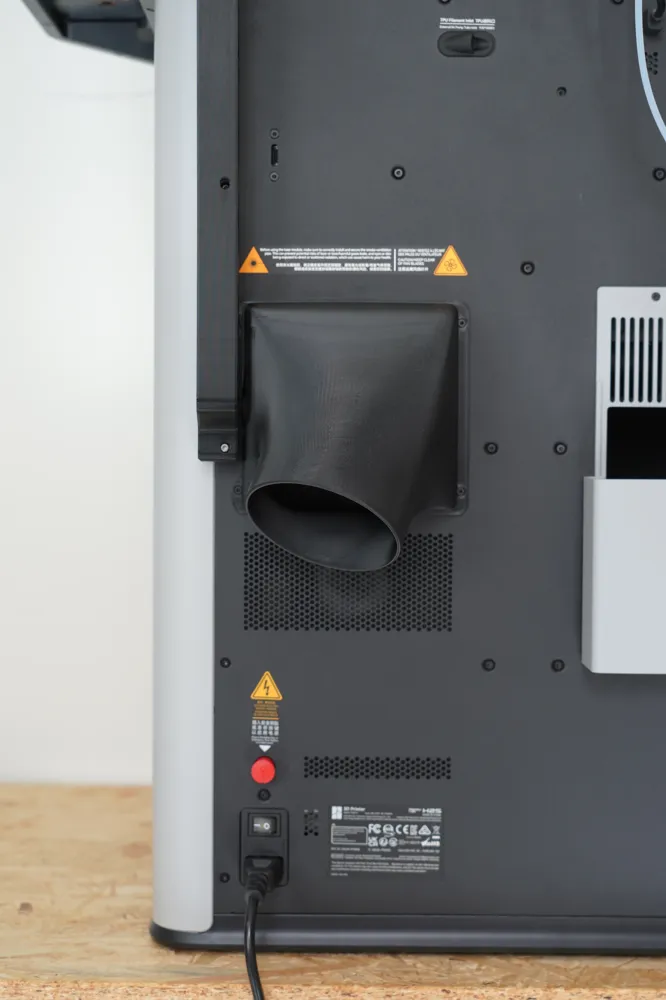

This is a range of H2 Flipper compatible exhaust ducts.
These are simple Exhaust ducts focused on easy printability without supports, a strong design and there are 9 versions that point the Exhaust in different directions with a standard 100mm pipe interface (same as Original Bambu Exhaust cover).
These Exhausts are specifically designed to be compatible with the H2 Flipper.
Boost Me (for free)
If you want to support my development of H2 accessories, a Boos would really help.
Features of the design:
- exhaust compatible with H2 Flipper

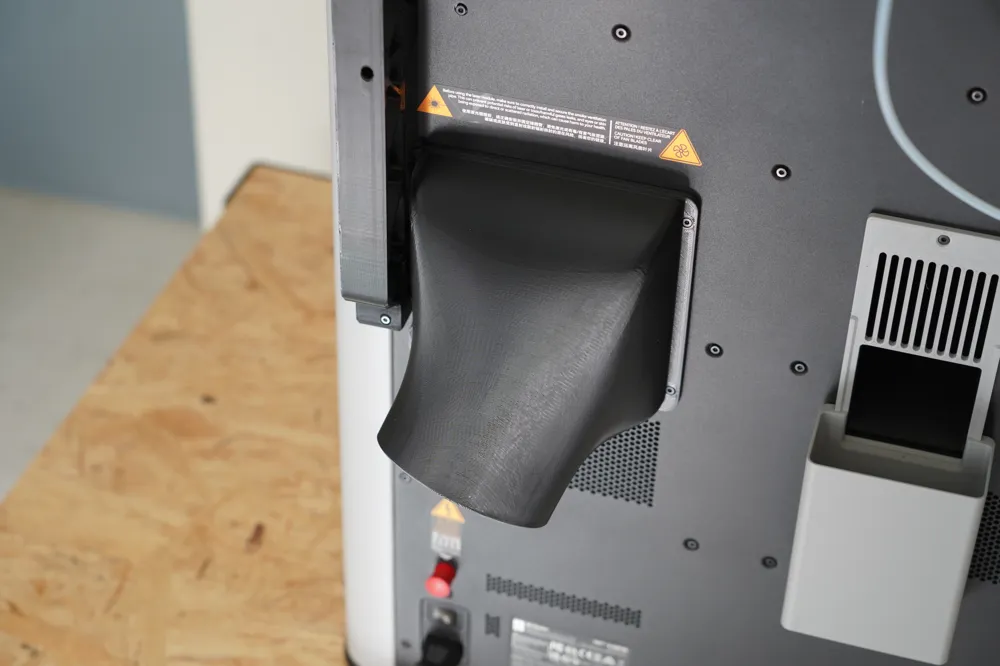

- Comes in 9 variants to point the exhaust in different directions.
- easy to print without any supports.
- standard 100mm pipe interface (same as Bambu exhaust cover)
- only uses 125gr of filament
- strong design
Print recommendation:
Each §MF file includes all versions of the Exhaust, with each build plate for a specific exhaust direction.
All parts are designed to print without supports and can fit on a single 256x256 buildplate.
I printed the exhaust in Bambu Lab ABS, and scaled it to 100.6% to accommodate for any shrinkage (3MF of that print included).
PETg is an alternative, but not as good due to potential of hot exhaust and avoid PLA for this part.
