Folding Prop RC 1103-Brushless
Print Profile(8)
Bill of Materials
- Stiff Wire x 2: Around 1mm in diameter and 10mm length
Description

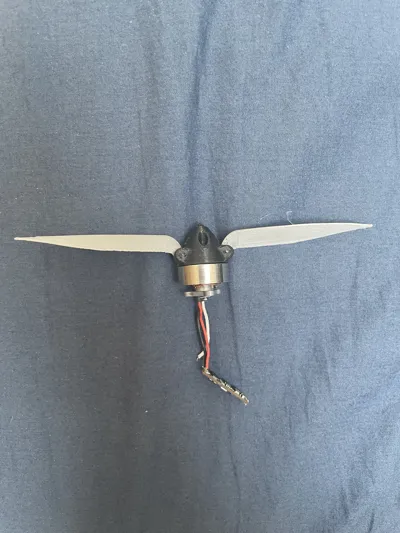

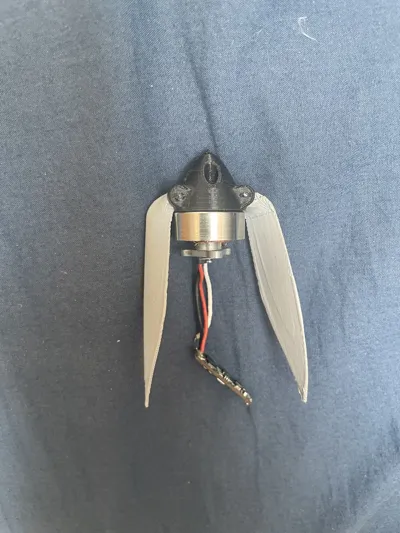

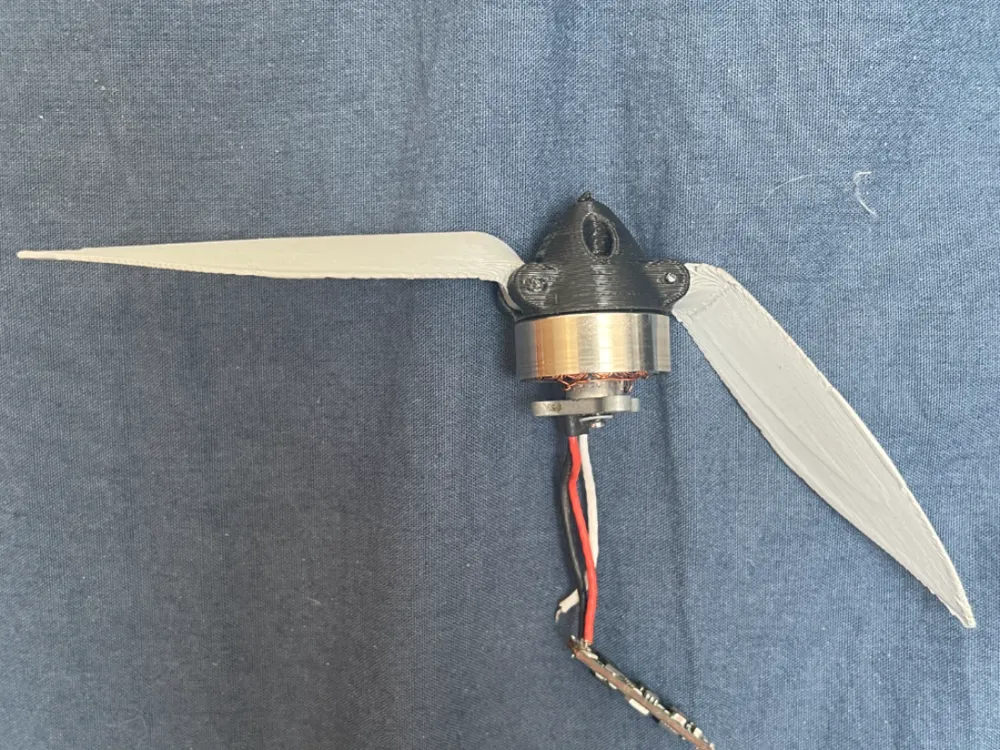

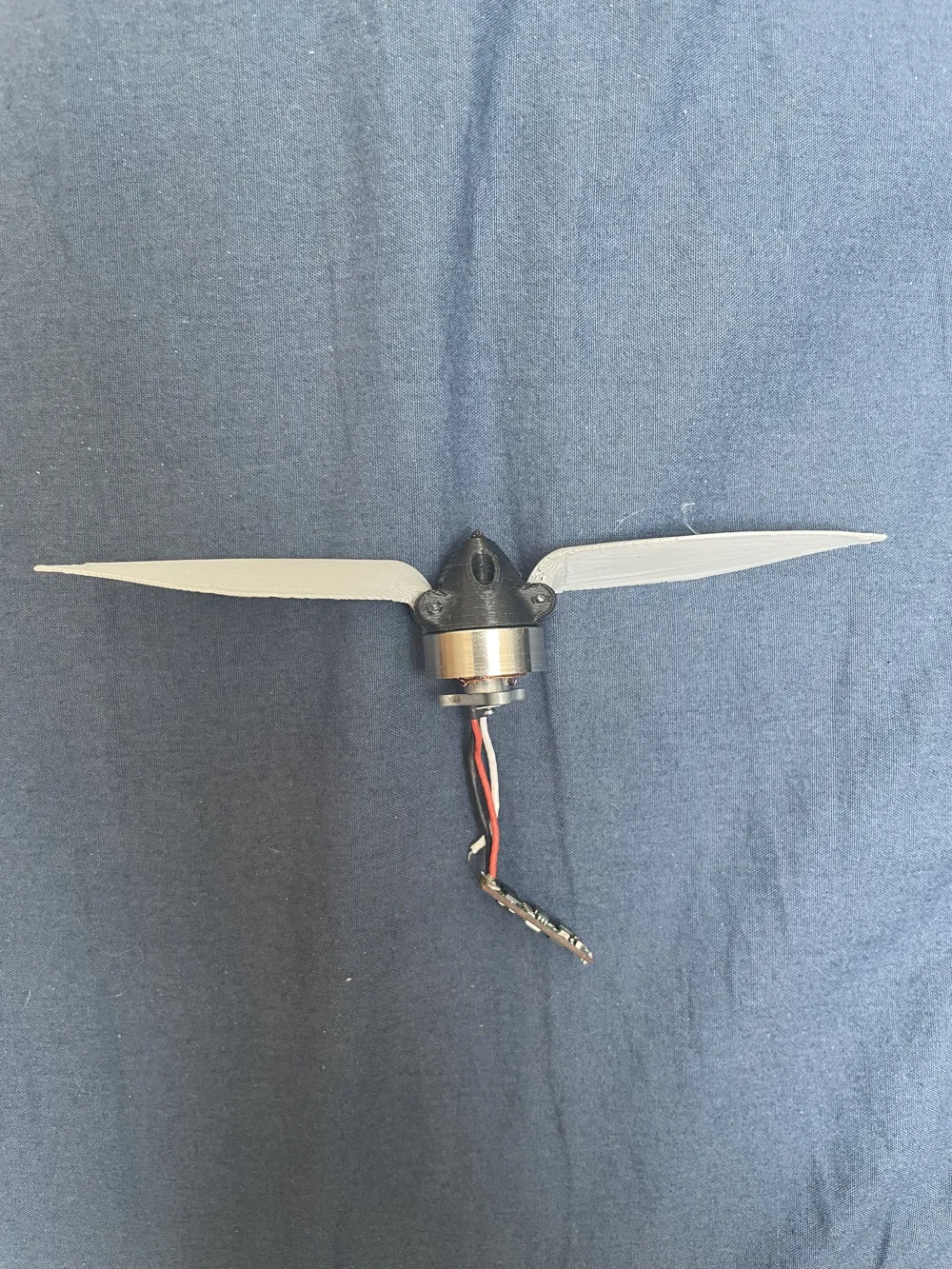

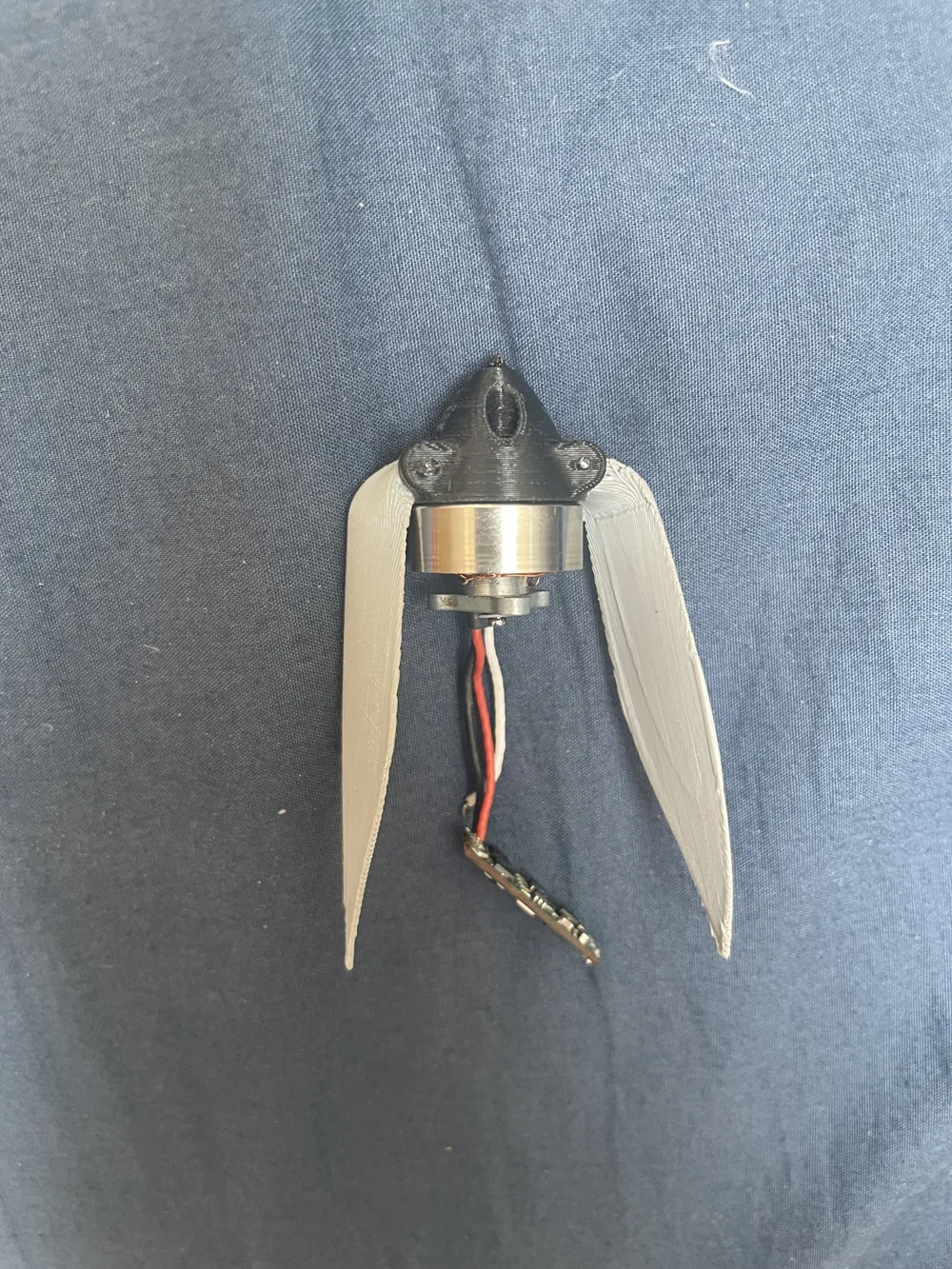

This is a folding propeller for a 1103 brushless motor.
Simply thread a stiff wire through the propeller and hub, and you're ready to fly.
How the sizes work: Example: 6x2 → Diameter: 6inch; Pitch: 2inch. Pitch is the distance the propeller travels through the air per revolution.
I've uploaded different sizes, but if yours isn't listed below, just use this parametric design file: https://cad.onshape.com/documents/c2b0ce78f3e95f86fe3b00c2/w/f8f5b5adc02b1f21ded20efd/e/dae9e07a017691c61d0b4c4d?renderMode=0& uiState=6a12e20bafa6d28a43172a46. Otherwise, you can simply leave me a comment with your preferred size, and I will add it.
The Propeller works really well and is very durable.
Right now, I’m using it on a 120cm wingspan RC glider. Thanks to the different sizes available, experimenting and optimizing is very straightforward.
I wish you a lot of fun and would love to hear from your experiences.
