mesh sleeve anchor 16x100 M10
Print Profile(1)
Description

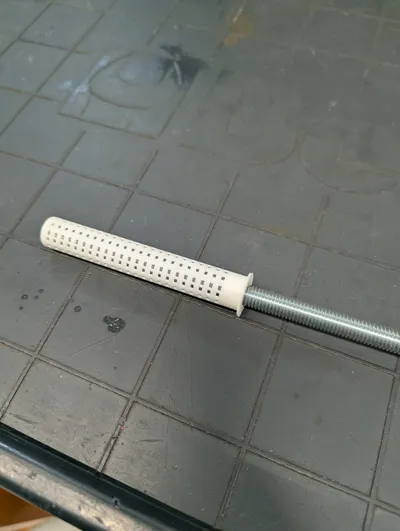

Retention Sleeve for Chemical Anchor – Anchor 16x100 M10 (3D Printed)
This retention sleeve is designed for use with chemical anchors in holes on perforated or hollow materials, ensuring uniform resin distribution and a secure grip for the anchor.
🔧 Technical Specifications:
- Diameter: 16 mm
- Length: 100 mm
- Compatibility: M10 threaded rods
- Use: chemical anchors on perforated brick, tuff, hollow blocks
🧱 Function:
The mesh structure of the sleeve retains the chemical resin inside the hole, preventing dispersion and improving adhesion between the substrate and the threaded rod.
🖨️ Optimized for 3D printing:

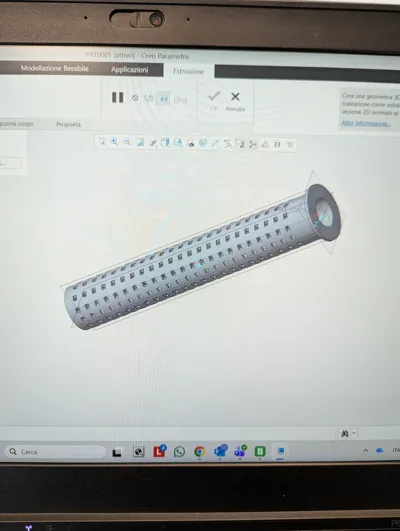

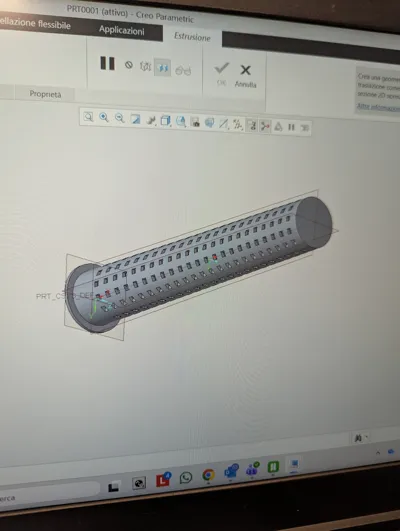

- Lightweight and perforated design to reduce material
- Printable without supports (vertical orientation recommended)
⚙️ Applications:
- Installations in perforated masonry
- Light/medium structural fixings
- DIY and professional projects
💡 Notes:
For optimal performance, use compatible chemical resins and observe the curing times indicated by the manufacturer.
