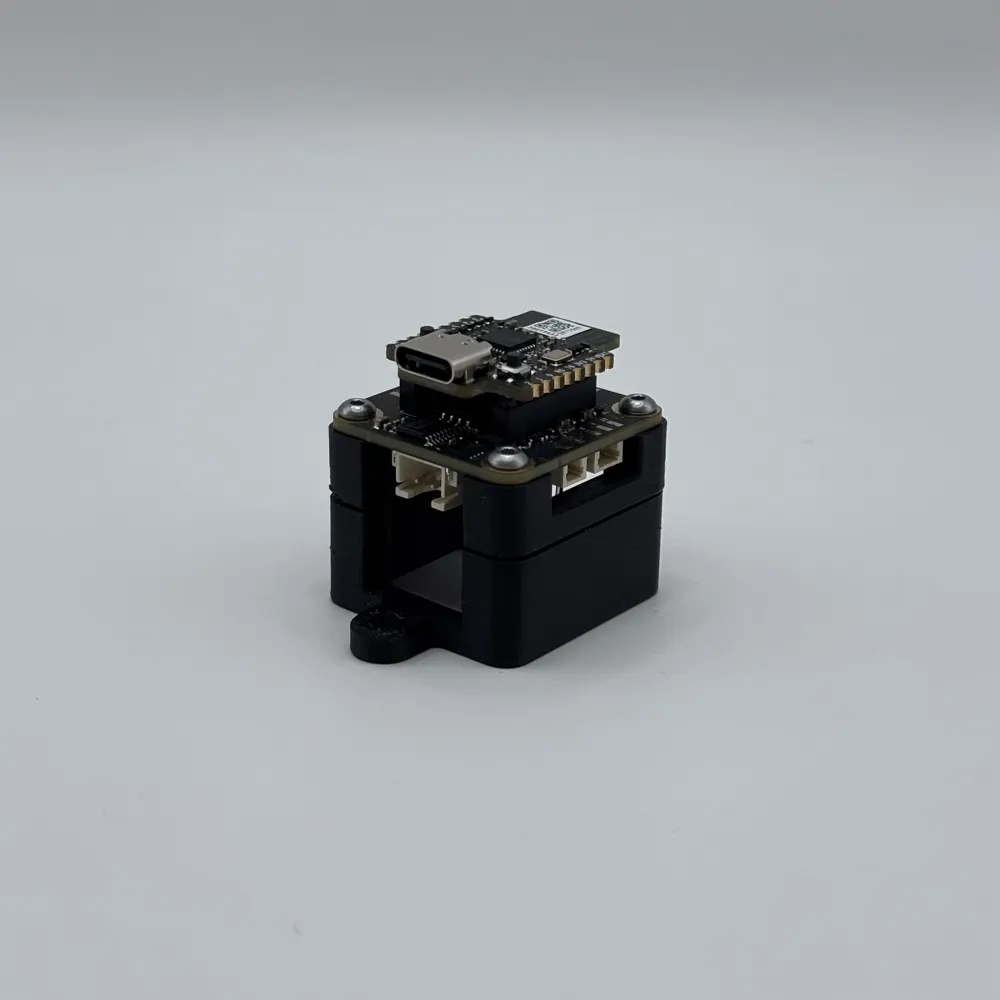

Magnetic Controller Mount for CyberBrick Vehicles

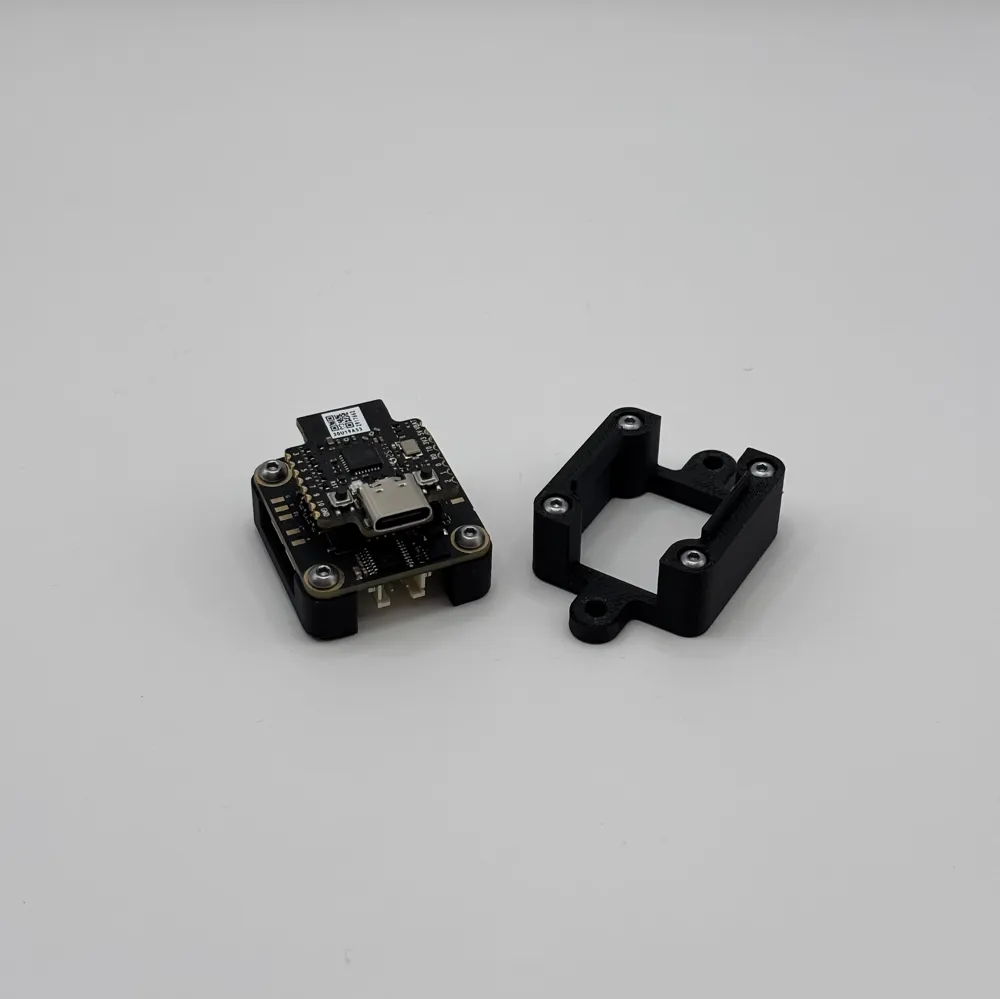

With this solution, you can swap the "brain" of your vehicle between different builds in seconds. The magnetic system allows for seamless removal and installation of the control board in any vehicle equipped with a compatible base.
Mounting Variations:

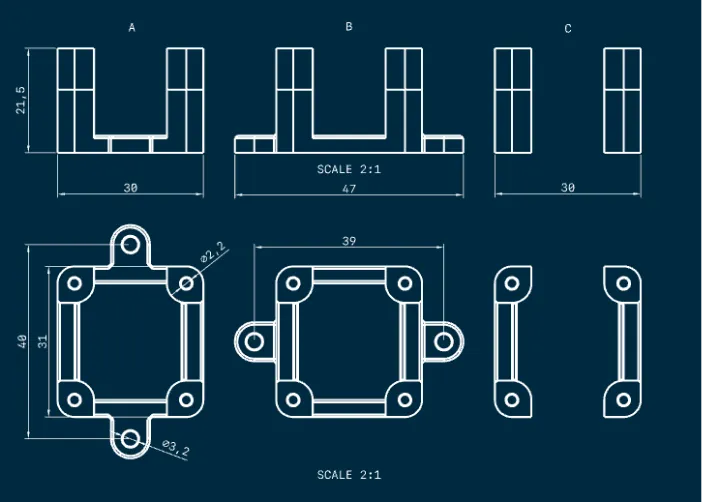

- Models A & B: Feature different structural designs (see technical drawings); designed to be mounted to vehicles using M3 screws.
- Model C: Integrated design. Optimized for 3D printing directly into your vehicle's chassis, eliminating the need for extra mounting hardware.
Parts Required:
- 4 x Magnets (4x2 mm)
- 8 x Screws (2.5 mm) (All these parts are included in your CyberBrick kit).
Assembly Instructions:
- Prepare the Base: Drive 4 screws into the base plate located in the vehicle.
- Equip the Mount: Install the 4 magnets into the two-piece controller holder.
- Secure the Electronics: Fasten the control board to the holder using the remaining 4 screws.
\

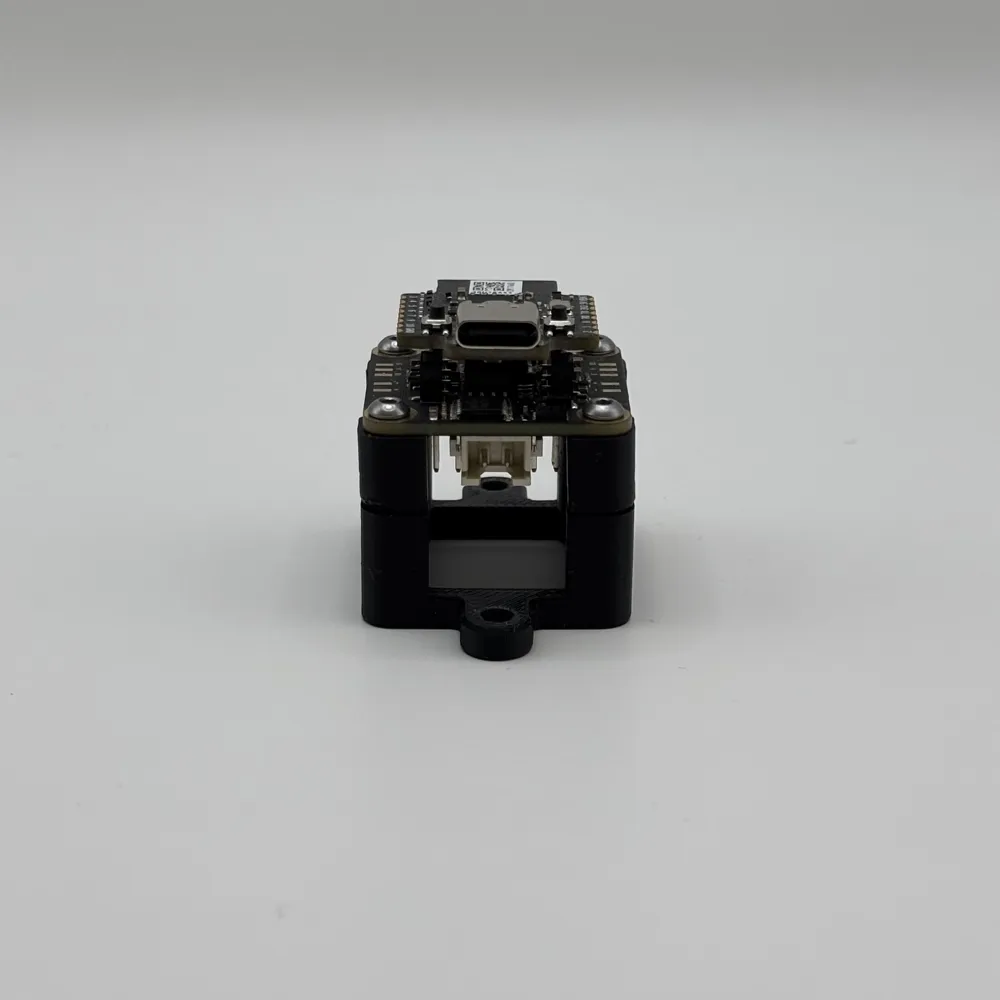

And you're done! Now you can enjoy a true "Plug & Play" experience. To switch vehicles, simply unplug the cables and pull the board upwards.
