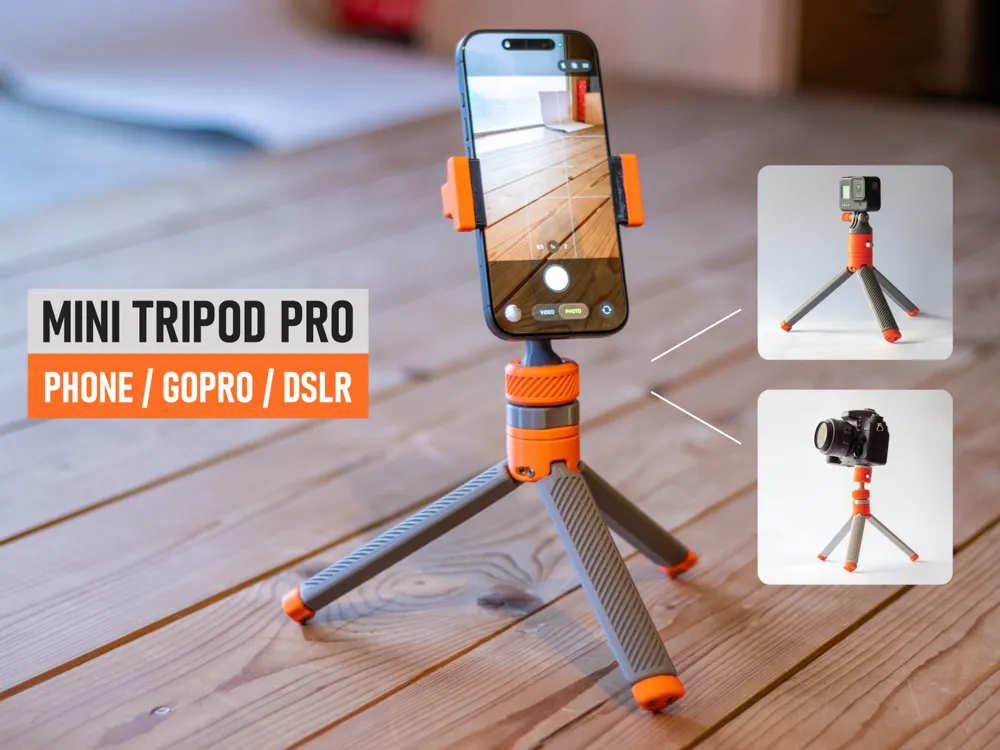

Mini Tripod Pro

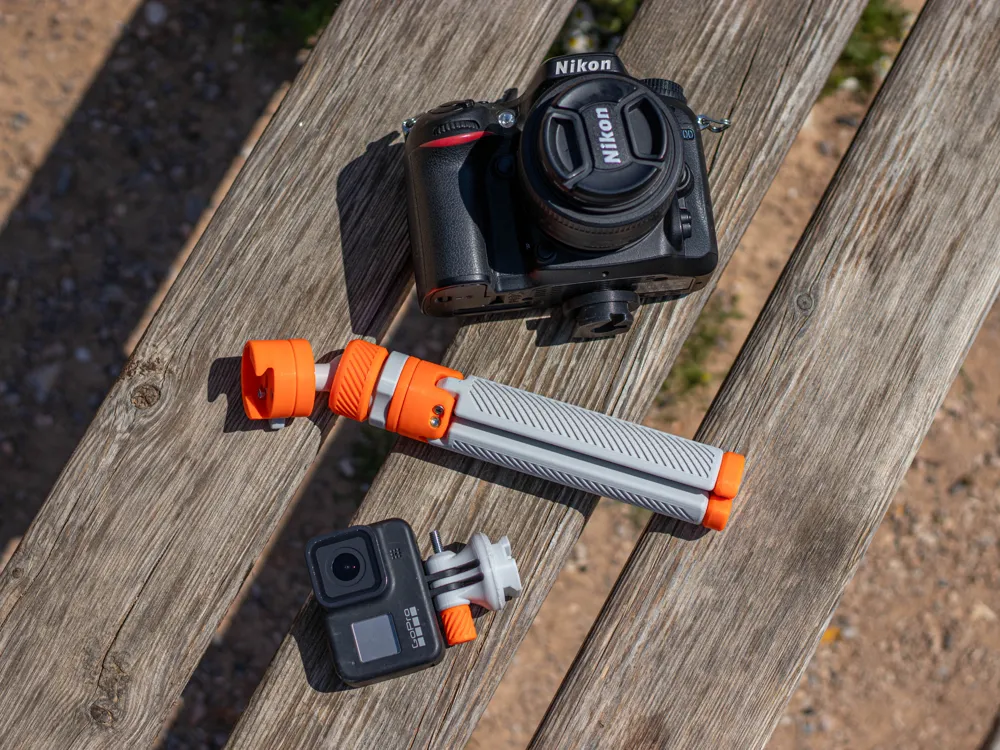

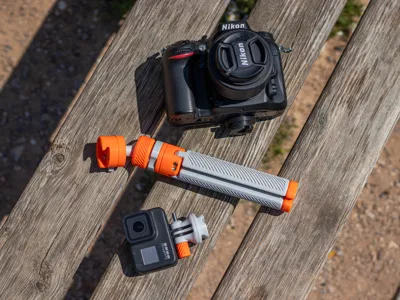

The Mini Tripod Pro is a compact, durable and fully modular tripod with many attachments like Quick Release, Ball Head, Spring Loaded Phone Mount.

It supports Standard Camera 1/4"-20 UNC and GoPro and Smartphone Mounting.

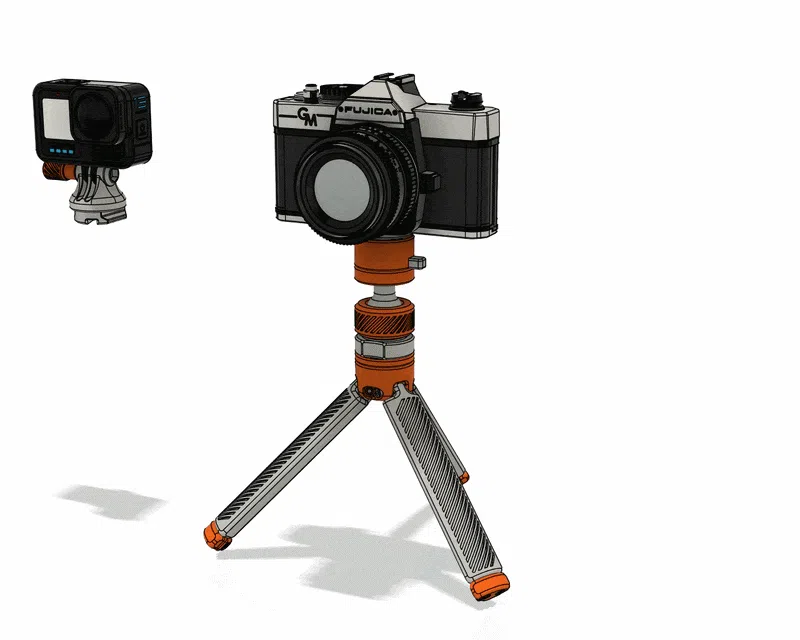

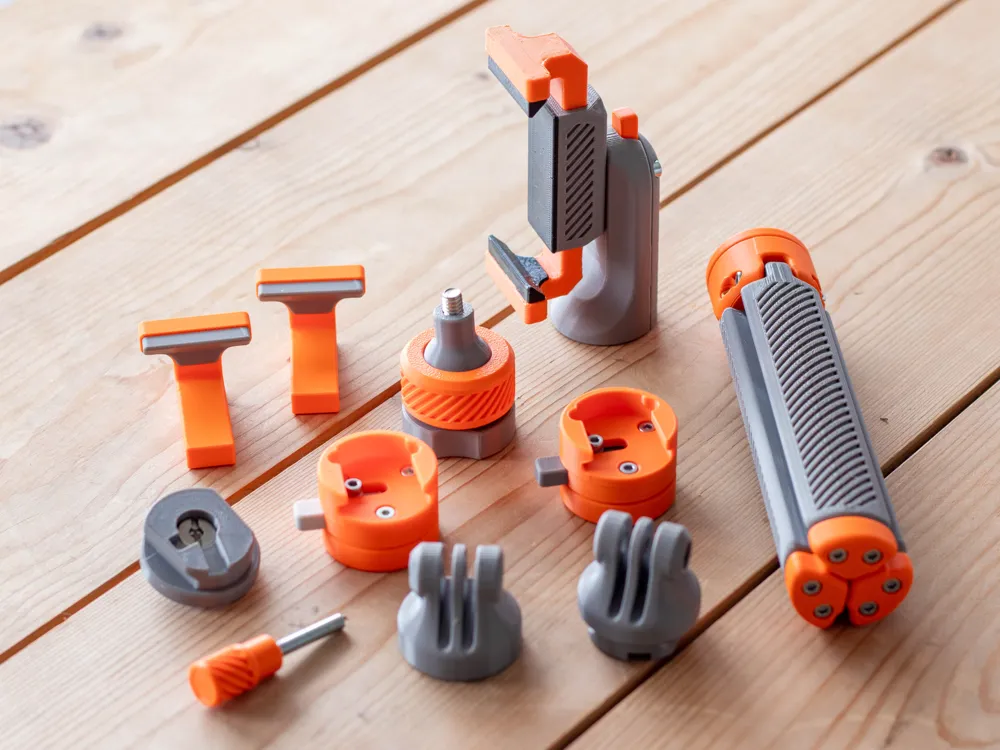

Designed by combining various ideas from other models, to create a tripod that brings everything into one platform with interchangeable components. Every attachment uses standard 1/4" Camera Mounts, allowing for quick swapping, stacking and reconfiguring attachments.

Enjoy!

Before Printing:

PLA or PETG will work great. All The parts are designed for strength.
For the Smartphone Mount you can use PETG (Gray & Orange parts) + TPU (Black parts) for maximum grip.


Read the Manual to identify the parts you need, in case don't want to print everything.
For example if you only plan on using the tripod only with a DSLR camera, you don't have to print the Smartphone and GOPRO attachments.

Features:

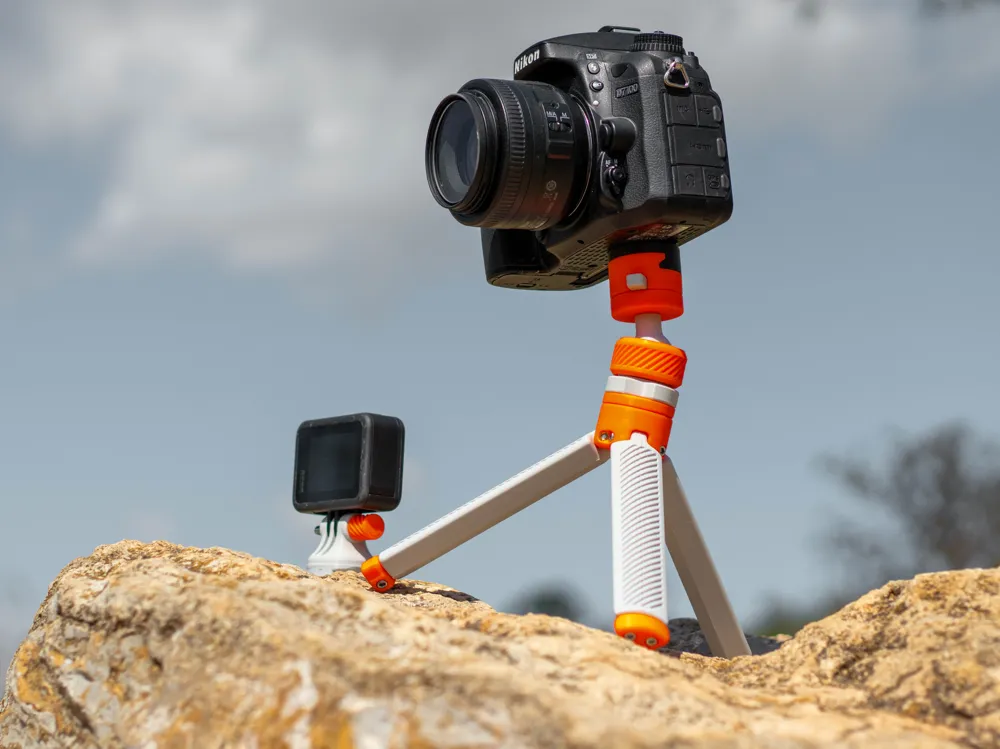

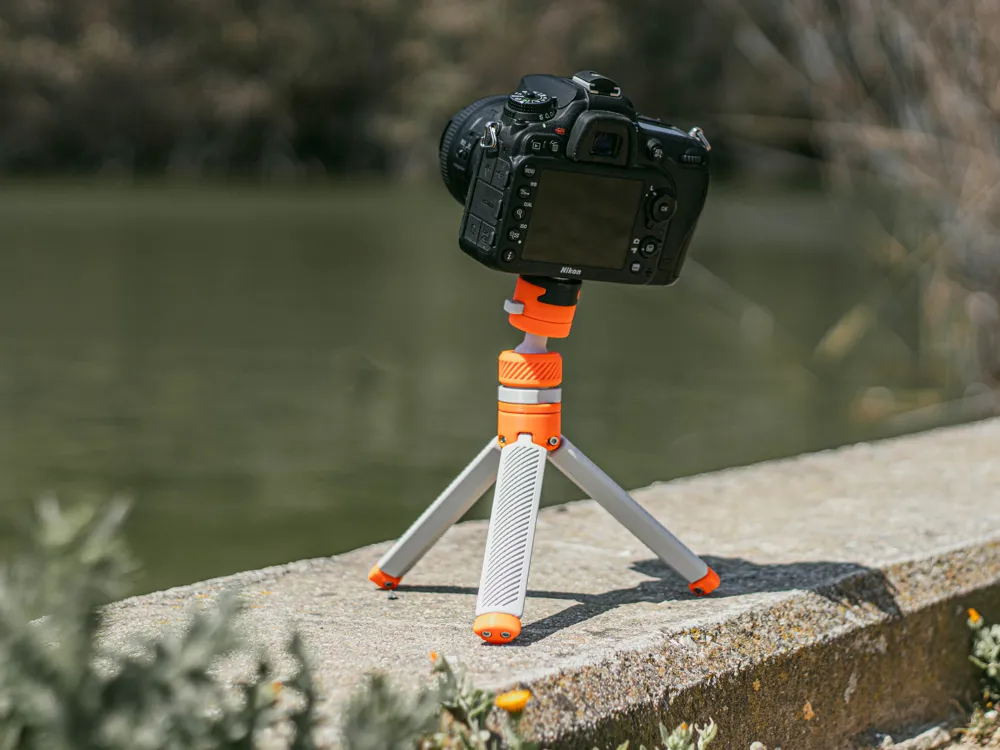

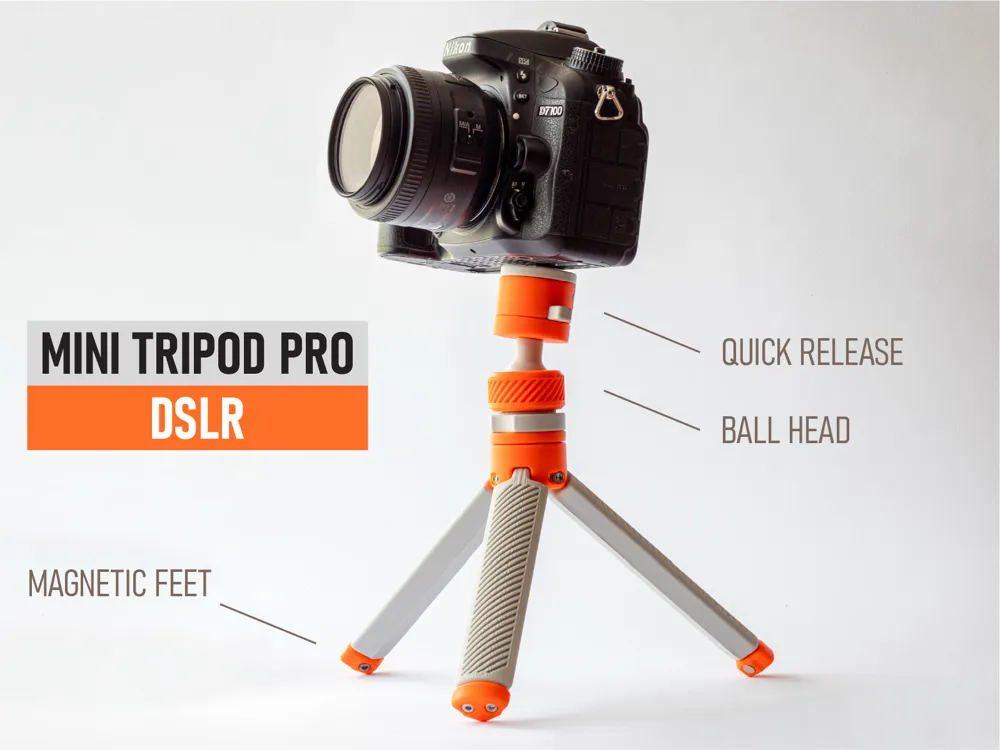

• Camera Mount 1/4"-20 UNC - Standard DSLR, Mirrorless, Microphone mounting system.

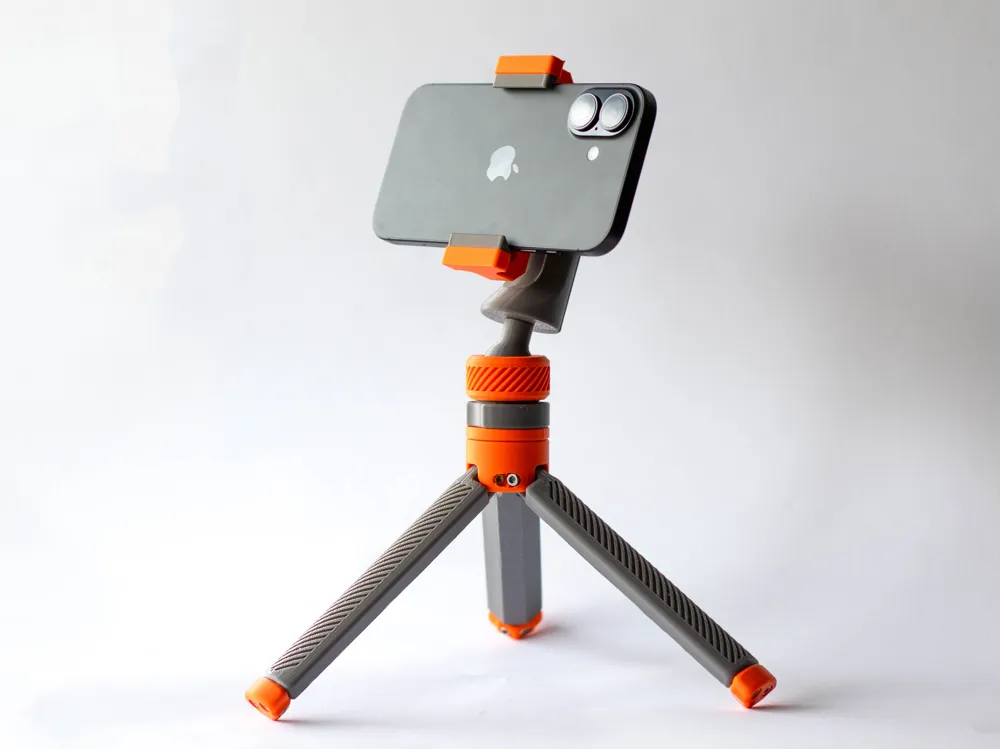

• Spring Loaded Smartphone Mount - 2 Arm sizes for big and small phones + Horizontal & Landscape Mode with a button click.

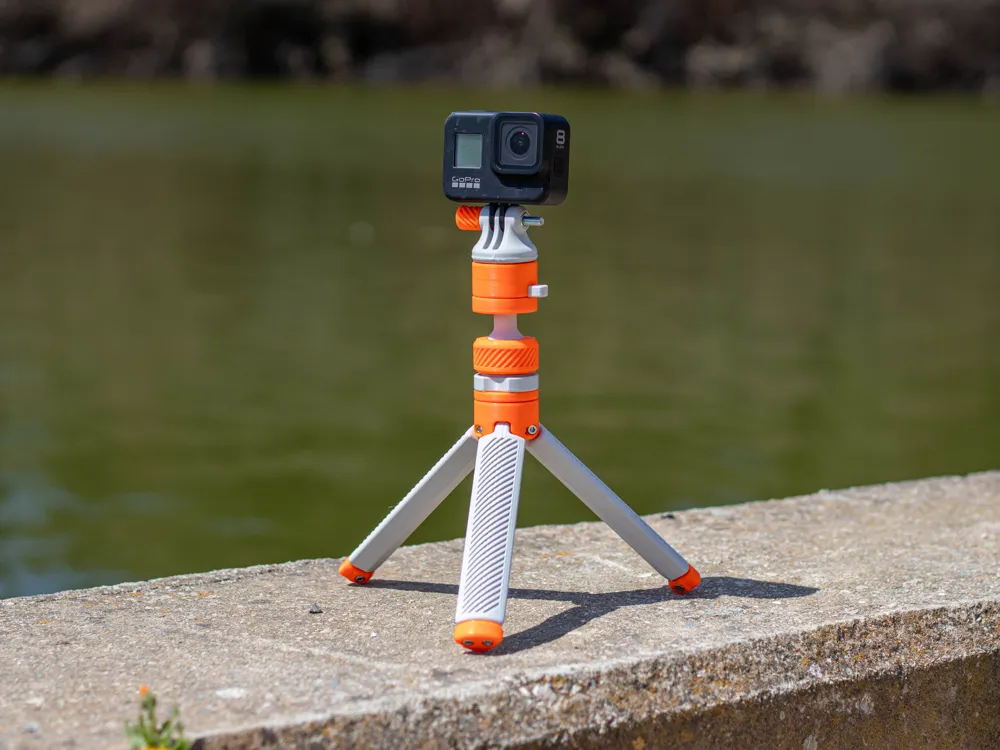

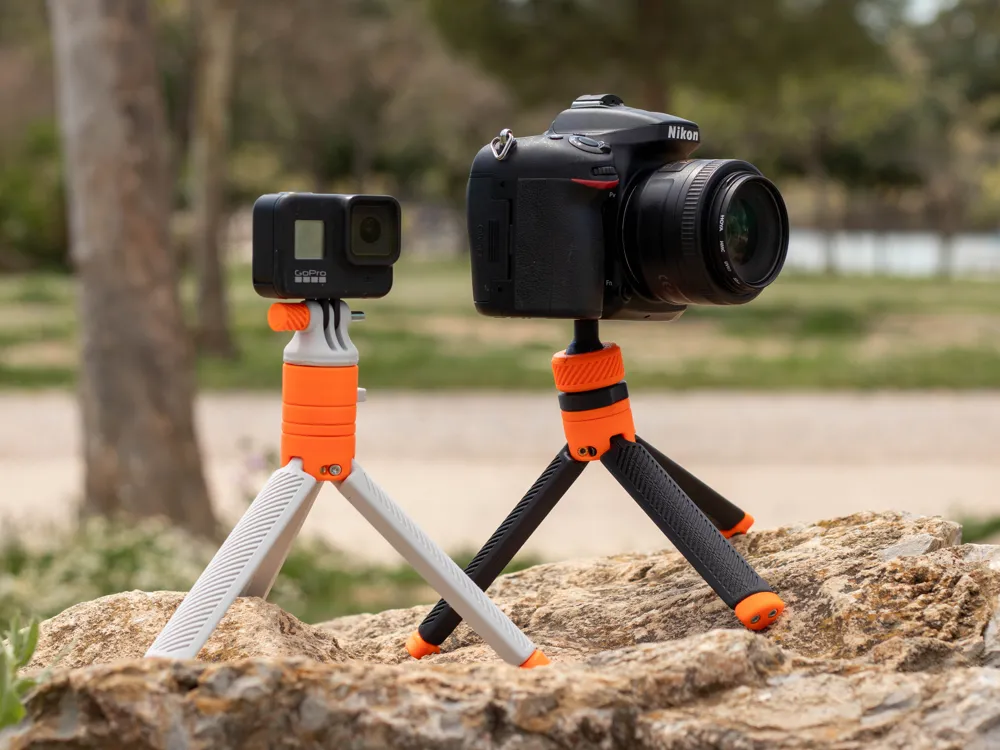

• GoPro / Insta360 - Action Camera mount.
• Ball Head / Ball Joint - Smooth angle adjustment and precise positioning.

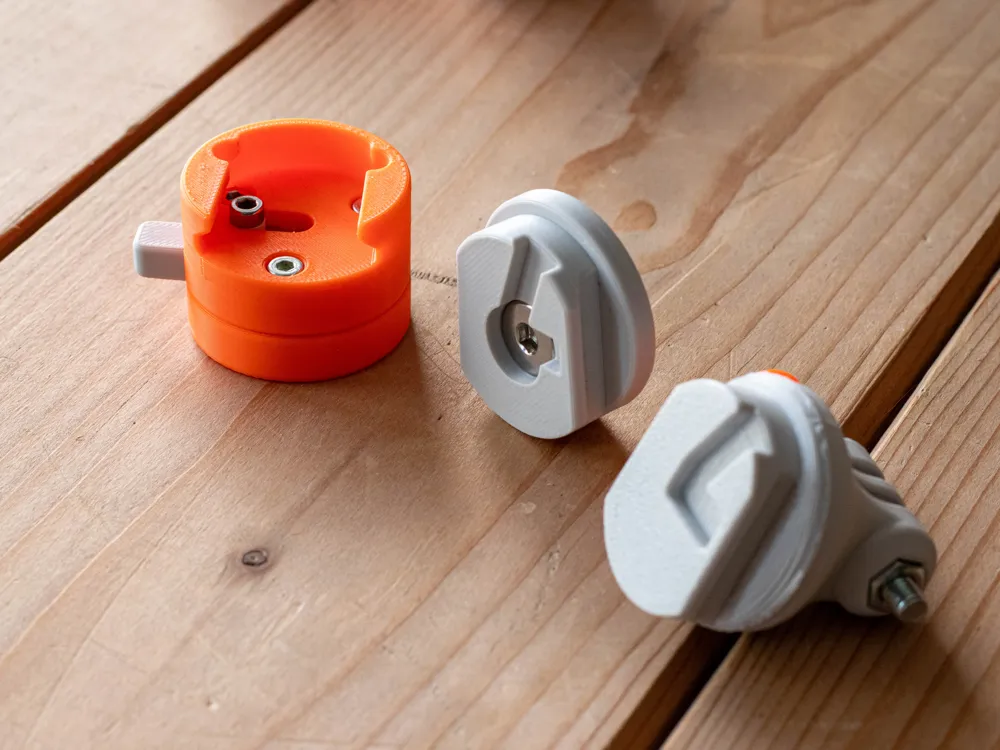

• Quick Release System | Fast camera mounting and removal.

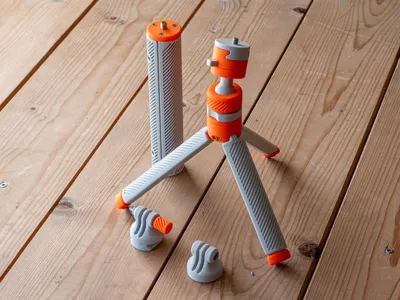

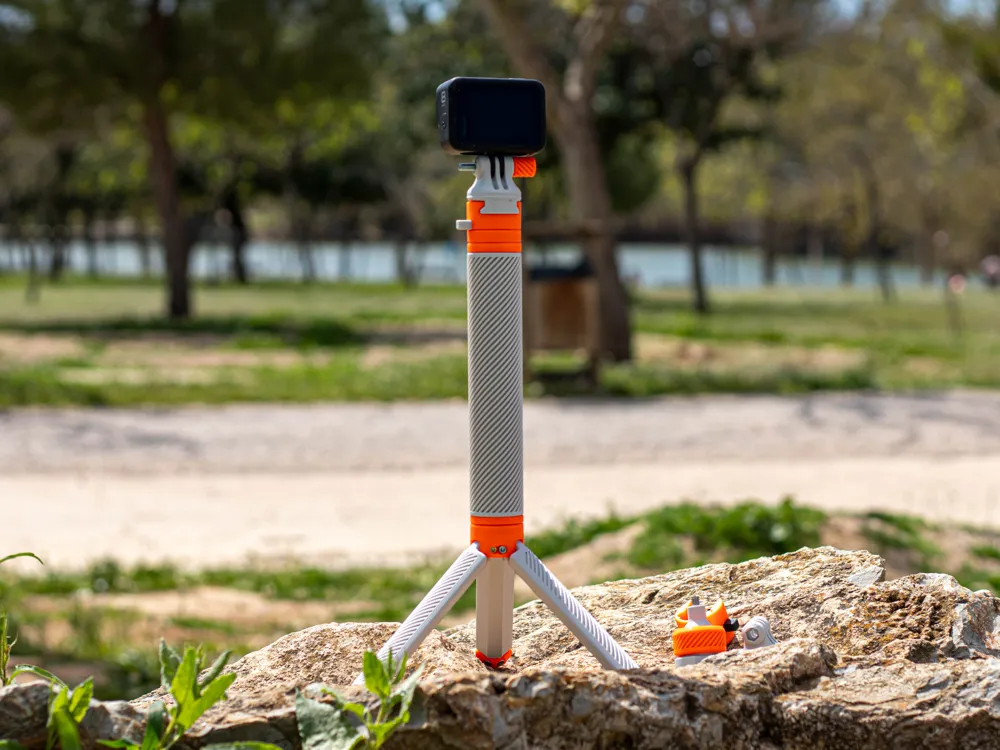

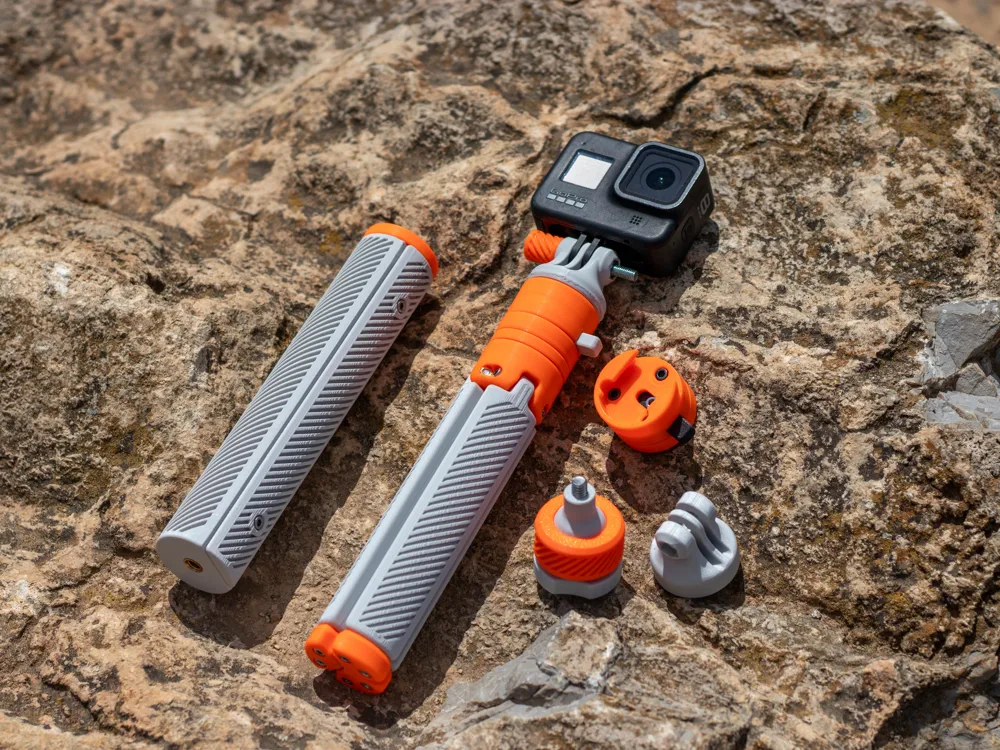

• Extension Arm | Adds height or use as a selfie stick.
• Magnetic Feet | Magnets secure the feet when the tripod is closed with a satisfying click.

Read the Manual for a detailed view of every component and assembly.

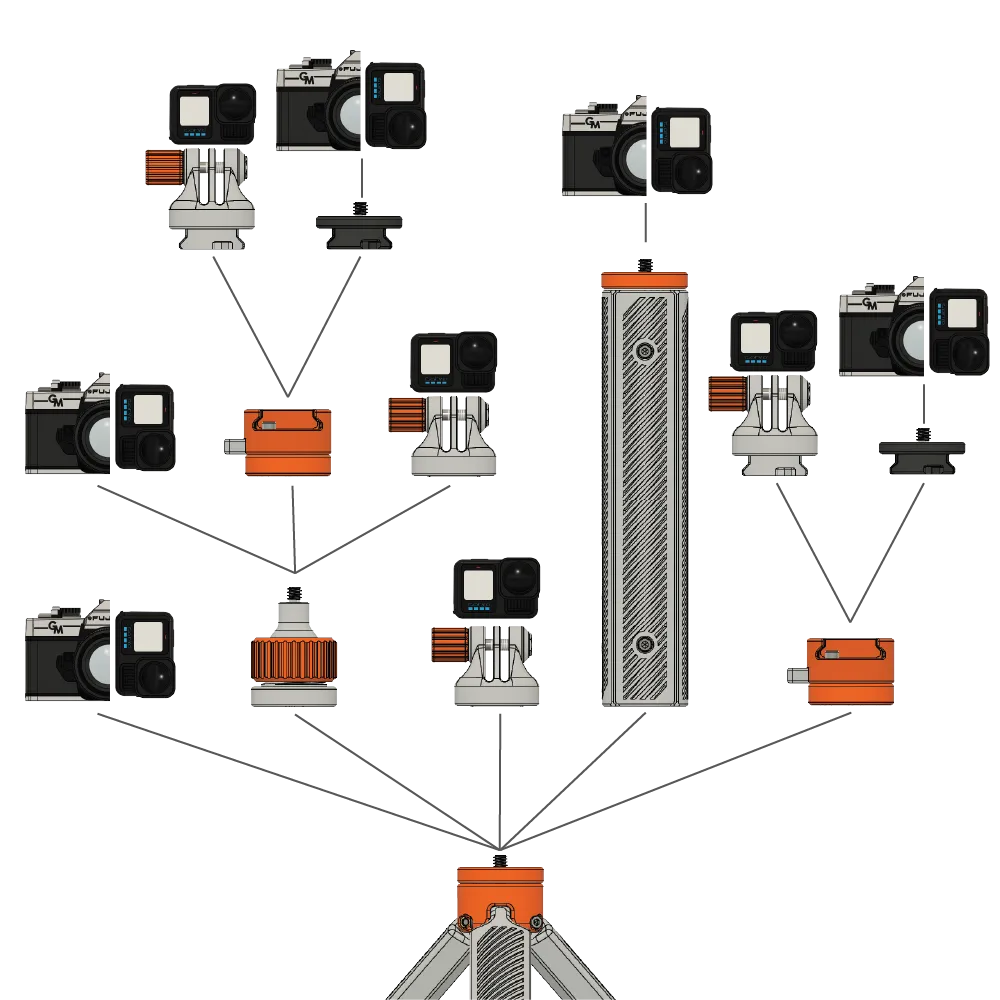

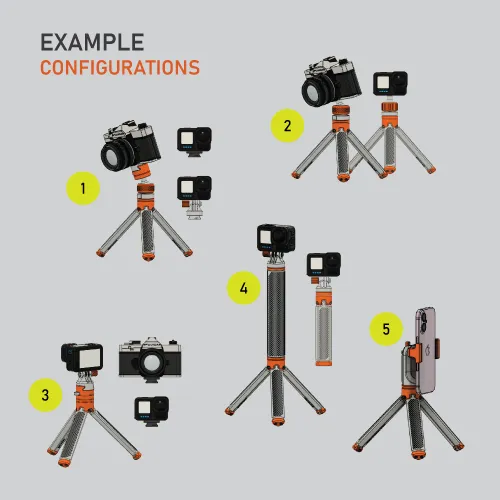

Configurations:

Start with the Tripod Base and make you way up connecting whatever component fits your needs.

What do you need?

• Camera Screw Mount or GoPro Mount or Smartphone Mount?
• Quick Release or Camera Direct Mount?
• Ball Head or Fixed Camera Angle?
• More Height or Compact Design?

Hardware:

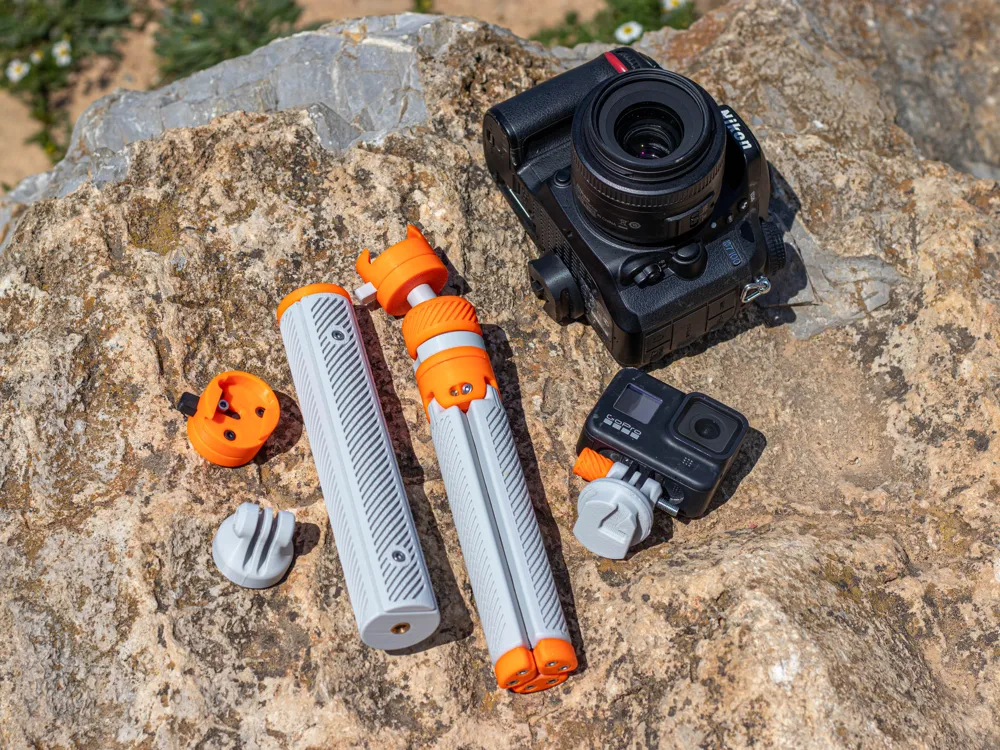

Below is a list of everything you will need to build the Tripod + the Attachments.

If you only plan to use a specific configuration, refer to the manual to identify the exact hardware needed for your setup.

TRIPOD & CONNECTORS

(22x) M3x5x4 Round Threaded Brass Heat-Insert Nut (AB012)
(5x) 1/4”-8-8 Round Threaded Brass Heat-Insert Nut (AB030)
(15x) M3x6 Machine Screw (AA036)
(3x) M3x8 Machine Screw (AA037)
(10x) M3x12 Machine Screw (AA038)
(3x) M3x20 Machine Screw (AA040)
(3x) 3x6mm Round Magnet (CA007)
(2x) 1/4" Camera Quick Release Plate Nut (FC010)

(4x) 0.5x5x20 Compression Spring (BB007)

BALL HEAD
(1x) 1/4-20 UNC x 1.25” (32mm) Camera Screw

QUICK RELEASE
(1x) 1/4'' x12x15 Camera screw (FC014)


GO PRO MOUNT
(1x) M5x40 Machine Screw
(1x) M5 Nut
