6 Port Keystone Box - Free 3D Print Model

Search models, users, collections, and posts

Outrun

Hobby & DIY>Electronics

IP Report

Print Profile(1)

All

X1 Carbon

H2C

A1 mini

H2D

H2S

P1S

X1E

P1P

H2D Pro

P2S

X2D

A2L

0.24mm layer, 2 walls, 15% infill

Designer

2.2 h

2 plates

5.0(2)

Open in Bambu Studio

Boost

Released

Bill of Materials

Bambu Filaments

Select all

Gray (33101) / Filament with spool / 1 kg

PETG HF

Black (33102) / Filament with spool / 1 kg

PETG HF

Description

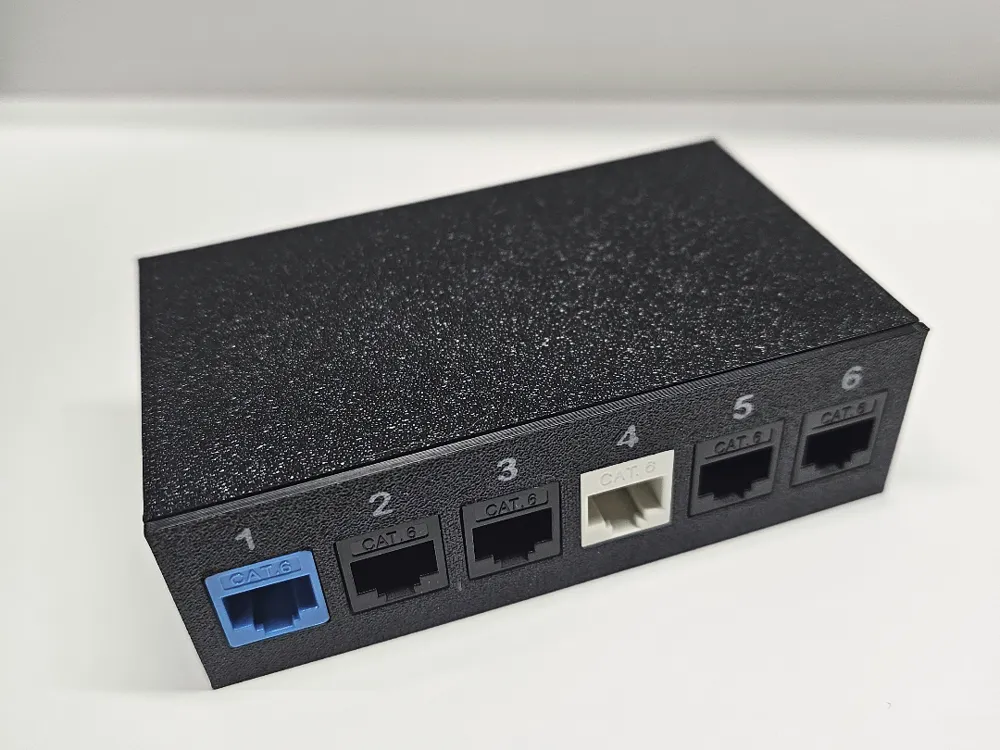

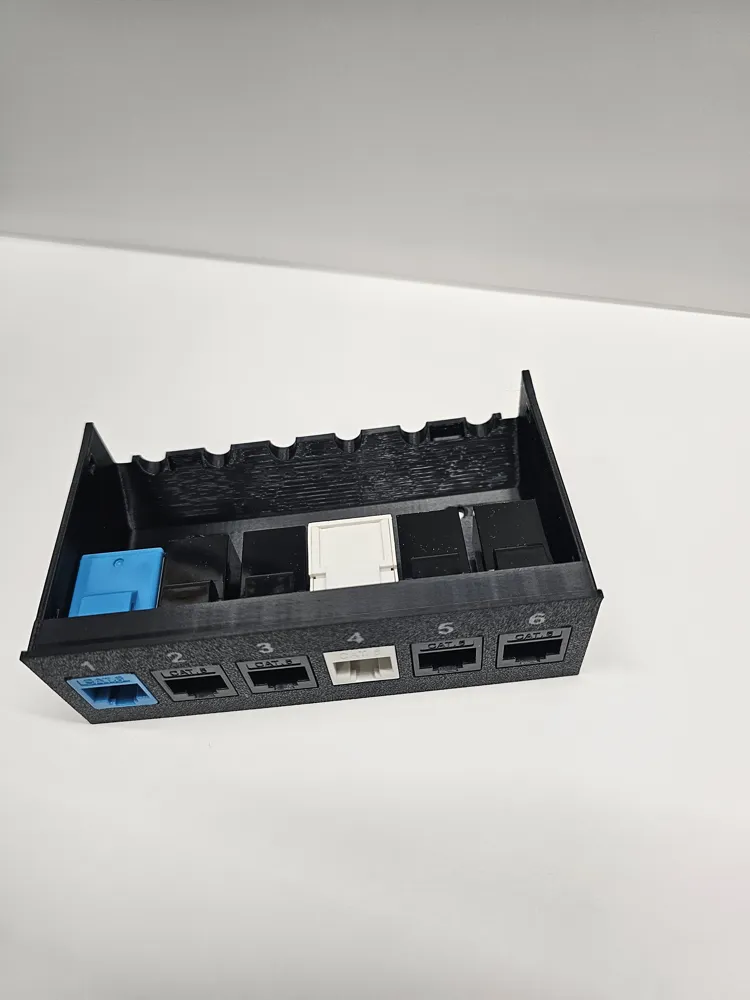

This is a 6 Port Keystone Jack surface mount box. I've tested a few different keystone jacks from different manufacturers for fitment. If you try a jack that doesn't fit, please let me know what manufacturer it is so I can fix the model.

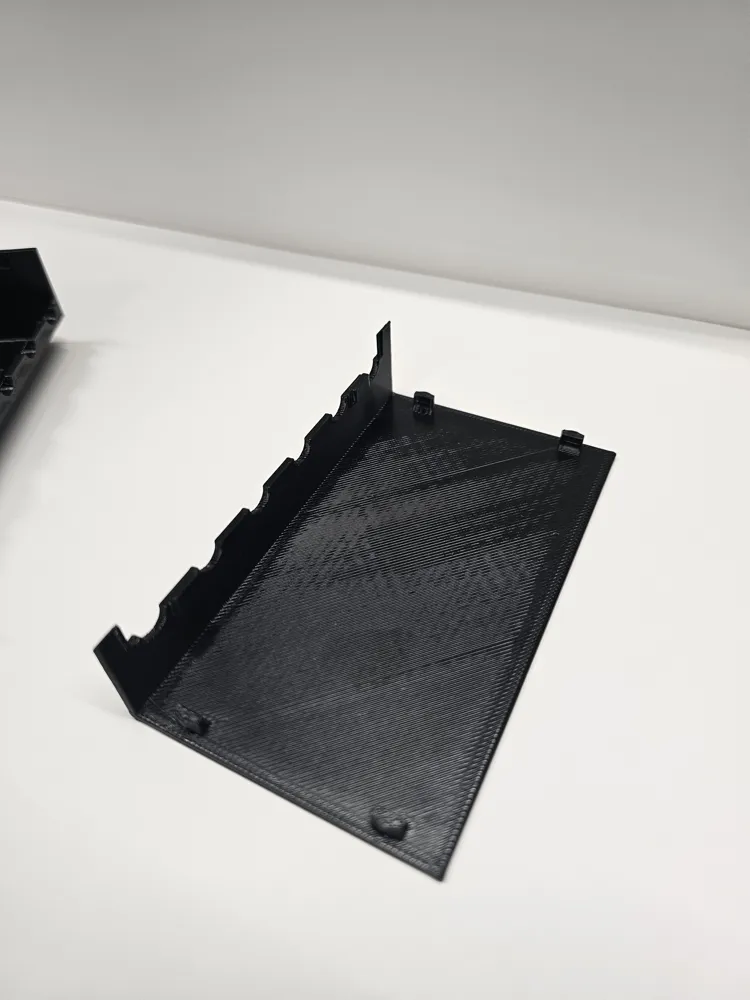

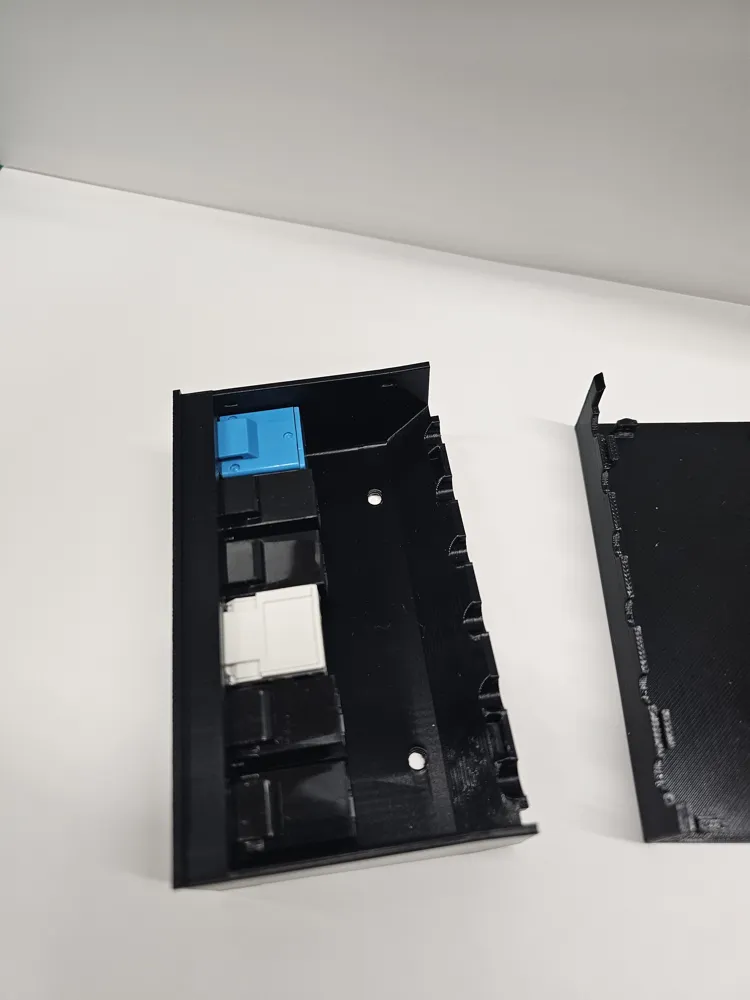

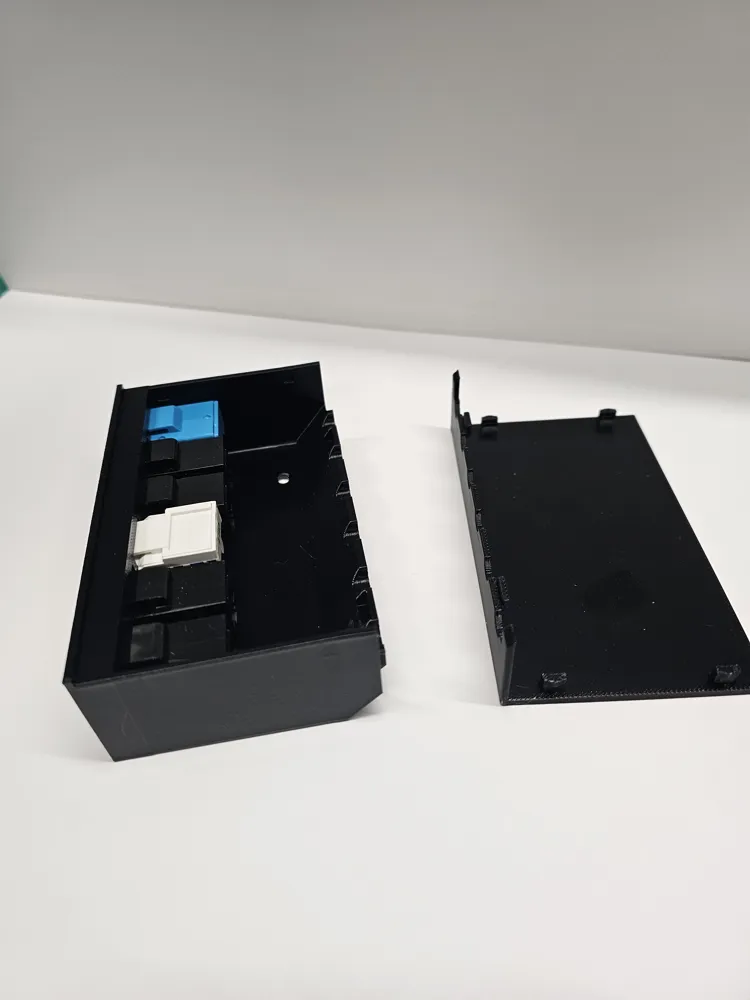

No fasteners are needed to assemble. Two #8 Pan-head screws or mounting tape can be used to mount to surface. Prints with no supports. I recommend PETG or better for filament. I think PLA is to brittle and the locking tabs with likely break off after a few cycles.

If there are enough inquiries, I might make an 8 port or whatever port count is requested.

Comment & Rating (11)

License

This user content is licensed under a Standard Digital File License.

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
