Magnetic ball joint
Print Profile(1)
Bill of Materials
Description
Magnetic ball joint

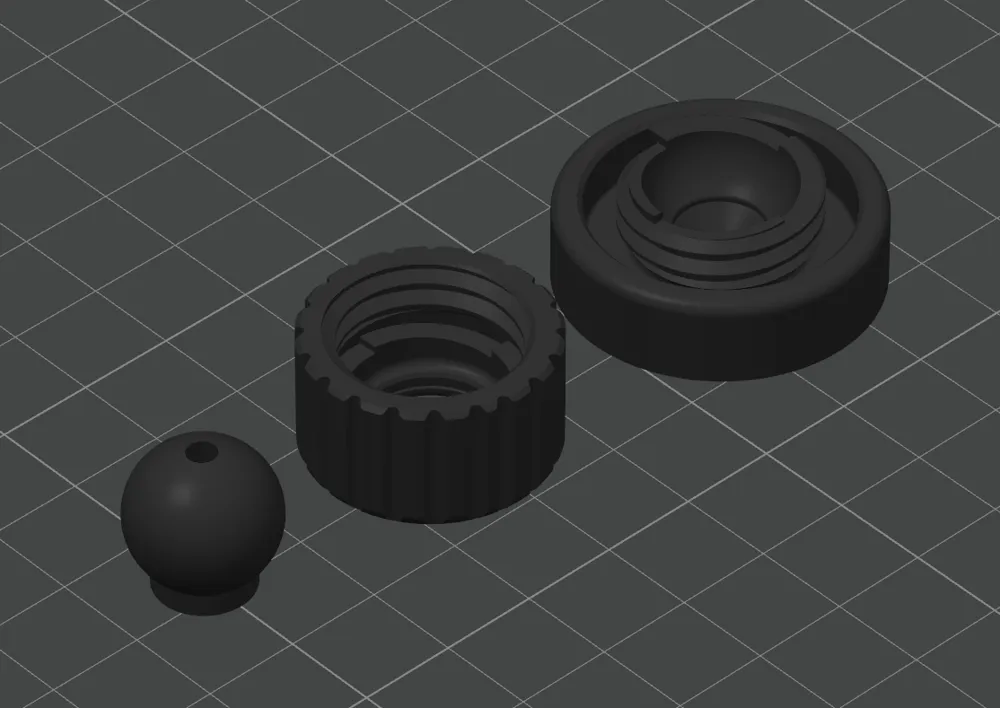

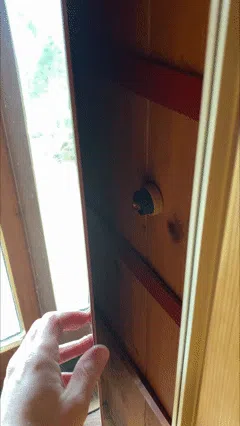

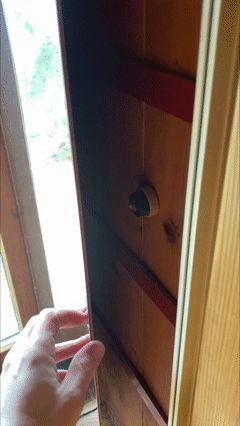

Initially used to keep an interior shutter in an open position
Can be used to magnetize ferromagnetic objects on non-flat surfaces, or to orient them
Magnet used D10 x 3 with D4 wood screws

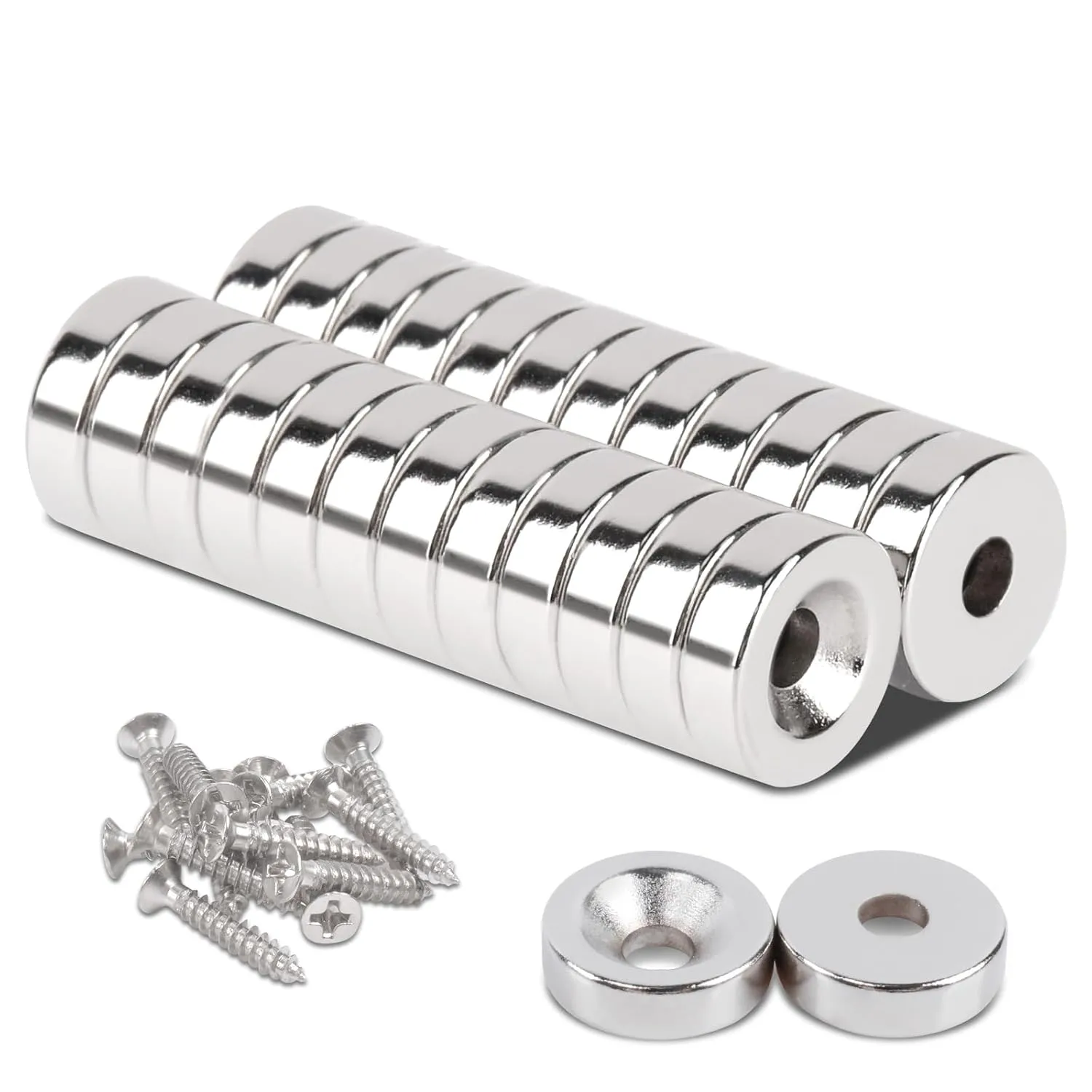

Link for D10 x 3 magnet with screws
The D3 screw hole for magnet attachment was sized according to the screw used and PETG material
Check the proper mounting of your screw on the ball joint. Add a cylindrical “negative volume” to print a larger hole if needed

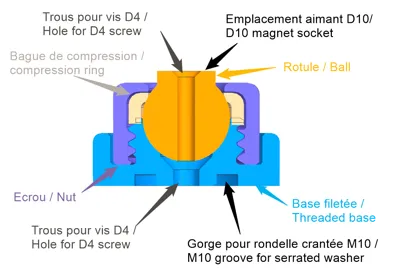

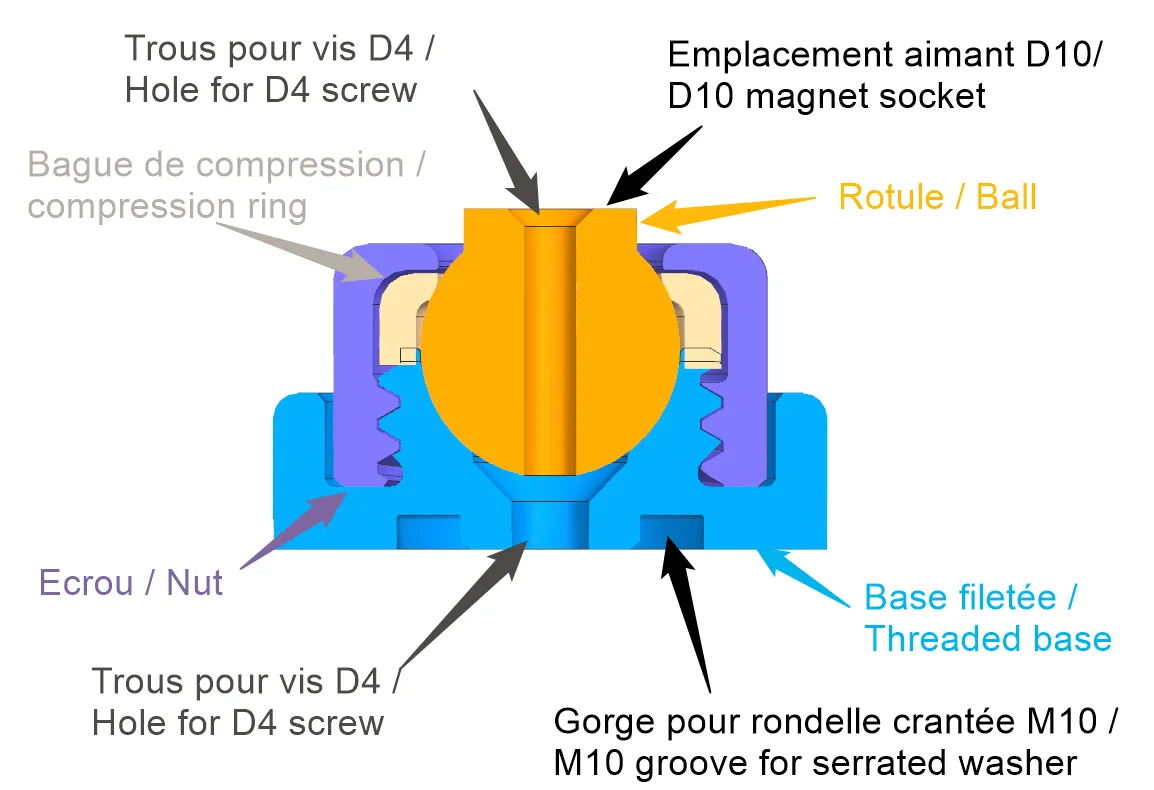

The assembly can be fixed with a D4 wood screw

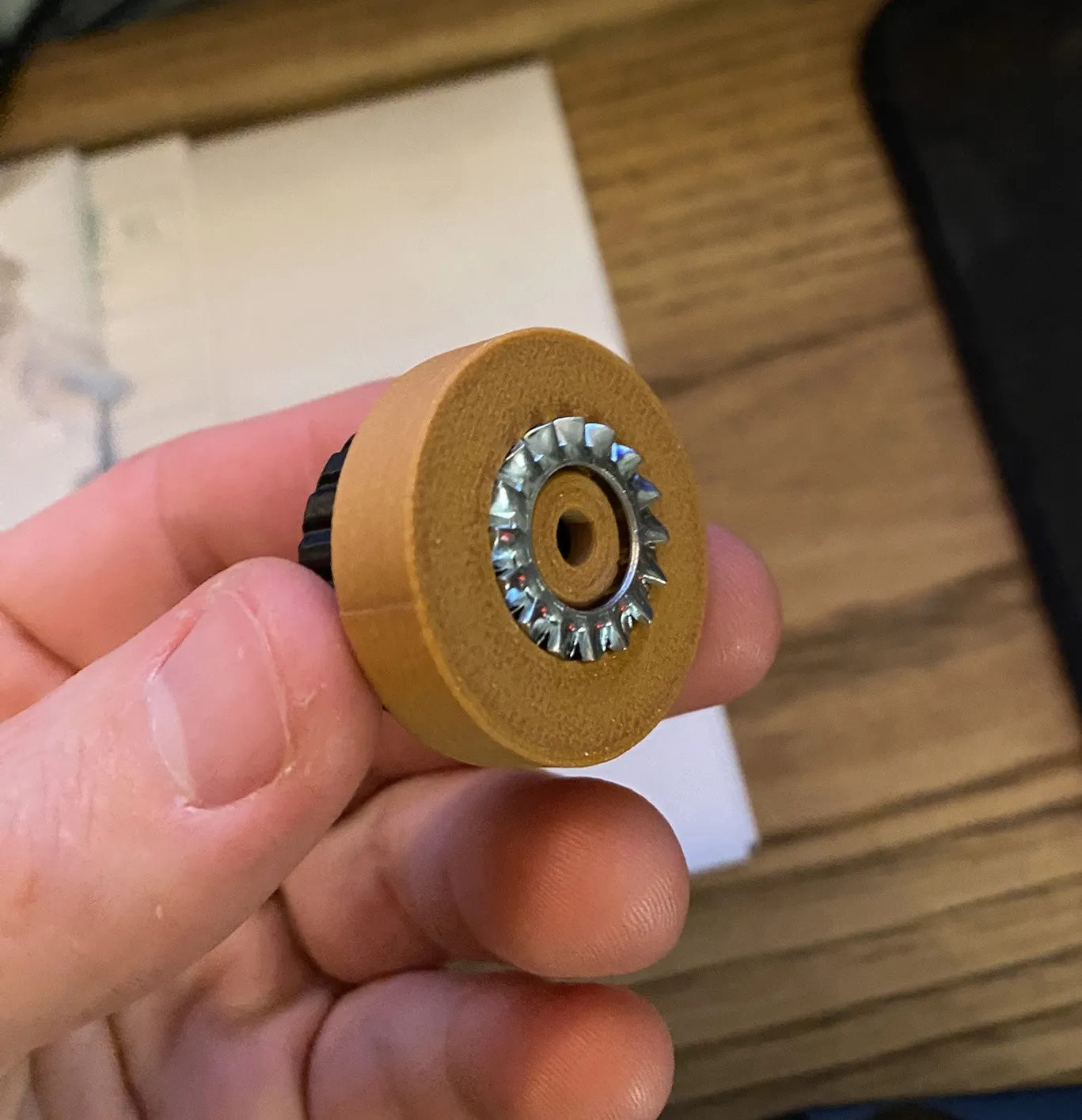

An M10 serrated washer can be added to prevent rotation once tightened

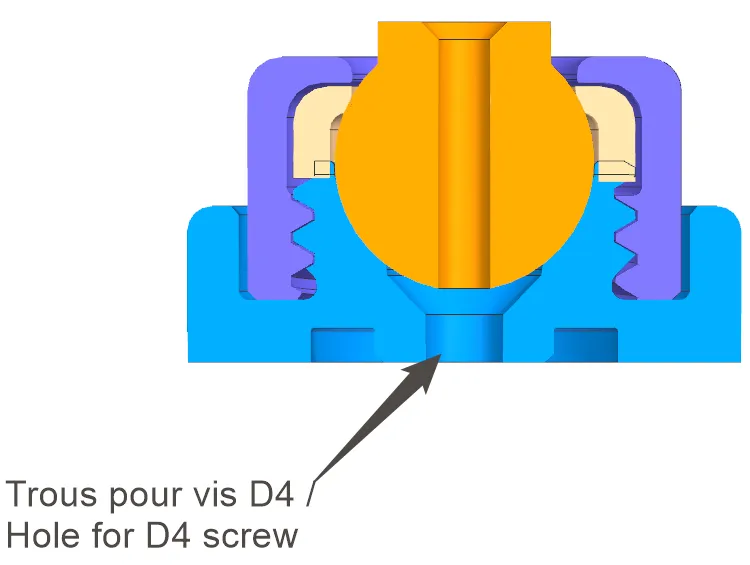

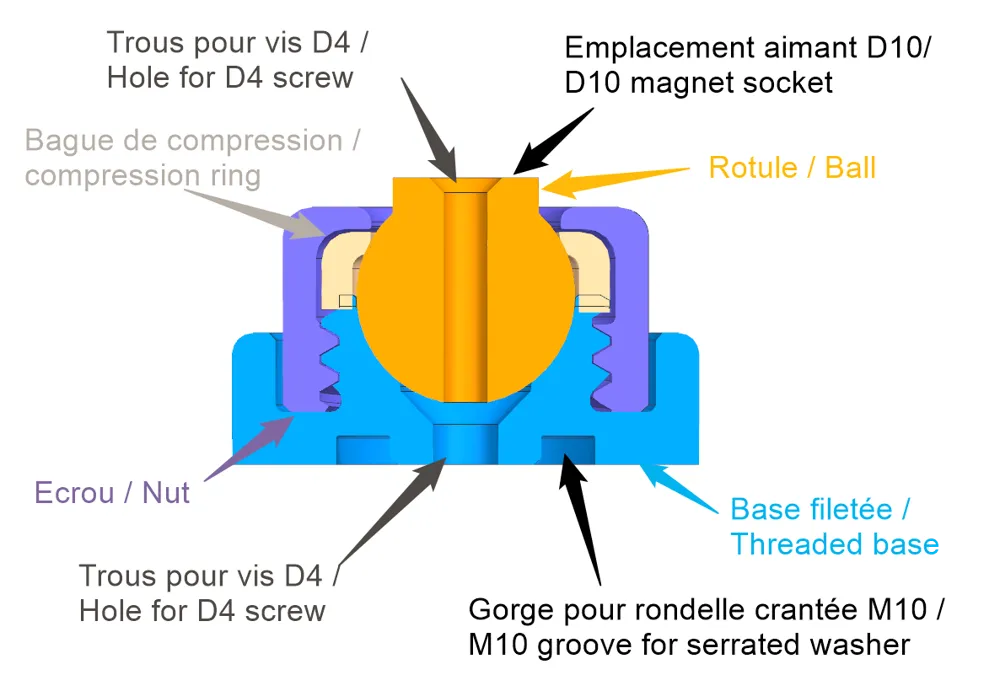

The "compression ring" is printed “captive” with the nut and prevents the ball joint from rotating during tightening
The magnetic ball joint has been tested with the following materials
PETG HF - Black (33102)
PLA WOOD - Clay brown (13801) (For the base only)
Feel free to post a comment to improve this object
A like or a little boost is always appreciated
The ball joint is life
