Description
Teaching and Learning Aid for Linkage Mechanism

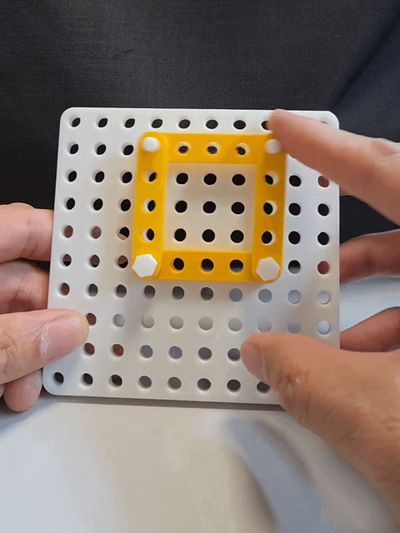

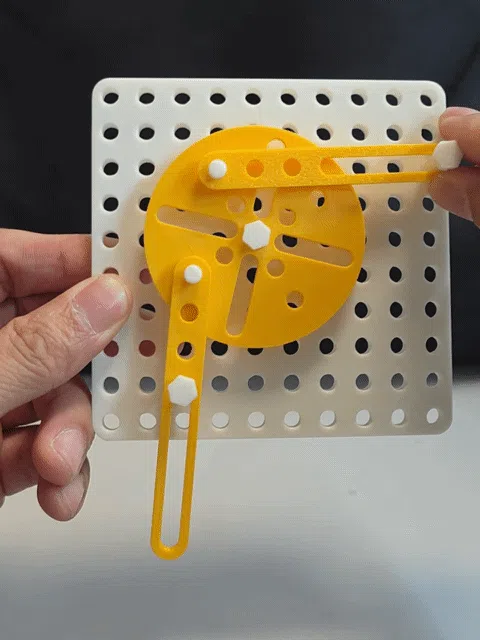

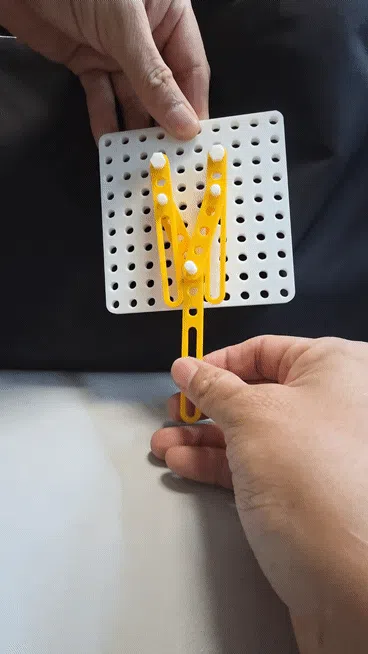

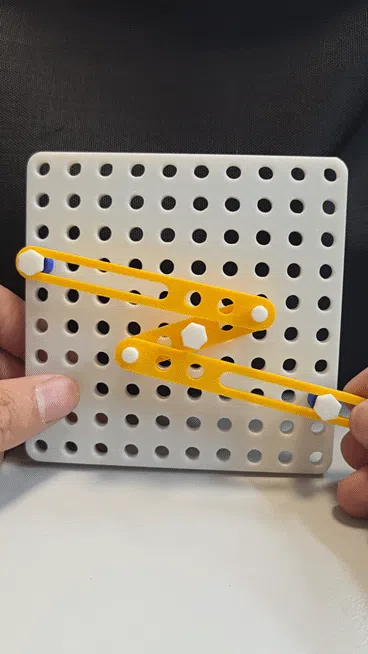

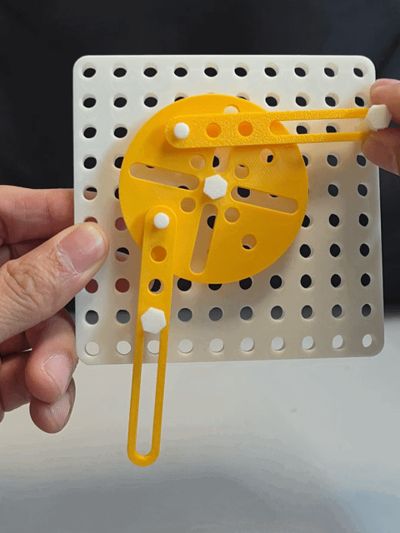

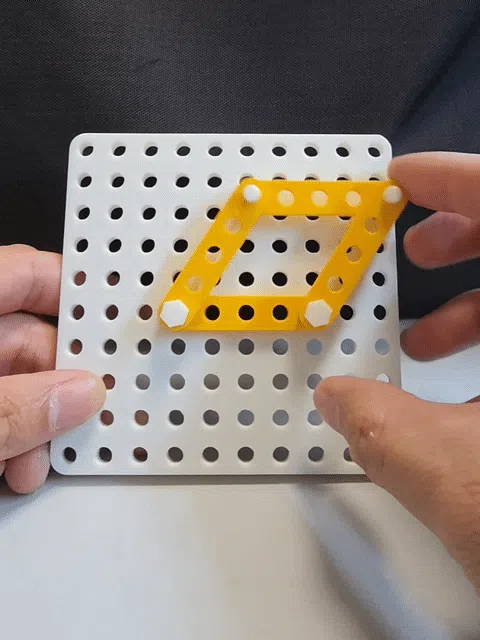

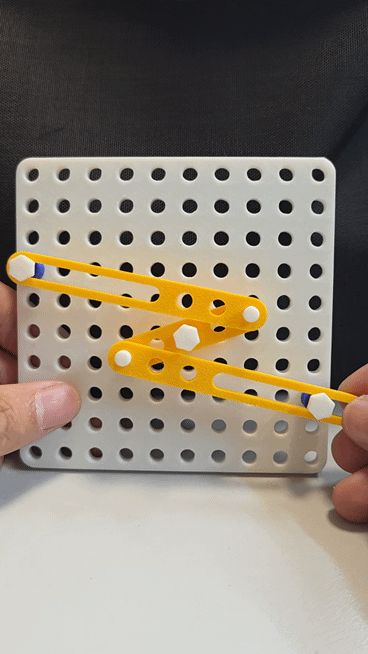

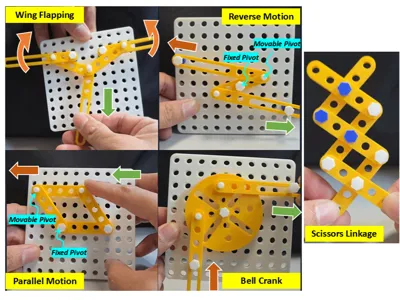

A hands-on learning approach to Design and Technology (D&T) mechanisms involves active "tinkering," prototyping, and testing to understand how motion is transmitted and controlled in everyday products. This approach shifts from theoretical study to experiential learning. Before building complex projects, students engage in short, focused activities using this set to grasp concept of Motion Conversion, Fixed and Movable Pivot.

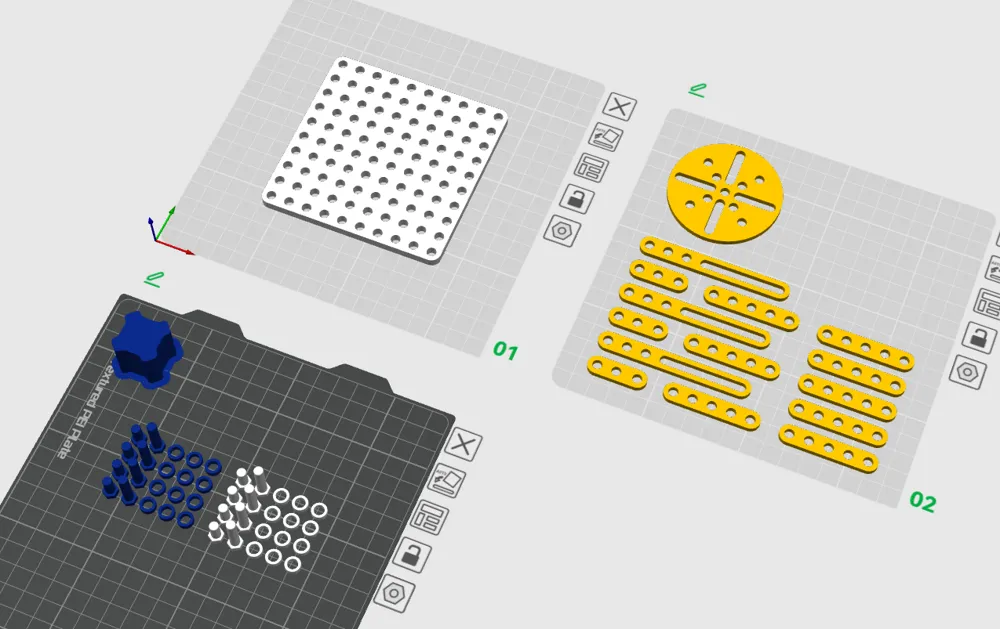

Designed with quick assembly in mind:
- Pegs are used instead of screws. 0.2mm clearance for slightly loose fit
- Pegs have two different heights to suit various assemblies

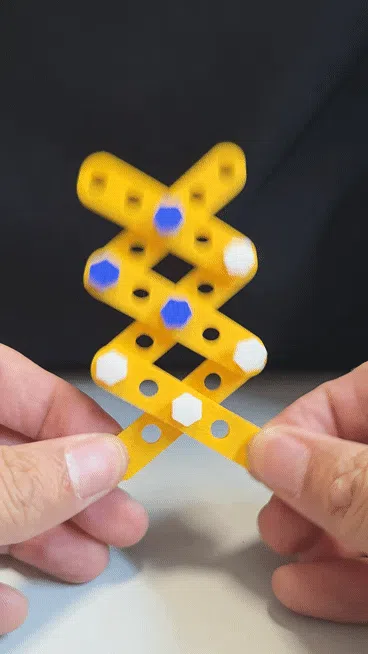

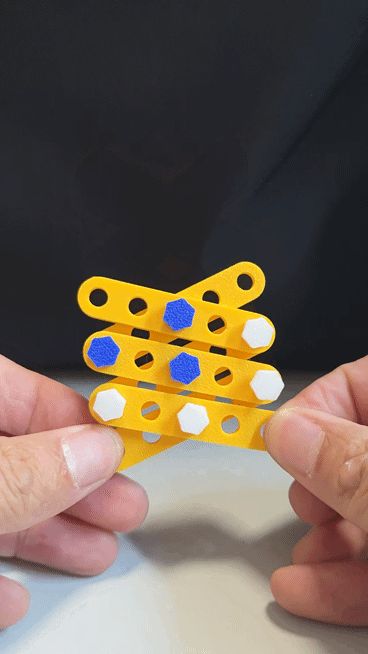

- Pegs can be printed in two sets of colors - i.e. White for fixed pivot; Blue for movable pivot
Spacers are used to elevate and balance the assembly
Note: Initial use may feel that peg fitting is tight. It will be easier after several fits.
