Aquarium water change fixing clip

Product Introduction

This is a universal hose clamp specifically designed for aquarium water changes, cleaning, and tubing installation. Its core function is to securely fasten to the edge of the aquarium glass using an adjustable clamping mechanism, locking flexible hoses (such as drain and inlet pipes) into a designated position. This achieves an integrated "fix-guide-prevent detachment" solution, completely freeing the user's hands during maintenance, ensuring a clean operating area, and preventing accidental hose slippage that could cause water overflow.

Design Highlights

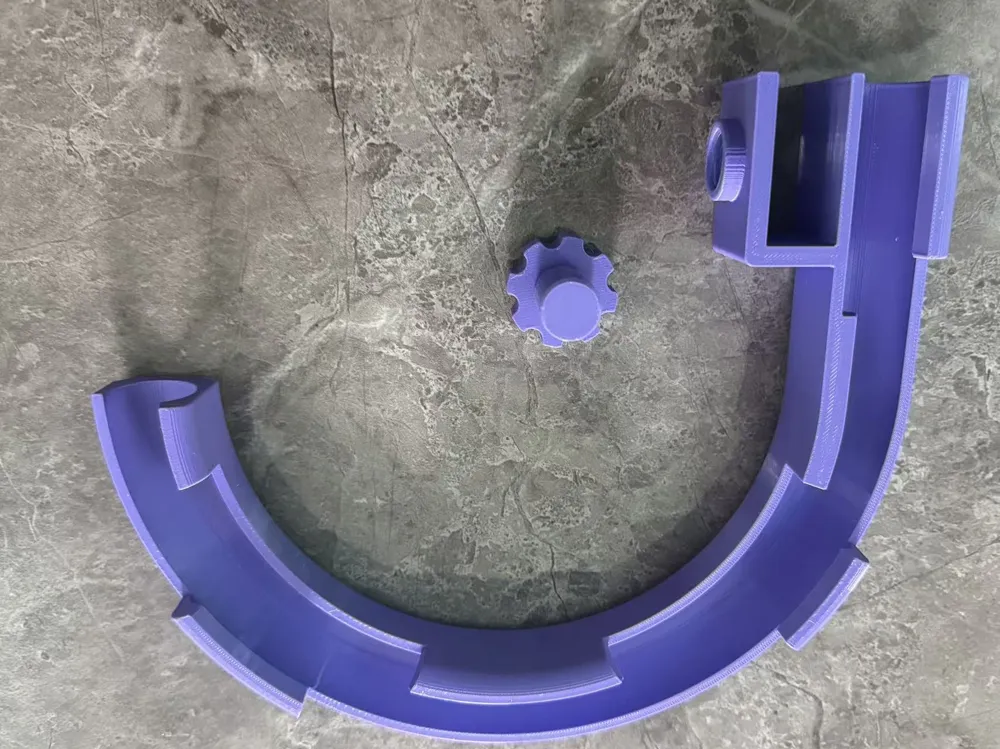

1. Universal C-slot Design: The main body features a robust C-shaped or U-shaped slot structure. Its internal space is specifically designed to accommodate standard flexible hoses with an outer diameter of 22mm (approximately 1/2-inch pipe), tightly embracing the hose body and effectively preventing it from shifting or popping out due to water pressure.

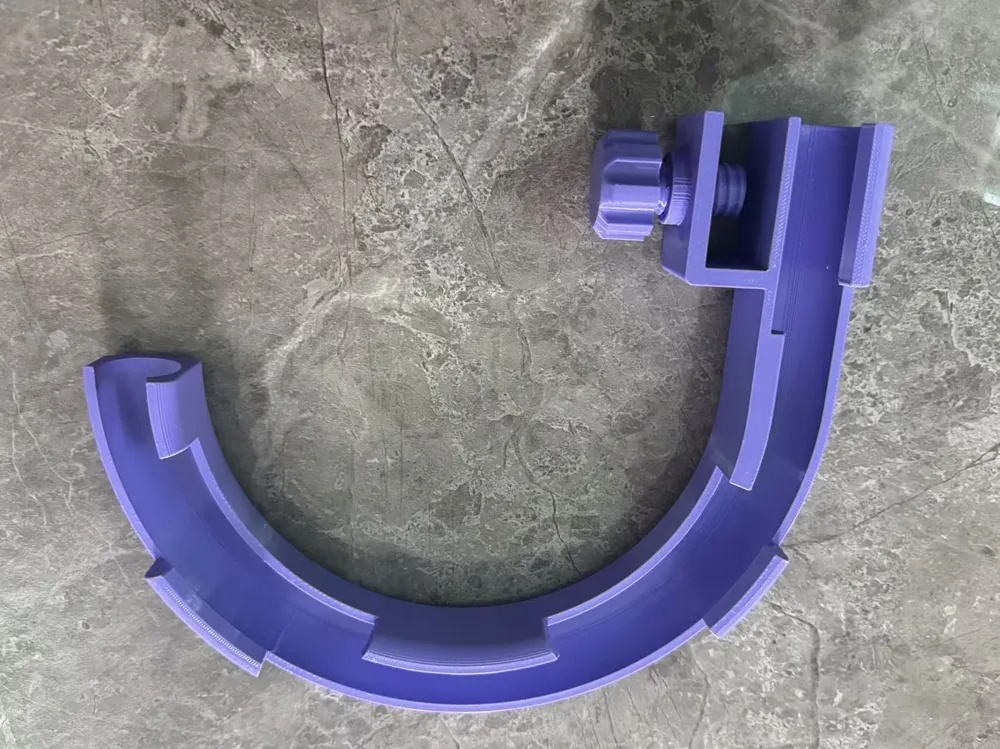

2. Screw Knob Quick Locking: Equipped with a screw-type knob featuring anti-slip texture, allowing easy adjustment of the clamping arm's tightness by manual rotation. This design not only provides strong locking force but also quickly adapts to aquarium glass edges of different thicknesses (typically 3-15mm), enabling versatile use.
3. Integrated Stable Base: The clamp body and the fixing knob base form an integrated structure, offering high strength and no fragile connecting parts.
4. Anti-scratch and High Compatibility: The inner contact surface gripping the glass is typically designed with a smooth transition or added protection to prevent scratching the glass. Its simple mechanical structure makes it compatible with most common hose materials.

Technical Specifications

• Compatible Hose Diameter: Standard 1/2-inch flexible hose (outer diameter approximately 22mm).
• Compatible Glass Thickness: Typically compatible with glass edges from 3mm to 15mm.
• Main Body Material: Suitable for 3D printing with ABS or PETG materials for a robust structure.
• Fixing Method: Manual screw knob locking.

Usage Scenarios

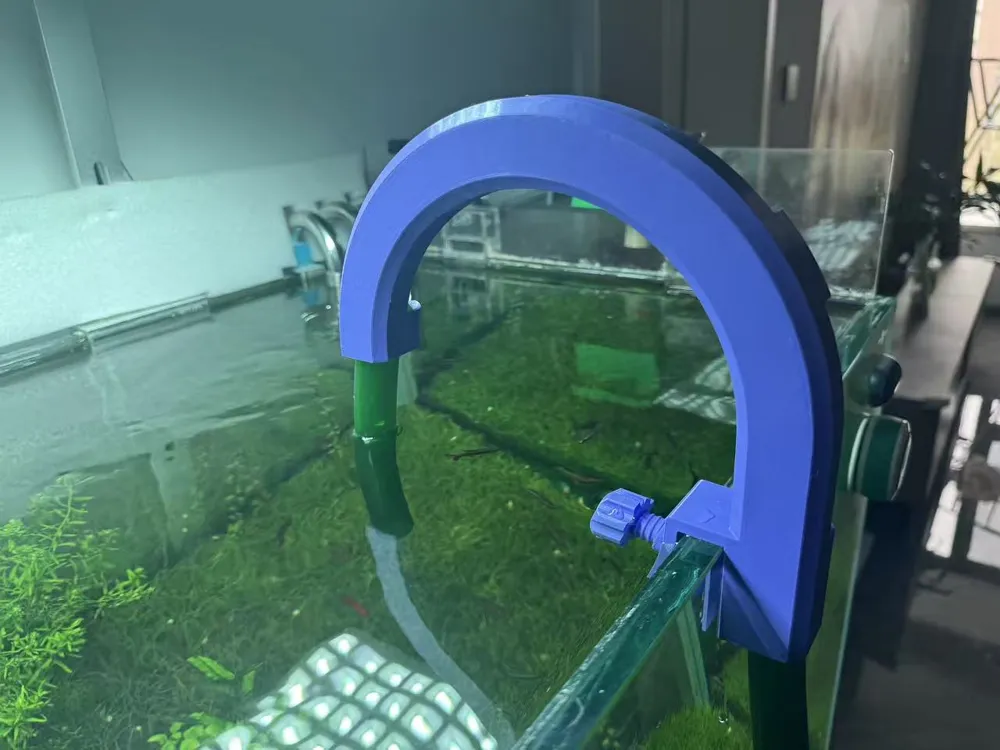

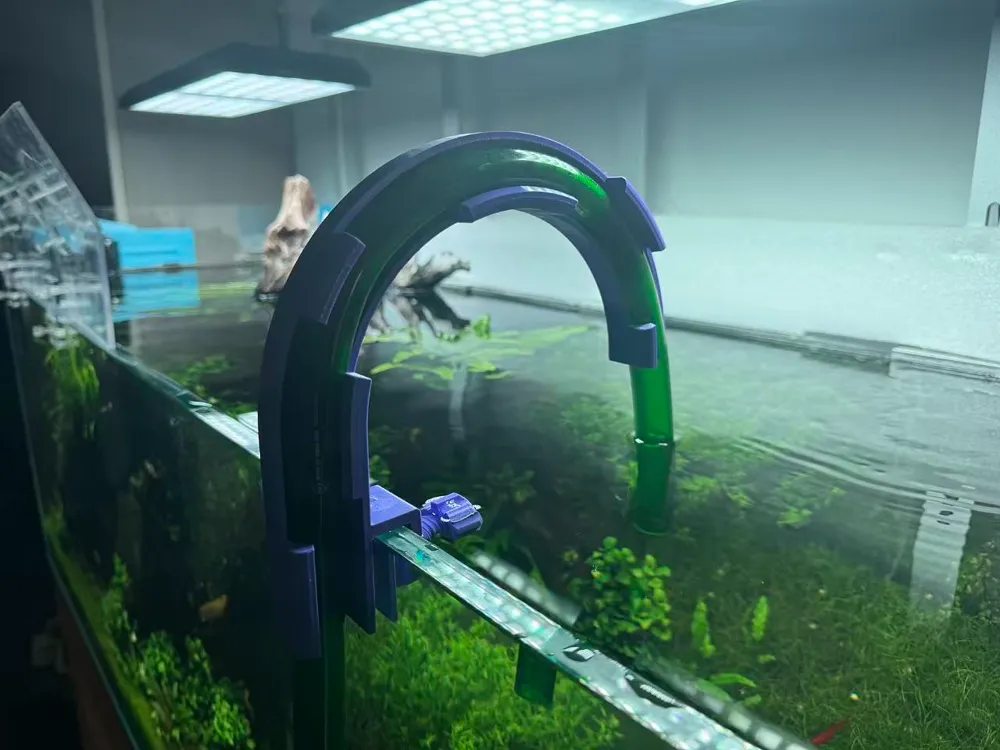

1. Safe Water Changes and Drainage: When changing water in an aquarium, securely fix the drain hose to the tank wall and guide it to a floor drain or bucket. This eliminates the need for manual holding throughout the process, preventing the hose from slipping and splashing water.
2. Filtration System Tubing Management: When installing or adjusting the inlet and outlet tubing for filter canisters or pumps, use it for temporary or long-term fixing of tubing paths to maintain tidiness within the tank.
3. Cleaning and Maintenance: When cleaning the tank bottom with a gravel vacuum or siphon, fix the suction hose to make the operation more stable and efficient.
4. DIY System Construction: When building DIY systems such as drip filtration or chiller circulation, it serves as a reliable fixing point for tubing.
