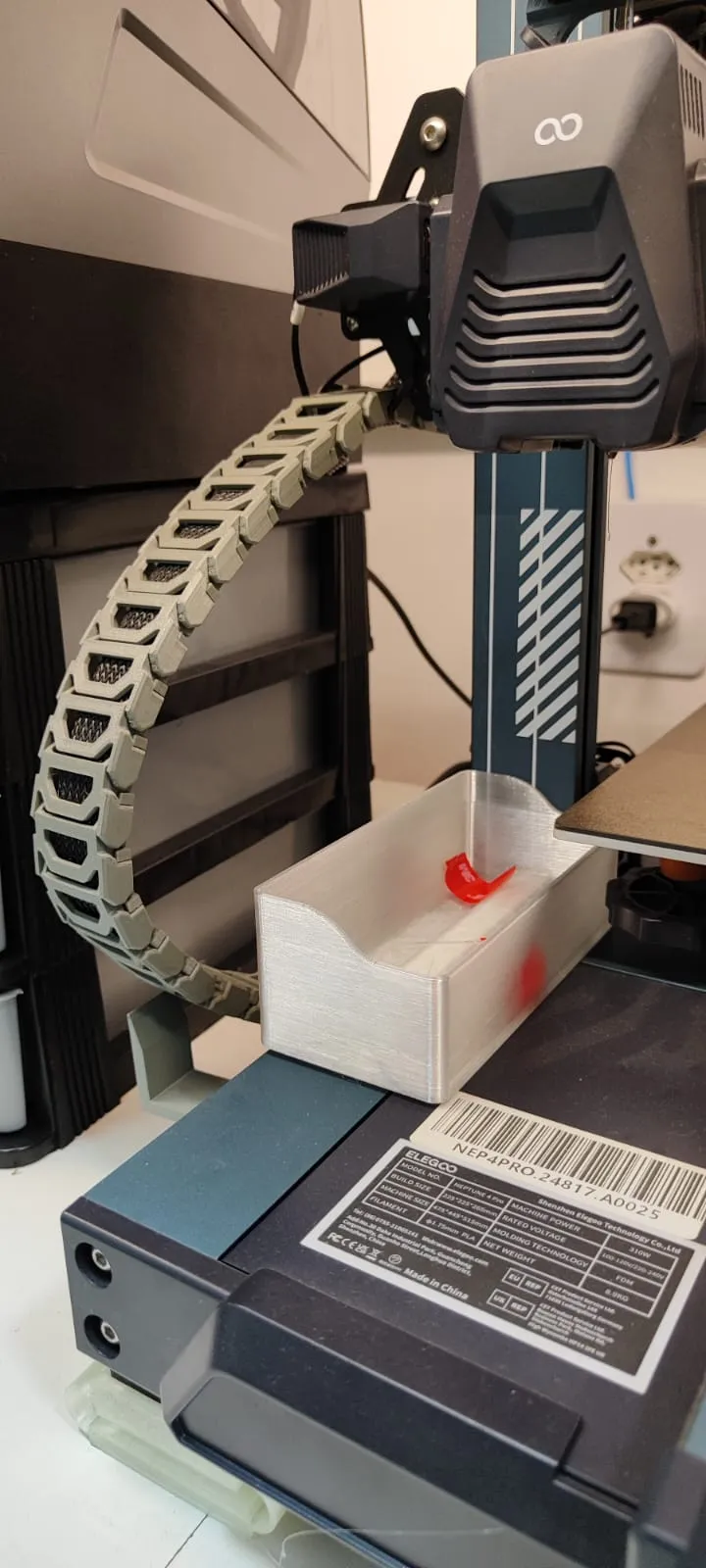

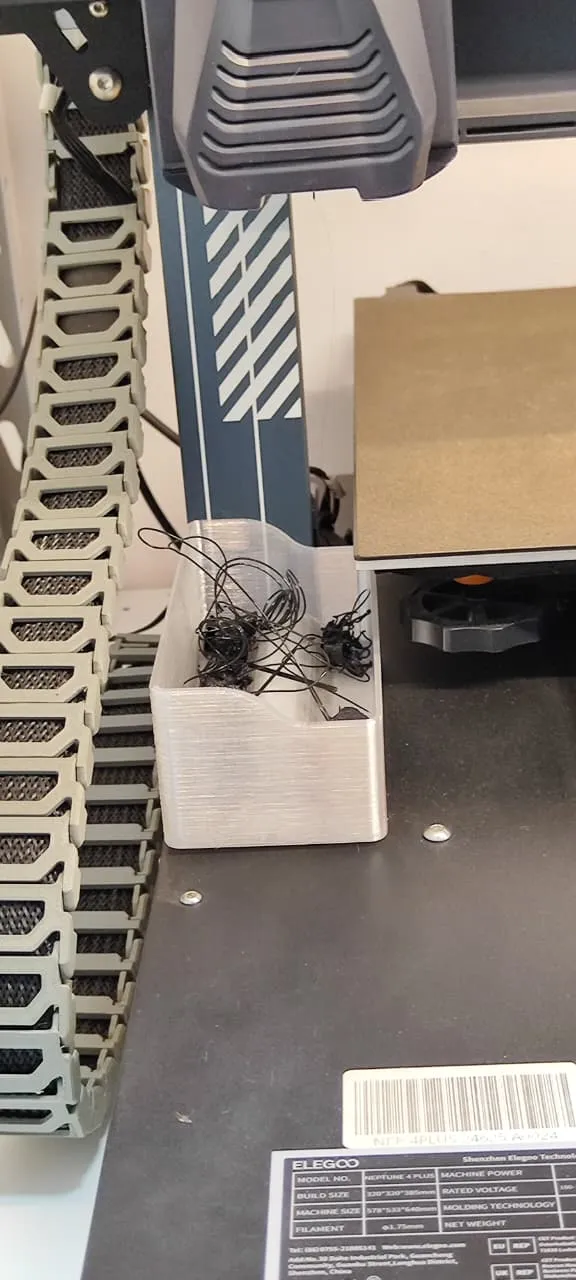

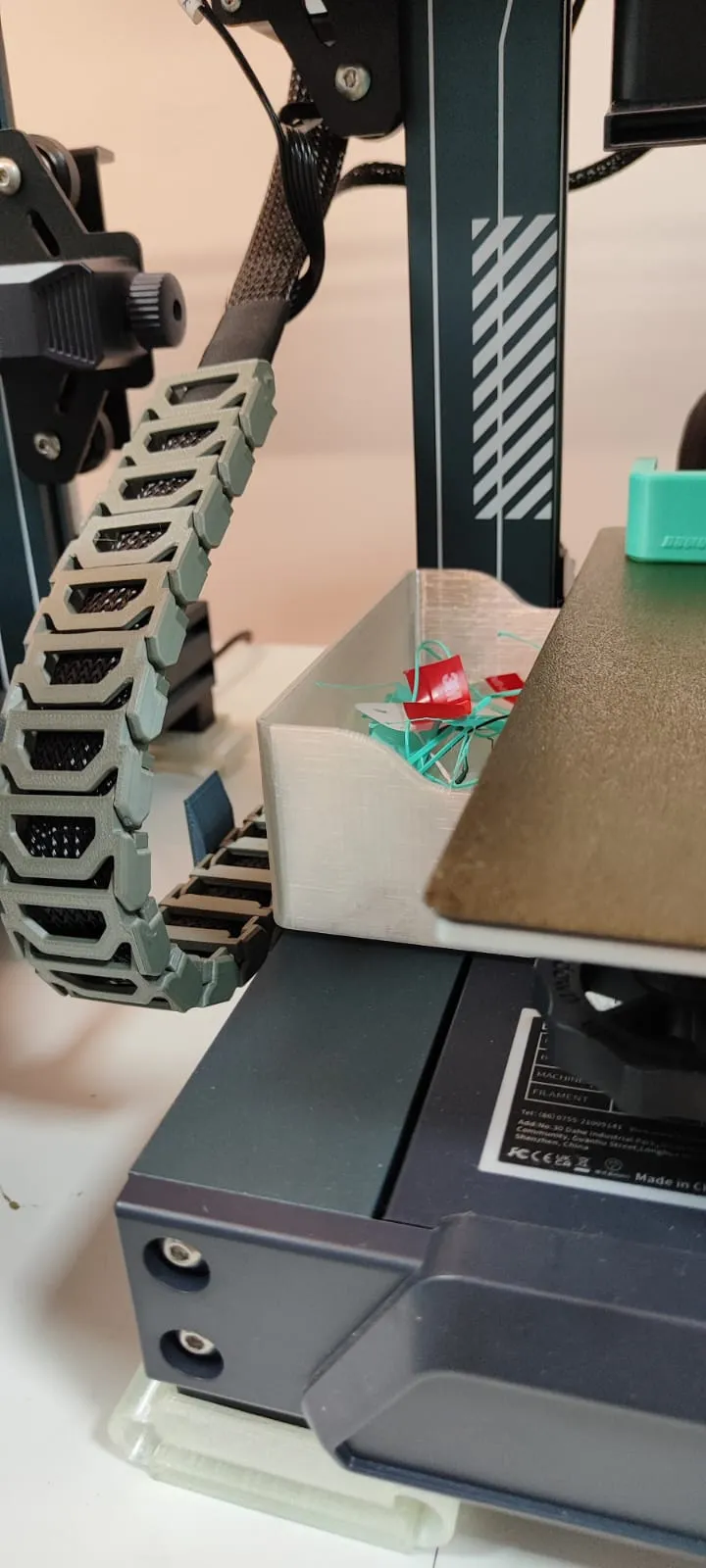

Sliding Waste Bin for Elegoo Neptune (3 / 4 / Pro / Plus / Max)

Tired of having filament scraps scattered on your desk or inside your printer?

This sliding waste bin was designed to solve that problem simply, cleanly, and efficiently.



Compatibility
✔ Elegoo Neptune 3 (Pro, Plus, and Max)
✔ Elegoo Neptune 4 (Pro, Plus, and Max)

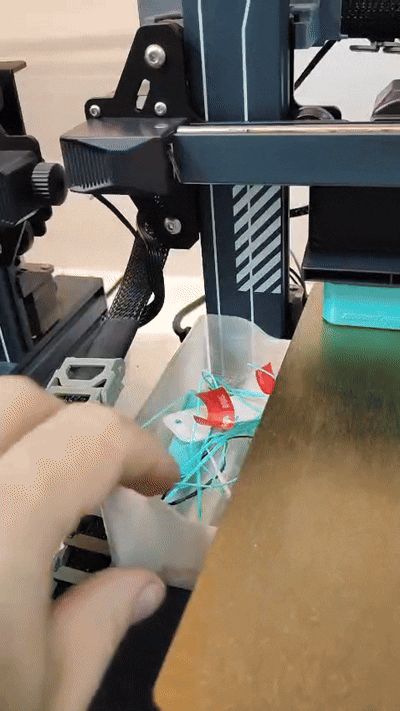

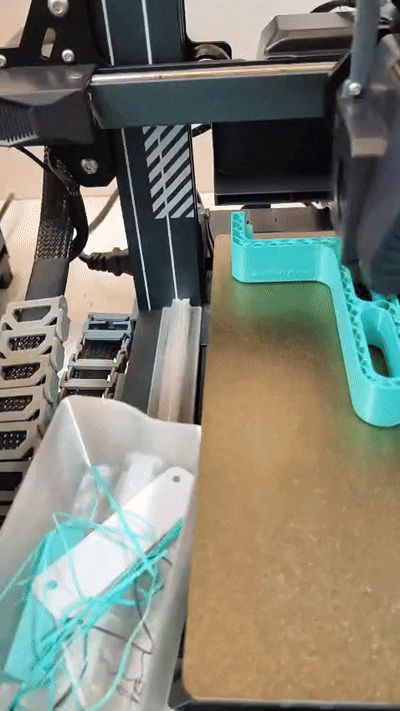

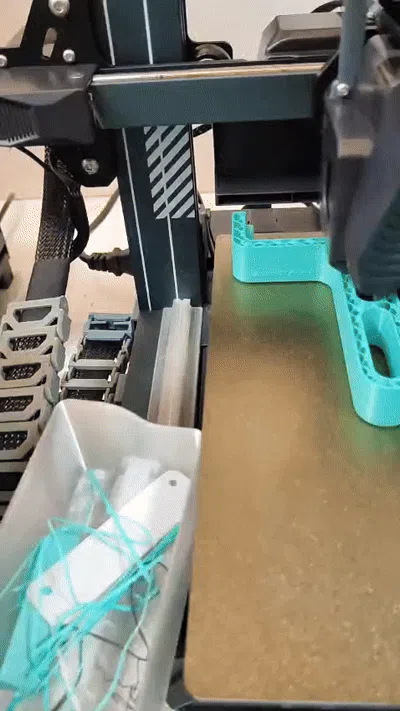

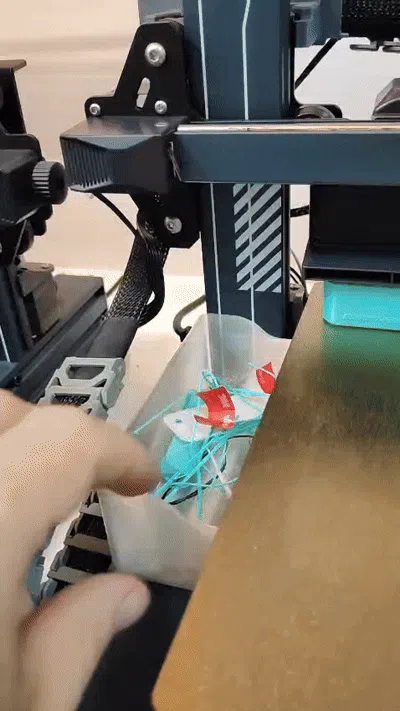

The waste bin slides smoothly on a track, allowing quick and easy access for cleaning.

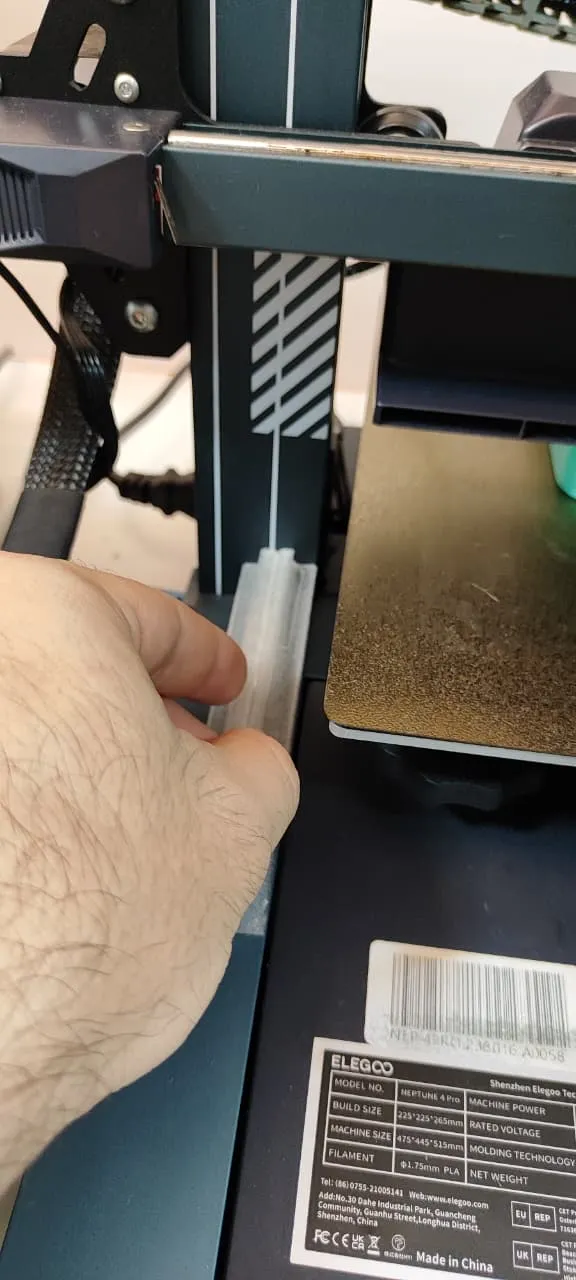

Simple Installation (no screws)
Fixed with double-sided tape — quick, practical, and extremely secure.

Compact and Functional Design
Utilizes the printer's side space without hindering movement or maintenance.

Ideal for those who use current mods on the cable



Printing Recommendations
Material: PLA, PETG, or ABS
Infill: 8%
No supports needed
Orientation: standard (as in STL)



Important:
Use Hole Compensation

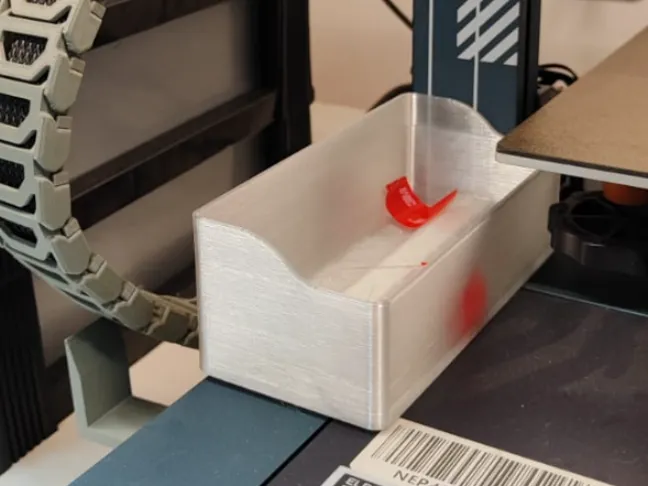

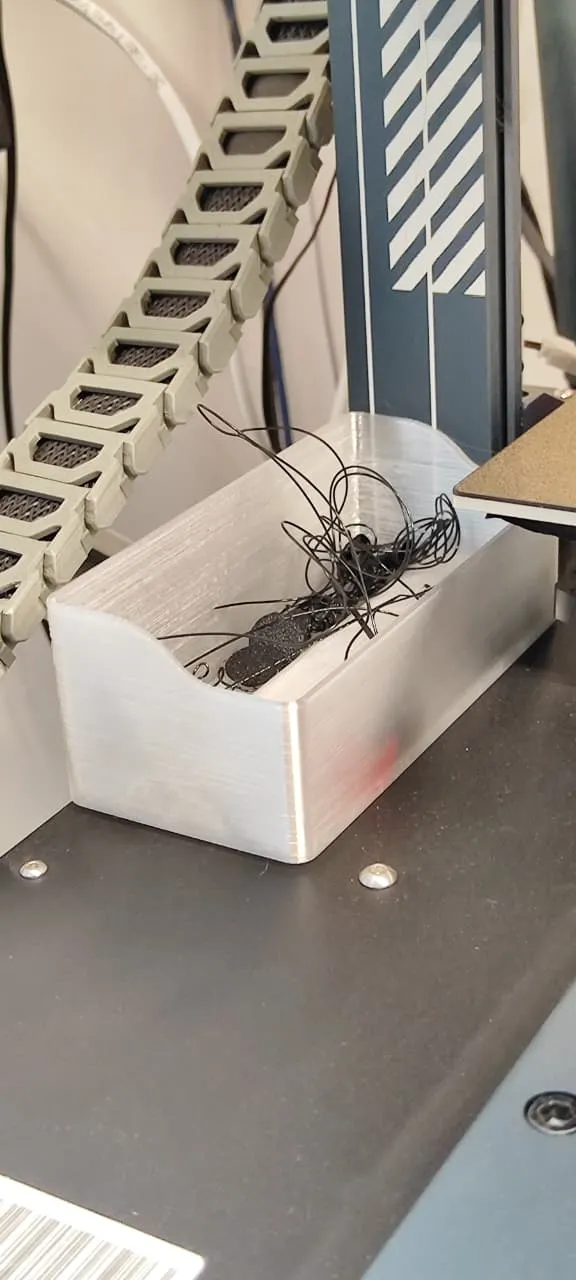

Bin
XY Hole Compensation: 0.1
XY Contour Compensation: -0.12

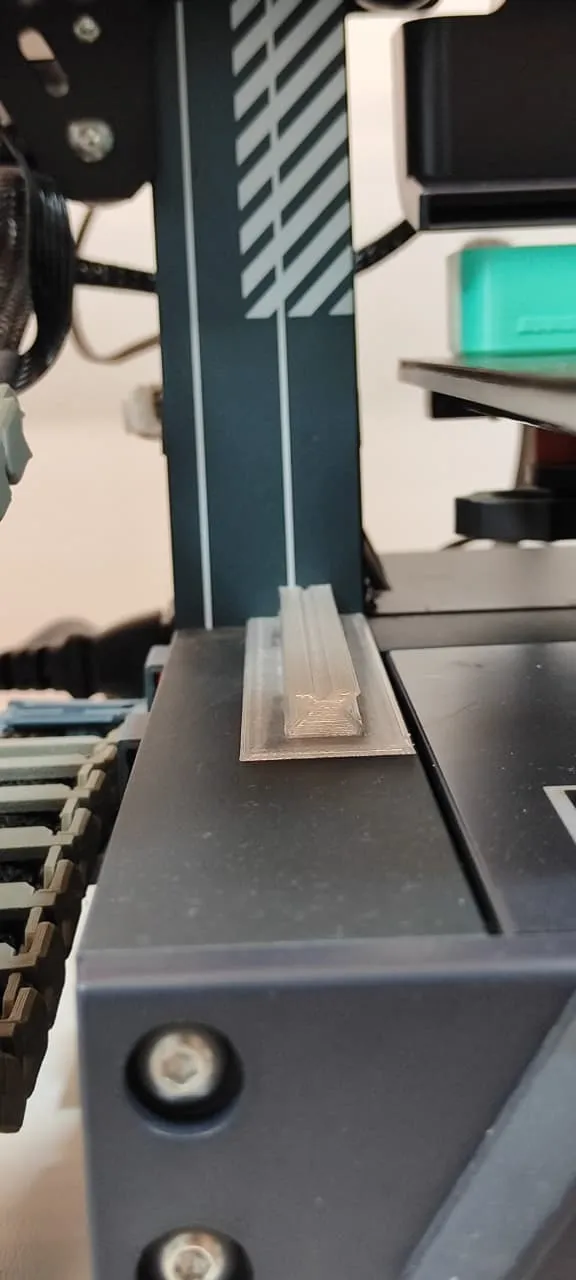

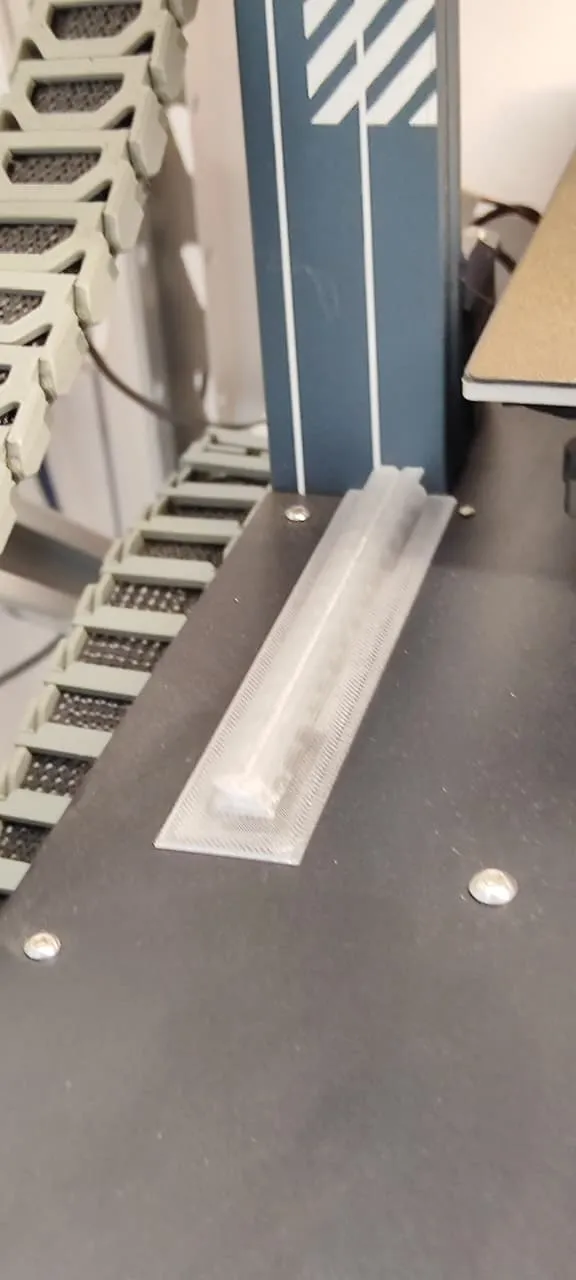

Rail
XY Hole Compensation: 0.3
XY Contour Compensation: -0.2



I used the above settings and they worked perfectly on PETG.
