Description

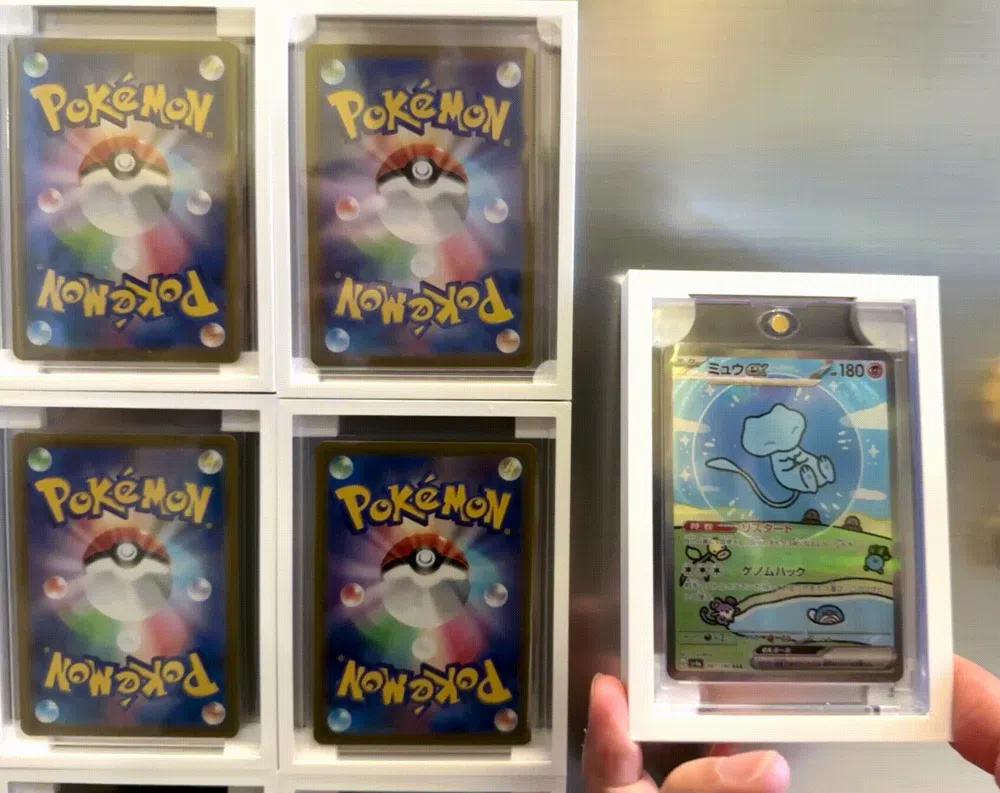

Stop hiding your pokemon cards in binders. This Parametric Magnetic Slab Mount lets you bring them front-and-center onto any steel surface.
The script is built for maximum compatibility—every dimension from the pocket depth to the magnet diameter is a variable, ensuring a perfect fit regardless of the specific materials or sleeves you have on hand."
Highlights
- Fully Parametric: Adjust toploader_width, height, and thickness to generate a custom-fit dock for anything from a standard TCG sleeve to a thick magnetic holder.
- Magnetic "Stealth" Back: Pockets are designed with a thin 0.4mm rear shell. This provides maximum magnetic pull while completely hiding the magnets inside the print.
- Material Efficiency: Includes an optional backplate_hollow feature to reduce filament usage by up to 30% while maintaining structural rigidity around the mounting points.
Magnet installation

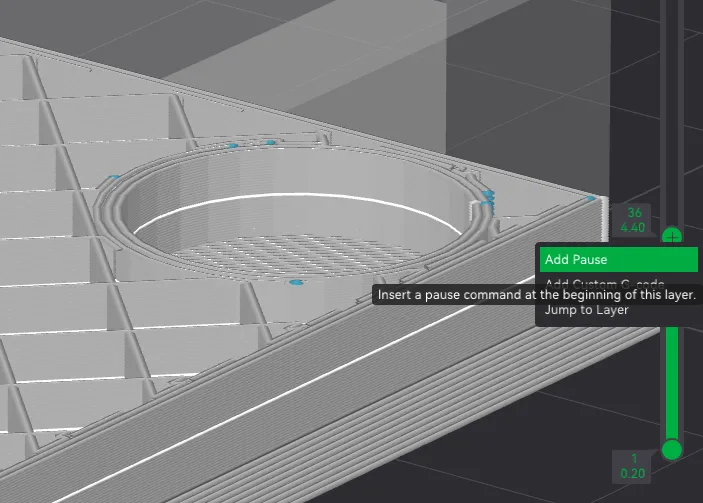

"Ensure you pause the print one layer before the magnet pocket is capped. When inserting the magnets, make sure they are pushed flush or slightly below the surface. If they stick out, the nozzle may collide with them when the print resumes.

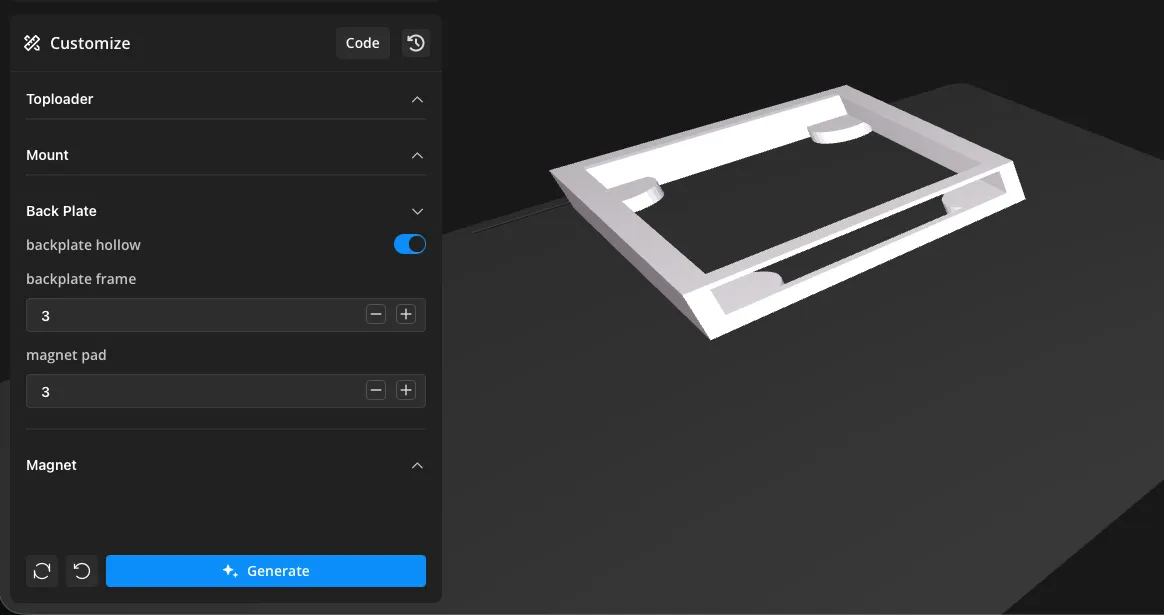

Configuration Parameters
| Parameter | Type | Default | Description | Use Case Example |
|---|---|---|---|---|
| toploader_width | Float | 76 | Internal width of the card pocket (mm). | Set to 89 for graded PSA slabs. |
| toploader_height | Float | 102 | Internal height of the card pocket (mm). | Set to 115 for oversized sleeves. |
| toploader_thickness | Float | 3 | Internal depth of the pocket (mm). | Increase for "thick" 100pt cards. |
| border_thickness | Float | 3 | Width of the outer frame edges. | Increase for a "chunkier" aesthetic. |
| wall_thickness | Float | 4 | Total thickness of the rear plate. | Must be > magnet_depth + shell. |

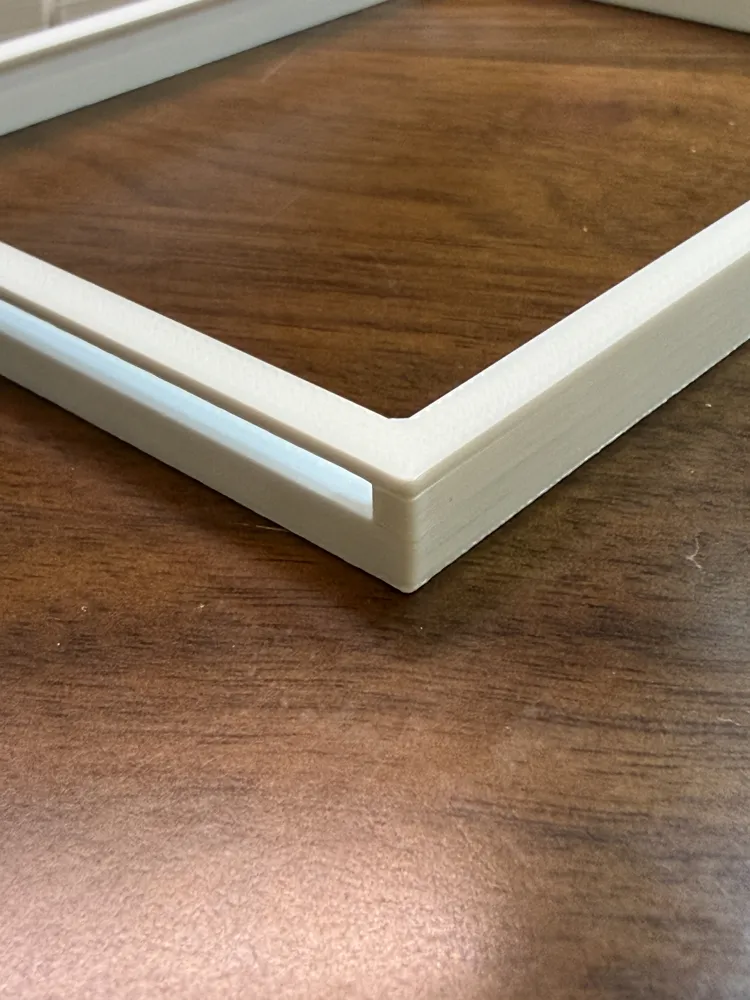

| front_lip | Float | 1.5 | How much the frame "grabs" the card. | Set to 2.0 for a more secure hold. |
| tolerance | Float | 0.5 | Wiggle room added to pocket dims. | Set to 0.2 for a tight friction fit. |
| backplate_hollow | Bool | true | Removes bulk from the back wall. | false for a solid, heavy-duty feel. |
| magnet_shape | String | "circle" | Switch between "circle" or "rect". | Use "rect" for bar magnets. |
| magnet_diameter | Float | 10 | Diameter for circular magnets. | Match your specific hardware (e.g. 8mm). |
| magnet_depth | Float | 2 | Thickness/Height of the magnet. | Set to 3 for stronger N52 magnets. |
| magnet_back_shell | Float | 0.4 | Layer thickness between magnet & wall. | Match your layer height (e.g., 2 layers). |
| magnet_count | Int | 4 | Number of mounting points. | 2 or 4 |
