Description
Content has been automatically translated.

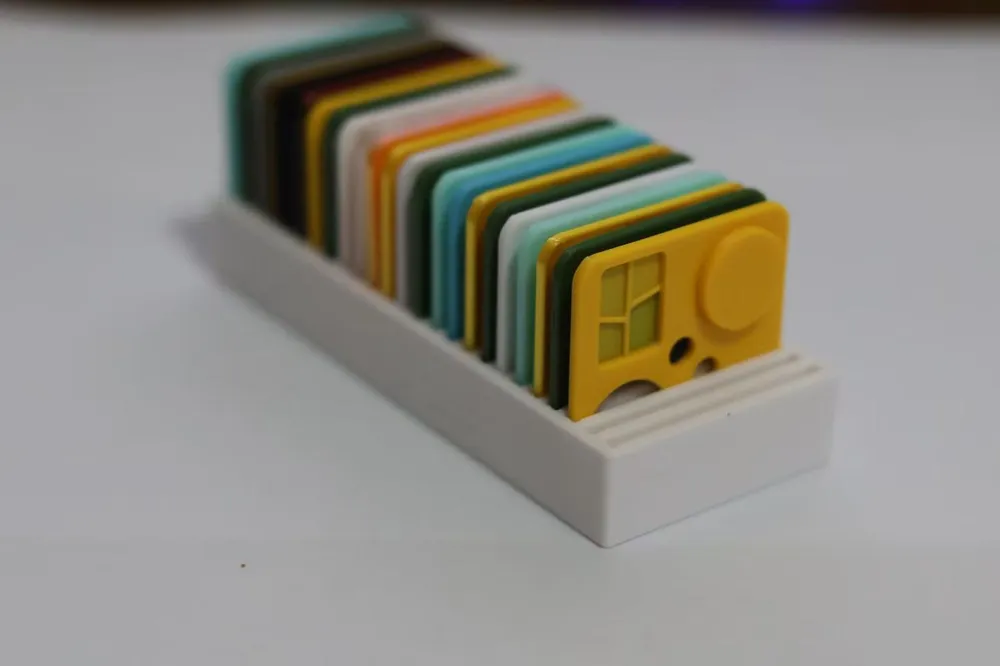

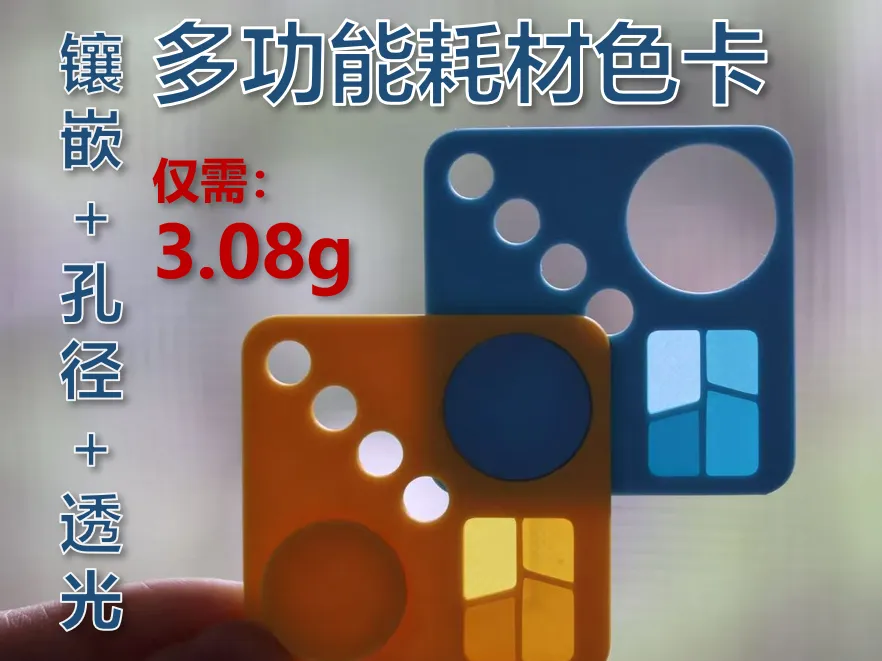

This is an efficient filament management tool designed for 3D printing enthusiasts
No more need to print a pile of scattered test models; this small swatch card integrates three core functions, helping you quickly understand the 'temperament' of each roll of filament.
Three Core Functions:

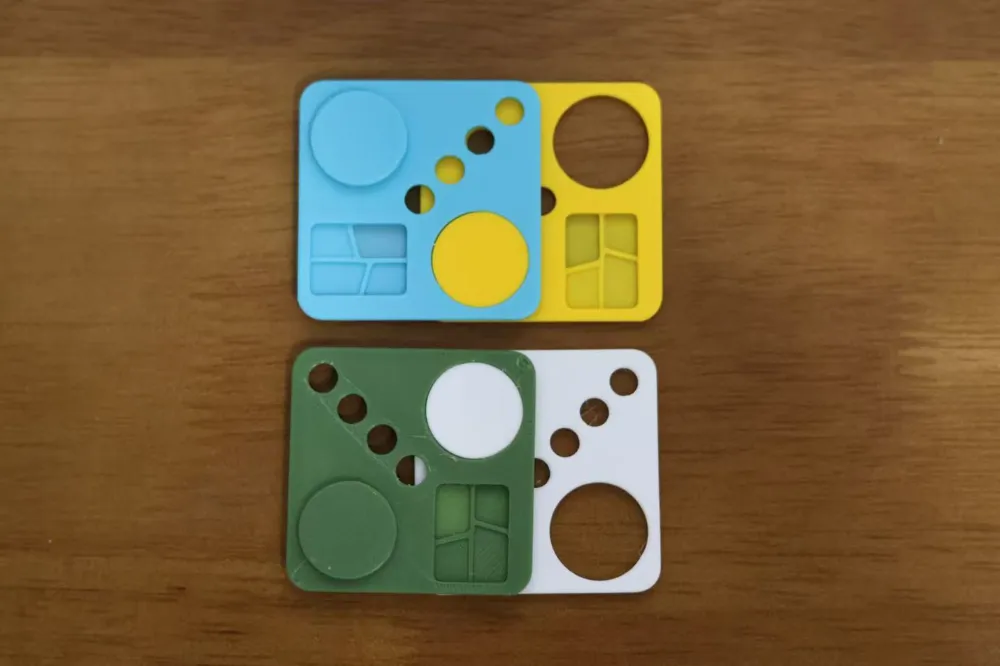

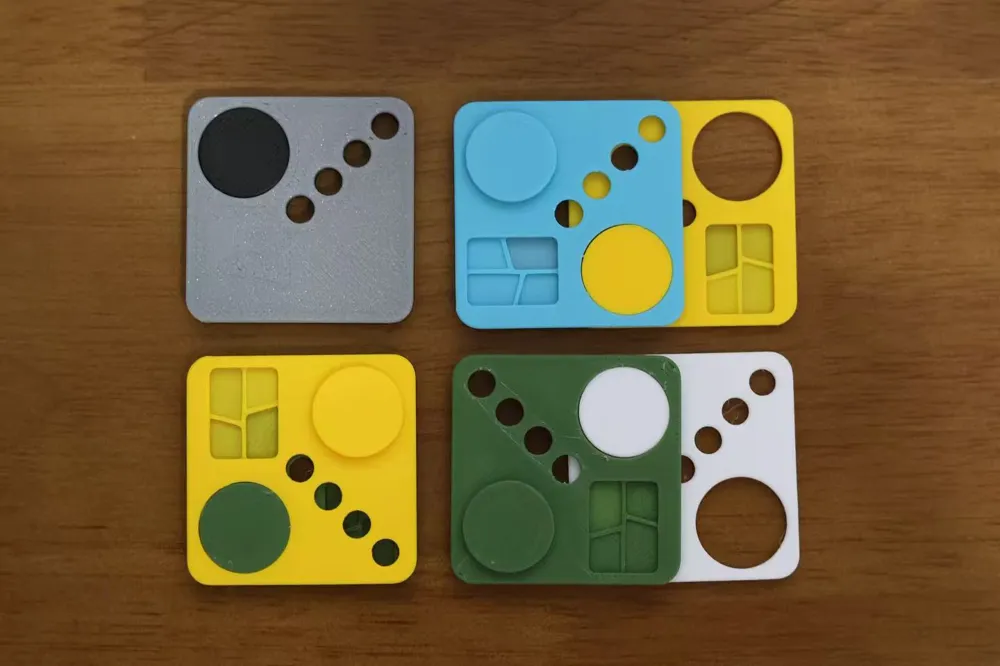

🖌️ Modular Color Matching Design: The main body uses a hollow inlay structure. You can print different color blocks separately. When you have multiple filament colors, simply insert the large cylinder into the large round hole to visually compare the actual effect of different color combinations, which is much more accurate than imagining it on screen!

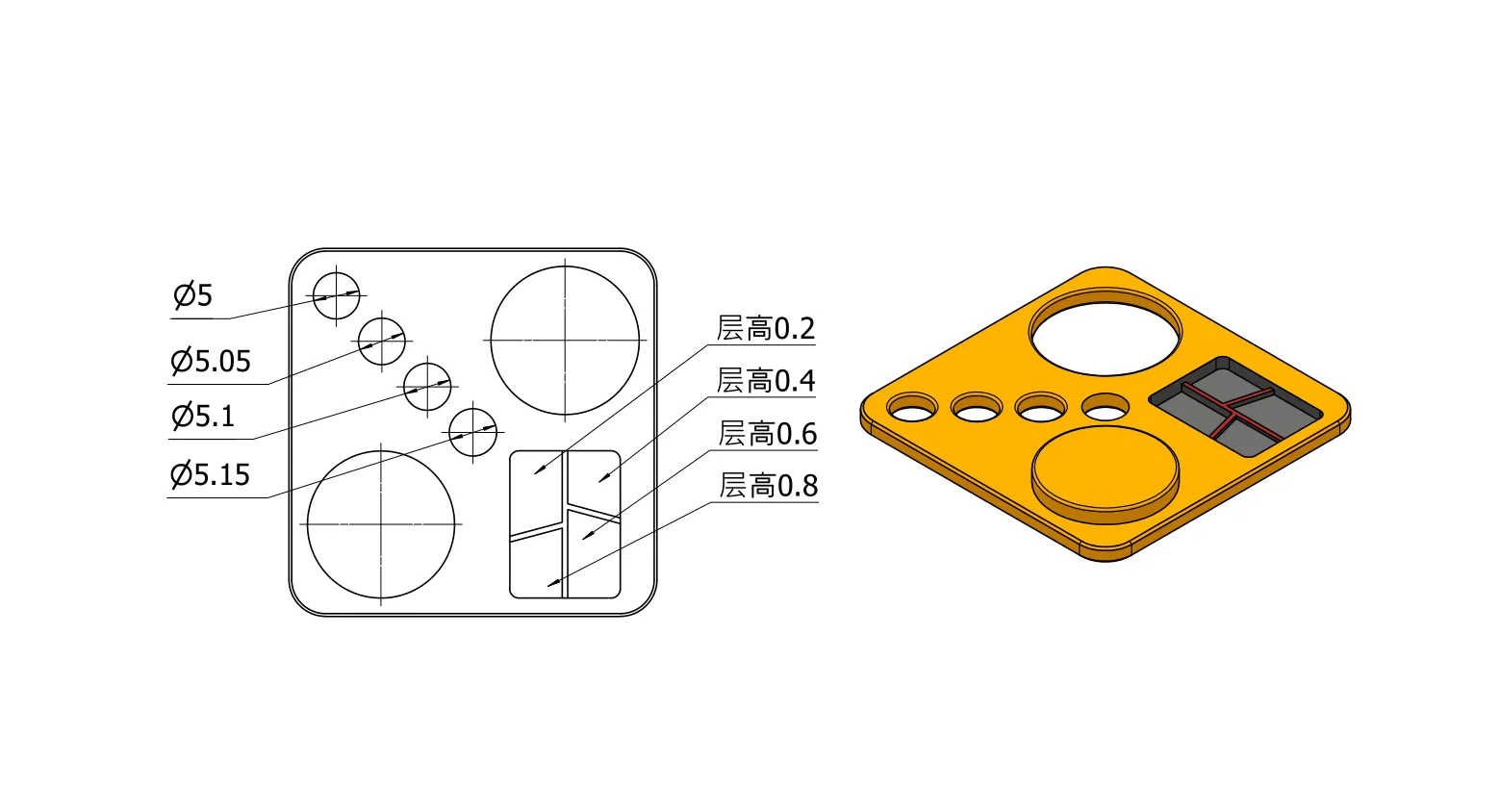

📐 Precision Aperture Test Strip (5.00mm - 5.15mm): Different filament shrinkage rates lead to varying tolerances in printed parts. The top of this card features four progressive round holes:
5.00mm - 5.05mm - 5.10mm - 5.15mm
Pass a standard 5mm steel shaft or screwdriver through to see which hole fits best at a glance. It's designed for calibrating mechanical structural parts that require assembly precision.

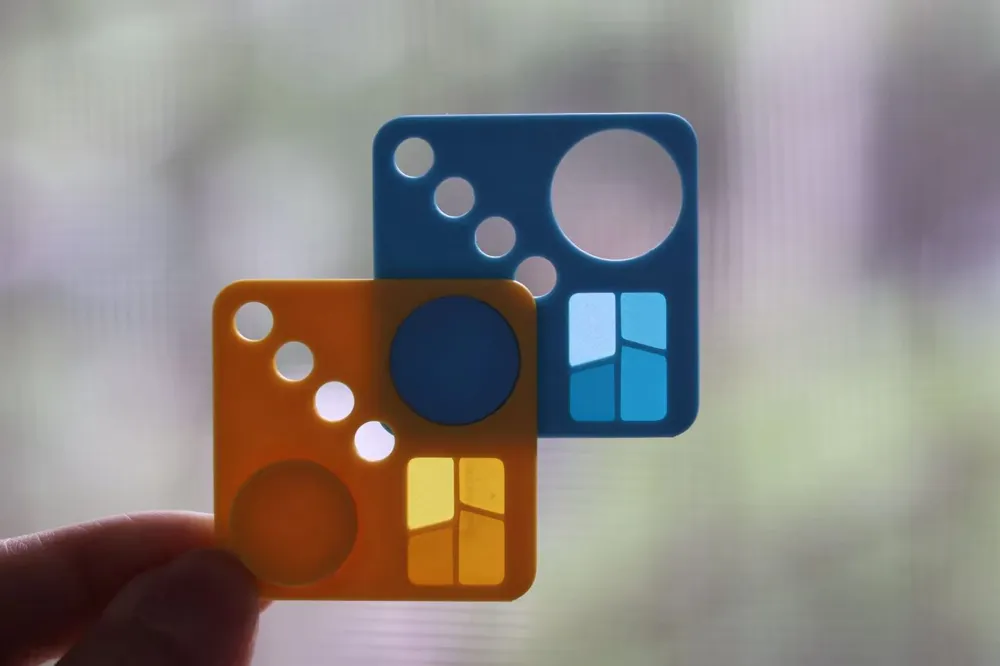

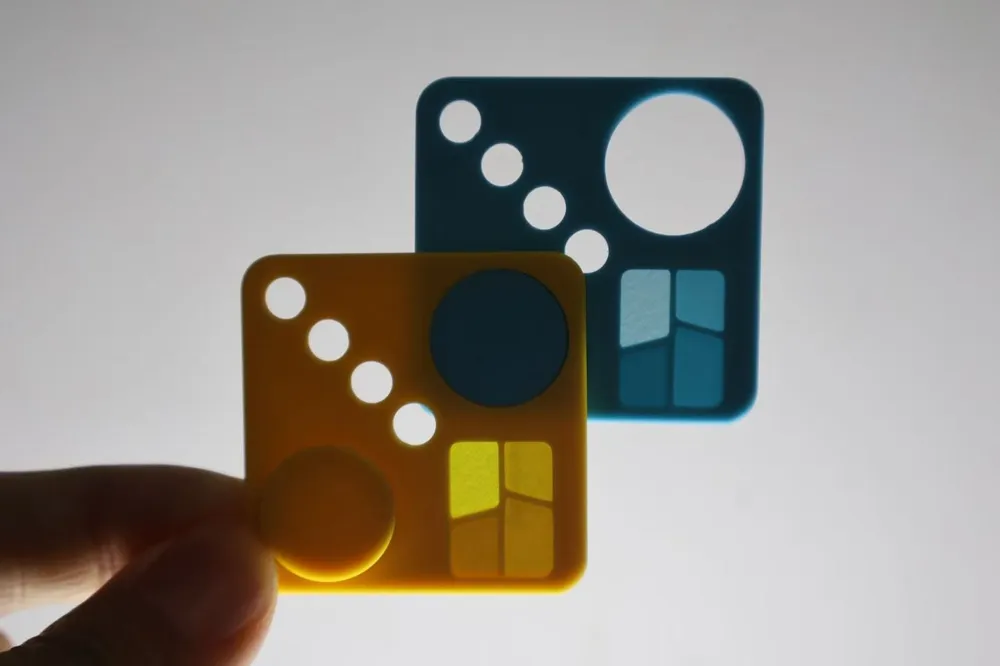

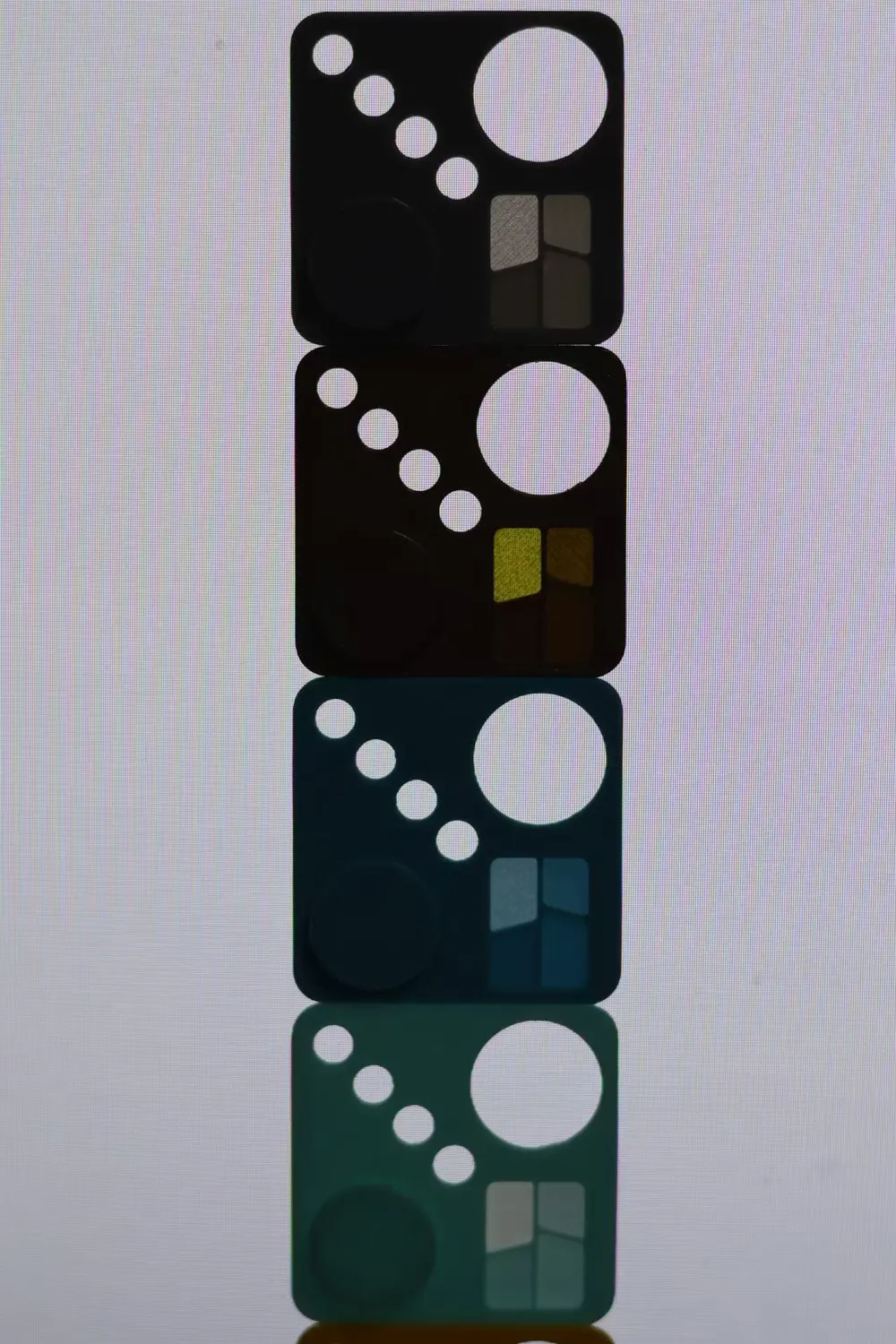

💡 Layered Translucency Scale (0.2mm - 0.8mm): Want to know how much light this 'transparent white' filament can transmit? The base plate is designed with a four-level thickness step:
*0.2mm (1 layer) - 0.4mm (2 layers) - 0.6mm (3 layers) - 0.8mm (4 layers)*By holding it against a light source, you can quickly determine the filament's light transmittance and shading performance, making it particularly suitable as a material selection reference before making lampshades or light guide components.

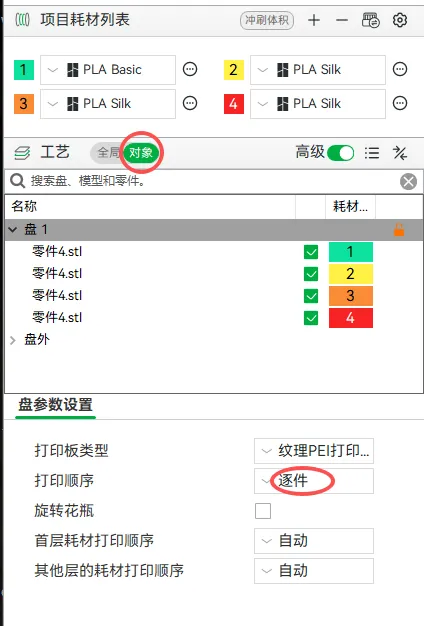

The print profile is 4 swatches per plate, using multi-color print-by-object
