Display 1.44" Case - Perfect Snap-Fit and Engraved Text
Display 1.44" Case - Perfect Snap-Fit and Engraved Text
Designer
32 min
1 plate

Open in Bambu Studio
Boost
8
13
2
0
14
1
Released

Description

Content has been automatically translated.
Show original

I created this remix starting from Gabriel Vapor's model to better adapt it to my printing needs and to solve some tolerance issues encountered during assembly.

❌ Original model limitations (according to my tests):

  • Tolerances too wide: The lid was too loose and tended to open easily without a secure snap fit.
  • Unstable display: The screen inside had too much play, wobbling within the housing.

✅ What I added and improved:

  • Solid Snap-Fit: I recalibrated the tolerances (XY compensation at 0.16mm/0.20mm) to achieve a clear and resistant closing 'click'.

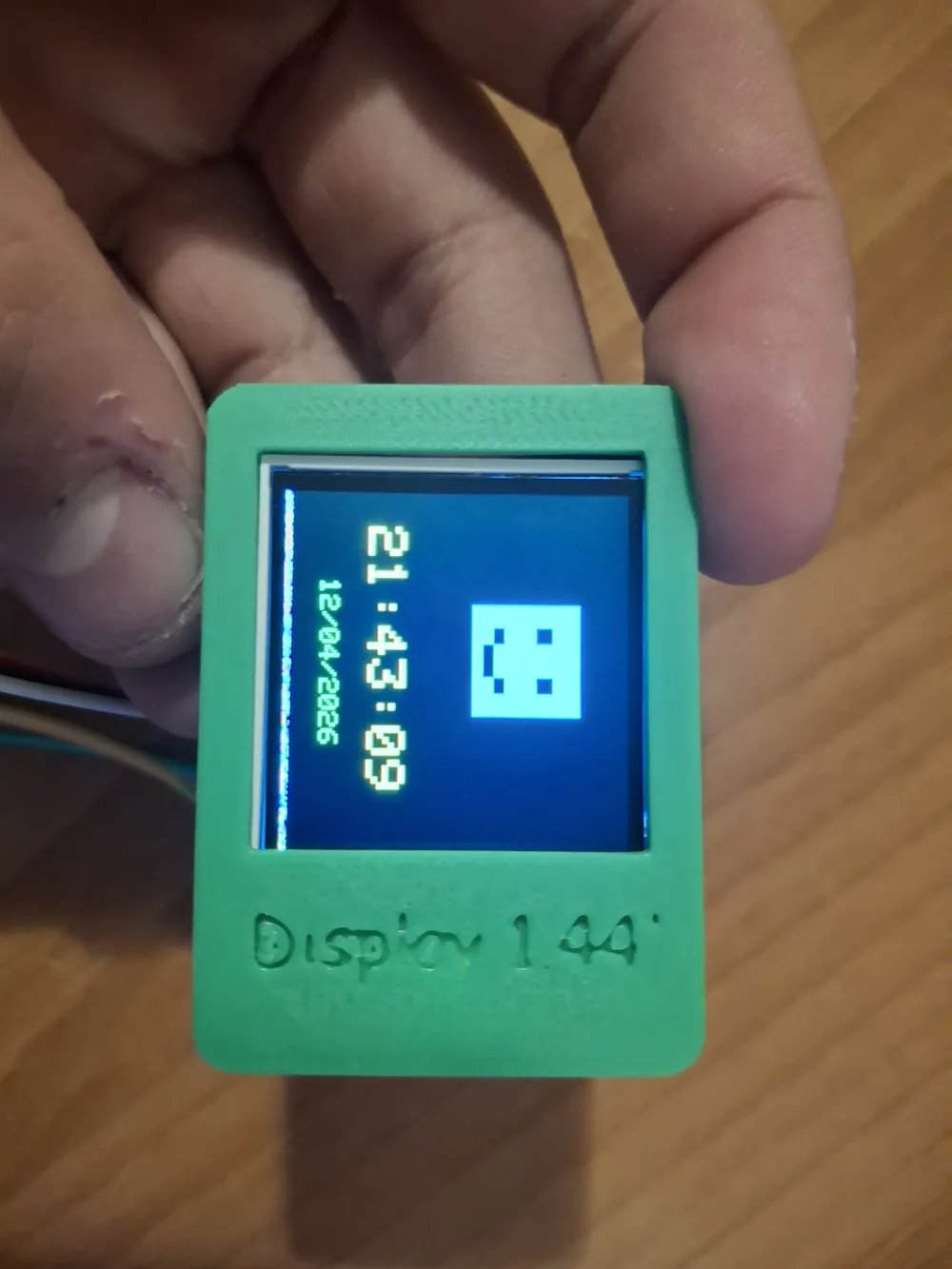

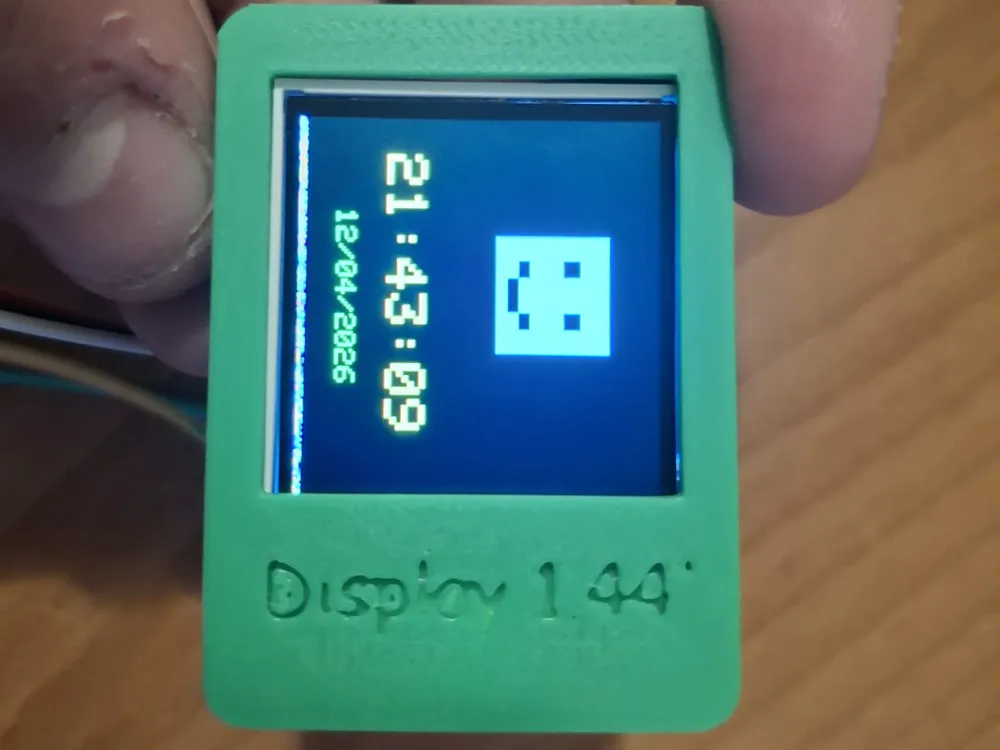

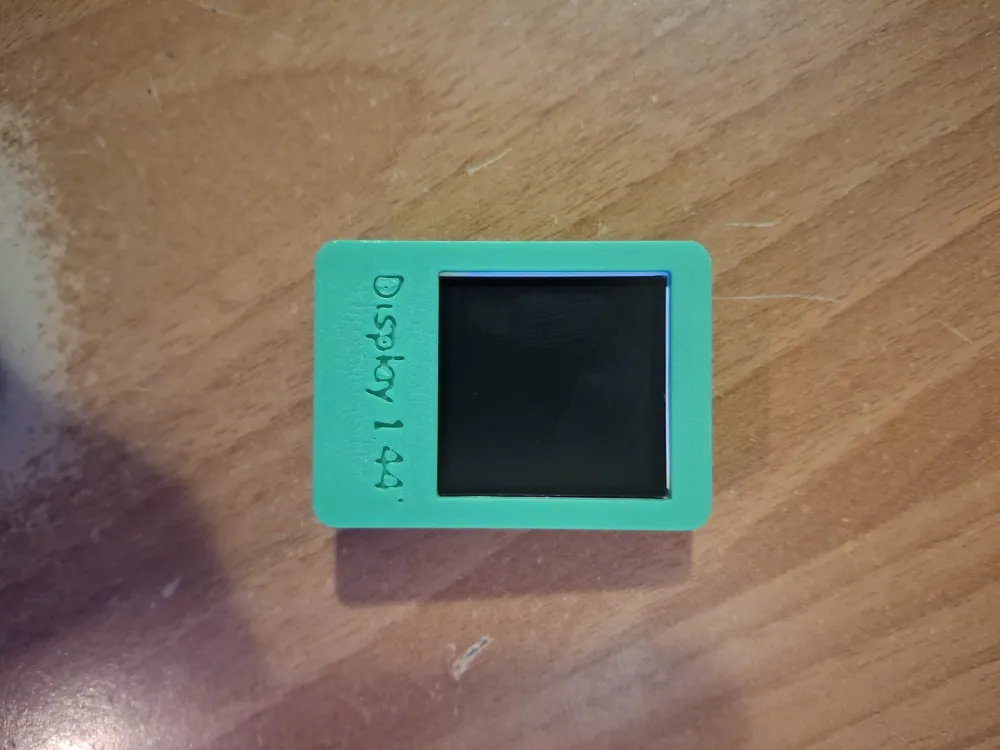

  • Permanent Engraved Text: I added the text "Display 1.44" using subtraction (Negative Part) to prevent raised letters from coming off, giving a more professional look.
  • Path Optimization: I configured the slice to eliminate diagonal lines and imperfections on the visible face, achieving a smooth and clean surface.

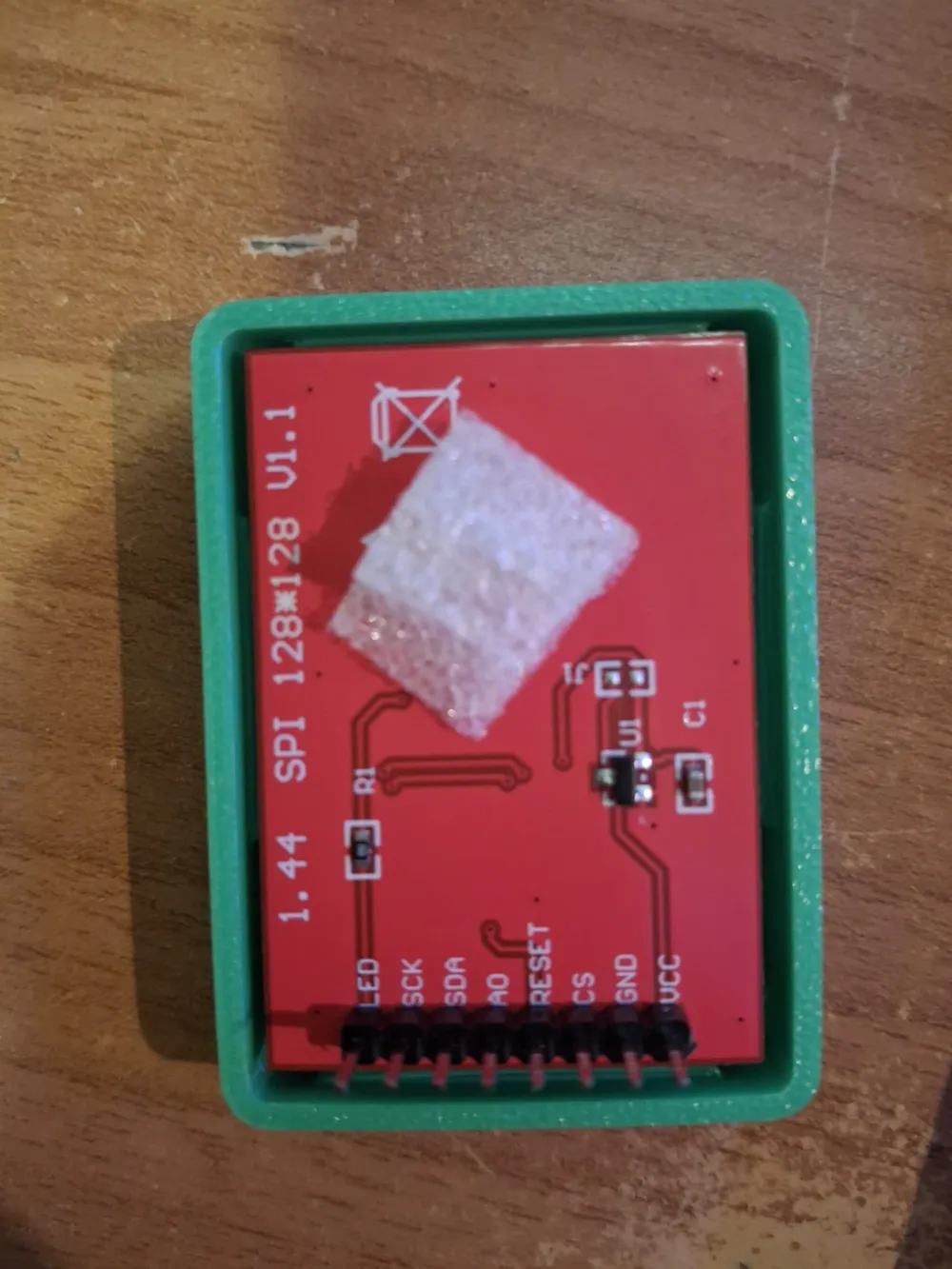

  • Display Block: To eliminate the display play, I recommend inserting a small soft spacer at the bottom (as seen in my photos), which pushes it perfectly against the frame.
