Base for Ring Alarm Wireless Keypad (2nd Gen)
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 20% infill
Designer
3.1 h
1 plate
Open in Bambu Studio
Boost
5
11
0
0
2
2
Released
Description

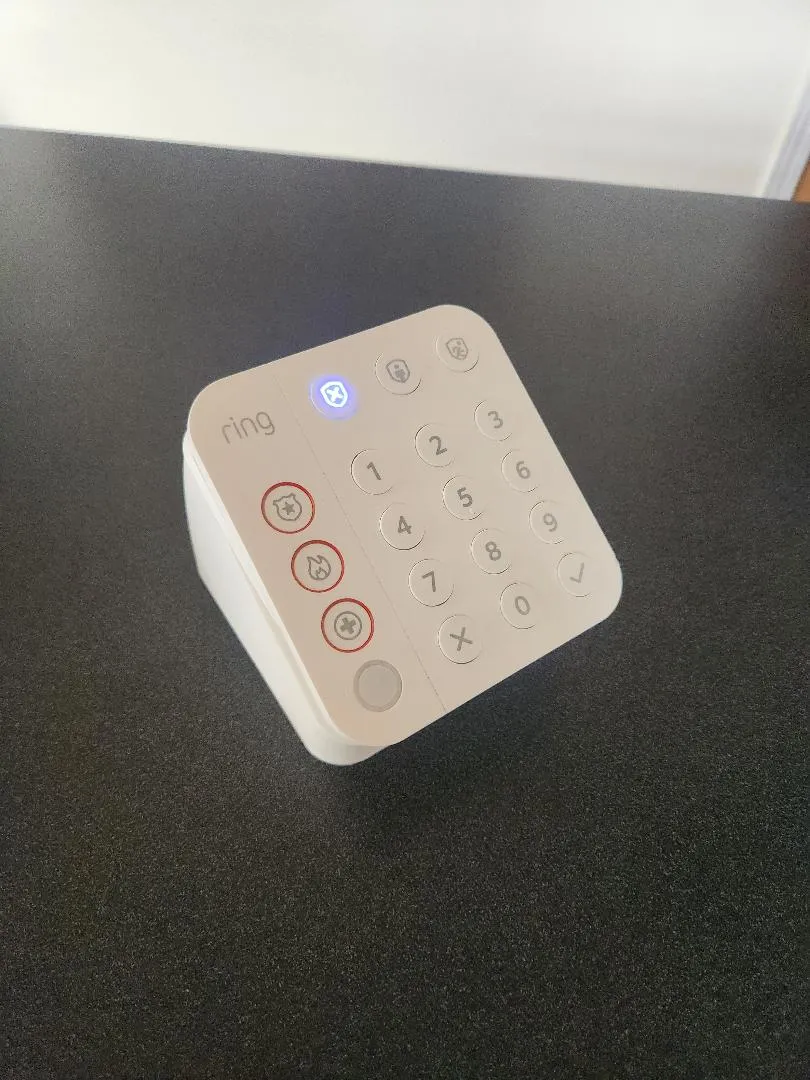

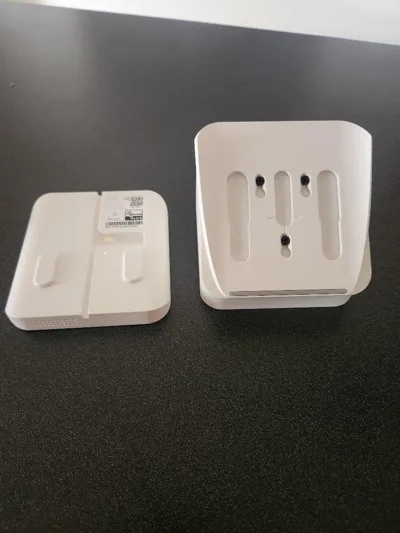

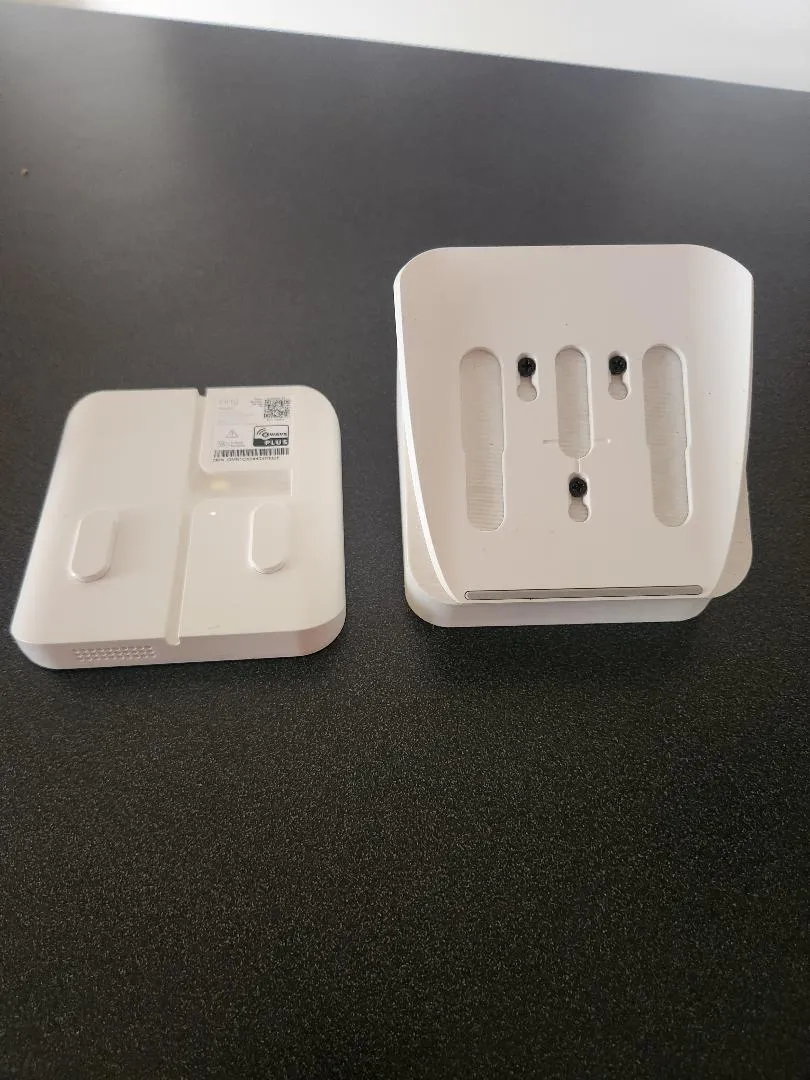

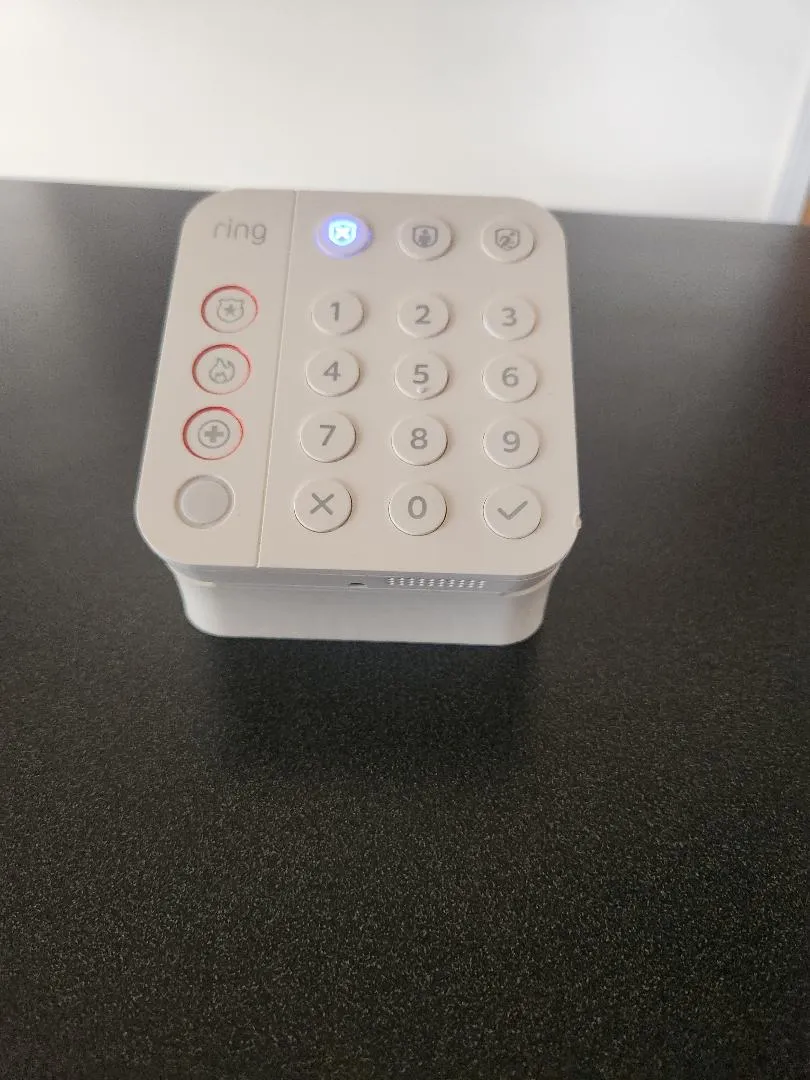

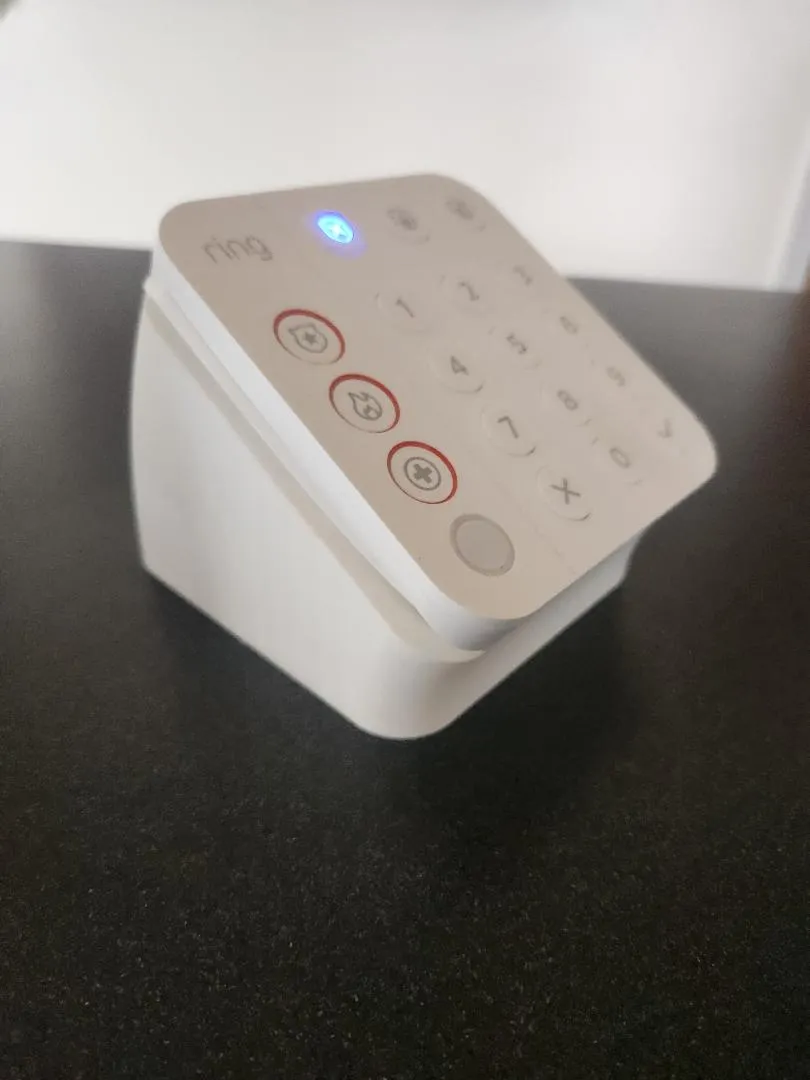

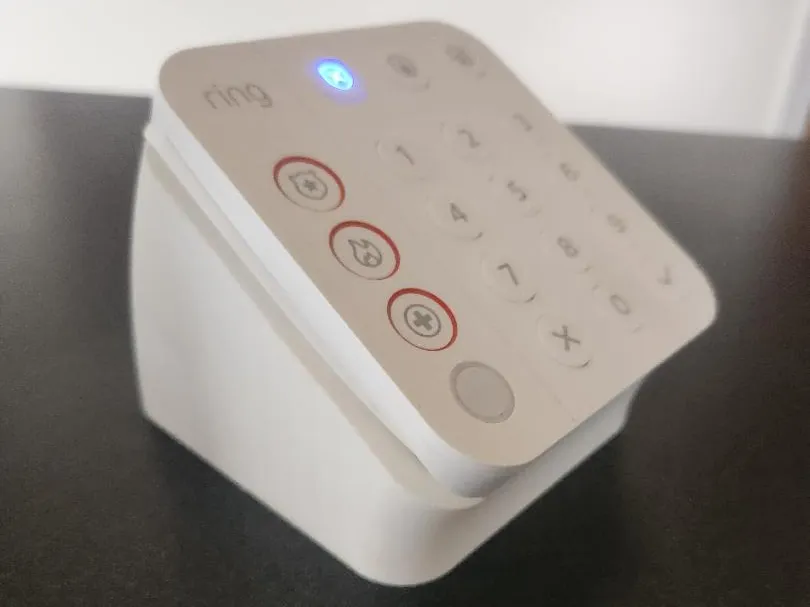

Angled base for the Ring Alarm Wireless Keypad (2nd Gen). This design uses the original keypad mounting plate for best fit and 3xM3 heat-set inserts (McMaster-Carr Part # 94459A769 were used for this project) to mount to the base. Will also require 3x M3x10mm countersunk screws. The blind holes for the screws run deep into the model so any screw up to 30mm in length should also work fine.
https://www.mcmaster.com/94459A769/
