20CM Monitor Riser Cabinet (with keyboard and mouse storage)
Print Profile(2)
Description
The model file includes two versions: one with keyboard and mouse storage, and one without (cabinet only).
Other accessories required:
1. A 60*20*2CM wooden board (universal size, easily available).
2. M3*12 countersunk screws (25 pieces) or super glue that can bond plastic + wood.
Assembly instructions:

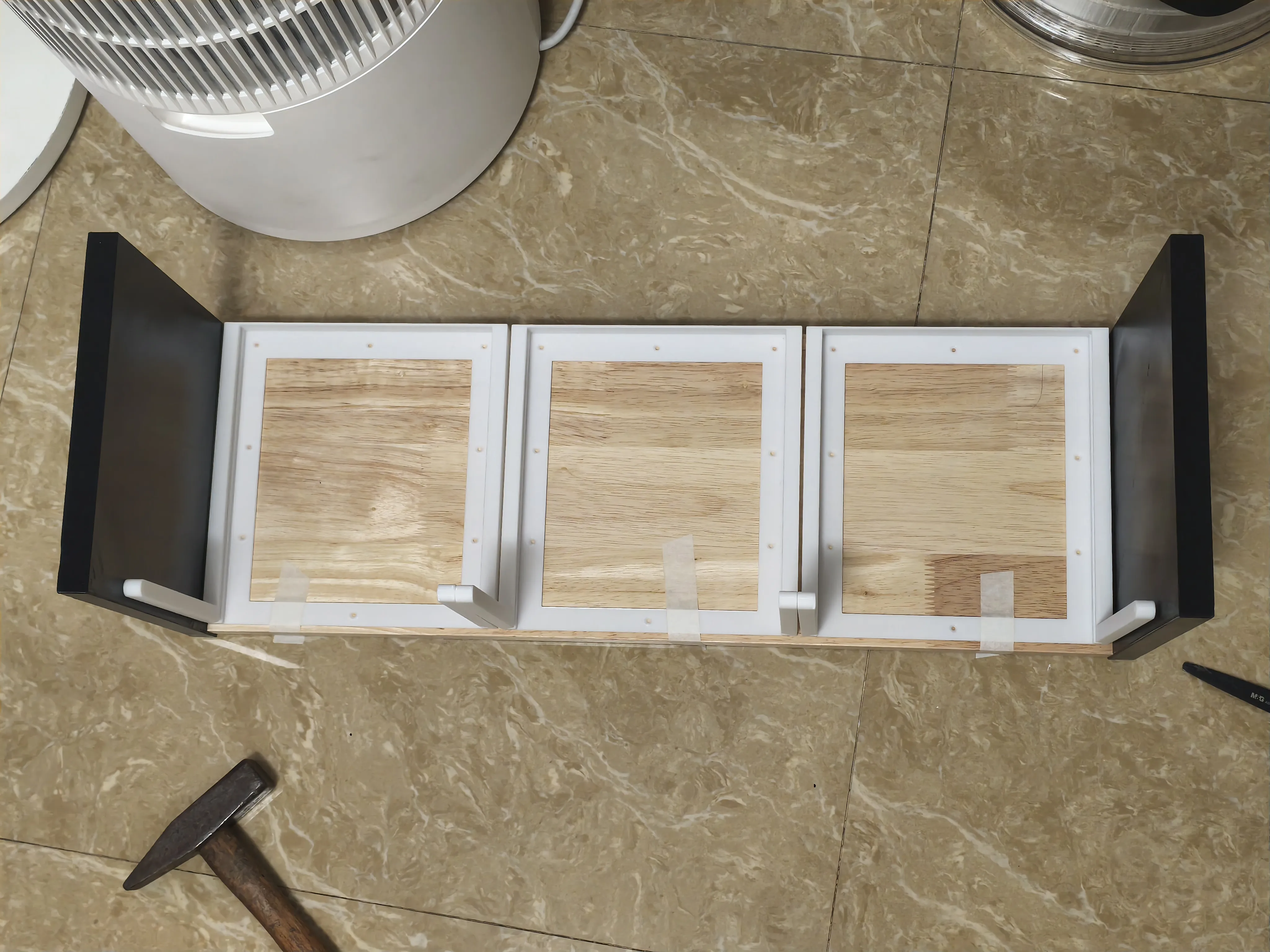

1. Leave a gap of about 1.5~2mm between each white fixed cabinet frame, then secure with screws or super glue.

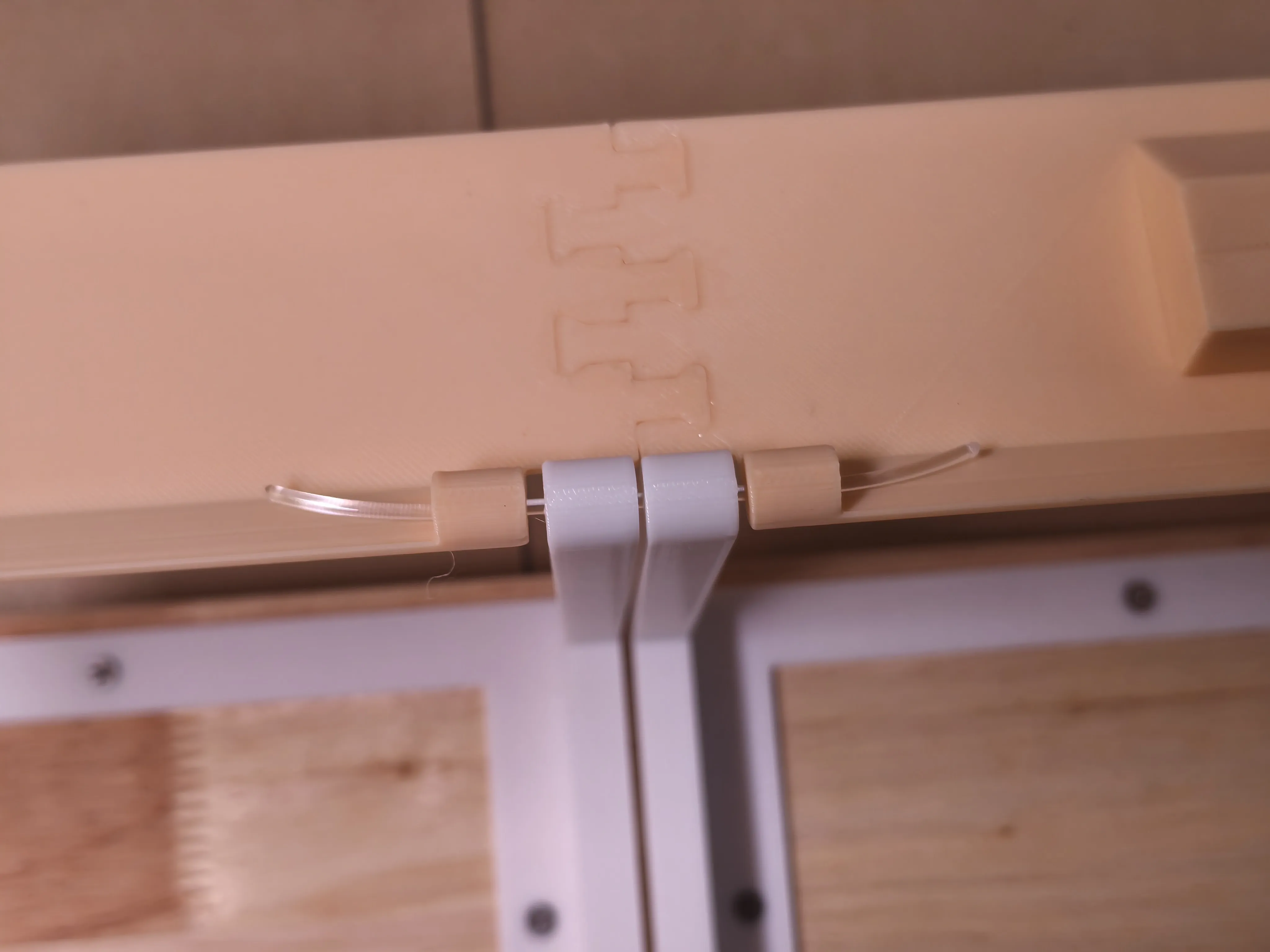

2. Use a hammer to assemble the three keyboard and mouse storage baffles (can be reinforced with 502 glue), then insert the filament into the central axis of each keyboard and mouse storage.
3. WD40 lubricant can be applied between the drawer and the slide rails for smoother pulling.

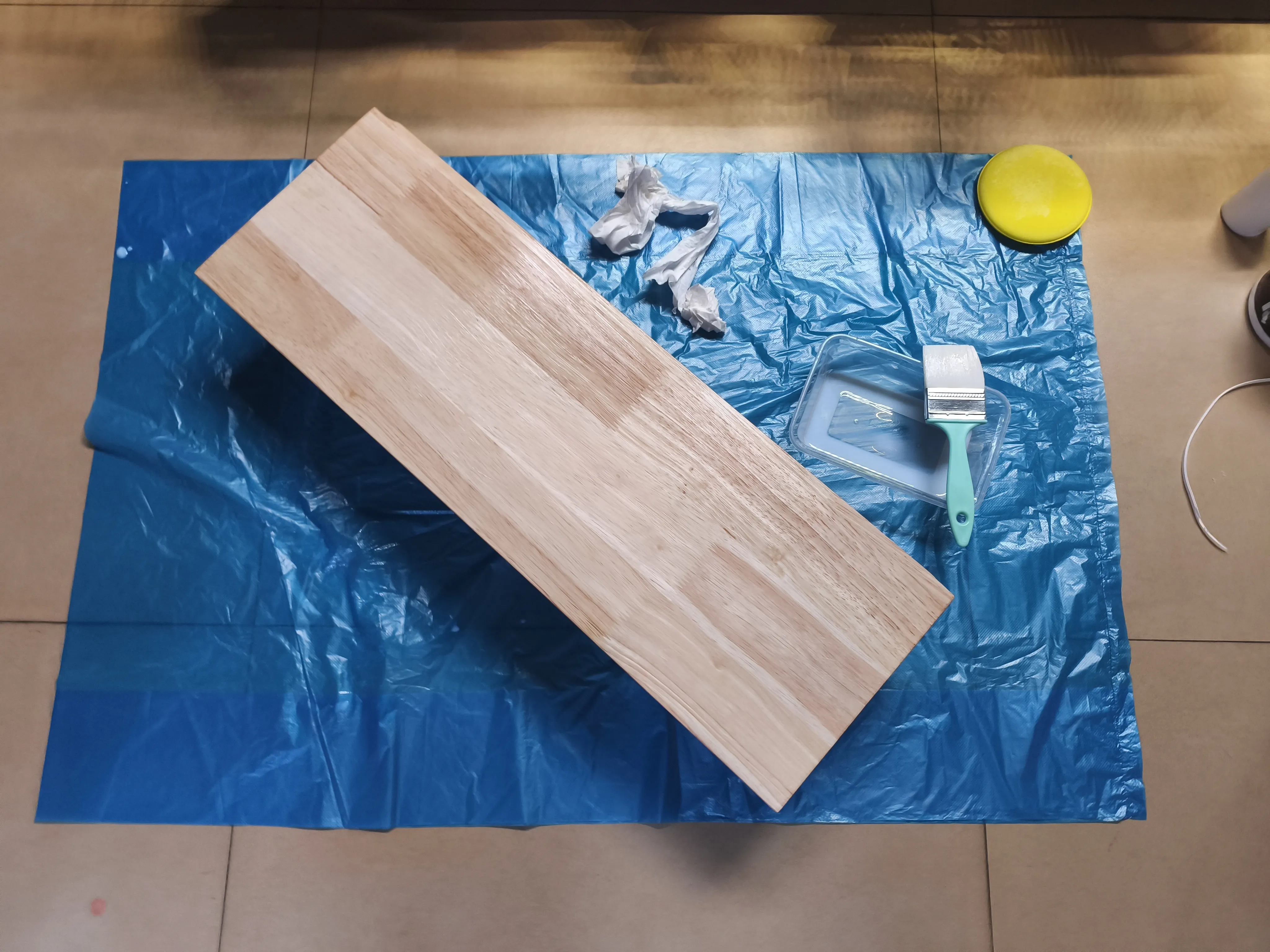

4. The purchased wooden board can be coated with two layers of varnish to extend its lifespan and give the finished product a good texture.
