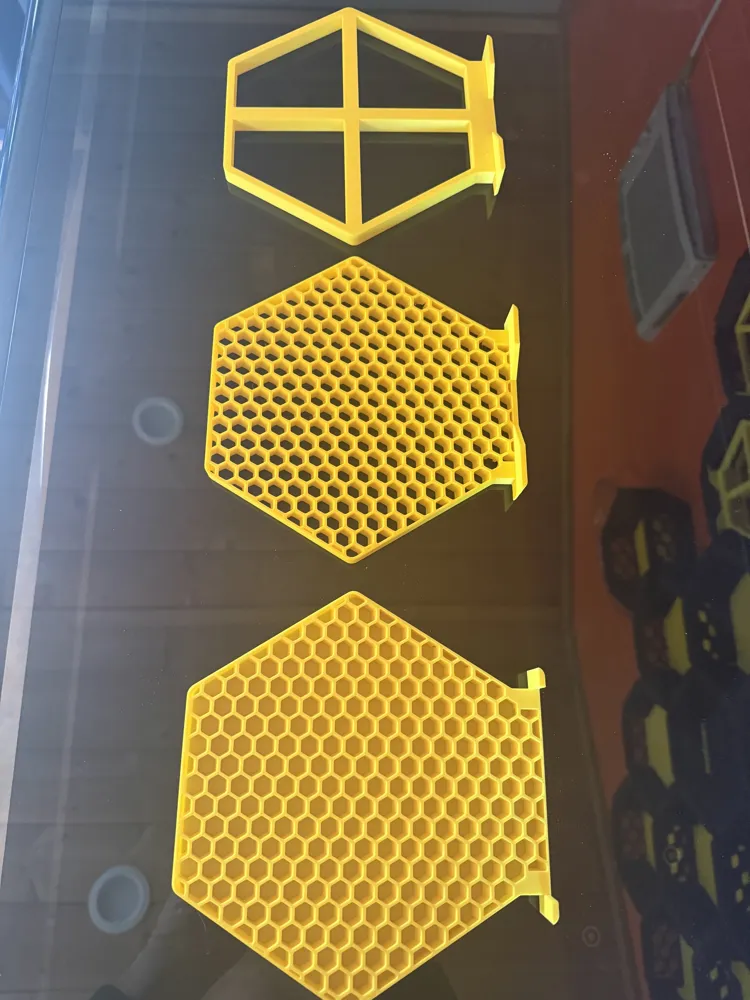

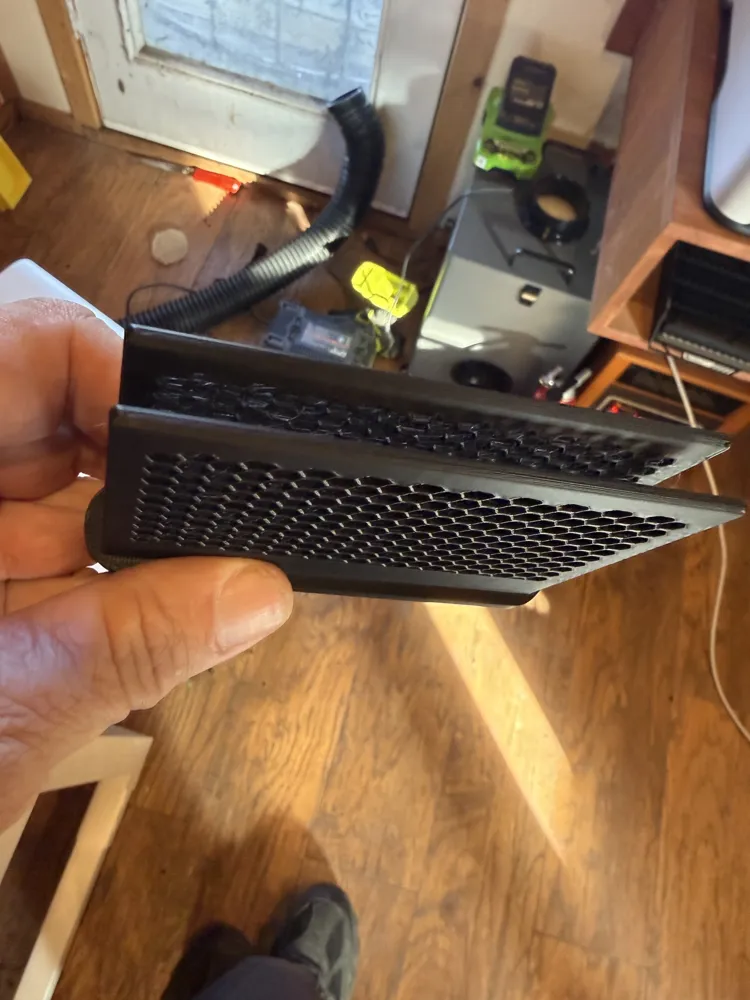

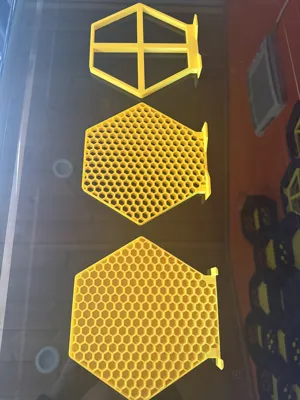

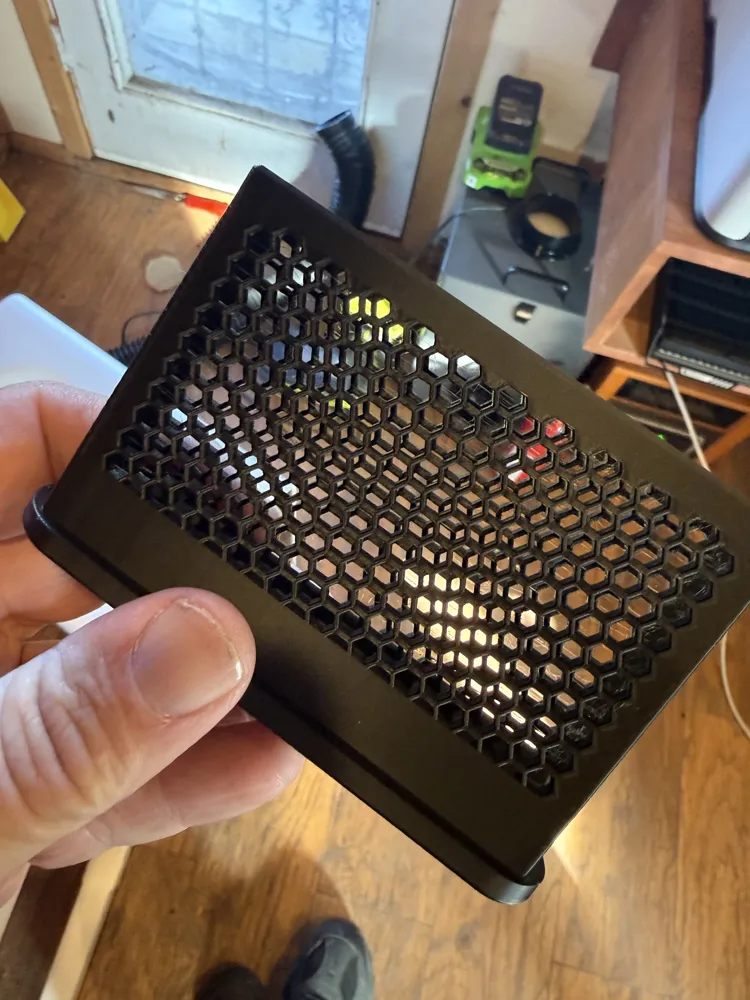

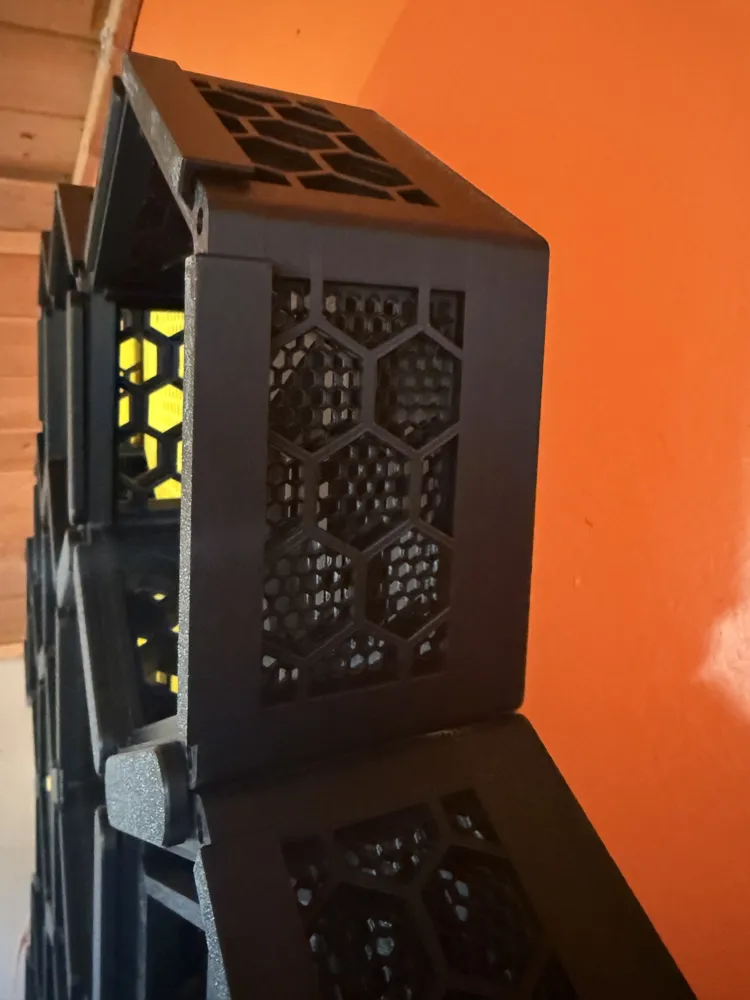

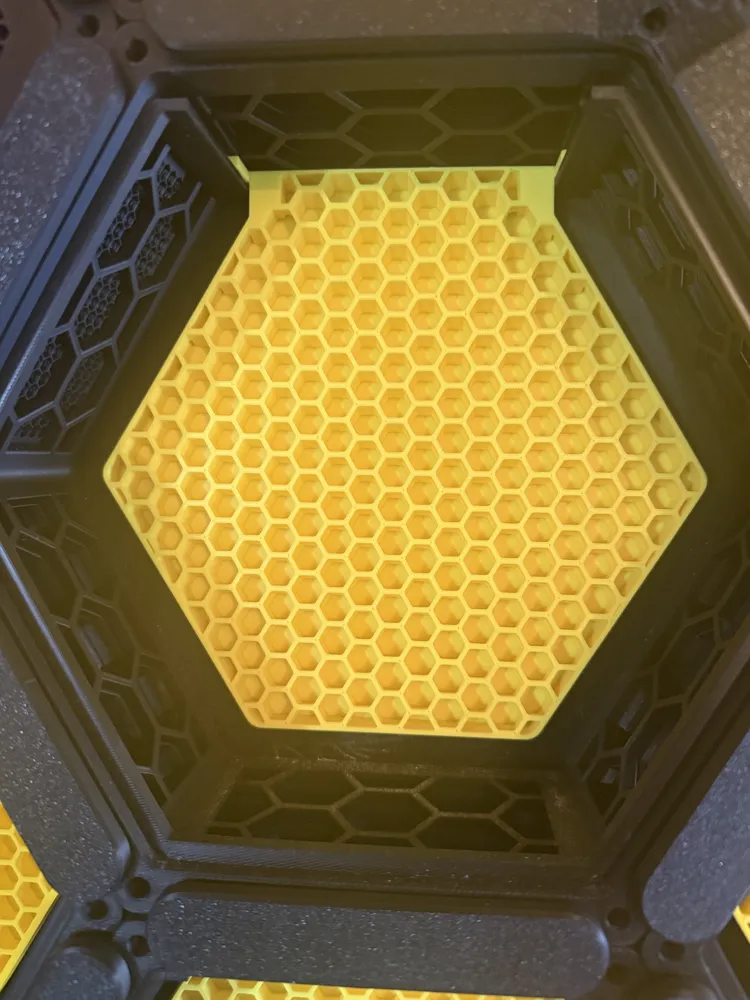

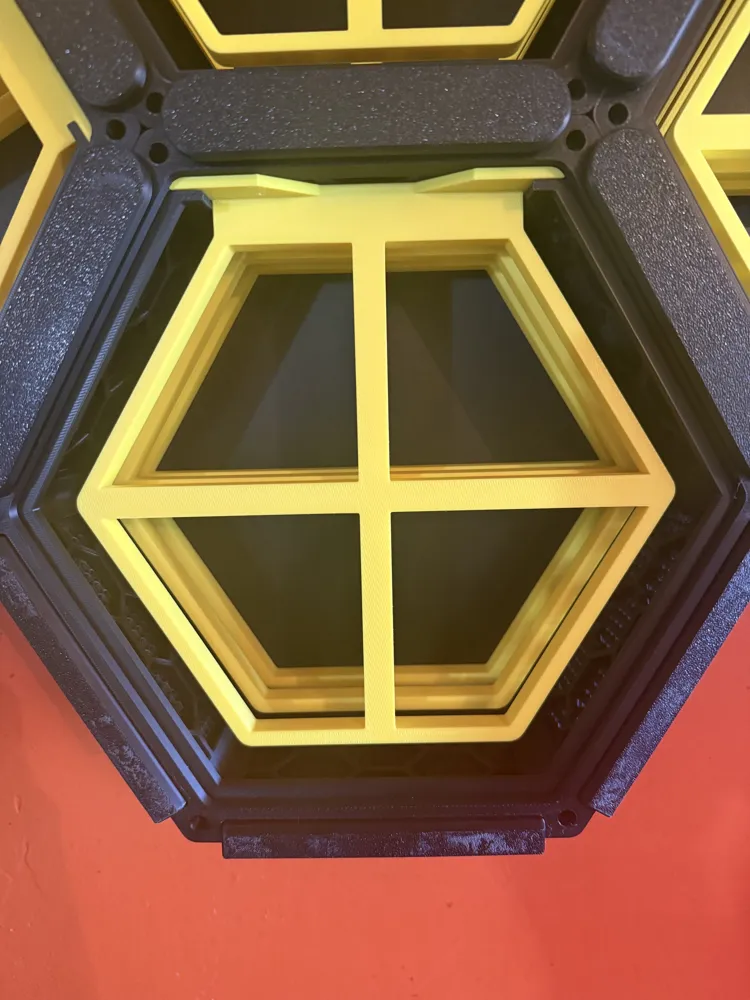

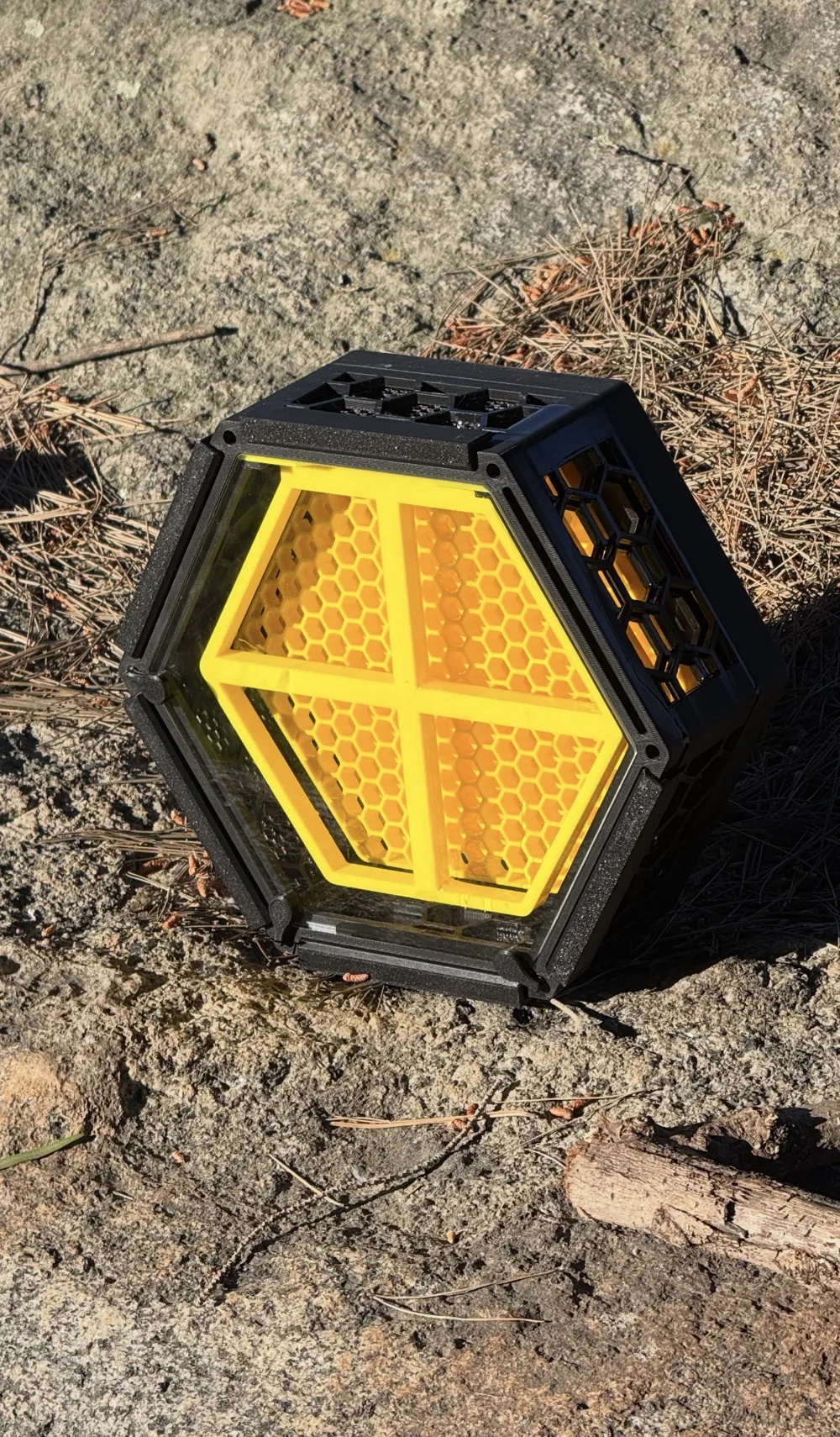

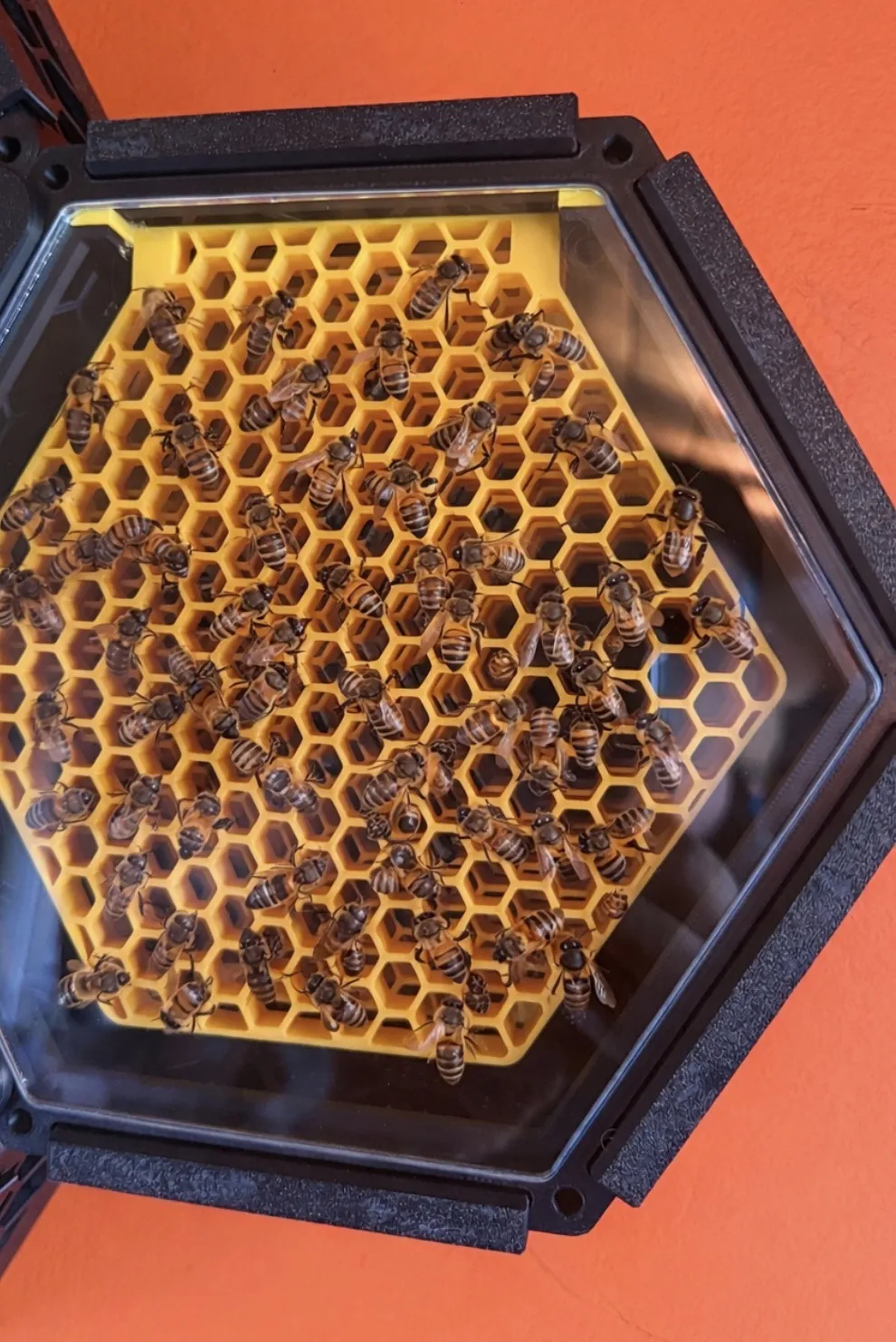

HexaBees is a wall-mounted observation hive built for indoor/out viewing with safe outdoor bee access. Designed to print on a print plate of 256 x 256, the initial hive starts with 7 modules, connecting to each other with clips that allow bees to move freely (or not) throughout the hive. There is a queen excluder connector; a connector for airflow; and open access between bees. To use, simply slide in and out. Behind each hexagon is a French cleat that must be printed with supports, and then popped out after it's finished printing.

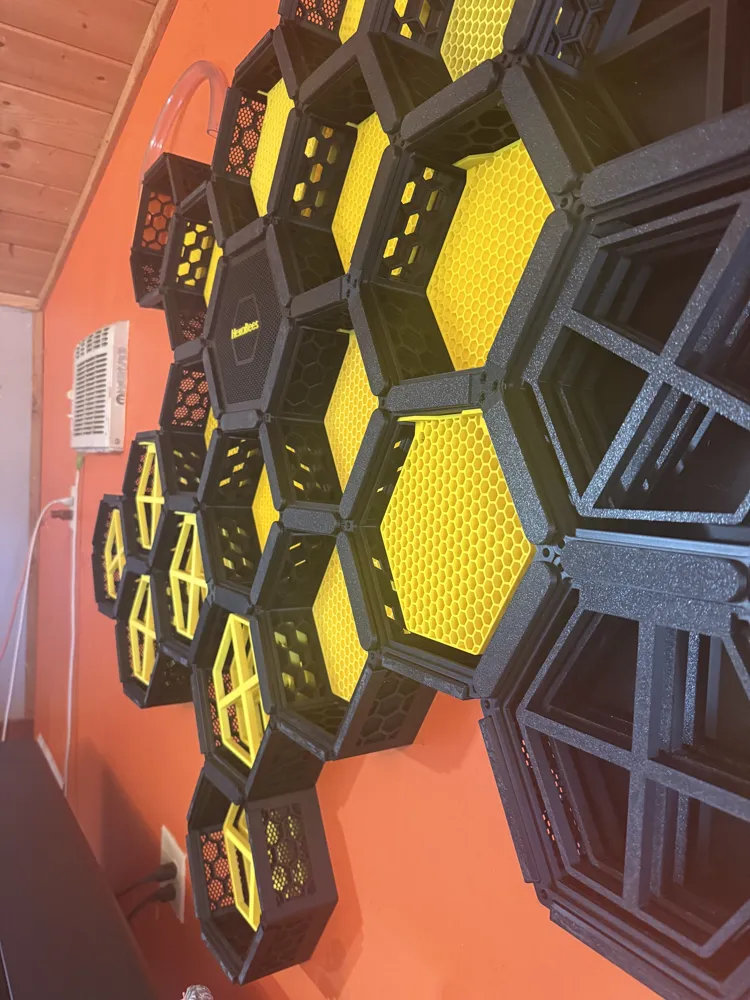

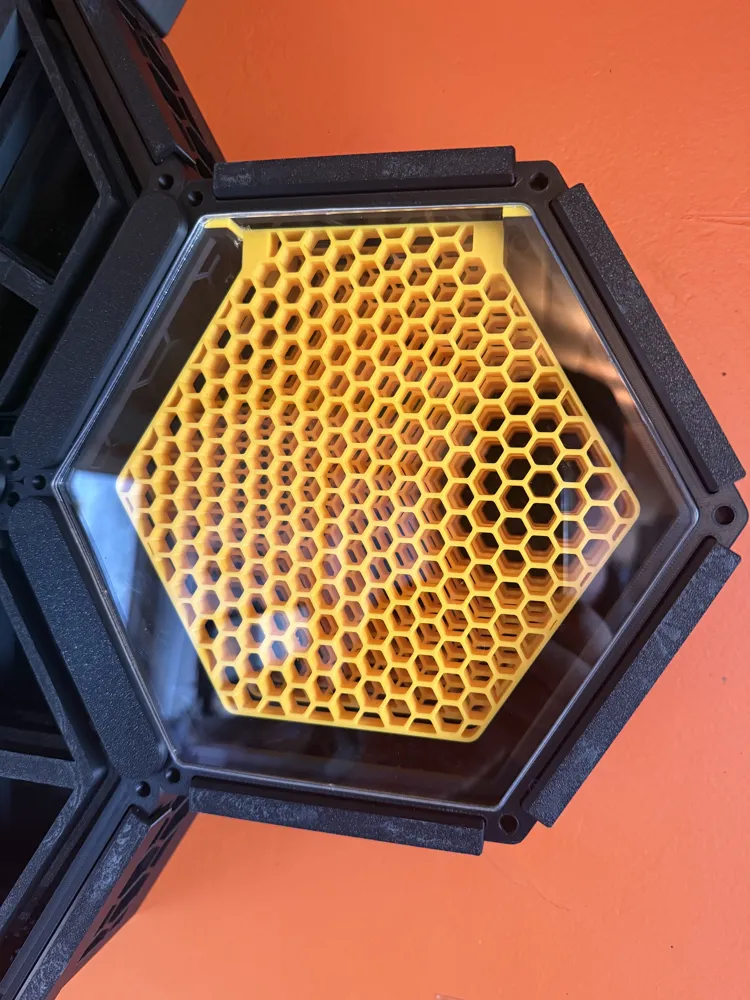

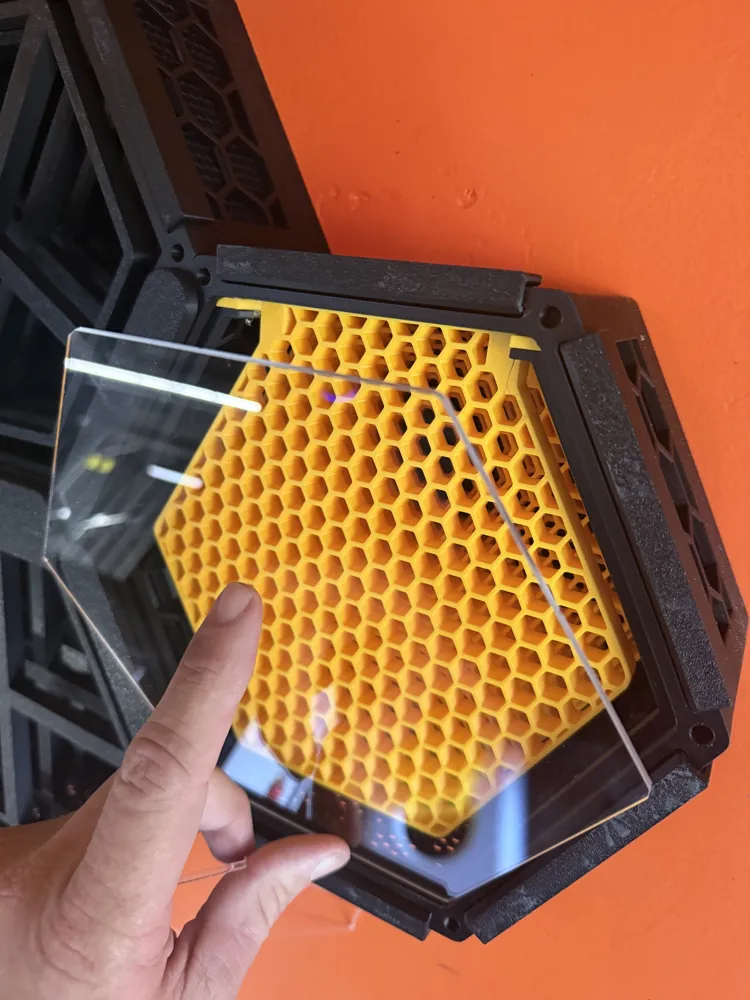

A French cleat connector is included; simply anchor to your wall and they begin to connect together. There is also a wall template, so you know exactly where to place your anchors for the French cleat screws. Begin with a compact 7-hex base, then grow your hive one module at a time as your colony expands. You'll need to cut ¼" clear plexiglass panels for the front of each hive; if you're local in the US, I can print and ship to those to you. Also included is a window connector that allows the bees to move in and out of the hive freely.

Last, I recommend getting an inexpensive bee suit, and if this is your first time owning bees, join your local apiary society and learn all aspects of beekeeping. If you need a mated queen, check out Mann Lake for supply. They strongly recommend Carniolan honey bees (Apis mellifera carnica) for their calm, easygoing nature. That temperament makes them a great pick if you are new to beekeeping or keeping hives in a city setting. A colony led by a Carniolan queen is generally easier to handle, so you can work your hives with more confidence and less stress.

No project is without detractors, and we have had both supporters and trolls as we built, designed and tested our hives. If there is a particular feature or change you would like to see, DM us and we'll build it, if it makes sense.
