Eurobox Clips for 20x20 Aluminium Extrusion Drawer
Print Profile(1)
Description

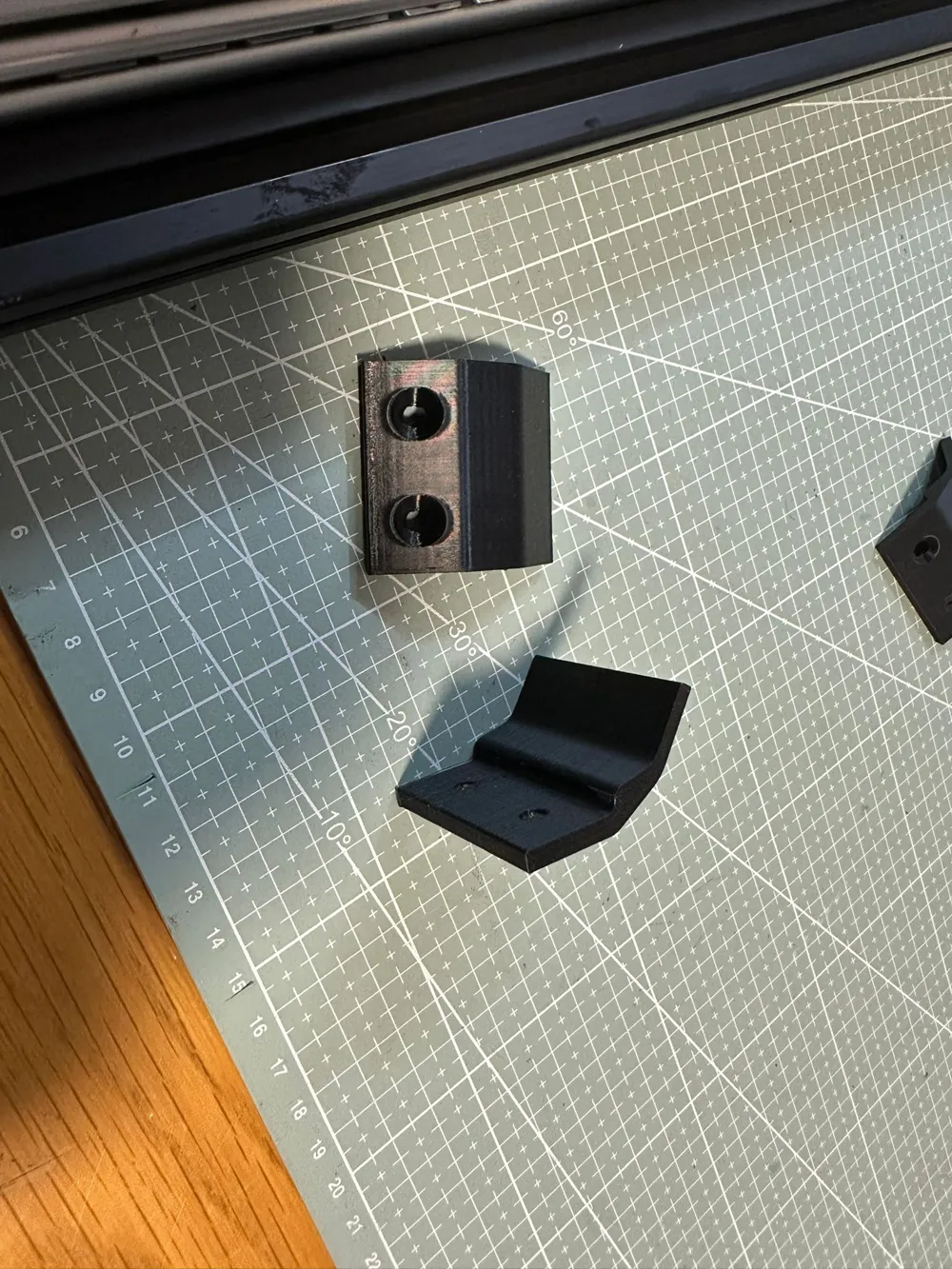

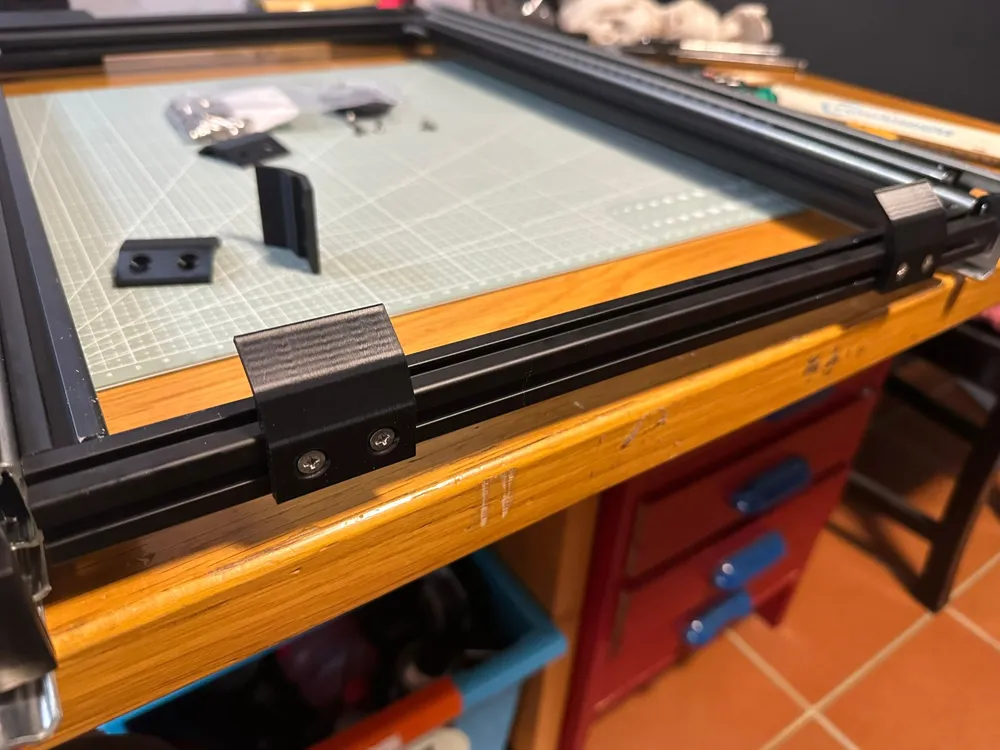

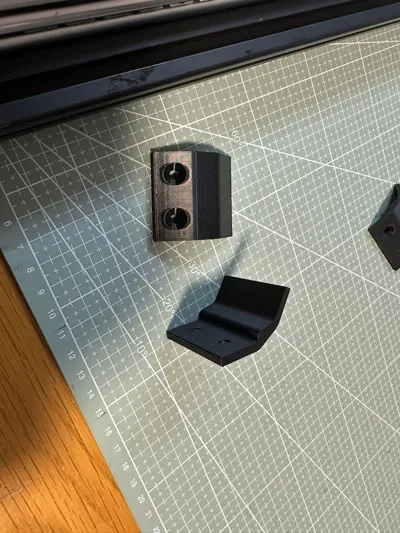

Very simple Clips to hold down Euroboxes in drawers or shelfs made out of 20x20mm Aluminium extrusions.
You will need the appropriate M4 T-Nuts and M4x10mm bolts.
Print with 0.20mm layer, 3 walls, 15% infill
PLA holds up fine, ABS is preferred.
I would not recommend PETG, although tough, they snap unpredictably.
Print orientation is on one of the sides. I like to print with a brim to avoid print fails.

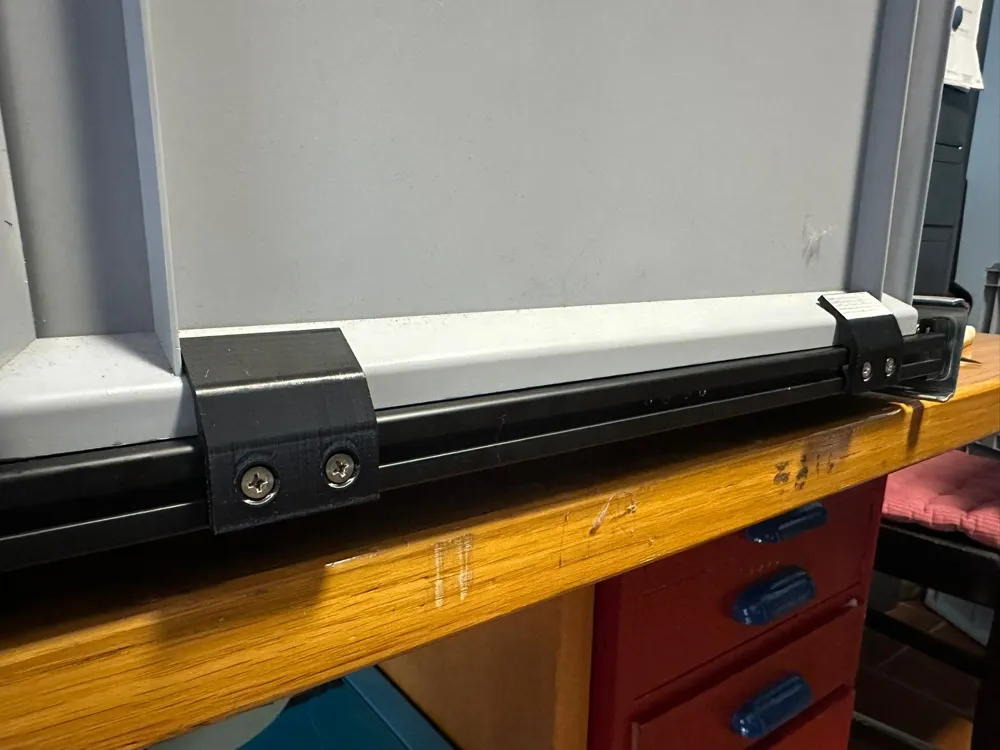

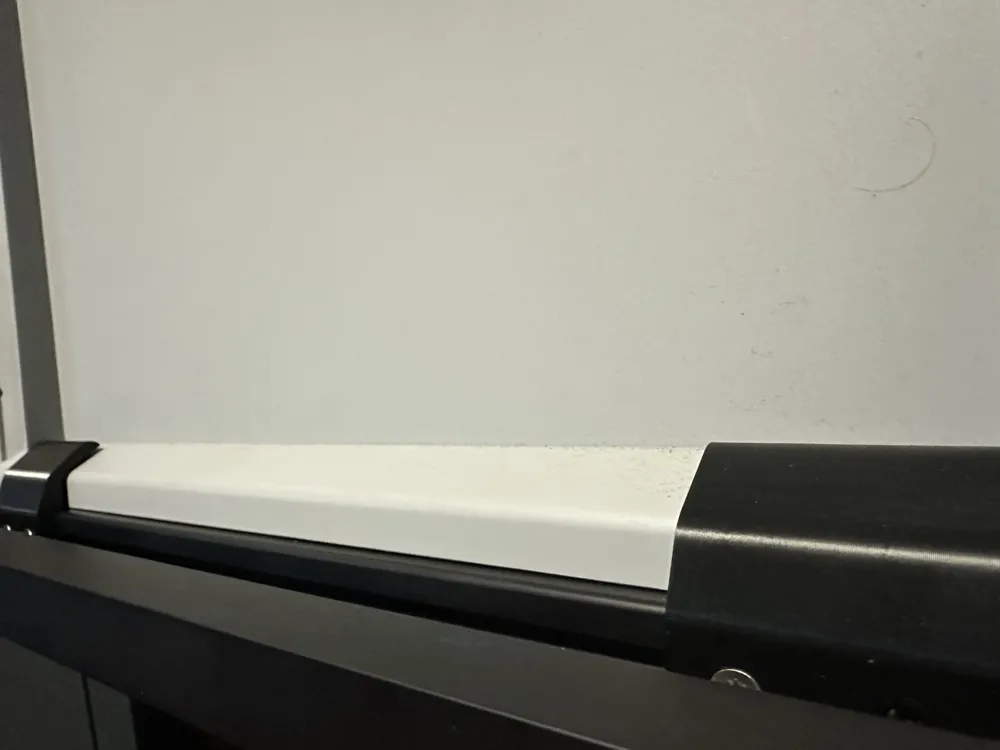

Make sure your Boxes have a chamfered edge at the bottom, as shown in pictures.
Check out my other designs!
