Hoto Autocare Vaccum - Skadis Storage Tray

HOTO Autocare Vacuum & Air Duster Skadis Mount

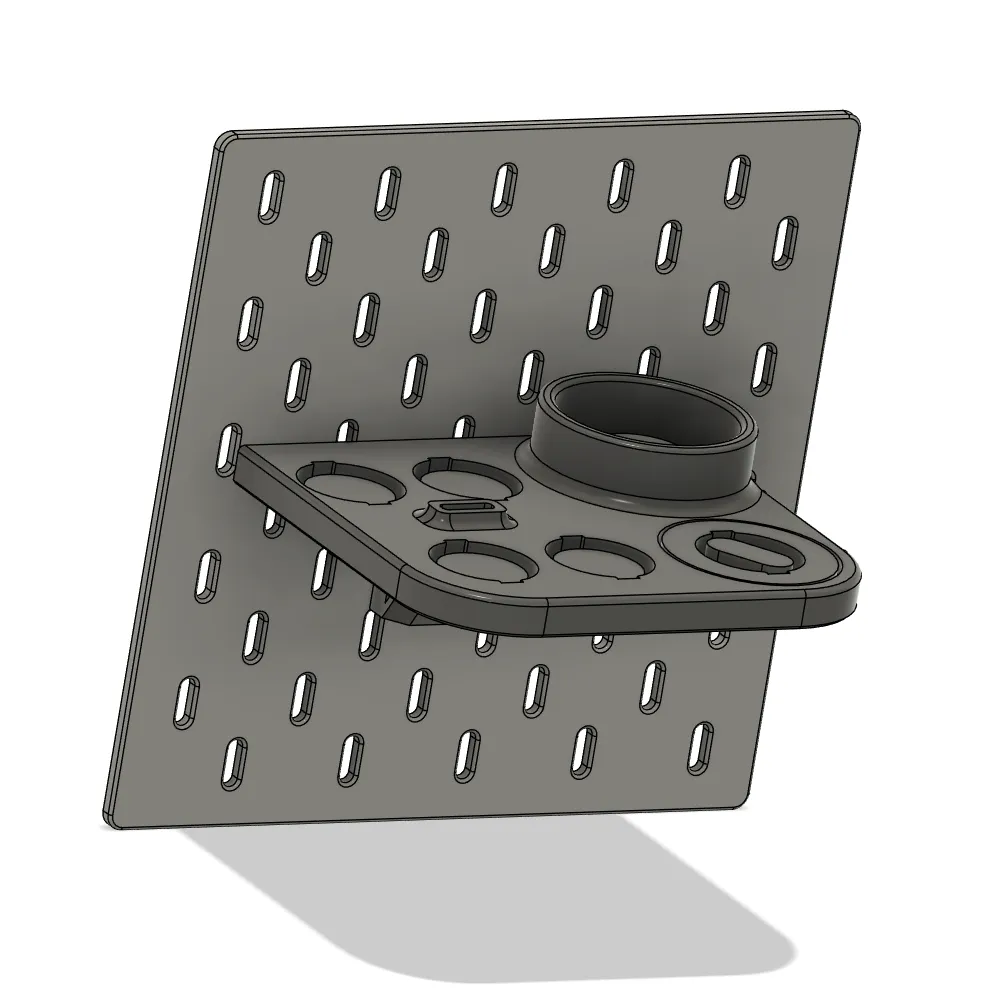

This is a storage solution for the HOTO Autocare Vacuum & Air Duster, specifically made for the IKEA Skadis pegboard system.

It organizes the main unit and its various attachments (brush, crevice tool, and nozzles) in one compact mount.

https://hototools.com/products/hoto-autocare-air-duster-vacuum

Features

• Perfect Fit: Designed specifically for the HOTO Autocare model.
• Rock Solid: Uses a 3-hook system to prevent the mount from wobbling or tilting when you pull the vacuum out.
• Easy Assembly: The Tray and Bracket slide together via a guide rail for a mechanical fit and will be secured with one screw.

• Attachment Storage: Dedicated slots for the vacuum's most important accessories.





Bill of Materials (BOM)

Assembly Instructions

1. Preparation: Print both parts, remove any support material from the hooks on the Bracket and the sliding guide rail on the Tray.

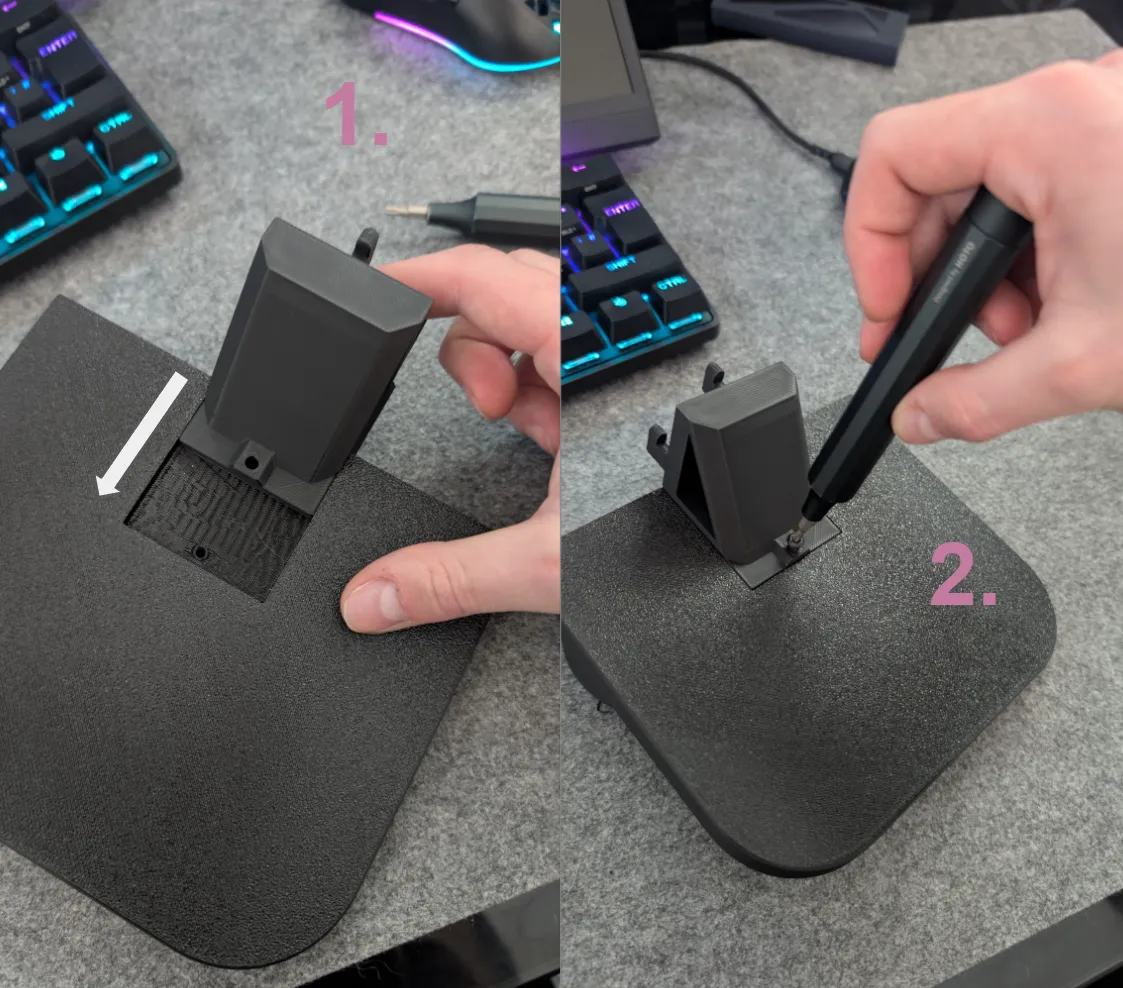

2. Slide & Align: Slide the Bracket into the guide rail on the back of the Tray. Ensure it is pushed all the way in until the screw holes align.
3. Secure: Insert the M3 x 14mm self-tapping screw into the hole and tighten it. This ensures the tray cannot slide off the bracket during use.

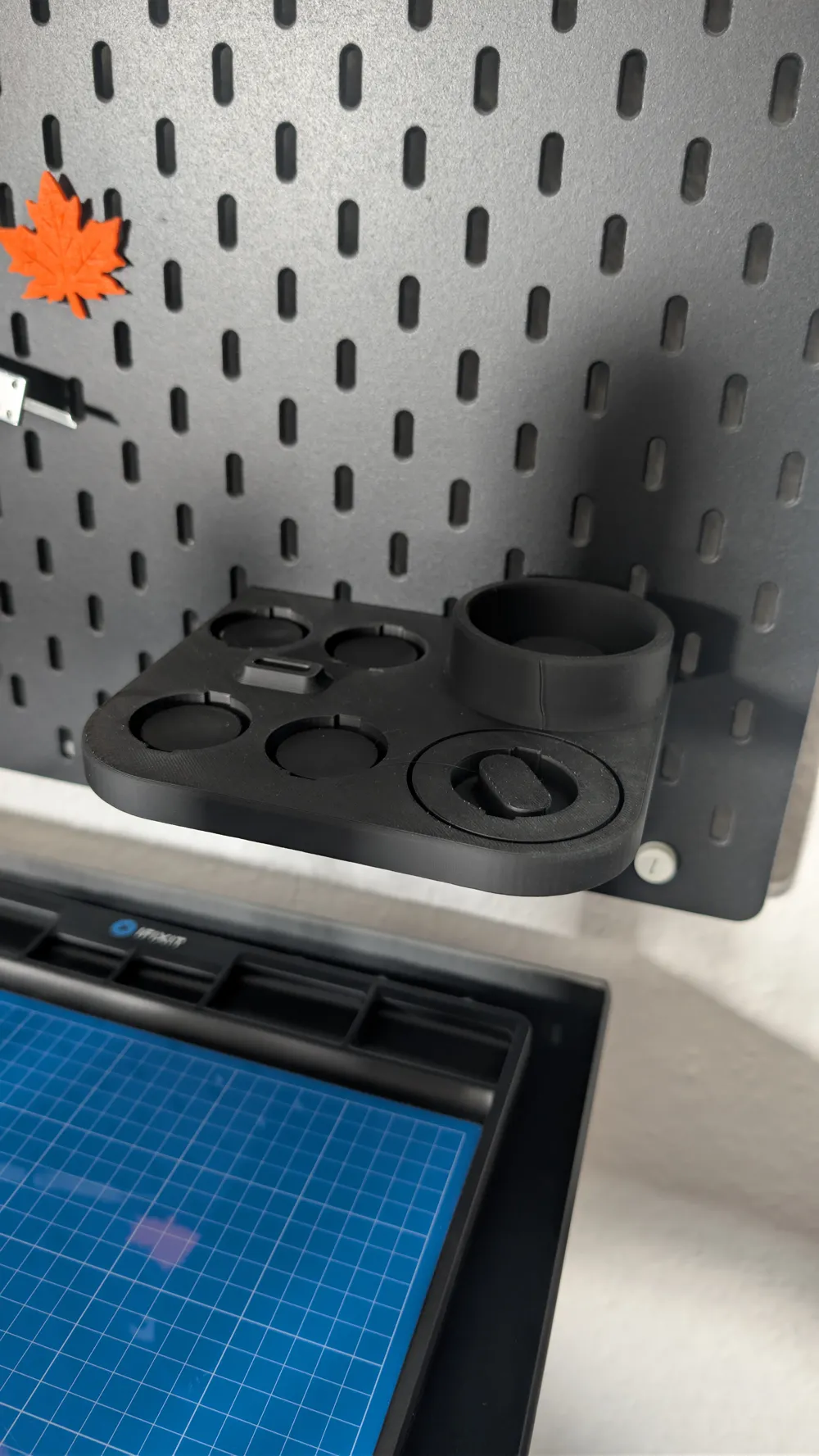

4. Mount: Simply hook the 3 hooks into your IKEA Skadis board.

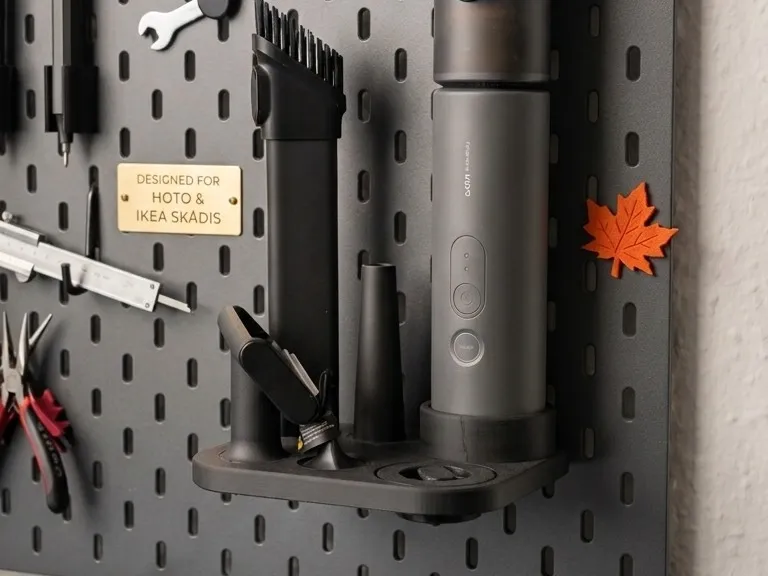

5. Organize: Place your HOTO vacuum and its nozzles into the designated spots!

Print Recommendations

• Supports: Required for the hooks and the sliding rails.
• Walls: Doesn't matter, i am using 2 walls..
• Material: PLA works great.
