Retractable mouse wall mount

WARNING: This stand can be dangerous when used with mouse that have rounded edges. There is a stop to prevent the mouse from falling, but it is not effective for all models.

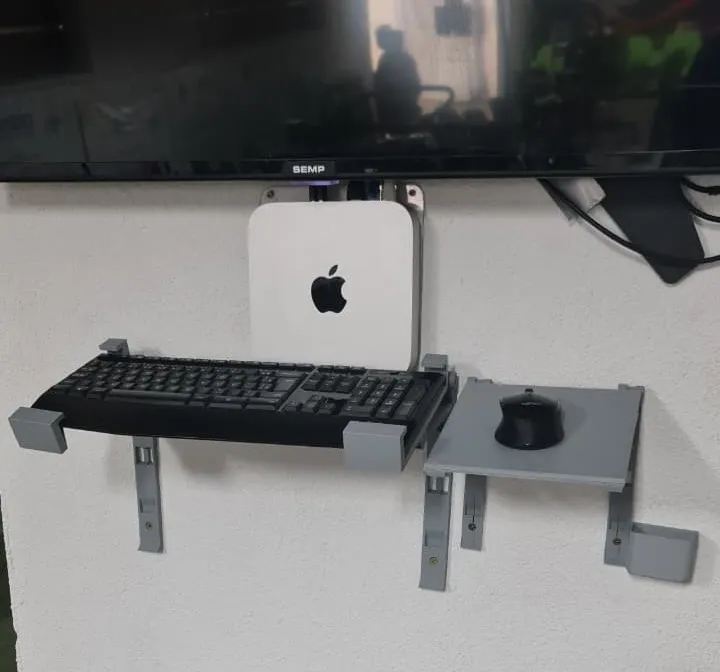

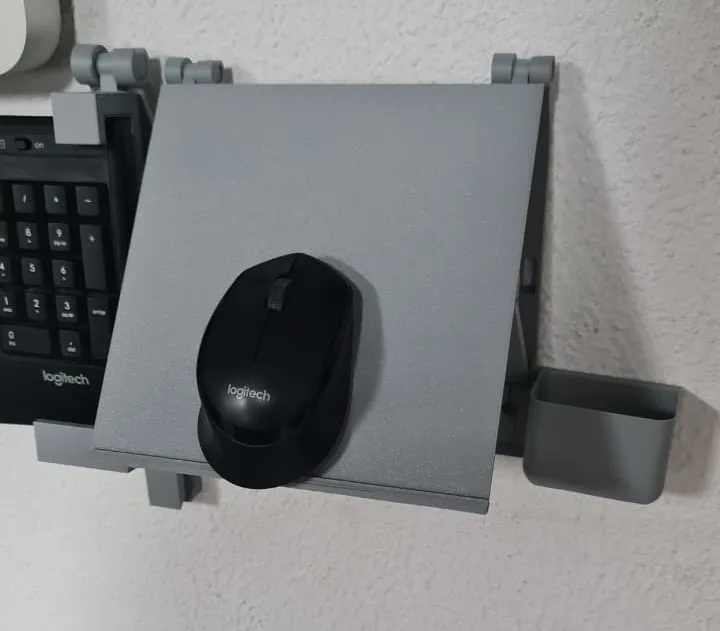

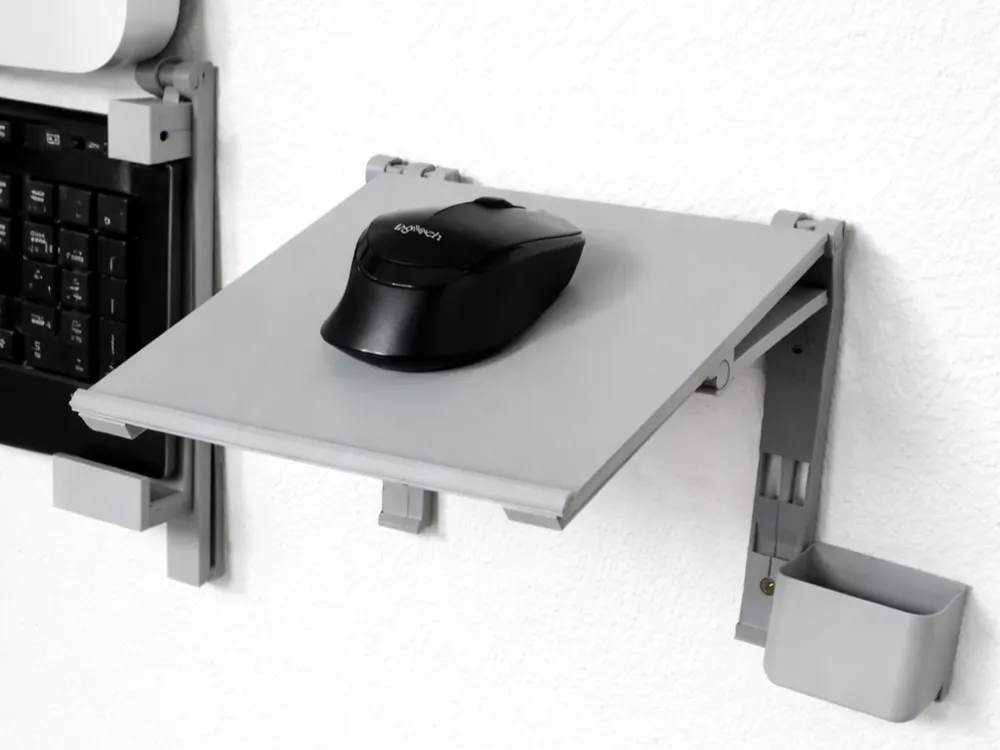

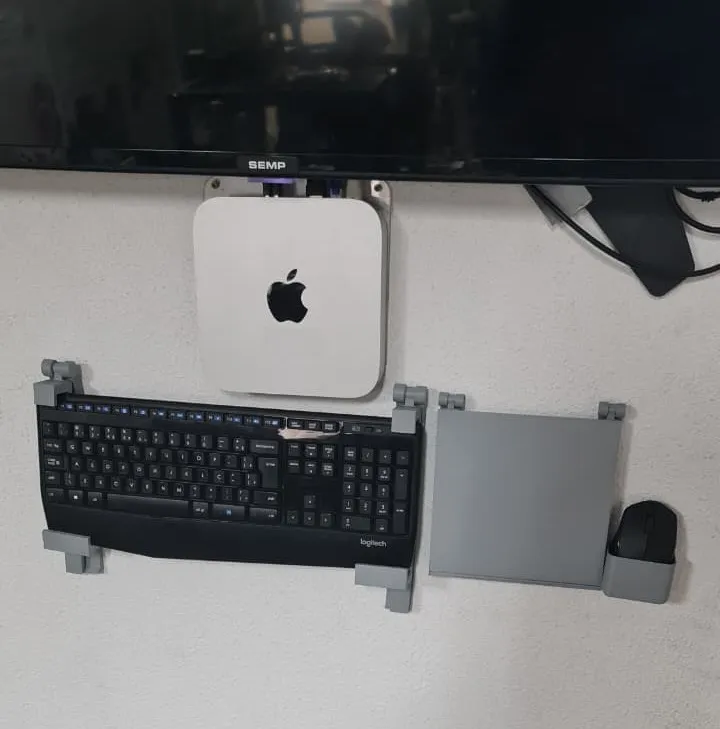

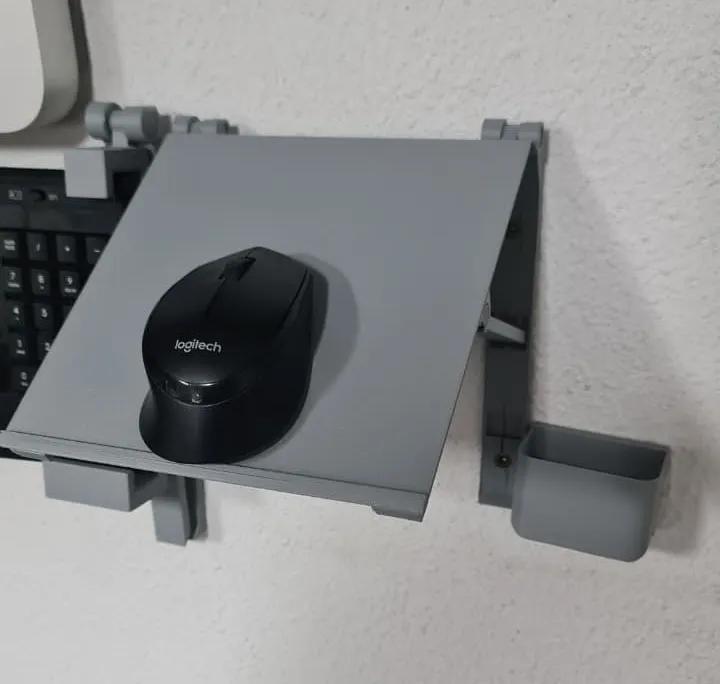

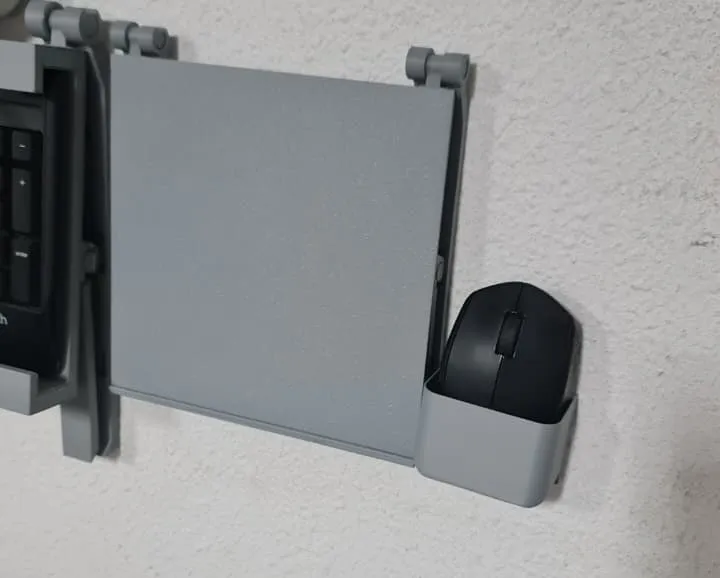

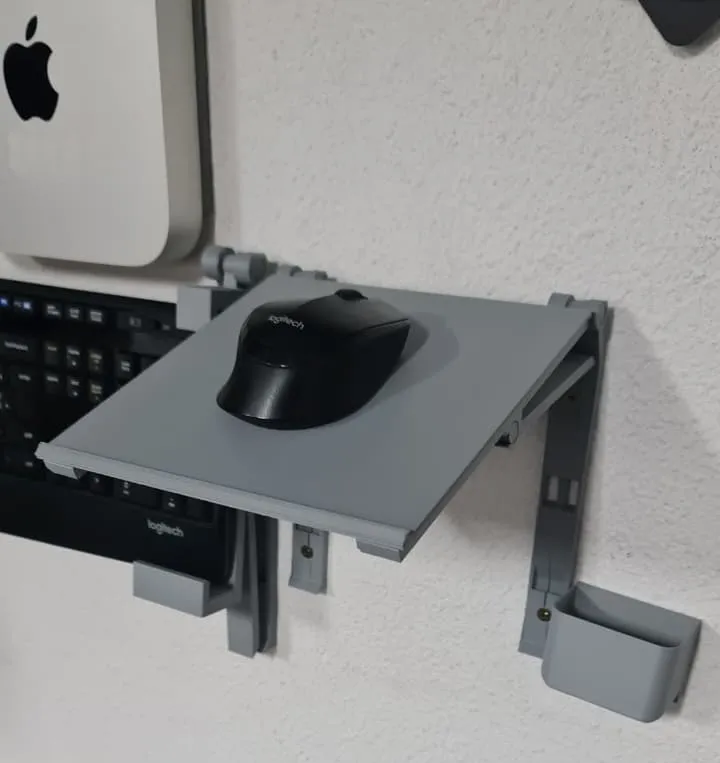

This mount allows you to attach the mouse to a wall in a way that allows it to be positioned at 3 different levels or retracted to sit flush against the wall.

ASSEMBLY GUIDE

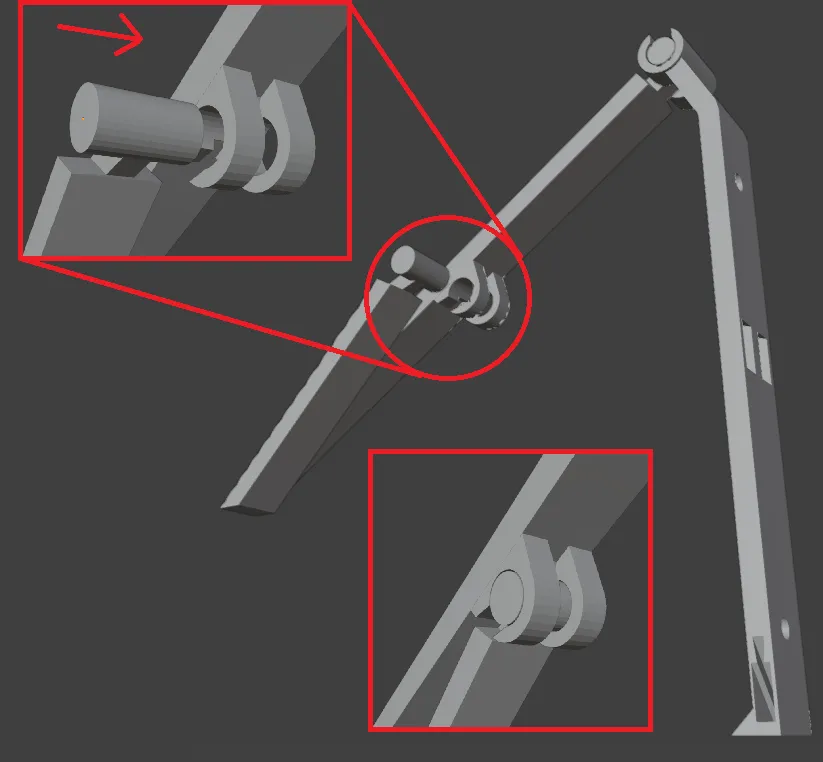

1.  Position the cleaves with the rotating pin aligned as shown in the image, then fit the two pins together so that they can rotate.

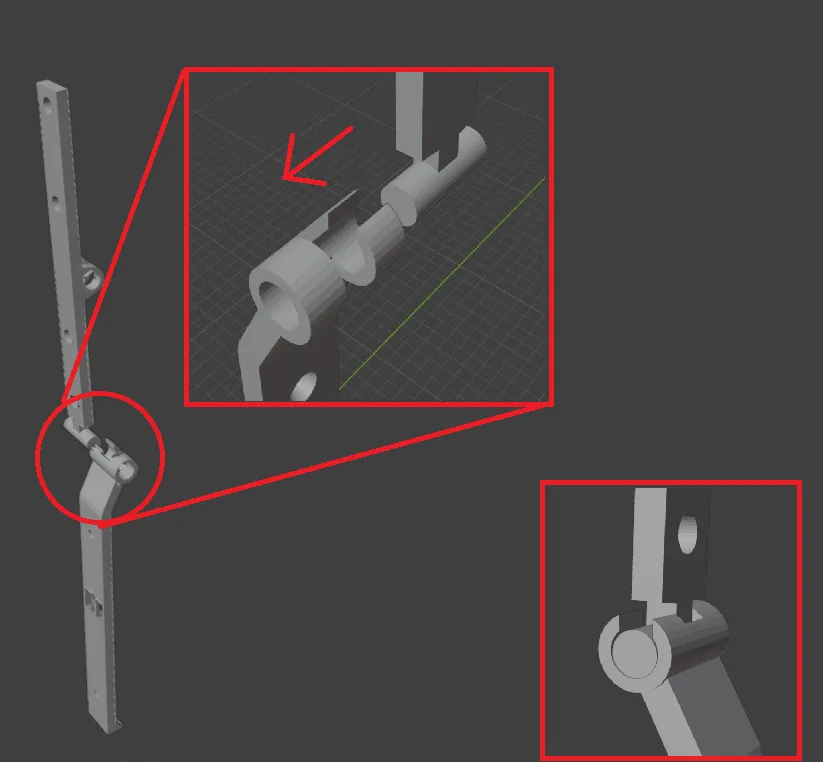

2. Position the locking pin with the rotating tip aligned as shown in the image, then fit them together so that the rotation works.

3.  The main rod assembly has been completed; repeat the steps above for the other rod and check that both are assembled as shown in these images below.

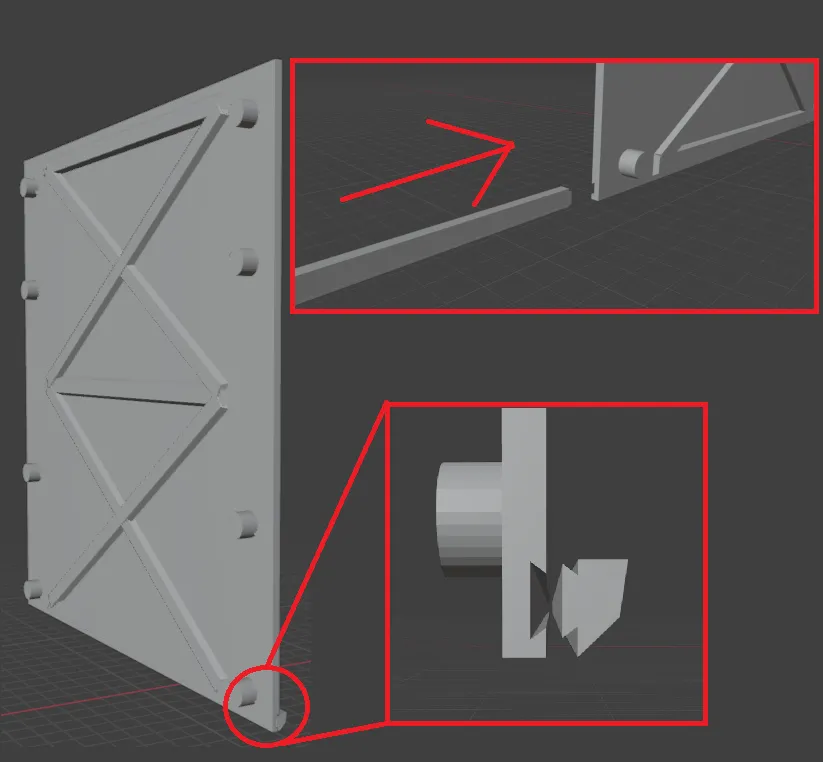

4. To assemble the mousepad, use the printed protective stop and fit it into the designated cutout.

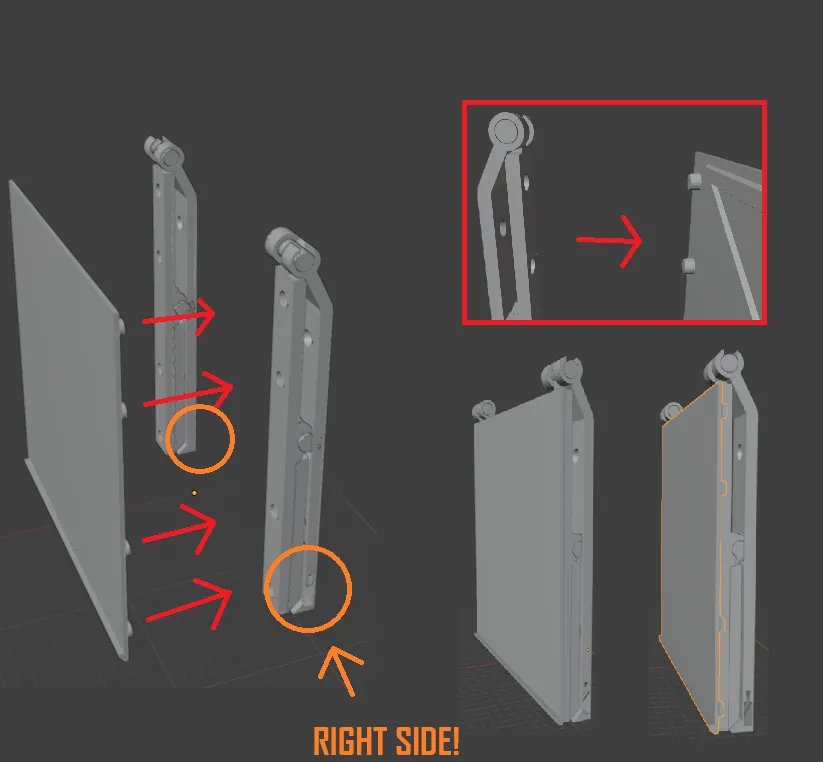

5. To attach the mousepad to the rods, align the mounting pins with the rod and press to secure them. (Make sure to keep the rod with the triangular fitting on the right side.)

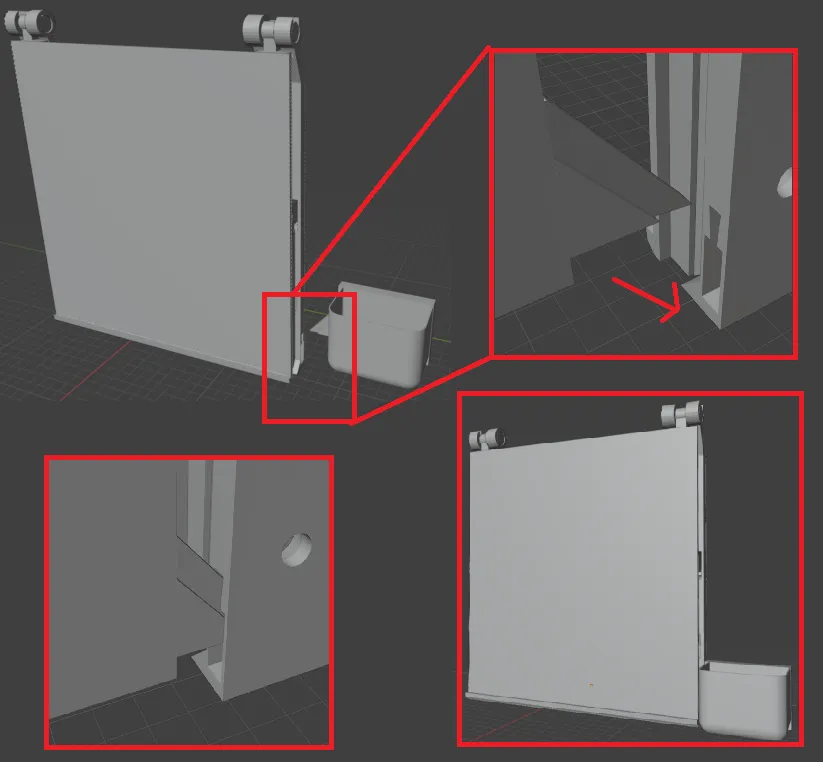

6. Finally, attach the cup where the mouse is stored. The fitting is diagonal to the piece (note that the piece with the fitting must be positioned correctly).

Finally done!
