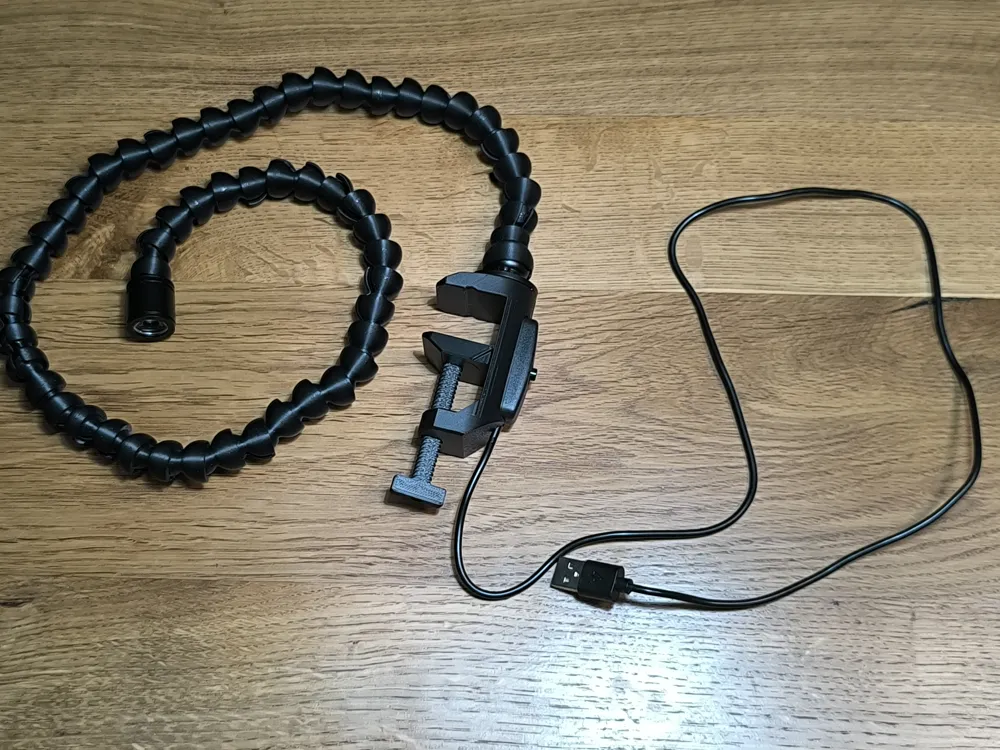

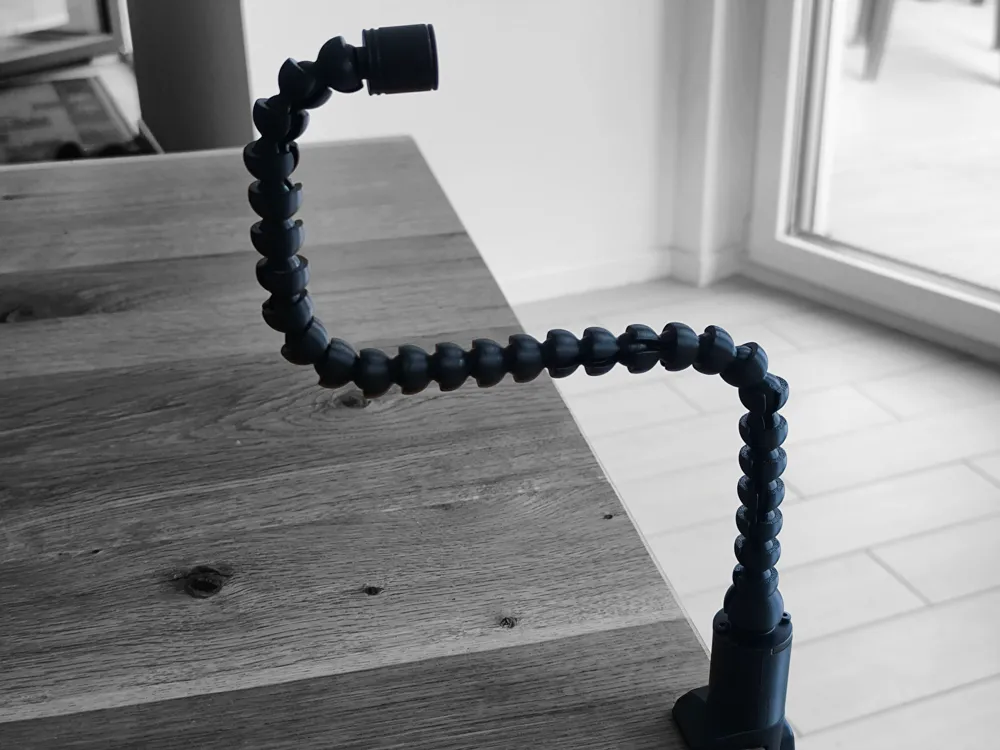

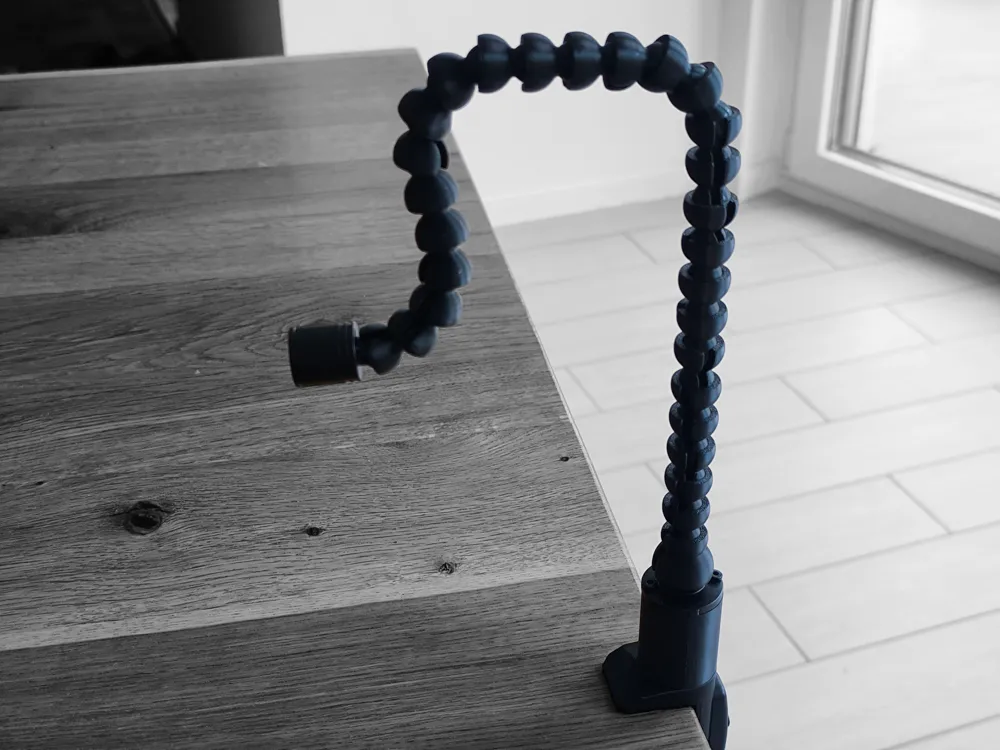

Flexy Mini Spotlight - USB LED
This is the perfect print for the lovely little LED Spotlight from Bambu Shop.
You get an super flexible but also strong adjustable Lamp with a clamp and integrated switch.
Good for showing your models in the best light.
Features:
- Connectors fits perfectly
- Cable is hidden in the middle of the connectors

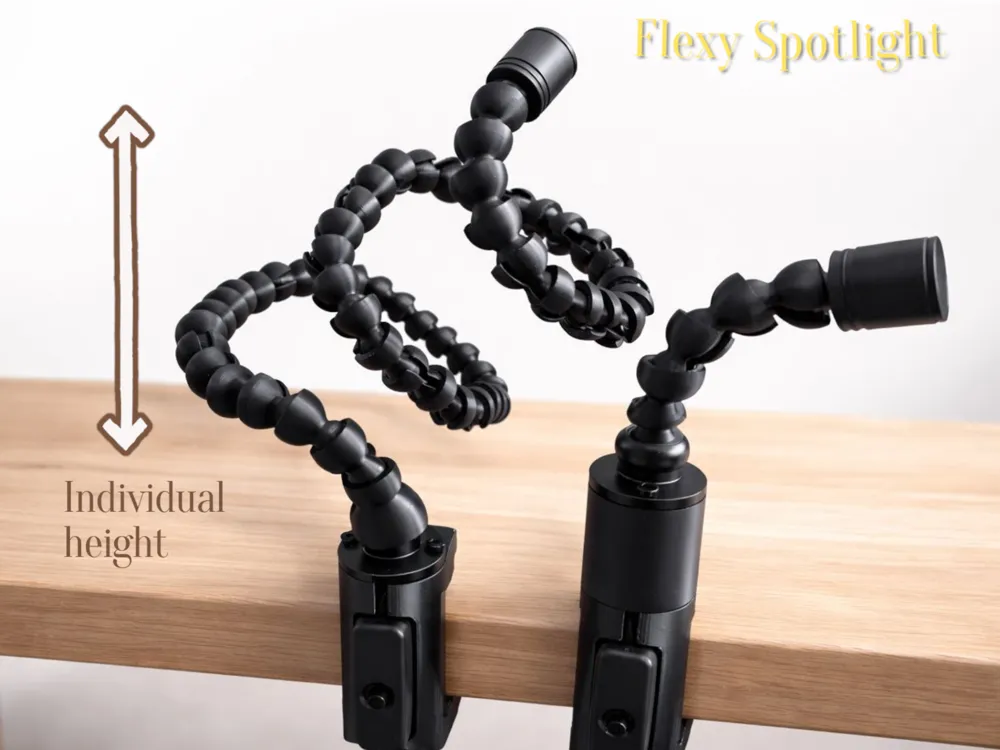

- Decide yourself how long it is. Up to 55 Connectors fit the cable

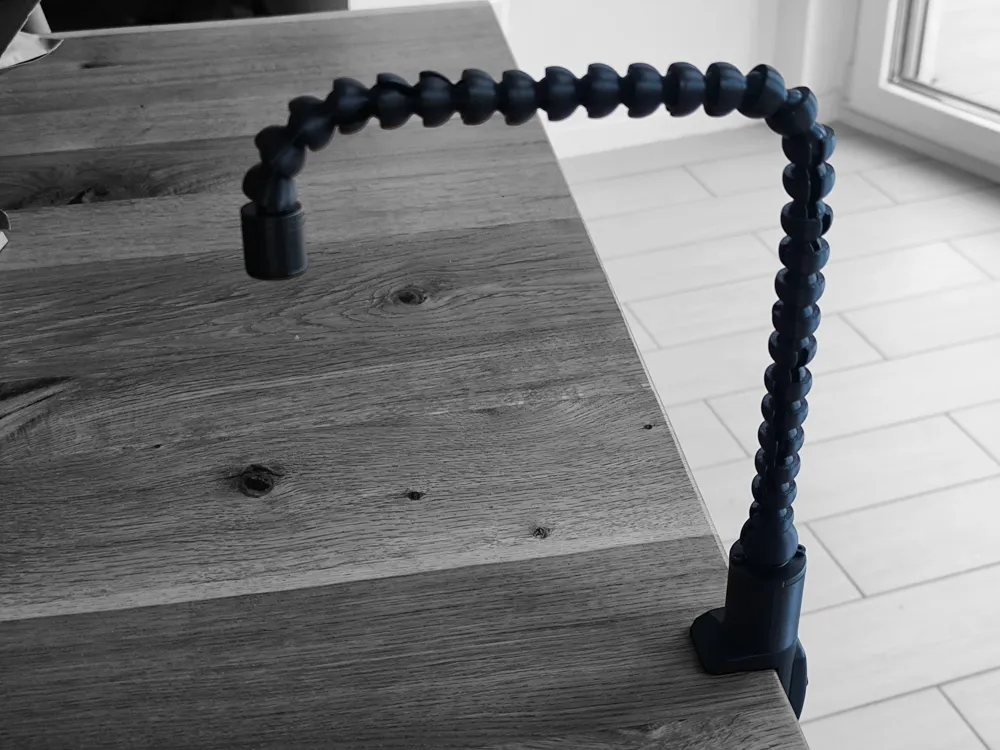

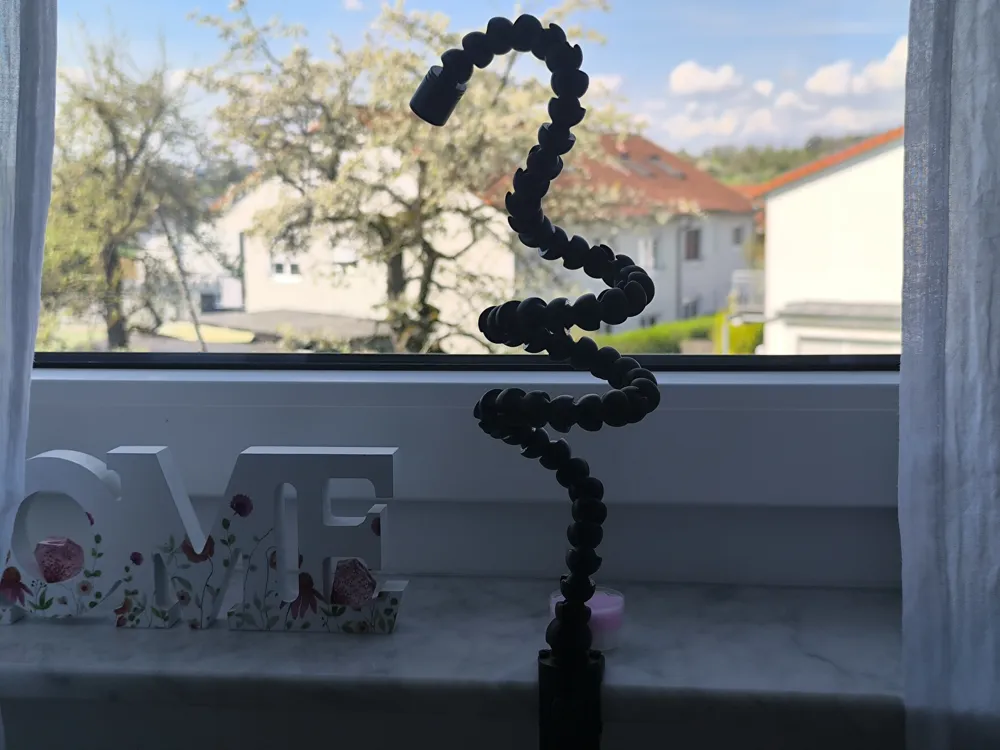

- Super flexible

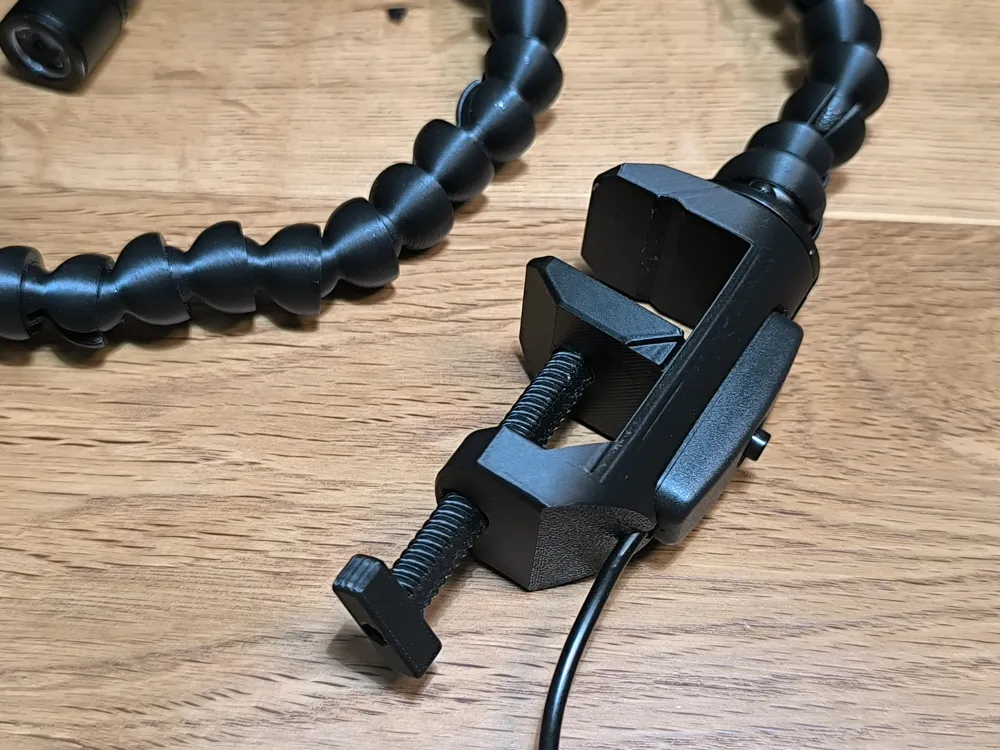

- Little Clamp for fast attachment everywhere
- Slot for the switch in the clamp
- Optional “Cable Tube” to hide cables when not used the full length
- Optional “Snap Back Connector” for easy adjust in straight direction →Try it out

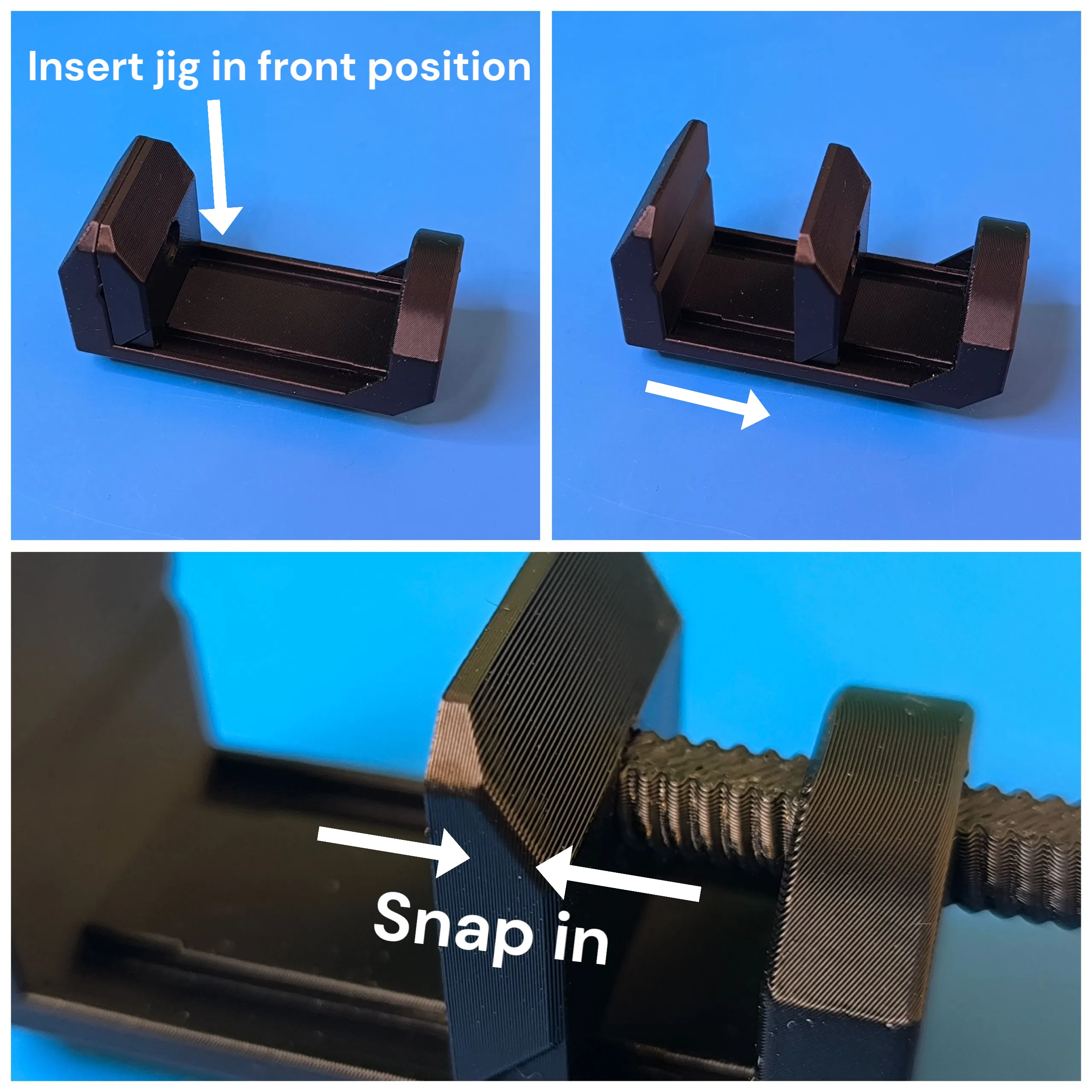

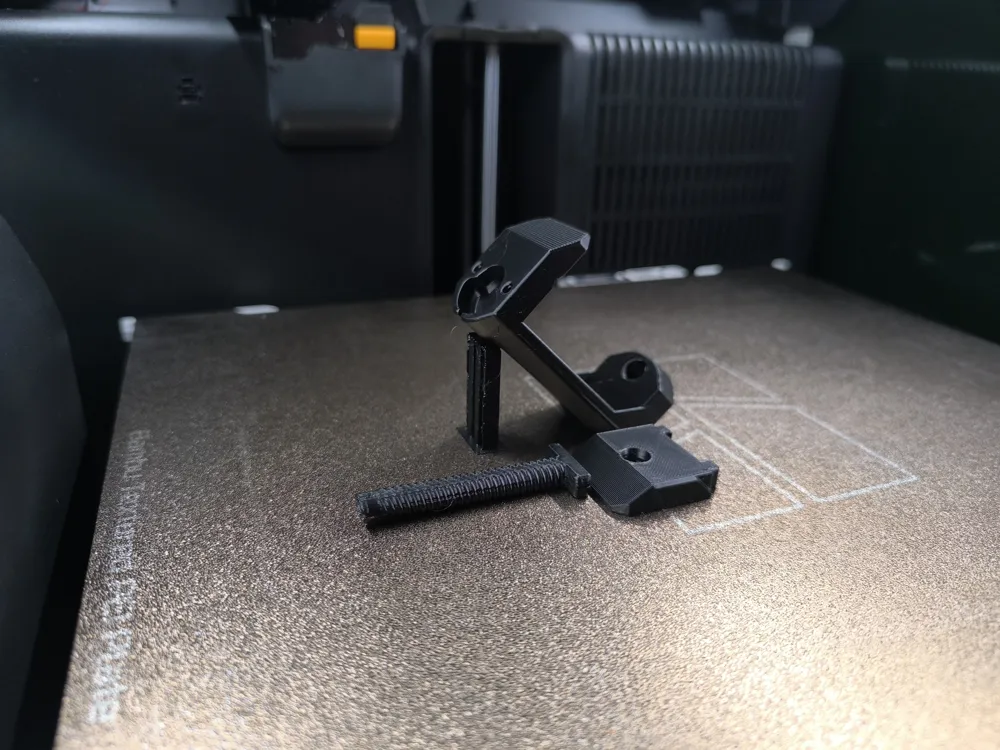

Assembly the Clamp:
Assembly Flex Connectors and Cable
Watch on → Instagram

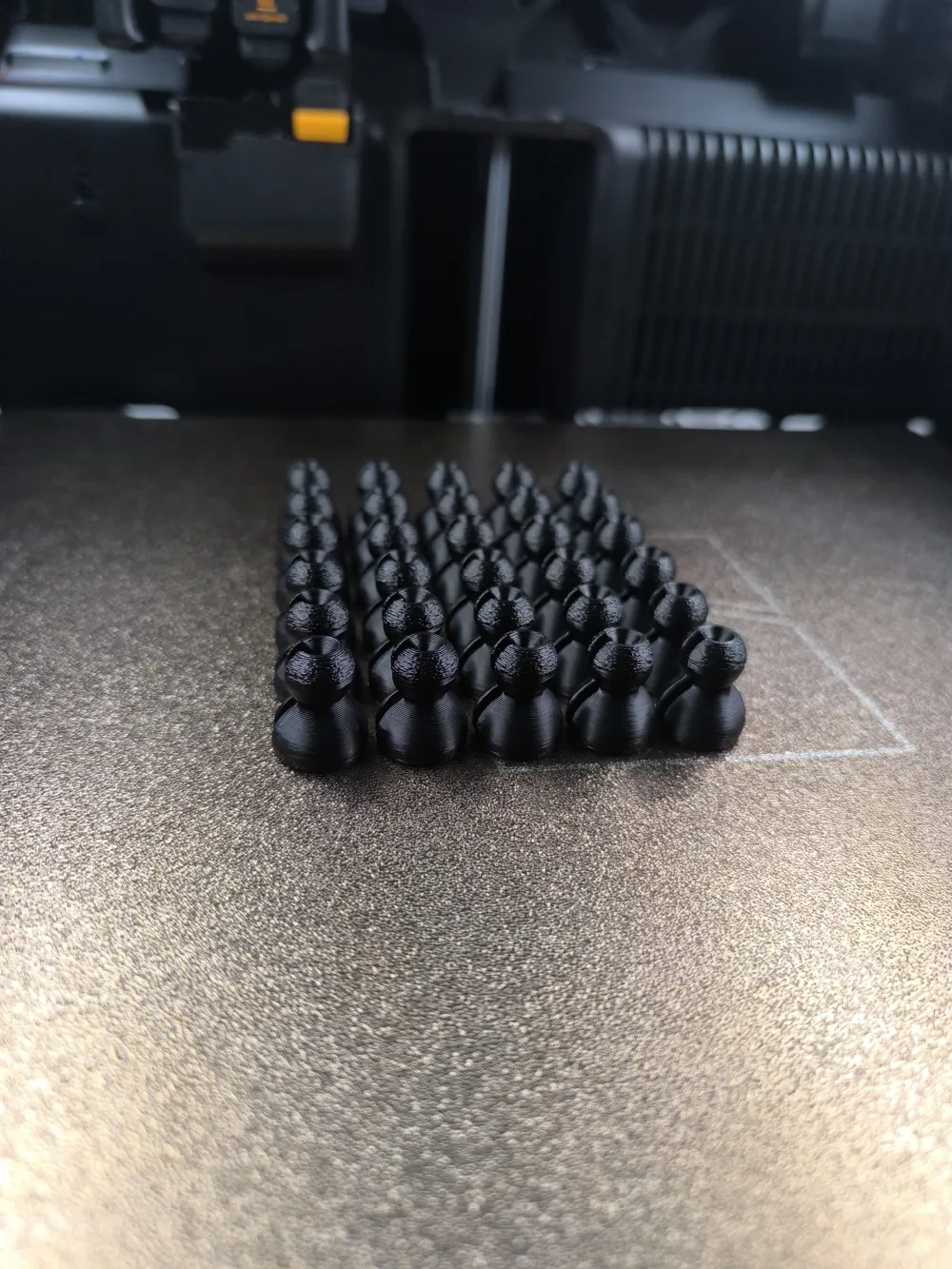

- Start at the lamp. Insert the individual connectors one by one. First guide the cable into the channel, then connect it.
- At the end, attach the big connector for the “metal base” and screw the base onto the clamp using 2pcs BT3x10 self tapping screws or M3×10 screws.

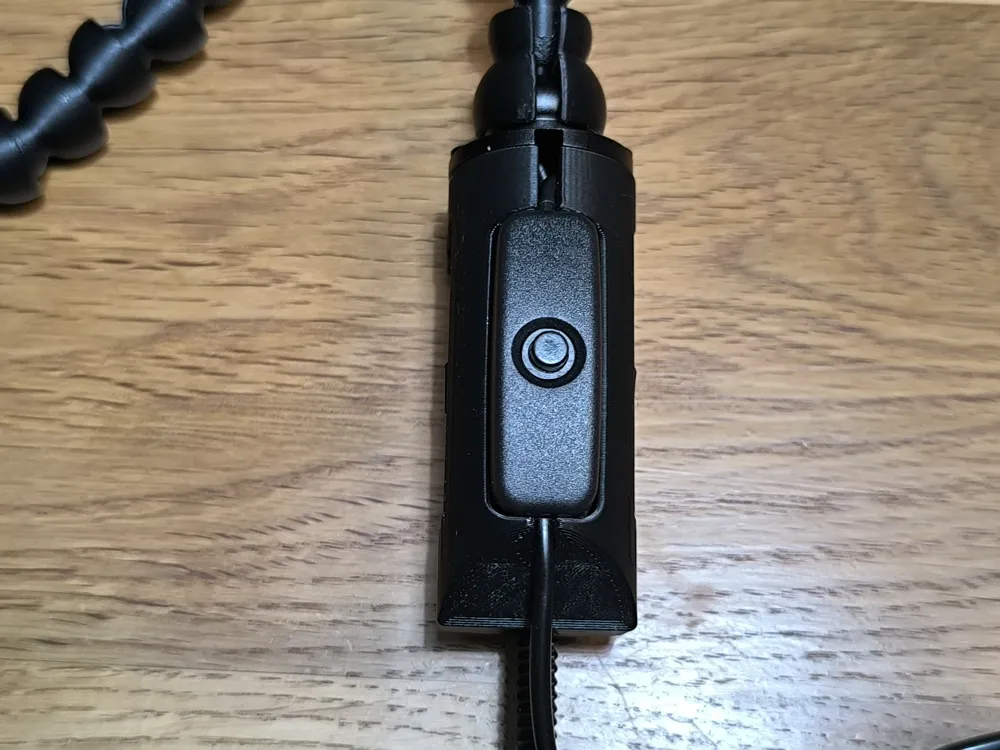

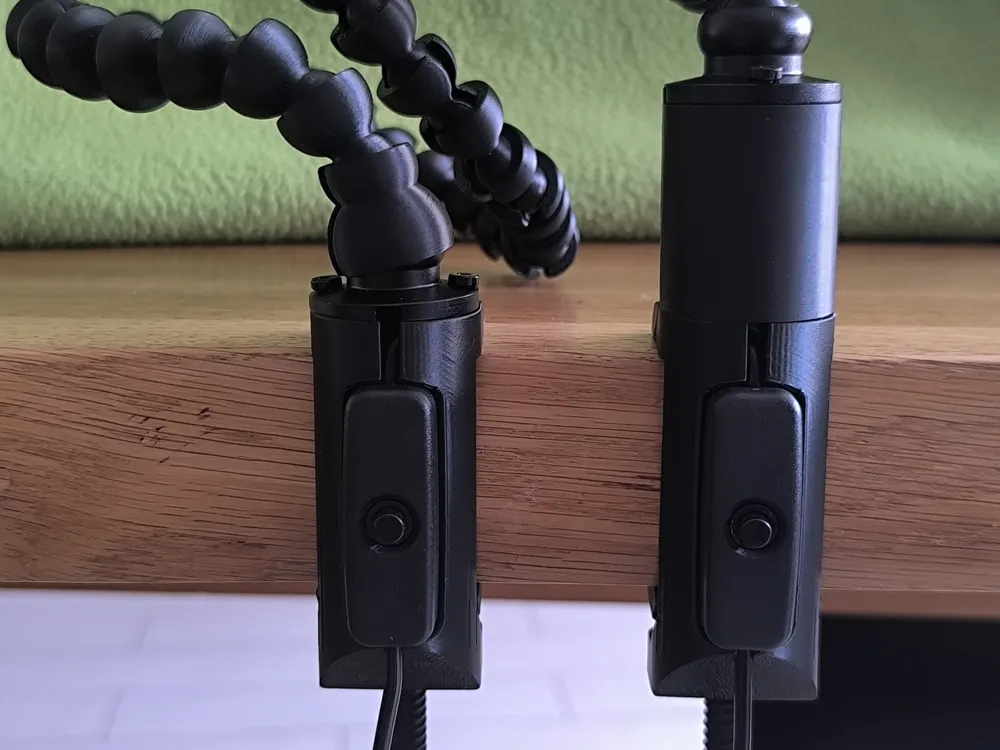

Simply insert the switch into the designated opening.

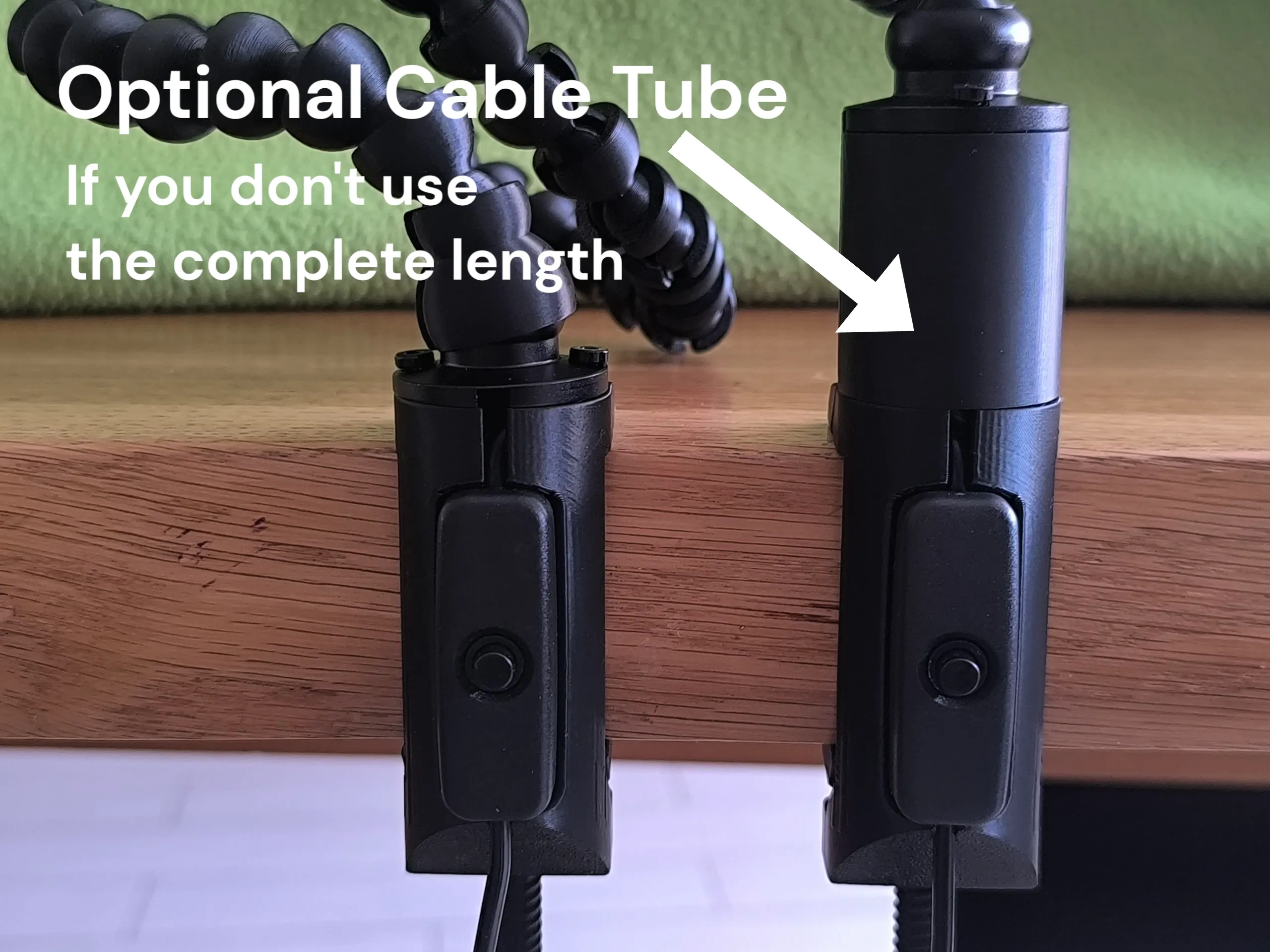

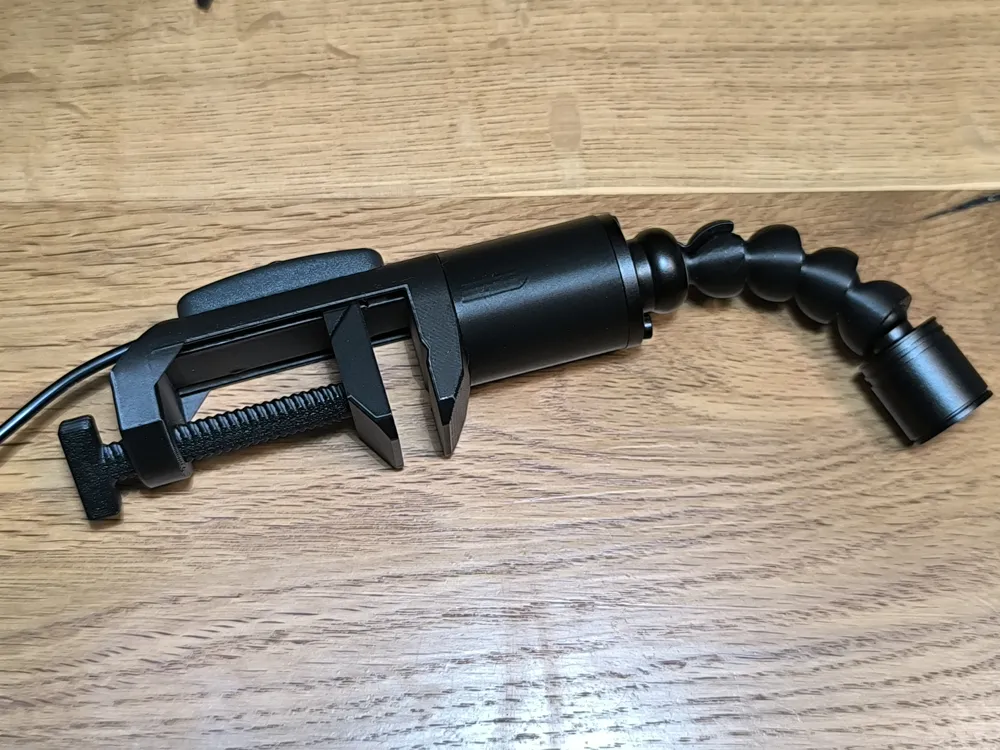

→ If the full cable length is not used, it is recommended to use the “cable tube.”
The cable should be threaded through it once. Then it is screwed onto the clamp. Store the cable inside it and screw the “metal base” on top.
Boost Me (for free)
Happy Printing 😊
