Cable Organizer - Customizable Spool
IP Report
This model is created by Parametric Model Maker
Make Your Model
Print Profile(4)
0.2mm layer, 2 walls, 15% infill Size: Small
Designer
1 h
1 plate
Fast 0.28mm layer, 2 walls, 15% infill Size: Small
Designer
50 min
1 plate
0.2mm layer, 2 walls, 15% infill Size: Mid
Designer
1.4 h
1 plate
0.2mm layer, 2 walls, 15% infill Size: Big
Designer
2.5 h
1 plate
Open in Bambu Studio
Boost
1
13
0
0
15
13
Released
Description
Customizable Cable Spool Organizer
Adjust the dimensions to match your needs. I hope you will find this useful :)
The print profile is available in three sizes:

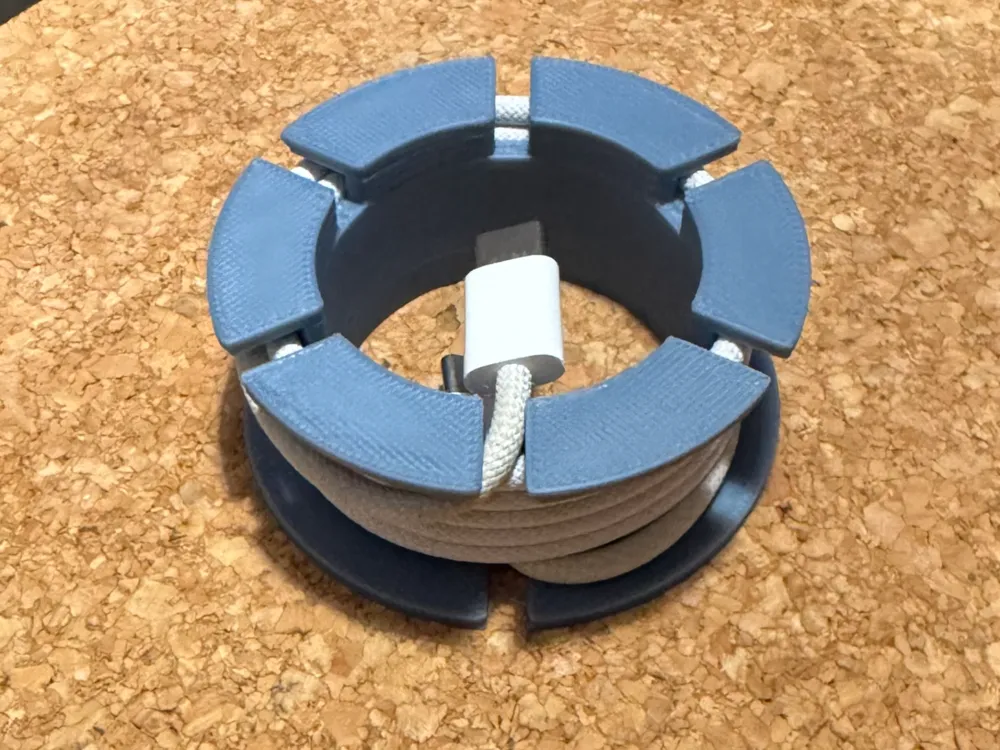

- Small: Total Height: 25mm Total Diameter: 62mm, those are the default settings available under the Customizable. It should be enough for a 1-1.5m cable. This is the light grey spool with a white cable. As you can see in the picture, it has a 1m cable and still some space left.
- Mid: Total Height: 35mm Total Diameter: 70mm, should fit 2-2.5 meters of cable similar to the one used for MacBook charging.
- Big: Total Height: 35mm Total Diameter: 95mm, should fit 7m meters of cable similar to the one used for MacBook charging.

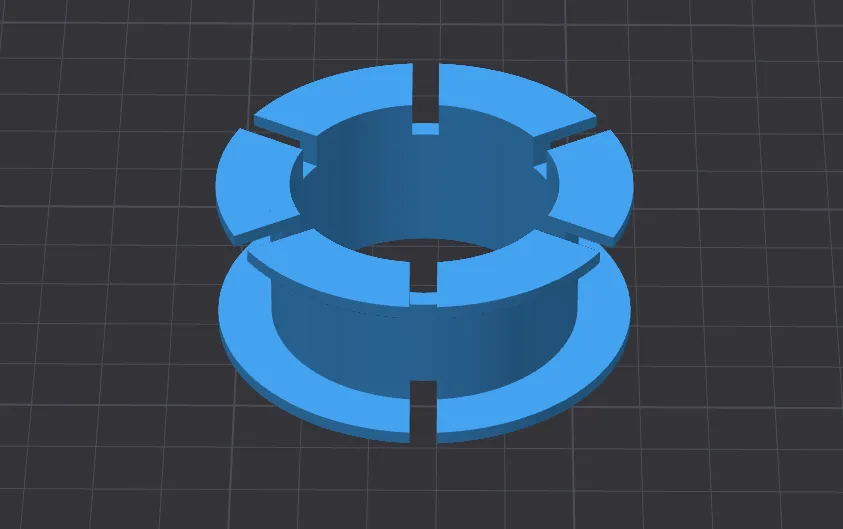

Parameter Guide:
- Center_Hole_Diameter: The width of the empty hole in the middle of the spool.
- Center_Cylinder_Thickness: How thick and strong the central winding tube is.
- Total_Spool_Height: The overall height of the spool from the top plate to the bottom plate.
- Outer_Plate_Extension: How far the top and bottom plates stick out to hold your wrapped cable.
- Outer_Plate_Thickness: How thick the top and bottom plates are.
- Cable_Grip_Depth: How deep the notch sinks into the central cylinder to mechanically grip your wire so it doesn't slip.
- Top_Catch_Count: The number of cutouts on the top plate. Having multiple gives you options for where to lock in the end of the cable.
- Bottom_Catch_Count: The number of cutouts on the bottom plate. You usually only need 1 to anchor the start of your cable.
- Cable_Gap_Width: The size of the cutout gap. Measure your specific cable and add 0.5mm for a perfect fit!
