Valorant - Beware of the Sharky (Mechanical Fully Random Biting Toy)

Valorant - Beware of Sharky (Mechanical Fully Random Biting Toy)

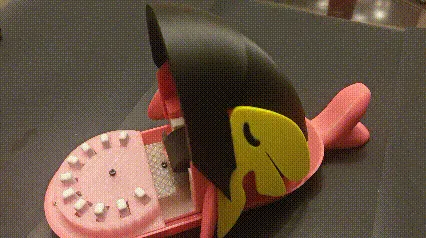

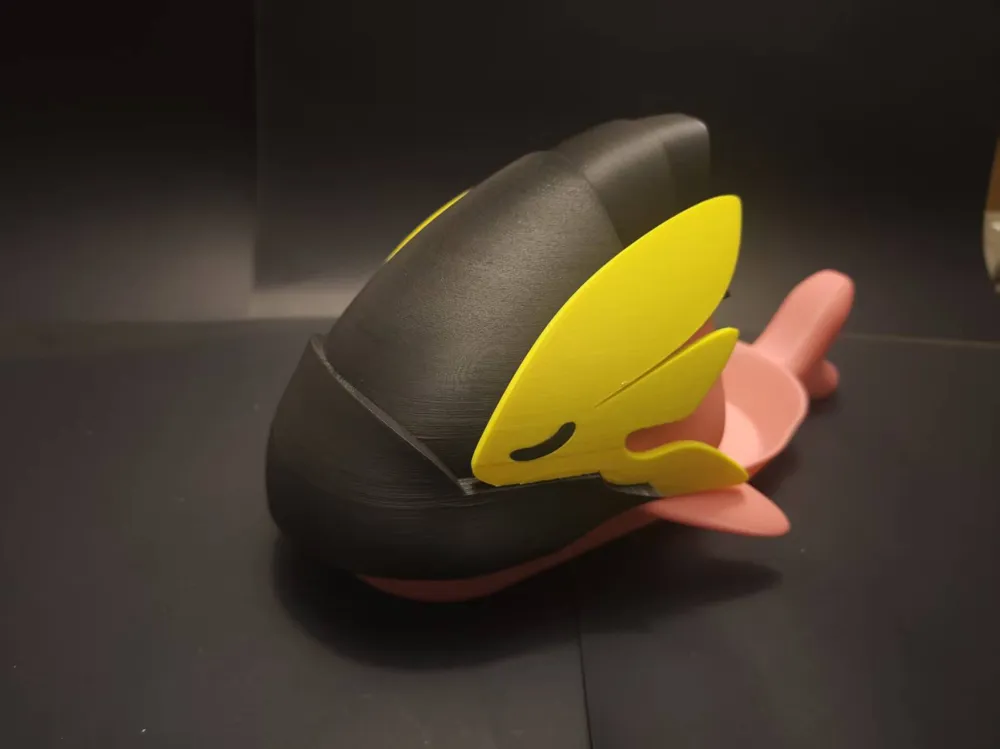

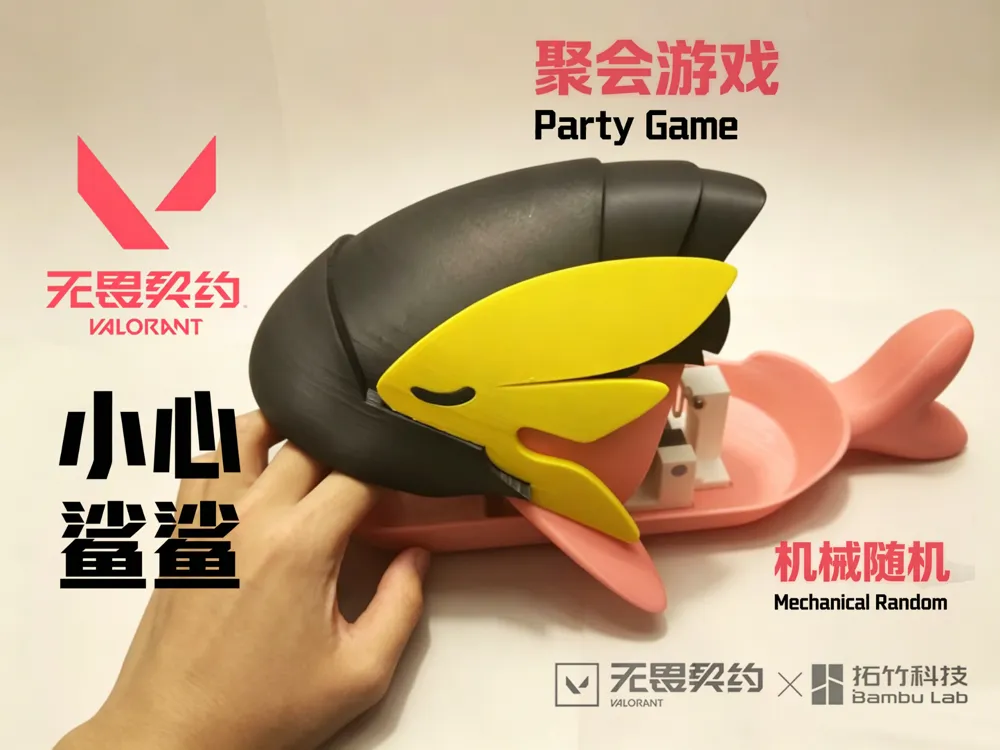

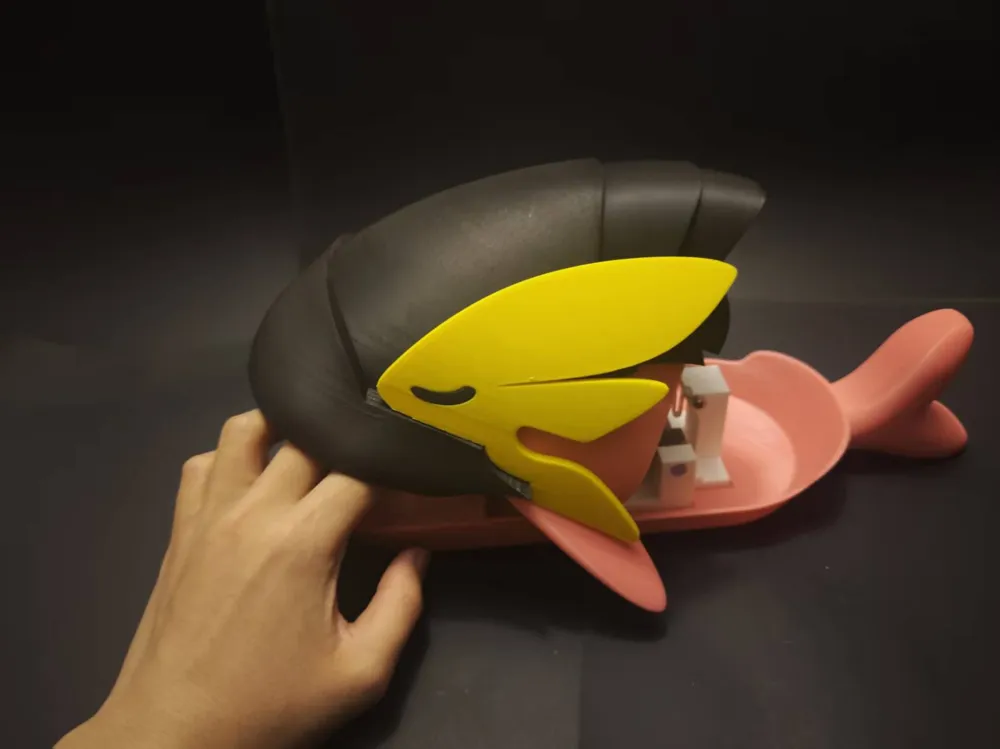

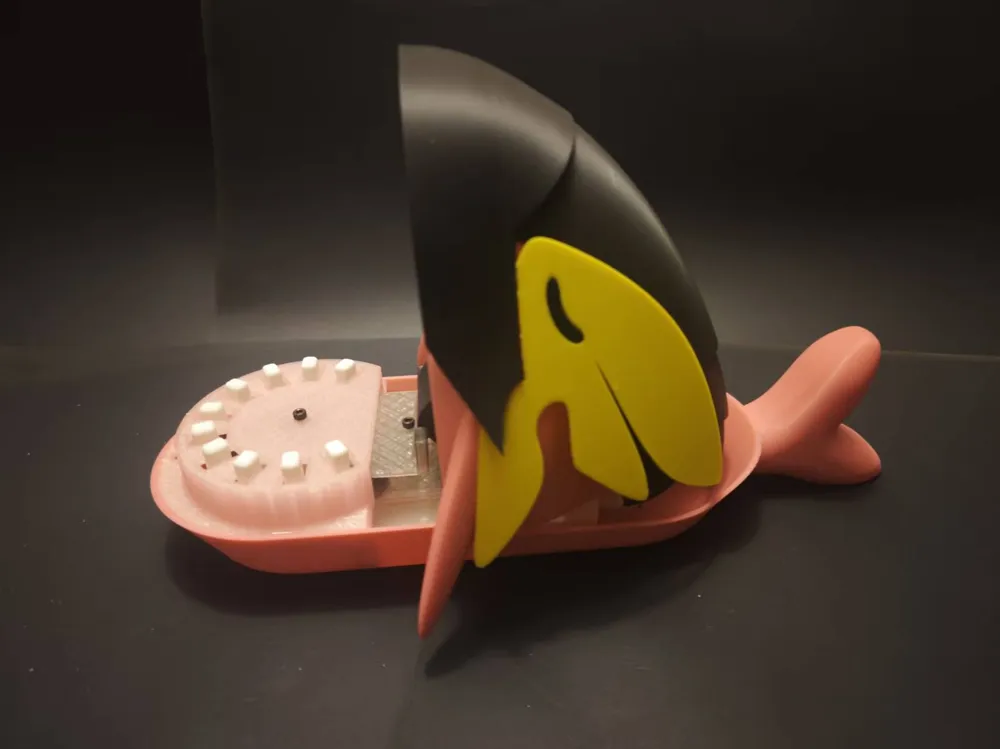

This is my self-made Gekko Sharky biting toy It faithfully recreates Gekko's iconic partner from Valorant with a highly accurate black and yellow shark-like head and a plump pink body When you press his painful cavities it triggers a biting action It's both cute and a little 'aggressive' making it a perfect desktop stress-relief gadget and an exclusive treat for Gekko players～

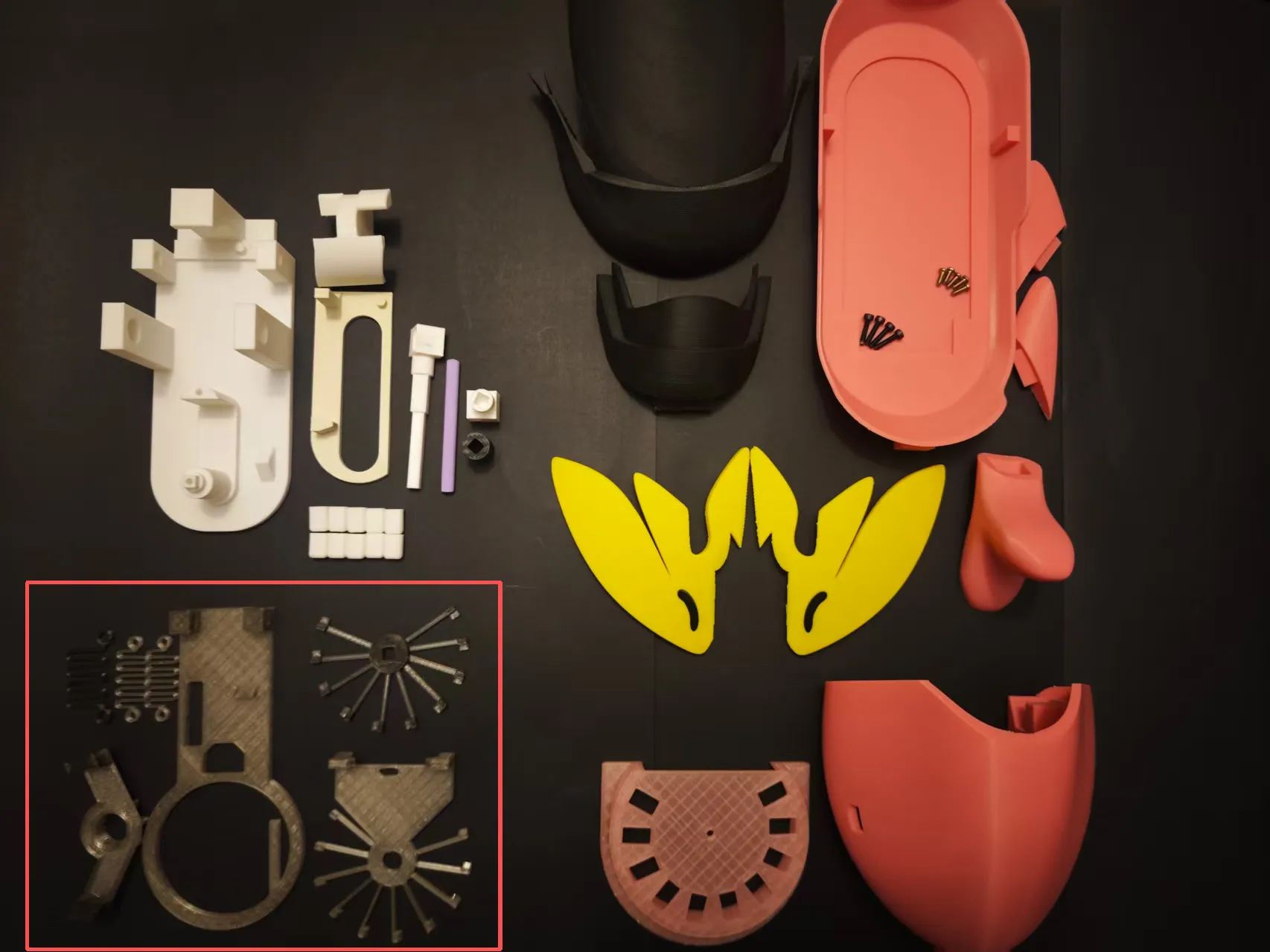

1. All model parts are as follows

Please note that the parts within the red box are recommended to be printed with PETG material and glue will be needed during assembly along with four M3 screws, 15mm and 8mm long To differentiate I chose both Phillips head and hex socket types

2. Assembly Tutorial

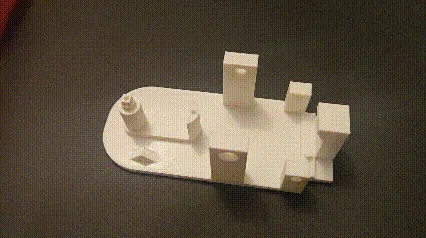

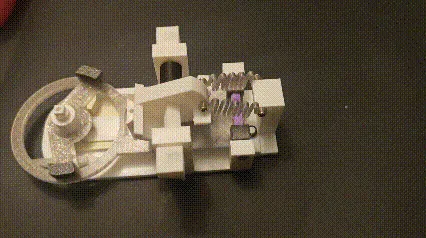

2.1 Installing the Internal Mechanism

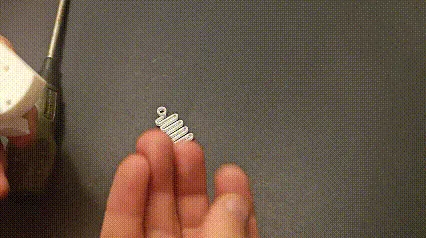

2.1.1 Testing the spring effect

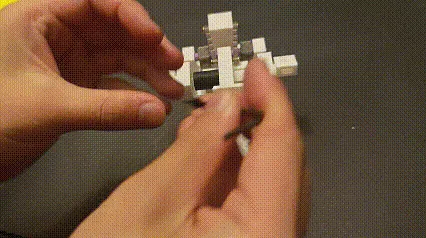

2.1.2 When securing this part, do not fully tighten the screw After feeling resistance, unscrew it 2-3 turns to leave a 1mm gap between the screw head and the part (This screw is for limiting movement only)

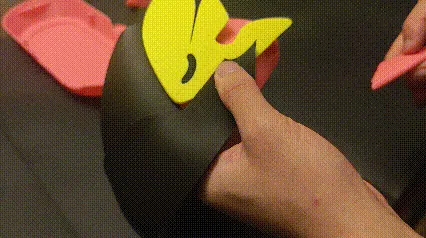

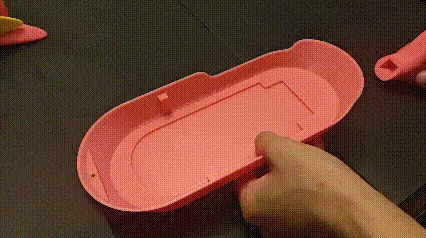

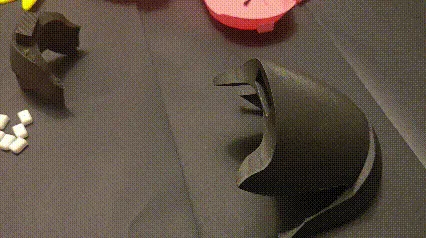

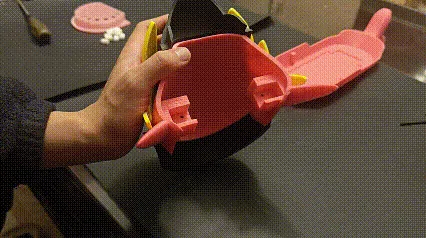

2.2 Installing the Model Casing

Glue is needed during installation as it is not a snap-fit

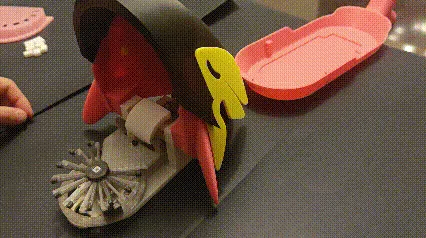

2.3 Connecting the Structural Components to the Model Casing

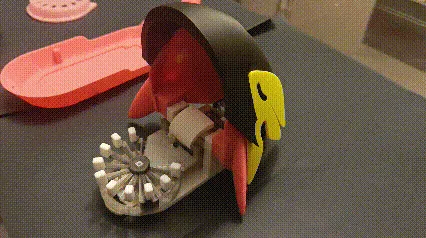

2.3.1 Installing the Teeth

2.3.2 Installing Other Components

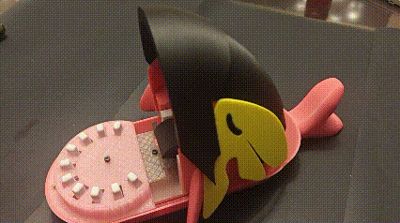

2.3.3 Test the model If the model jams, replace the cam with a smaller one and applying lubricant to the pivot points will provide appropriate improvement

3. Filament Recommendation

White parts    : Bambu Lab PLA Jade White 10100

Black parts    : Bambu Lab PLA Black 10101

                    : Bambu Lab PETG Black 30105

Yellow parts    : Bambu Lab PLA Yellow 10400

Pink parts    : Bambu Lab PLA Rose Red 10204

Light pink parts : Bambu Lab PLA Pink 10203
