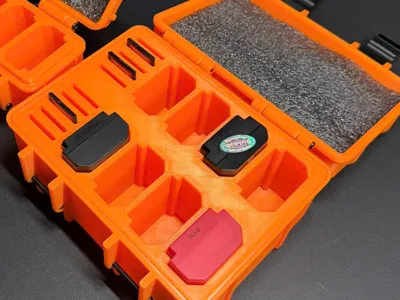

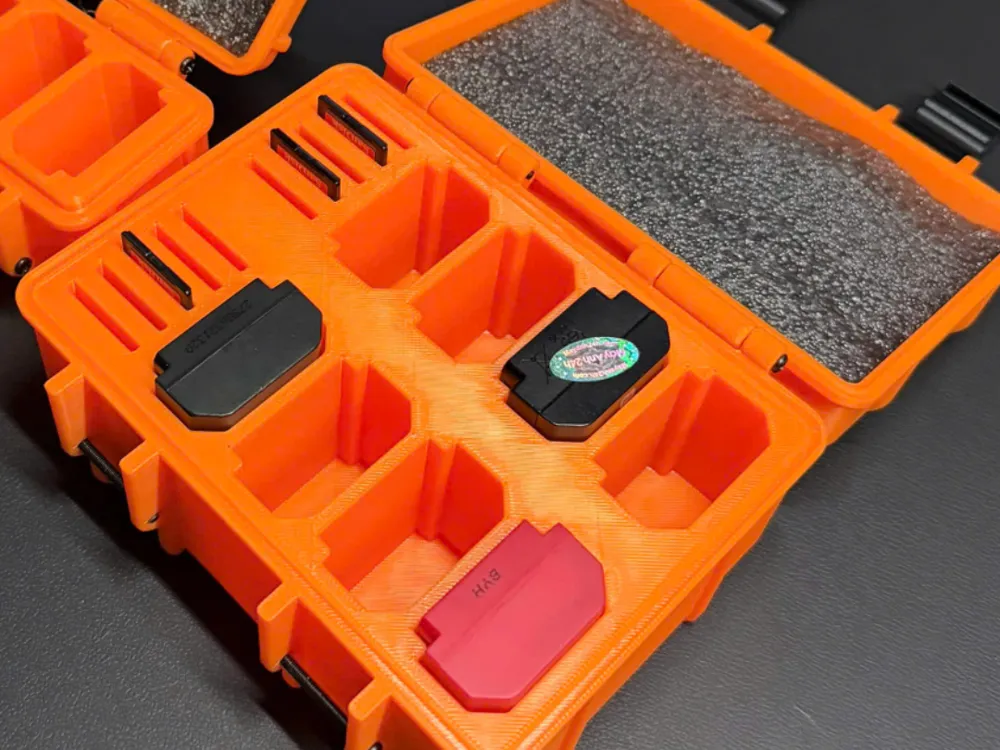

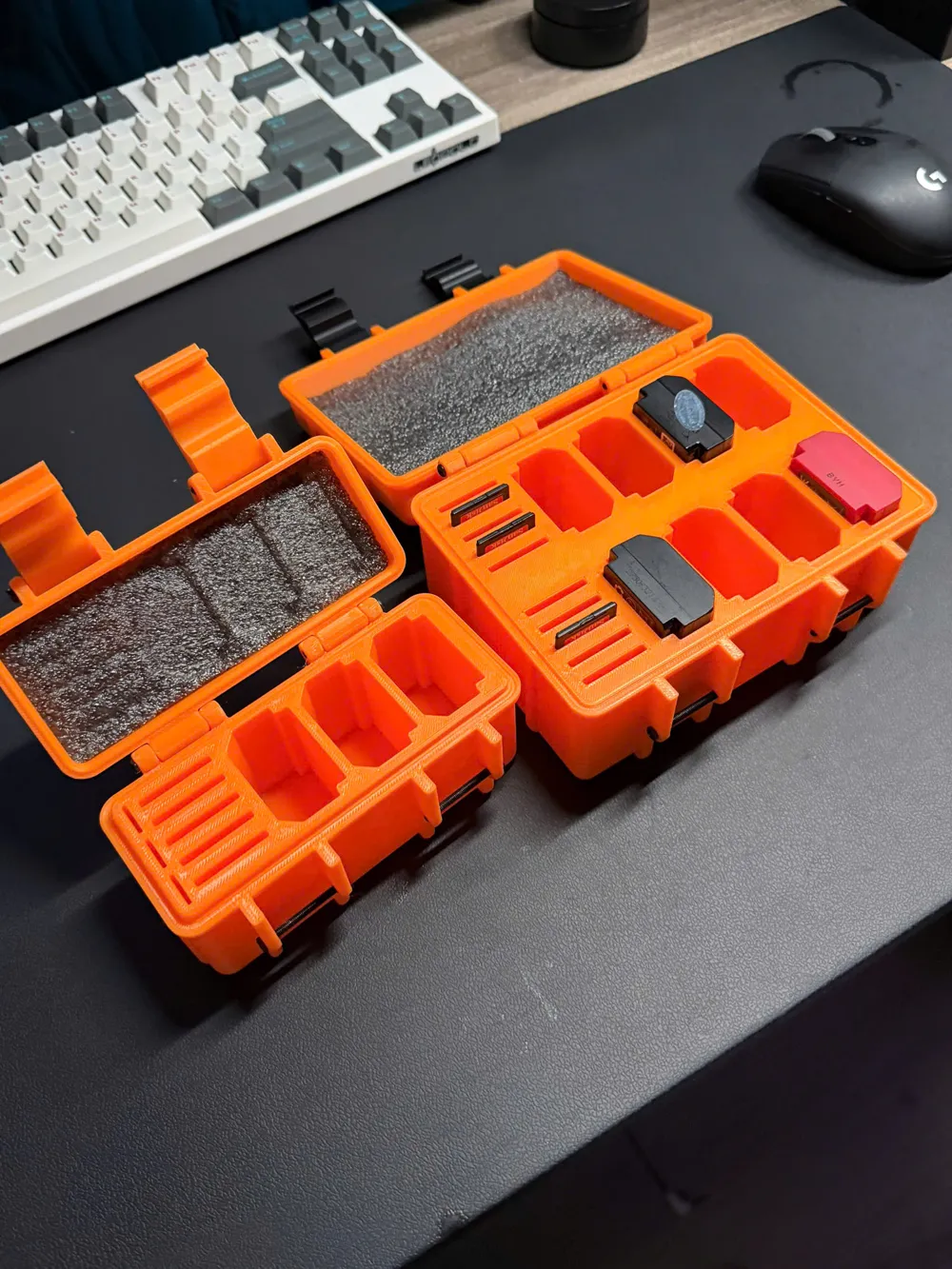

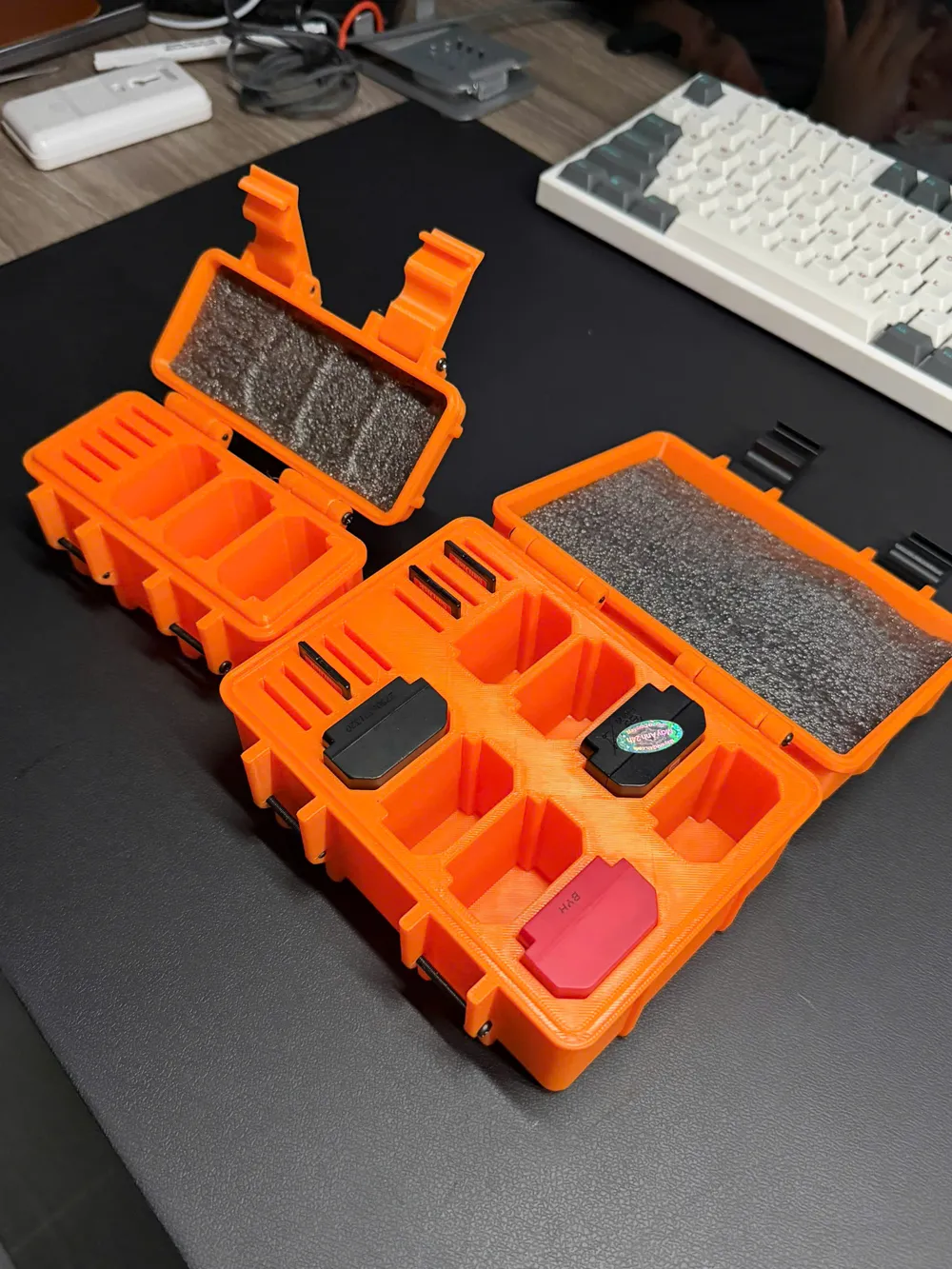

Rugged case 8x NP-FZ100 Batteries & 10x SD Cards

Description

The ultimate storage solution for professional photographers and videographers using the Sony Alpha system. This heavy-duty, shockproof case is designed to keep your power and data organized and protected in the most demanding environments.

It features a precision-molded interior that securely holds 8x Sony NP-FZ100 batteries and 10x SD cards, ensuring they don't rattle or sustain damage during transit.

Key Features:

• High Capacity: Holds 8x NP-FZ100 batteries and 10x full-sized SD cards.
• Shockproof Design: Reinforced corners and thick walls provide superior impact protection.
• Secure Latches: Features a robust locking mechanism to prevent accidental opening inside your camera bag.
• Organized Workflow: Dedicated slots for SD cards make it easy to manage your media and separate full cards from empty ones.
• Weather Resistant: Designed with a tight-fitting lid to keep out dust and light moisture.

Print Guidelines

For the best balance of durability and protection, I recommend the following setup:

• Main Shell Material: PETG or ABS/ASA (Recommended for impact resistance and heat durability in outdoor kits).
• Internal Liner (Optional but Recommended): Use TPU for the inner battery/SD slots to provide true "shockproof" cushioning.
• Wall Loops: 3 - 4 walls for a rigid, tough exterior.
• Infill: 20% (Gyroid) for structural integrity.
• Supports: Depending on the latch design, minimal supports may be needed. Check your slicer preview.

Hardware Required

• Hinge/Latch Pins: Designed for M3 screws, 40mm for Hinge, 25mm for Latch

Note: This case is specifically sized for Sony NP-FZ100 batteries (used in A7III, A7IV, A7RIV, A9, A1, etc.). Please check your battery model before printing.
