Rugged Case DJI Action 4/5 | Telesin Dock & Filter

Description

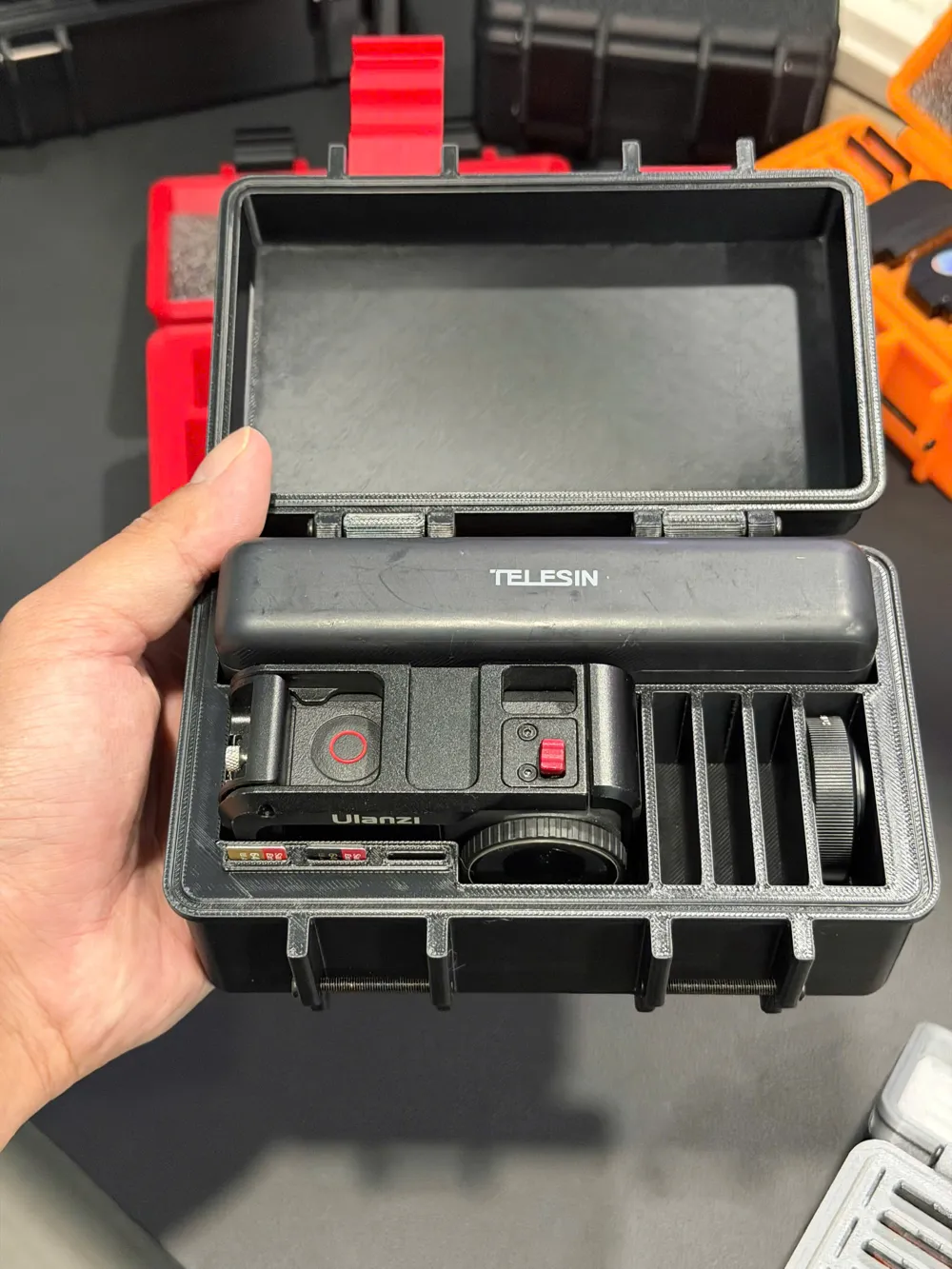

This is a compact, heavy-duty field case designed specifically for the DJI Action 4/5 ecosystem. It is the perfect all-in-one storage solution for creators who need to carry their camera, power supply, and multiple lens filters in a secure, organized way.

The internal layout is precision-engineered to fit your essential gear without any rattling or movement during transport.

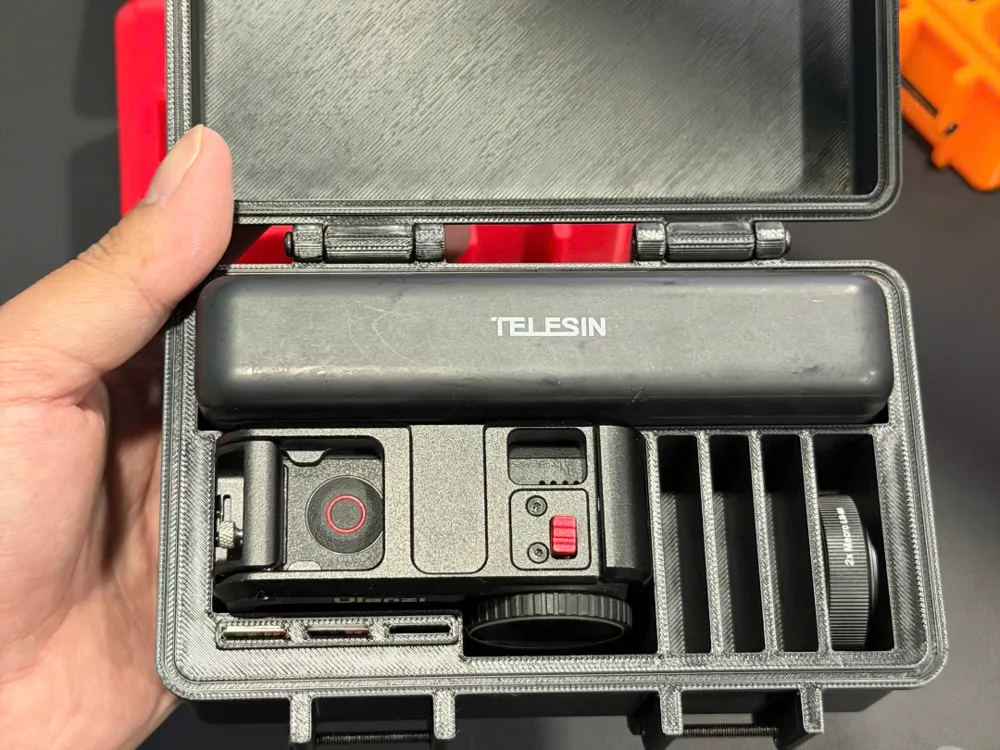

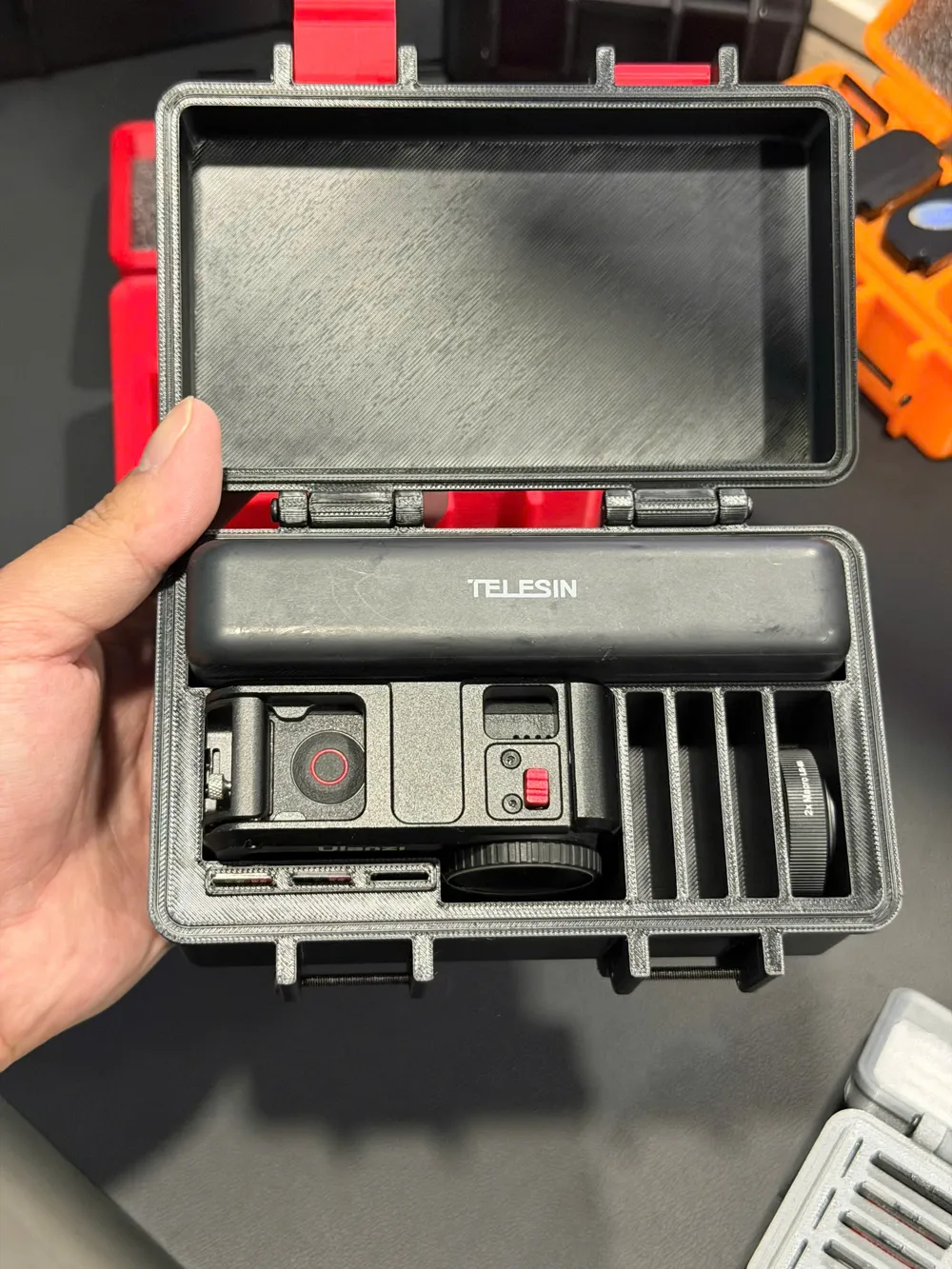

Storage Capacity:

• Camera Slot: Optimized for DJI Action 4 or Action 5.
• Telesin Dock: Dedicated compartment for the Telesin Battery Charging Dock.
• Lens Filter Organizer: * 3x Slots for 7mm thick lenses/filters.
  • 1x Slot for 11mm thick lenses (ideal for thicker ND filters or wide-angle adapters).
• Memory: 3x dedicated Micro SD card slots.

Key Features:

• Precision Fit: Every slot is measured to ensure a snug fit for your gear.
• Impact Resistant: Reinforced walls and corners to protect sensitive glass and electronics.
• Secure Latch: A robust locking system that stays closed even inside a crowded backpack.
• Compact Profile: Designed to maximize space efficiency for travel and outdoor shoots.

Print Guidelines

To ensure the hinges and latches are durable enough for field use, please follow these recommendations:

• Material: PETG is highly recommended for its durability and temperature resistance (especially if left in a car or bag).
• Wall Loops: 3 - 4 walls for maximum structural integrity.
• Infill: 15% - 20% (Gyroid or Cubic).
• Layer Height: 0.16mm or 0.20mm for smooth tolerances on the lens slots.
• Supports: Depending on your printer's bridging capabilities, minimal supports may be needed for the latch mechanism.

Hardware Required

• Hinge & Latch: Designed to use M3 screws 30mm

Note: This case was designed based on the Telesin Charging Dock. Please verify your dock dimensions before printing to ensure a perfect fit.
