Innovative Design Classic 6-inch Photo Frame, supports hanging and standing display, compatible with pegboards, tool-free assembly and disassembly, knob fixed, designer style with white mat board

Basic Information

1 Supports quick installation of 6-inch (102mm x 152mm) standard photos

2 Supports 3mm glass (172mm x 122mm) or acrylic panel remove the placeholder frame when in use If you ask a vendor to cut the glass for you, it is recommended to make it slightly smaller by 0.4mm than the size I provided, for example (171.6mm x 121.6mm)

3 Two configurations are provided: PETG and PLA The PLA configuration mainly increases the clearance for the pivot in the outer frame component If you print PLA with the PETG configuration, adhesion problems may occur Aside from slight differences in the outer frame, other components are identical

4 Unfortunately, the A1 mini cannot print it The size exceeds the print dimensions When designing this piece, I only considered that the user experience should be comprehensive

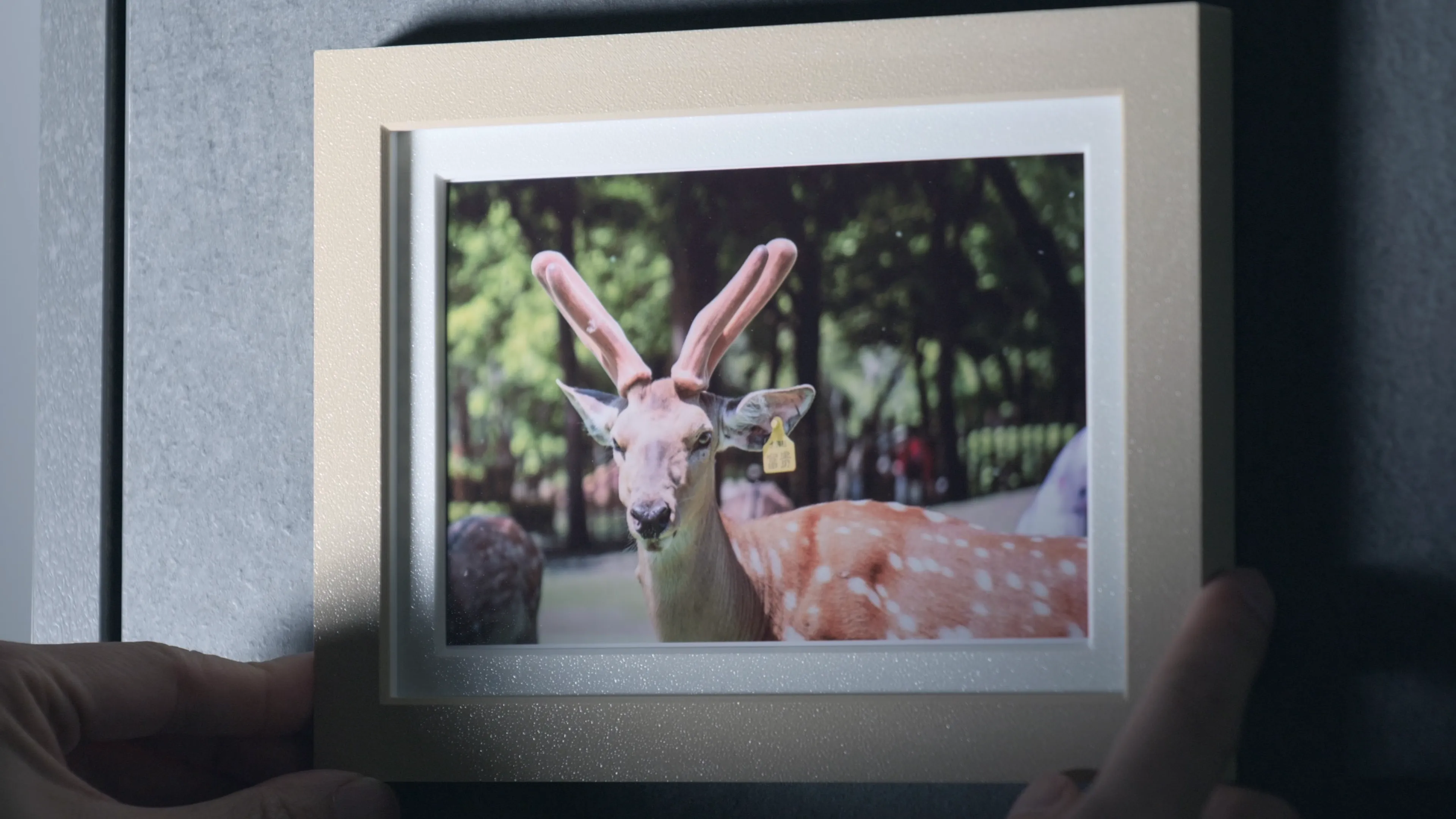

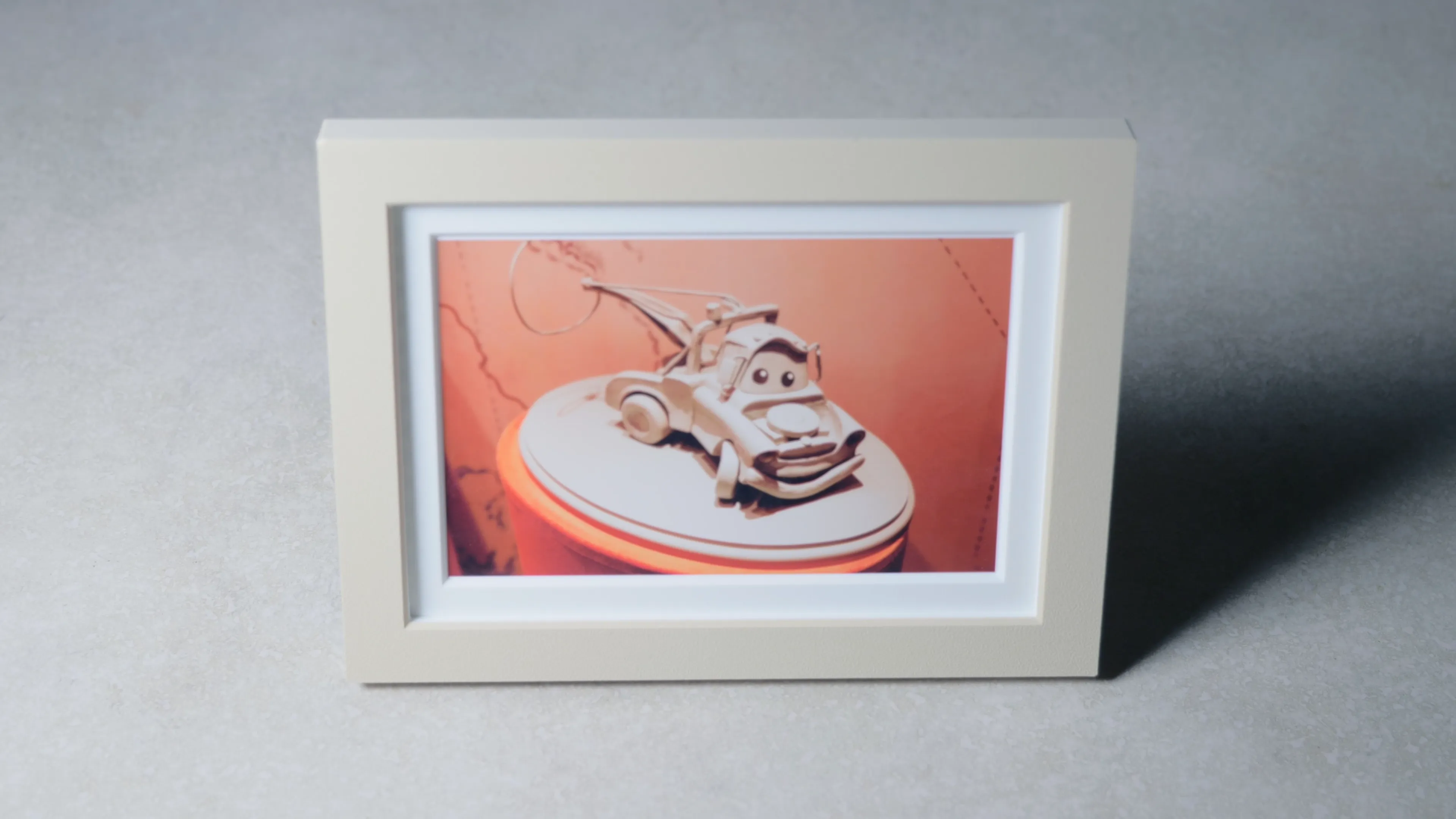

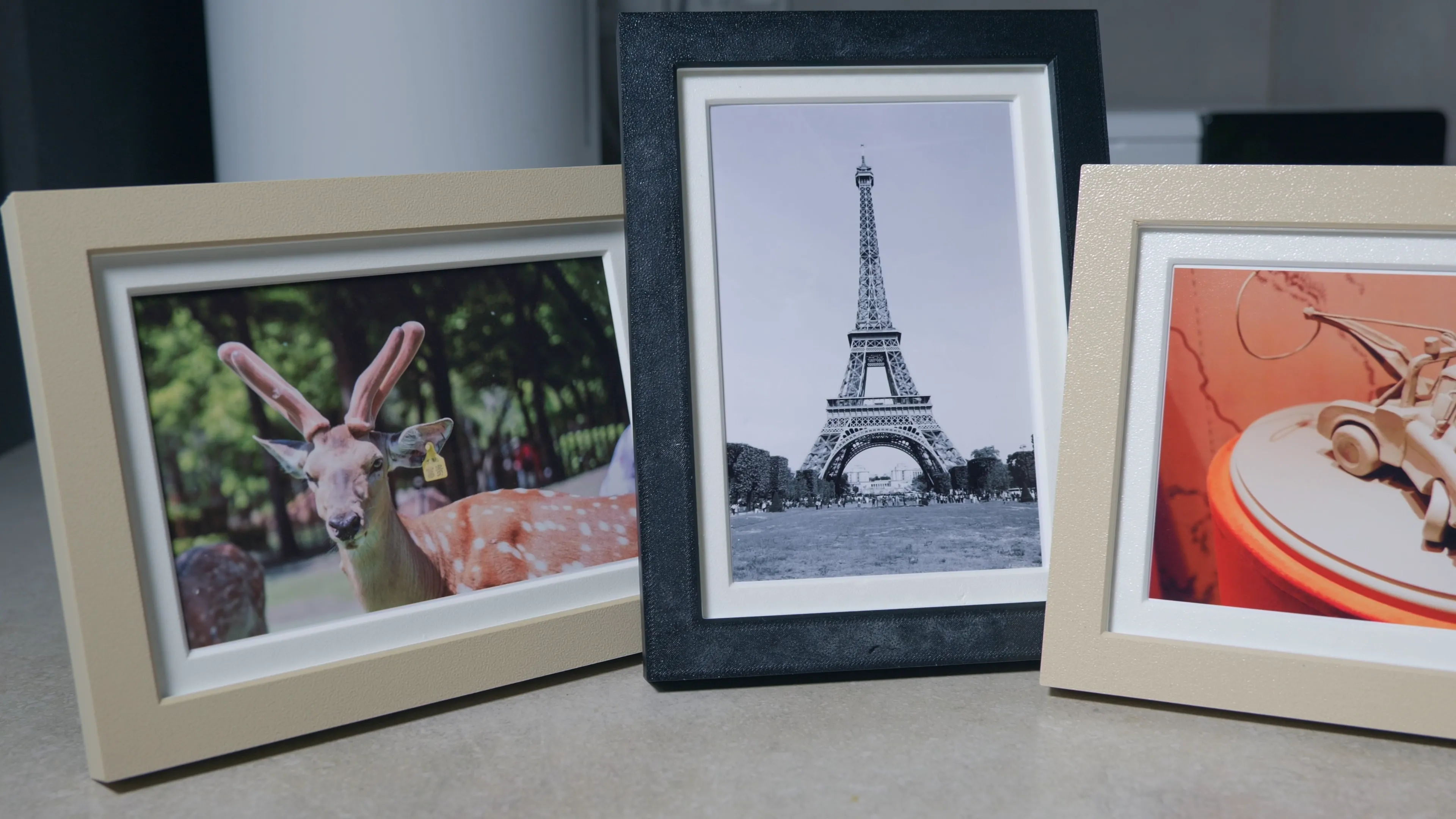

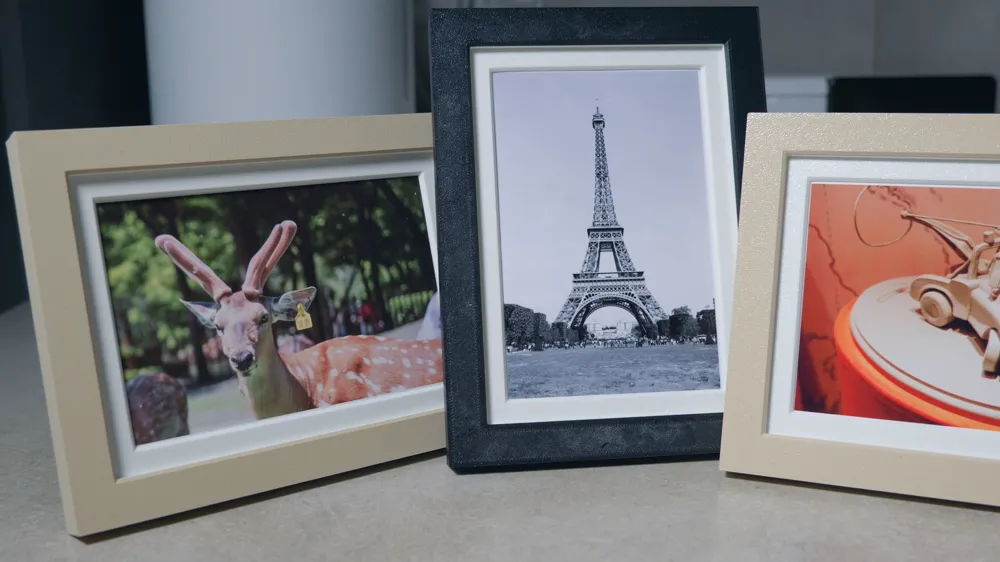

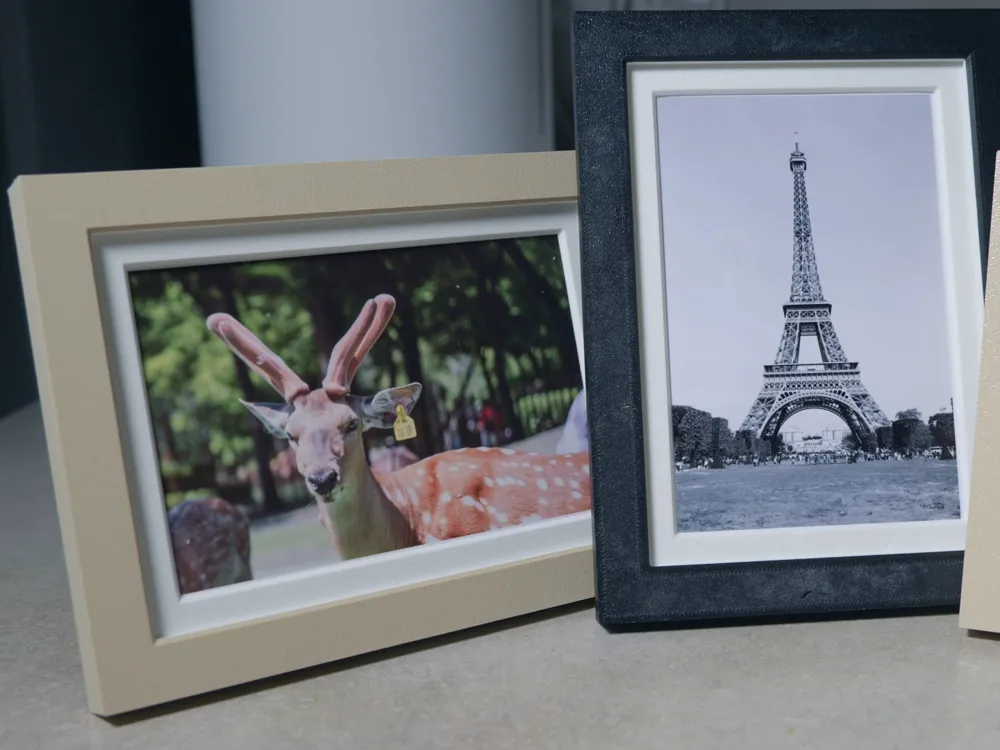

5 The light yellow photo frame shown in the picture uses Bambu Lab's wood-textured PLA The black one is PETG HF

Introduction to Innovations

I've used many photo frames, and no matter their appearance, installation always presents many difficulties

So I designed this photo frame, addressing nine major pain points of using photo frames

1 The entire photo frame prints without any supports

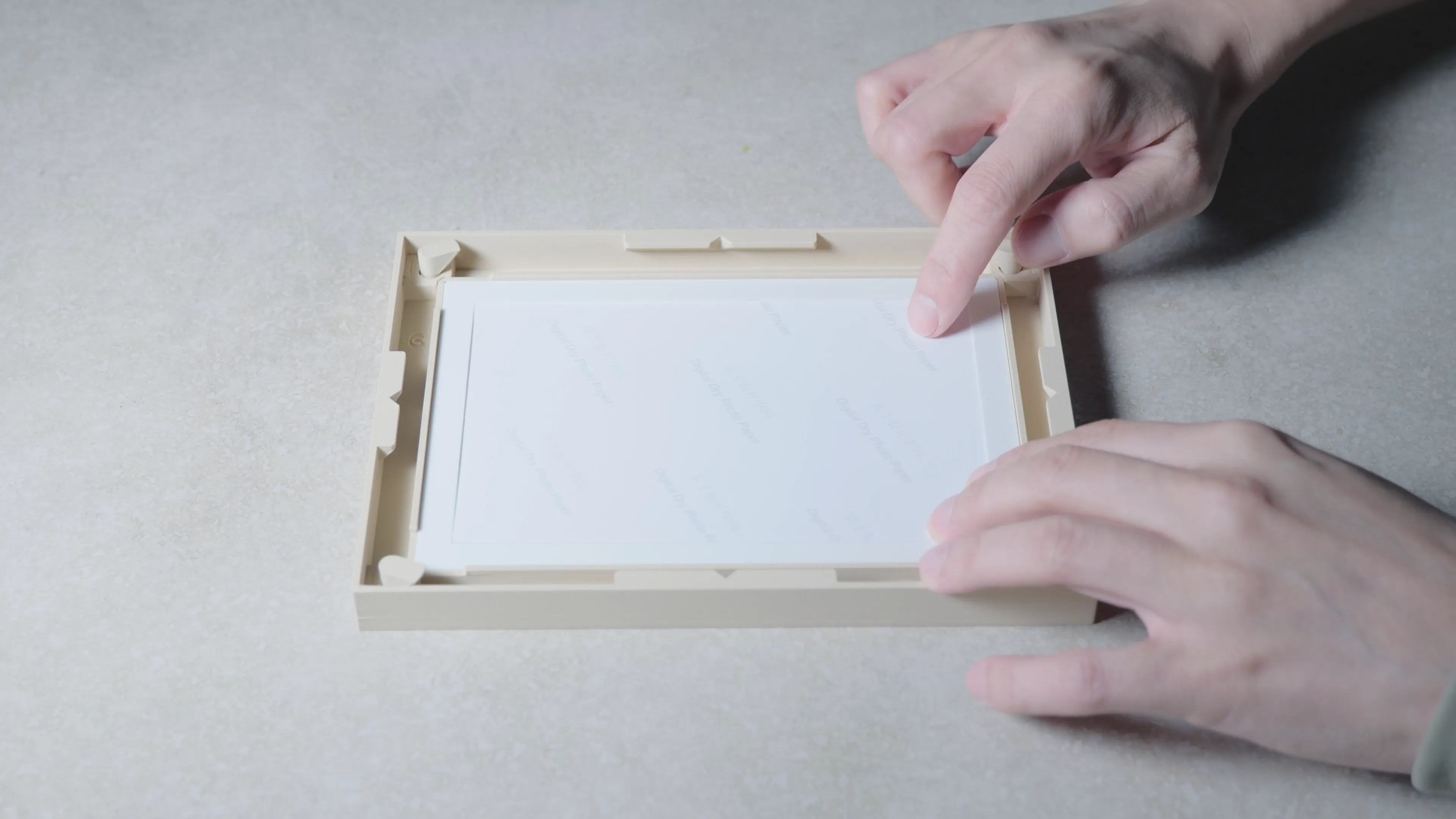

2 I specially designed a positioning card for placing photos, eliminating the need to painstakingly align them

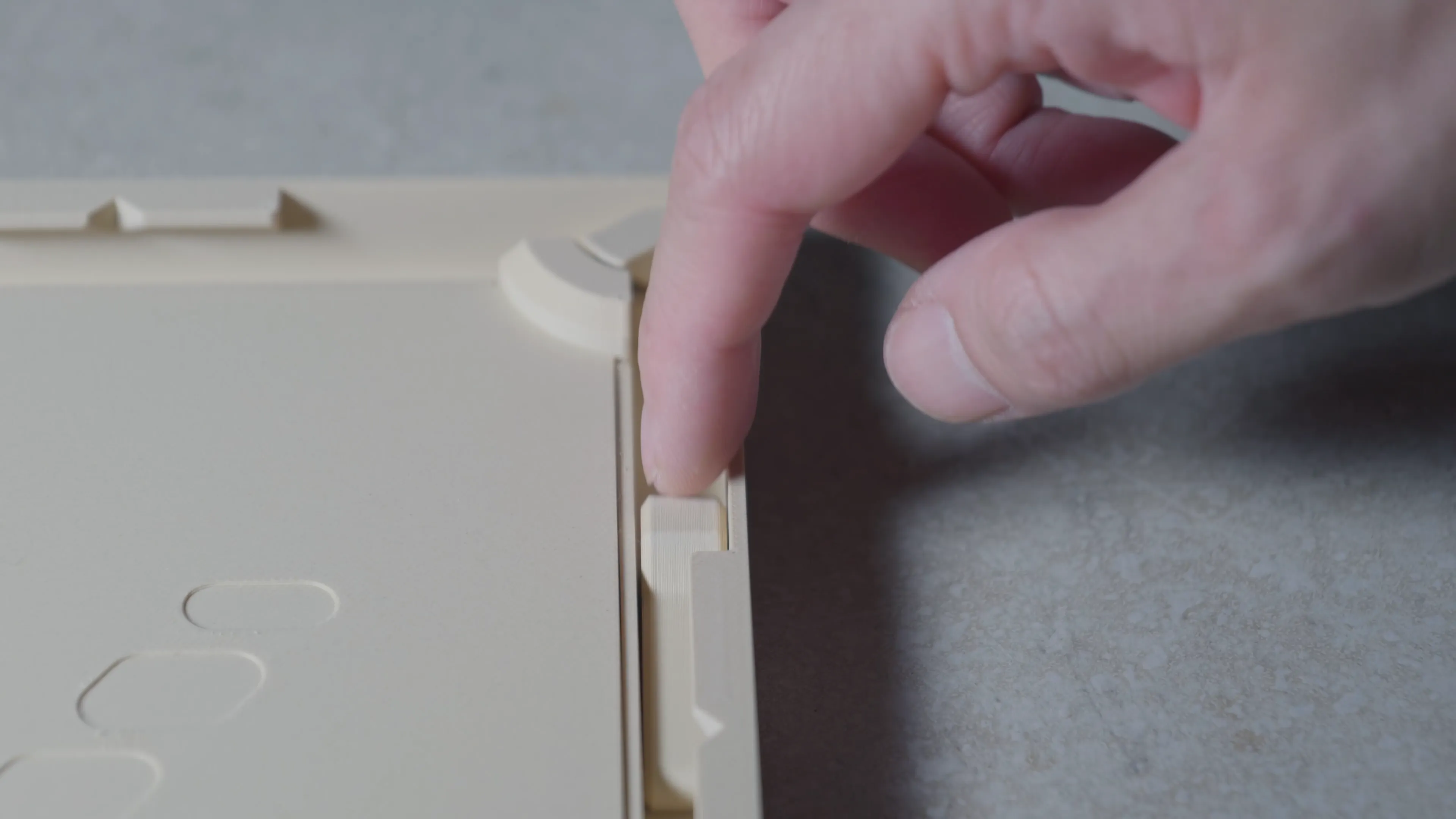

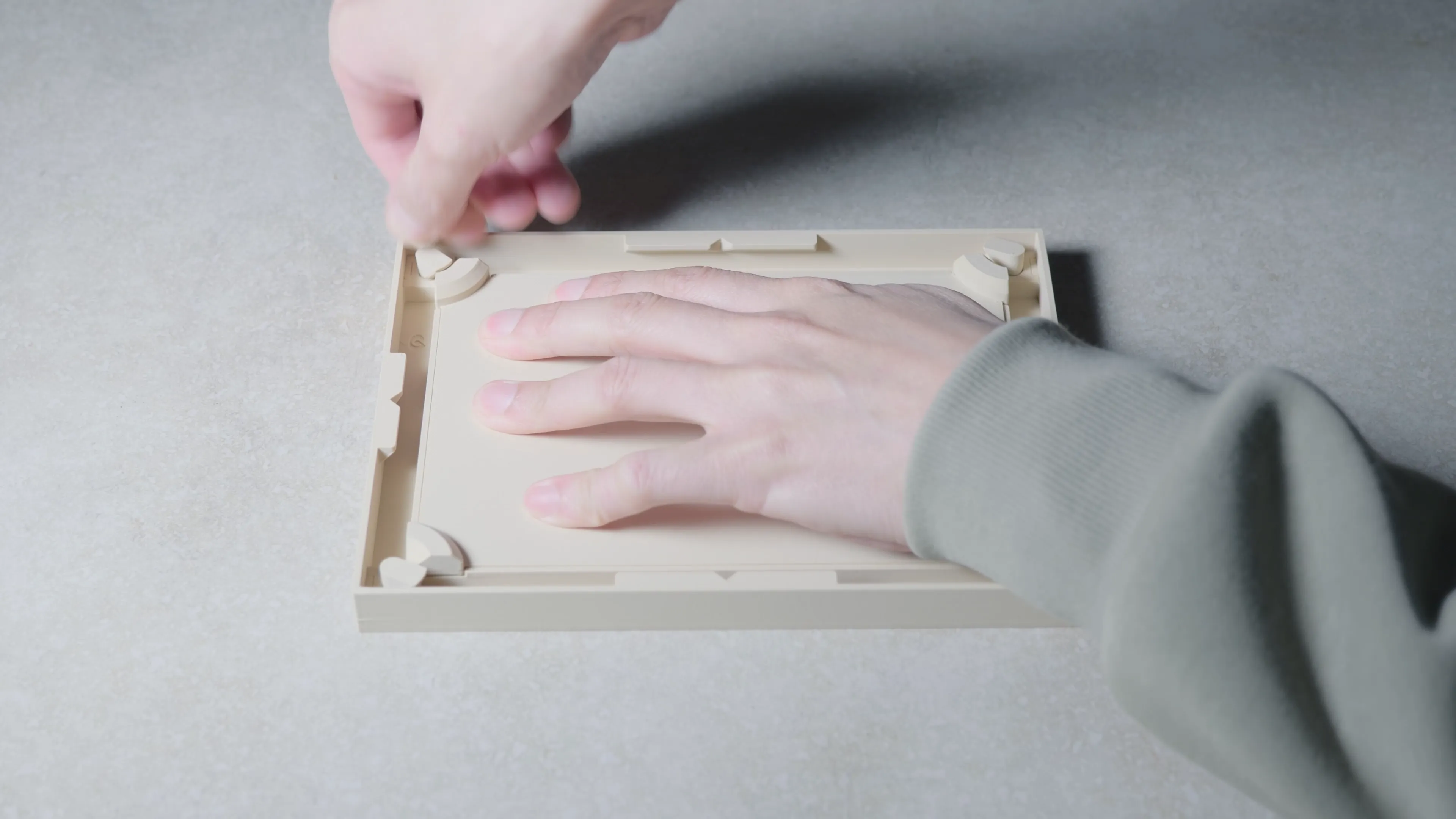

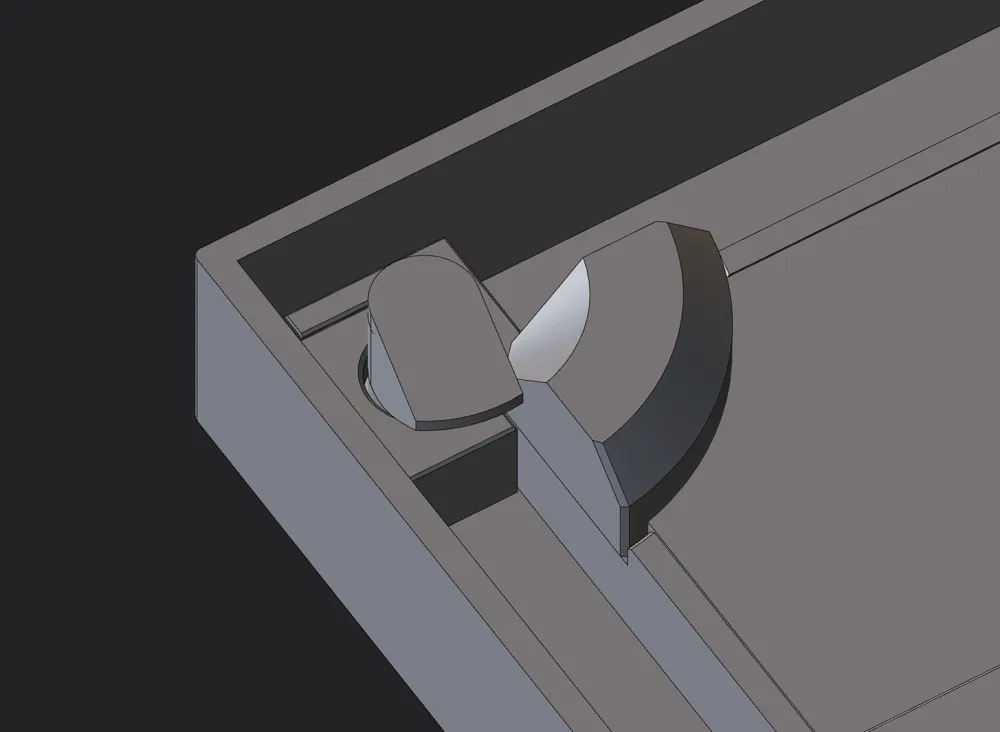

3 Knob-style locking, say goodbye to various annoying snap-ring designs, no tools required, change photos in seconds

4 The positioning card also doubles as a white mat, allowing the photo frame to add more depth to photos

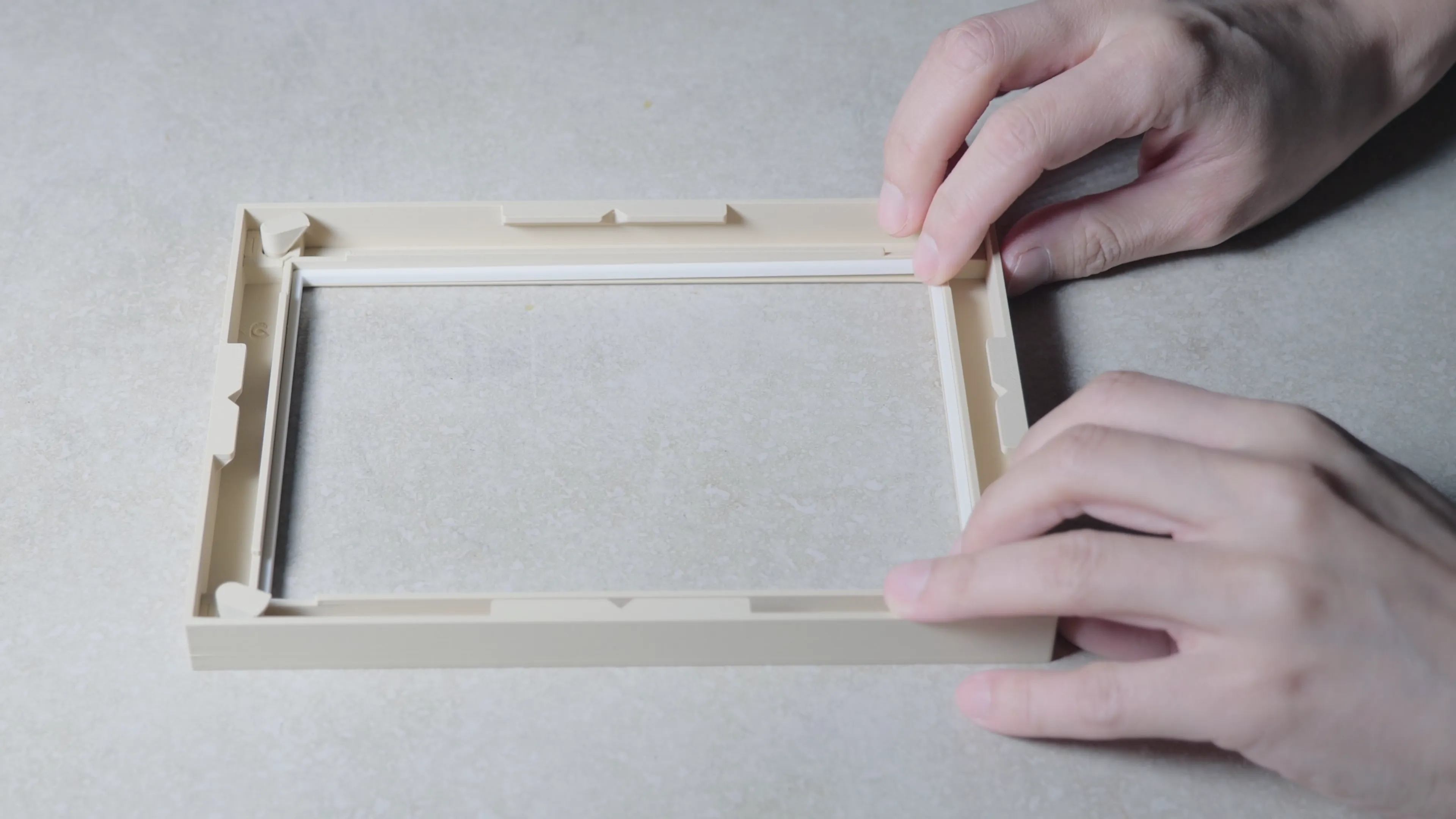

5 The reserved thickness allows for 3mm glass or clear acrylic sheet to be installed, or none at all

6 Can be displayed on all four sides if the photo is inserted upside down, just switch the stand to the other side

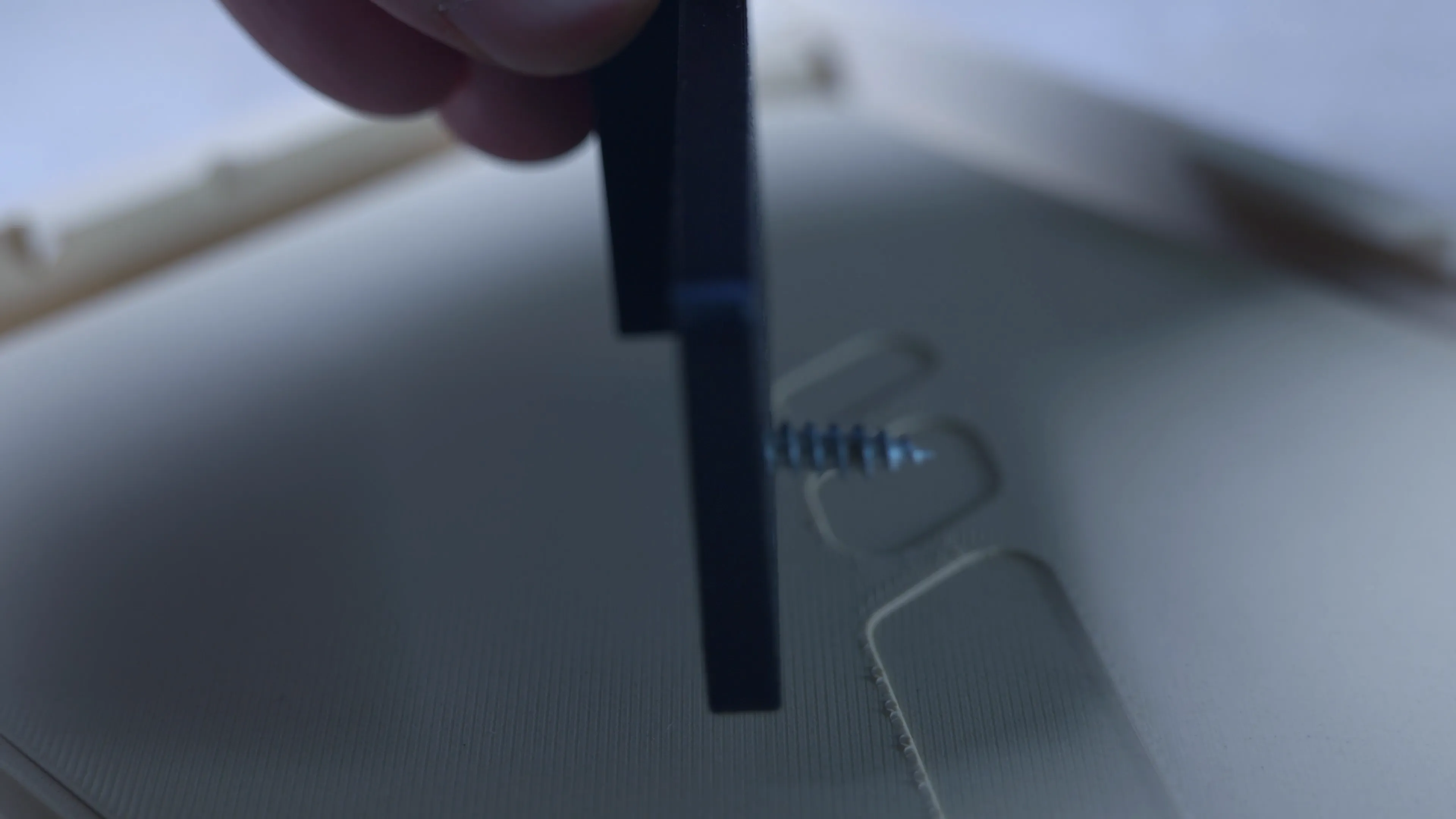

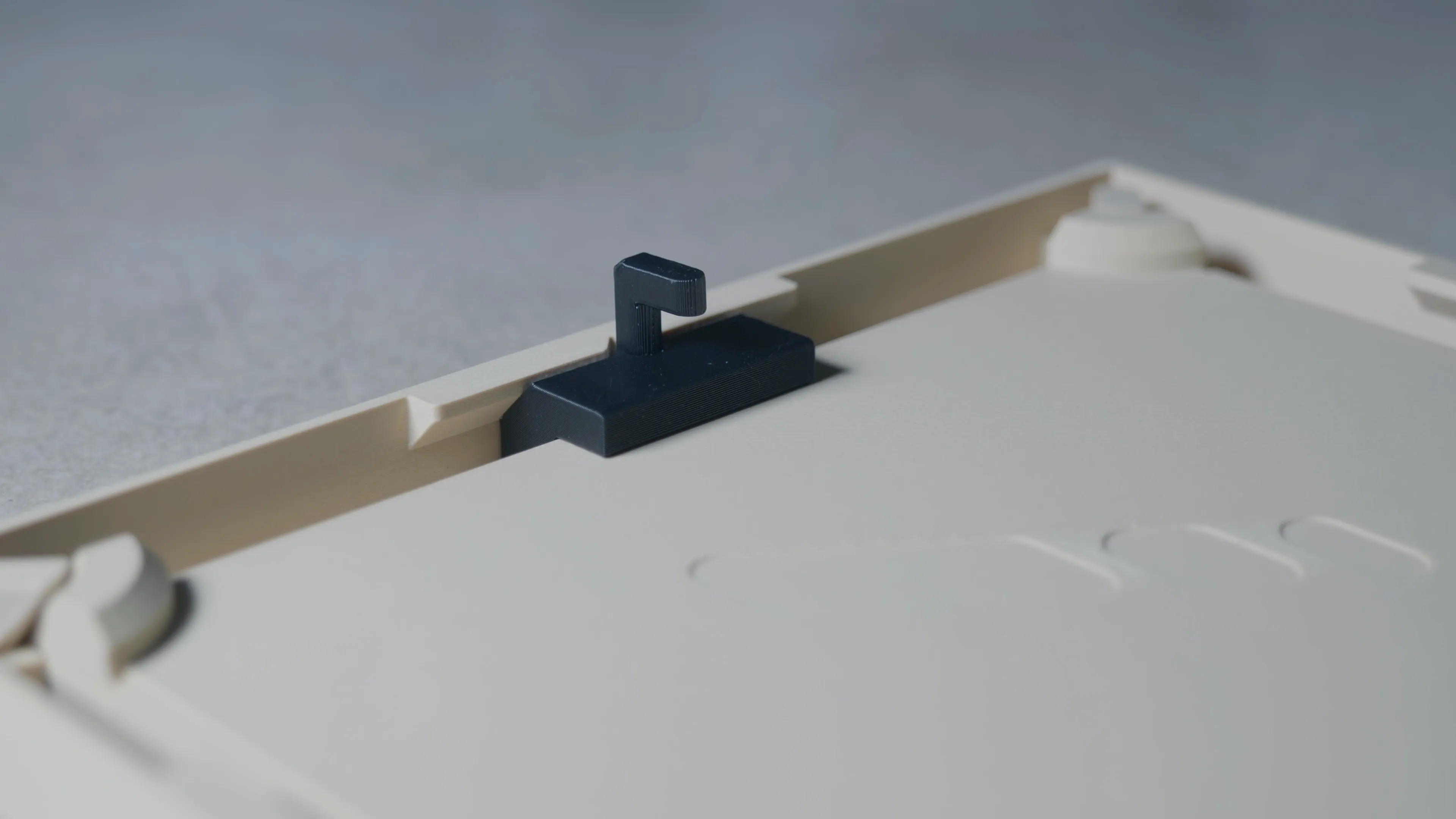

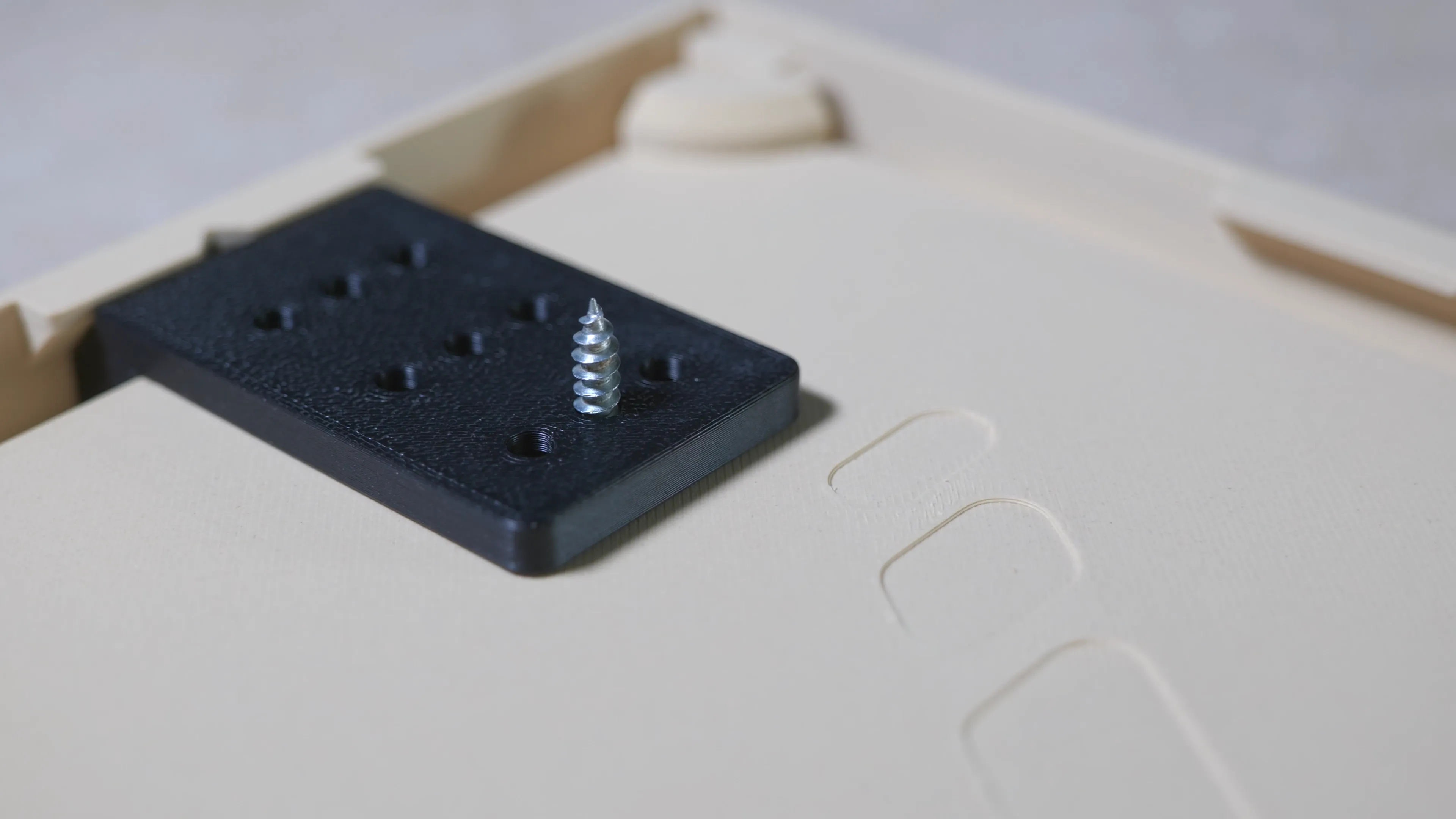

7 It supports four hanging methods: directly on a nail, two-in-one hanger (using double-sided tape or common nails), or using pegboard-specific hangers

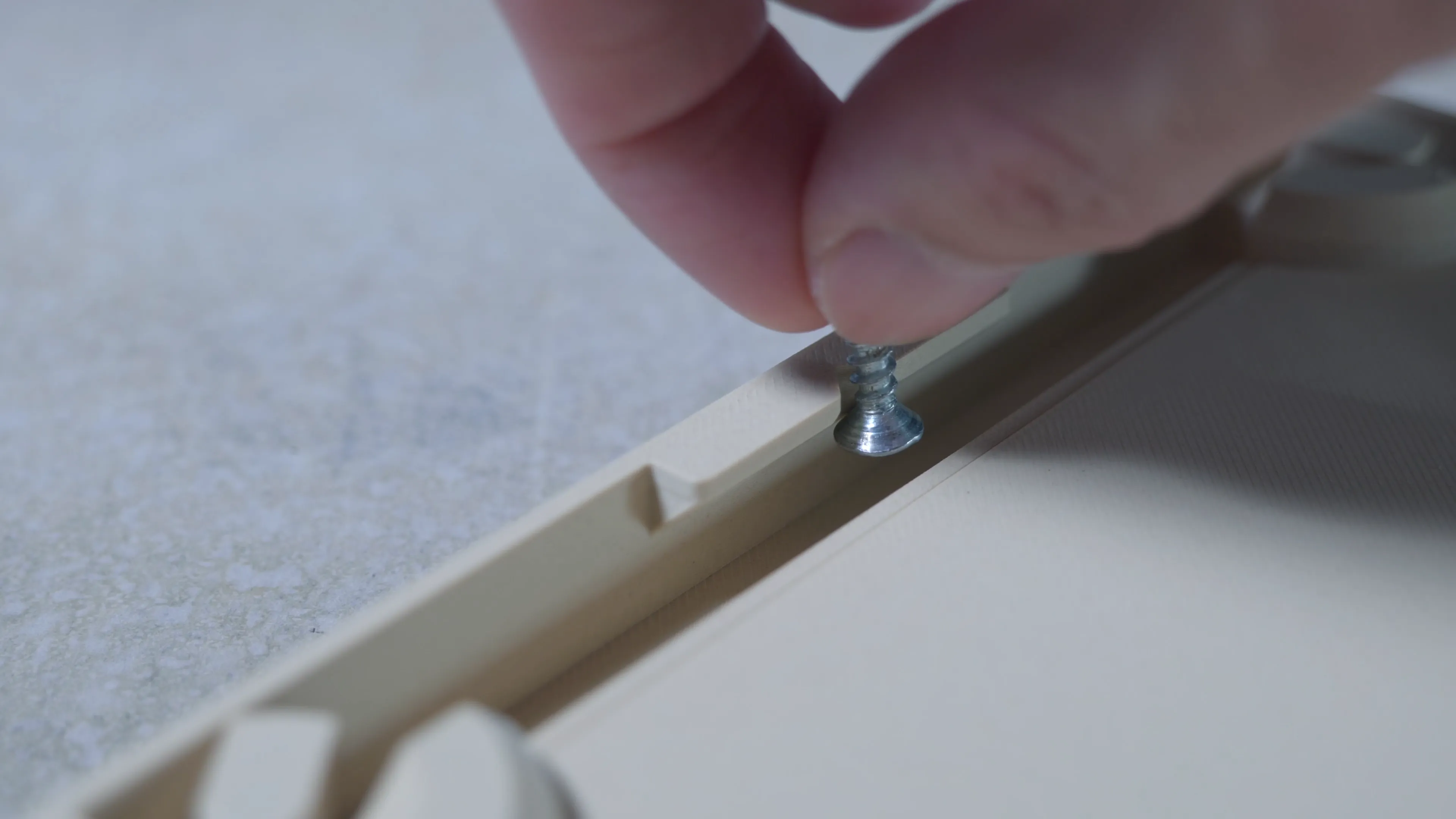

8 A 3mm groove prevents nails from protruding and taking up extra space A 1mm variable gap reversely reduces the thickness occupied by double-sided tape, allowing it to sit almost seamlessly against the wall

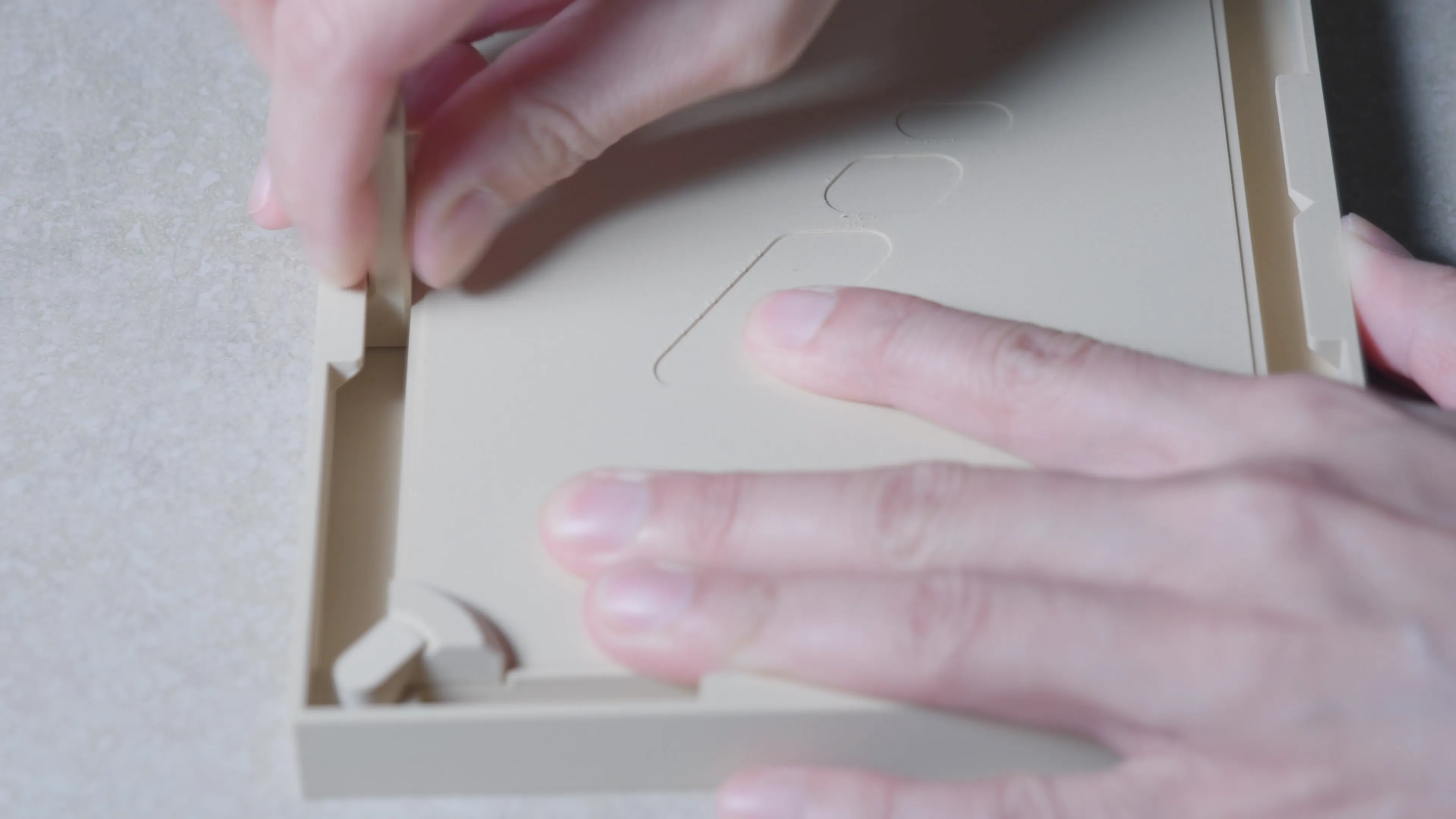

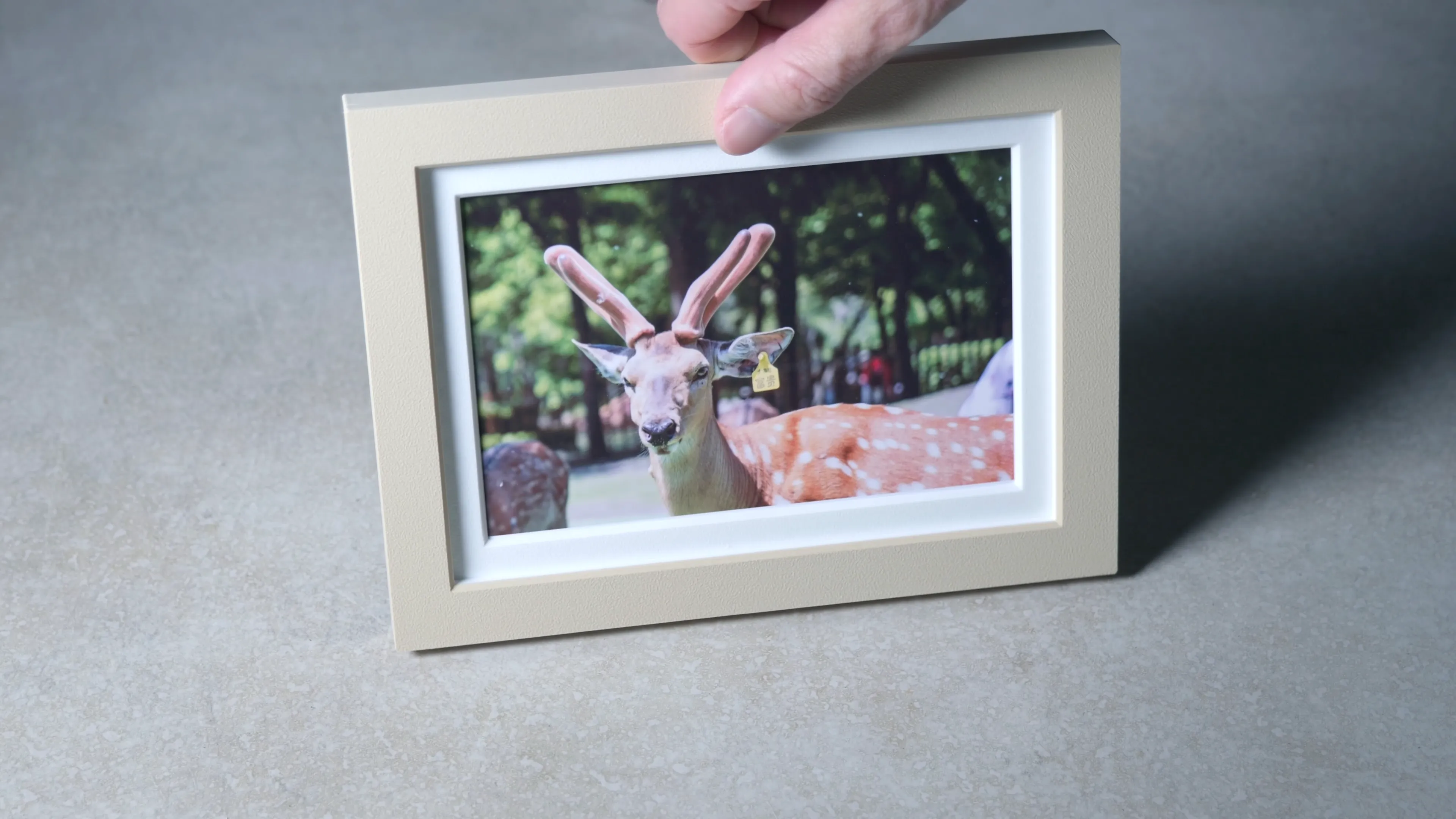

9 Switch between hanging and standing display at any time the stand can be hidden and stored at the bottom of the photo frame, ready to be pulled out whenever you want to display it again
