ARMY QUAL BADGE ALIGNMENT TOOL
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 15% infill
Designer
45 min
1 plate
Open in Bambu Studio
Boost
7
14
2
1
17
15
Released
Description

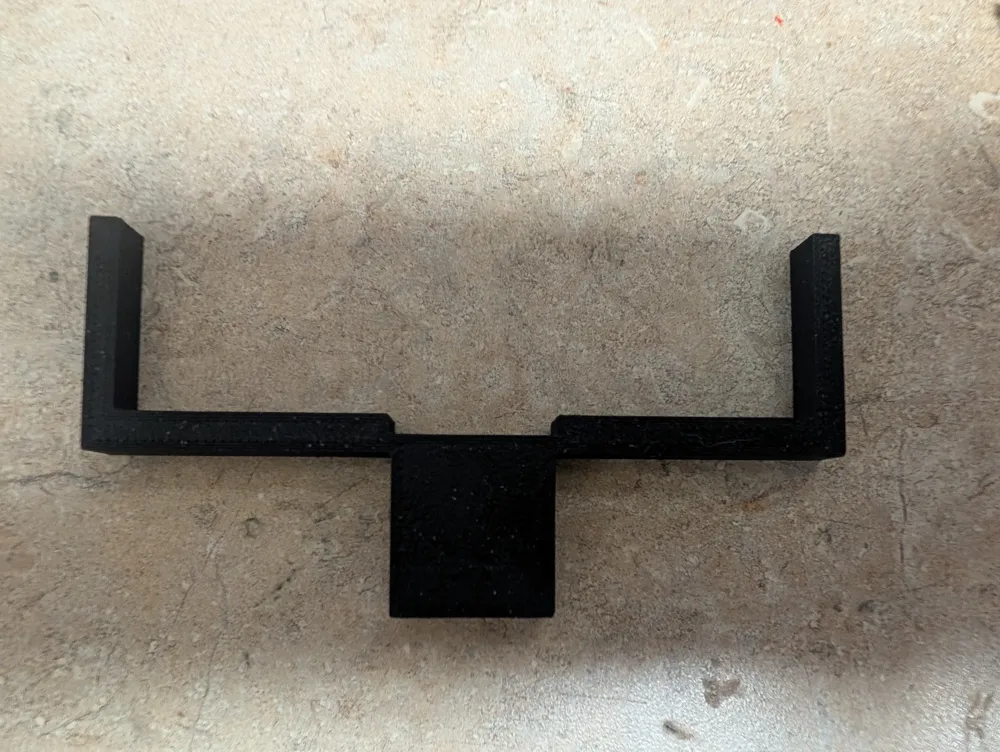

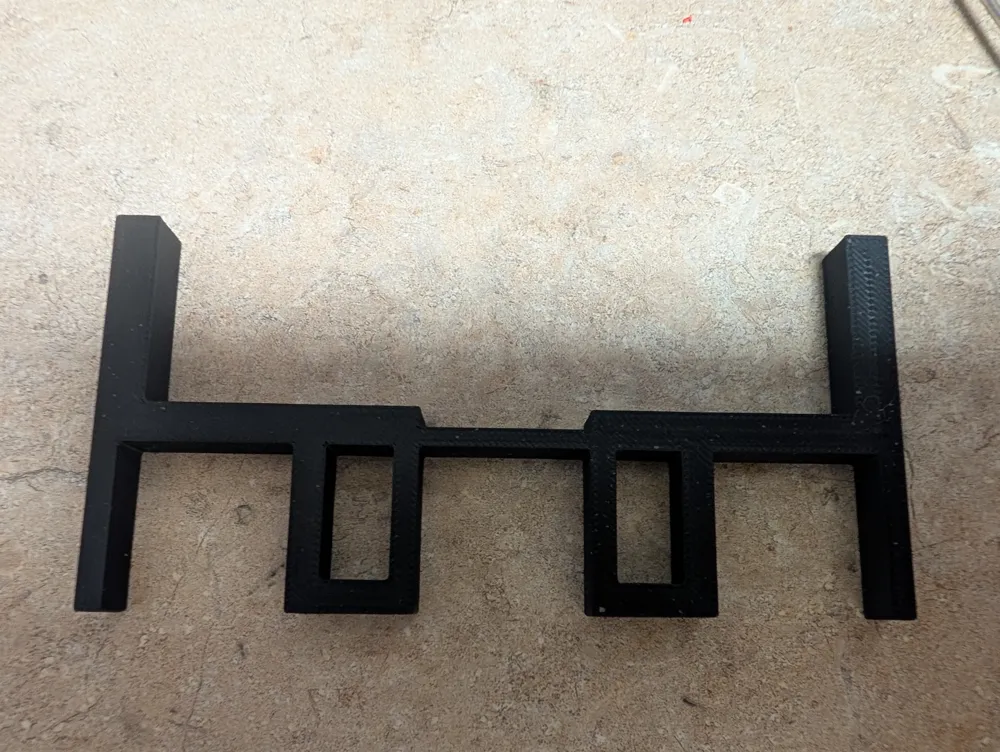

I had someone message me regarding my Air Force alignment tools and was asked to make one for the Army. There are 2 jigs included in the model, a alignment tool for 1 or 3 qual badges, all spaced equally, and another for 2 qual badges. The notch is cutout for easy visability to align the jig with the top pocket.
Everything was taken from the DA PAM 670-1
Thank you @soundshaman for the measurements of everything!
