WORBY 1X2 Parametric bin vertical
Print Profile(1)
Bill of Materials
Description
WORBY 1X2 Parametric bin vertical
I created this so that I can print on the go according to the dimensions of what I own hehe. This is a remix of WORBY - Wall Organizer with Red, Blue, and Yellow by @scottyujan.
Elevate your organization with this fully parametric remix of the iconic WORBY system by Scott Yu-Jan. While the original set is a masterpiece of design, sometimes your specific tools need a specific home. Parametric model allows you to create a bin of any size while keeping that clean, neoplasticism aesthetic.
🛠️ Fully Customizable Parameters
Unlike static STLs, you can modify almost every aspect of this bin to fit your gear:
- Width, Length, & Height: Scale it to fit anything from tiny screws to large handheld tools.
- Wall Thickness: Beef it up for heavy tools or keep it thin for light items.
- Side Radii: Customize the curvature of the two sides to match your style.
- Mounting Offset: Adjust the distance from the bottom edge to fine-tune how it sits on your WORBY wall.
🚀 How to Print (Follow Carefully!)
To ensure the mounting cleats and magnet holes print perfectly, please follow these steps:
- Customize: Adjust your dimensions in "Customize" and export your model.

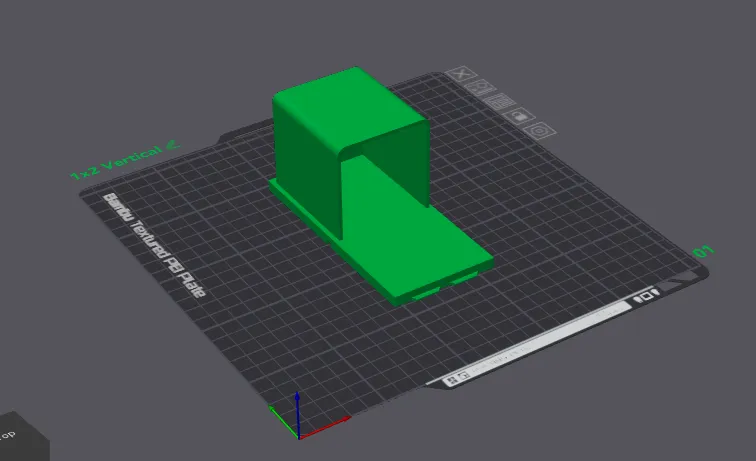

- Import: Open your exported file in Bambu Studio.
- Supports: You must enable Normal Supports (Auto), Top Z distance: 0.21mm, Bottom Z distance: 0.21mm, Top interface layers: 3, Bottom Interface layers: 3, for you to have perfect supported prints and easy to remove supports. (Pls remove within 2hrs, according to BambuLab manual).
- Slice & Print: Check your preview to ensure supports are touching the overhangs, then send it to your printer!
🙏 Credits & Inspiration
A huge thank you to Scott Yu-Jan for the original WORBY - Wall Organizer with Red, Blue, and Yellow. His vision for turning everyday clutter into an aesthetically pleasing, functional work of art is what inspired this remix. This bin is designed to honor that aesthetic while providing the community with the flexibility to organize every unique item we use daily.
