Organic Waste Bin
Print Profile(1)
Bill of Materials
- Unterlegscheibe M3 x 1:
- Gewindeeinsatz M3x6 x 1:
- Zylinderschraube DIN912 M3x8 x 1:
Description

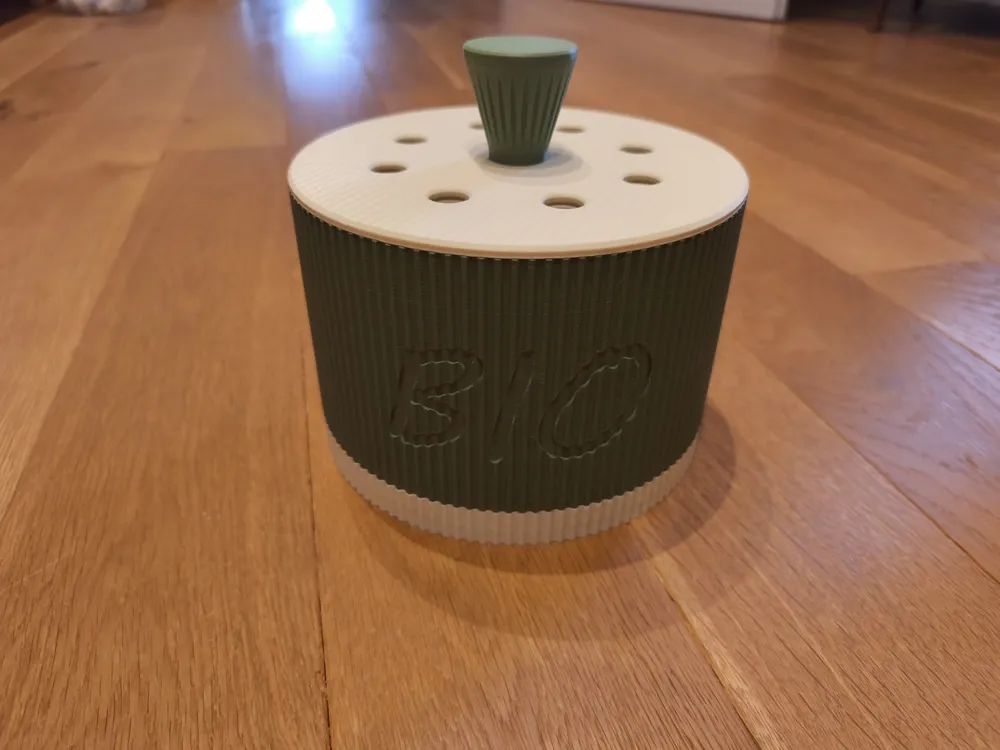

Here is my concept for an organic waste bin

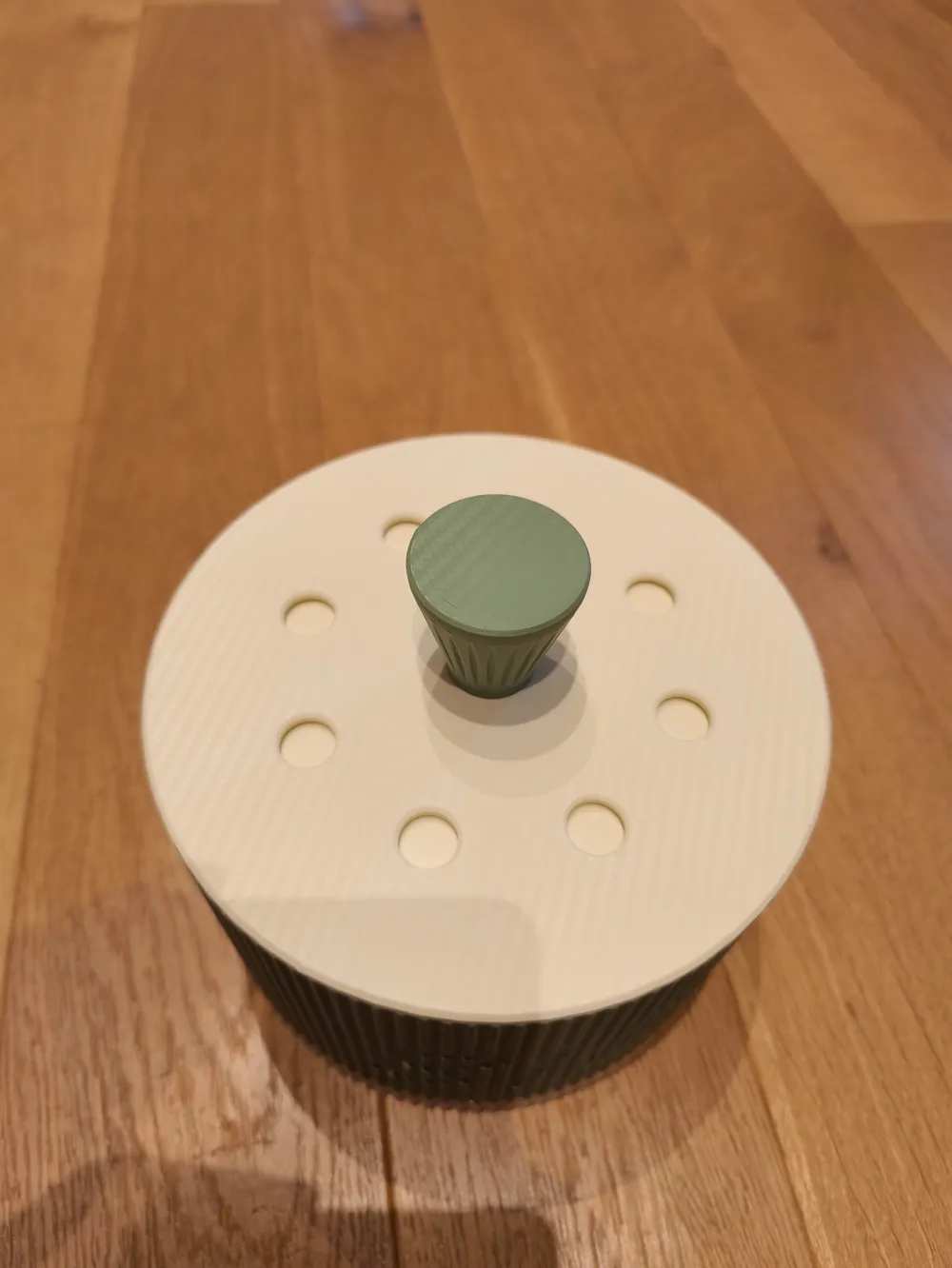

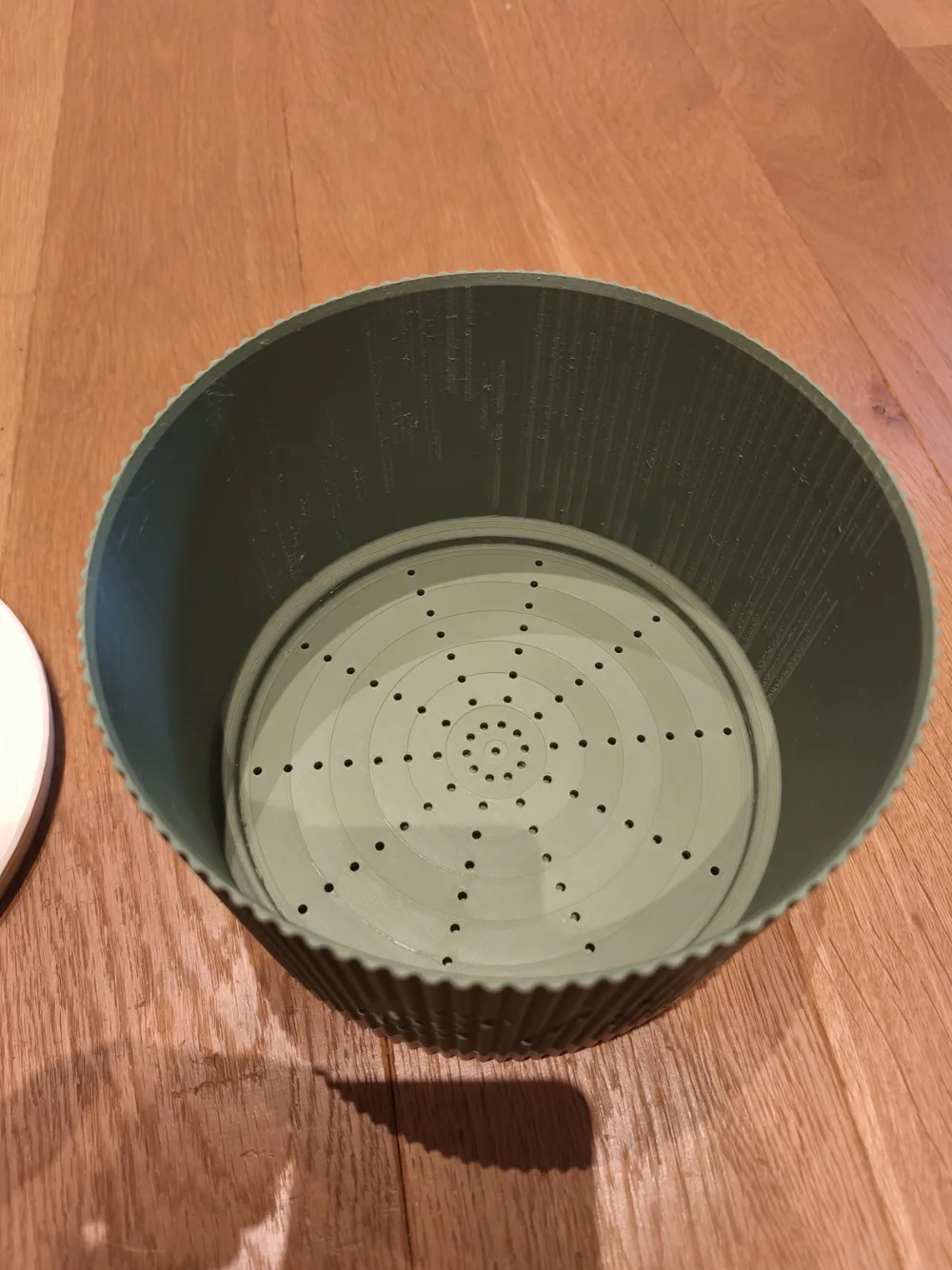

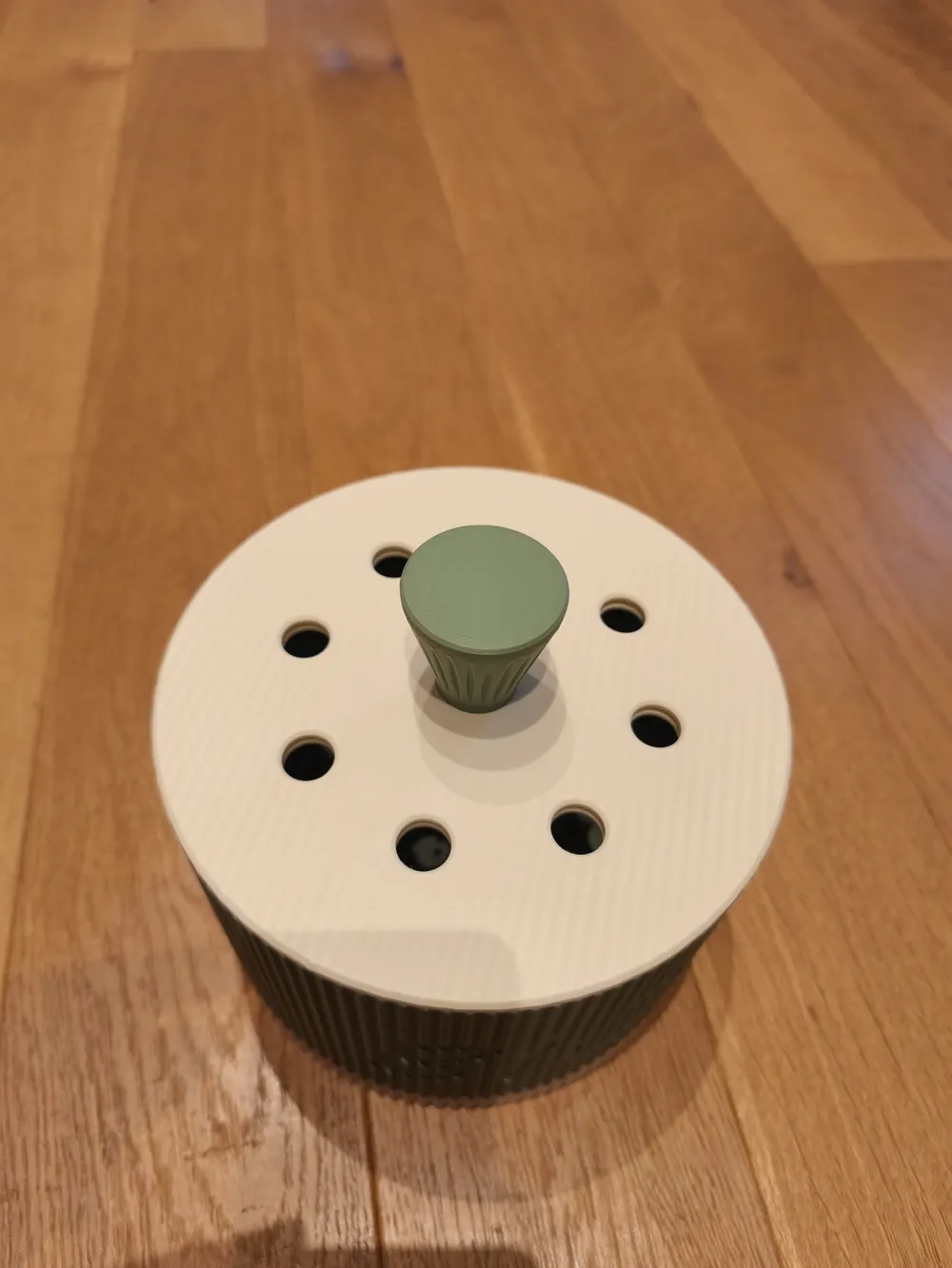

This features a drip tray (underneath the main container) and a rotatable ventilation option in the lid (open - closed)

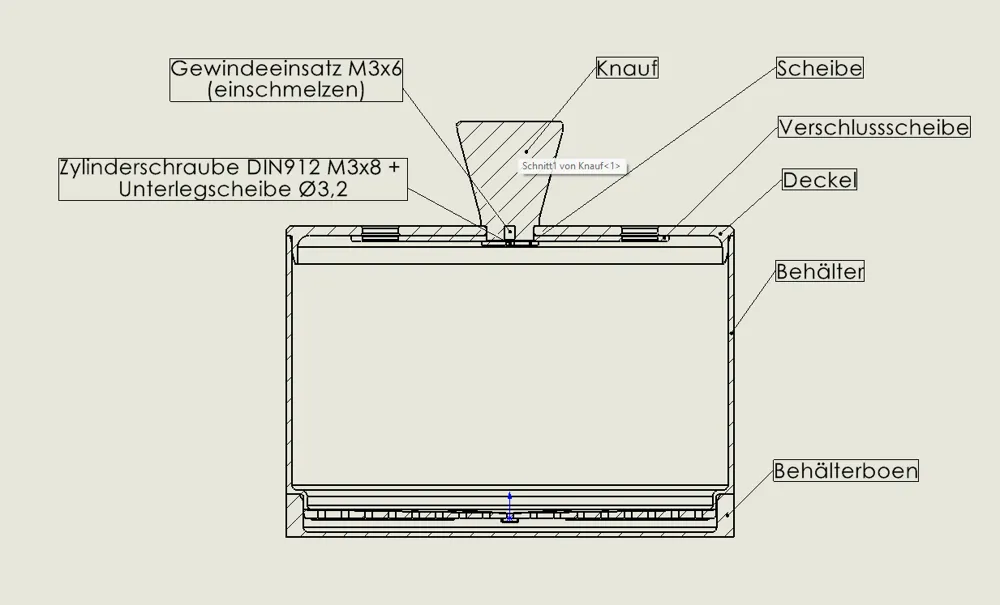

Also included is a sectional view for assembly
An M3x6 threaded insert that is melted into the knob is required, along with a DIN912 M3x8 socket head cap screw + matching washer
The purchased parts are not visible in the section view, but a note has been added

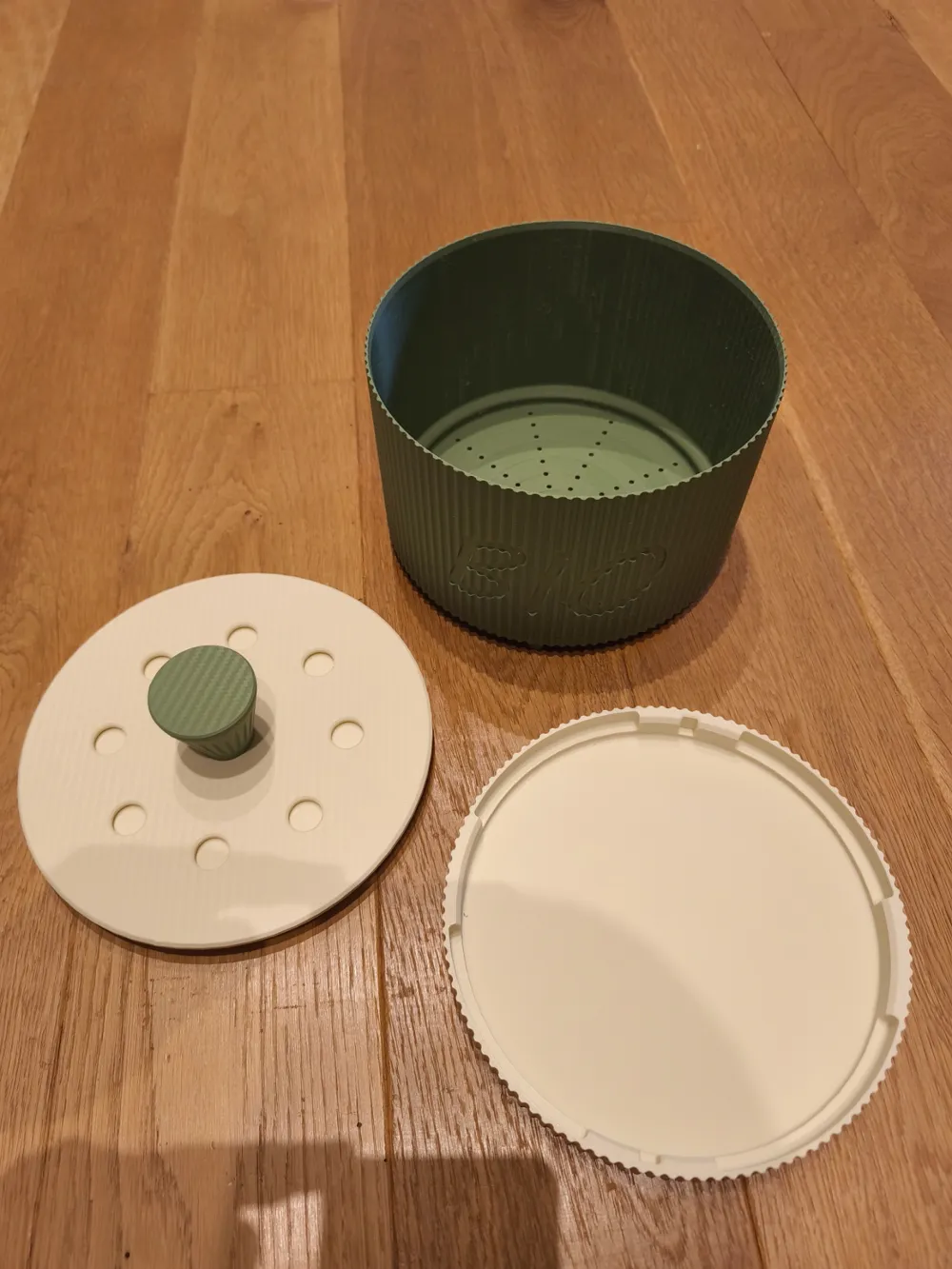

Revision: I have optimized the fitting between the container bottom and the container for clamping
I printed the whole thing in PLA+ on a P2S
Have fun printing, and I look forward to your feedback
