40K Wargaming Vertical Reminder Tokens Set NO AMS

40K Wargaming Reminder Tokens Magnetic System - No AMS Required

My nerd collective was bringing in a few new players and needed a simple way to keep track of what was happening during games. These were designed to make the state of play clearer at a glance without cluttering the table.

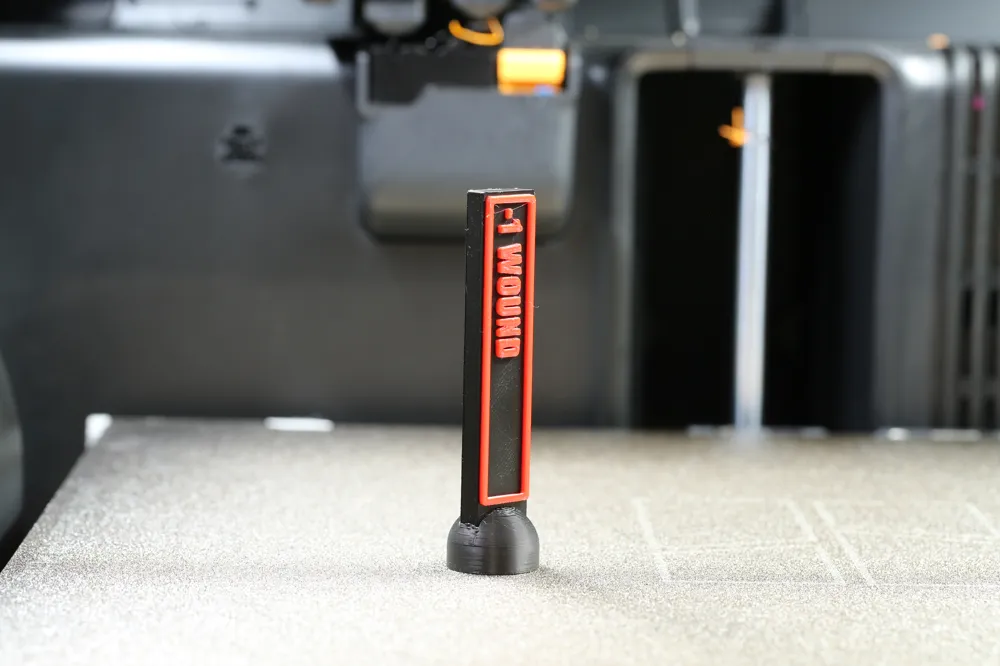

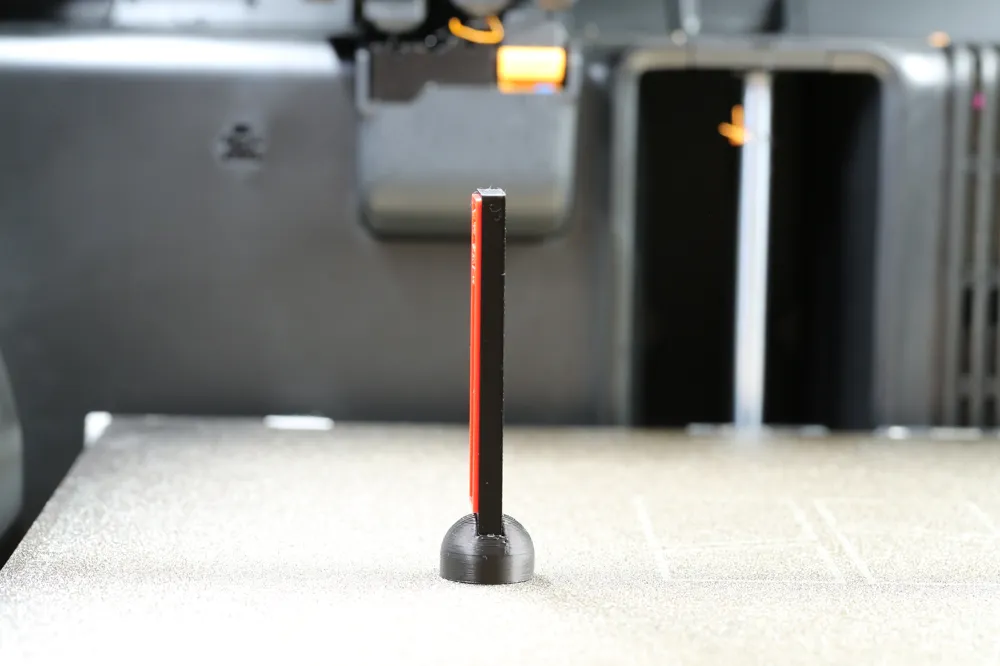

This is a vertical token system rather than flat markers. Each token stands upright so it is easy to see across the board, even mid game.

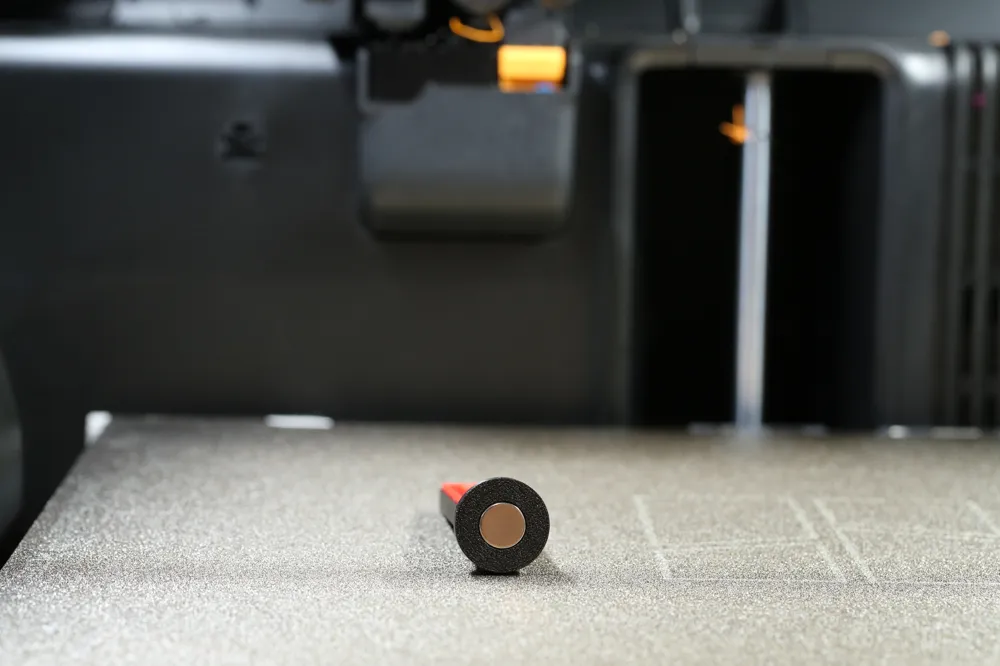

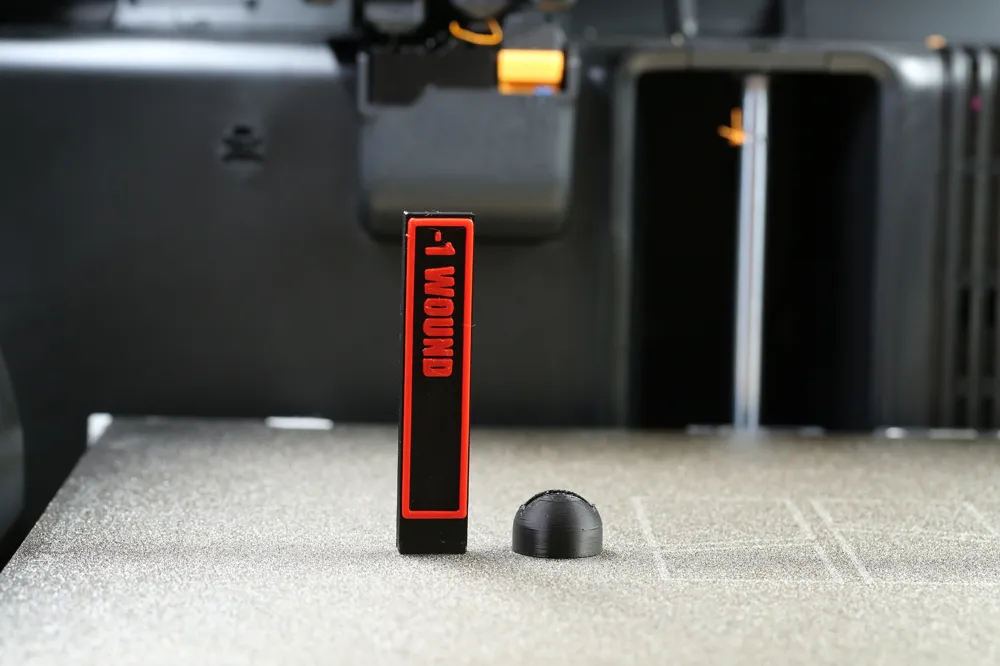

Each token is 80mm tall and designed to print in two parts. The top section presses firmly into the base, and a 3x10mm magnet slots into the underside. The request was to design these as a zero glue solution, so it's tight. Once assembled, everything holds securely but can still be pulled apart if needed for transport. If you experience issues with the magnet on the underside, please let me know and I can release a lower tolerance design. But there this is a .1mm tolerance to hold the magnet in place, tested on my A1, P1S, X1C, H1S and H2D the tolerance was ok.

The goal here was something quick to print, low cost and easy to scale if you need a full set. As the two colours are seperated by layer, there is no need for an AMS. They print fast, use minimal material and are easy to reproduce in batches.

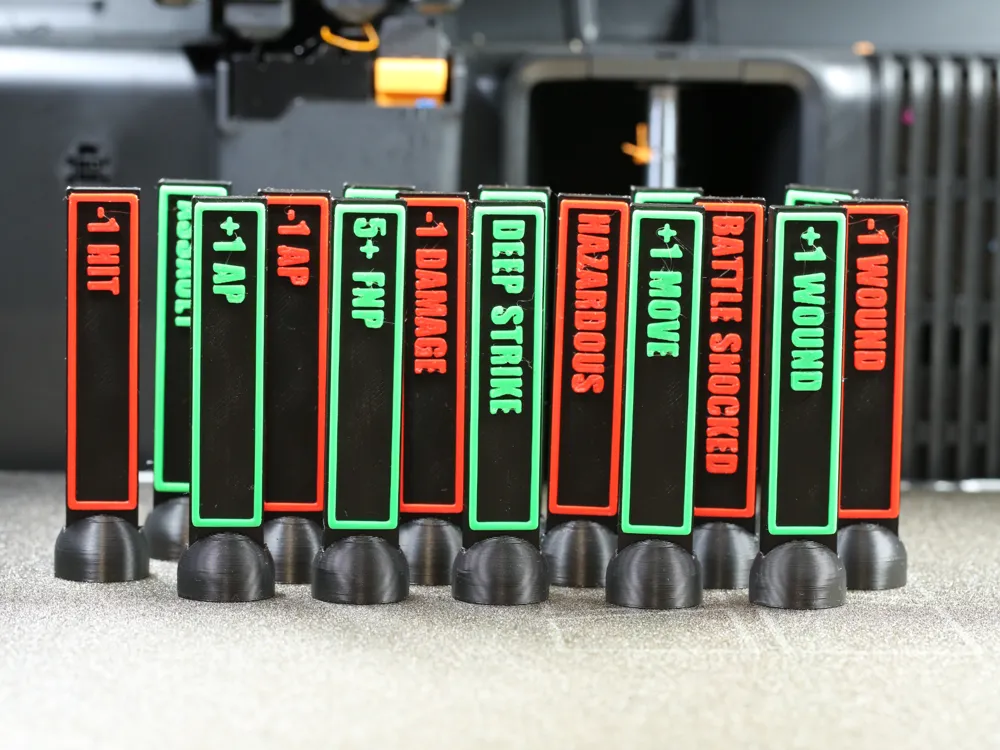

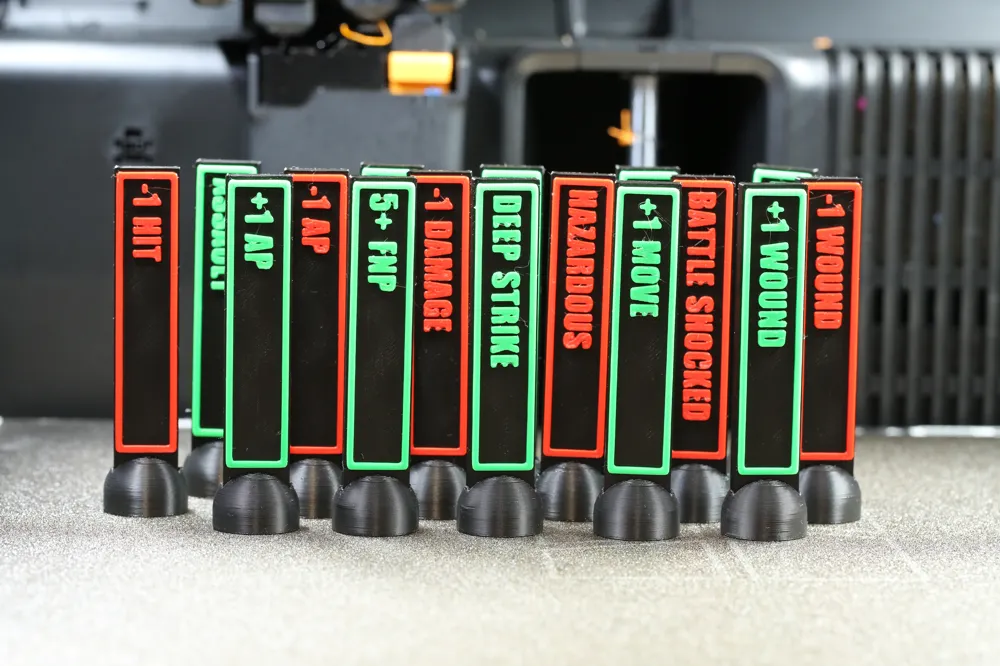

Included are the tokens I was originally asked to make.
- If you want to customise your own, you can edit the text directly in Bambu Studio by selecting the text object in the Objects tab.
- I'm also happy to design some up around your army (faction army emblem on rear, etc) or if you'd like me to customize the text.

Key Features

• Vertical design for clear visibility during games
• Magnetic base using 3x10mm magnet
• Glue free assembly
• Two piece print with simple push fit
• Fast, low material prints
• Easy to customise text in Bambu Studio

These have already been well received locally and are a solid upgrade over traditional flat tokens if you want something more visible and easier to manage during play. The colours can also be customized to match your army colour.

More tabletop tools and 40K compatible designs are on the way.

Design Notes
All files are uploaded exactly as printed unless specified otherwise in project description (normally under a bold, red IMPORTANT). Some designs use different scaling (e.g. drinks lightbox series: front plate 90%, back plate 100%). If resizing, double-check your scale before printing.

All designs are created in Autodesk Fusion. Colours are separated in the Objects tab of Bambu Studio, so you can easily recolour if needed (e.g. single AMS setups).

Want to use this design commercially?
Please do not upload, share, resell, or remix this design without permission or claim it as your own.
These designs take time and care to create and I share them here for the community to enjoy. I’m always happy to take requests, just send me a message!
