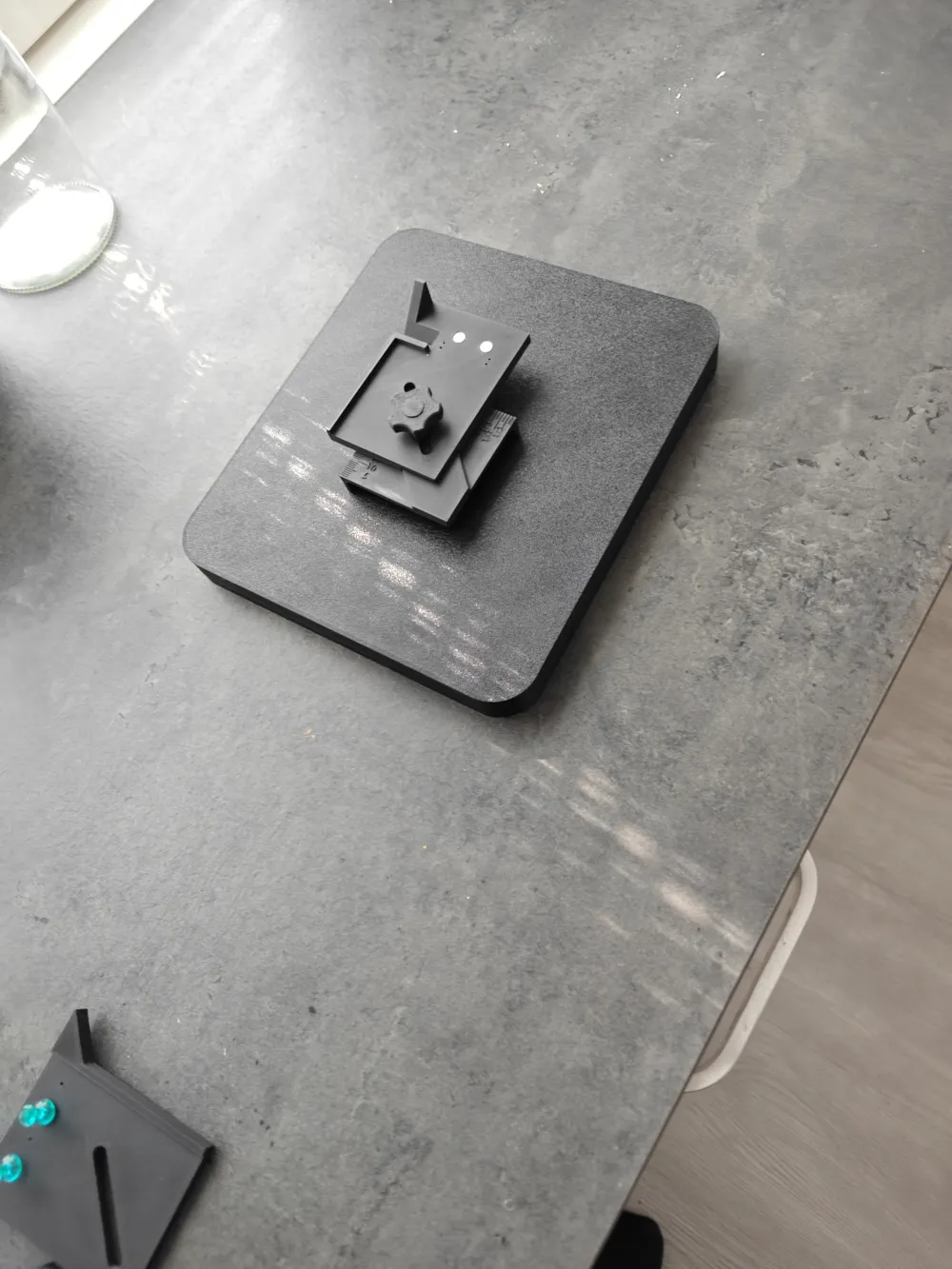

🛠️ Trim Reveal Tool v2–v4
Version Guide
Every version allows you to accurately set and mark your reveals, but each is optimized for a specific workflow:

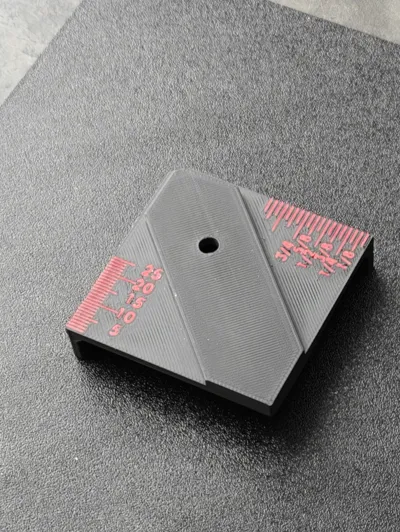

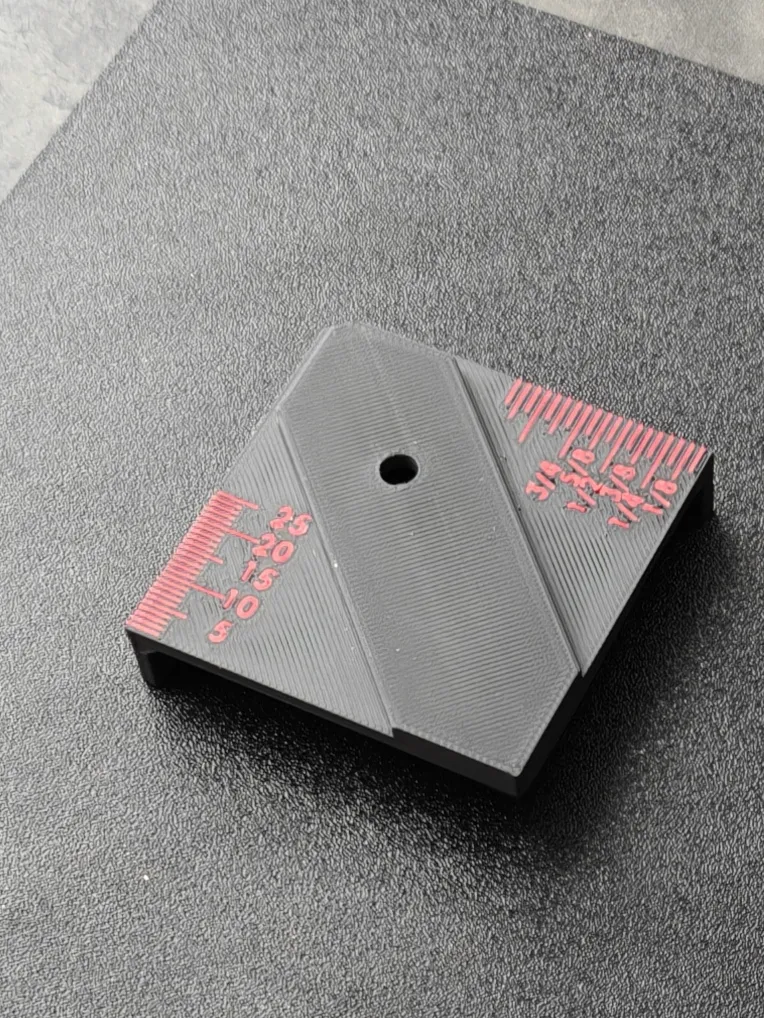

- v2: The essential tool for quick, dual-direction measurements and standard layout work.

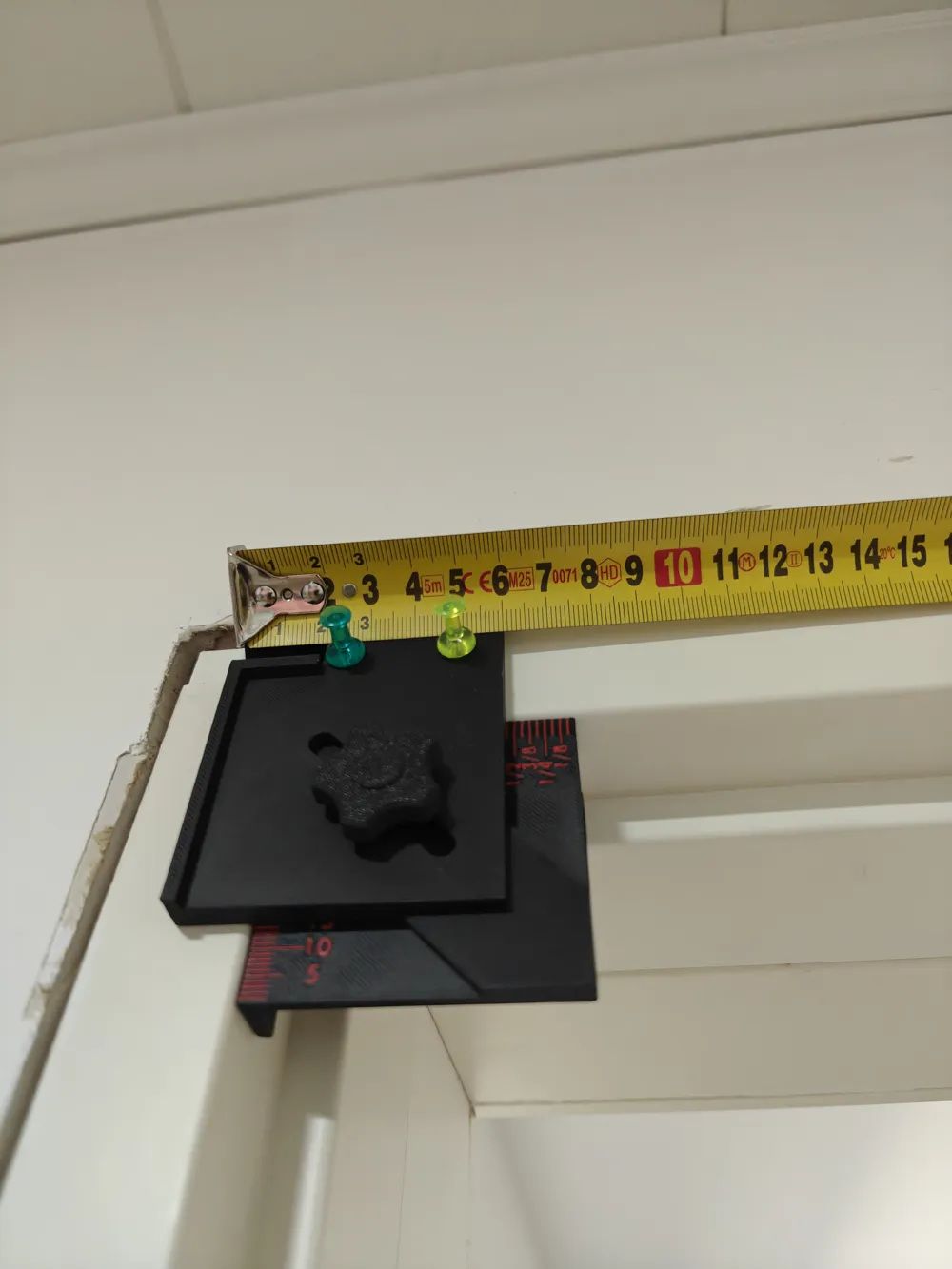

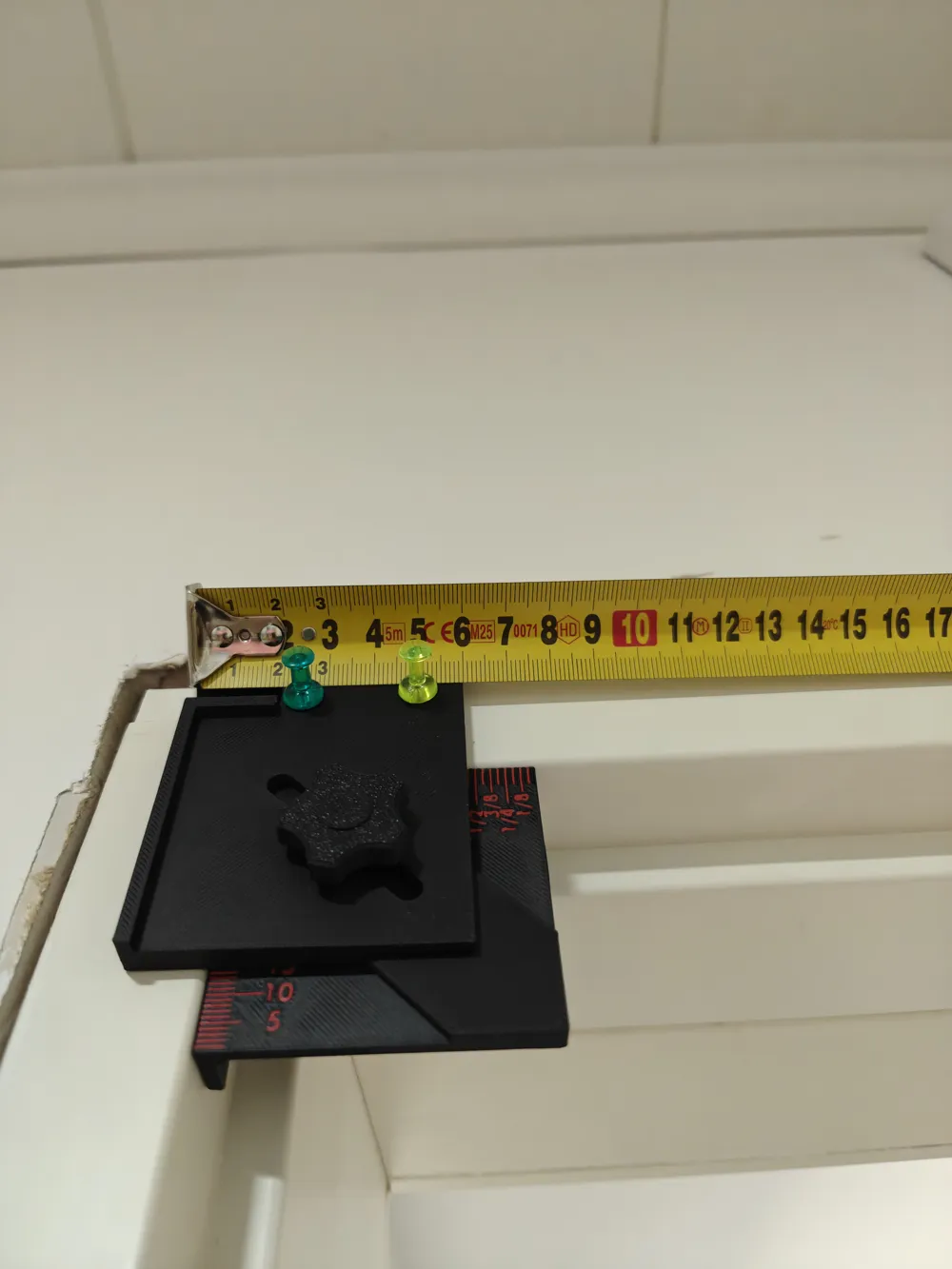

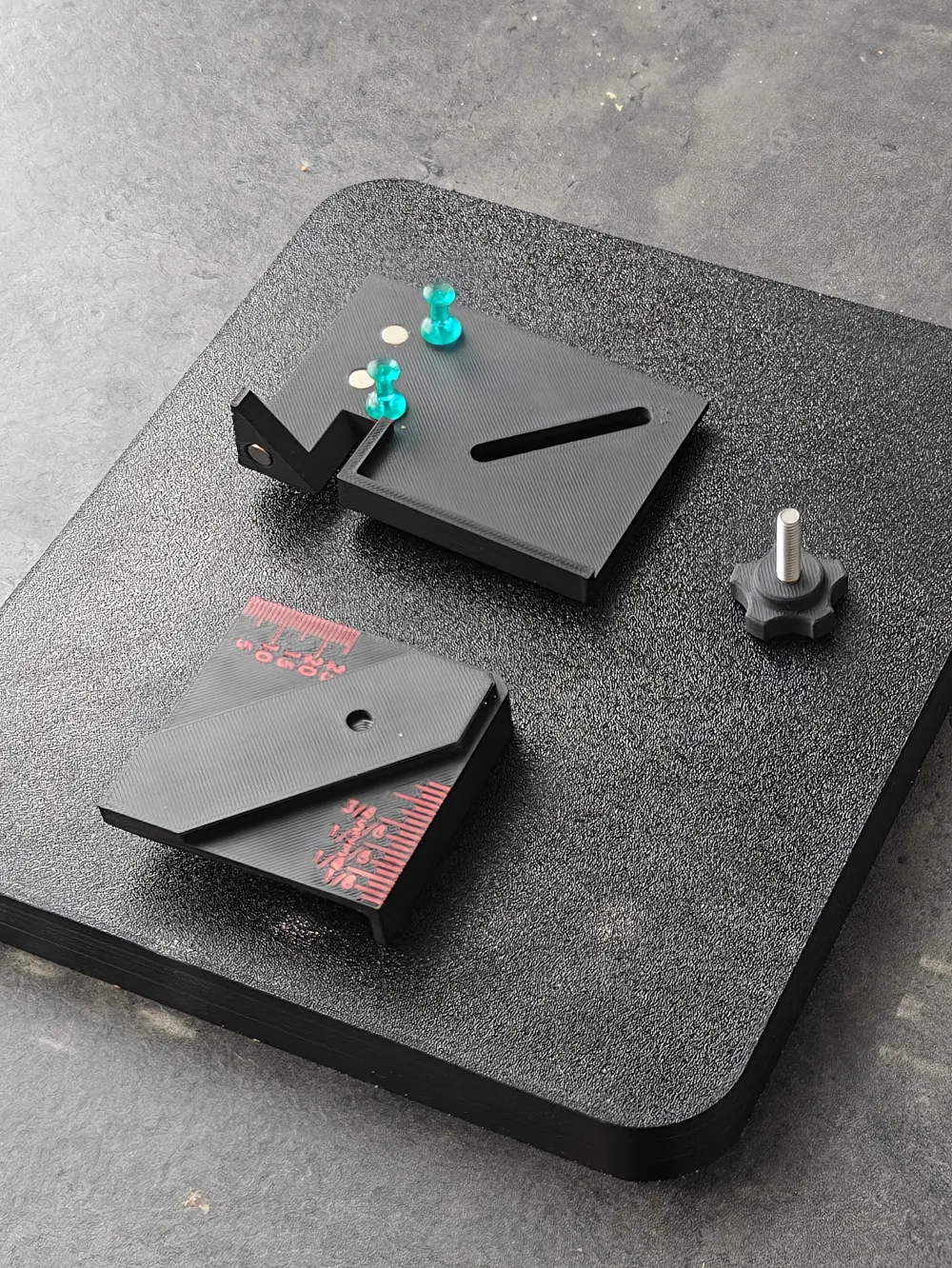

- v3: Features integrated pin-mount holes to secure the tool directly to the frame. Includes slotted pockets to hold a tape measure securely in place while measuring. (Requires an additional 3x 6x3 mm neodymium magnets).

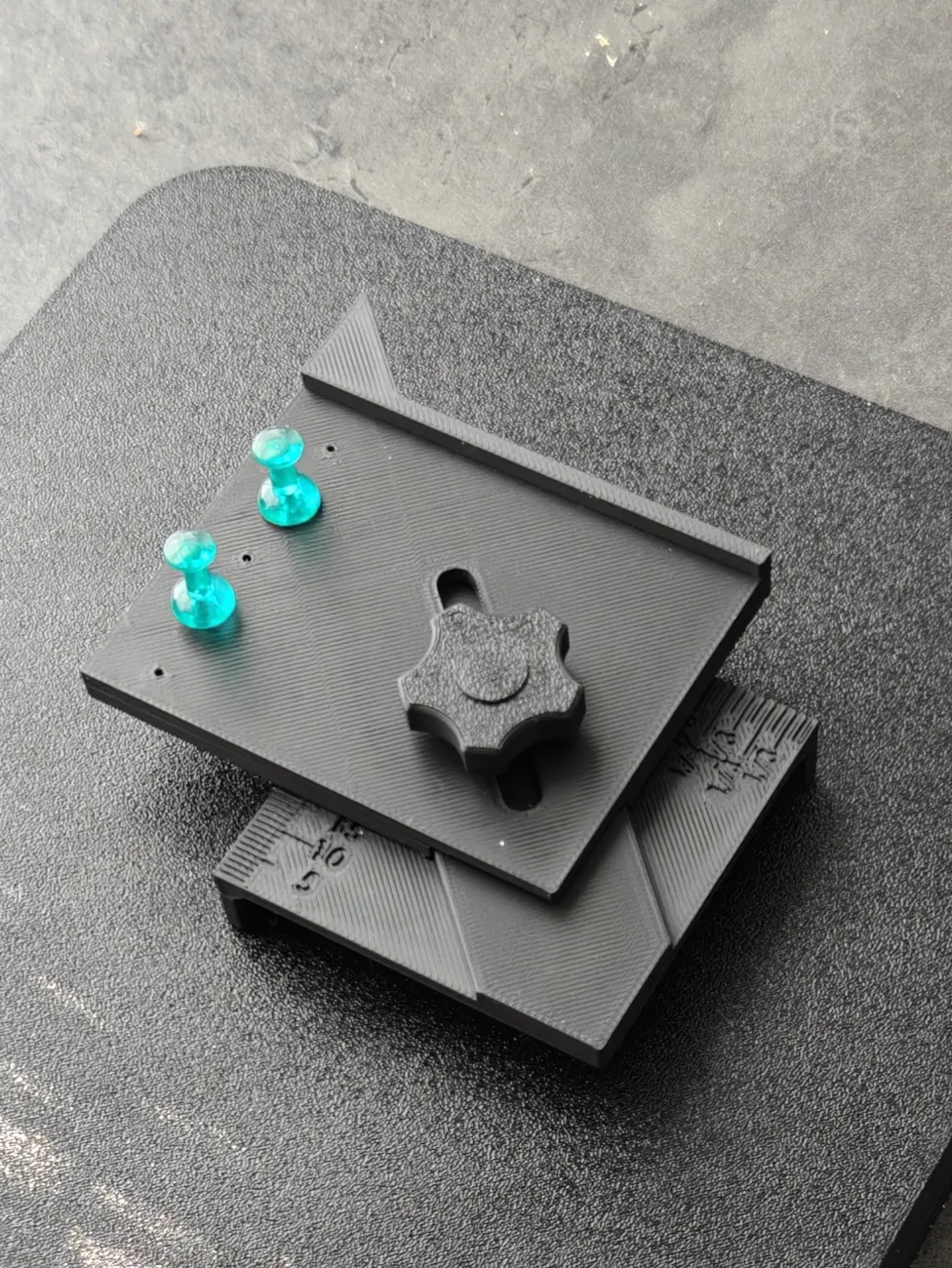

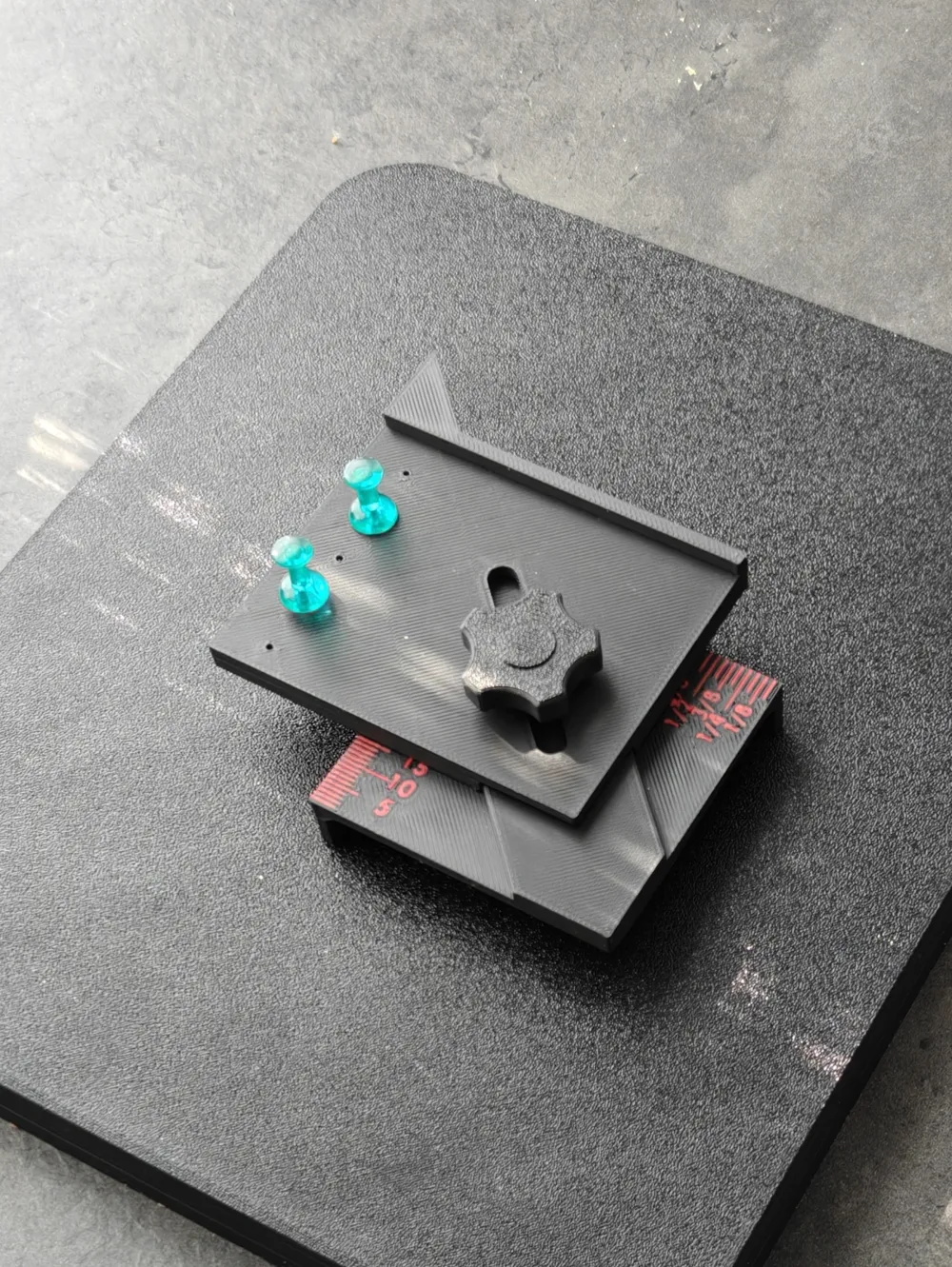

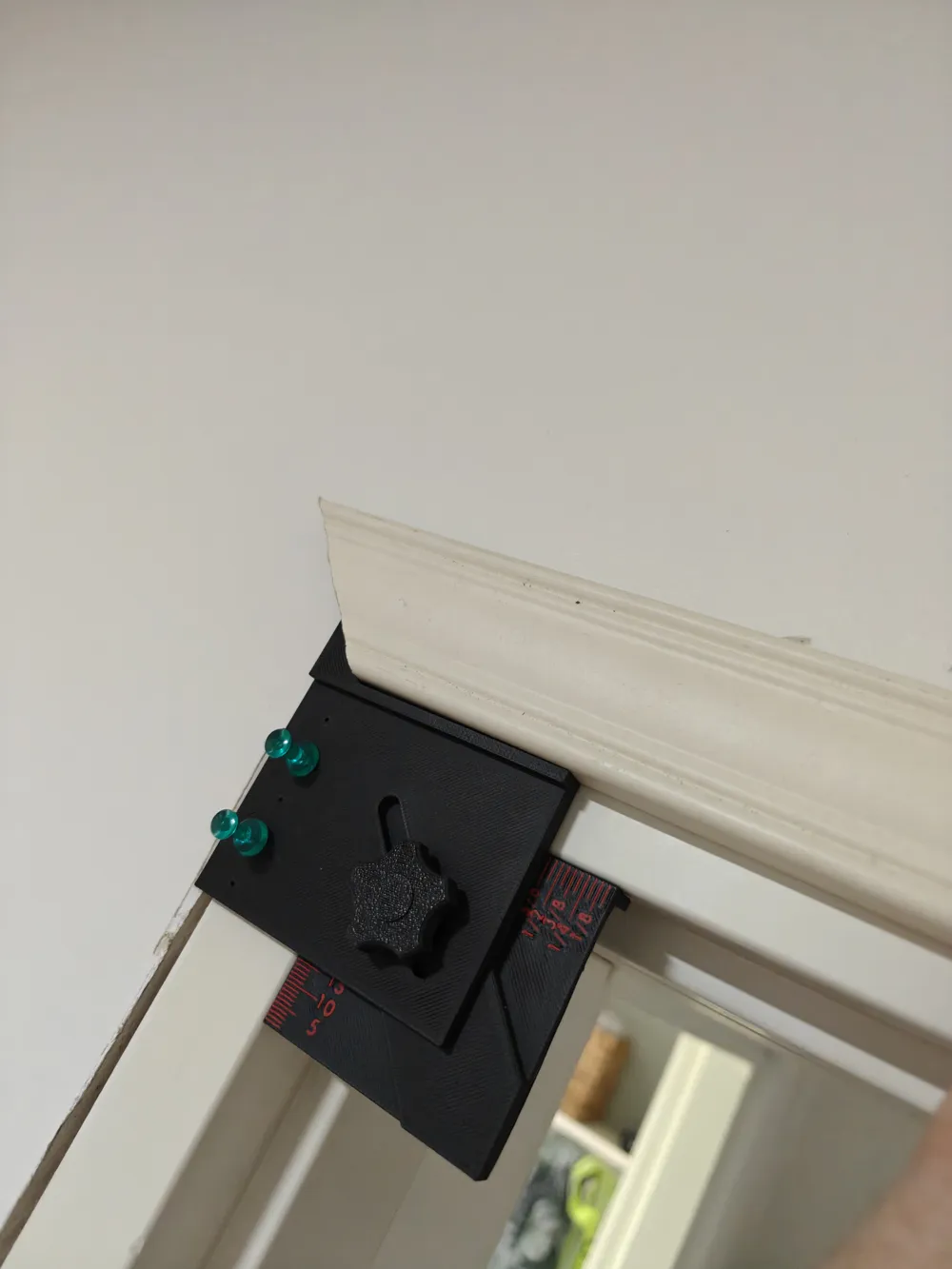

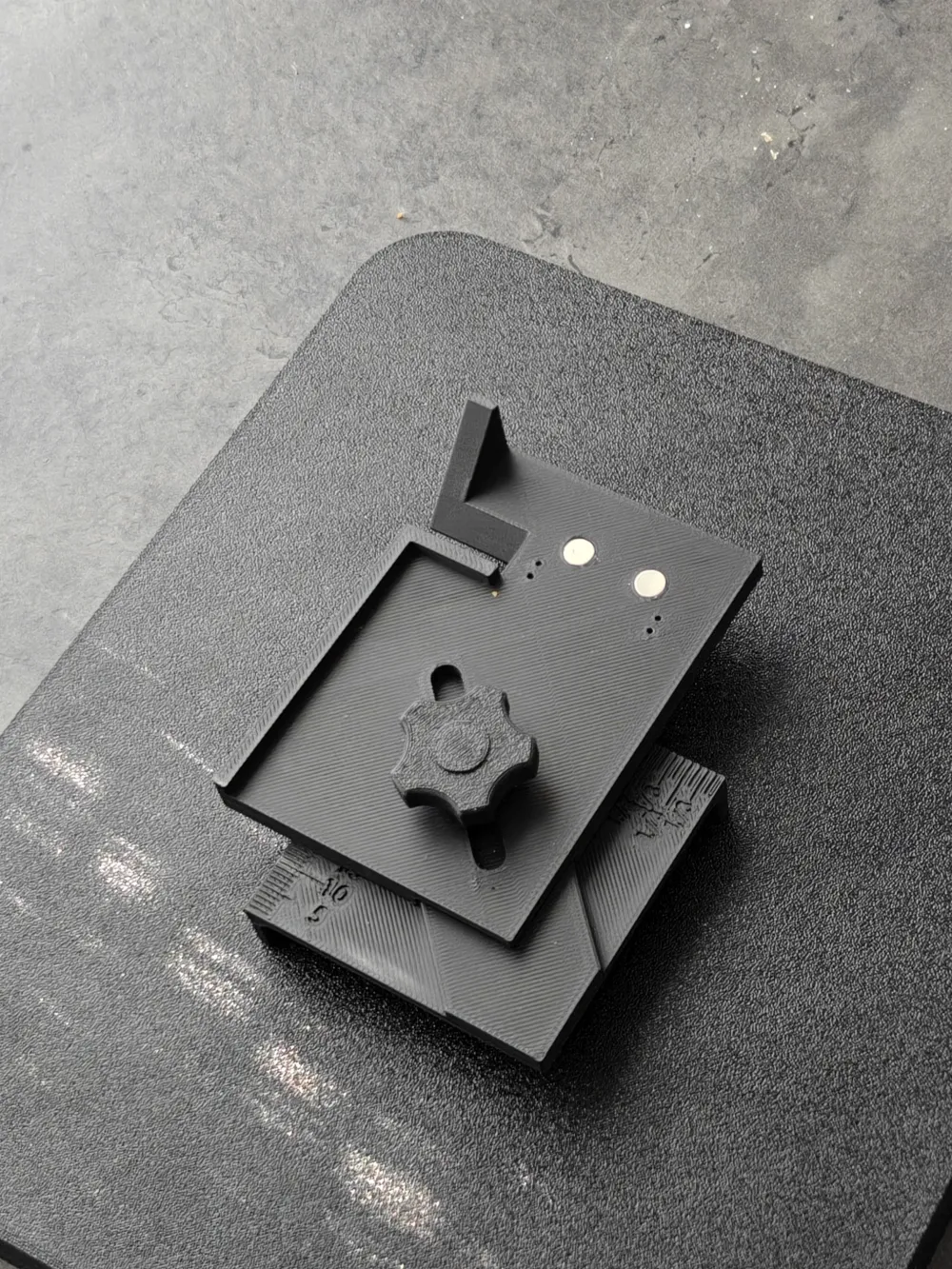

- v4: The advanced version that combines secure pin-mounting with the ability to measure and mark both directions simultaneously. Specifically optimized for 45-degree miter joints, it allows you to place your trim directly on top of the tool against the integrated stop block, letting you transfer pre-marked layout lines straight onto the trim.

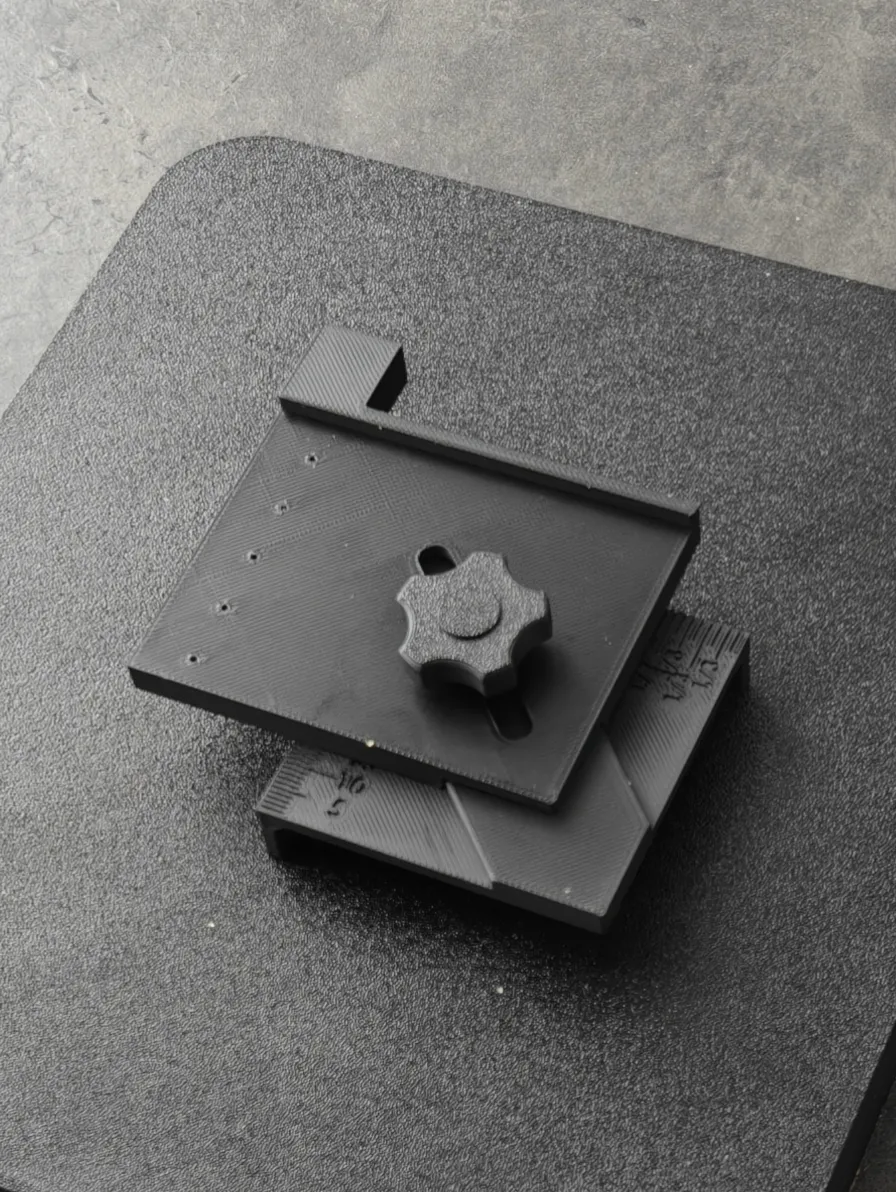

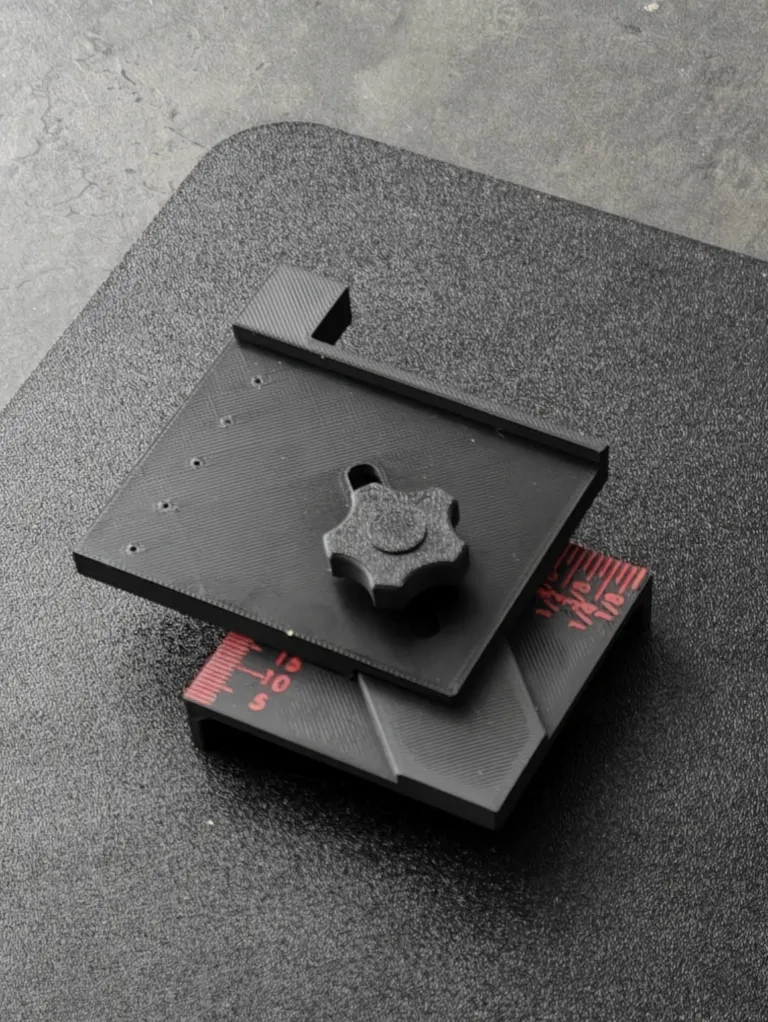

- v4.1 (Straight): A straight version designed specifically for 90-degree joints. Just like the v4, it features an integrated stop block so you can rest your trim on top of the tool and easily mark your pre-measured layout points directly onto the trim.
🔩 Hardware Requirements (Metric vs. Imperial)
The models are identical in function and design. Choose the version that matches the hardware available in your region:
- Metric Version: Uses 1x M5 Nut + 1x M5x20 Bolt.
- Imperial Version: Uses 1x 10-32 Nut + 1x 10-32 Bolt.
✨ Key Features & Benefits
- Universal Reveal Marking: Setting and transferring consistent reveal lines is fast, accurate, and foolproof across all versions.
- Hands-Free Support: Rest your trim directly on the gauge block for steady, one-person installation.
- Transfer Efficiency: Easily transfer accurate marks directly to your stock without juggling a tape measure.
- Modular Compatibility: All versions share the same base design, allowing you to swap top add-ons easily without needing to reprint the entire assembly.
💡 Pro Tip: Choose the specific version that matches your current task, or print the full set to ensure you have the right tool for every corner, angle, and frame type you encounter on the job site!
