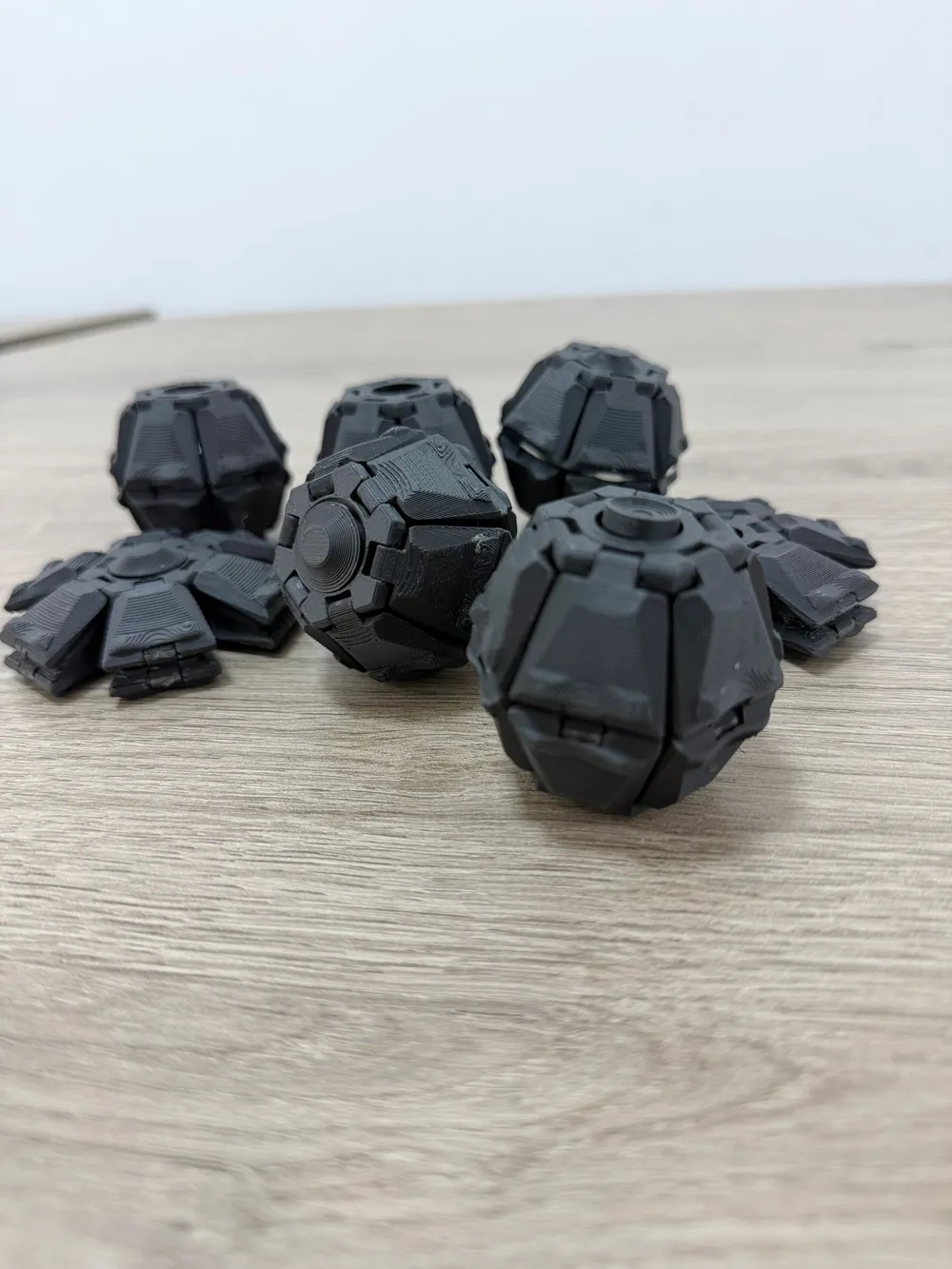

Fidget spinner and squishy ball(No assembly need)

GIF
GIF

Print Profile(1)

All
P1P
P1S
X1
X1E
H2S
A1
X2D
H2C
A1 mini
H2D Pro
P2S
H2D
X1 Carbon
A2L

0.16mm layer, 4 walls, 15% infill
0.16mm layer, 4 walls, 15% infill
Designer
2.1 h
1 plate
3.2(24)

Open in Bambu Studio
Boost
618
1400
107
9
1.4 k
896
Released

Description

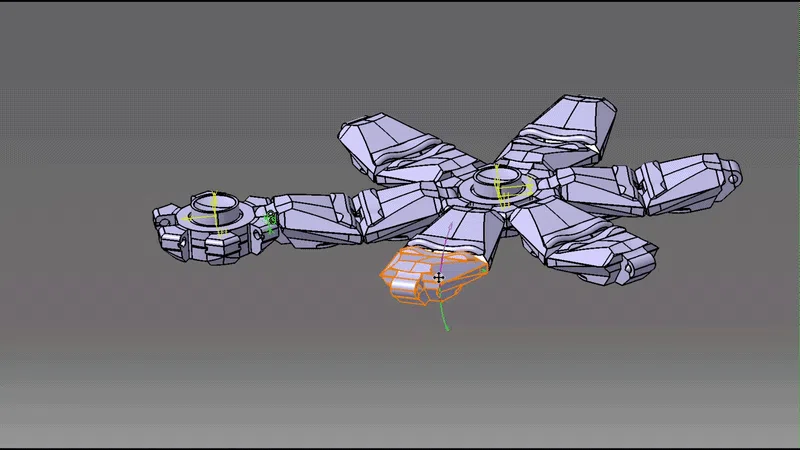

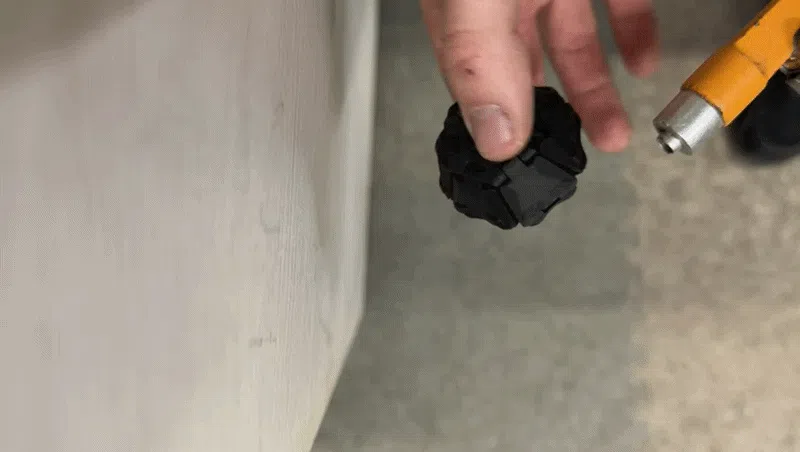

Do not use white color pla (is working perfectly with charcoal black). Rubber does not break, rounded corners! This model is adapted from my previous model which is based on a fidget spinner bearing. In this model I adapted a bearing and it prints completely. Watch the assembly video carefully, it should take less than a minute. After it has been printed, you need to clean the support that was generated only between the 2 petals and if you want in those holes. Those holes are for adding magnets if you want the repulsion part to be stronger. Do not rectify the settings, I slowed down the speed a lot to be able to successfully print the balls in the bearing. In the videos in the archive you will be able to see how the ball moves and how it sounds at a higher speed using a compressor. To make the bearing run better, you can add a lubricant (I used W40). The model is also resistant to shocks and I used special angles so that it is easy to assemble.
