Feiyan One with full interior details (featuring bomb bay and cockpit details, 1/64 scale, fully color-separated)
Print Profile(7)
Bill of Materials
Description
Boost Me (for free)
Thank you for your support! I will create more TPC universe-related models
Snow White has been released

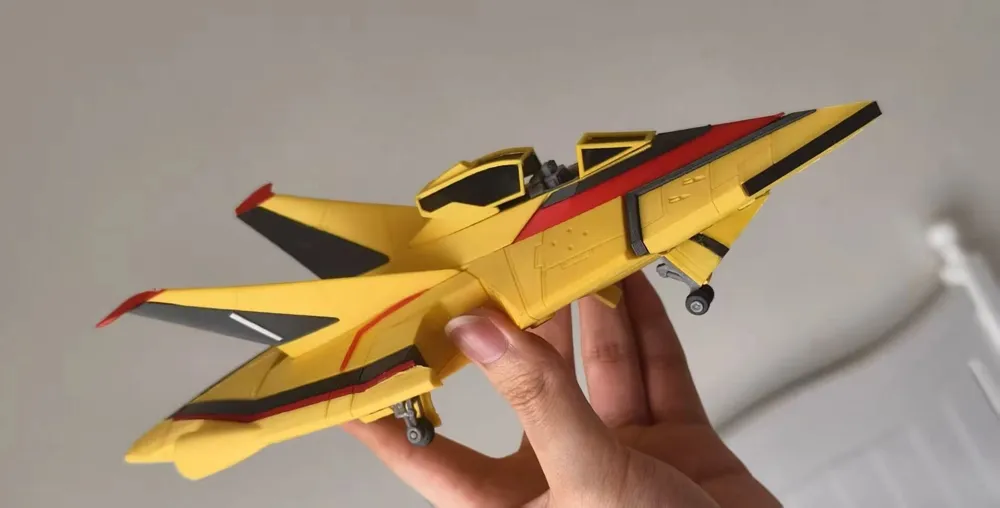

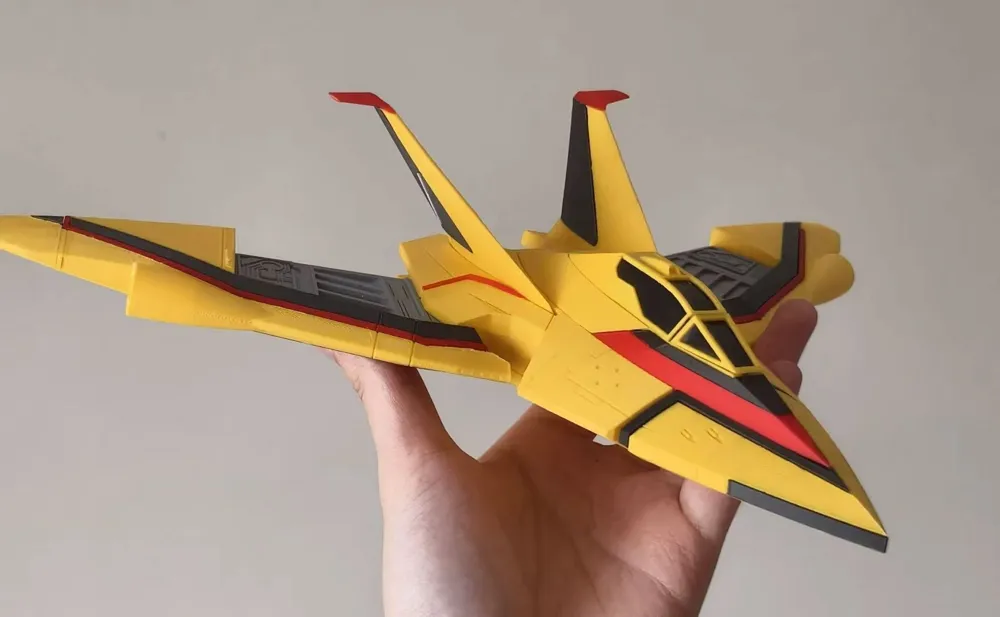

Swallow No 1 1/64 full interior, fully color-separated assembly model
0 Update Log
2026/5/21 - Released DLC assembly tutorial
【Victory Blue Hurricane & Fire Dragon Assembly Tutorial - Bilibili】 https://b23.tv/CCjLbNV

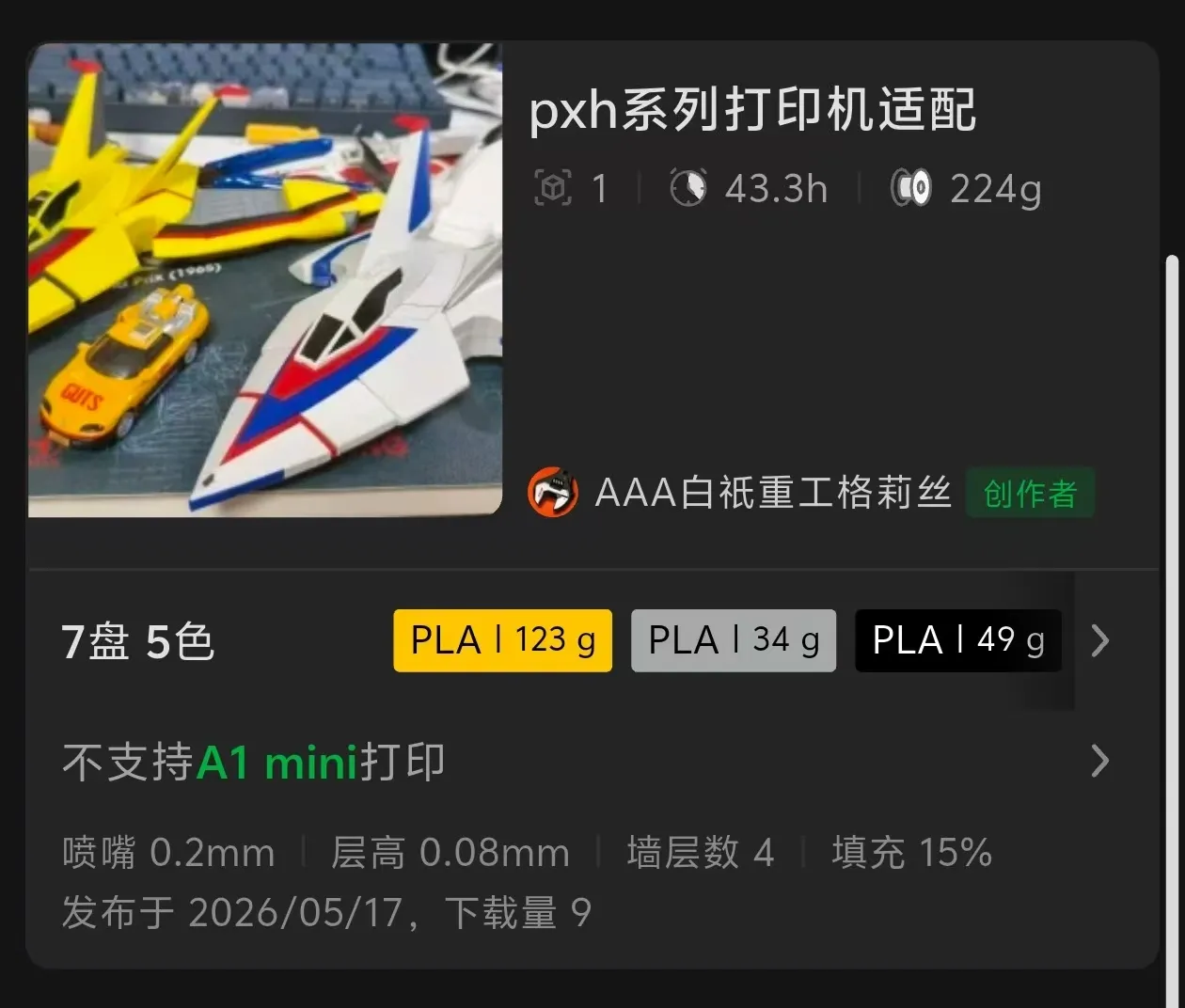

2026/5/18 - Pre-plated for pxh series printers

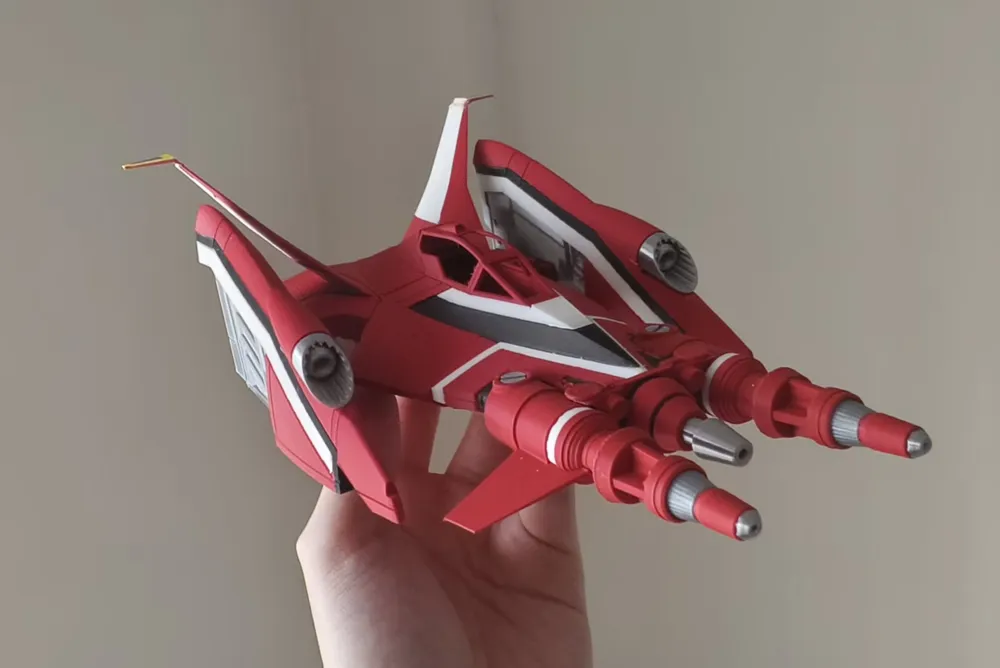

2026/5/13 - DLC Victory Fire Dragon: Added Victory Fire Dragon modification parts. When printing the universal main body, please change yellow parts to red, black parts to white, and red parts to black

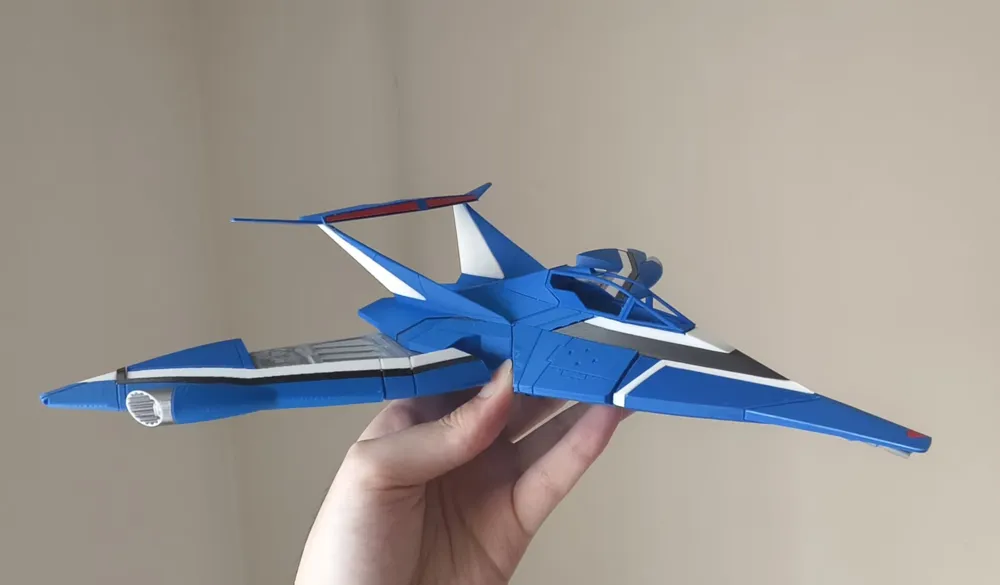

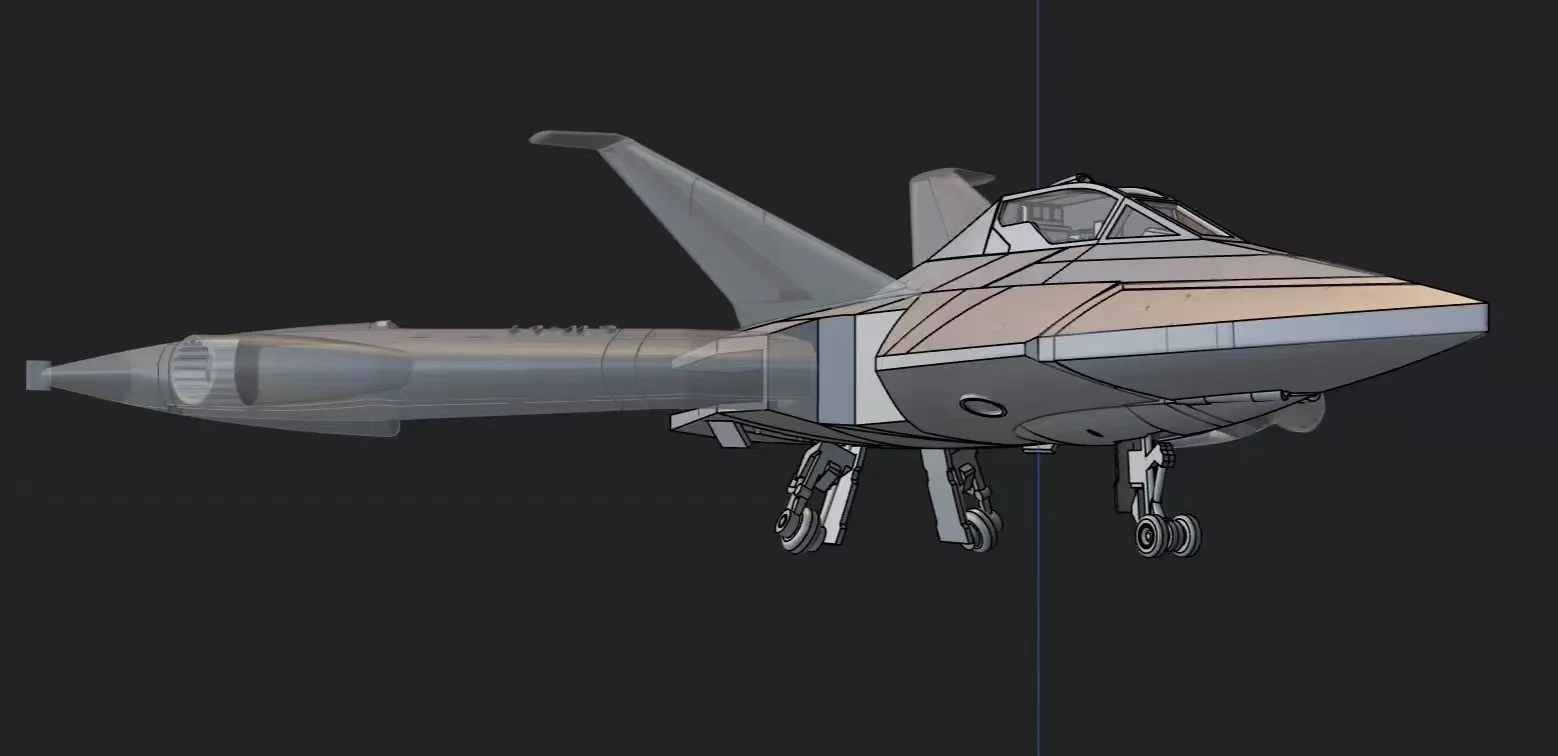

2026/5/7 - DLC Victory Blue Hurricane: Added Victory Blue Hurricane modification parts. When printing the universal main body, please change yellow parts to blue, black parts to white, and red parts to black

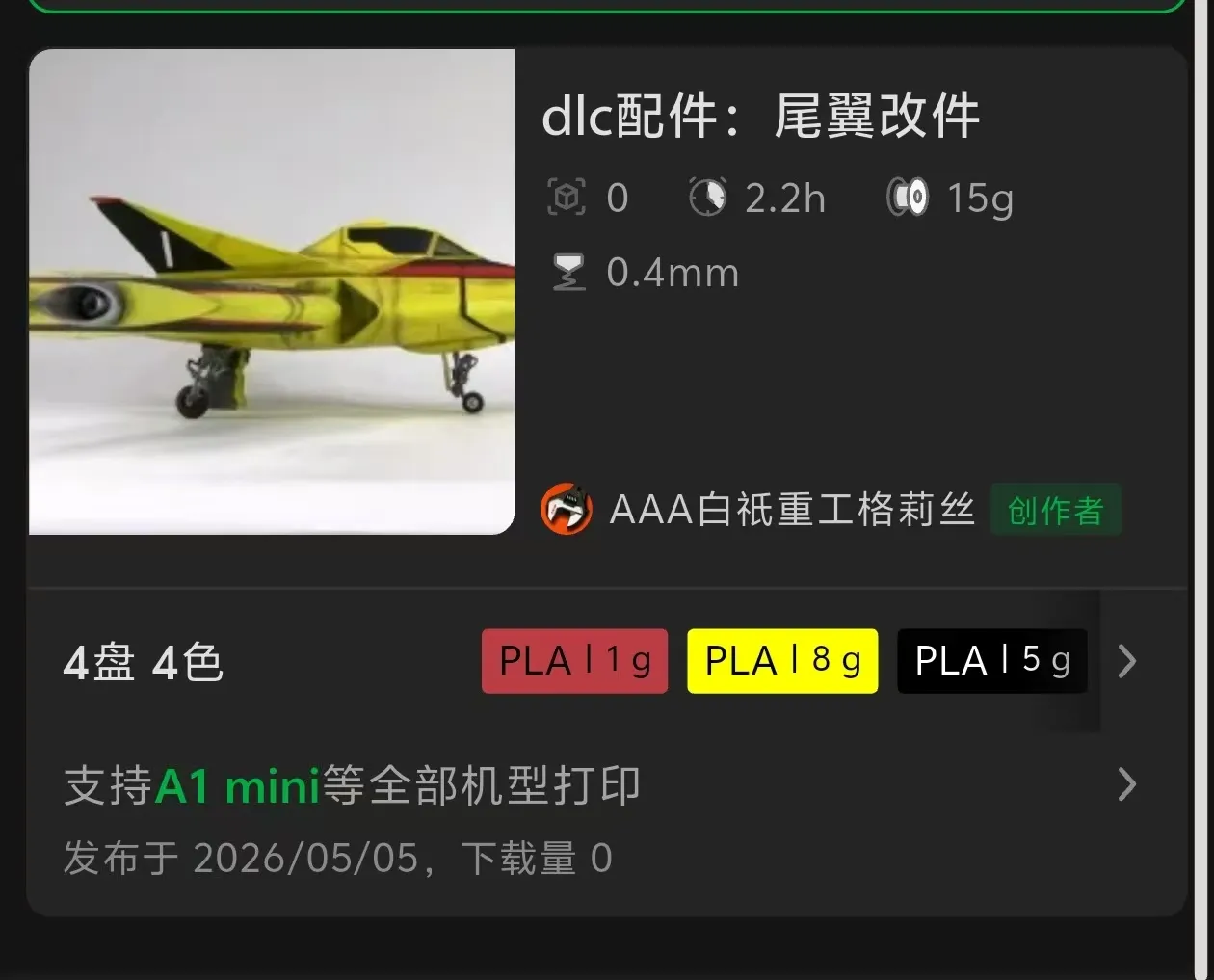

2026/5/5 - Tail fin modification: Adjustments made to address user feedback regarding insufficient tail fin accuracy

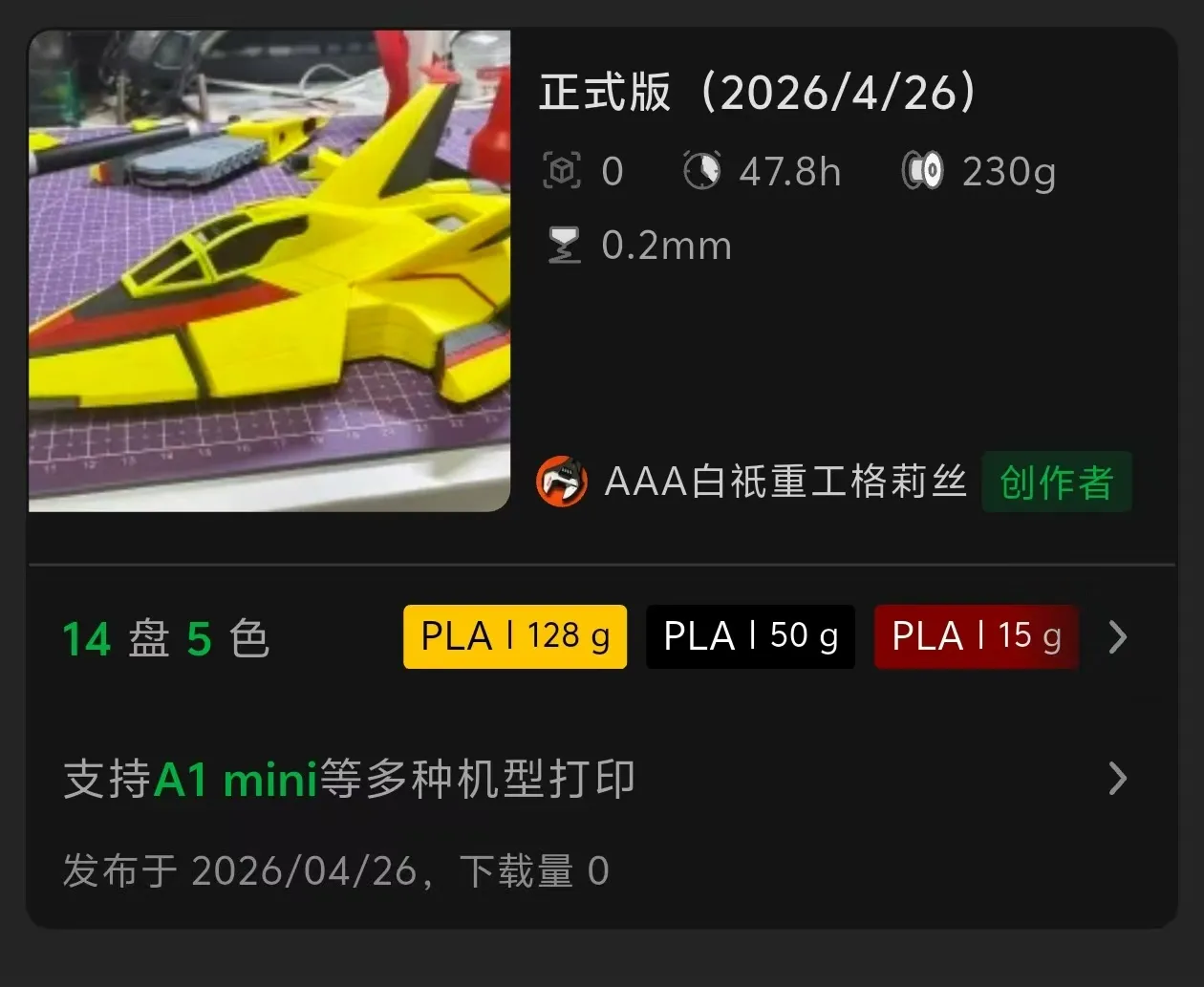

2026/4/26 - Official Version: The official version has been released. Please select the official version for printing! Both wings and nose are modular parts, and I have enabled remixing permissions. You can create Fire Dragon and Hurricane accessories and publish them on MW
A 3-axis display stand is currently being conceptualized
2026/4/20 - Beta Version: The currently released version is an early beta. Wing storage joints are not yet designed, and assembly drawings have not yet been created. Use with caution. The base and display stand are also under development
Scroll down to Chapter 4 to view the assembly video link ↓↓↓
1 Design Description

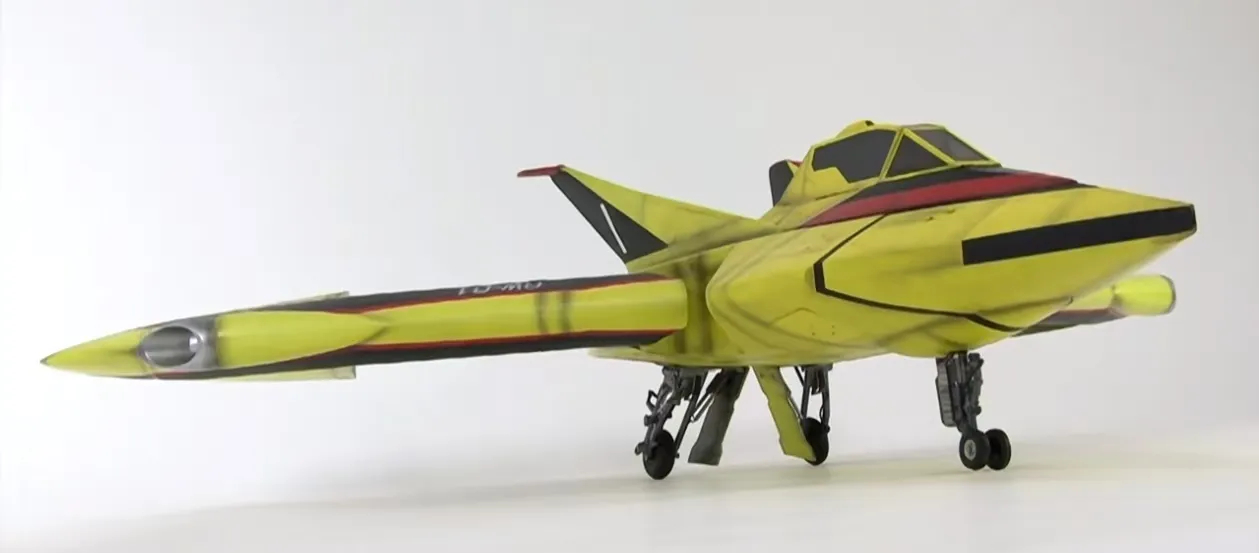

Hand-modeled using plasticity, aiming to restore the details and settings of the filming props as much as possible. Below are comparison references
- Landing gear Features a rotating shaft design, can be deformed for storage
Official design drawing (PS: The prop team installed the front landing gear incorrectly here)
Modeling diagram
- Bomb bay Restores the internal ribs of the bomb bay and a rotating shaft opening/closing design
Bomb bay details in a still from "The Great Fog Approaches"

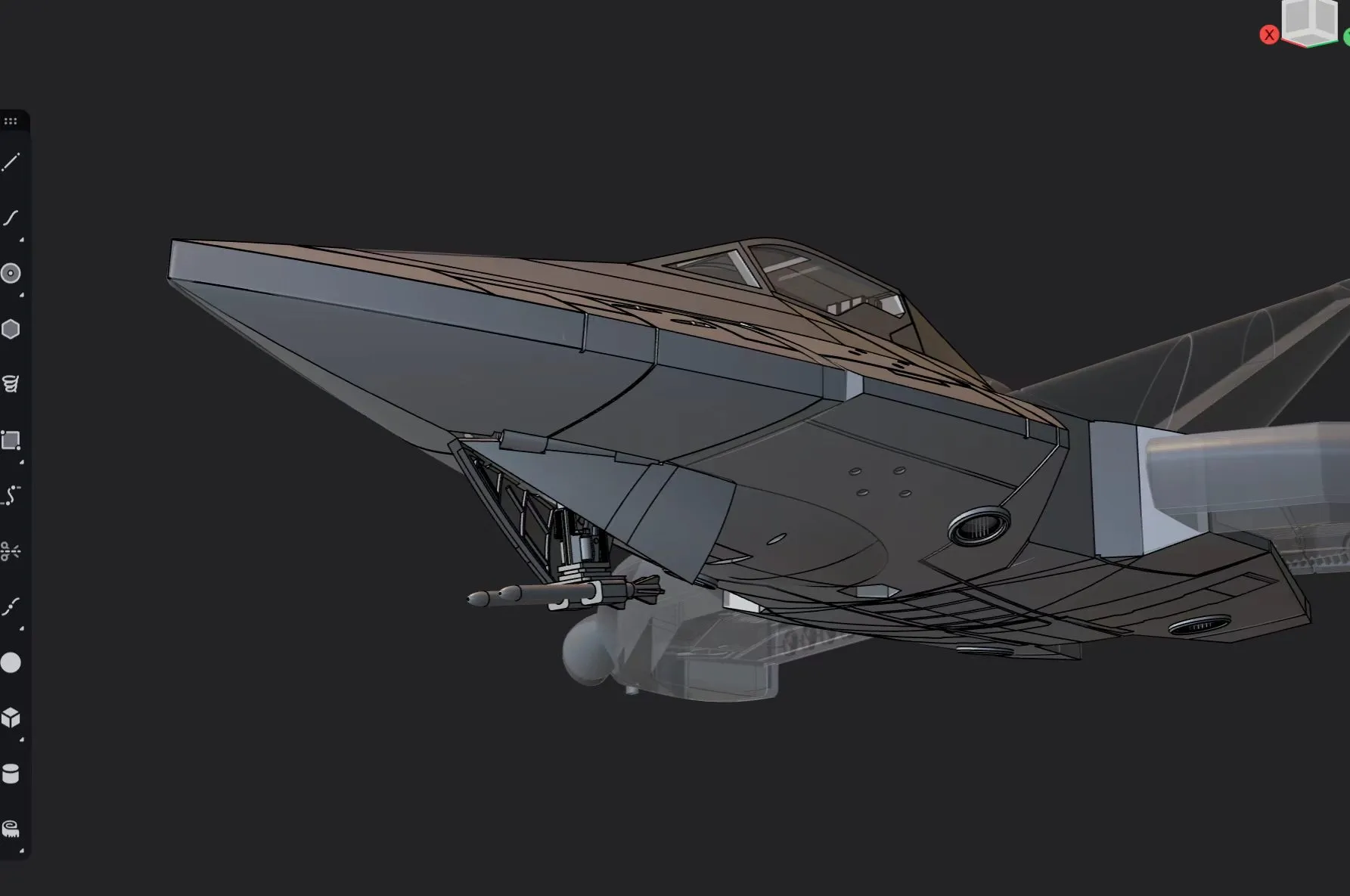

Modeling diagram

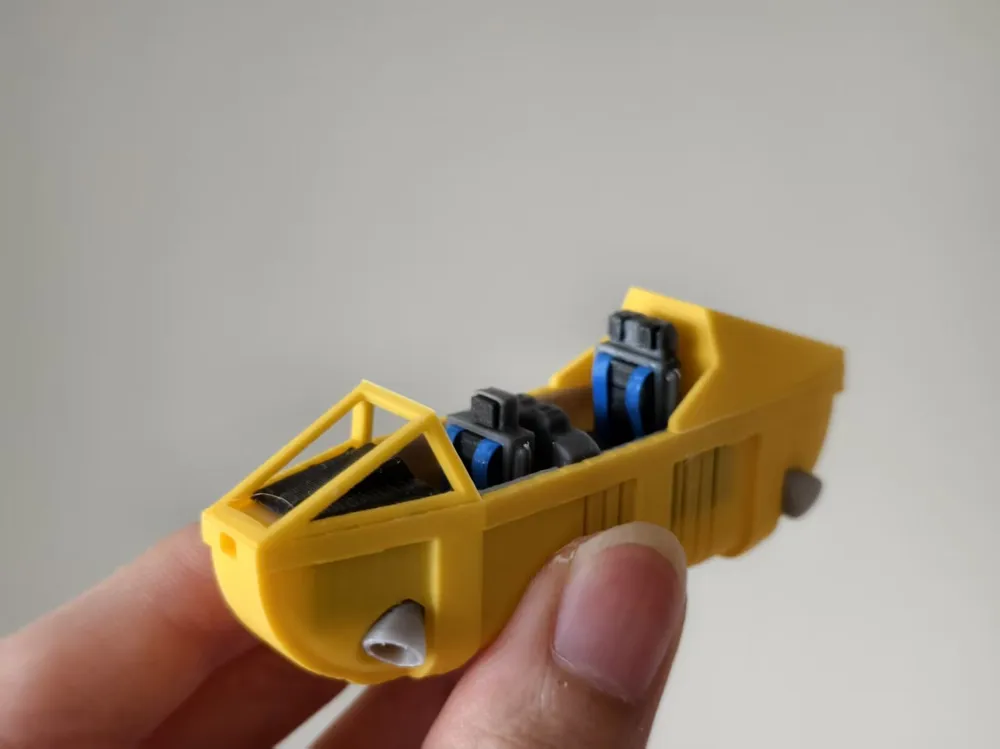

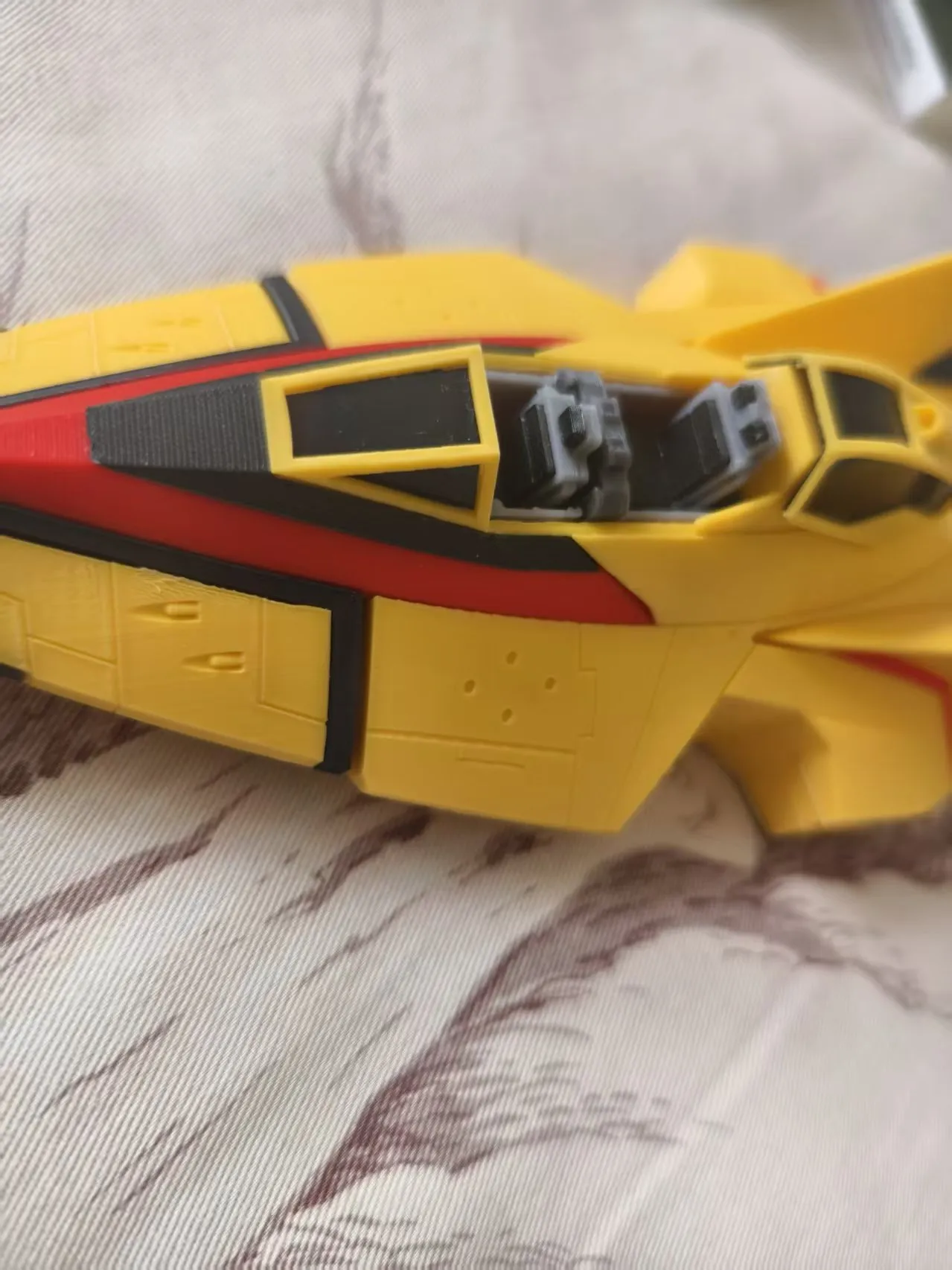

- Cockpit Restores the space escape pod setting and seat avionics system. The glass is made of transparent cardstock
Escape pod setting in a still from "Rush to the Universe"
Cockpit details in the behind-the-scenes footage of "Flying Higher"

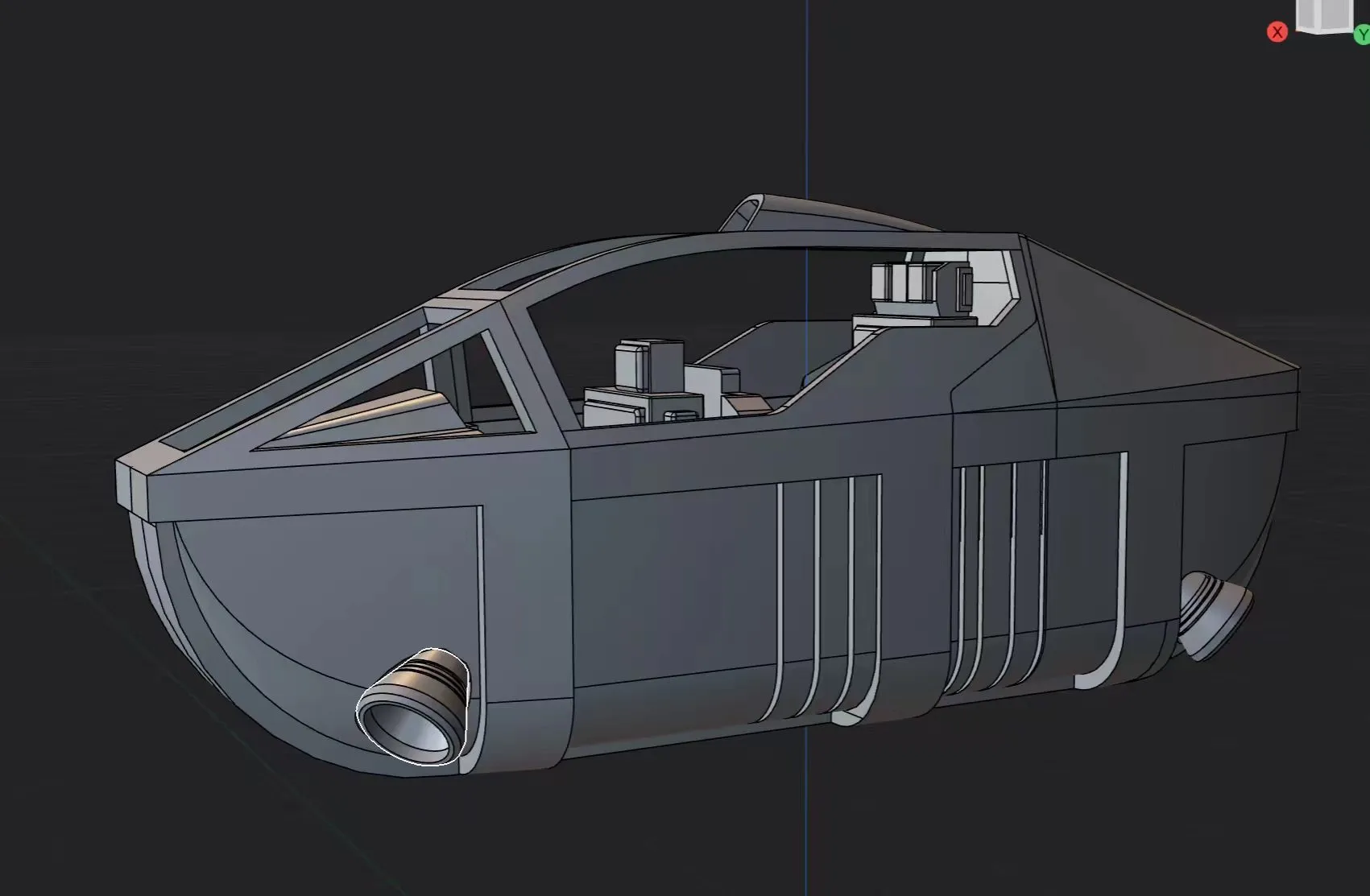

Modeling diagram
2 Printing Guide
Color chart
Yellow PLA Matte is also very suitable. If anyone has more suitable filament colors, feel free to recommend them in the comments section
- Print settings
For small parts of the cabin and landing gear, it is recommended to print with a 0.2 nozzle

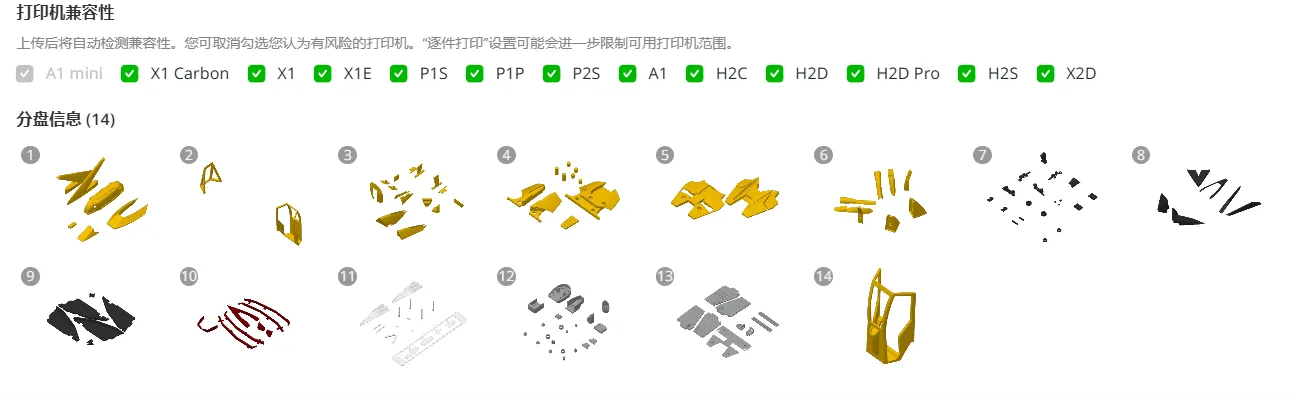

Also, many users have recently asked me why their printers are incompatible. I don't know either; my configuration has all options checked. Of course, if anyone knows the reason, please tell me. Thank you. If there are compatibility issues, please try using the desktop version. You can also publish updated configurations for other printers here
3 Other Parts Description
Material | Quantity | Image | Purpose |

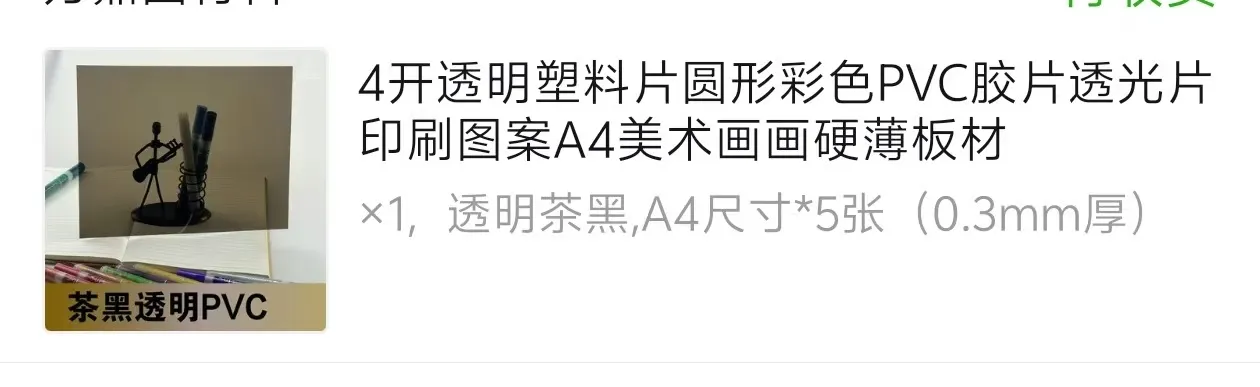

PVC brown-black transparent film | One A4 sheet |  |  Cockpit glass |

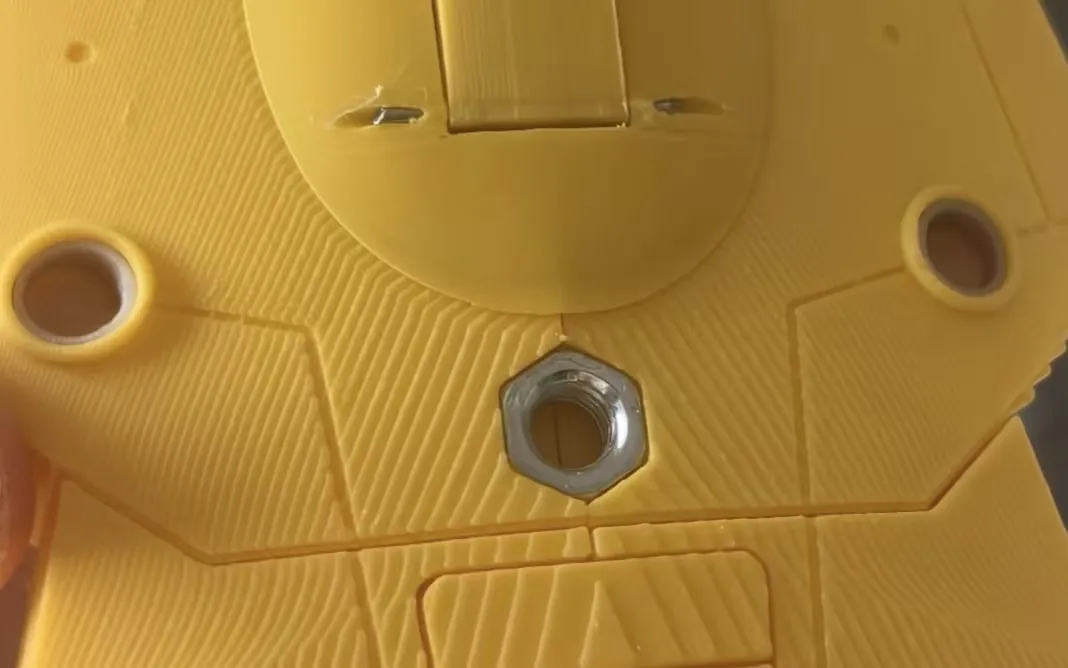

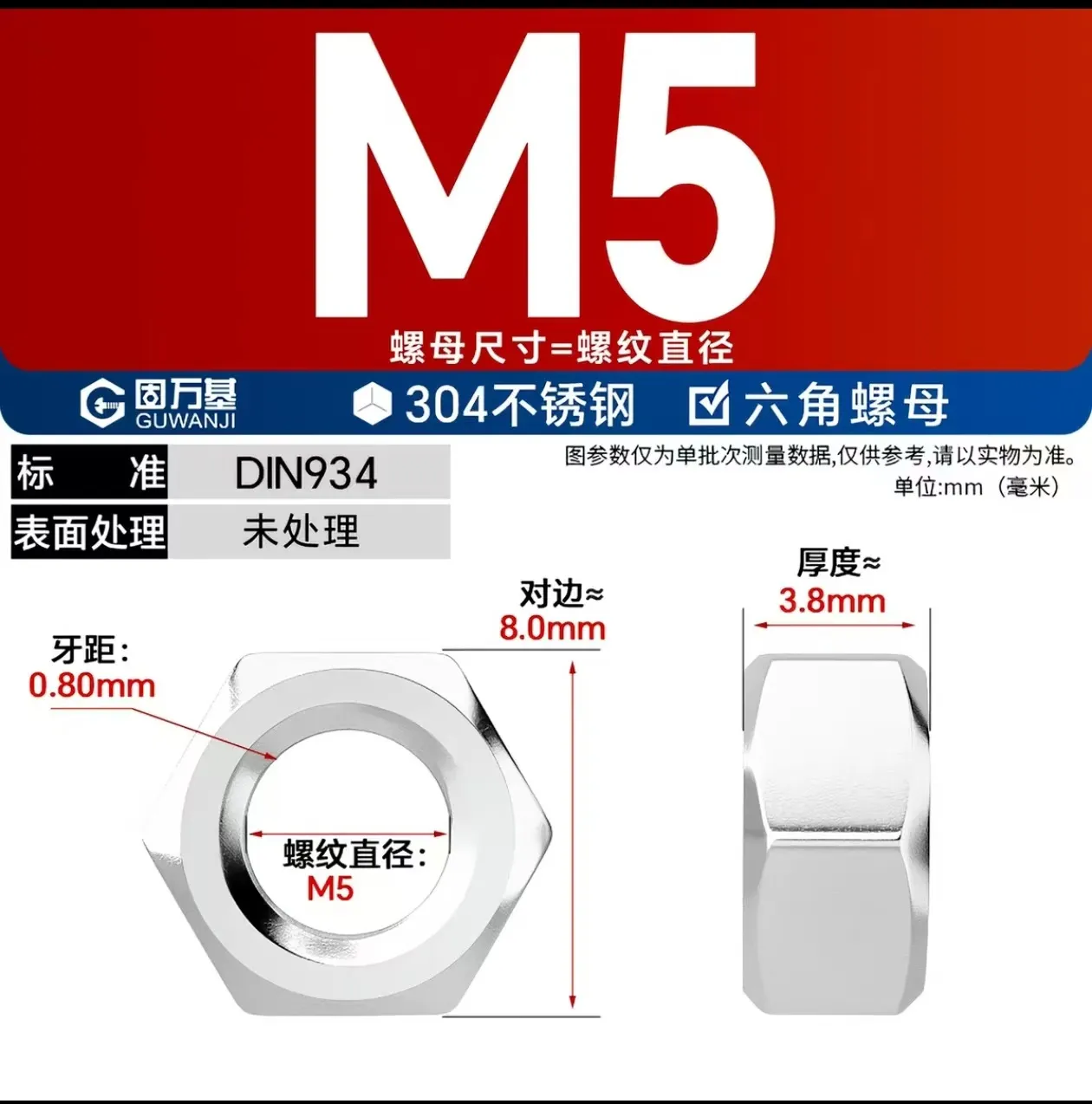

M5 nut | 1 |
|  For display stand installation |

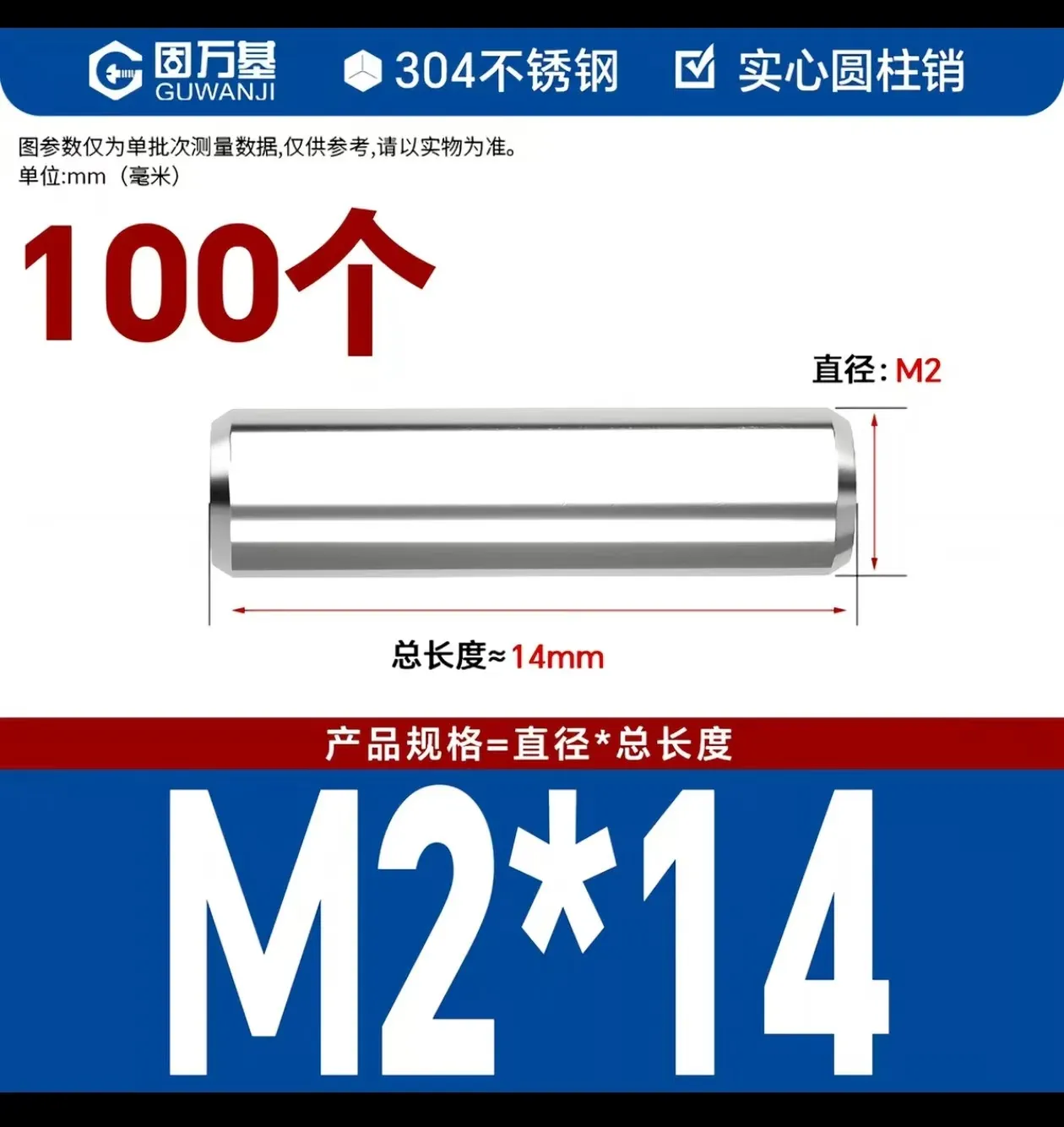

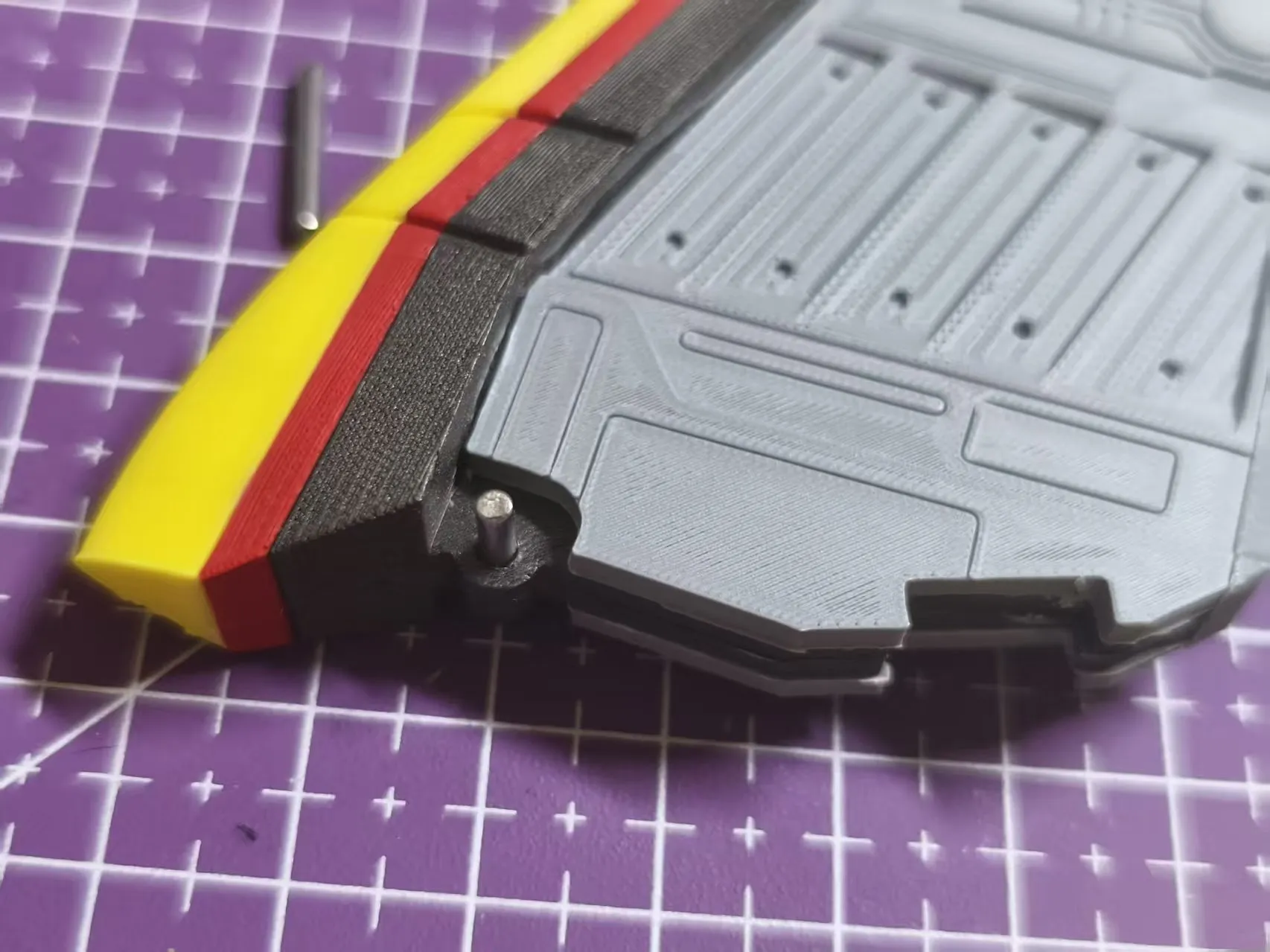

2mm diameter, 14mm long pins | 2 |
 |
 For use as rotating shafts |

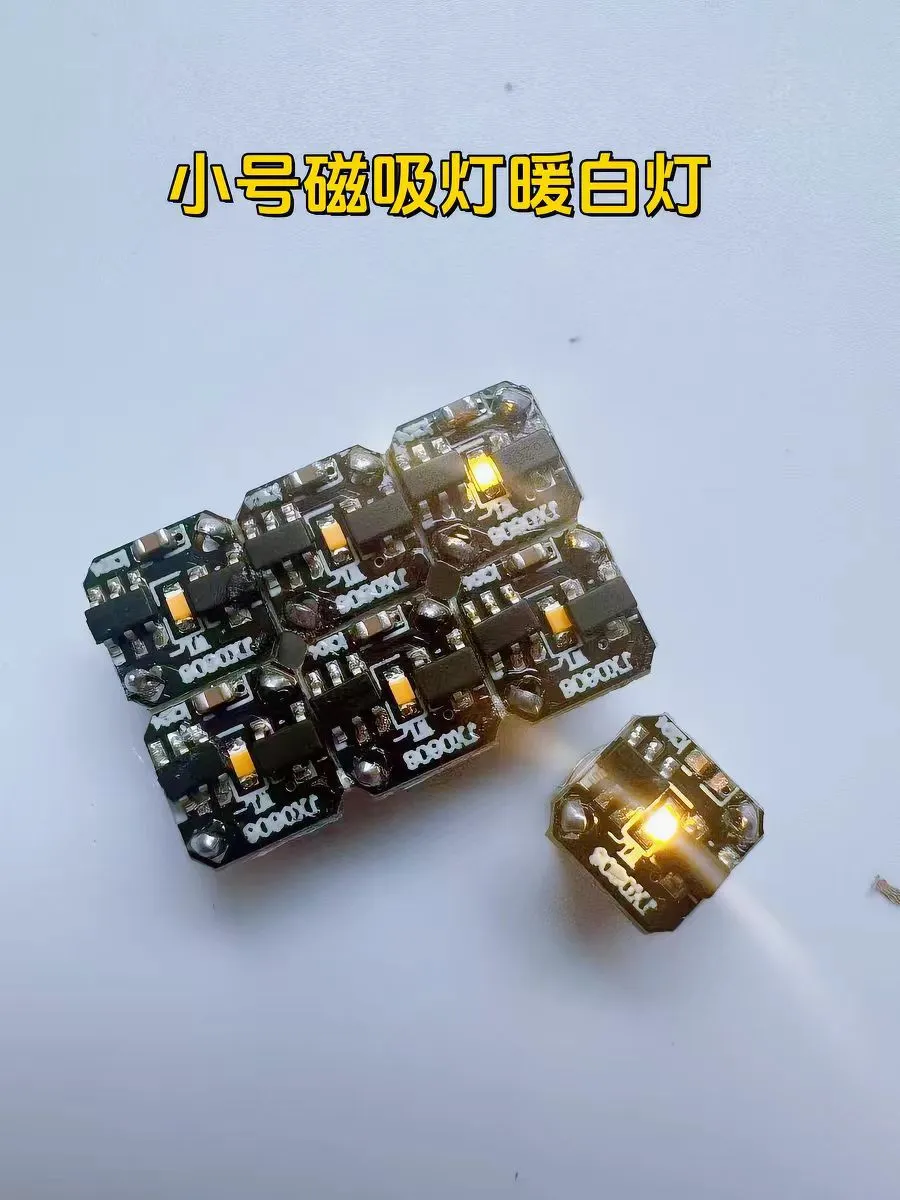

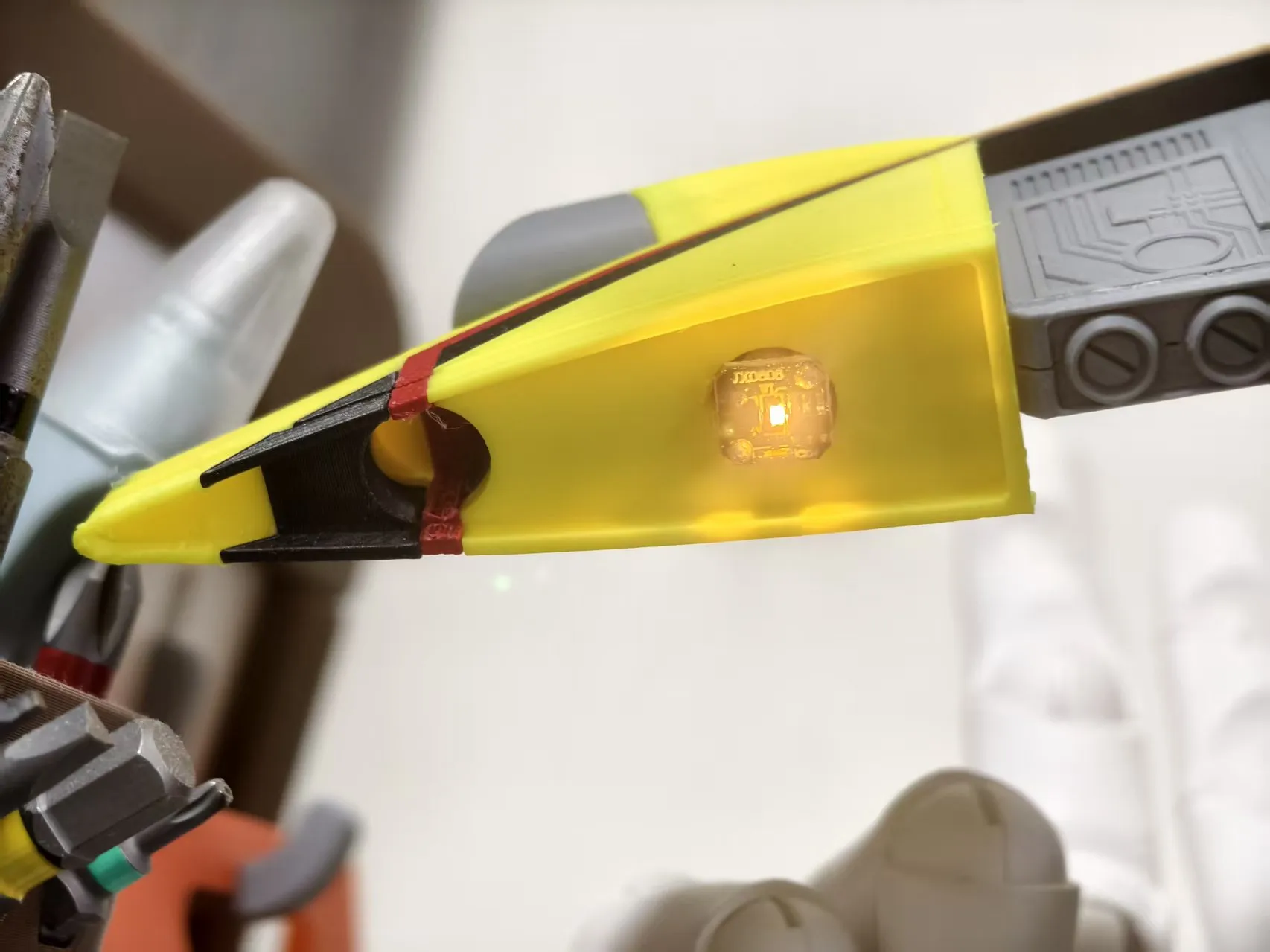

AG1 magnetic control light | 4 |  |
 Wing illumination parts |
4 Assembly Instructions
【Open Source! 3D Printed Swallow No 1 Assembly Tutorial - Bilibili】 https://b23.tv/s0zUaJH
5 Next Episode Preview

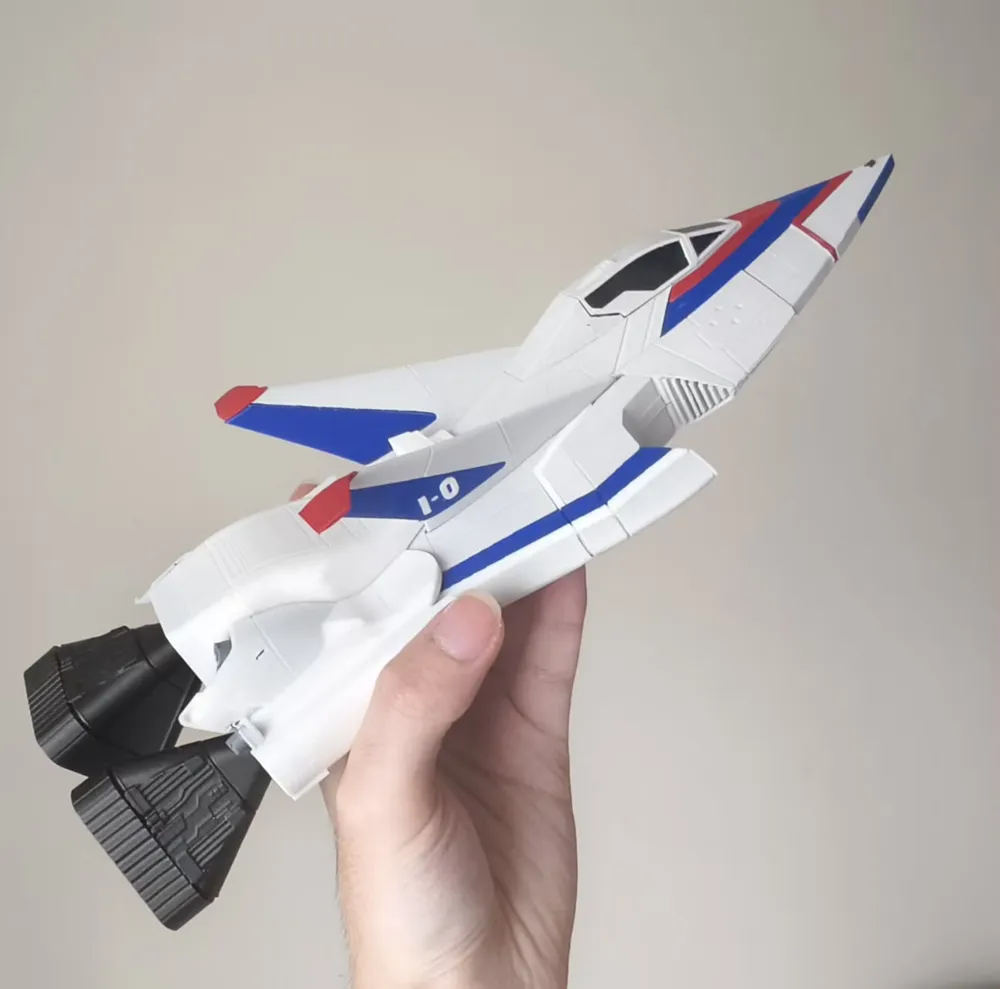

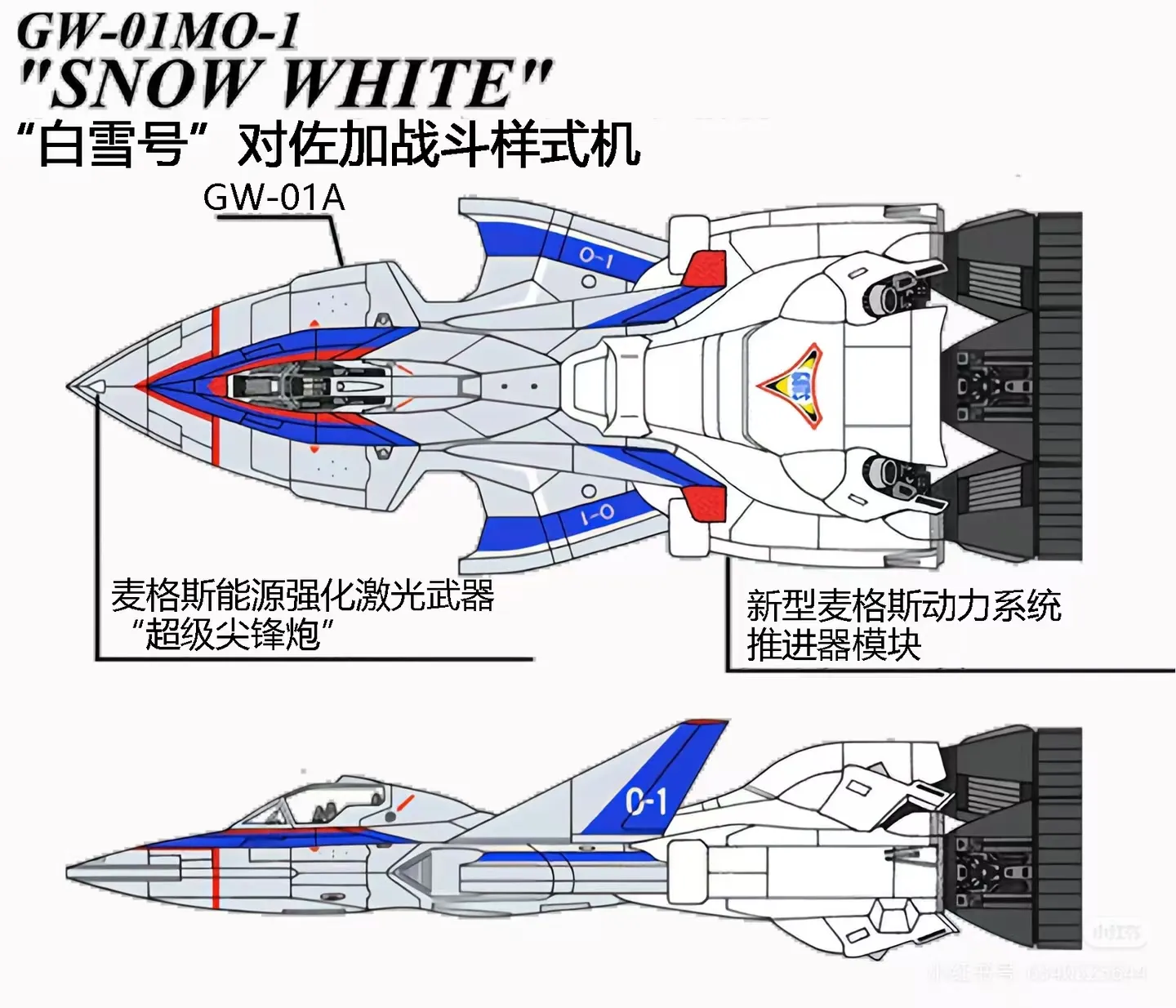

GUTSWING Snow White 0-1
Based on this model, the front fairing and the Magnes Power System thruster design will be changed. It is planned to integrate CyberBrick parts to add a light set, giving the model night light functionality
Regarding the wing and Victory Team logo stickers, to reduce customisation costs, I will release a sticker compilation pack after all series of No 1 models are released
6 Acknowledgements
Special thanks to users who supported the previous work!
Thanks to MakerWorld for providing free filament!
