SBR20 Locking Dovetail Mount (Quick-Swap System)
IP Report
Print Profile(1)
0.20mm layer, 2 walls, 50% infill, Gyroid
Designer
50 min
1 plate
Open in Bambu Studio
Boost
1
6
0
0
0
0
Released
Description

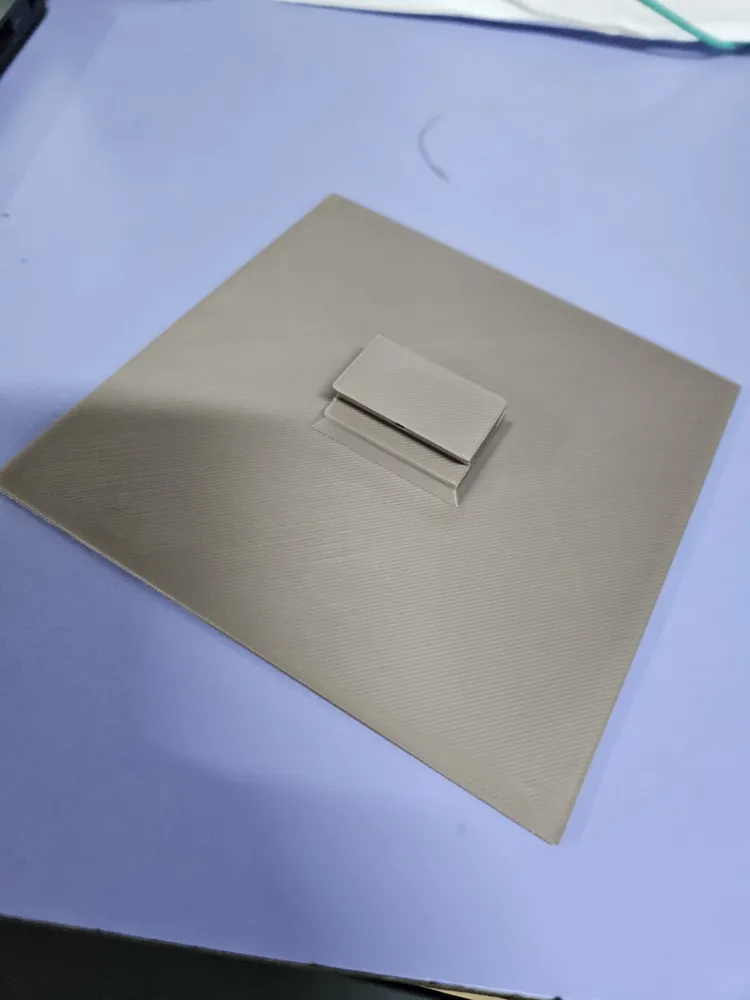

This is a robust dovetail mounting system designed specifically for SBR20 linear rail sliding blocks (SBR20UU). I created this mechanism to allow for modular, quick-change attachments on linear motion projects without unscrewing the base block every time.
Key Features:
- Quick-Swap Design: Easily slide different tools or mechanisms onto your linear rails.

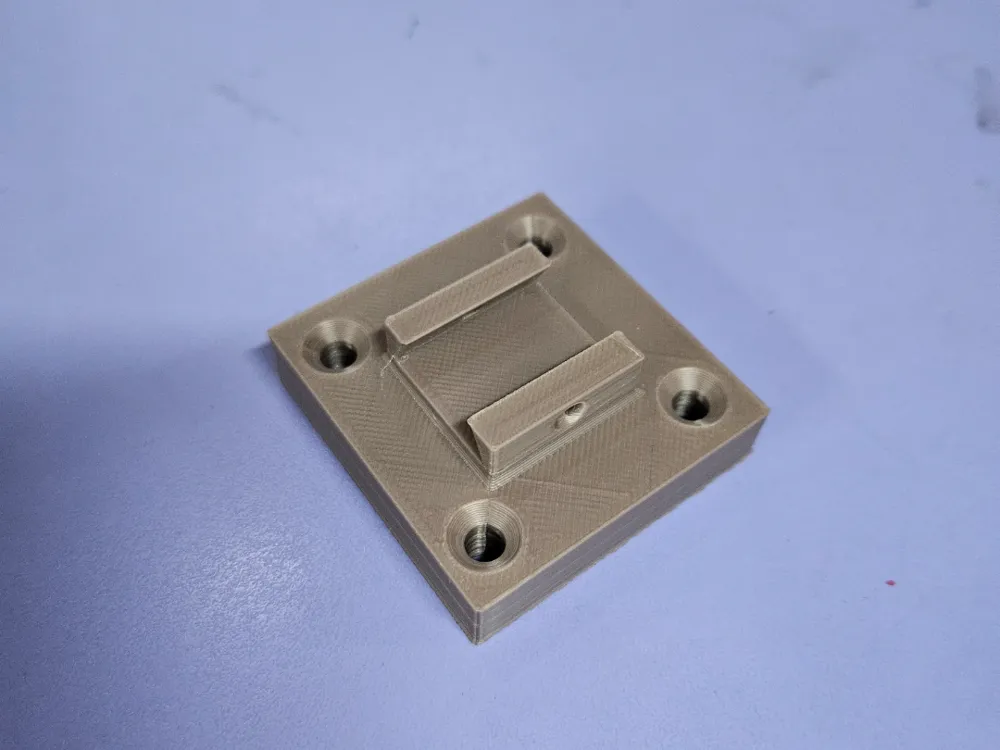

- Locking Mechanism: Includes a dedicated hole for an M3 screw. This acts as a set screw to firmly lock the dovetail plate in position, preventing sliding during operation.
- Heavy Duty: Designed with thick walls and high infill to withstand mechanical stress.
Hardware Required

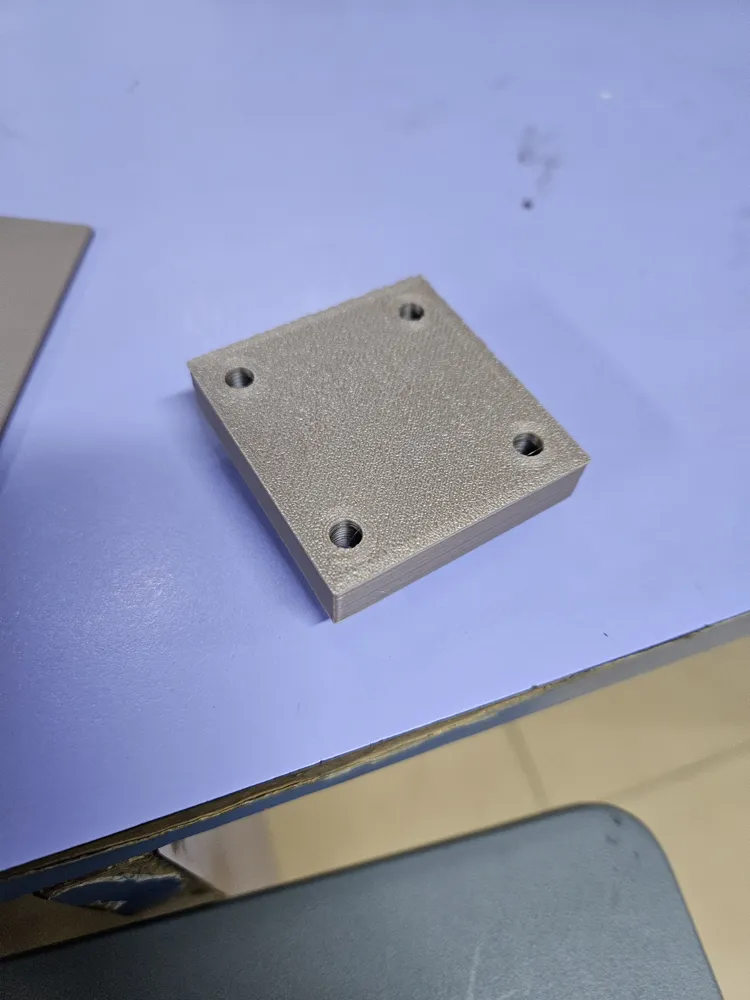

- 4x Machine Screws: (Typically M5 or M6) to secure the base to the SBR20 block.
- 1x M3 Screw: Used as the locking set screw (length depends on your preference, 10mm-15mm recommended).
- If you prefer using a nut rather than threading into the plastic.
