DC Motor Hoist Pulley – 6mm Shaft Compatible
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 25% infill
Designer
56 min
1 plate
Open in Bambu Studio
Boost
4
9
0
0
13
7
Released
Description

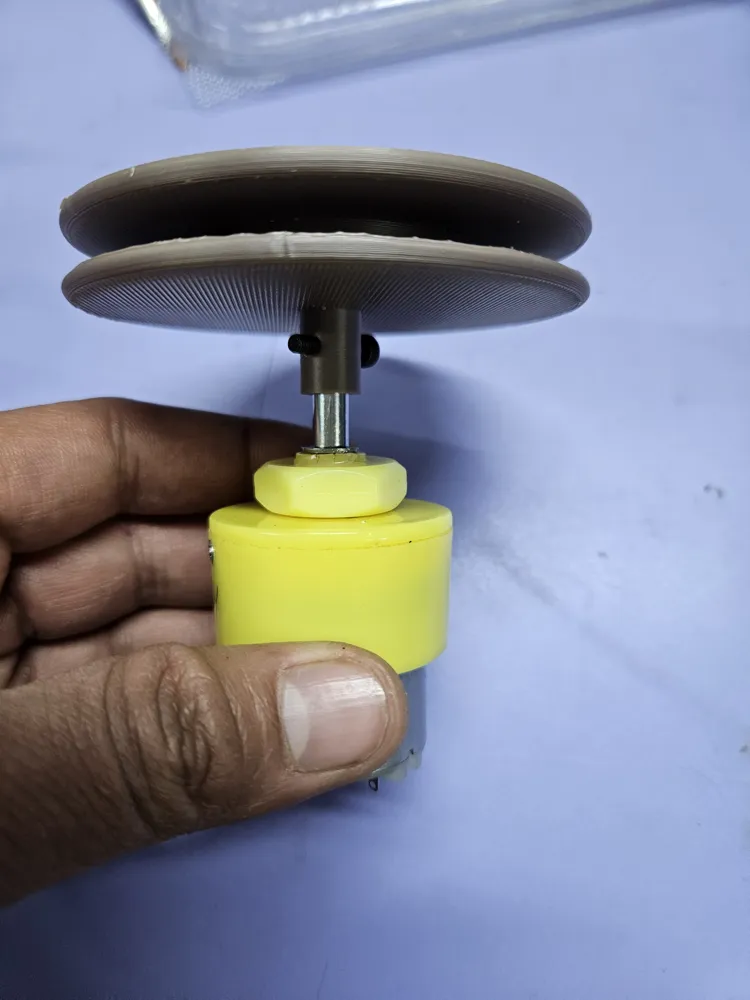

This is a simple but effective pulley/spool system designed to mount onto a DC geared motor with a 6mm diameter shaft. I created this to act as a winch for winding rope or cord in robotics and lifting mechanisms.
Key Features:
- 6mm Shaft Fit: Designed specifically for standard DC geared motor shafts (check your motor's shaft diameter before printing).

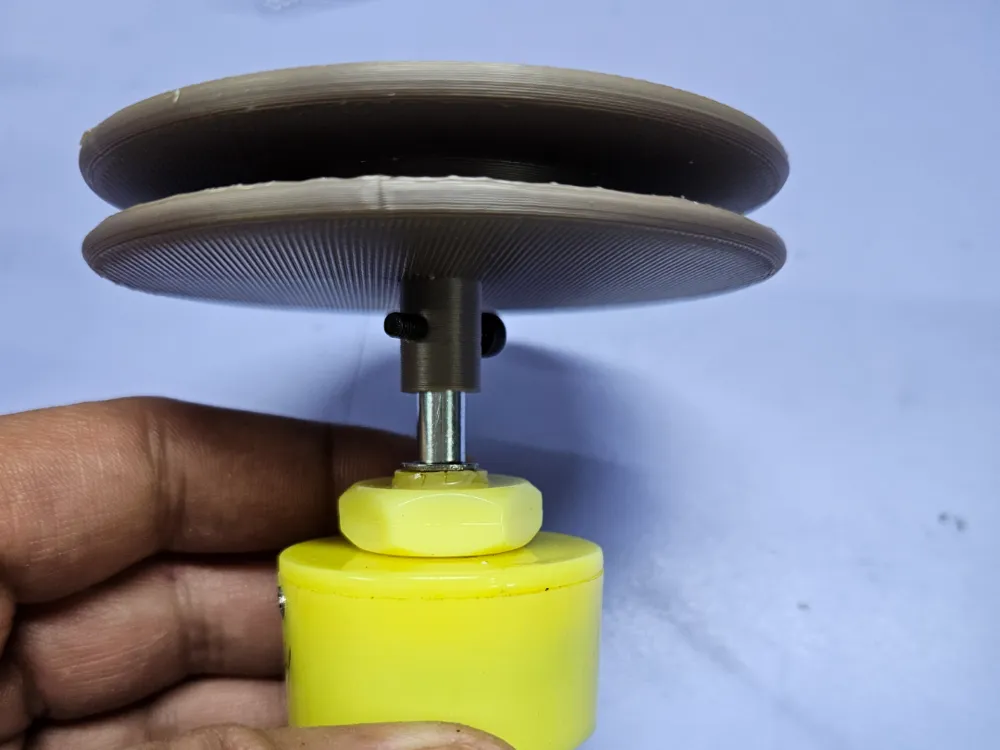

- Secure Locking: The extended hub features a hole for a set screw (M3 recommended) to clamp the pulley firmly onto the motor shaft, preventing it from slipping under load.
- High Walls: Large flanges ensure the rope stays contained on the spool during operation.
Hardware Required
- 1x M3 Screw/Bolt: To act as a set screw for locking the hub to the motor shaft.
