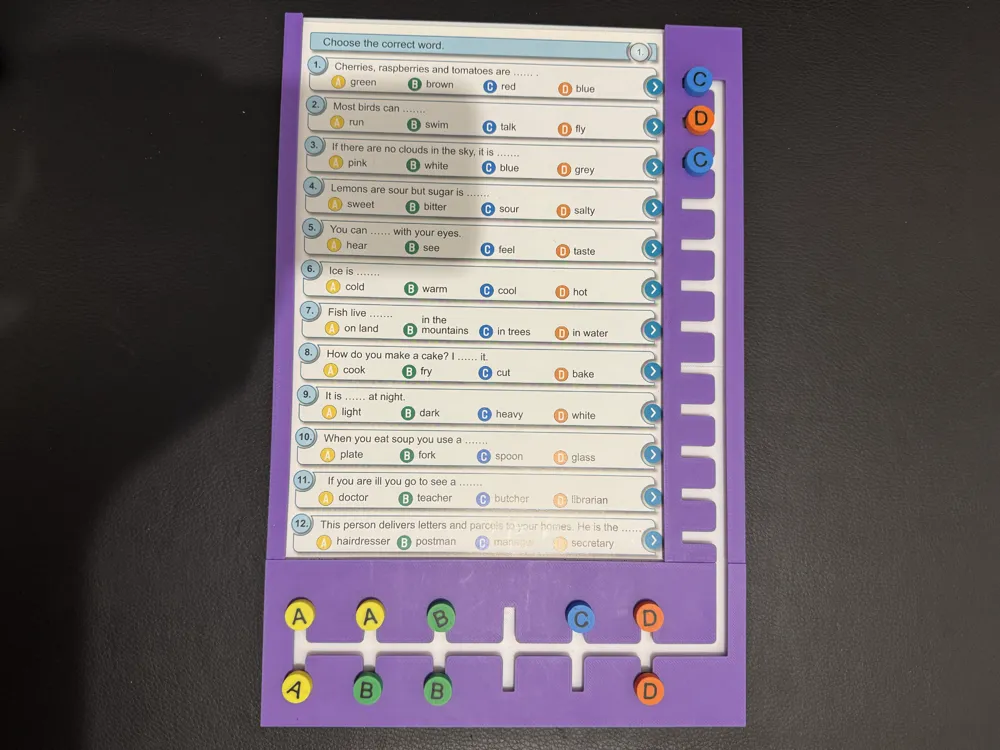

I've modelled a Logico Teszt board, because I couldn't find it anywhere for my existing papers. This is the 12 button version, not the 10 (Piccolo).

I only have a P1S, so had to cut the model to smaller parts, but I also uploaded and H2 version, where you don't have to assemble that much pieces.

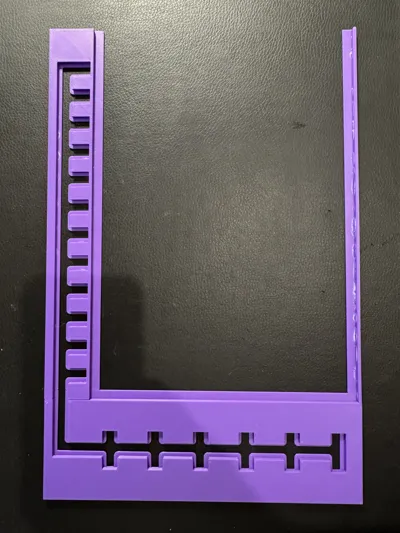

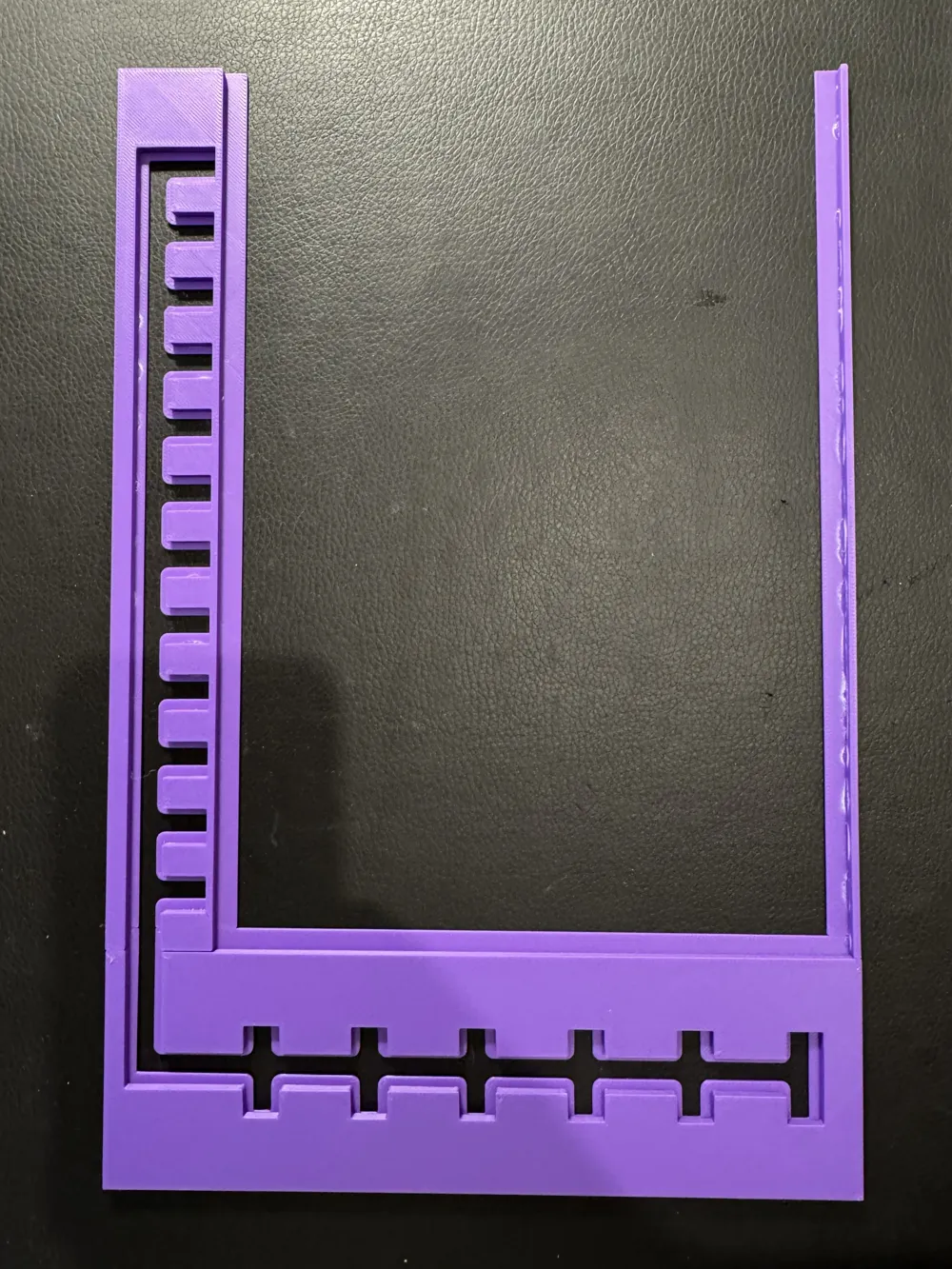

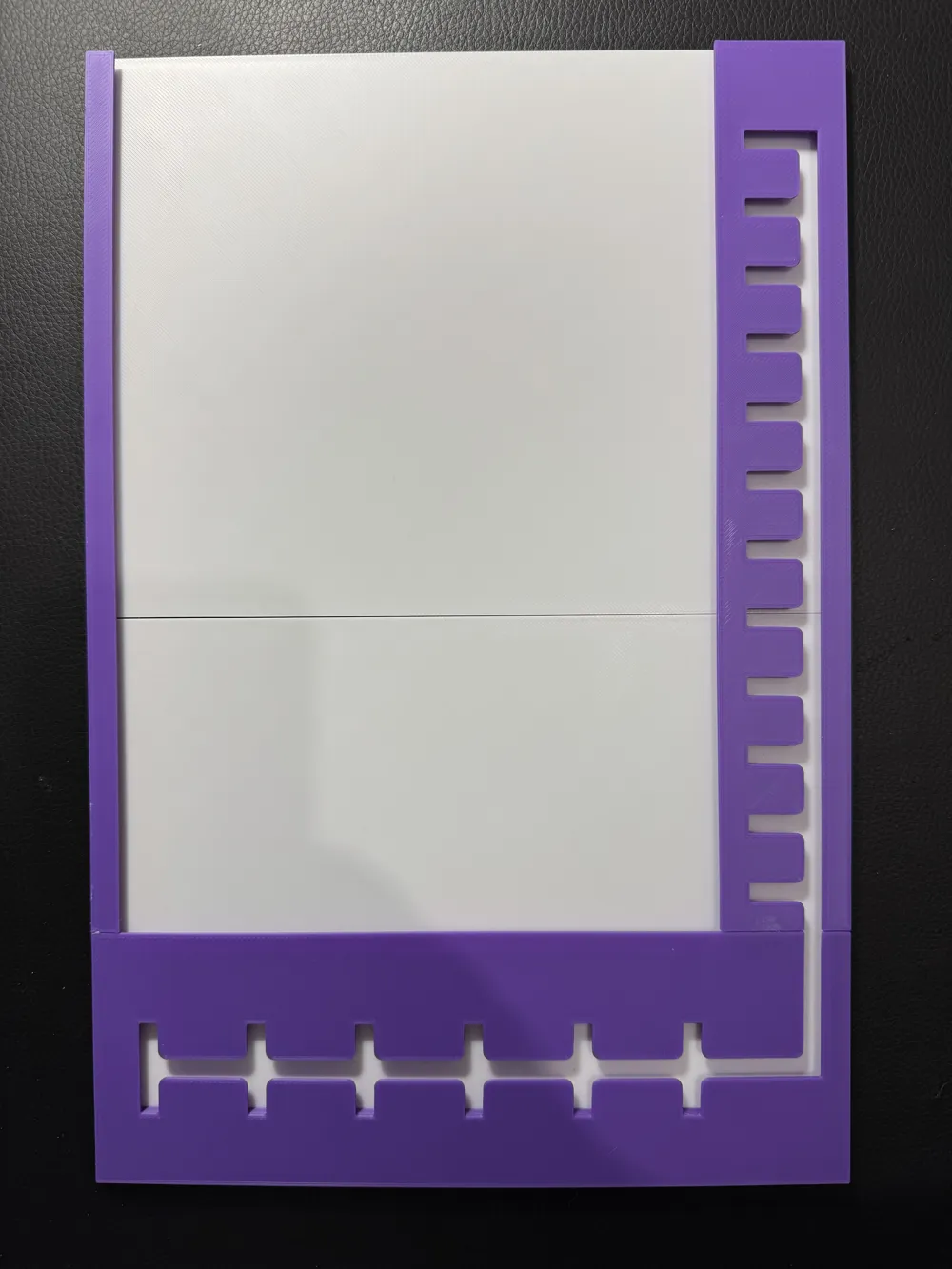

You'll need a bit of glue to combine the bottom, middle and top layers, which are all labeled in the print profiles.

The buttons can be snapped together, and you can insert them at the cross sections at an angle.



I've left all the objects and cutouts in the model, so feel free to modify them as needed for your model.
