Description
I redesigned the cable management box/organizer. It features many structural innovations and solves several pain points during use
Size Description
| Configuration Model | Dimensions: (Length × Width × Height) Unit:mm | Applicable Cables (description for reference only, subject to actual conditions) |

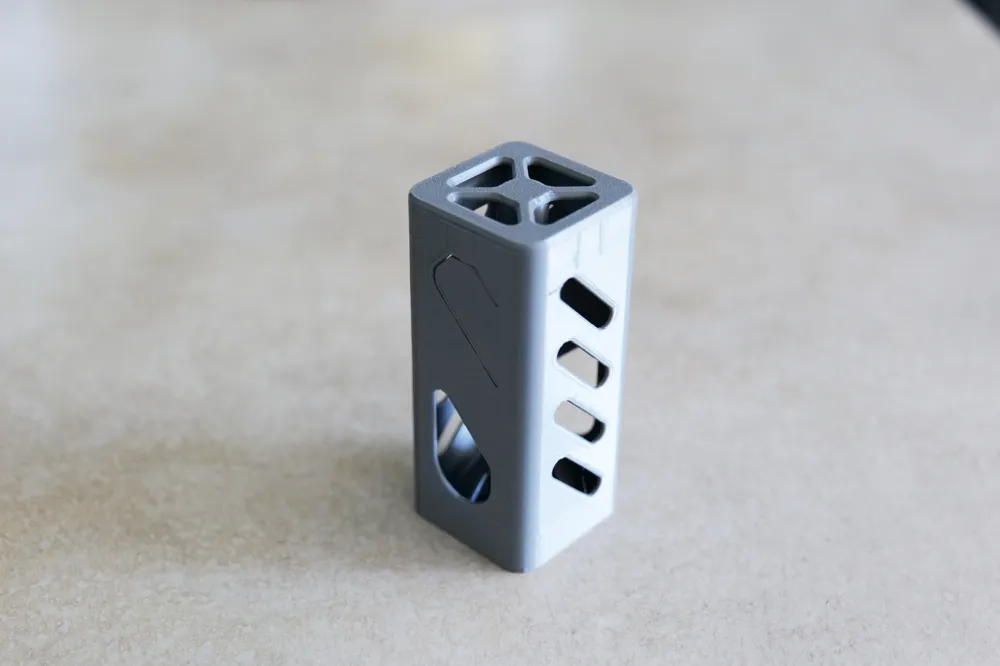

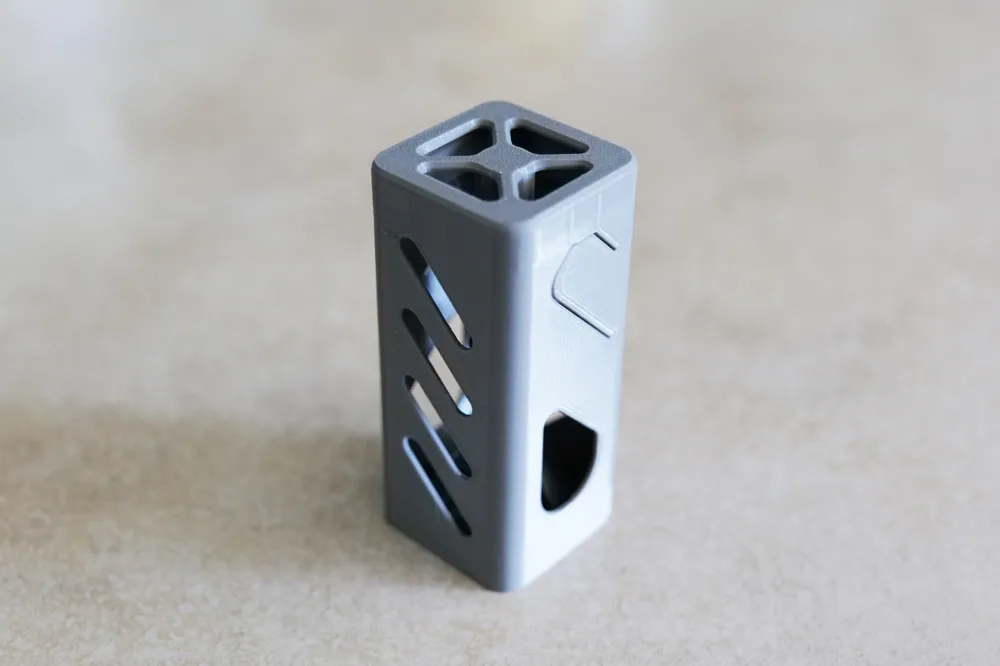

| 1X Size | 43 × 43 × 98 | Thinner, shorter, and softer cables, 3-4mm thick cables can be well stored, such as general half-meter USB A, USB C, micro USB, thin and soft 3.5mm plug cables, etc |
| 1XW Size | 86× 43 × 49 | Thinner, shorter, but not very soft cables, 3-4mm thick cables can be well stored, such as general half-meter USB A, USB C, micro USB, thin and soft 3.5mm plug cables, etc |
| 1XW Size Headphone Special Edition | 86× 43 × 49 | Seeing fan photos, I specially made this special edition designed for earbuds. Although not yet perfect, it can meet many storage needs for 3.5mm earbuds. Only the lid is different from the 1XW Size |

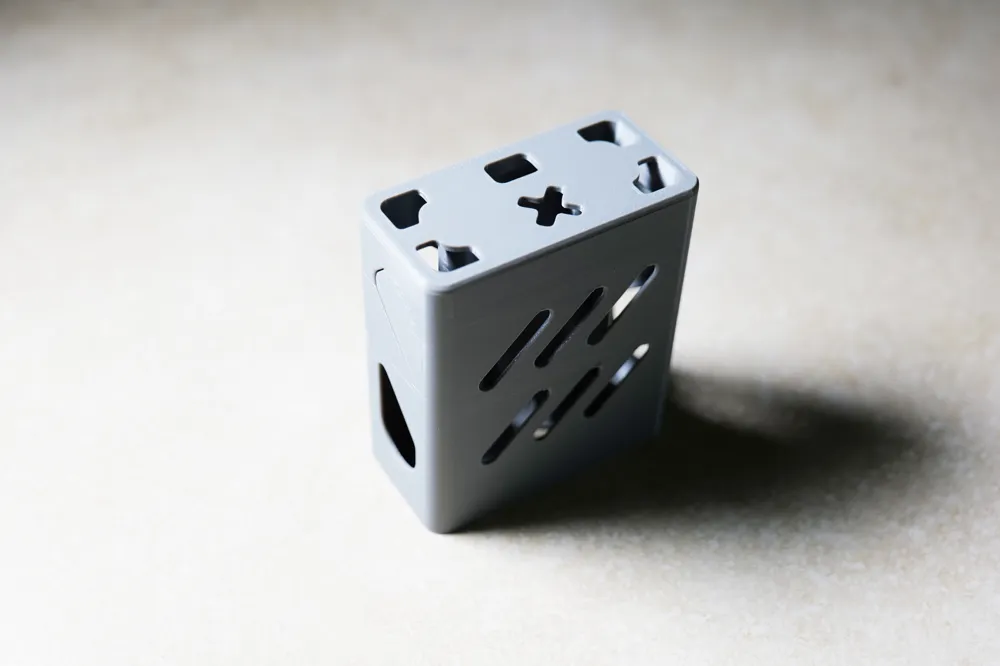

| 2X Size | 86 × 43 × 98 | Slightly thicker, harder, and longer cables, 3-5mm thick cables can be well stored. In addition to being compatible with the above cables, slightly larger plug cables can also be tried. Cables around 1 meter pose no problem |

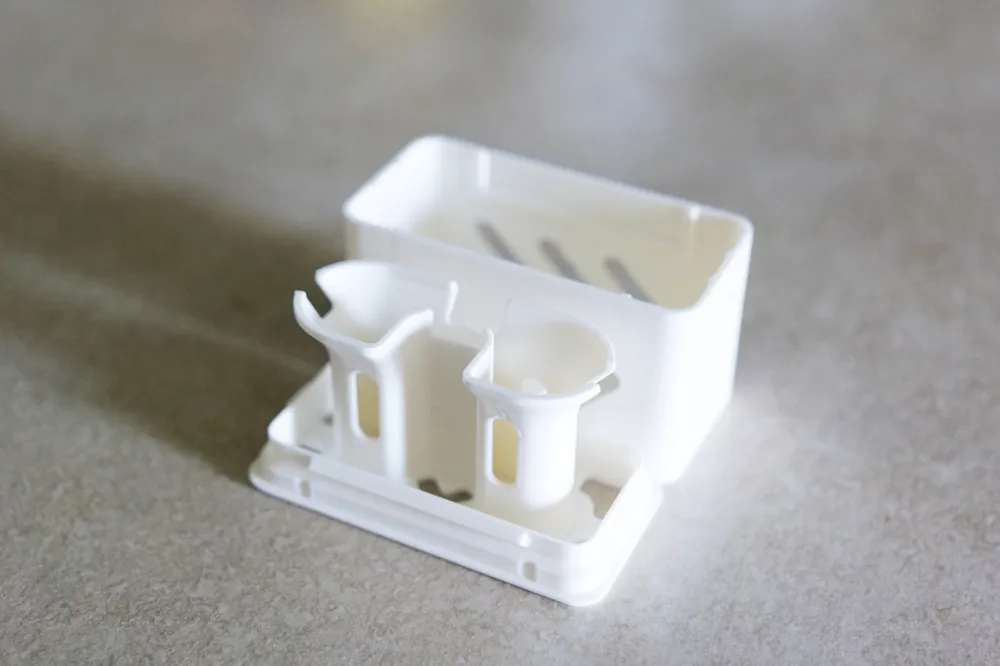

| 2XW Size | 86× 86 × 49 | More rounded spooler, suitable for slightly stiffer cables, 3-5mm thick, around 1 meter with no problem. This model is sufficient for most daily cables. However, it is not suitable for large plugs |
| 4X Size | 86 × 86 × 98 | At this size, commonly used digital connection cables can be well stored. For longer cables of 2 meters, you can try this size. 4-6mm thick cables can be well stored. Cat 5 network cables with plugs can also be stored. You can also use the 2XW lid to wind cables, and the bottom space can store an Apple phone charger |
| 6X Size | 129 × 86 × 98 | More friendly to stiff cables, 6mm thick cables can also be stored. It also has a good storage effect for cables around 3 meters. The internal space of the spooler is large enough to store the remaining part after winding and the large plug at the other end, or to hide the charger inside |
| 9X Size | 129 × 129 × 98 | Extra-large size, with a larger plug compartment than the 6X, compatible with stiffer, thicker, and longer cables, such as 8mm thick cables, over 3 meters. XLR plugs and even larger cables can be well stored. The internal space of the spooler is large enough to store the remaining part after winding and the large plug at the other end, or to hide the charger inside |

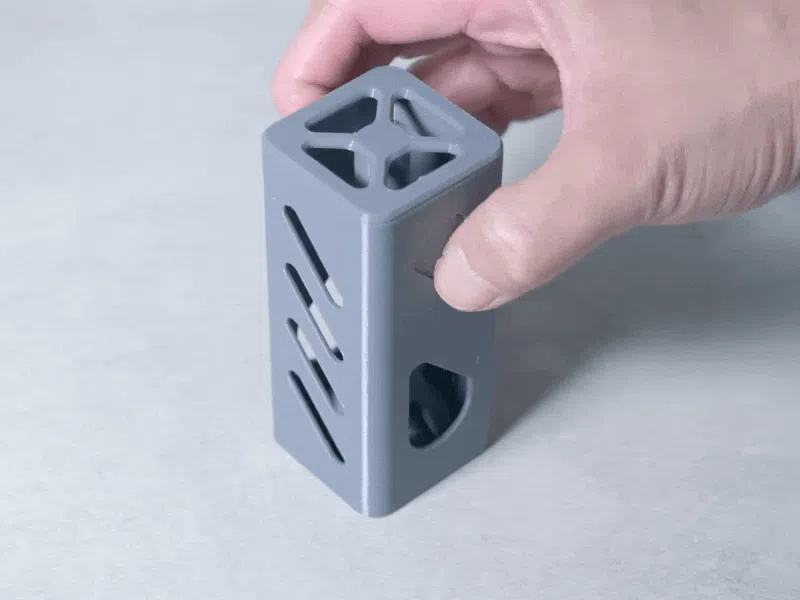

1. Buttons on both sides, can be pressed on one side or both sides simultaneously, achieving one-key quick-open ejection. After multiple iterations, the pressing force has been converted into two component forces: forward push and upward, completely detaching from the spring structure
2. Independently developed a quick-open mechanism. To increase button durability, I converted horizontal force into vertical force, no longer limited by weak interlayer adhesion. On MakerWorld, become my fan to use this quick-open structure for free commercial use, and you can put this structure in your own works (note: not this specific work itself), no attribution required

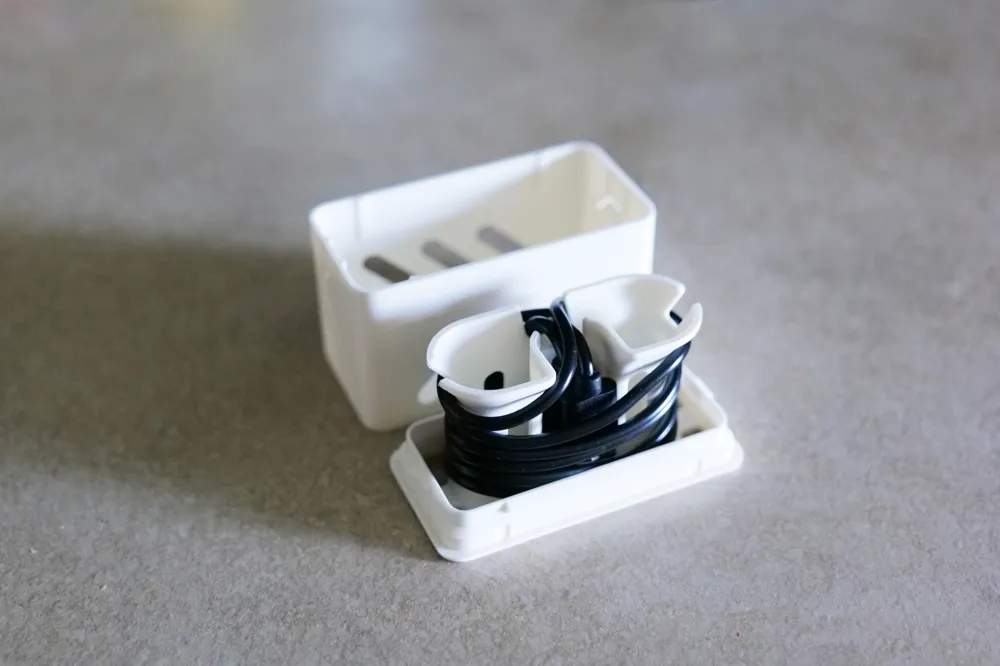

3. Top cover with extended cable management device, convenient for routing and securing cables

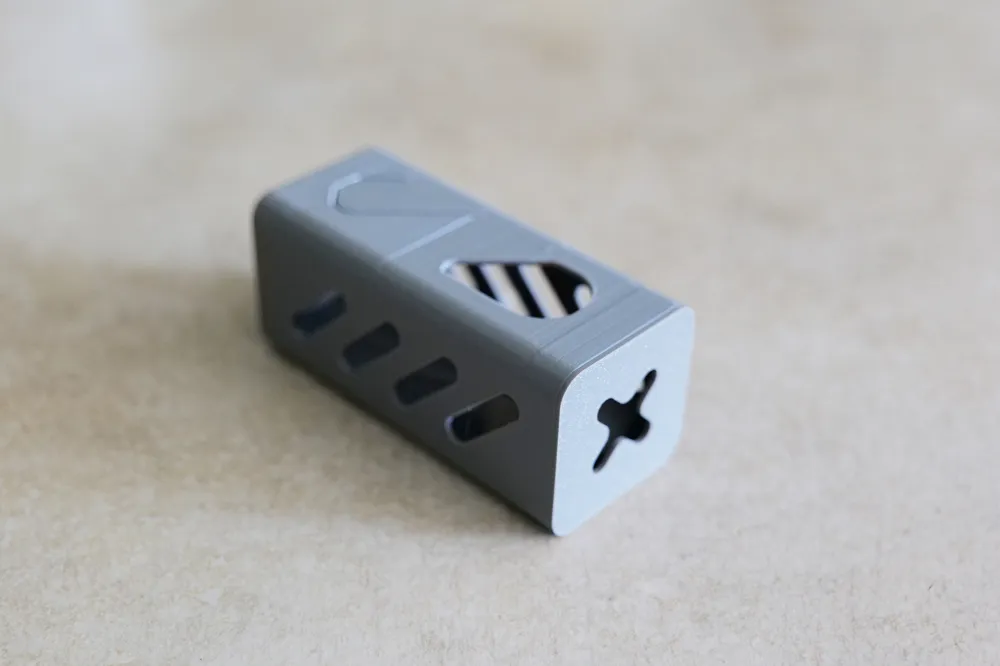

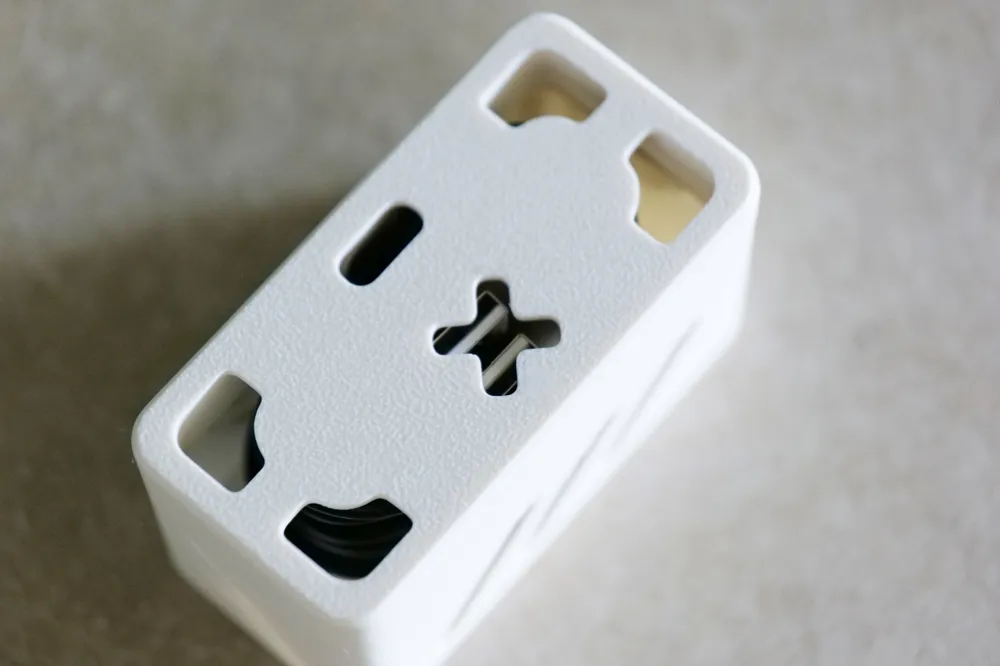

4. Hollow window design allows viewing the connector from the top, knowing the cable type without opening the box, improving usage efficiency

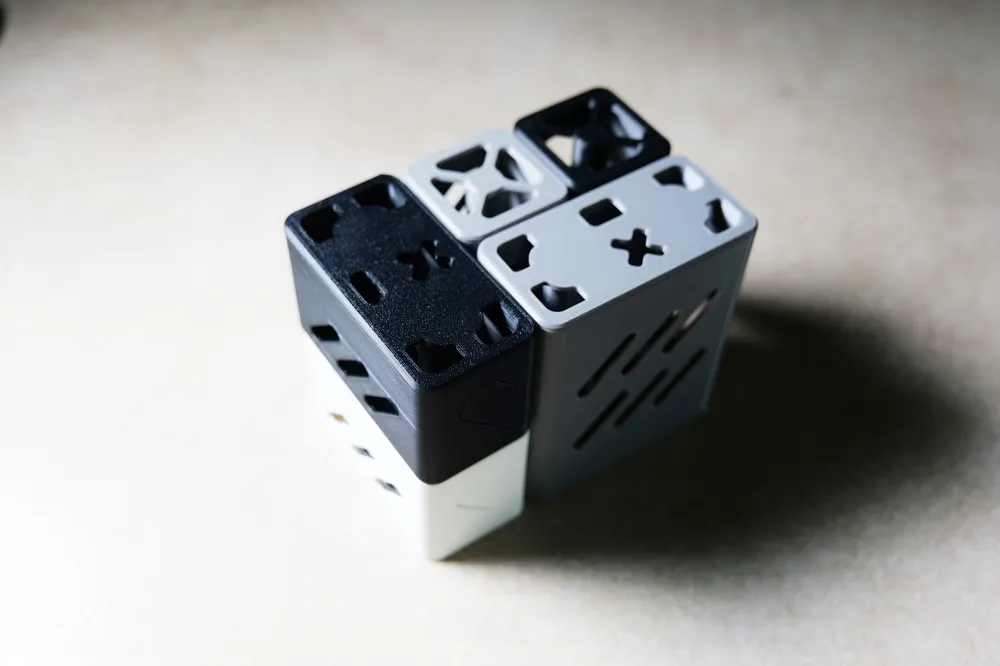

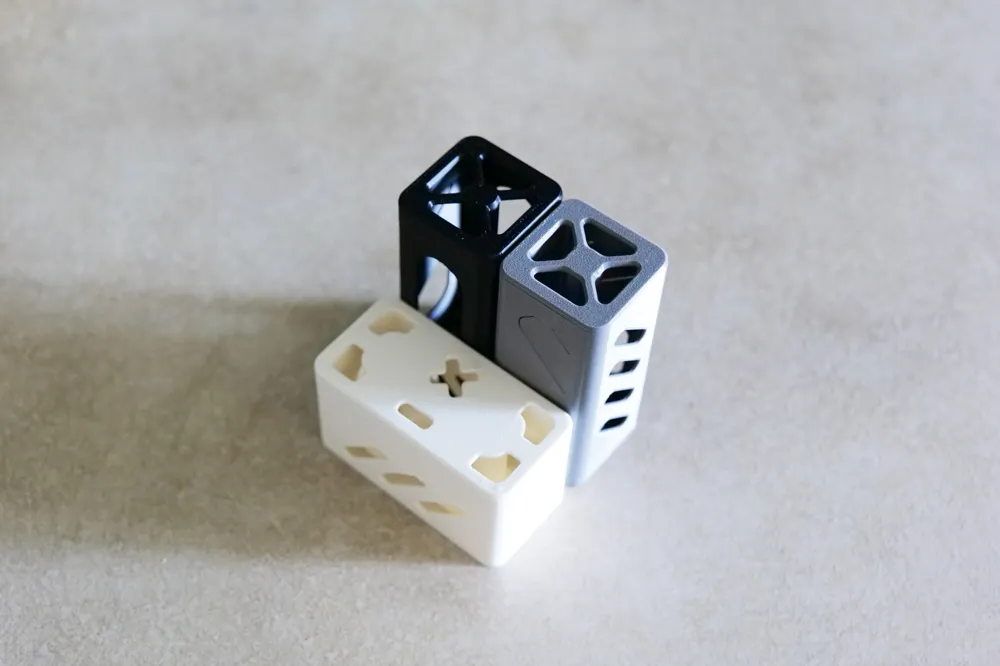

5. Modular design, proportional space occupation, stackable 3-5 layers. Easy to store
6. Each model has a separate lid without a spool that can be printed directly. As a traditional organizer, it still enjoys the convenience brought by the quick-open structure
7. It can also serve as a fidget toy, enjoying the satisfying click sound of opening and closing
8. The project is concluded, and suggestions from comment sections across the network have been collected. The Pro series is on the way
Log
April 26, 2026 8:55 AM Box button gap increased from 0.2mm to 0.4mm
April 28, 2026 7:40 PM I have completed the development of the 1X Size W version and finalized two rounds of prototype fine-tuning. I reviewed comments from Bilibili and the domestic MakerWorld community. This improvement addresses about half of the feedback. It is expected to be launched within 3 days, aiming for tomorrow. It will be arranged in a new configuration. Subsequently, I will continue to develop the 2X Size version and other size versions, with versions being multiples of each other, ensuring uniform stacking dimensions
April 29, 2026 1:08 PM 1X Size Update 1.2
Increased the distance between the spooler and the bottom of the box, enlarged the diameter of 2 winding slots, solving the problem of insufficient space for cable contact with the bottom, which caused the lid to not close tightly
Reunified the exterior design language to prepare for future winding boxes of other sizes
April 29, 2026 5:18 PM 1X Size W Released
Suitable for slightly thicker cables, further enhanced button strength, and a tighter lid
Dedicated plug recess
Width is 2 times that of 1X Size, height is 0.5 times
May 1, 2026 9:00 AM 2X Size Released
Suitable for slightly thicker and longer cables
Dedicated double plug recesses for optimal space utilization
Width is 2 times that of 1X Size, height is 1 time
May 8, 2026 5:38 PM Step format opened
You can see both Step and Stl format files by simply downloading the file
Thanks to my fans, I opened the Step format at their request
To allow more advanced users who like this modular box set to deeply customize and modify it according to their usage environment
May 13, 2026 3:13 PM
2XW Size Released
4X Size Released
Supports thicker, stiffer, and longer cables
Cat 5 network cables can also be well preserved
May 22, 2026 10:28 AM
6X Size Released Supports a larger plug compartment
9X Size Released Supports a plug compartment the size of an XLR plug
The series is concluded. The next Pro series will be fully upgraded based on the most valuable constructive suggestions from comment sections across the network. Please look forward to it
