Reduced Height Dactyl Split Keyboard
Print Profile(1)
Description

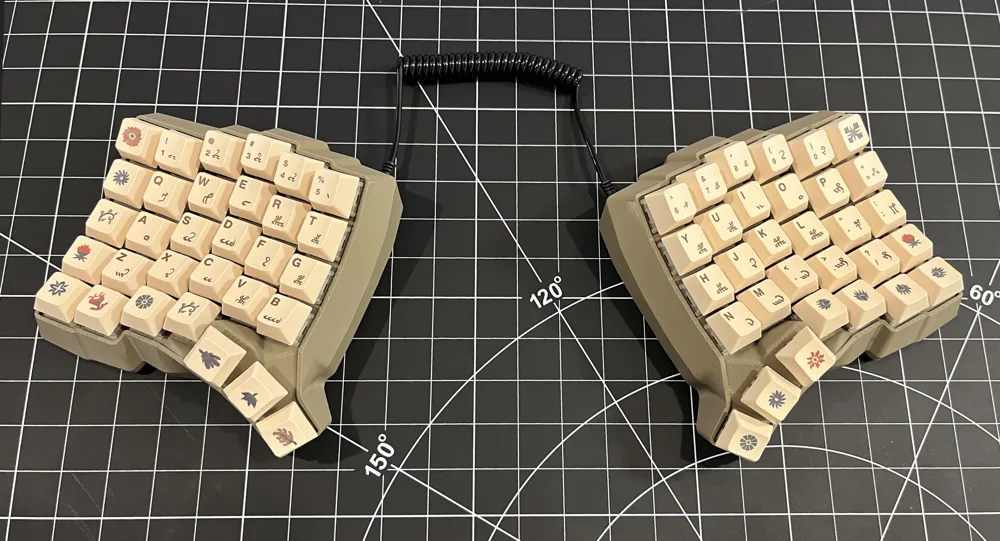

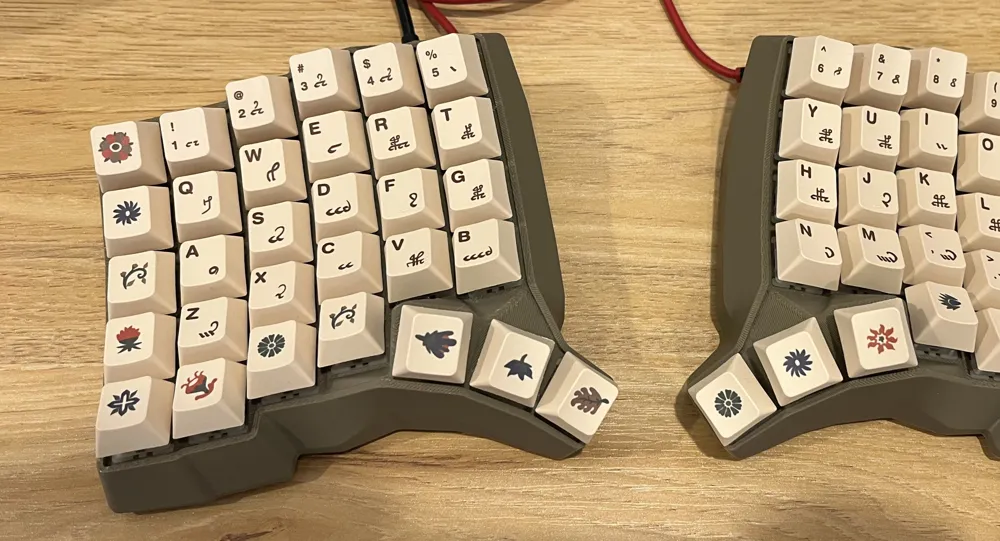

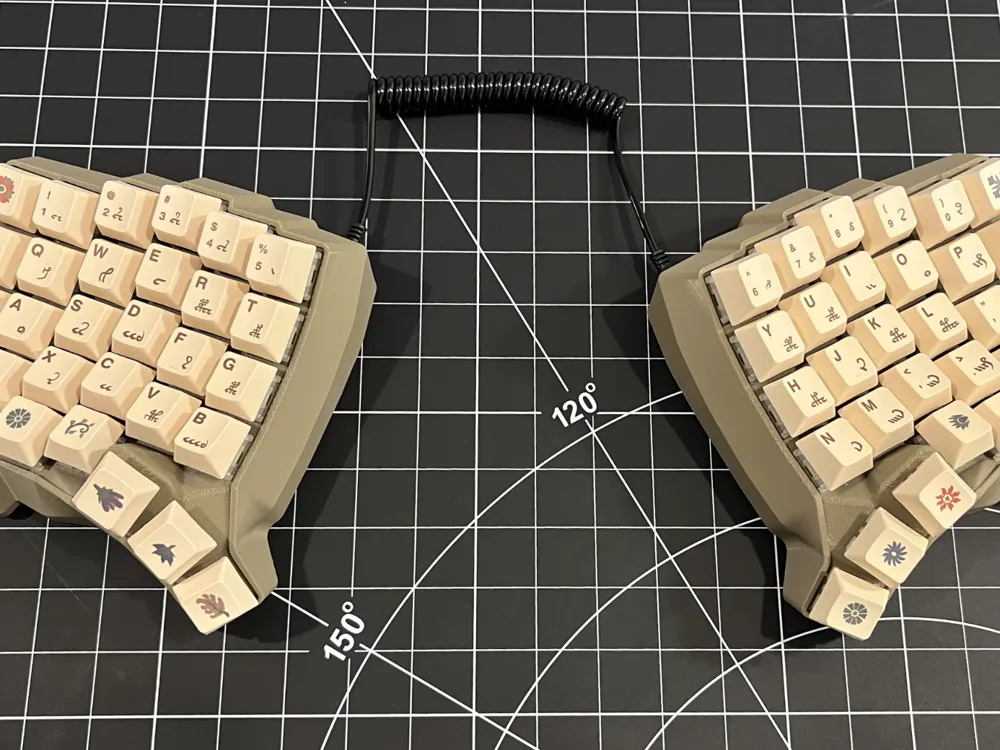

The Dactyl Manuform is one of the most ergonomic keyboards but they tend to sit pretty tall on the desk. In this video I walk through my reduced-height variant: same signature keywell curve, but brought down as low as MX switches physically allow. The key spacing is also more evenly distributed than the original, which I find both more comfortable and cleaner looking. It's handwired, split, and runs on Pro Micros.
GitHub (STL files + BOM + wiring diagram): https://github.com/multifex/prototypes/tree/main/reduced-height-dactyl-split-keyboard
STL Review Video:
Build process video:
Credits: Case geometry based on the Dactyl Keyboard by Matt Adereth and Dactyl-ManuForm by Tom Short, initially generated with Ryan Neff's Dactyl Configurator and modified in CAD by me.
